Torped 45 / Torped 47 SLWT lightweight Torpedo


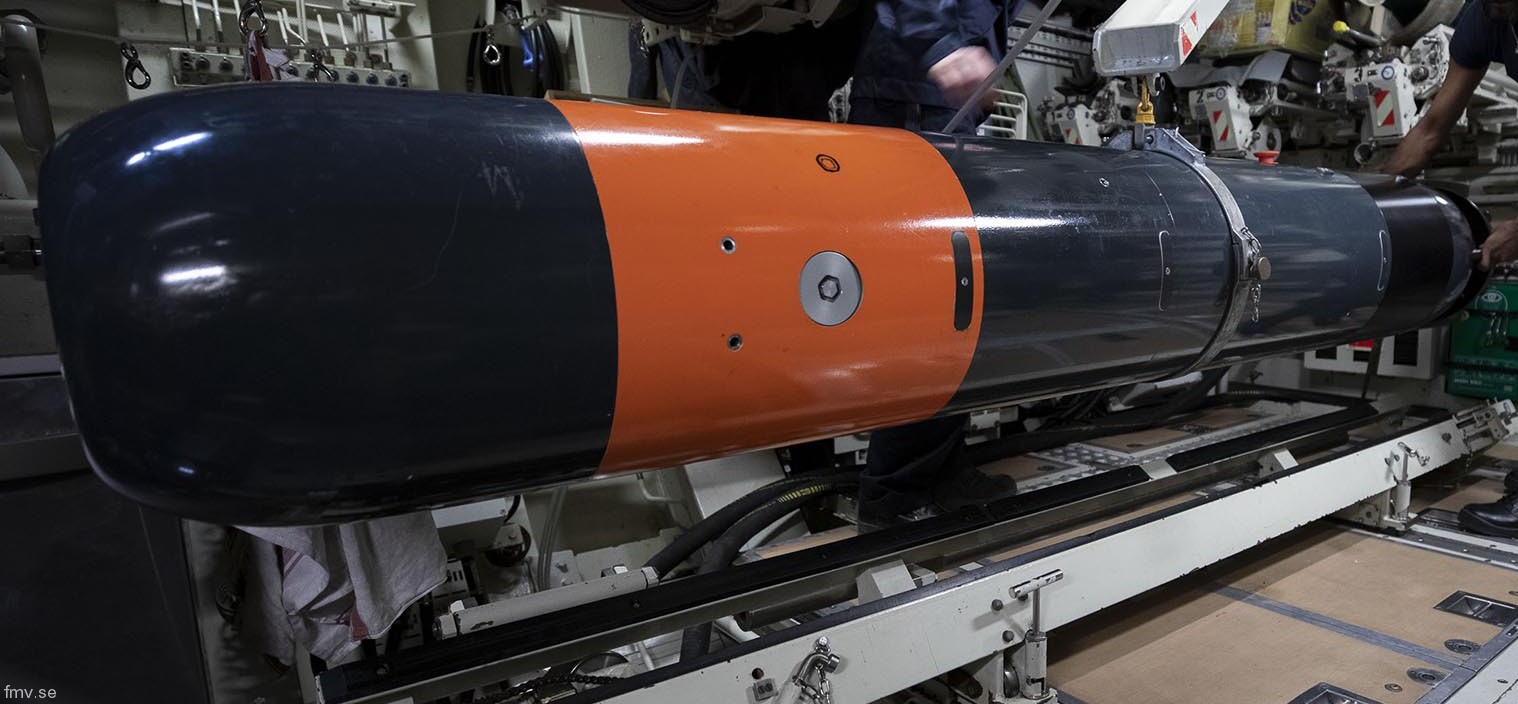

torped 47 slwt lightweight torpedo saab dynamics swedish navy finnish corvette submarine helicopter 03

08/22

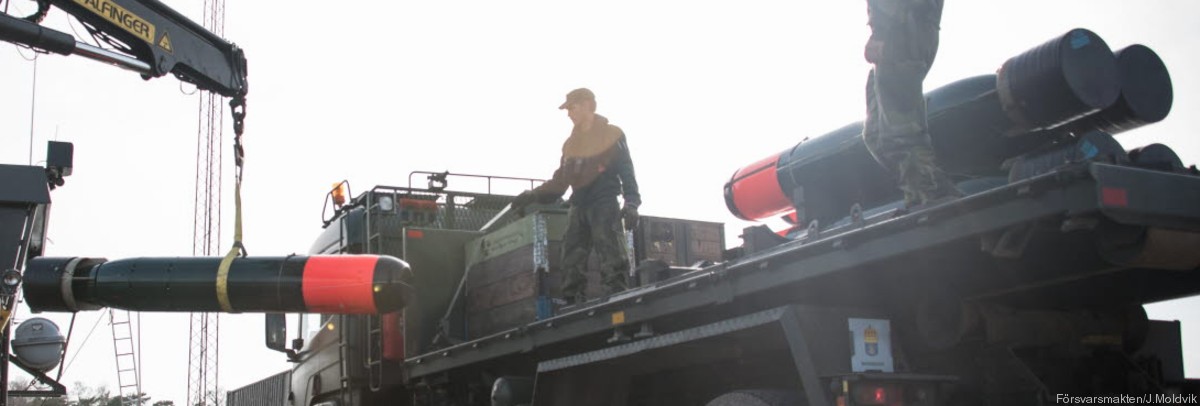

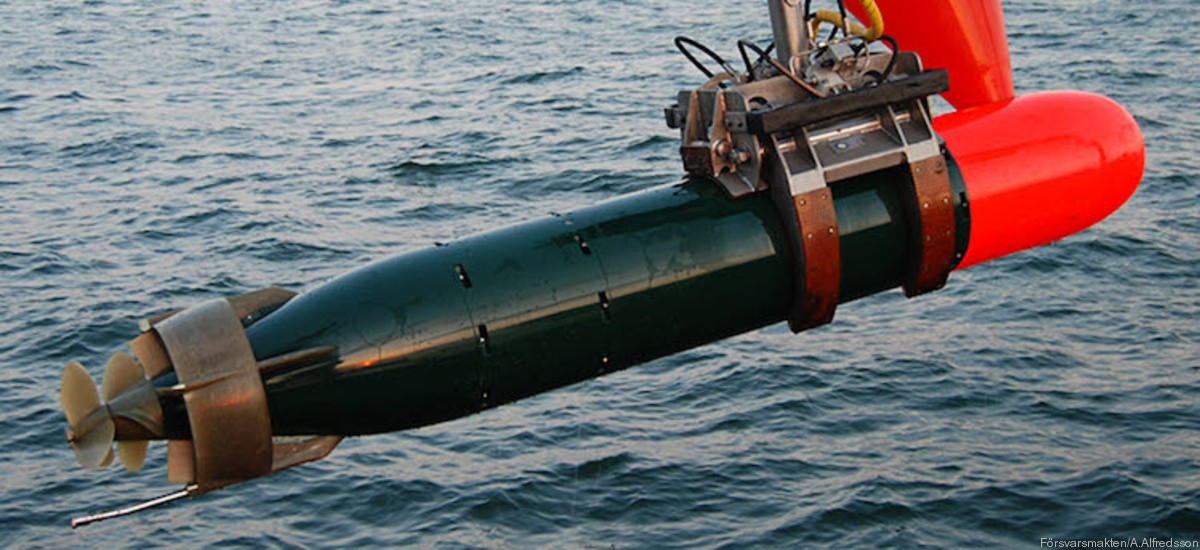

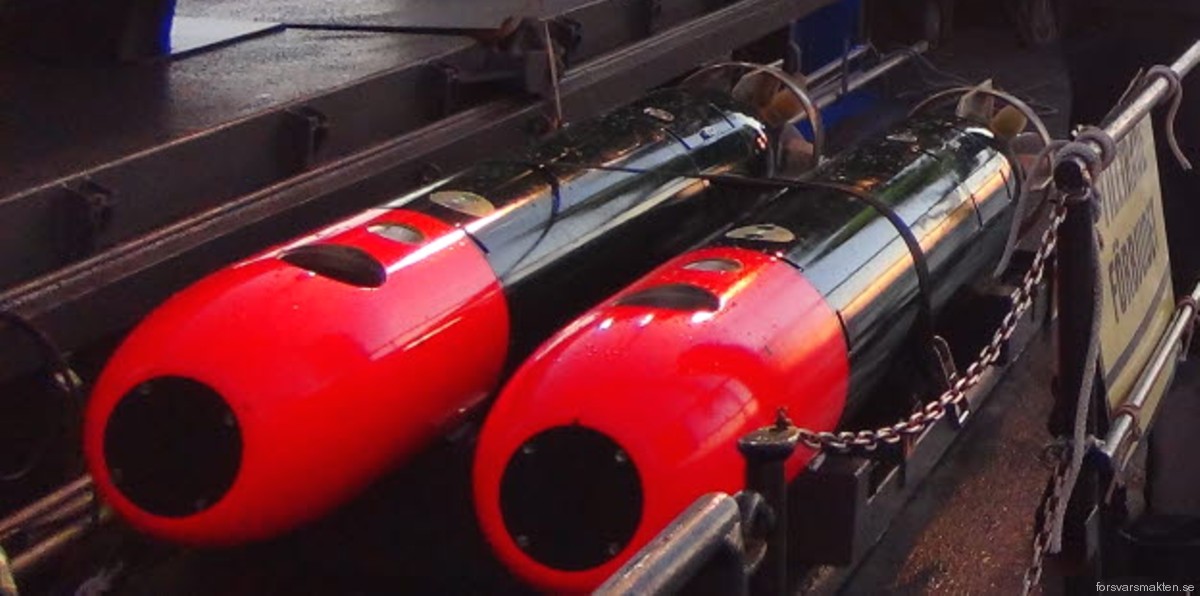

The Torped 45

... is a lightweight torpedo intended for ASW and surface targets, providing multiple-target active/passive homing combined with wire guidance. It is designed and manufactured by Saab Dynamics. It was designed for the Swedish Navy, based on the experience gathered from the well proven 43-series of torpedoes.

Torpedo 45 can be launched from a variety of platforms including stationary, surface vessels, submarines and helicopters. It was specifically designed to operate against shallow-water targets and surface vessels. It is controlled using wire guidance and has a hydro-acoustic homing system for the final phase. The torpedo has features that are unique for lightweight torpedoes.

It combines wire guidance and homing control
It can be launched from submarines, surface vessels and helicopters
It can be wire-guided from a flying or hovering helicopter (no parachute necessary)
Its warhead has a main charge large enough to take out any conventional submarine or seriously damage light surface vessels

In exercise torpedo launches, the warhead is replaced by an exercise head carrying identical homing equipment. Instead of explosives, the exercise head has a tape recorder for logging a number of torpedo functions, communication with fire-control and hit indications. After each run, the recordings are analysed and torpedo and fire-control functions are checked.

Technical data:
Diameter: 400 mm (16 in)
Length: 2850 mm (112 in)
Mass: 320 kg
Propulsion: electric DC motor with gearbox / AgIZn battery 4.2 kWh / 3 speed thyristor battery switching unit
Guidance: hydro-acoustic homing combined with wire guidance and on-board computer
Launching platforms: ships, submarines and helicopters


- - - - -


The Torped 47 or SLWT (Saab Lightweight Torpedo)


... is a new lightweight torpedo intended for ASW and surface targets, providing multiple-target active/passive homing combined with wire guidance. It is designed and manufactured by Saab Dynamics as a replacement for the Torped 45.

The torpedo is designed for the Swedish Navy and it will be equipped with both a passive and an active homing device and use wire communication like the Torpedo 45, using a galvanic wire (later also an optical wire).

Torpedo 47 can be launched from a variety of platforms including stationary, surface vessels, submarines, helicopters and airplanes like Saab Swordfish MPA. It is specifically designed to operate against littoral submarine targets and surface vessels. It is controlled using wire guidance and has a hydro-acoustic homing system for the final phase. The torpedo has features that are unique for lightweight torpedoes.

SLWT will be delivered to the Finnish Navy as part of the Squadron 2020 program and will be installed on the Hamina-class during MLU and the new Pohjanmaa-class corvette.

Technical data:
Diameter: 400 mm (16 in)
Length: 2850 mm (112 in)
Mass: 340 kg
Range: >20 km (> 1h)
Max. depth: 300+ meters
Speed: 40+ knots (74+ km/h), max.
Propulsion: electric DC motor with gearbox / Lithium-based rechargeable battery / Pumpjet (ducted rotor/stator)
Guidance: Active and passive (fully digital) sonar. Hydro-acoustic homing combined with wire guidance and on-board computer
Communication: galvanic wire / optic fibre
Warhead: IM compliant, omnidirectional, PBX / 50 kg
Proximity fuse: multi-beam sonar
Launching platforms: ships, submarines, aircraft

sources: wikipedia, Saab, Försvarsmakten

images

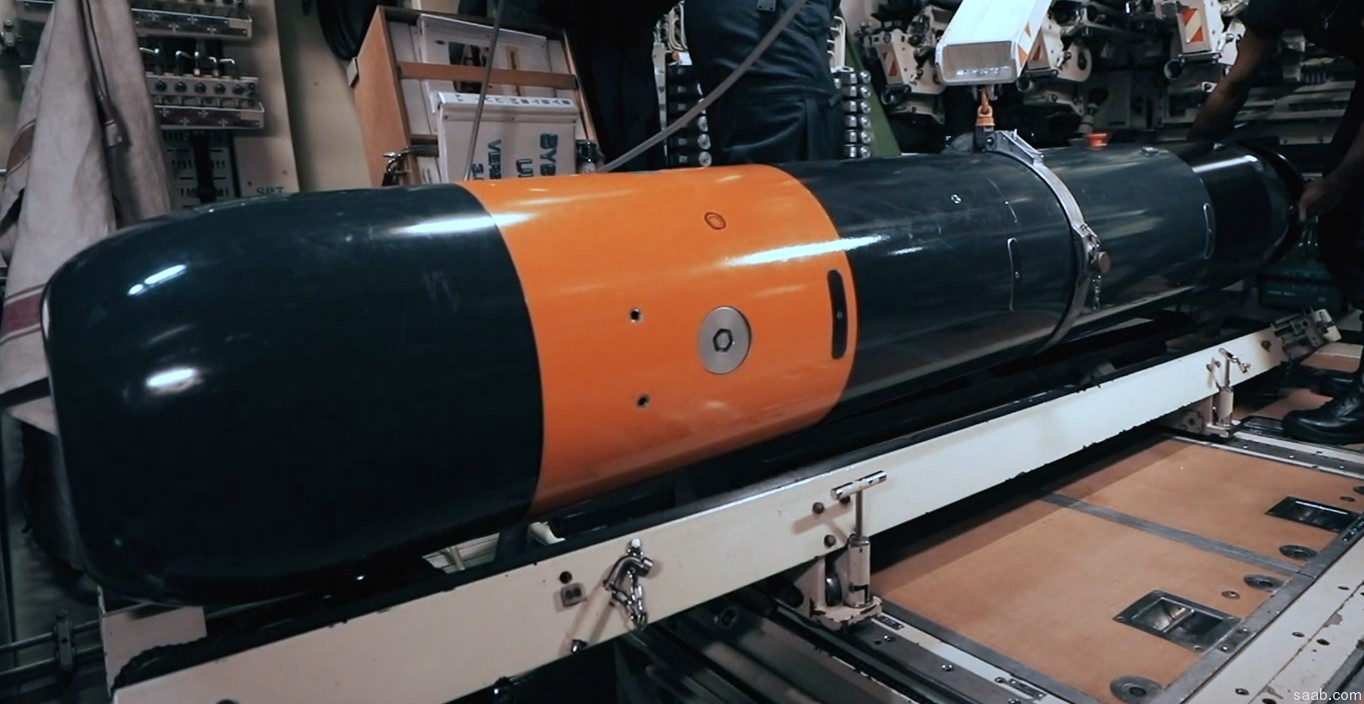

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 02
Torped 47 / SLWT

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 05
Torped 47 / SLWT

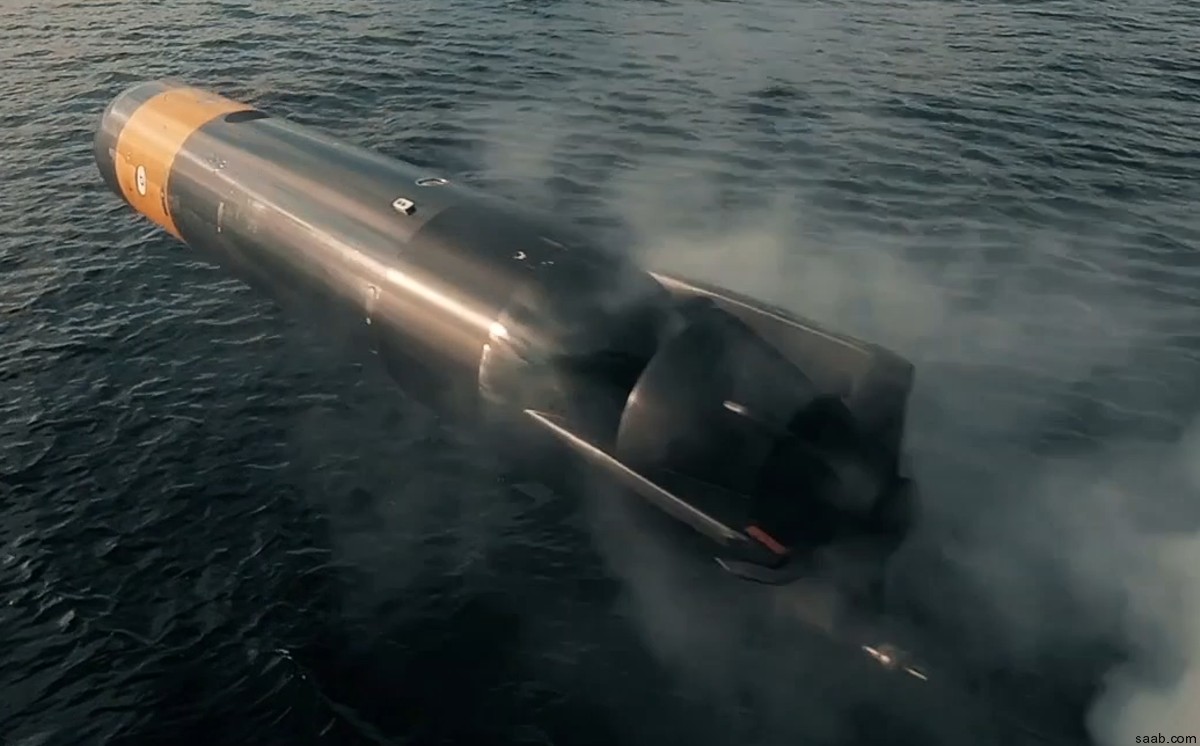

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 06
Torped 47 / SLWT

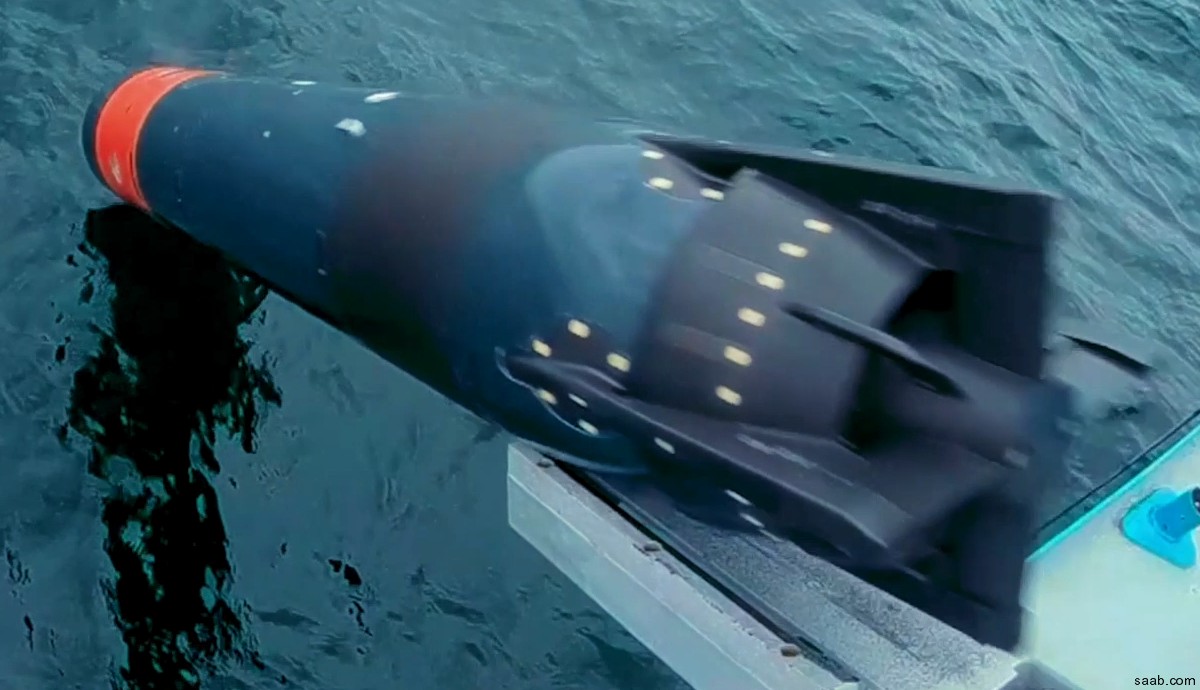

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 09
Torped 47 / SLWT

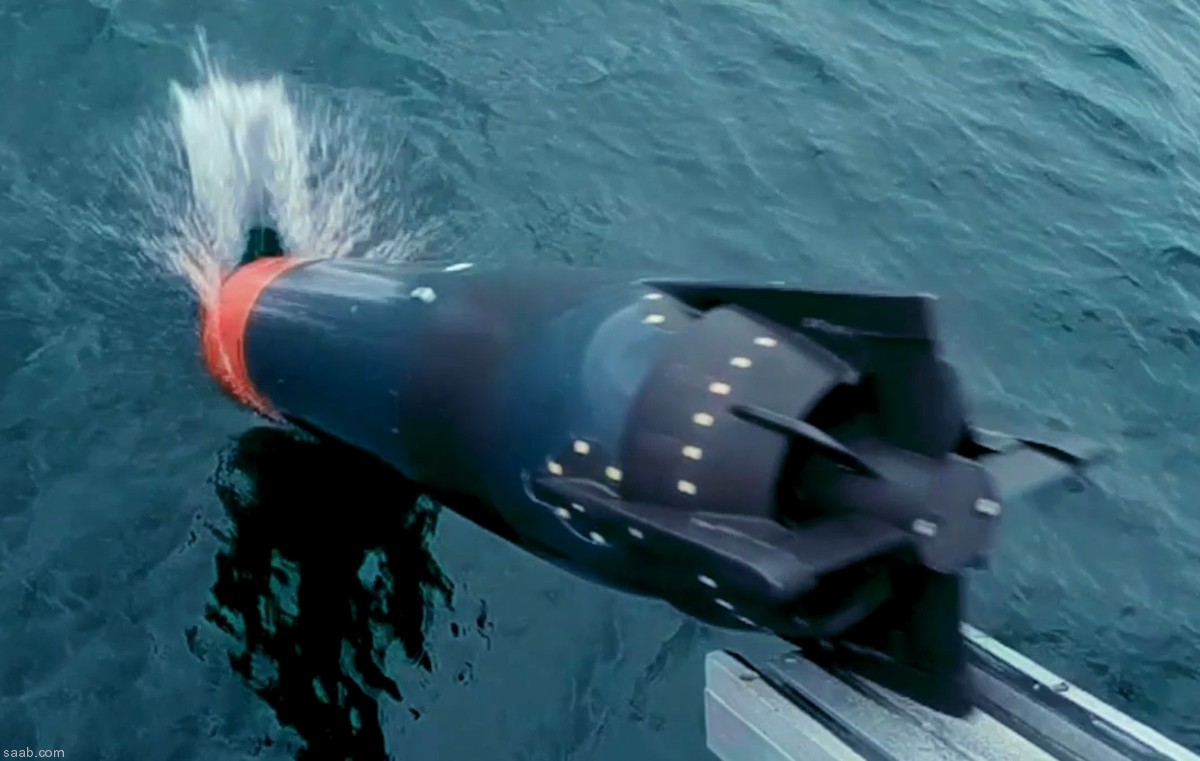

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 10
Torped 47 / SLWT

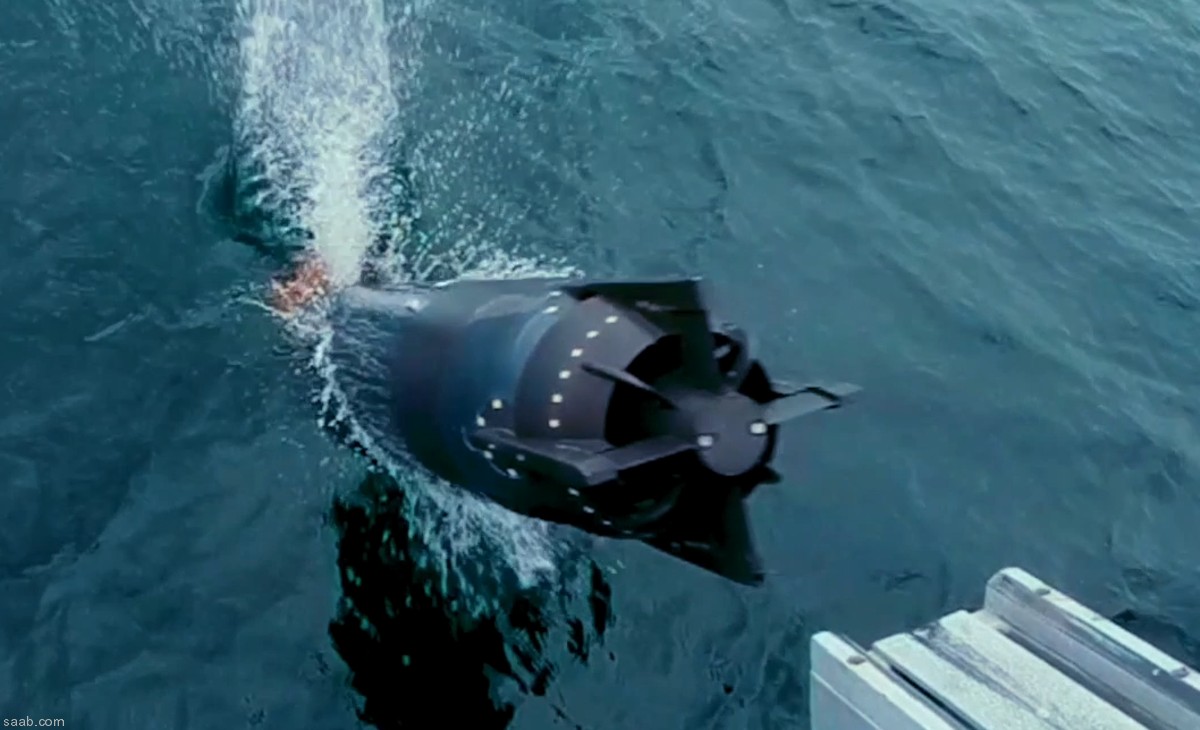

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 11
Torped 47 / SLWT

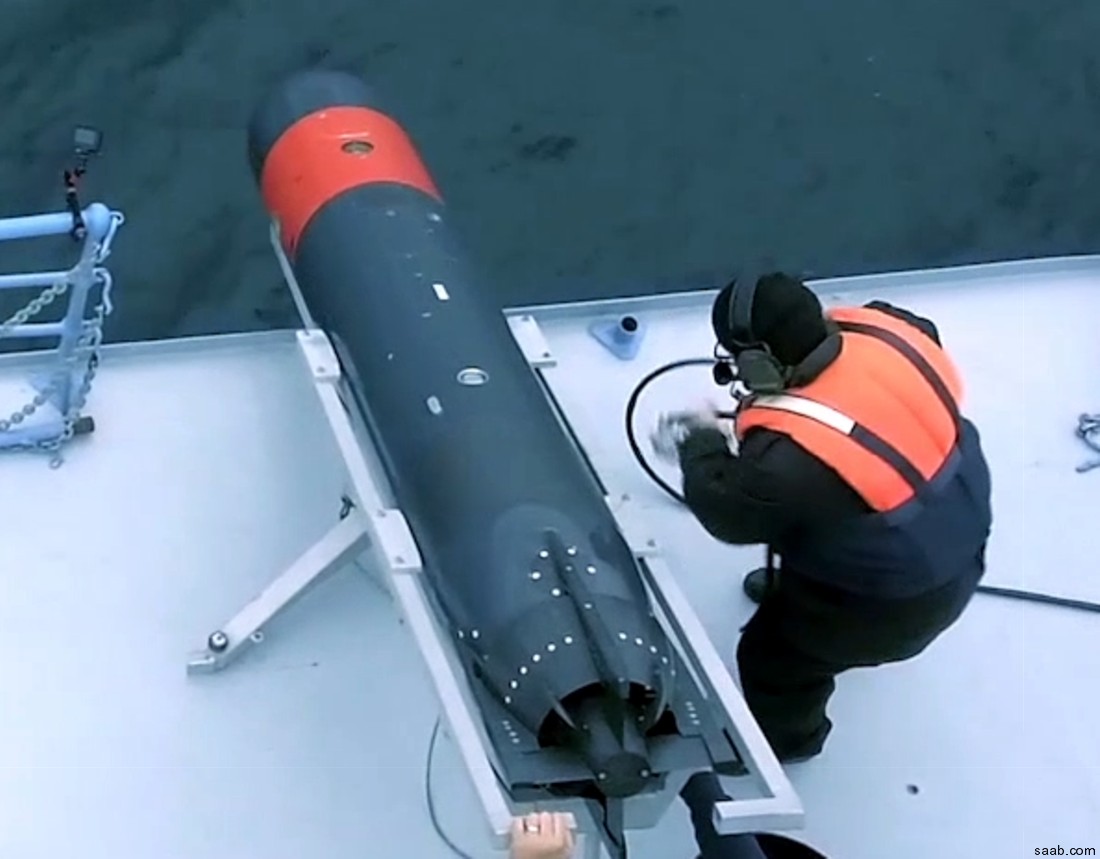

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 08
Torped 47 / SLWT

torped 47 slwt saab lightweight torpedo swedish navy finnish visby class corvette 14
Torped 47 / SLWT was launched from a Visby class Corvette

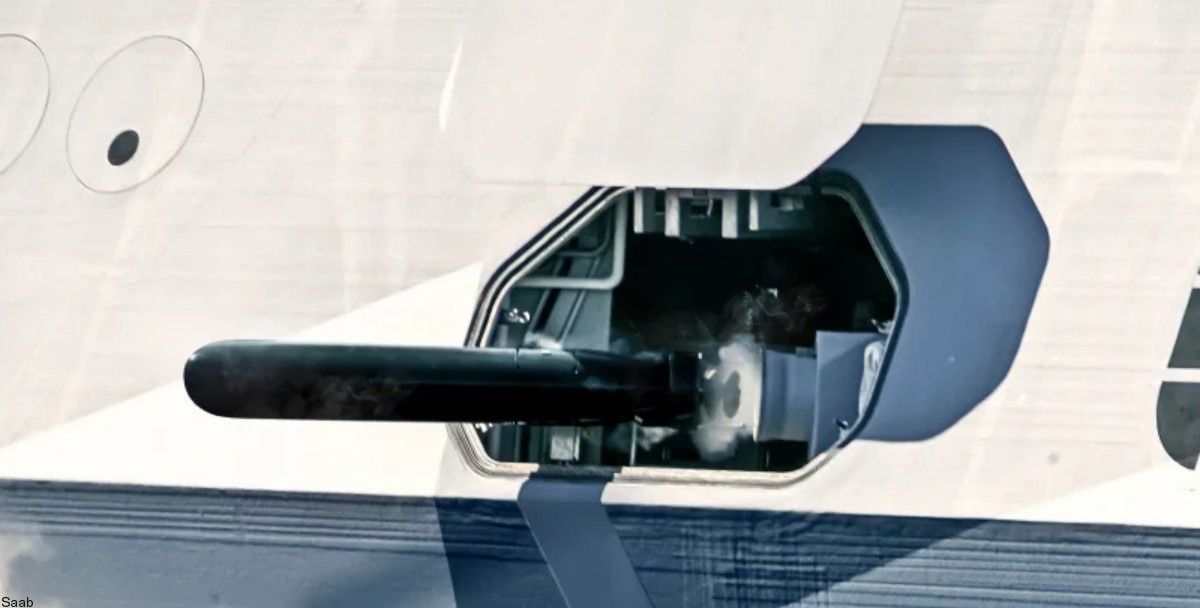

torped 47 slwt saab lightweight torpedo swedish navy finnish visby class corvette 13
Torped 47 / SLWT was launched from a Visby class Corvette

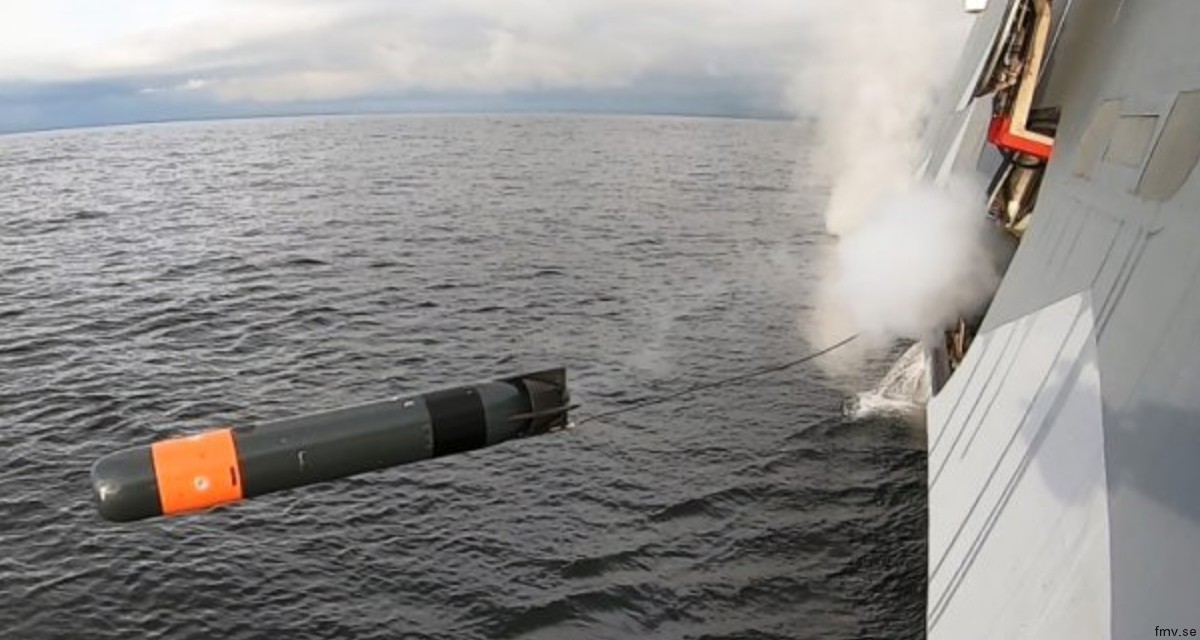

torped 47 slwt saab lightweight torpedo swedish navy finnish visby class corvette 12
Torped 47 / SLWT was launched from a Visby class Corvette

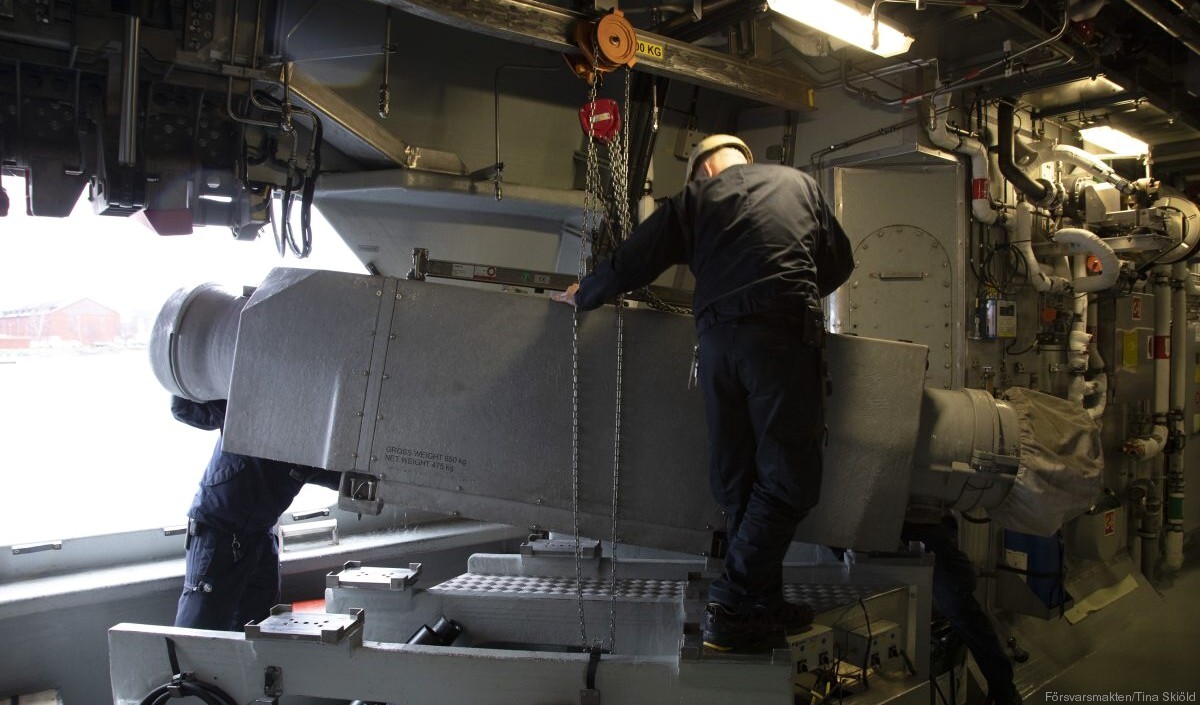

torped 47 slwt saab lightweight torpedo swedish navy finnish visby class corvette 15
torpedo launcher aboard a Visby class Corvette

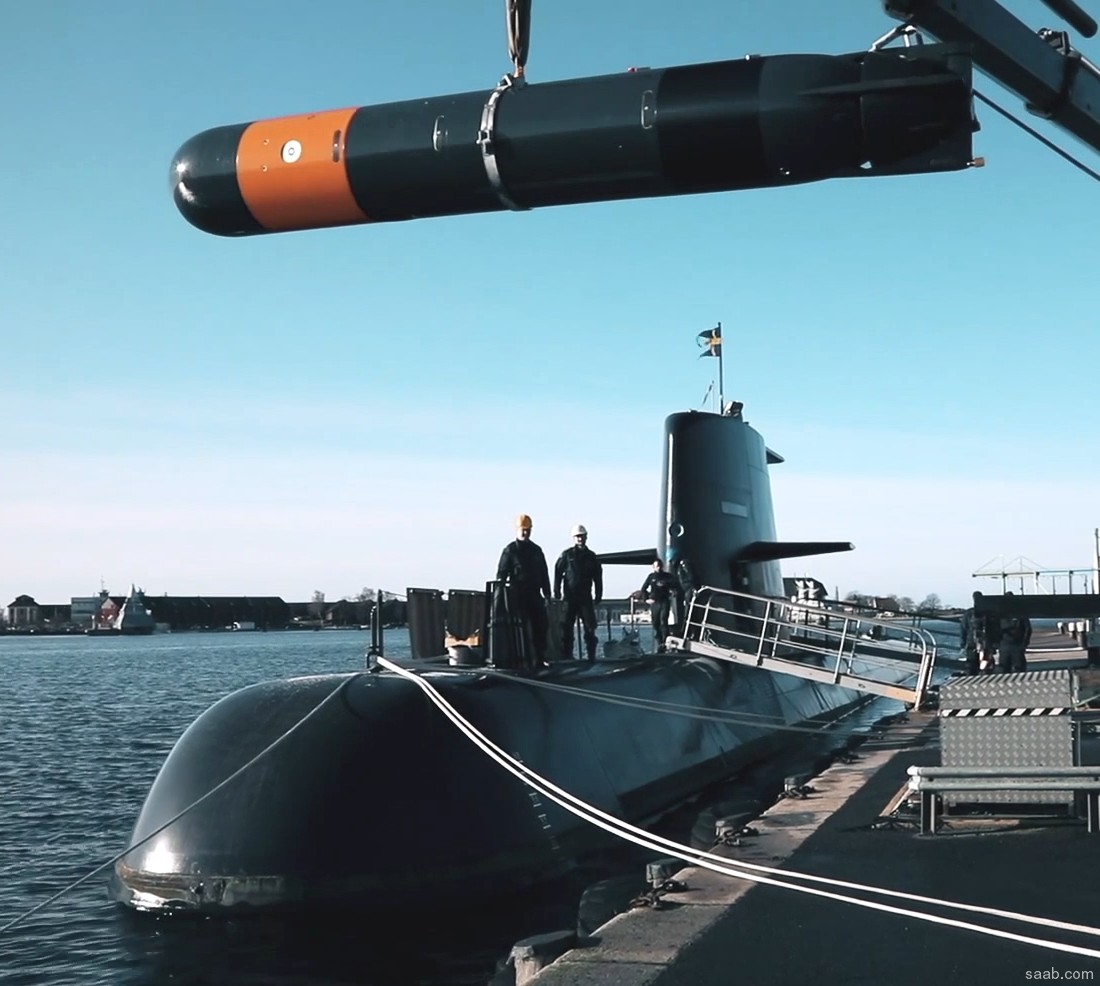

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 07
Torped 47 / SLWT was loaded into a Submarine

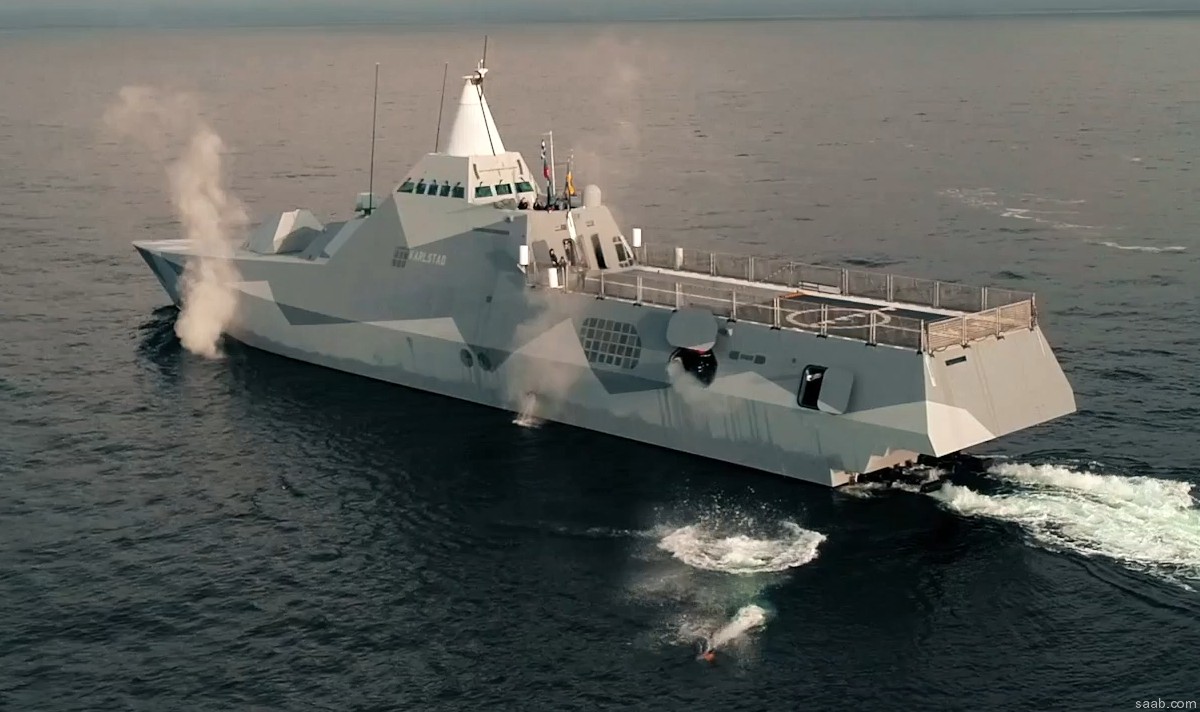

torped 47 slwt saab lightweight torpedo swedish navy finnish corvette submarine helicopter 04

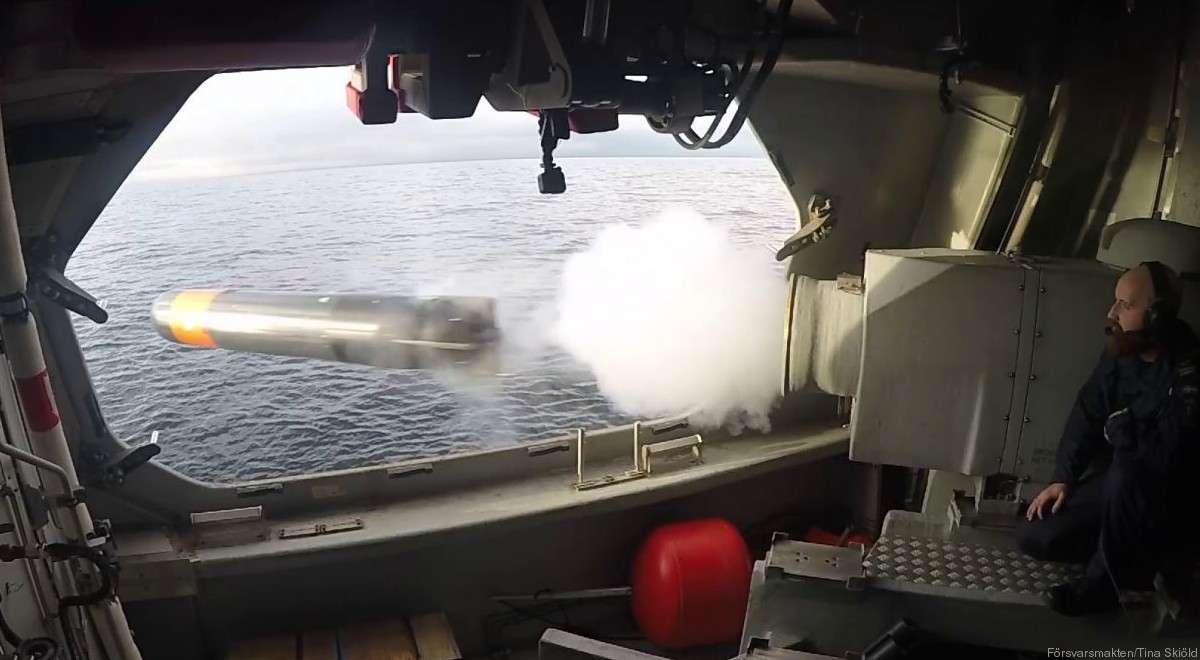

Torped 47 / SLWT was test-fired from a Visby class Corvette
