Multi Role Combat Vessel - MRCV Republic of Singapore Navy

Republic of Singapore Navy
Future Multi Role Combat Vessel - MRCV
ST Engineering Vanguard 130 Multi-Role Combatant

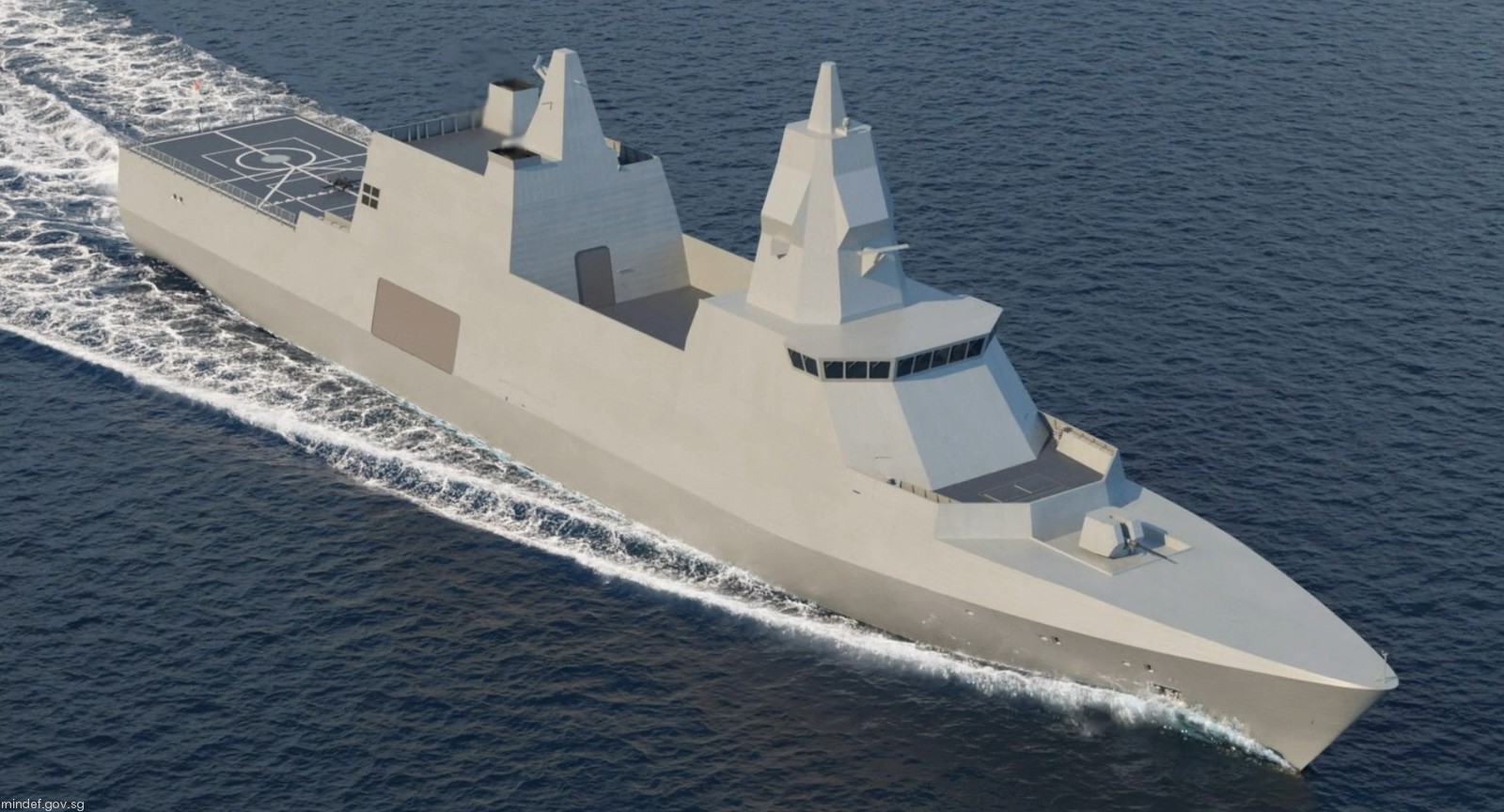

multi role combat vessel mrcv republic singapore navy st engineering 04x

03/24

Units (6 planned):

Unit	Laid down	Launched	Commissioned	STATUS
?	first steel cut in March 2024	?	?	construction

Specifications:

Builder: ST Engineering (Marine), Singapore

Displacement: 5000 tons, approx.
Length: 130 meters (426 feet 6 inches)
Beam: 19 meters (62 ft 4 in)
Draft: 5.2 meters (17 ft 1 in)
Speed: 25 knots (46 km/h)
Range: 6000 NMI (11000 km) at 15 knots (28 km/h)
Complement: 110?

Propulsion:
General Electric / GE Vernova Integrated Full Electric Propulsion (IFEP)

Armament:
1 x Vertical Launching System (VLS)
for
MBDA VL Mica NG SAM missiles
MBDA Aster 30 Block 1 NT SAM missiles

1 x Oto-Melara (Leonardo) 76/62 Super Rapid DP gun (3"/76mm)

ST Engineering/IAI Blue Spear 5G SSM missiles

Aviation:
flight deck and hangar for 1 helicopter (up to 15 tons)

Sytems:
NERVA Ship Management System and Sensemaking System (SMS2)
Integrated Communication System
Navigation & Data Management System
Situational Awareness Traffic Management
Scanned Panoramic Electro Optics System
SATCOM

Republic of Singapore Ministry of Defence (MINDEF) has signed a contract with Singapore Technologies Engineering Ltd (ST Engineering) for the detailed design and construction of six Multi-Role Combat Vessels (MRCVs) to replace the existing Victory-class Missile Corvettes (MCVs) in the Republic of Singapore Navy (RSN). The six MRCVs will be delivered progressively from 2028 onwards.

The MRCV employs key technologies such as configurable modular payloads and unmanned systems, allowing the vessel to function as a "mothership" for unmanned drones and vessels to conduct a range of missions from peace to war.

images

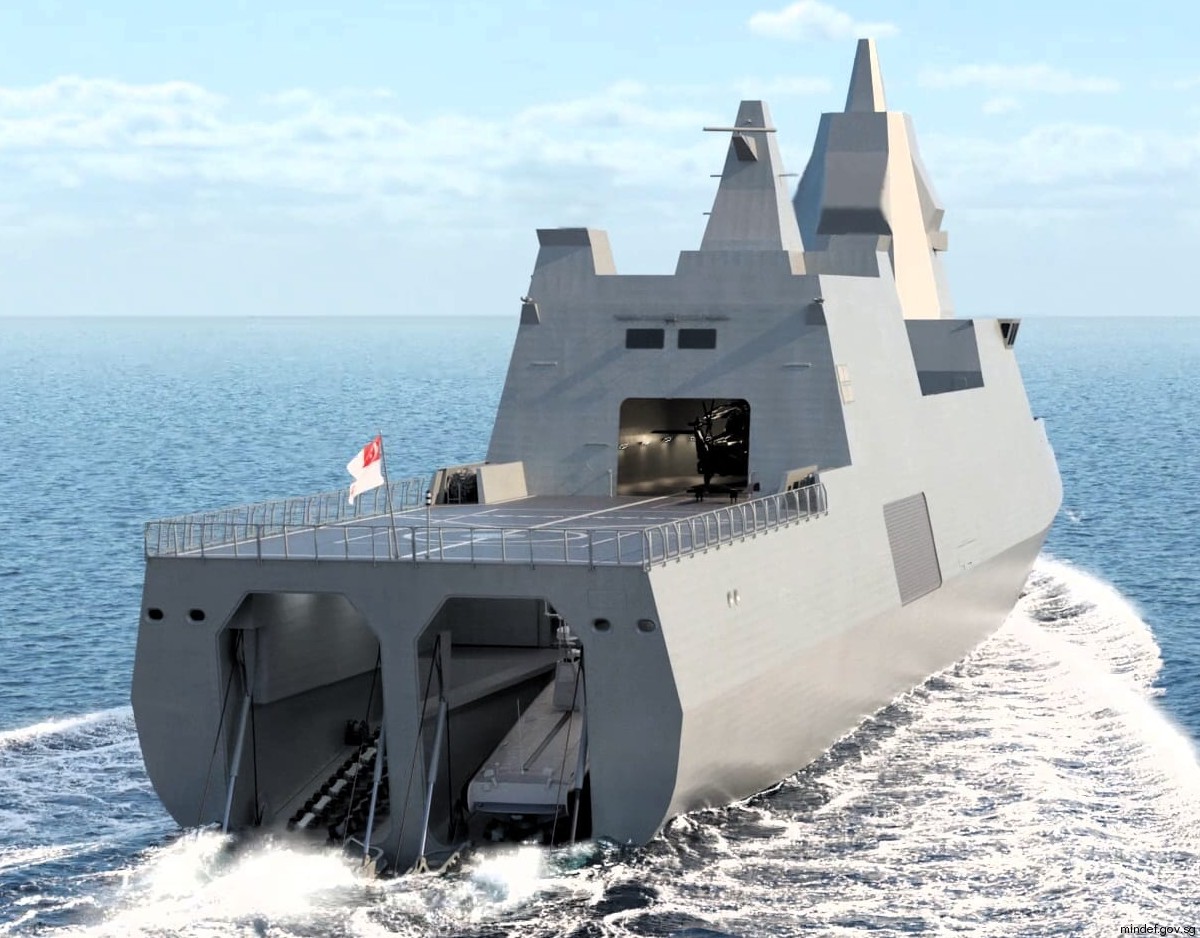

multi role combat vessel mrcv republic singapore navy st engineering 06

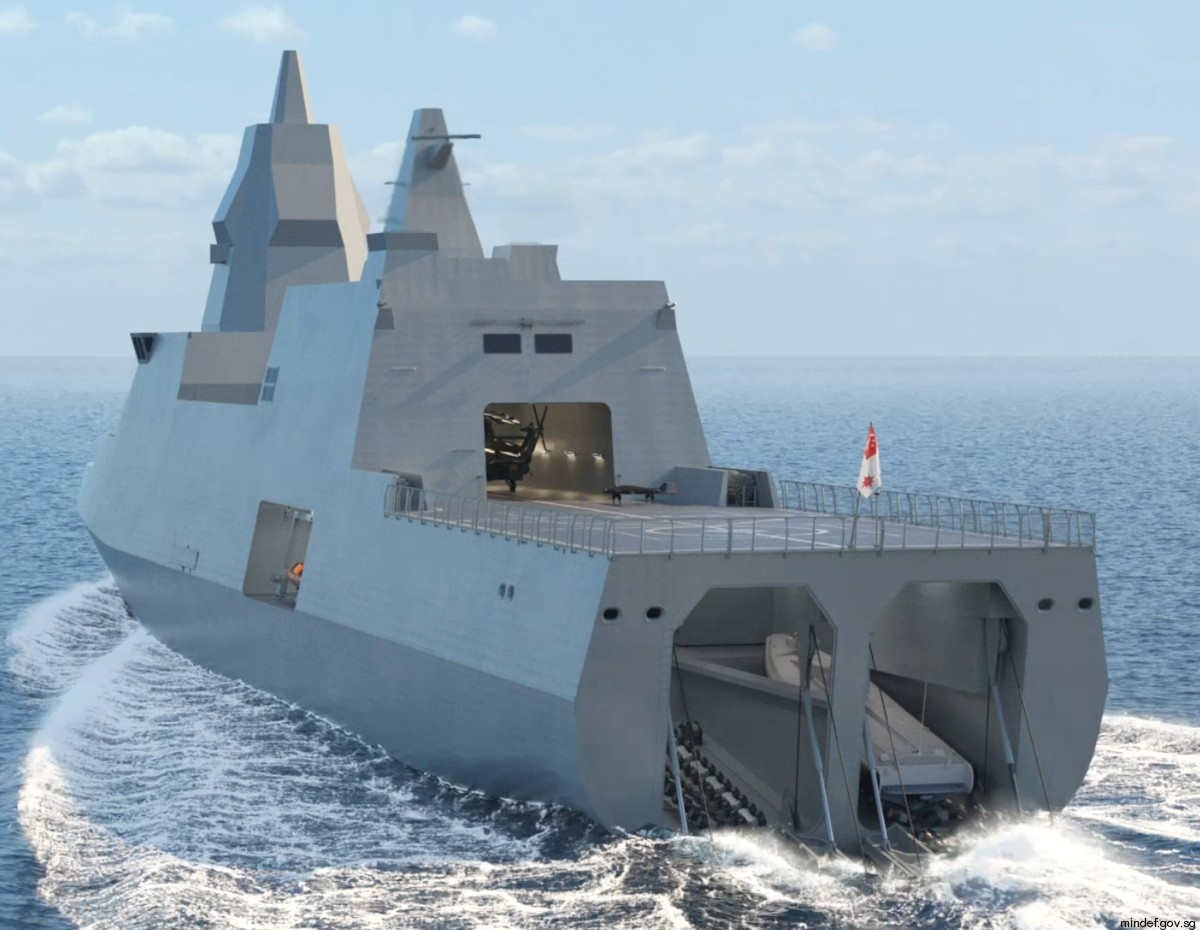

multi role combat vessel mrcv republic singapore navy st engineering 05

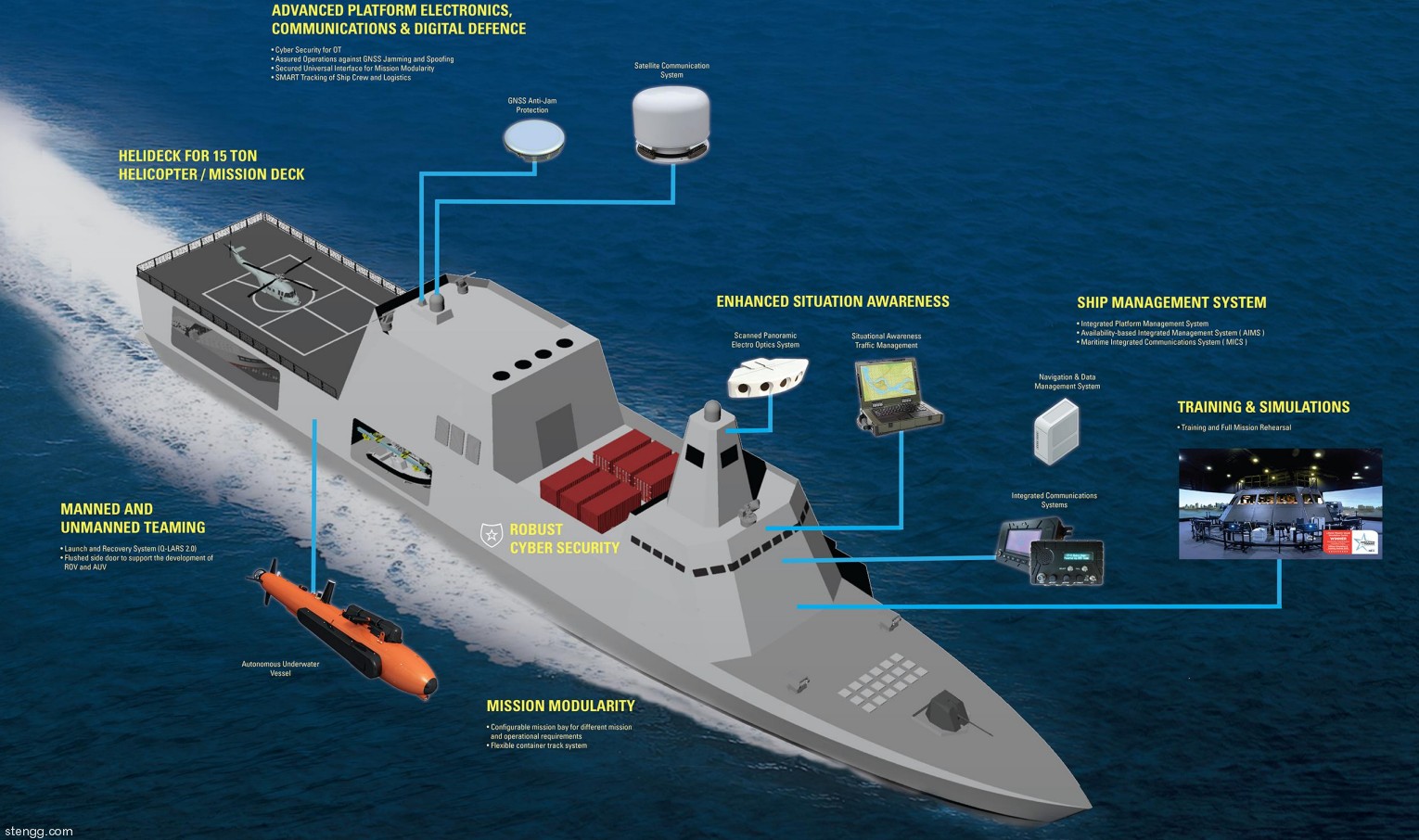

multi role combat vessel mrcv republic singapore navy st engineering 02

multi role combat vessel mrcv republic singapore navy st engineering 03

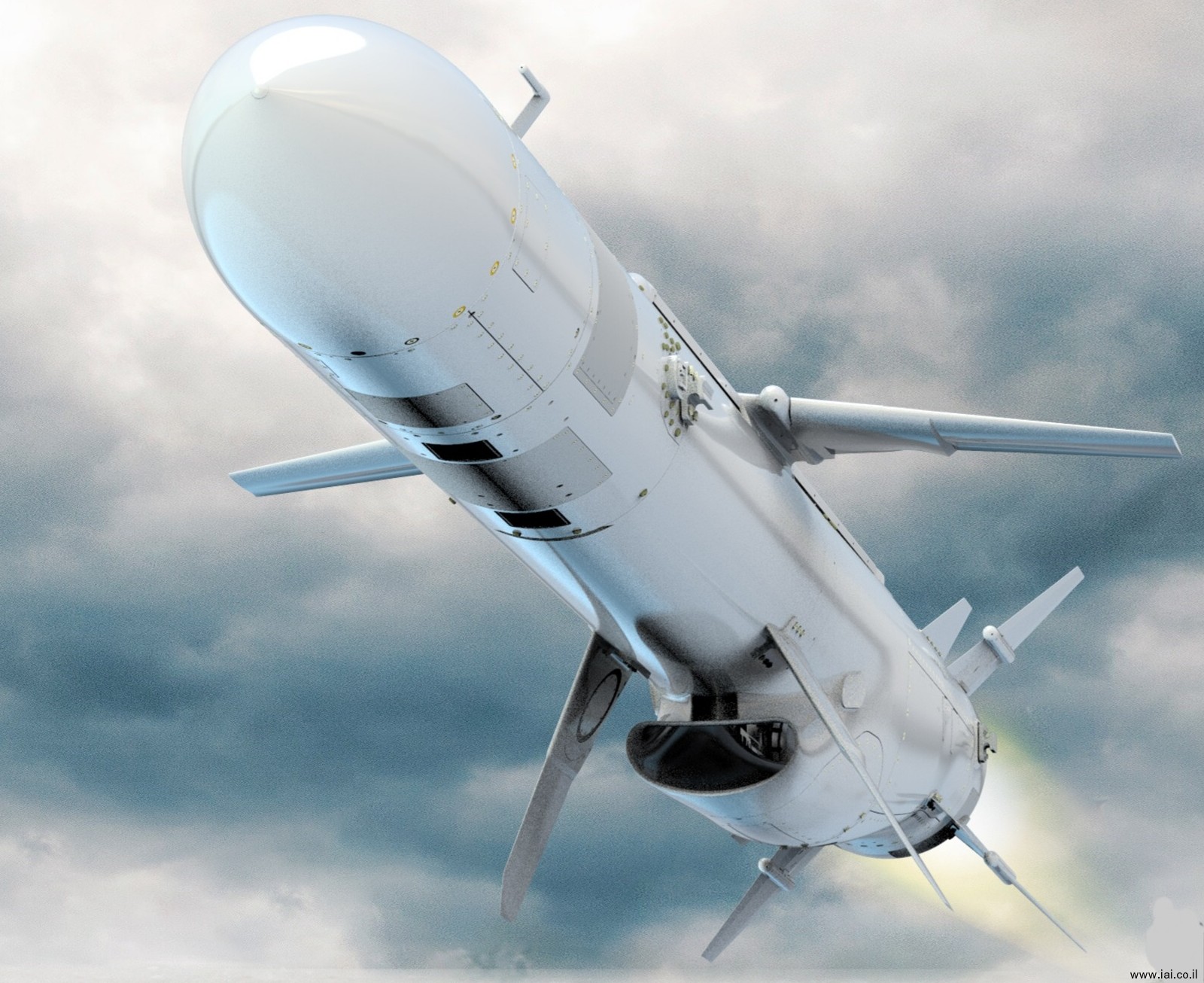

multi role combat vessel mrcv republic singapore navy st engineering iai blue spear ssm missile
