Romanian Navy / Forțele Navale Române
Contraamiral Eustatiu Sebastian (Tetal-II) class Corvette

  contraamiral eustatiu sebastian tetal ii class corvette romanian navy forțele navale române 16x


Ships:

F-264 ROS Contraamiral Eustatiu Sebastian (1988) - in service
F-265 ROS Contraamiral Horia Macellariu (1991) - in service


Specifications:

Builder: Santierul Naval 2 Mai shipyard, Mangalia, Romania

Displacement: 1504 tons (standard) / 1626 tons (full load)
Length: 93 meters (305 feet 1 inch)
Beam: 11.5 meters (37 ft 9 in)
Draft: 3 meters (9 ft 10 in)
Speed: 24 knots (44 km/h)
Range: 1500 NM (2800 km)
Complement: 95

Propulsion:
 4 x diesel engines (16000 hp / 12000 kW)
4 shafts / 4 propellers

Armament:
1 x AK-276 gun (76mm / 3 inches / 59 caliber)
4 x AK-630 30 mm CIWS
2 x RBU-6000 ASW rocket launchers
4 x (2x2) 533 mm heavy torpedo tubes

Aviation:
aft helicopter deck - no hangar

Systems:
MR-302 Strut Curve F-band air + surface search radar
MR-123 Bass Tilt fire-control radar
hull mounted sonar


images

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 04
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 16
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 02
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 03
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 09
F-264 ROS Contraamiral Eustatiu Sebastian

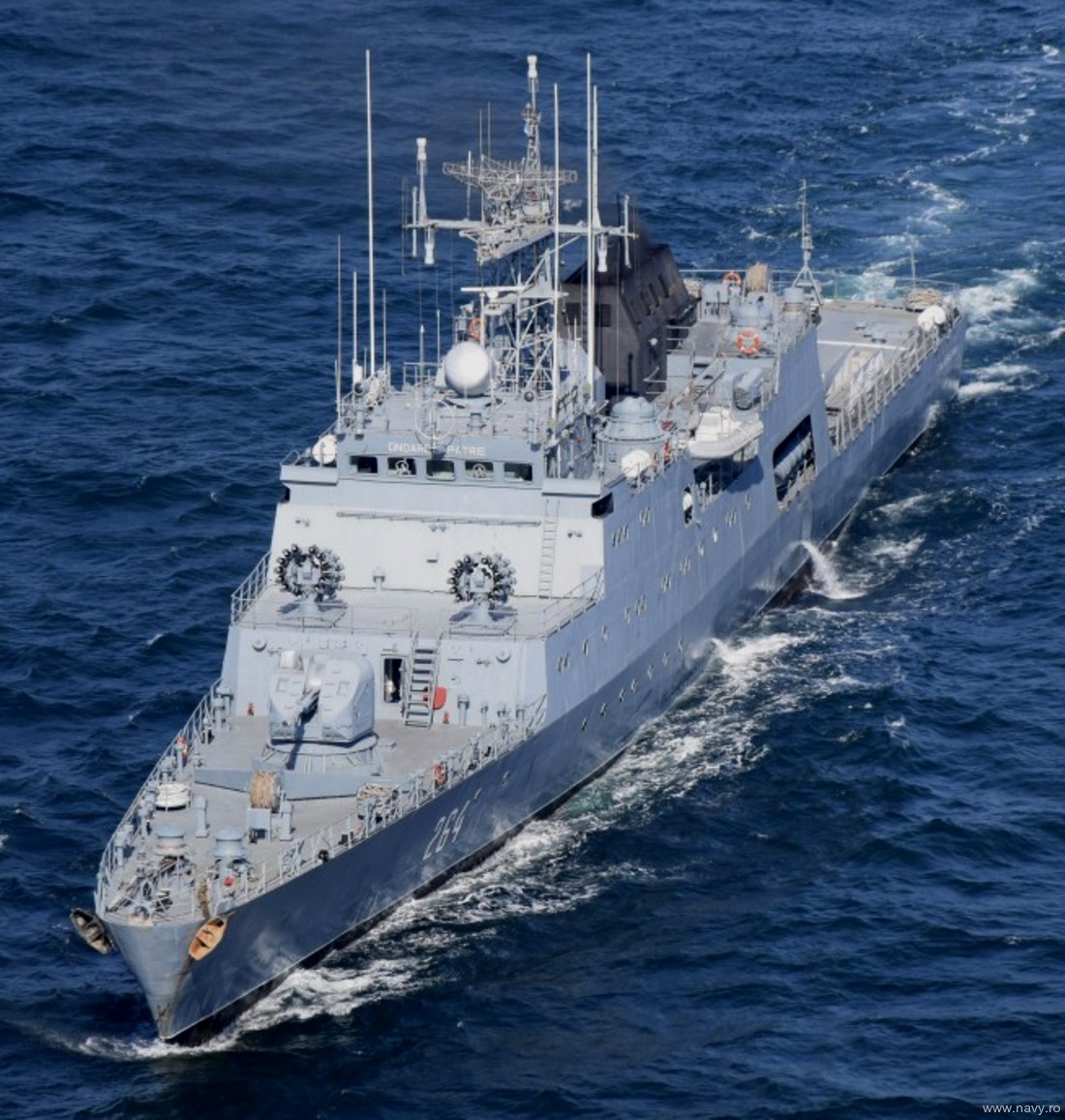

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 13
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 05
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 05a 533mm heavy torpedo tubes
armament details: AK-630 close-in weapon system (CIWS) - 4 x 533mm heavy torpedo tubes

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 06
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 07 ak-276 gun rbu-6000 asw rocket launcher
armament details: AK-276 gun - 2 x RBU-6000 ASW rocket launchers

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 08 533mm heavy torpedo
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 08a
excerpt: a 533mm heavy torpedo was launched

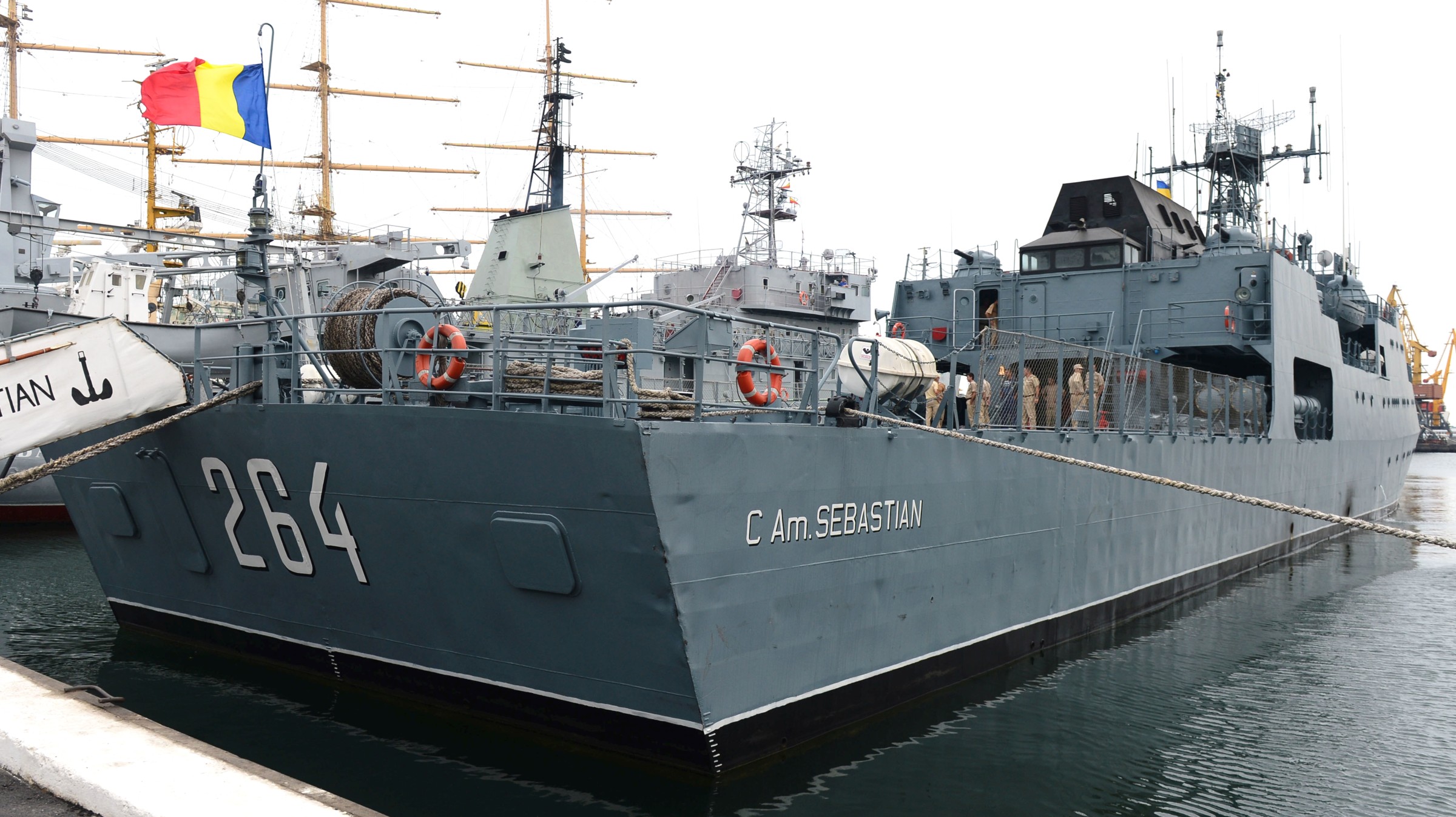

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 11
F-264 ROS Contraamiral Eustatiu Sebastian

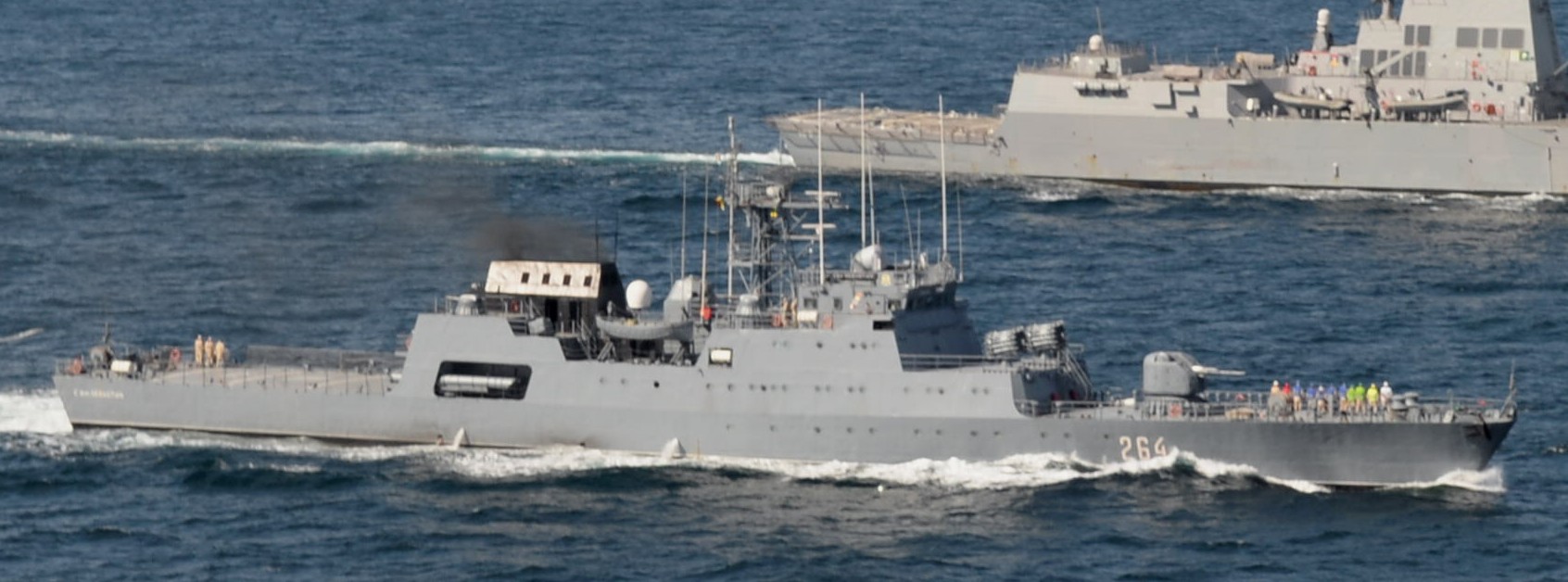

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 10
F-264 ROS Contraamiral Eustatiu Sebastian

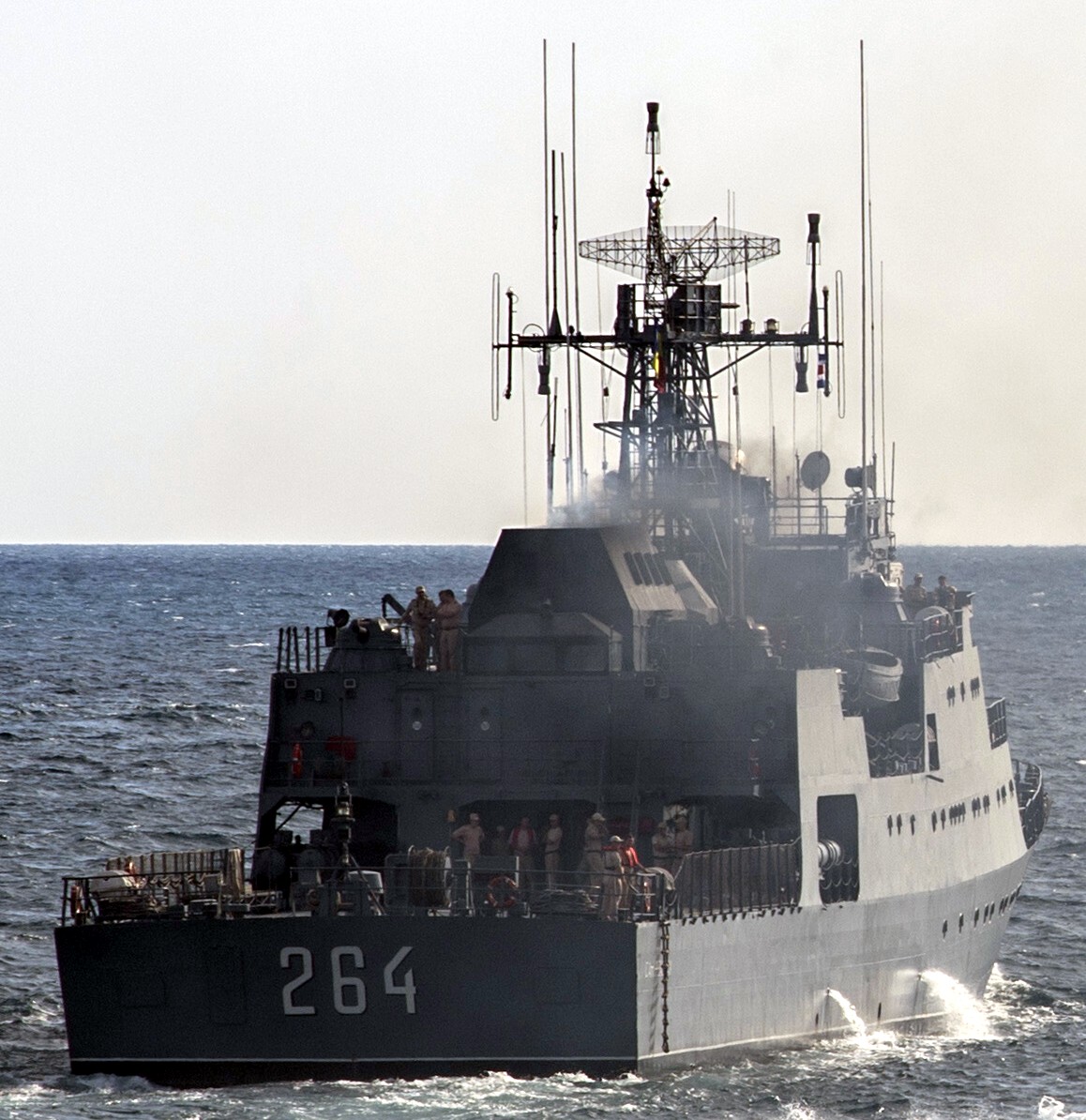

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 12
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 19 rbu-6000 asw rocket launcher
F-264 ROS Contraamiral Eustatiu Sebastian firing an ASW rocket from her RBU-6000 launcher

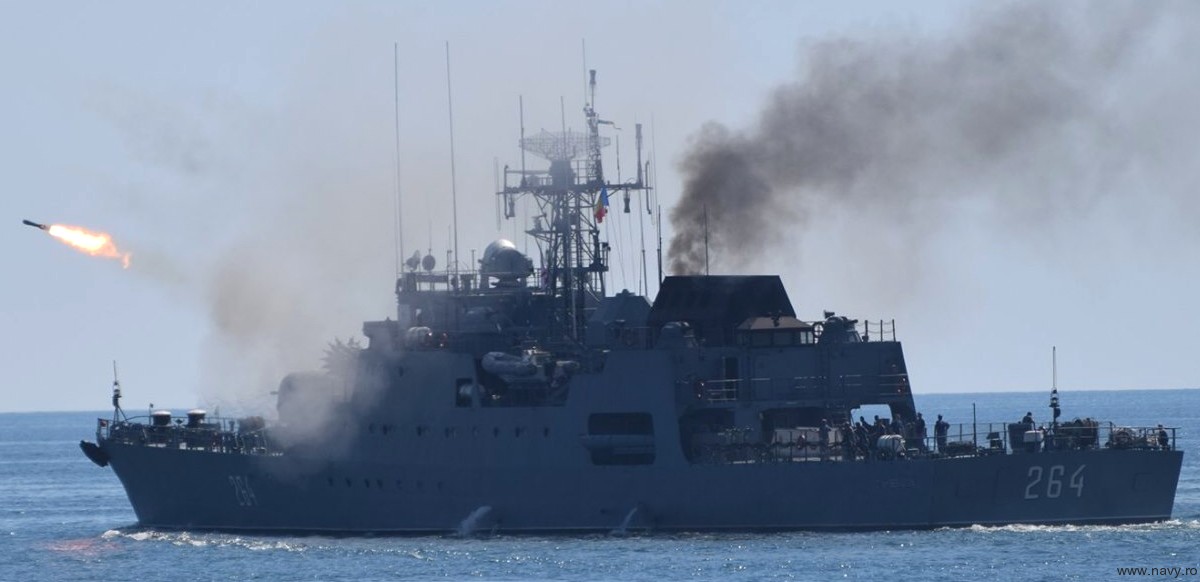

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 14 rbu-6000 asw rocket
F-264 ROS Contraamiral Eustatiu Sebastian firing an ASW rocket from her RBU-6000 launcher

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 15
F-264 ROS Contraamiral Eustatiu Sebastian

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 18
F-264 ROS Contraamiral Eustatiu Sebastian

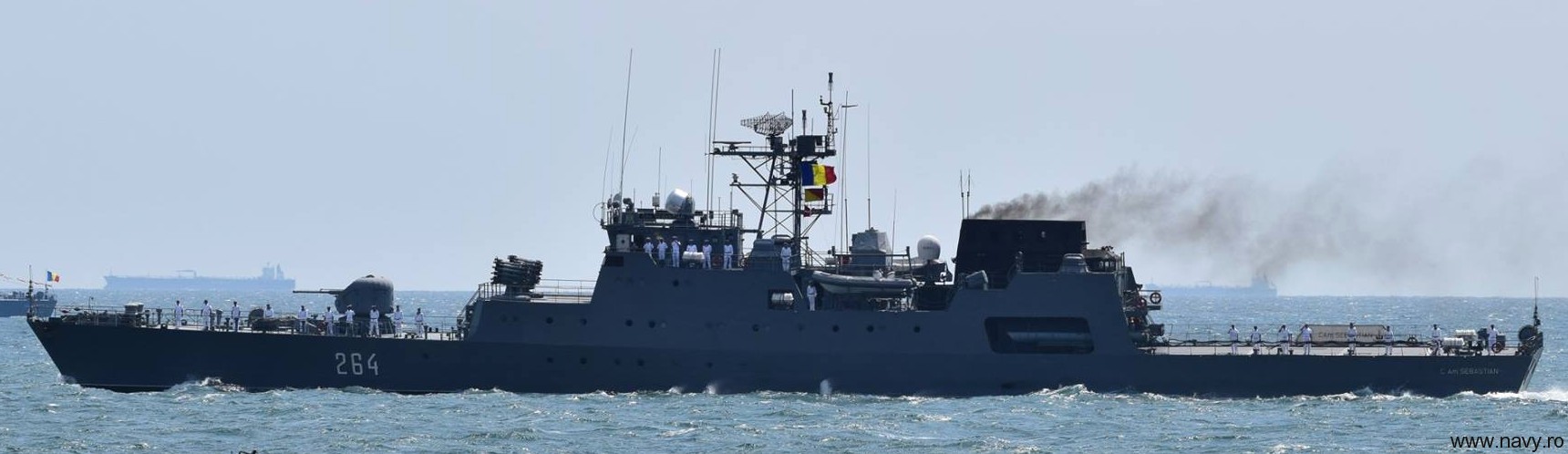

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 20
F-264 ROS Contraamiral Eustatiu Sebastian

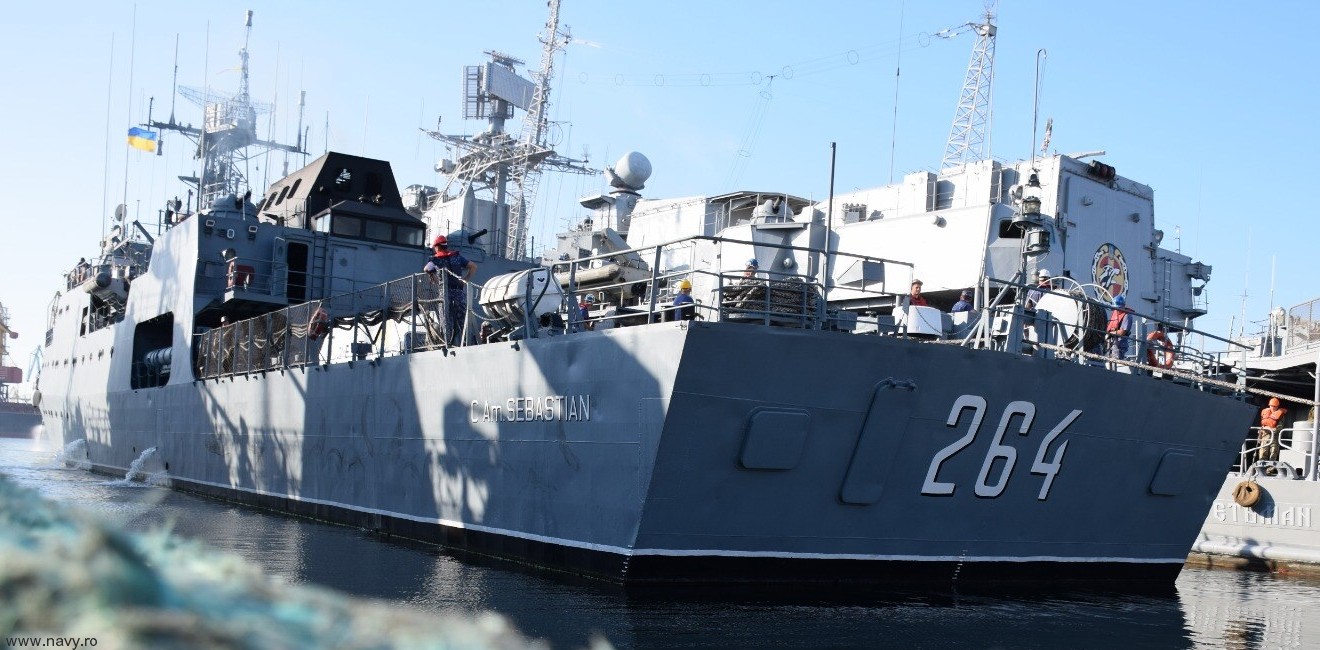

f-264 ros contraamiral eustatiu sebastian tetal-ii class corvette romanian navy 17
F-264 ROS Contraamiral Eustatiu Sebastian

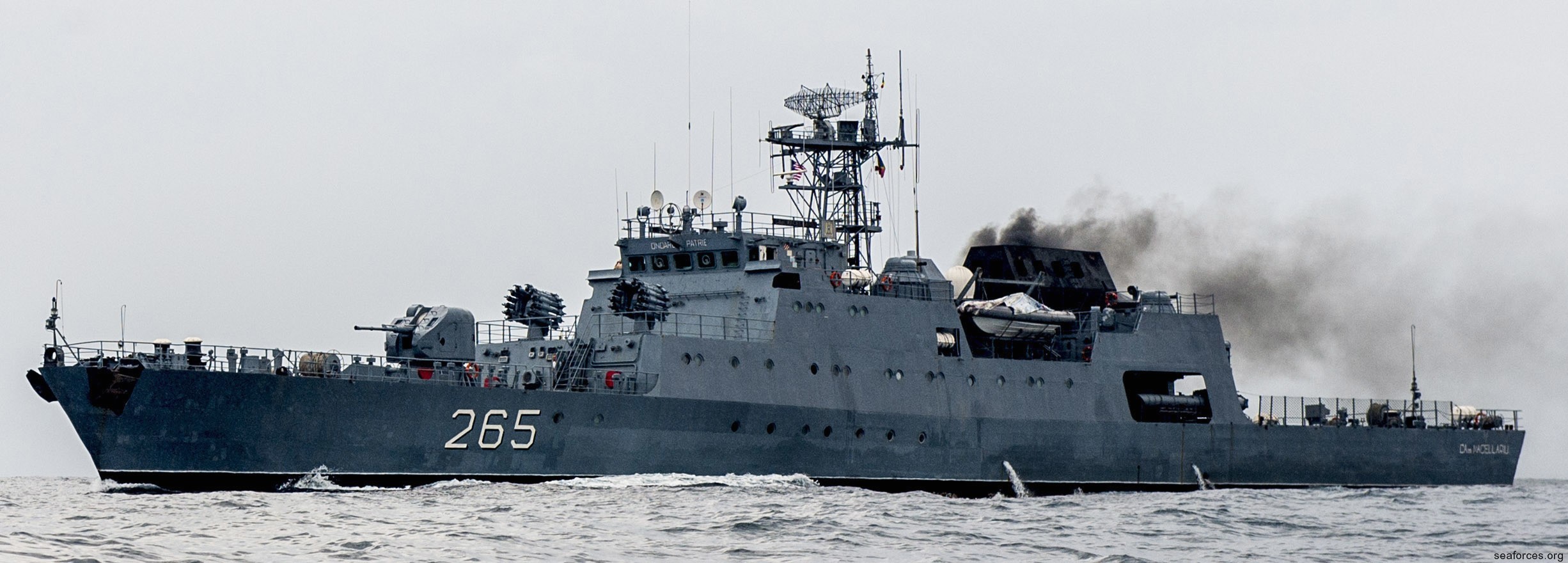

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 02
F-265 ROS Contraamiral Horia Macellariu

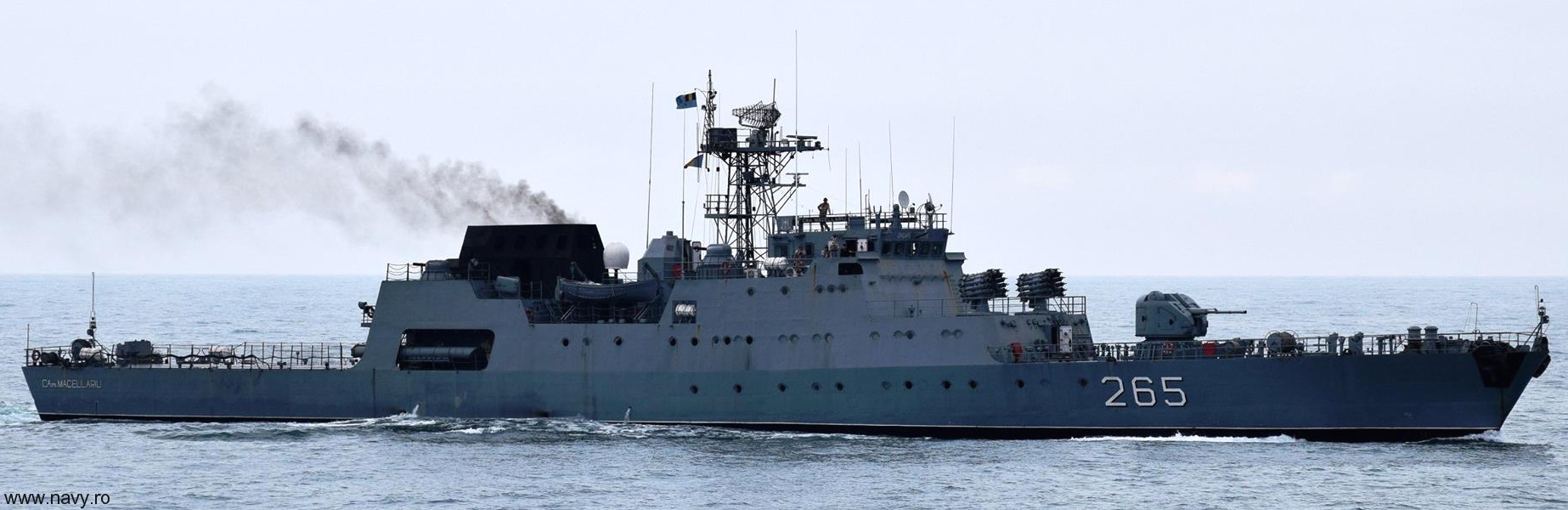

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 03
F-265 ROS Contraamiral Horia Macellariu

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 04
F-265 ROS Contraamiral Horia Macellariu

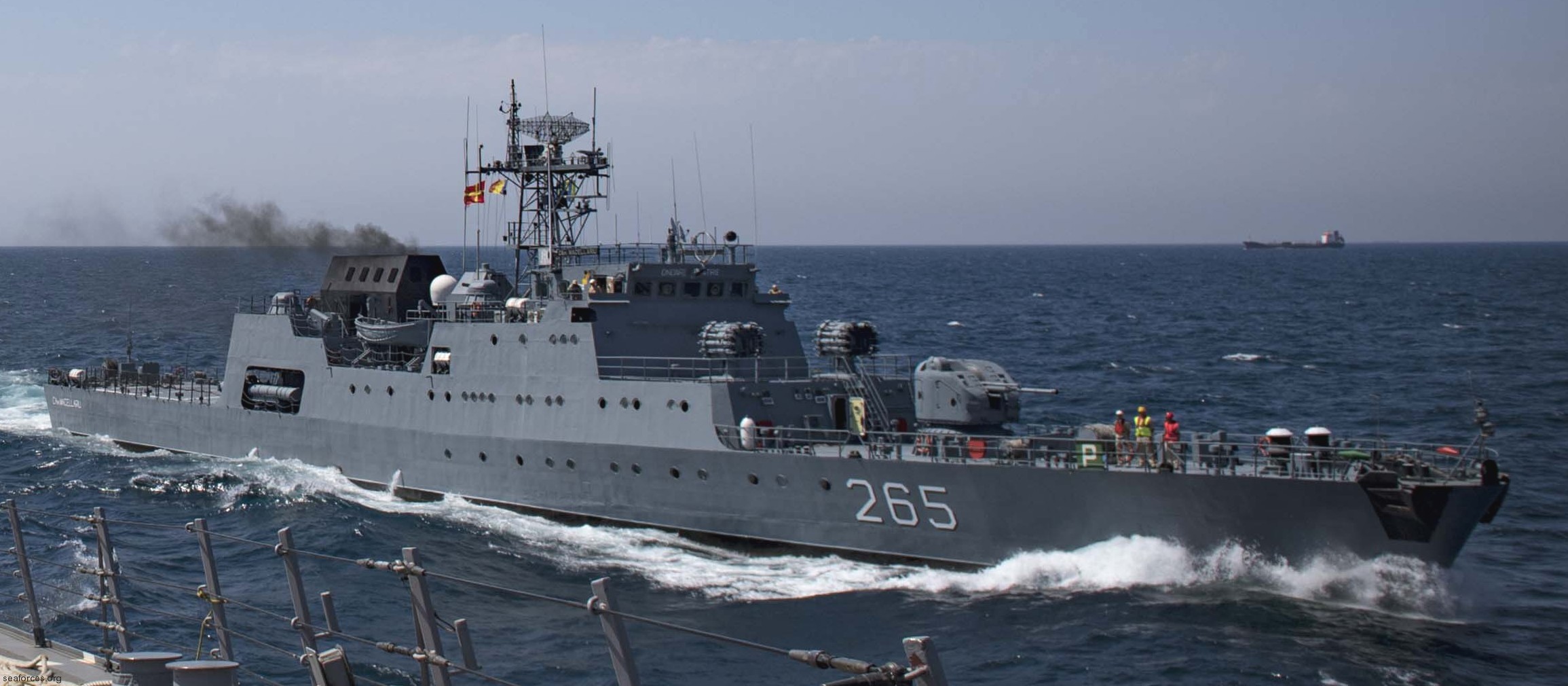

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 06
F-265 ROS Contraamiral Horia Macellariu

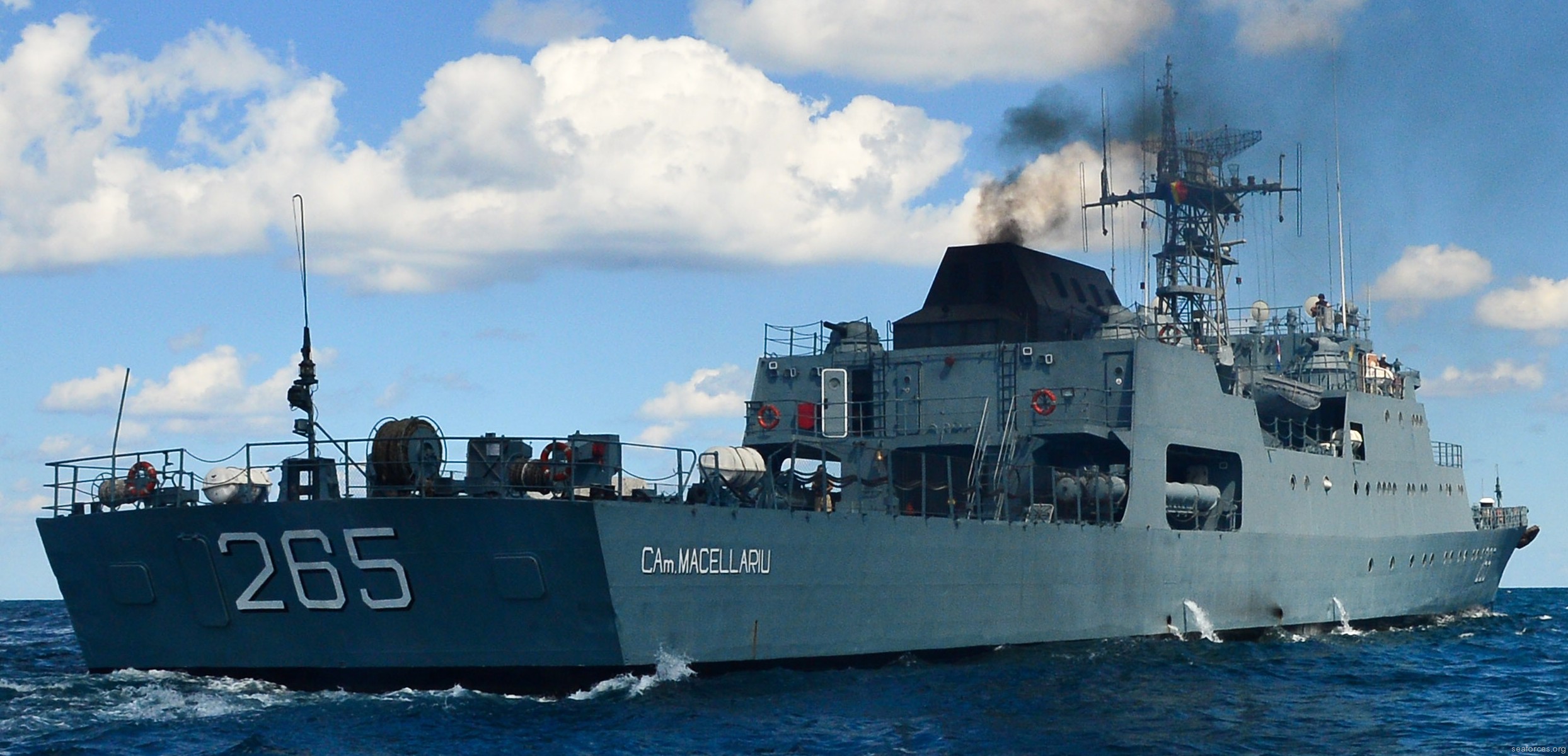

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 05
F-265 ROS Contraamiral Horia Macellariu

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 11
F-265 ROS Contraamiral Horia Macellariu

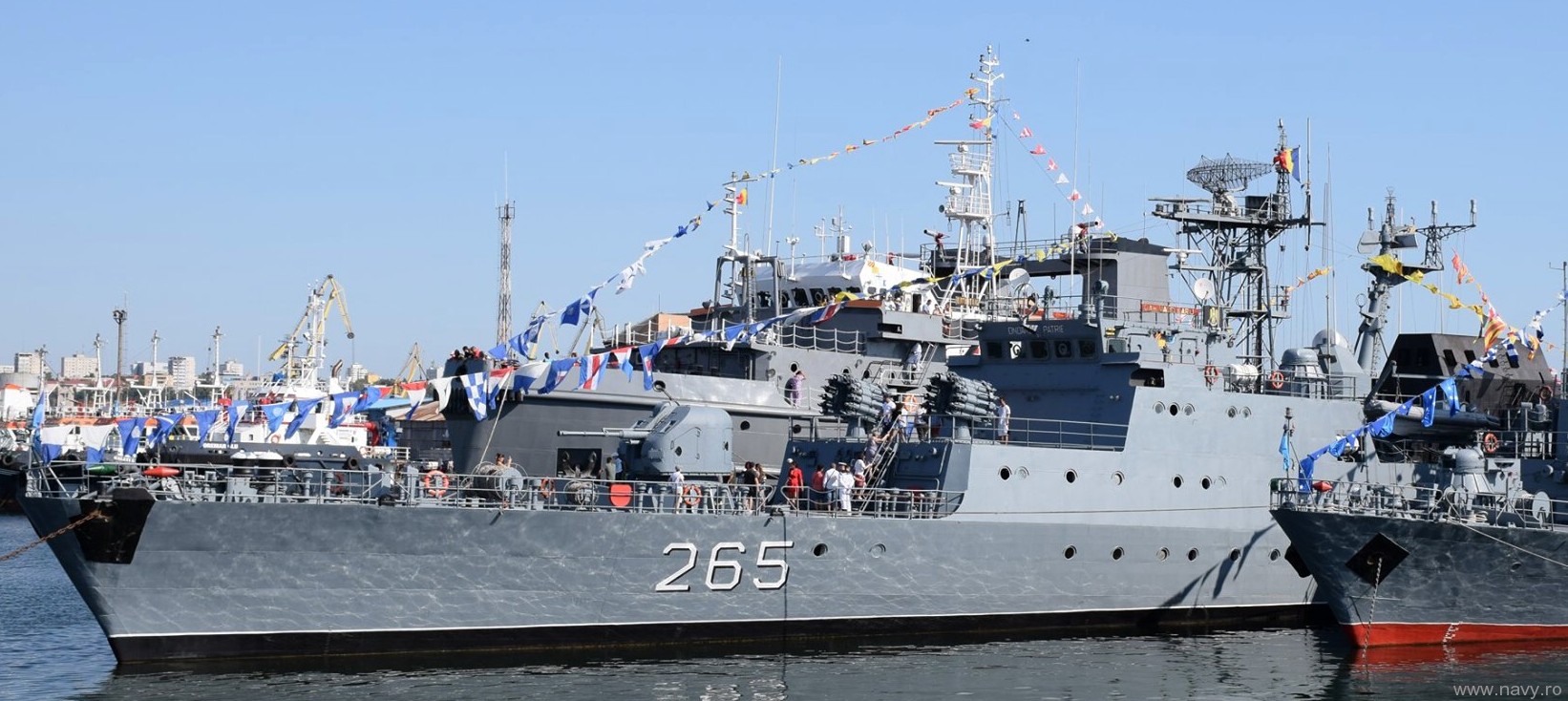

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 12
F-265 ROS Contraamiral Horia Macellariu

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 13
F-265 ROS Contraamiral Horia Macellariu

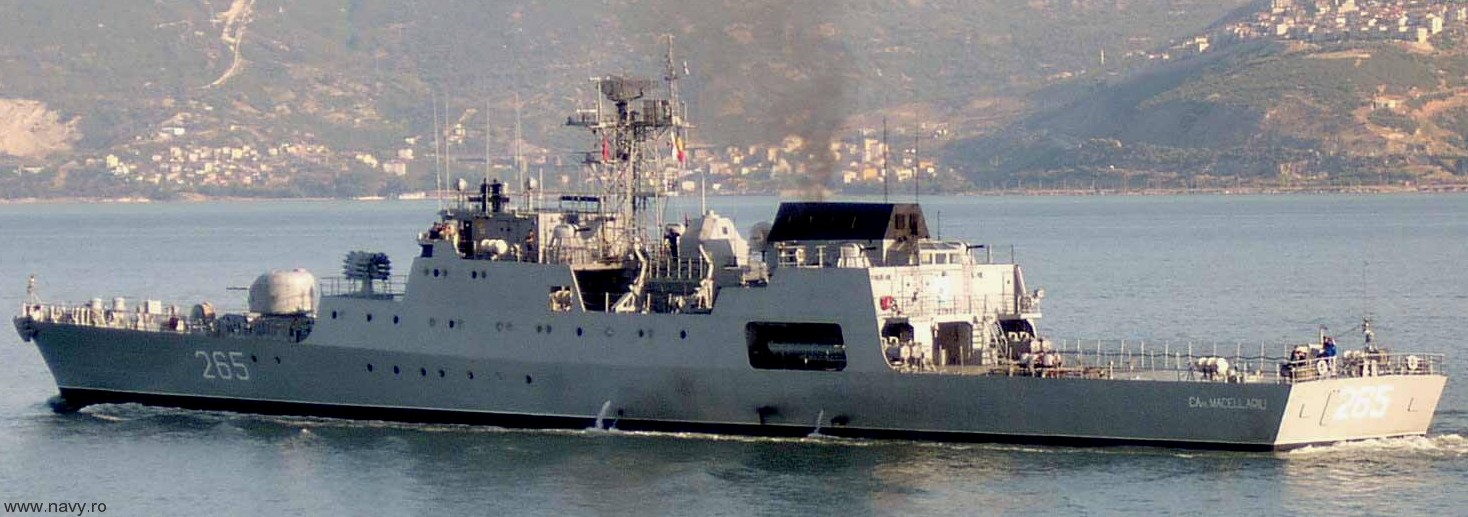

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 08
F-265 ROS Contraamiral Horia Macellariu

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 07
F-265 ROS Contraamiral Horia Macellariu

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 10
F-265 ROS Contraamiral Horia Macellariu

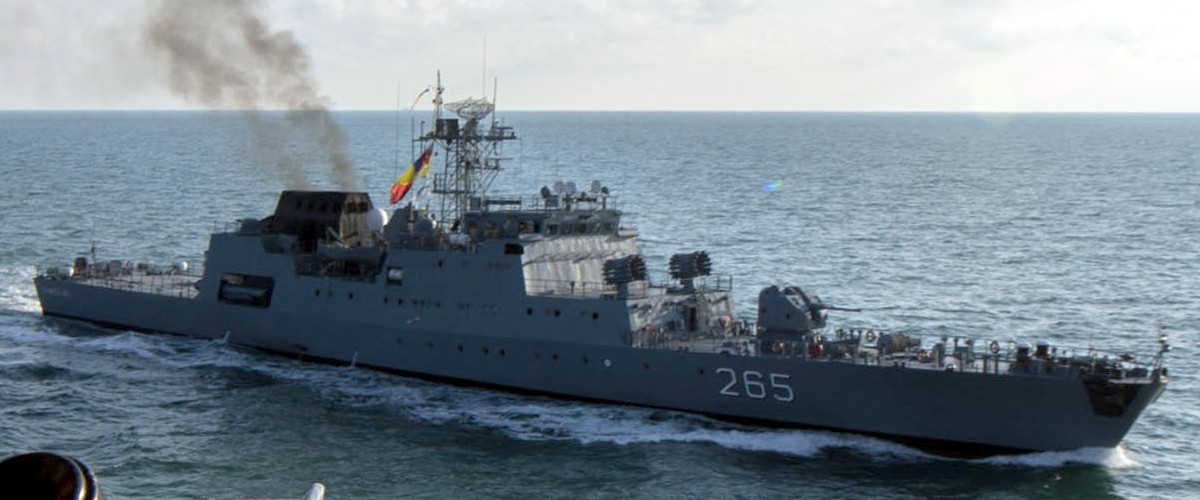

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 09
F-265 ROS Contraamiral Horia Macellariu

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 14
F-265 ROS Contraamiral Horia Macellariu

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 15
F-265 ROS Contraamiral Horia Macellariu

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 16 rbu-6000 asw rocket launcher
F-265 ROS Contraamiral Horia Macellariu - 2 x RBU-6000 ASW rocket launchers

f-265 ros contraamiral horia macellariu tetal-ii class corvette romanian navy 17 ak-276 76mm gun
F-265 ROS Contraamiral Horia Macellariu - AK-276 76mm (3") gun
