Republic of Korea Navy - ROKN Son Won-il class (Type 214 / KSS-II) Submarine |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ships: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Builders: Hyundai Heavy Industries (HHI), Ulsan, RoK Daewoo Shipbuilding & Marine Engineering (DSME), Geoje, RoK Displacement: 1690 tons, surfaced / 1860 tons, submerged Length: 65 meters (213 feet 3 inches) Beam: 6.3 meters (20 ft 8 in) Draft: 6 meters (19 ft 8 in) Speed: 12 knots (22 km/h), surfaced / 20 knots (37 km/h), submerged Range: 12000 NMI (22000 km), surfaced 420 NMI (780 km) at 8 knots (15 km/h), submerged 1250 NMI (2315 km) at 4 knots (7.4 km/h), submerged on fuel-cells Endurance: 84 days Test depth: 400 meters (1300 feet) Crew: 27 Propulsion: Diesel-Electric + Fuel-cell AIP 2 x MTU 16V 396 diesel engines (3.96 MW) 2 x Piller NTB 56.40-10 charging generators (0.97 MW) 2 x HDW PEM fuel cell module BZM120 API-system (2 x 120 kW) 1 x Siemens Permasyn (2.85 MW) electric motor 1 shaft / 1 low-noise skew-back propeller Armament: 8 x 21 in (533 mm) bow torpedo tubes (4 are missile capable) for 21-inch (533mm) heavyweight torpedoes and/or SSM-700K Haeseong III SSM missiles or UGM-84 Harpoon SSM Systems: Thales SPHINX-D with 4 kW pulse and tactical LPI radar sensor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The Type 214 is a diesel-electric
submarine developed by Howaldtswerke-Deutsche Werft GmbH (HDW),
Germany. It features diesel propulsion with an air-independent
propulsion (AIP) system using Siemens polymer electrolyte membrane
(PEM) hydrogen fuel cells. The class is exclusively designed for
export market. The submarine class combines the design principles of
the Type 209 family and the features of the Type 212A submarines.
However, as an export design, it lacks some of the classified
technologies of the smaller Type 212, the most important of which is
probably the non-magnetic steel hull, which makes the Type 212
submarine difficult to detect using a magnetic anomaly detector. Due to improvements in the pressure hull materials, the Type 214 can dive nearly 400 metres (1,300 ft). It can also carry food, fresh water and fuel for 84 days of operation. The Republic of Korea Navy has ordered nine Type 214 submarines, designated as Son Won-Il class, to be built in Korea by Hyundai Heavy Industries and Daewoo Shipbuilding & Marine Engineering; three first batch models entered service since 2007, and six second batch models entered service from 2012. The South Korean Son Won-Il (Type 214 / KSS-II) class submarine is equipped with a SPHINX-D Radar System supplied by Thales Defence Deutschland GmbH. It uses an additional pulse transmitter in the top of the mast. The combination of high power pulse radar and a very low power LPI transmitter is very effective for submarines. During surface operations, the boat sails with an open pulse fingerprint for ESM systems, but within a secret mission the operator switches to LPI mode. The boat remains invisible to others. Total of 9 are planned and 8 are in active duty. South Korea ordered its first three KSS-II/ Type 214 boats in 2000, which were assembled by Hyundai Heavy Industries. The Batch 2 order will add six more submarines to the Navy, to be built by Daewoo Shipbuilding & Marine Engineering. In March 2008, it was reported in the media that the first Type 214 submarine of the Republic of Korea Navy suffered from defects related to excessive noise from the screw, according to anonymous sources. Later ROKN denied the report. There were no further reports of such noise problems in succeeding South Korean Type 214 submarines. The first three Type 214 submarines of South Korea were built by Hyundai Heavy Industries. In August 2008, South Korea signed another contract with HDW for six more Type 214 submarines. The Batch 2 order will add six more submarines to the Navy, to be built by Daewoo Shipbuilding & Marine Engineering. Hong Beom-do, a specialized guided missile submarine was launched on 5 April 2016. source: wikipedia Names: Sohn Won-yil (May 5, 1909 in Nampo - February 15, 1980) was a South Korean naval vice admiral best known for being the first Chief of Naval Operations (CNO) of the Republic of Korea Navy. As one of the founding members of the Republic of Korea Navy, Sohn is generally regarded as the founder of the South Korean navy. Jeong Ji ... no information An Jung-geun (2 September 1879 - 26 March 1910) was a Korean-independence activist, nationalist, and pan-Asianist Kim Jwa-chin or Kim Jwa-jin (December 16, 1889 - January 24, 1930) sometimes called by his pen name Baekya, was a Korean general, independence activist, and anarchist who played an important role in the early attempts at development of anarchism in Korea. Yun Bong-gil (21 June 1908 - 19 December 1932) was a Korean independence activist who set off a bomb that killed several Japanese dignitaries in Shanghai's Hongkew Park (now Lu Xun Park) in 1932. He was posthumously awarded the Republic of Korea Medal of Order of Merit for National Foundation in 1962 by the South Korean government. Yu Gwan-sun (December 16, 1902 - September 28, 1920) was a Korean independence activist organizer in what would come to be known as the March First Independence Movement against Imperial Japanese colonial rule of Korea in South Chungcheong. Hong Beom-do (August 27, 1868 - October 25, 1943) was a Korean independence activist and general. Hong was born in Chasong, North Pyongan. Lee Beom-seok (20 October 1900 - 11 May 1972) was a Korean independence activist and the first Prime Minister of South Korea from 1948 to 1950. He also headed the Korean National Youth Association. His nickname was Chulgi. Shin Dol-seok (26 November 1879 - 11 December 1908) was a Korean general of the Righteous Armies who fought against the Japanese army in the early 20th century. He was born in Yeonghae (now Yeongdeok), North Gyeongsang Province. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| images | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

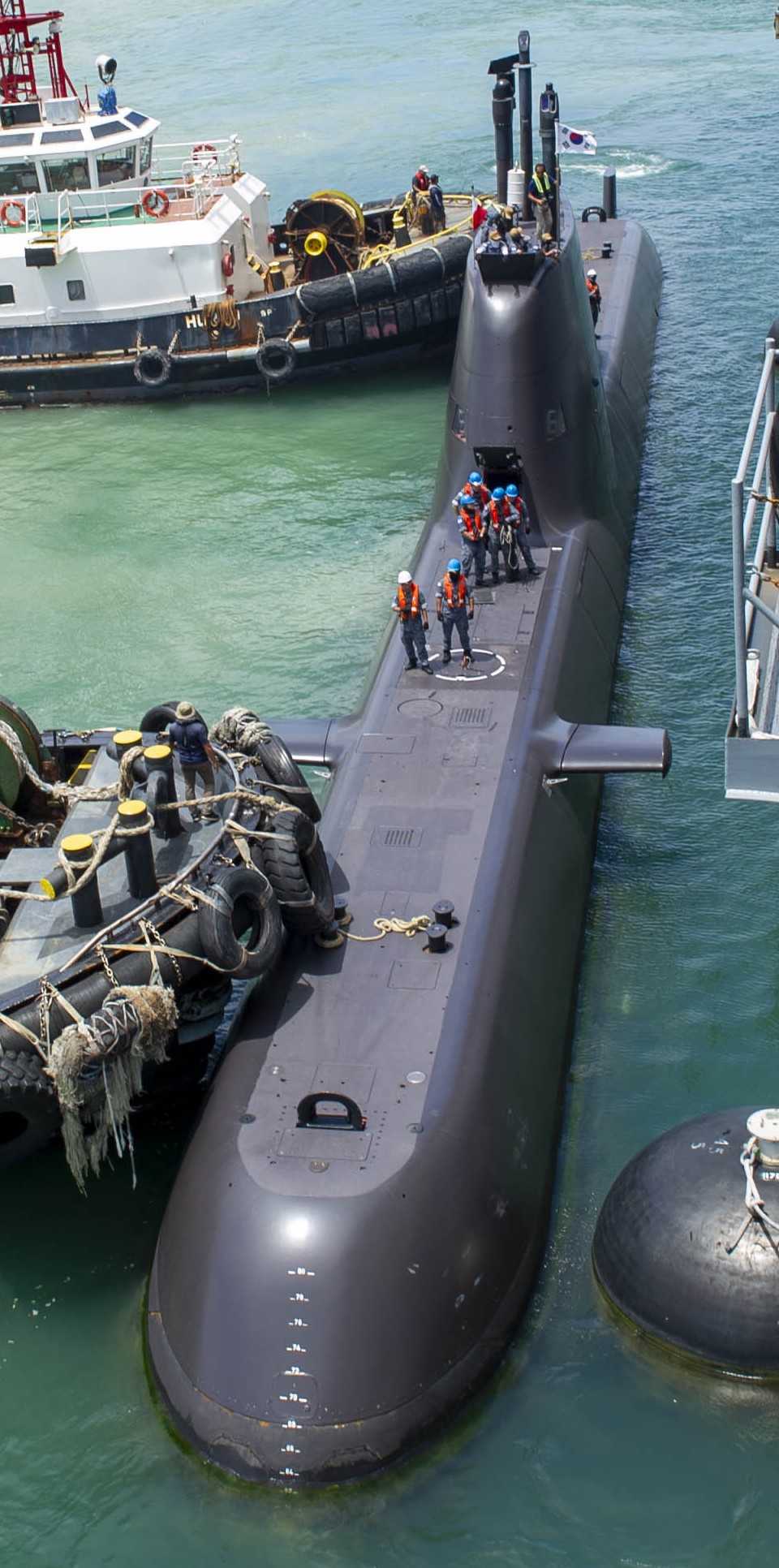

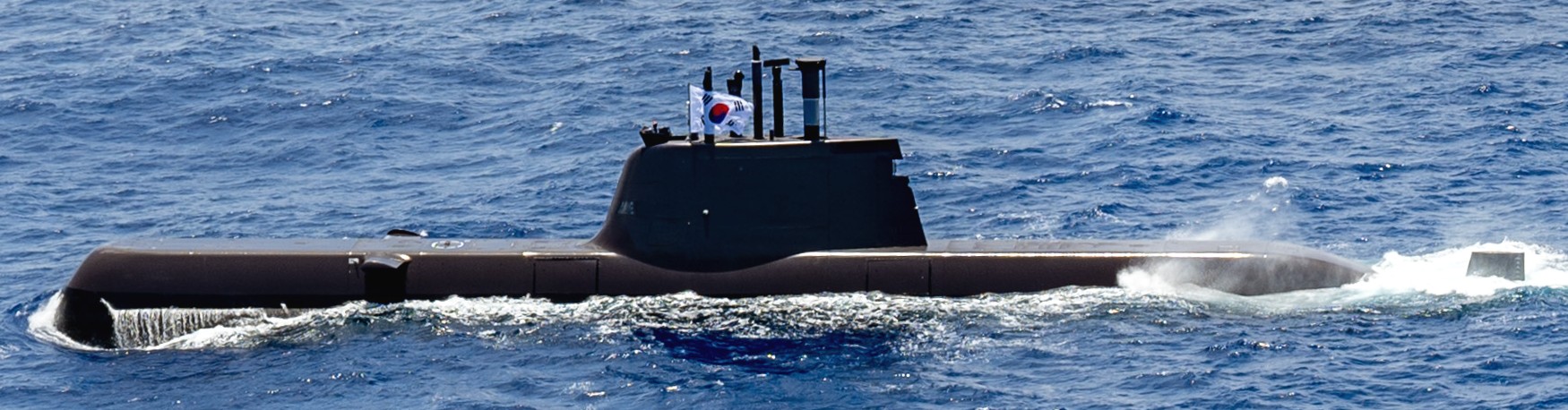

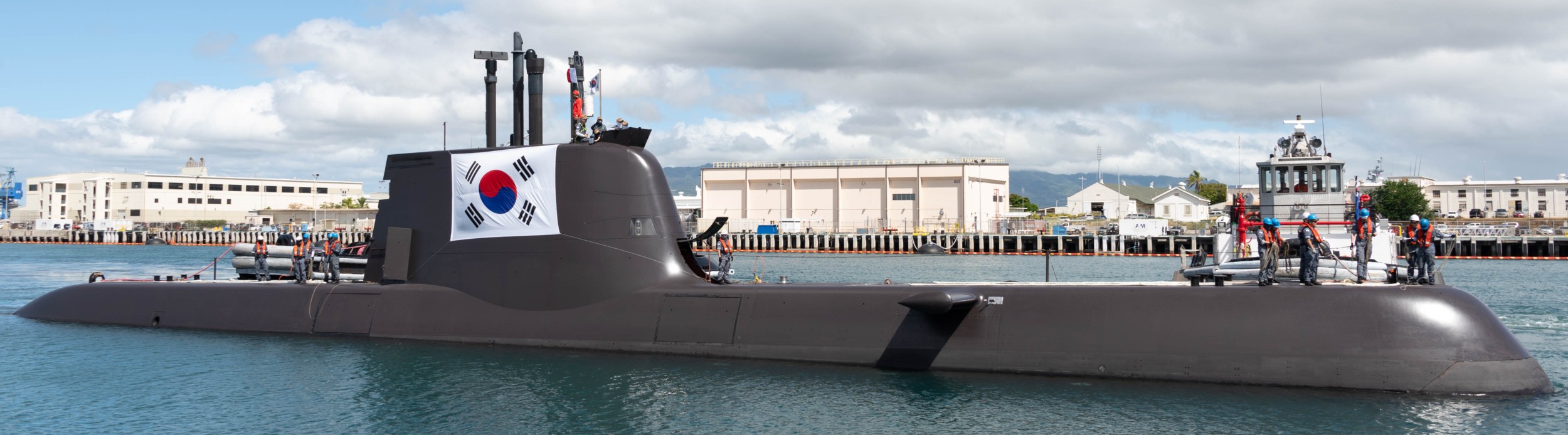

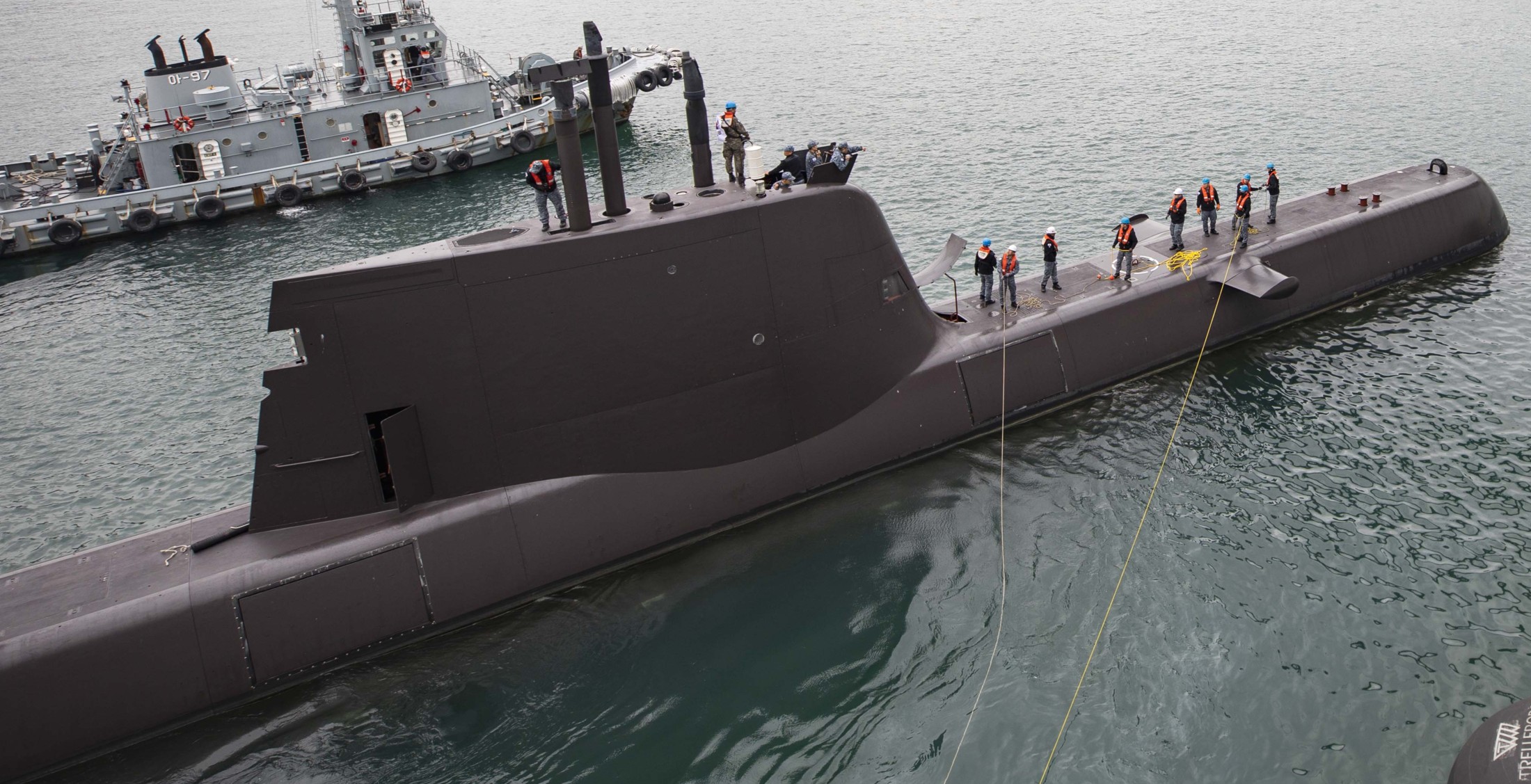

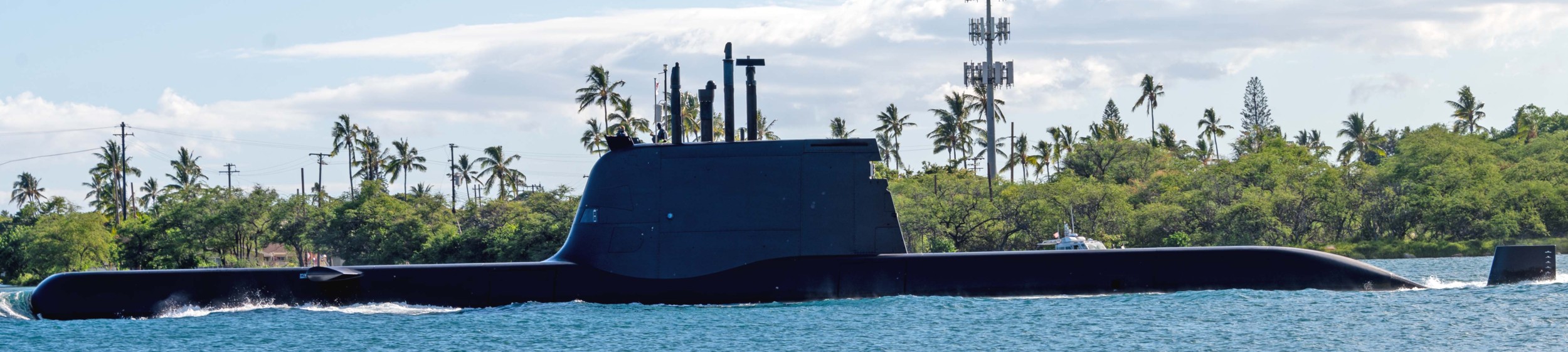

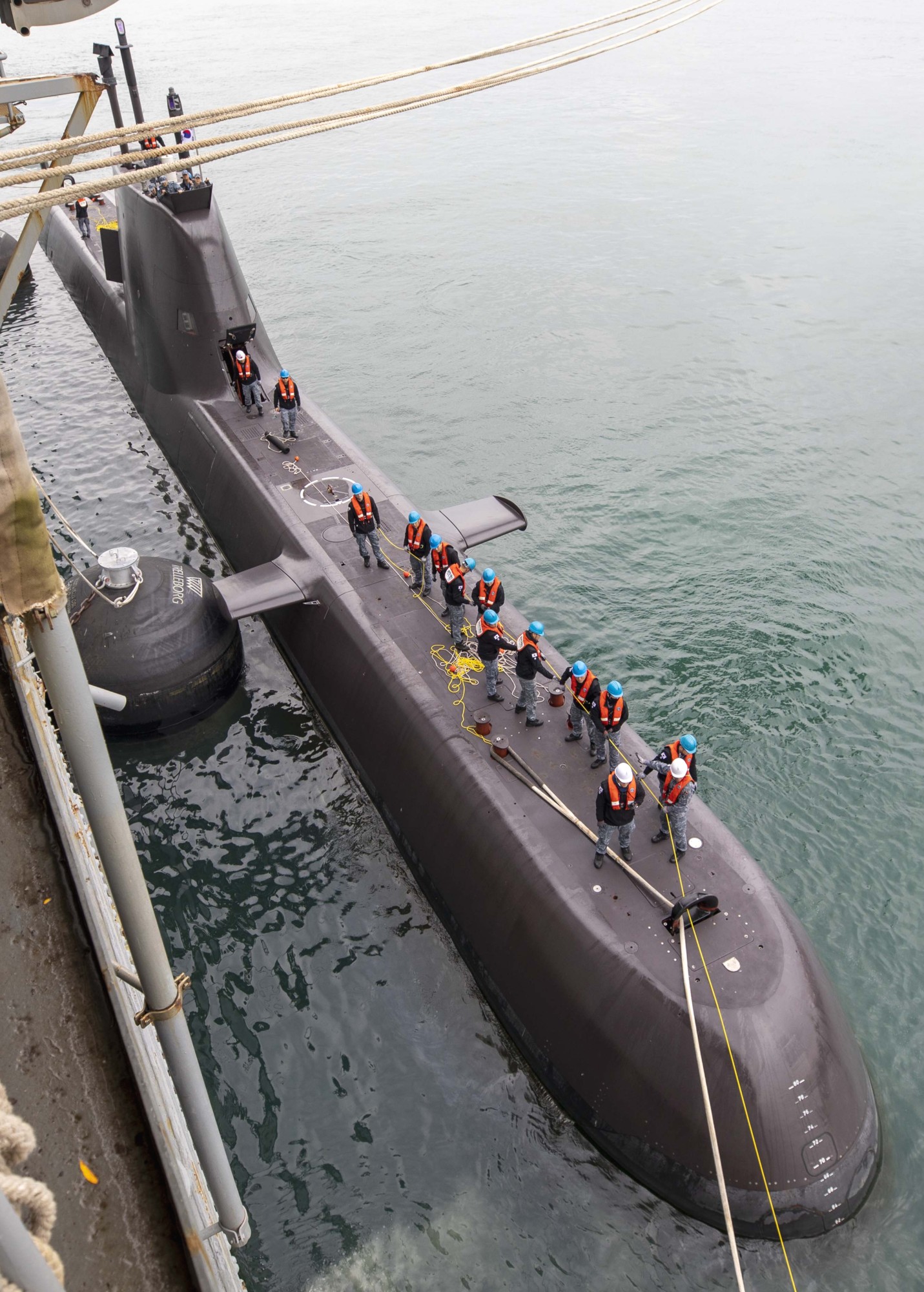

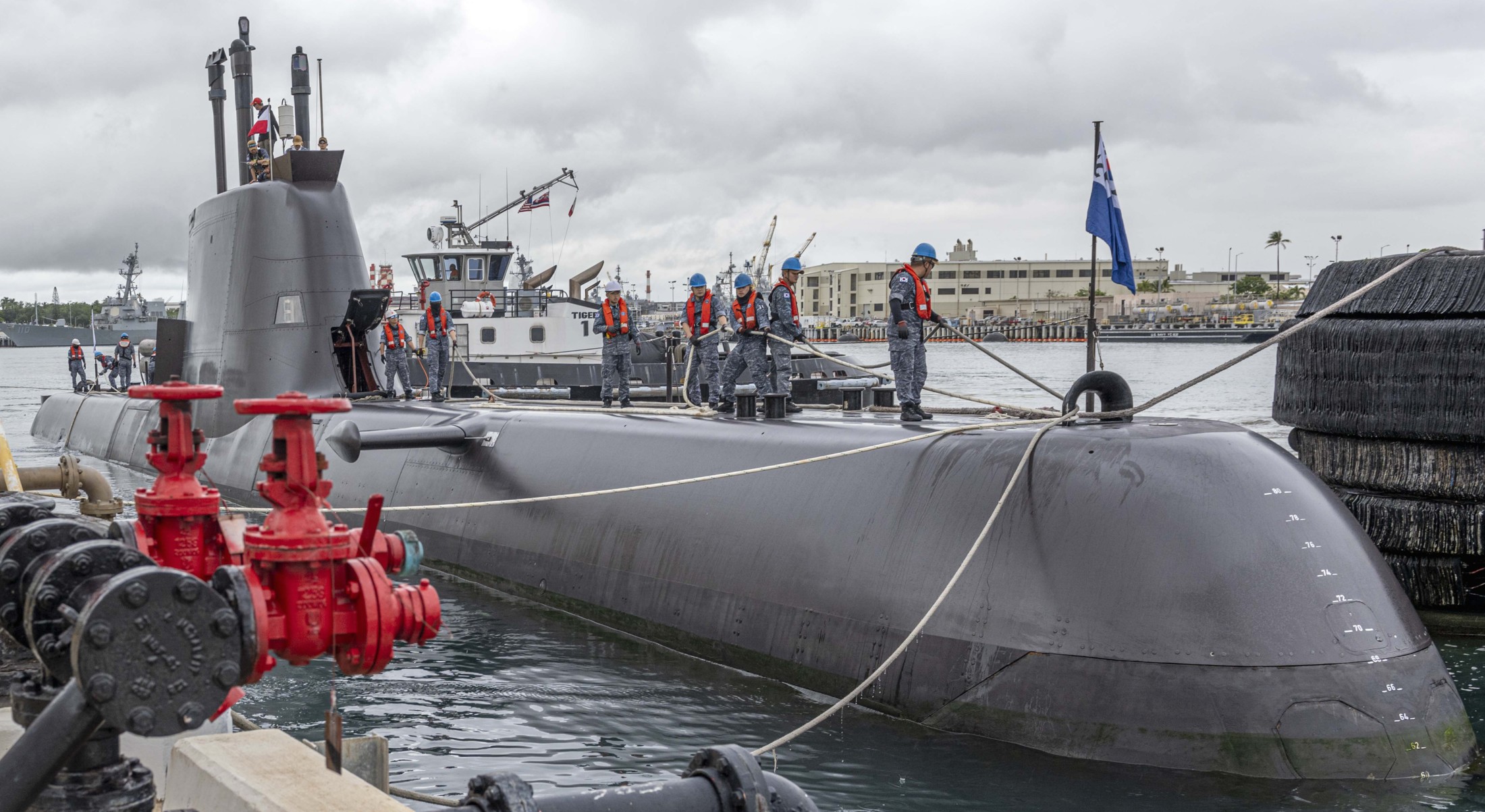

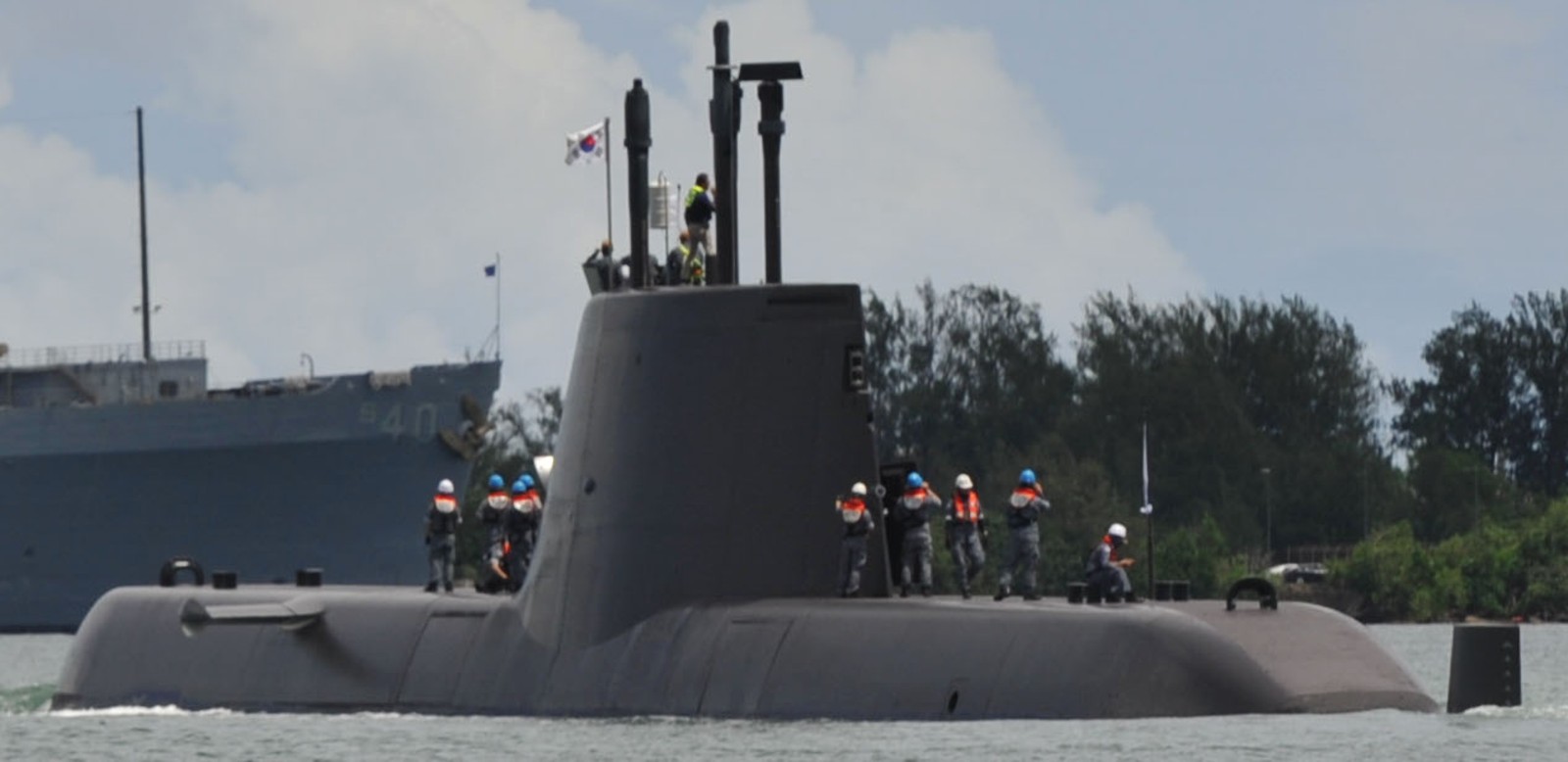

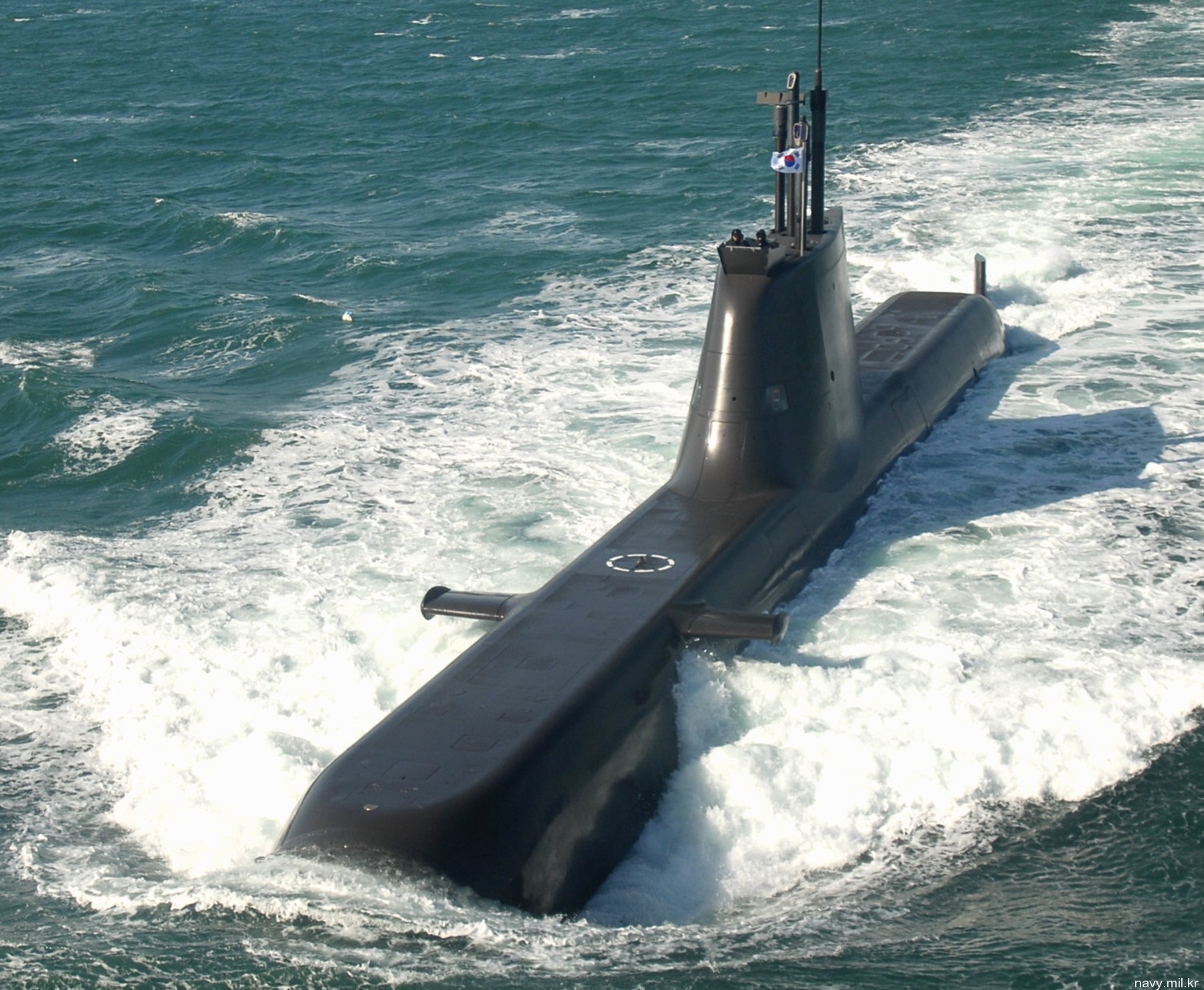

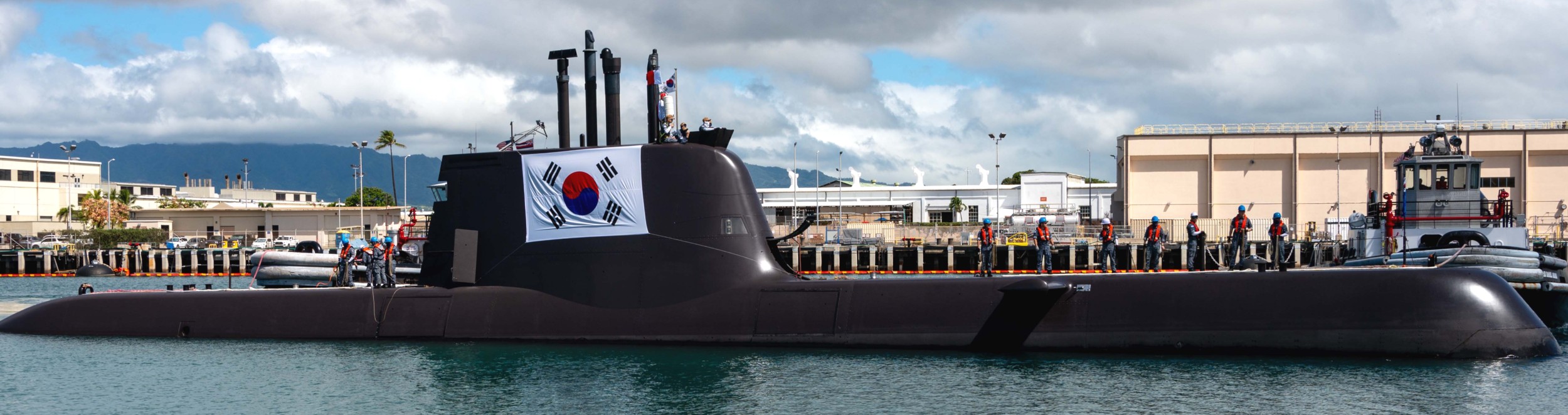

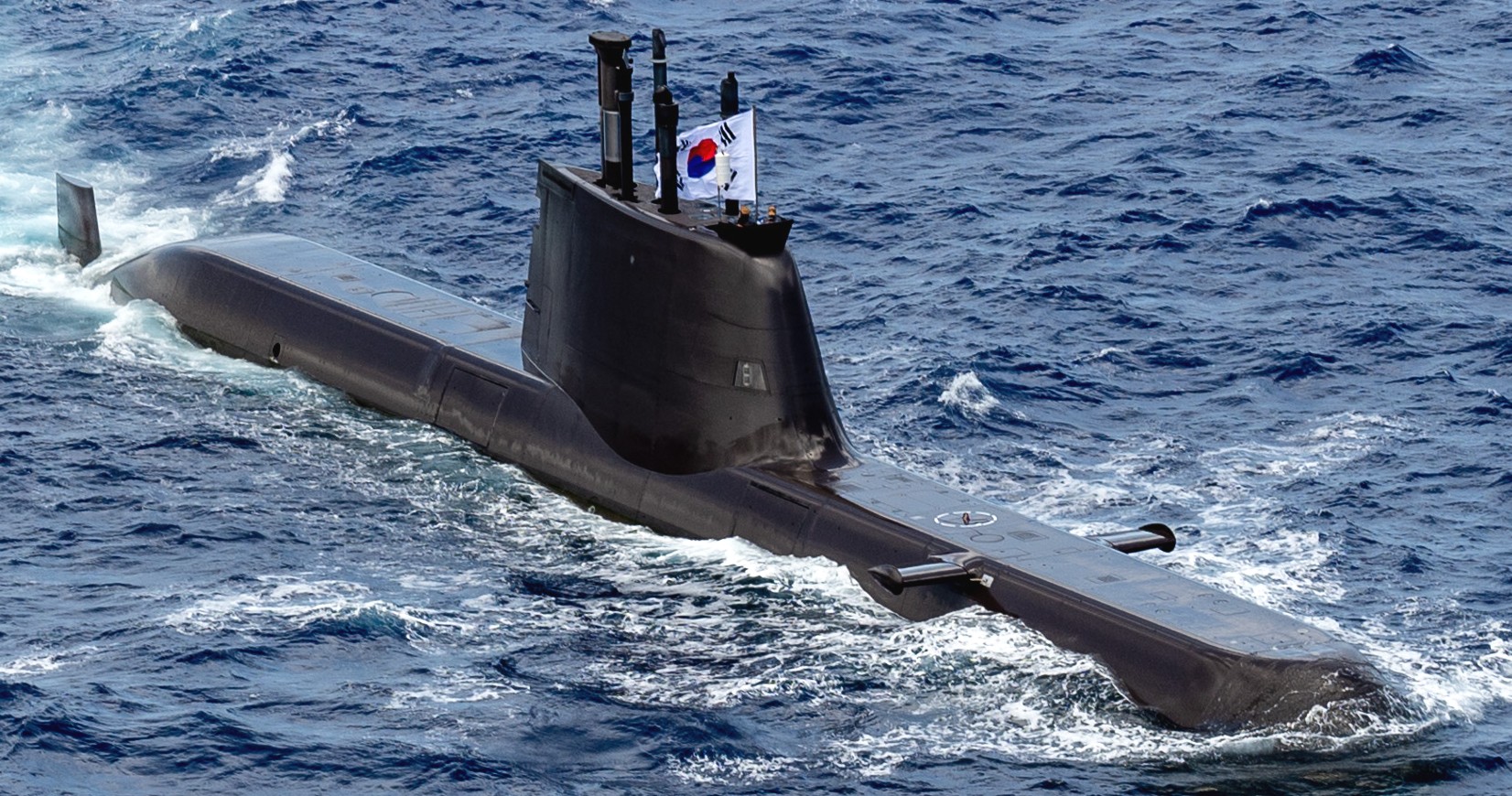

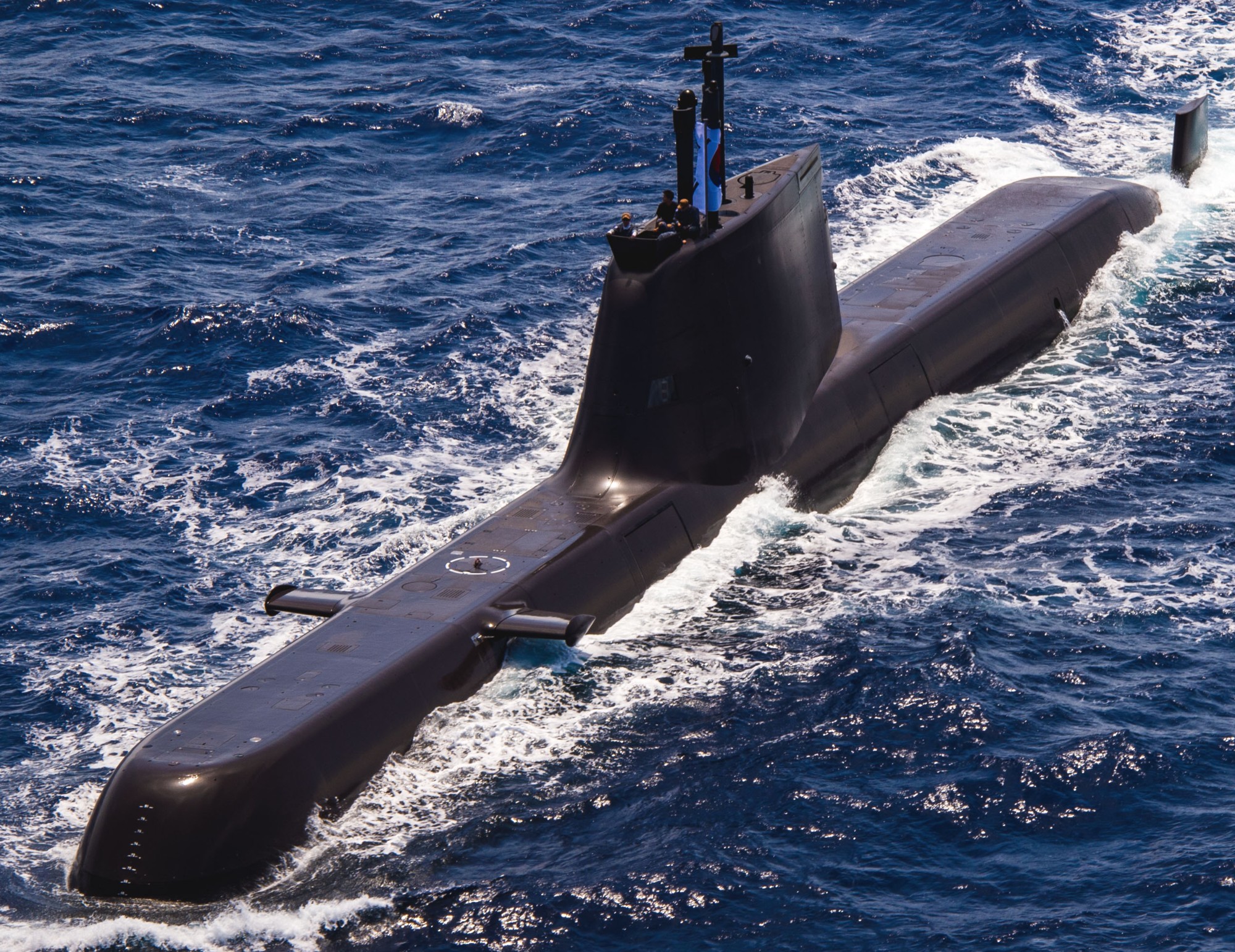

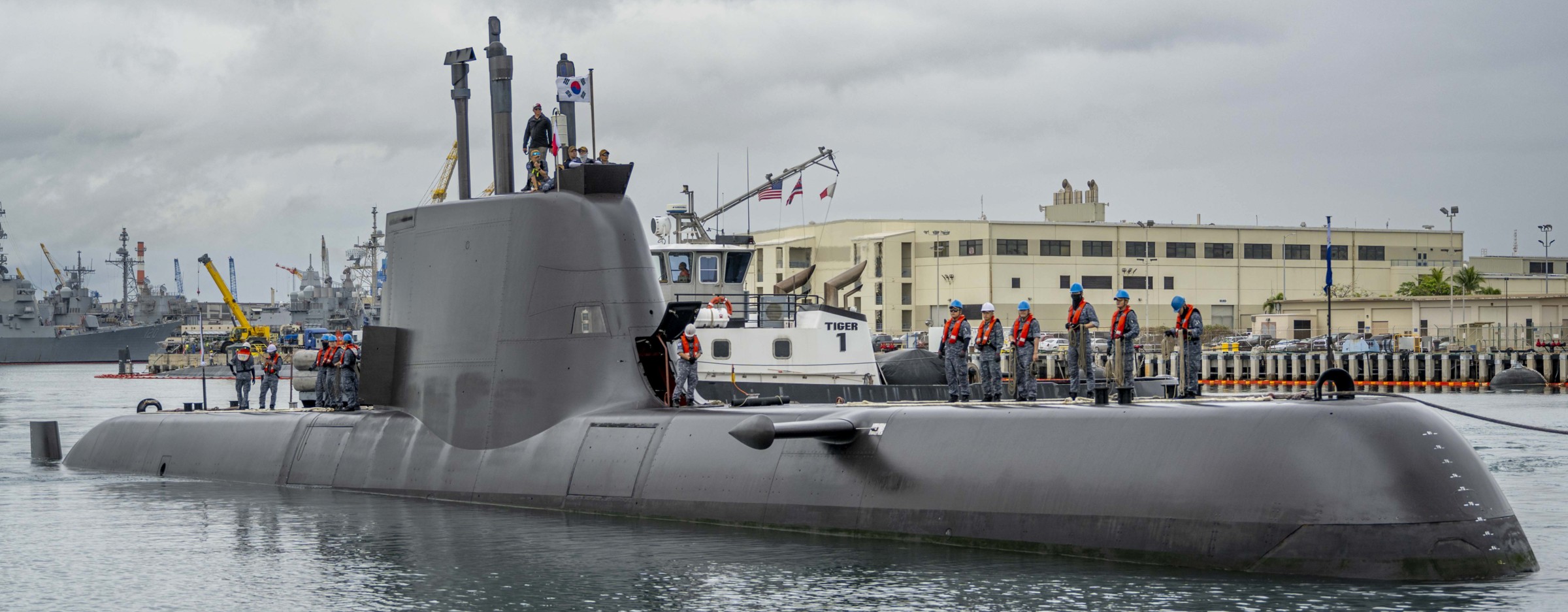

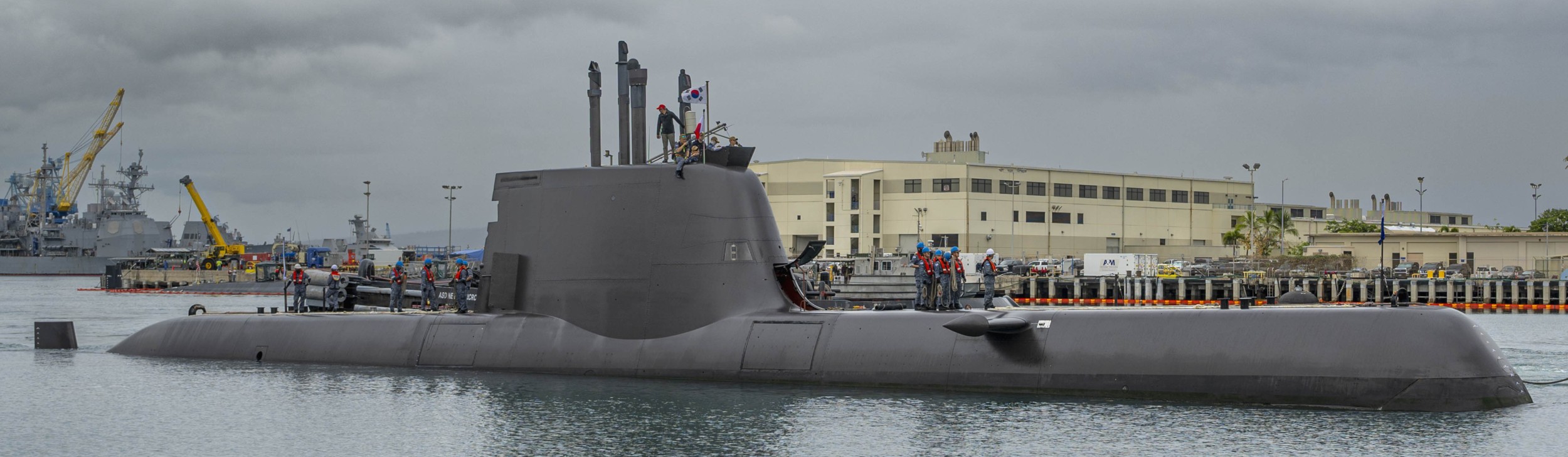

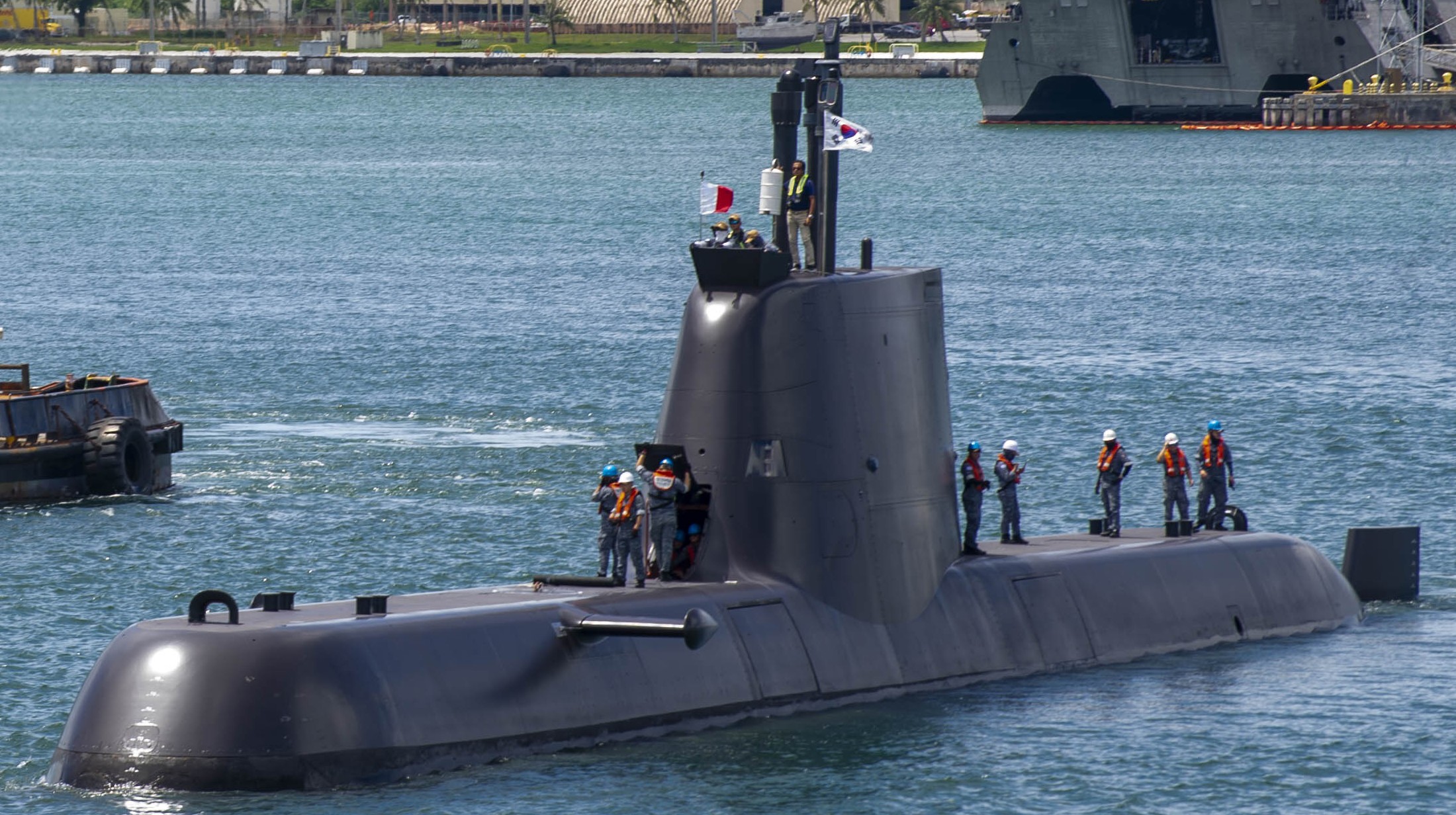

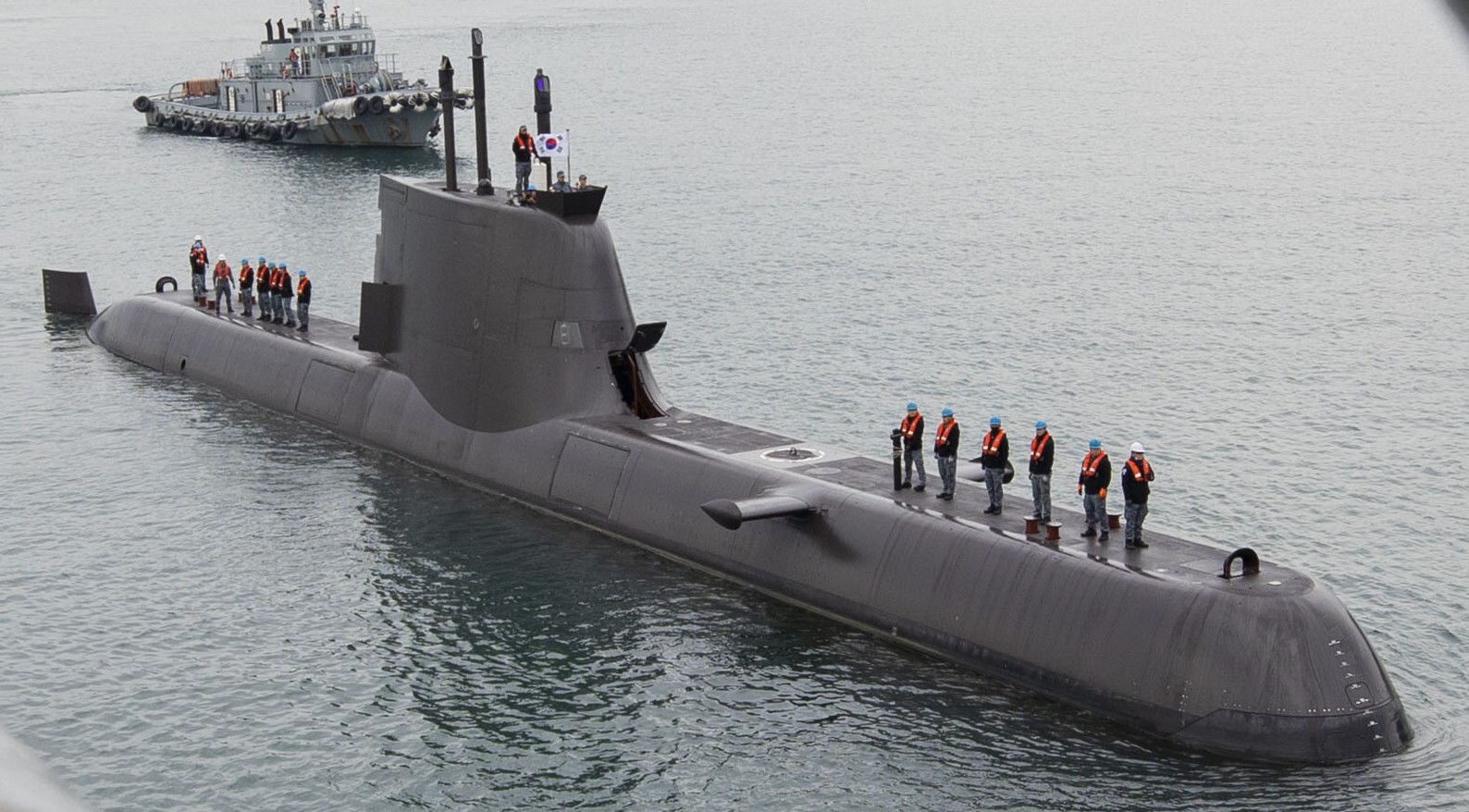

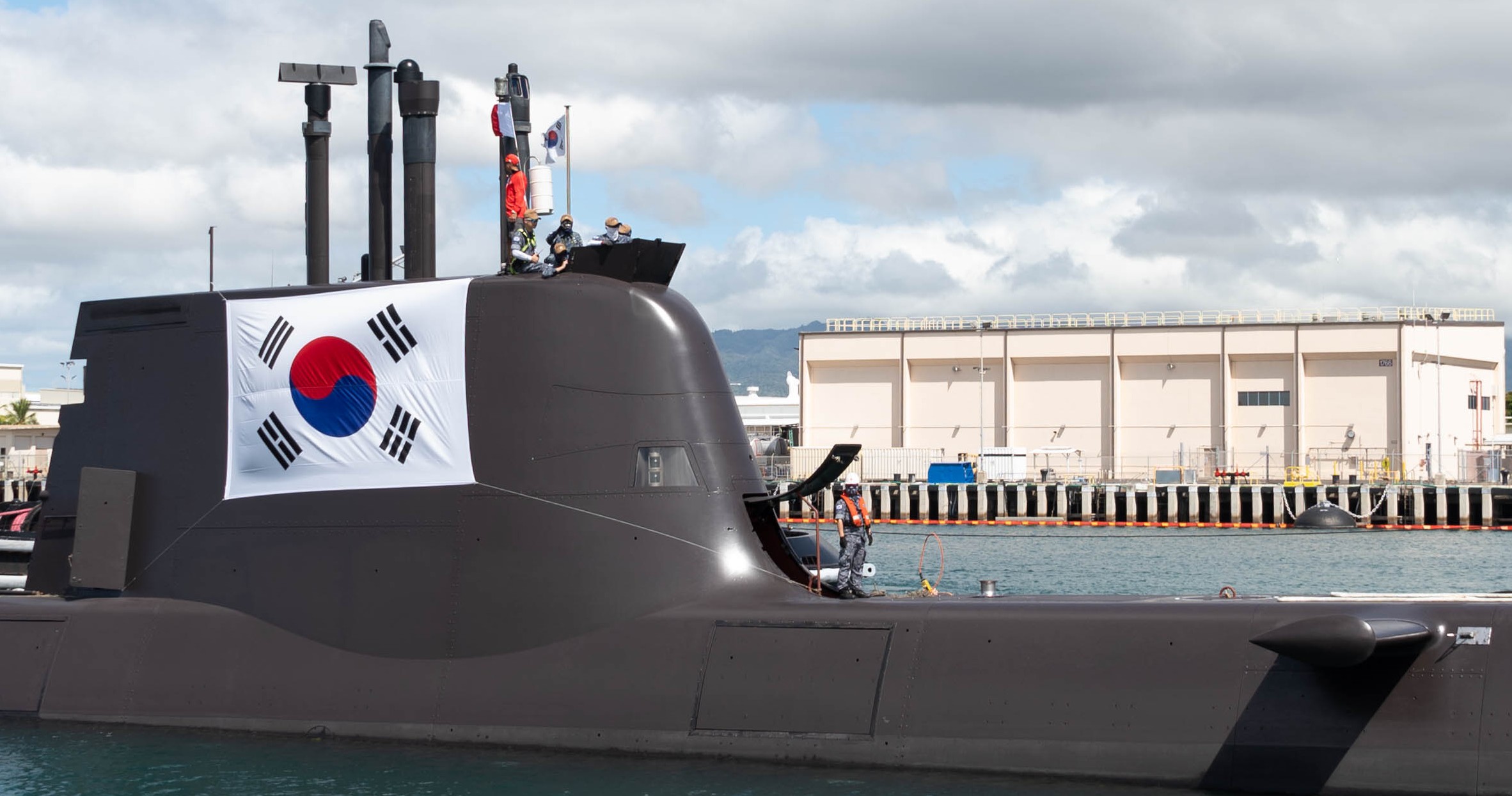

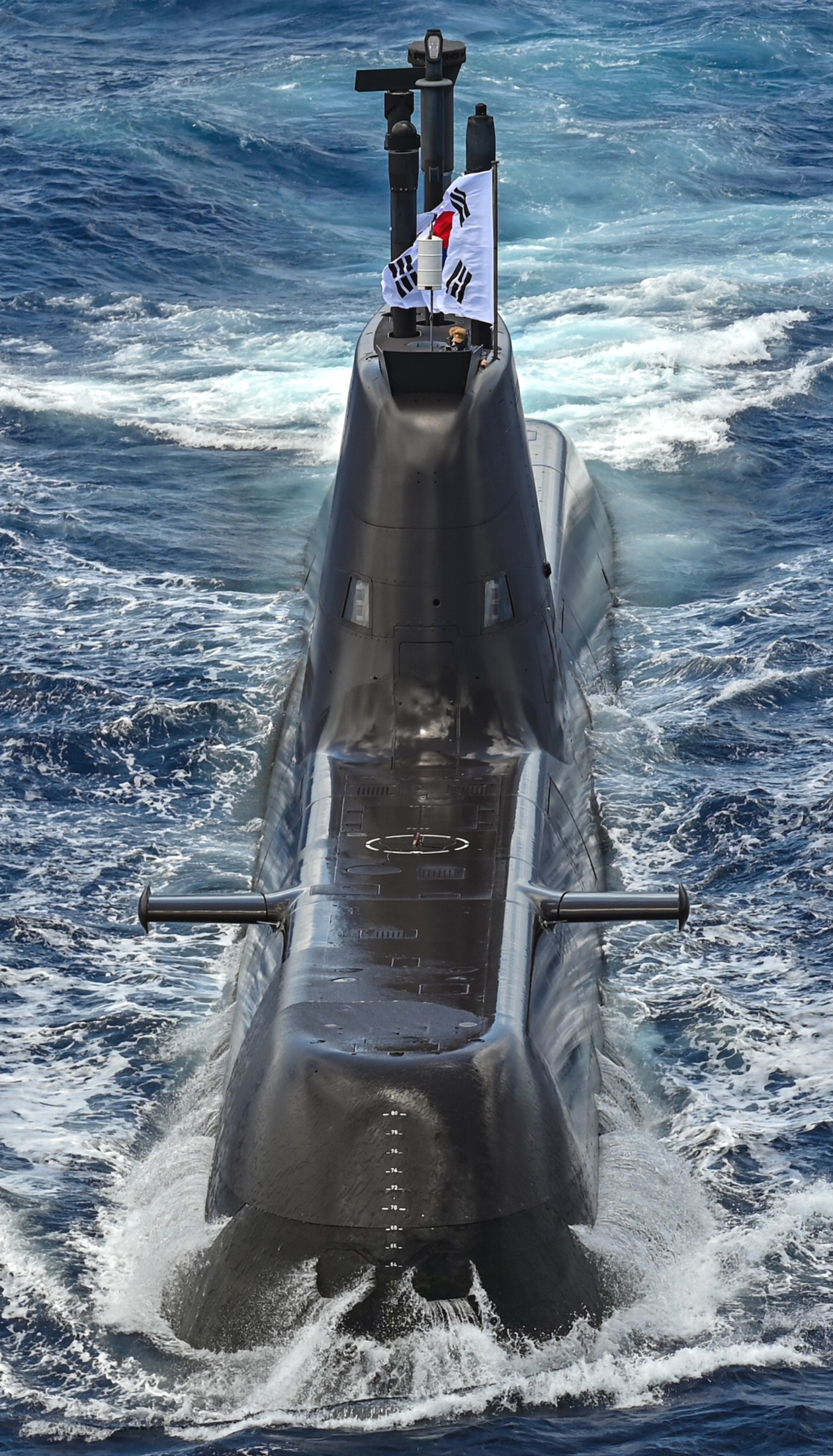

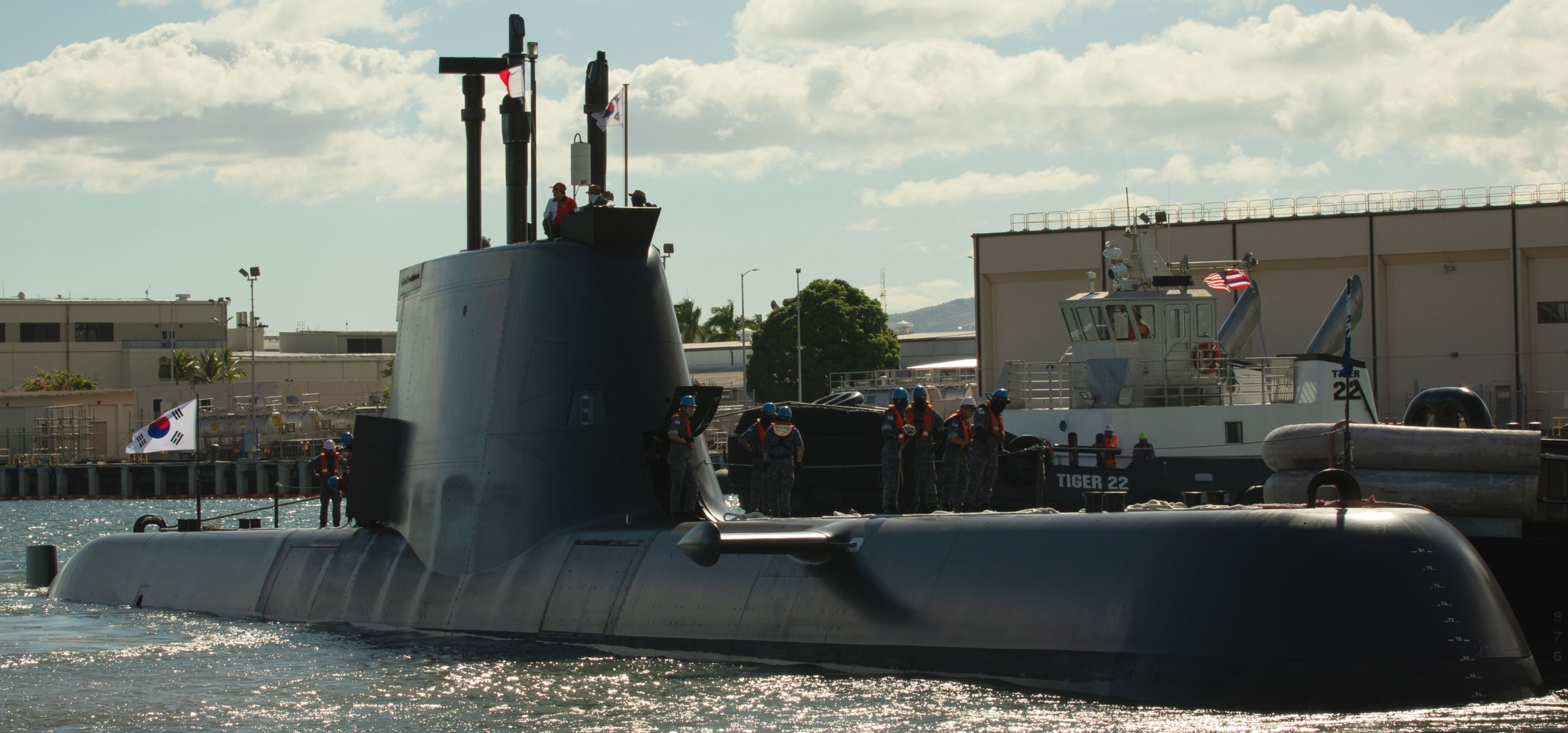

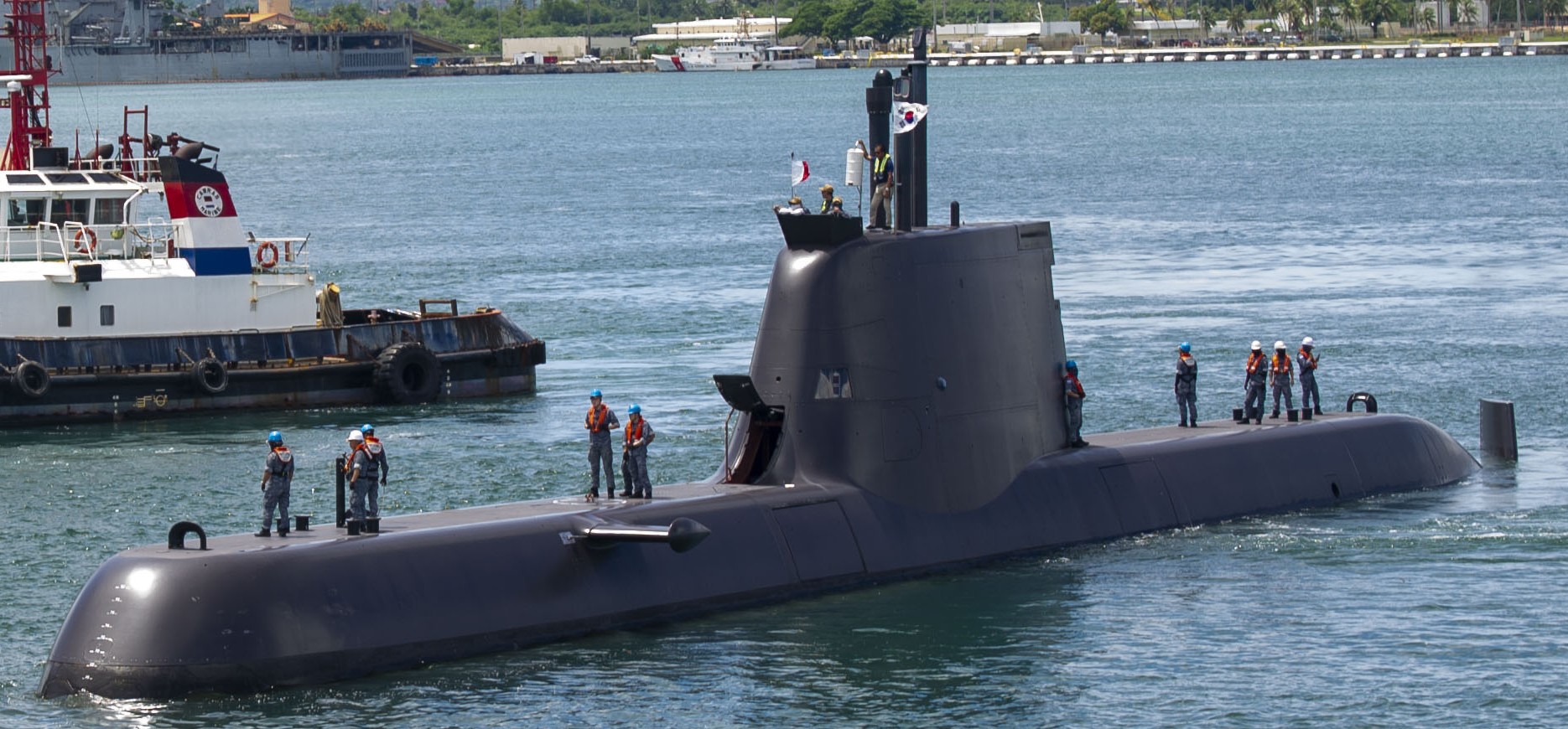

 SS-072 ROKS Son Won-il  SS-072 ROKS Son Won-il  SS-075 ROKS An Jung-geun  SS-075 ROKS An Jung-geun  SS-077 ROKS Yun Bong-gil  cutout  SS-077 ROKS Yun Bong-gil  SS-077 ROKS Yun Bong-gil SS-078 ROKS Yu Gwan-sun  SS-079 ROKS Hong Beom-do  SS-079 ROKS Hong Beom-do  SS-081 ROKS Lee Beom-seok  unidentified unit  unidentified unit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
