Republic of Korea Navy - ROKN
Cheon Wang Bong class Tank Landing Ship


cheon wang bong class landing ship tank lst korean navy rokn hanjin hyundai 04x

 07/21
Ships:
Unit Korean Name Builder Launched Commissioned STATUS
LST-686 ROKS Cheon Wang Bong 천왕봉 Hanjin September 11, 2013 December 1, 2014 ACTIVE
LST-687 ROKS Cheon Ja Bong 천자봉 Hyundai December 15, 2015 August 1, 2017 ACTIVE
LST-688 ROKS Il Chul Bong 일천봉 Hyundai October 25, 2016 April 2, 2018 ACTIVE
LST-689 ROKS No Jeok Bong 노적봉 Hyundai November 2, 2017 November 21, 2018 ACTIVE

Specifications:

Builders:
Hanjin Heavy Industry Co. Ltd., Busan, RoK
Hyundai Heavy Industries Co., Ltd., Ulsan, RoK

Displacement:
4950 tons (empty) / 7140 tons (full load)
Length:
126.9 meters (416 feet)
Beam: 19.4 meters (64 ft)
Draft: 5.4 meters (18 ft)
Speed: 23 knots (43 km/h), max. / 18 knots (33 km/h), cruise
Range: 8000 NMI (15000 km) at cruise speed
Complement: 120 (ship)

Propulsion:
COD
AD (Combined Diesel and Diesel)
4 x MAN 12V28/33D STC diesel engines rated at 5460 kW
4 x
MAN 6L21/31 auxiliary engines rated 1200 kW
2 shafts, 2 propellers

Armament:

1 x 4-cell K-VLS for 16 x K-SAAM Sea Bow missiles
1 x Hanwha 'Nobong' 40mm twin gun

Aviation:
large flight deck aft / no hangar

Boats & landing craft: 2 x Landing Craft, mechanized (LCM)
Troops: 300 marines

Systems:
STX RadarSys SPS-100K surface search radar
LIG Nex1 SPS-540K 3D air + surface surveillance radar
SLQ-200(v)5K SONATA ESM/ECM system
Rheinmetall Multi Ammunition Softkill System (MASS)



The Cheon Wang Bong class LST is an amphibious tank landing ship class of the Republic of Korea Navy (ROKN).

Development:
In the late 1980s the Republic of Korea Navy decided to gradually replace its aging fleet of World War II-era LST-542-class LSTs (renamed Un Bong-class LST) purchased from the US Navy in 1958. A three phase plan was laid out to develop new landing ships to meet the demands of modern amphibious and transport operations.

The first phase was designated as the LST-I project, and development and design started in 1987 by Korea Tacoma, currently Hanjin Heavy Industries. After 4 years of development, the lead ship Go Jun Bong (LST 681) was launched in 1991. Three more ships followed and all four ships were commissioned by 1998.

The second phase, or LST-II, was originally planned to import four Newport-class tank landing ships, but after being postponed due to budget issues, it was changed in favor for domestic built 4500-ton LPDs to be commissioned by 2013-2016. After the construction of the first vessel, a follow-on contract for four additional vessels were awarded to Hyundai Heavy Industries in December 2013.

source: wikipedia

images

cheon wang bong class landing ship tank lst republic of korea navy rokn lcm helicopter amphibious 02
Cheon Wang Bong class LST

cheon wang bong class landing ship tank lst republic of korea navy rokn lcm helicopter amphibious 03
Cheon Wang Bong class LST


lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 04
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 02
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 03
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 07
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 08
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 12
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 10
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 09
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 11
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 06
LST-686 ROKS Cheon Wang Bong

lst-686 roks cheon wang bong class tank landing ship amphibious korean navy rokn helicopter lcm 05
LST-686 ROKS Cheon Wang Bong


lst-687 roks cheon ja bong tank landing ship amphibious korean navy rokn helicopter lcm 09
LST-687 ROKS Cheon Ja Bong

lst-687 roks cheon ja bong tank landing ship amphibious korean navy rokn helicopter lcm 07
LST-687 ROKS Cheon Ja Bong

lst-687 roks cheon ja bong tank landing ship amphibious korean navy rokn helicopter lcm 02
LST-687 ROKS Cheon Ja Bong

lst-687 roks cheon ja bong tank landing ship amphibious korean navy rokn helicopter lcm 03
LST-687 ROKS Cheon Ja Bong

lst-687 roks cheon ja bong tank landing ship amphibious korean navy rokn helicopter lcm 05
LST-687 ROKS Cheon Ja Bong

lst-687 roks cheon ja bong tank landing ship amphibious korean navy rokn helicopter lcm 08

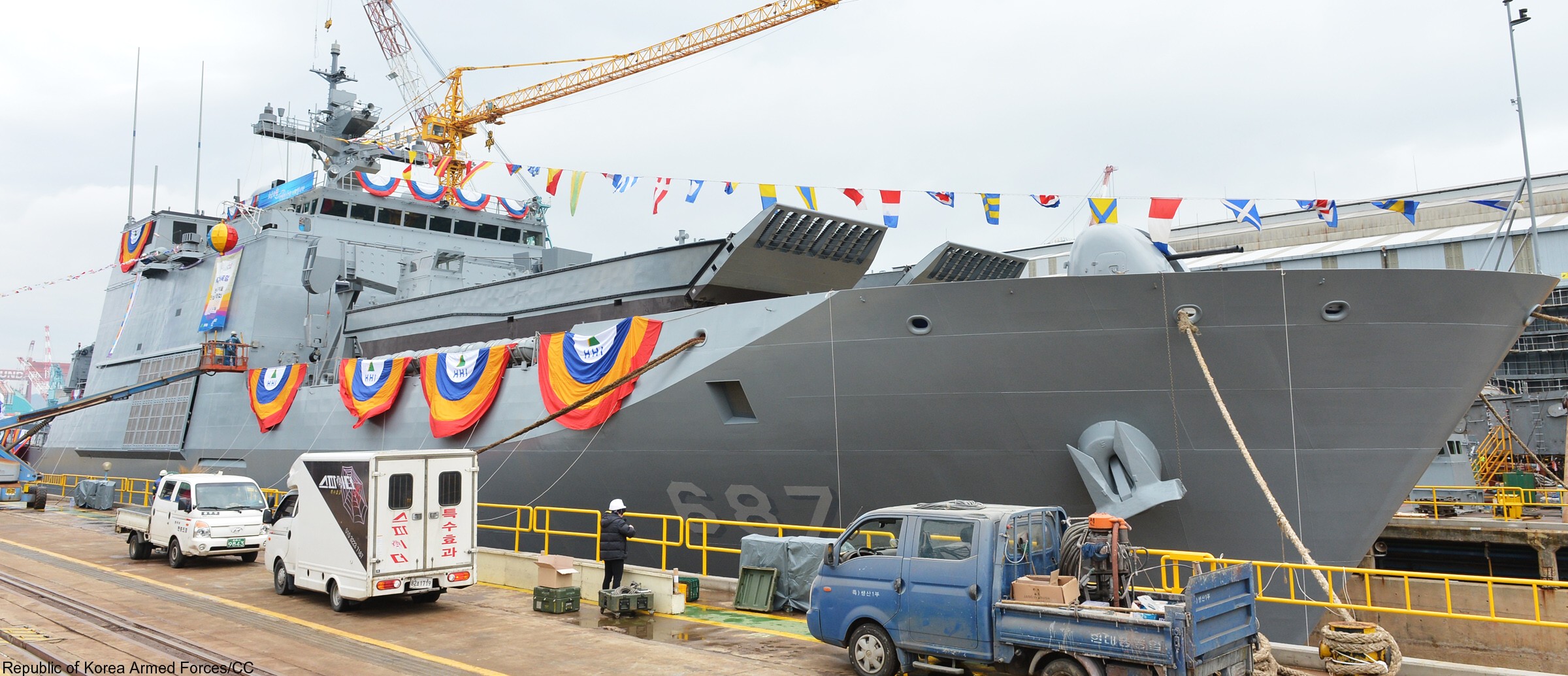

LST-687 ROKS Cheon Ja Bong

lst-687 roks cheon ja bong tank landing ship amphibious korean navy rokn helicopter lcm 04
LST-687 ROKS Cheon Ja Bong

lst-687 roks cheon ja bong tank landing ship amphibious korean navy rokn helicopter lcm 06
LST-687 ROKS Cheon Ja Bong



cheon wang bong class landing ship tank lst republic of korea navy rokn lcm helicopter amphibious hanwha nobong gun 07a
1 x Hanwha 'Nobong' 40mm twin gun / 2 x landing craft LCM

cheon wang bong class landing ship tank lst republic of korea navy rokn lcm helicopter amphibious 02a nobong 40mm twin gun
1 x Hanwha 'Nobong' 40mm twin gun / 2 x landing craft LCM
