Al Zubarah Doha class Multi-Mission Corvette Qatari Navy

Qatar / Qatari Emiri Navy - Corvette
Al Zubarah (Doha) class Multi-Mission Corvette

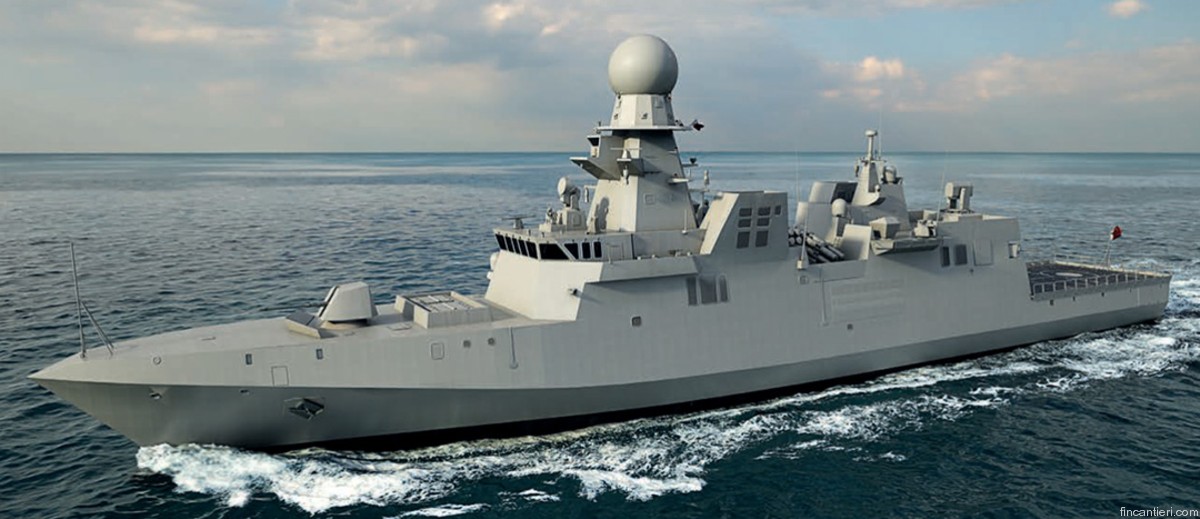

al zubarah doha class multi-mission missile corvette qatari emiri navy 02x

05/24

Ships:

Unit	Launched	Delivered	STATUS	Namesake
F101 QENS Al Zubarah	February 27, 2020	October 28, 2021	ACTIVE	الزبارة - Fort Al Zubarah, Qatar
F102 QENS Damsah	February 13, 2021	April 28, 2022	ACTIVE	دعمش - Damsah ?
F103 QENS Al Khor	September 30, 2021	December 22, 2022	ACTIVE	الخور - City of Al Khor, Qatar
F104 QENS Semaisma	March 29, 2022	May 16, 2023	ACTIVE	سُمَيْسِمَة - City of Semaisma (Sumaysimah), Qatar

Specifications:

Builder: Fincantieri, Muggiano Shipyard (La Spezia), Italy

Displacement: 3,300 tons
Length: 107 meters (351 feet 1 in)
Beam: 14.7 m (48 ft 3 in)
Depth: 8.6 m (28 ft 2 in)
Speed: 28 knots (52 km/h), max. / 15 knots (28 km/h) cruise
Range: 3,500+ NM (6,500+ km)
Complement: 98 (ship) +14

Propulsion:
Combined Diesel and Diesel (CODAD)
4 x MAN diesel engines
2 shafts / 2 Featherable controllable pitch propellers (FCPP)

Armament:

Naval Group Sylver A50 Vertical Launching System / VLS (2 x 8 cells)
for
MBDA Aster 30 Block 1 SAM missiles

1 x Leonardo 76/62 super rapid gun

2 x Leonardo MARLIN 30 Weapon System

8 x MBDA MM40 Block 3 Exocet Anti-Ship Missiles (SSM)

1 x 21-cell Mk.31 Missile Weapon System for RIM-116 Rolling Airframe Missiles (RAM)

Systems:
Leonardo Combat Management System (CMS)
Leonardo Kronos Grand Naval AESA 3D radar
Leonardo NA-30S Mk 2 dual-band radar and EO/IR Fire Control System (for 76/62)
Leonardo Medusa MK4/B Electro-Optical Fire Control System /EO-FCS (for Marlin WS)
Leonardo SASS (Silent Acquisition & Surveillance System) IRST system
Lacroix Sylenia decoy launching system
Leonardo ODLS 20 torpedo decoy system
Leonardo Black Snake towed array sonar system (TASS)
Leonardo Thesan Obstacle & Mine Avoidance Sonar

Aviation:
flight deck and hangar for 1 helicopter (NH90)

4 units of the Al Zubarah class (earlier Doha class) Multi-Mission Corvettes were built by Fincantieri in Italy.

images

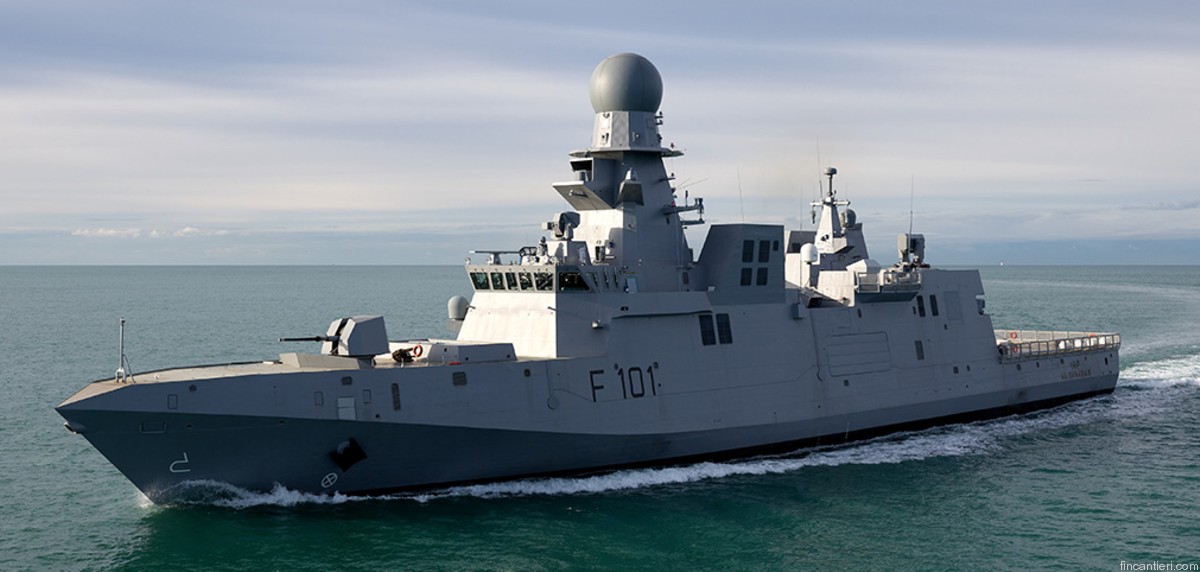

f101 qens al zubarah multi-mission missile corvette qatari emiri navy 02

F101 QENS Al Zubarah

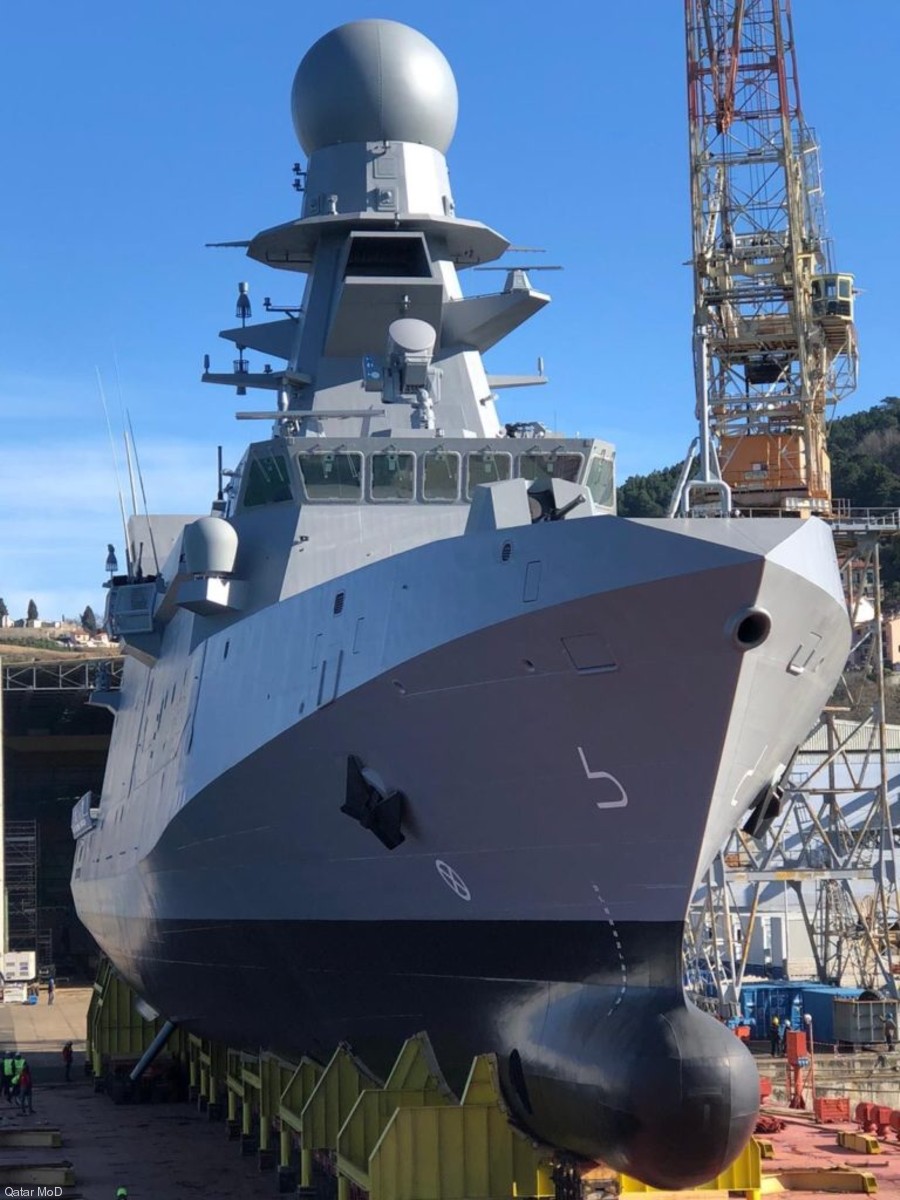

f101 qens al zubarah multi-mission missile corvette qatari emiri navy 03

F101 QENS Al Zubarah

f101 qens al zubarah multi-mission missile corvette qatari emiri navy 04

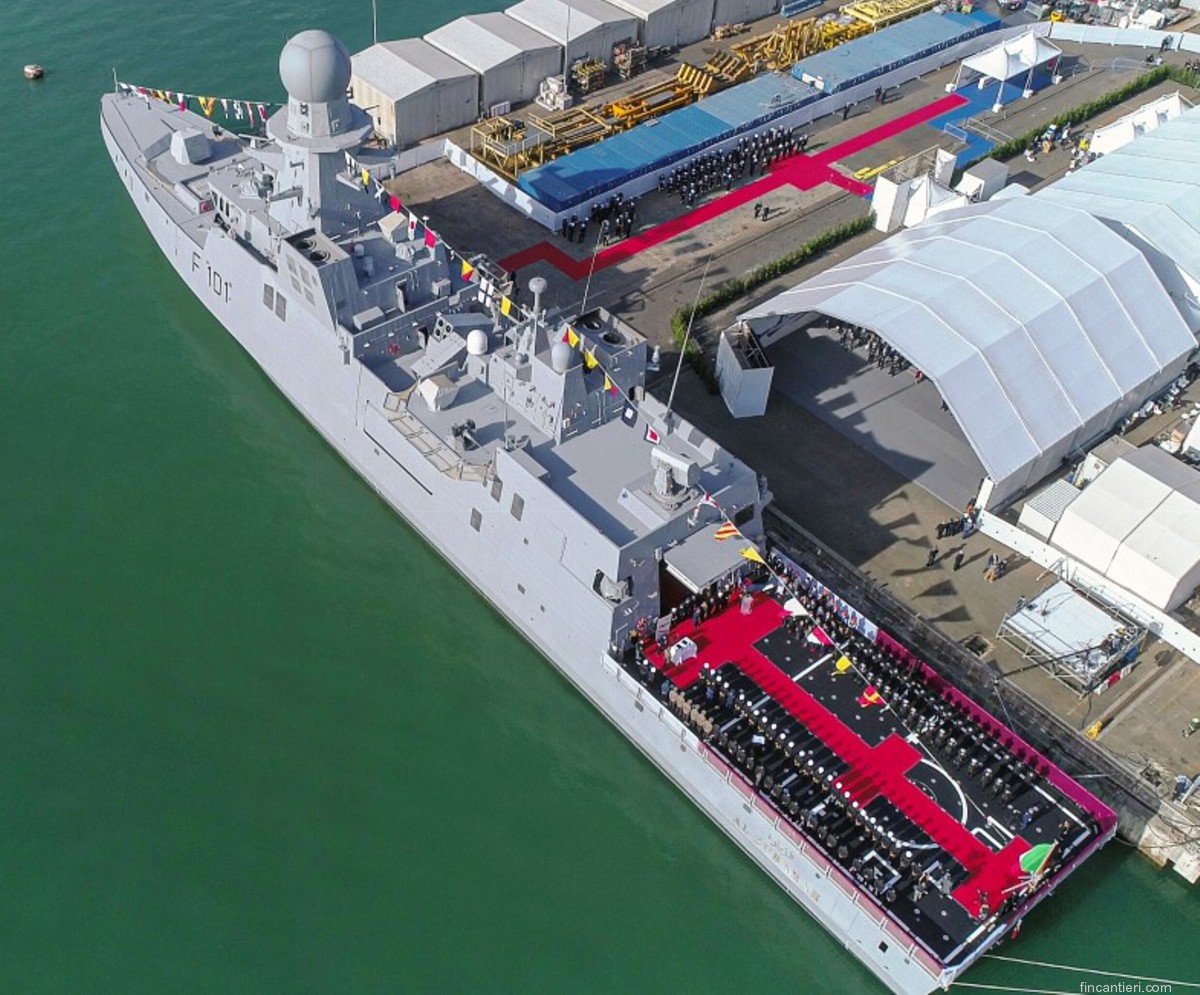

F101 QENS Al Zubarah

f102 qens damsah al zubarah class multi-mission missile corvette qatari emiri navy 02

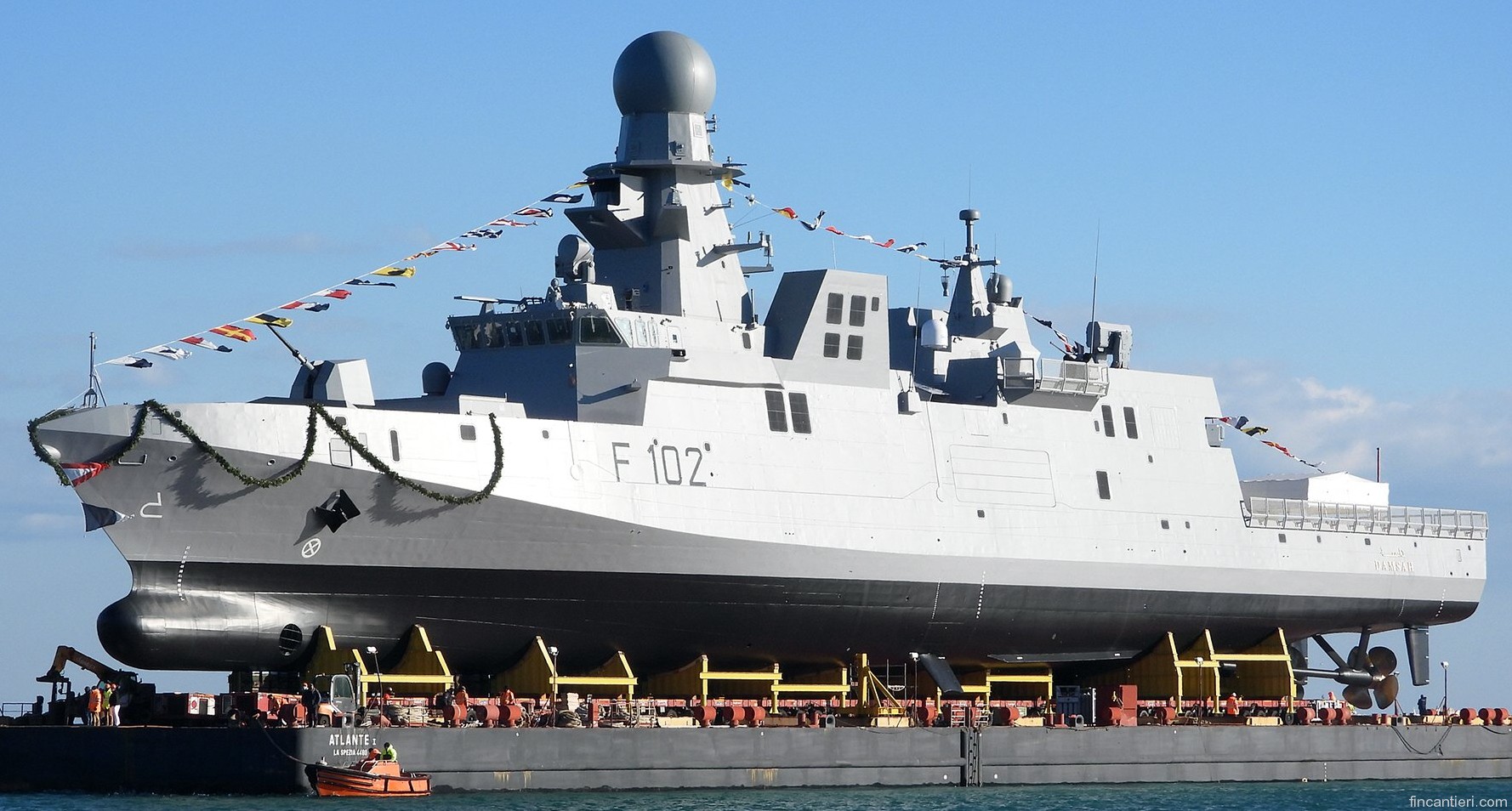

F102 QENS Damsah

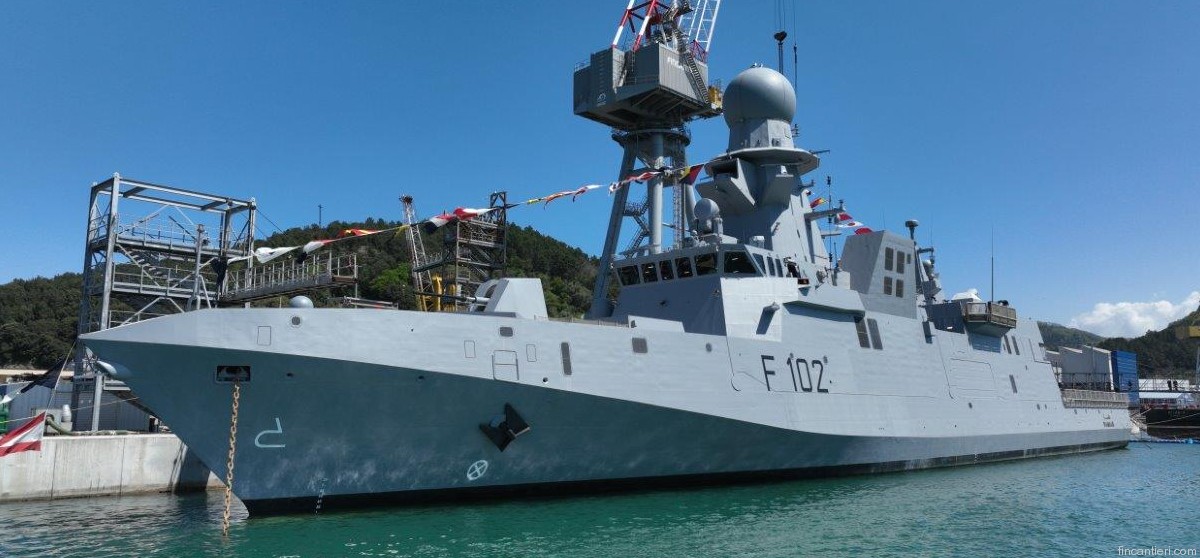

f102 qens damsah al zubarah doha class multi-mission missile corvette qatari emiri navy 03

F102 QENS Damsah

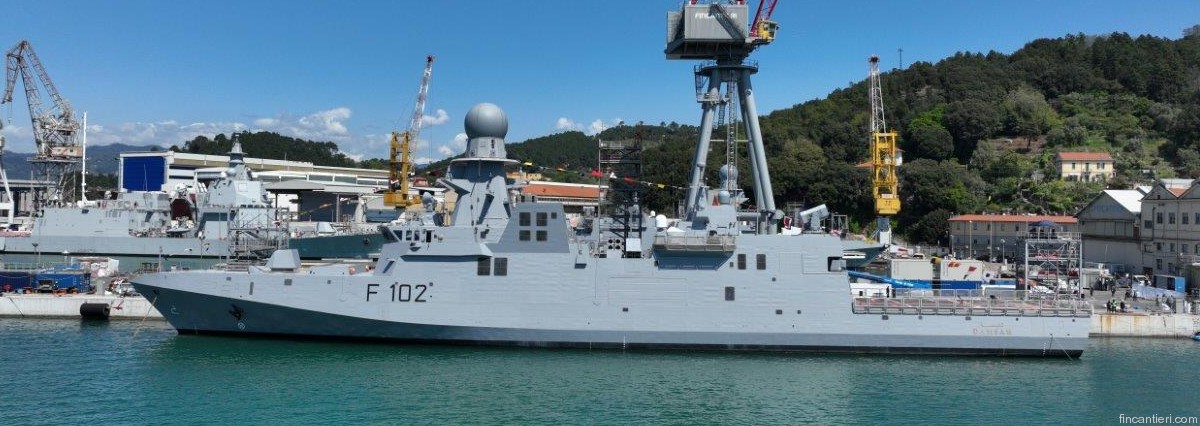

f102 qens damsah al zubarah class multi-mission missile corvette qatari emiri navy 04

F102 QENS Damsah

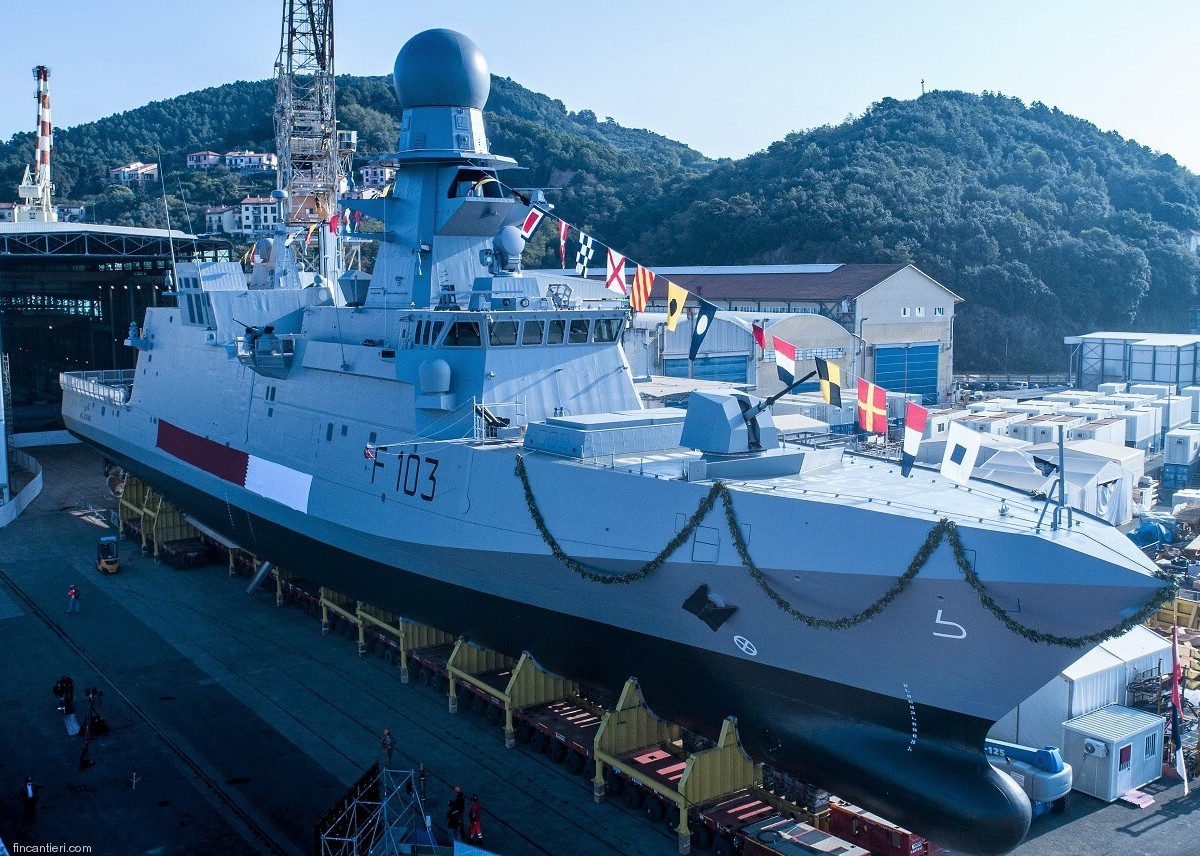

f103 qens al khor zubarah doha class multi-mission missile corvette qatari emiri navy 02

F103 QENS Al Khor

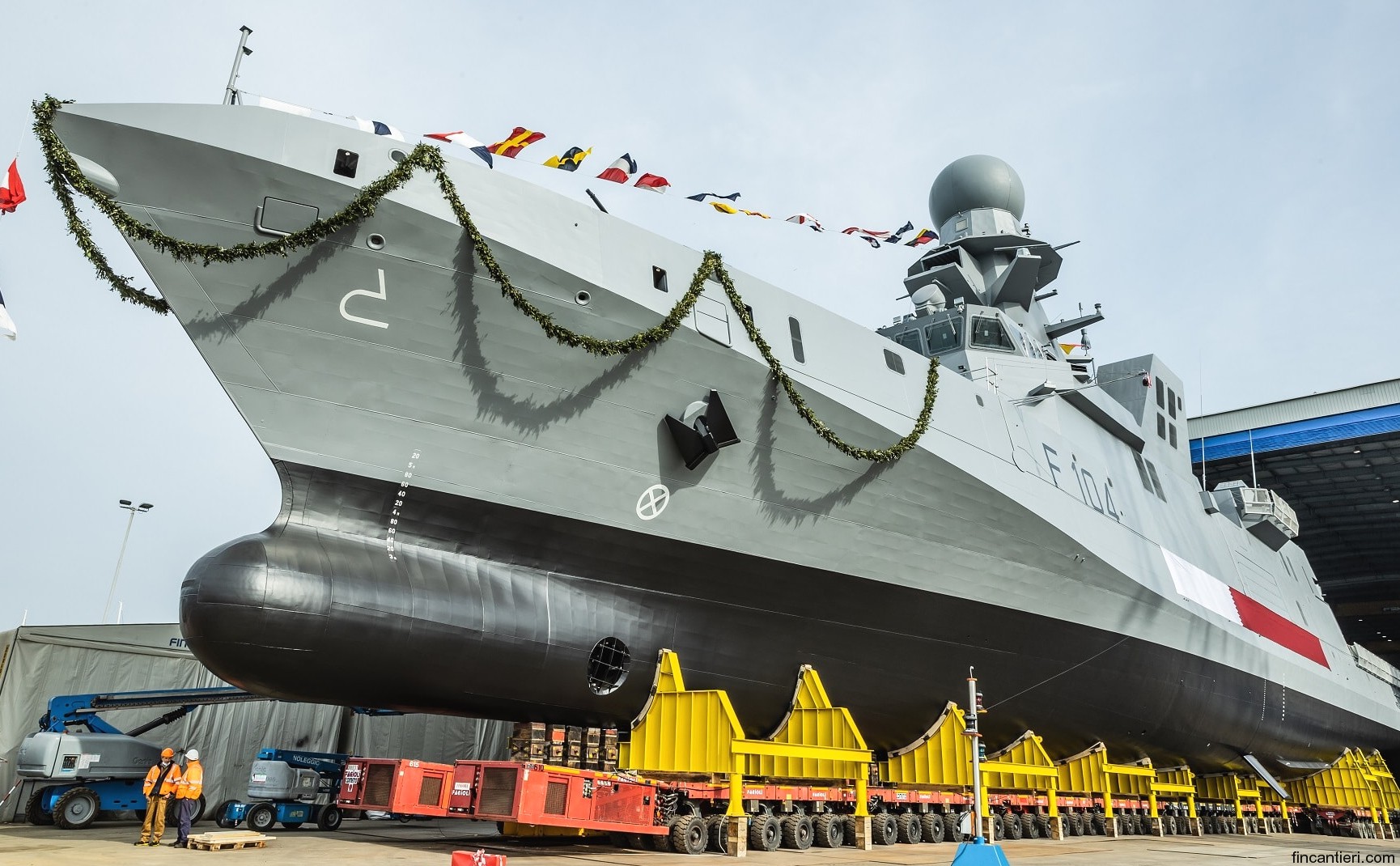

f104 qens semaisma al zubarah doha class multi-mission missile corvette qatari emiri navy 02

F104 QENS Semaisma

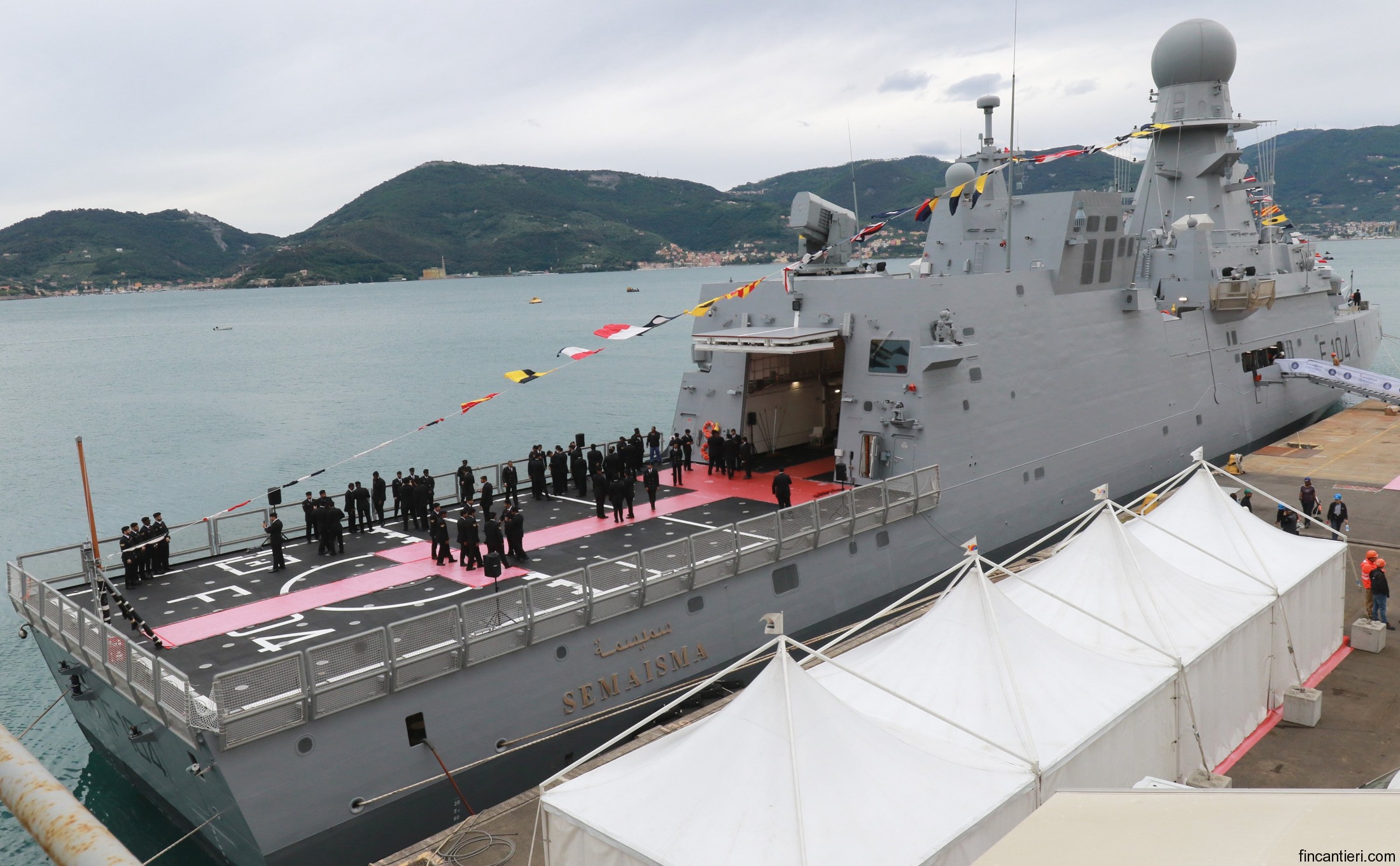

f104 qens semaisma al zubarah doha class multi-mission missile corvette qatari emiri navy 03

F104 QENS Semaisma
