Portuguese Navy / Marinha Portuguesa
Albacora class Submarine

   albacora class attack submarine daphne portuguese navy marinha 03x

03/24
Units:
Name  Laid down Launched Commissioned STATUS
S 163 NRP Albacora 1965 1966 October 1967 stricken 2000
S 164 NRP Barracuda 1965 1967 May 1968 stricken 2010
S 165 NRP Cachalote 1966 1968 January 1969 to Pakistan in 1975 > S 134 PNS Ghazi
S 166 NRP Delfim 1967 1968 October 1969 stricken 2005

Specifications:

Builder:
Ateliers Dubigeon-Normandie, Nantes, France

Displacement:
860 tons (surfaced) / 1043 tons (submerged)

Length: 57.8 meters (189.6 feet)
Beam: 6.8 meters (22.3 ft)
Draft: 5.2 meters (17.1 ft)
Speed: 16 knots (30 km/h), submerged / 13.5 knots (25 km/h), surfaced
Range: 2700 NM (5000 km) at 12 knots (22 km/h), surfaced
Complement: 54


Propulsion:
DIESEL ELECTRIC
2 x
SEMT Pielstick 12 PA4 185 diesel generators (2450 hp)
2 x AREVA electric motors
2 shafts / 2 propellers


Armament:
12 x 550 mm (21.65") torpedo tubes (8 bow, 4 stern)


Systems:


The Albacora class was a diesel-electric attack submarine (SSK) developed for the Portuguese Navy based on the French Daphné class.

In 1964, the Portuguese government ordered the construction of four of this class at the Dubigeòn-Normándie Shipyard to create the 4th Submarine Flotilla.

With the first submarine commissioned on 1 October 1967, the Portuguese Navy started to have a submarine able to operate in both coastal and oceanic zones, especially in the Portuguese exclusive economic zone.

The last Albacora-class submarine in service, NRP Barracuda, made its final mission in 2010. The class was replaced by two Tridente class / Type 209PN submarines.

images

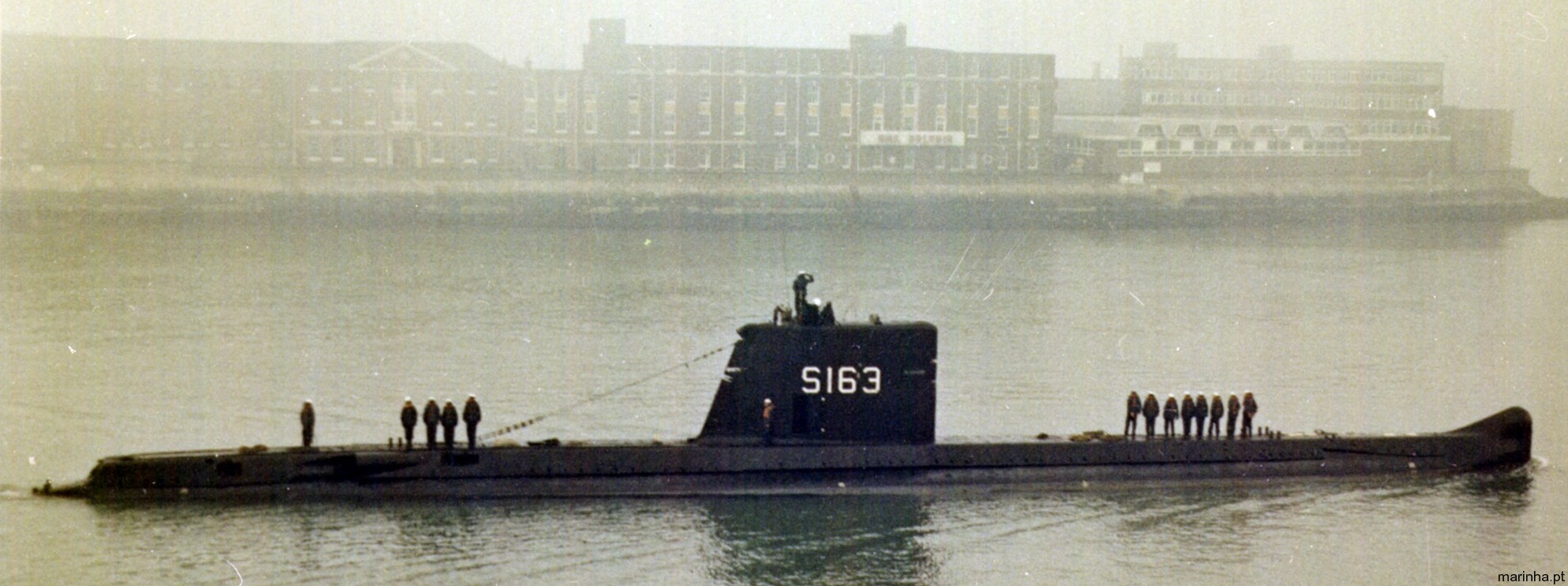

s-163 nrp albacora class daphne attack submarine ssk portuguese navy marinha 02
S 163 NRP Albacora



s-164 nrp barracuda albacora class daphne attack submarine ssk portuguese navy marinha 02
S 164 NRP Barracuda

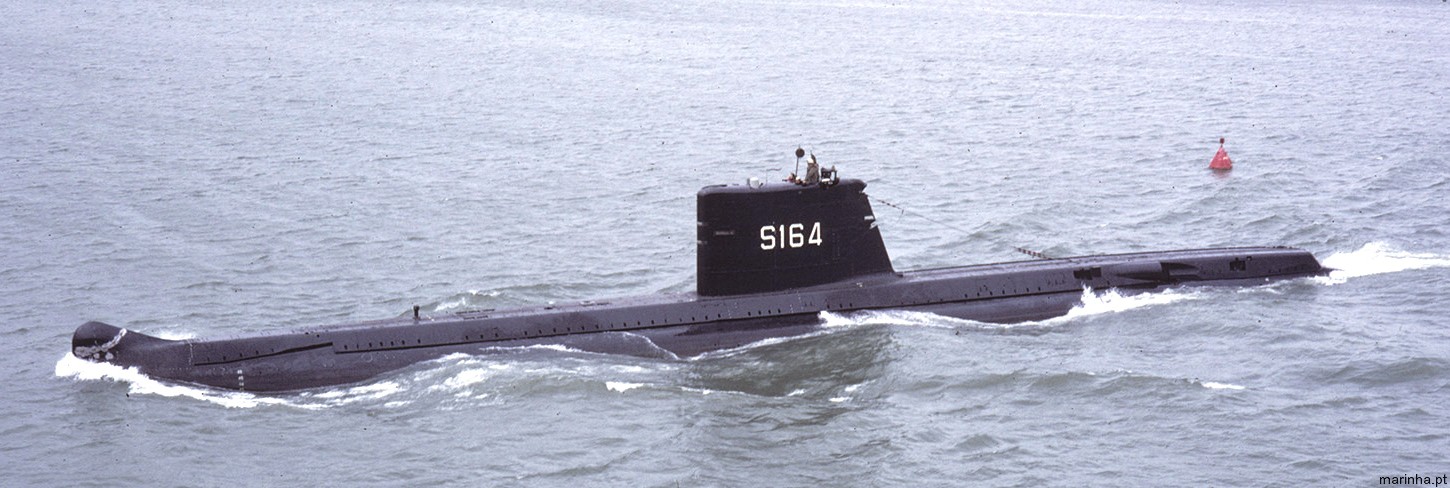

s-164 nrp barracuda albacora class daphne attack submarine ssk portuguese navy marinha 03
S 164 NRP Barracuda

s-164 nrp barracuda albacora class daphne attack submarine ssk portuguese navy marinha 06
S 164 NRP Barracuda

s-164 nrp barracuda albacora class daphne attack submarine ssk portuguese navy marinha 05
S 164 NRP Barracuda

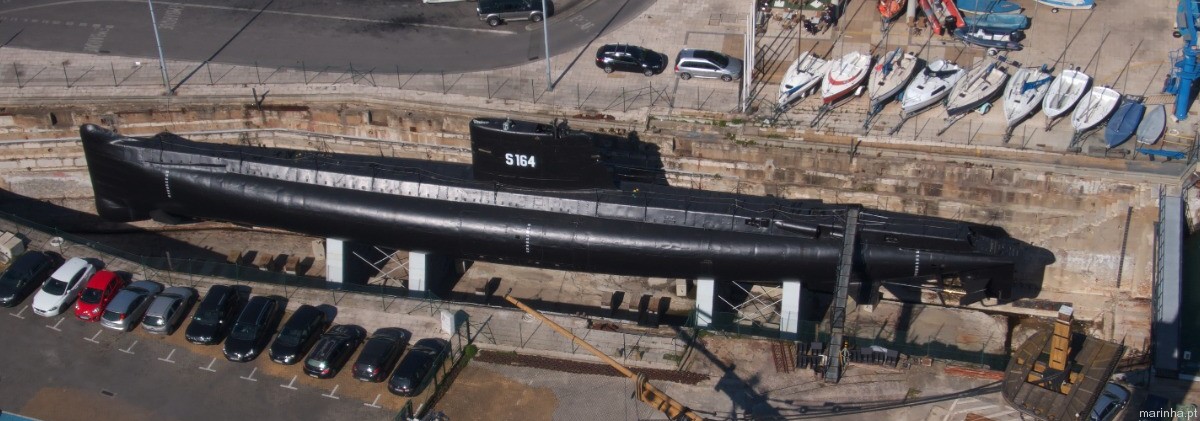

s-164 nrp barracuda albacora class daphne attack submarine ssk portuguese navy marinha 04
S 164 NRP Barracuda



s-165 nrp cachalote albacora class daphne attack submarine ssk portuguese navy marinha 02
S 165 NRP Cachalote

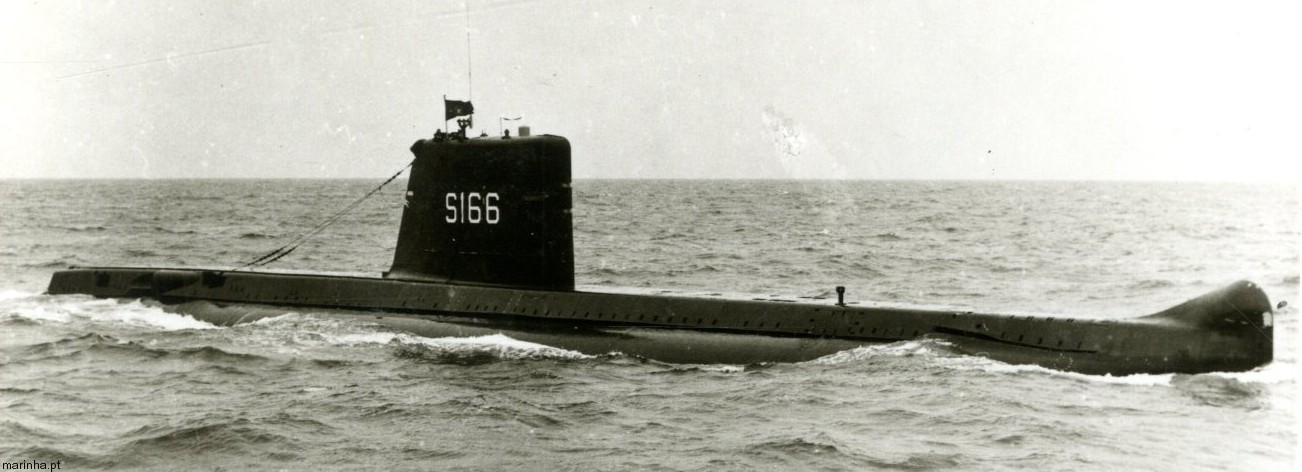

s-166 nrp delfim albacora class daphne attack submarine ssk portuguese navy marinha 02
S 166 NRP Delfim
