Royal Netherlands Navy - Koninklijke
Marine Jacob van Heemskerck class Guided Missile Frigate Luchtverdedigingsfregat / L-Fregat |
|
 |
|
| 12/24 | |
| Ships: | |
|
F 812
HNLMS Jacob van Heemskerck F 813 HNLMS Witte de With |
|
| Specifications: | |
|
Displacement:
3,750 tons (full load) Length: 130 meters (426 feet 6 in) Beam: 14.5 meters (47 ft 7 in) Draft: 4.4 meters (14 ft 5 in) Speed: 30 knots (56 km/h), max. / 20 knots (37 km/h), cruise Range: 4,700 NM (8,700 km) at 16 knots (30 km/h) Complement: 197 Propulsion: COGOG (Combined Gas or Gas) 2 x Rolls Royce Tyne RM1C gas turbines (4,900 hp / 3.7 MW each) 2 x Rolls-Royce Olympus TM3B gas turbines (25,700 hp / 19.2 MW each) 2 shafts / 2 controllable pitch propellers (CPP)
Aviation: none Systems: 1 x Thales LW 08 2D long-range air surveillance and surface search radar 1 x Thales SMART-S 3D medium/long range air and surface surveillance passive electronically scanned array radar 2 x Thales STIR 2.4 fire control radars (Signal Tracking and Illumination Radar) 1 x Thales STIR 1.8 fire control radar (Signal Tracking and Illumination Radar) 1 x SQS-509 (PHS-36) hull-mounted active and passive sonar 2 x Mk.36 SRBOC decoy systems SLQ-25 Nixie torpedo decoy system |
|
|
The Jacob van Heemskerck class Guided Missile Air Defence Frigate
(Luchtverdedigingsfregat / L-Fregat) was a class of two frigates of
the Royal Netherlands Navy. They were designed to be an air defence
version of the Kortenaer class. A Mk.13 missile launcher for the RIM-66 Standard SM-1MR medium-range surface-to-air missile (with a 40-missile magazine) replaced the helicopter hangar and deck of the Kortenaers. This was supplemented by an eight-cell Mk.29 NATO Sea Sparrow short range SAM launcher forward, with 24 missiles carried. A Goalkeeper close-in weapon system (CIWS) was mounted aft. Launchers for eight RGM-84 Harpoon anti-ship missiles (SSM) were positioned amidships, while anti-submarine armament consisted of 2x2 Mk.32 tubes for Mk.46 torpedoes. As built, the ships were fitted with a Signaal LW-08 long-range air search radar, a DA-05 target tracking radar. Two STIR-2.4 fire control radars provided guidance for the Standard missiles, while a STIR-1.8 fire control radar directed the RIM-7 Sea Sparrow missiles. In the nineties the DA-05 radar was replaced by the new SMART-S tracking radar. |
|
|

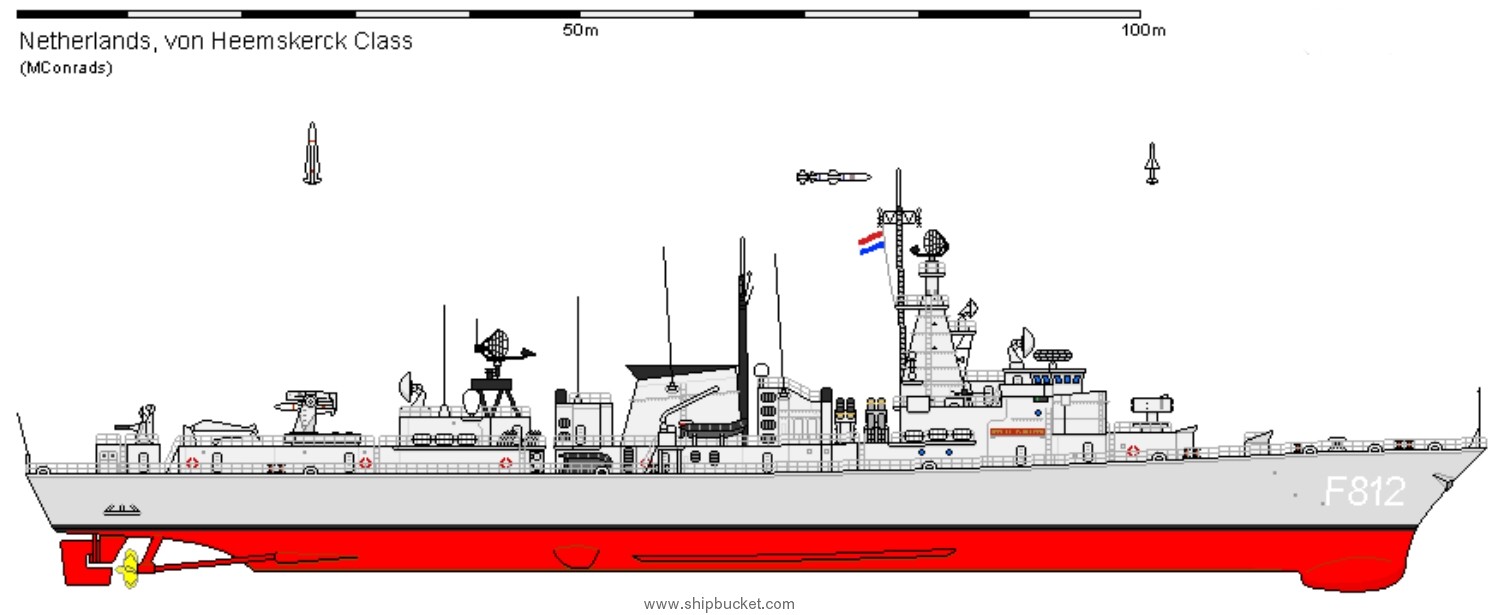

class + detail images for more images go to the individual ship's page |
|

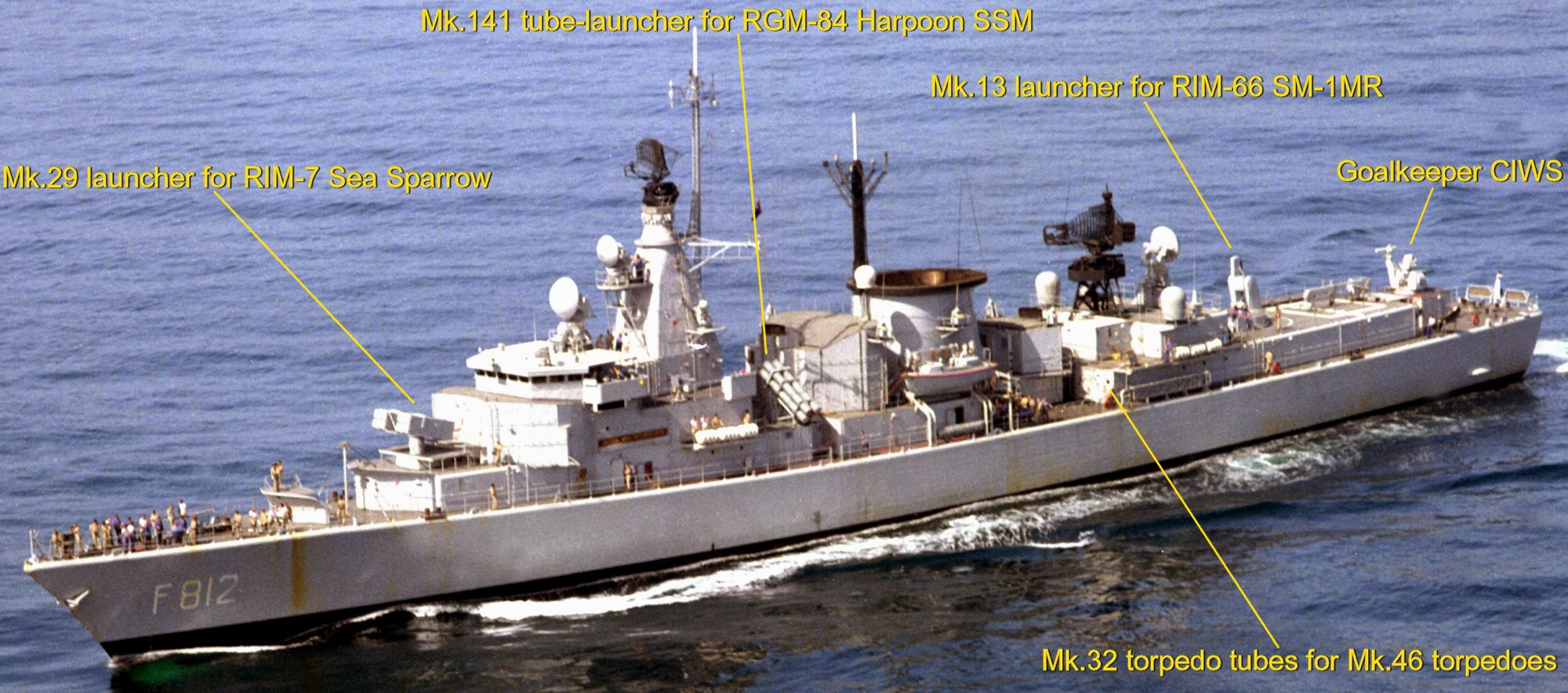

  ARMAMENT + DETAILS   Goalkeeper CIWS and Mk.13 single-arm launcher for RIM-66 Standard missiles SM-1MR  Mk.29 box launcher for RIM-7 Sea Sparrow SAM missiles  DA-05 air and surface search radar / STIR 1.8 and STIR 2.4 fire control radars / Mk.29 box launcher for RIM-7 Sea Sparrow missiles  with SMART-S radar (main mast)  with DA-05 medium/long range air and surface search radar |
|
