Royal Netherlands Navy / Koninklijke Marine
Sikorsky SH-34J /UH-34J (HSS-1N)


sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine seabat 06x

12/24
Units:

Serials / markings:
SH-34J
134 / 135 / 136 / 139 / 140 / 141 / 144 / 145 / 8-1 / 8-2 / 8-3 / 8-4 / 8-5

 UH-34J
137 / 138 / 142 / 143


The Sikorsky H-34 (company designation S-58) was an American piston-engined military utility helicopter originally designed by Sikorsky as an anti-submarine warfare (ASW) aircraft.


Characteristics:
Crew: 2
Length: 47 ft 2 in (14.38 m) fuselage / 56 ft 8.5 in (17 m) with rotors
Height: 14 ft 3.5 in (4.356 m)
Empty weight: 7,646 lb (3,468 kg)
Gross weight: 11,867 lb (5,383 kg)
Max takeoff weight: 13,300 lb (6,033 kg)
Fuel capacity: 198-307 US gal (165-256 imp gal; 750-1,160 L)
Main rotor diameter: 56 ft 0 in (17.07 m)
Powerplant: 1 x Wright R-1820-84 Cyclone , 1,525 hp (1,137 kW) for take-off 1,275 hp (951 kW) METO for 5 minutes
Maximum speed: 122 mph (196 km/h, 106 kn)
Cruise speed: 97 mph (156 km/h, 84 kn)
Range: 190 mi (310 km, 170 nmi)
Service ceiling: 12,000 ft (3,700 m)
Rate of climb: 1,500 ft/min (7.6 m/s) at sea level
Vertical rate of climb: 600 ft/min (3.05 m/s) at sea level

images

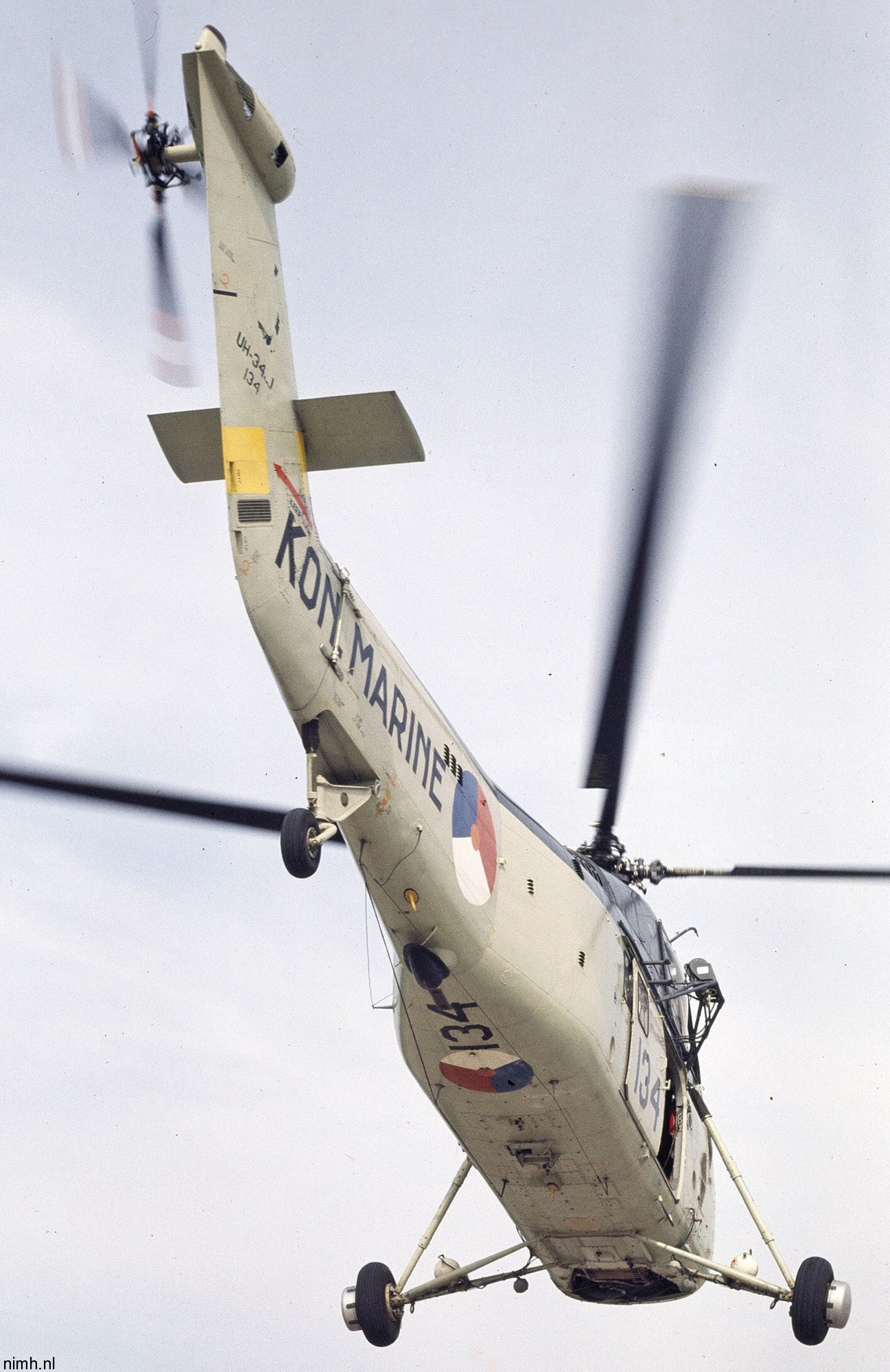

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 134 02
134

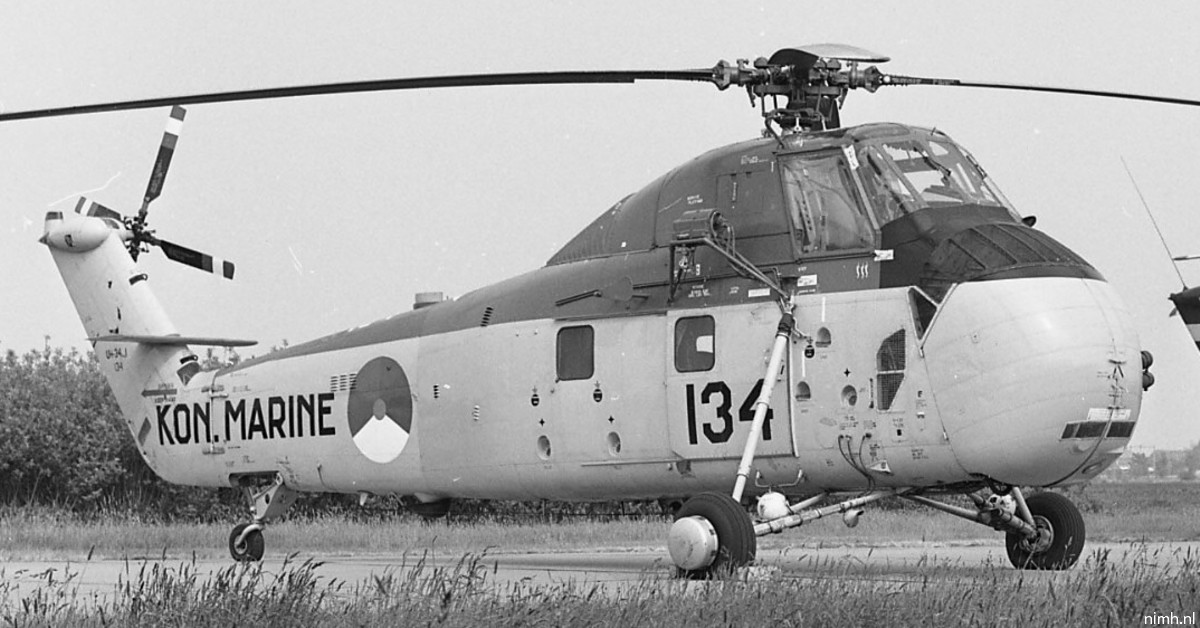

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 134 03
134

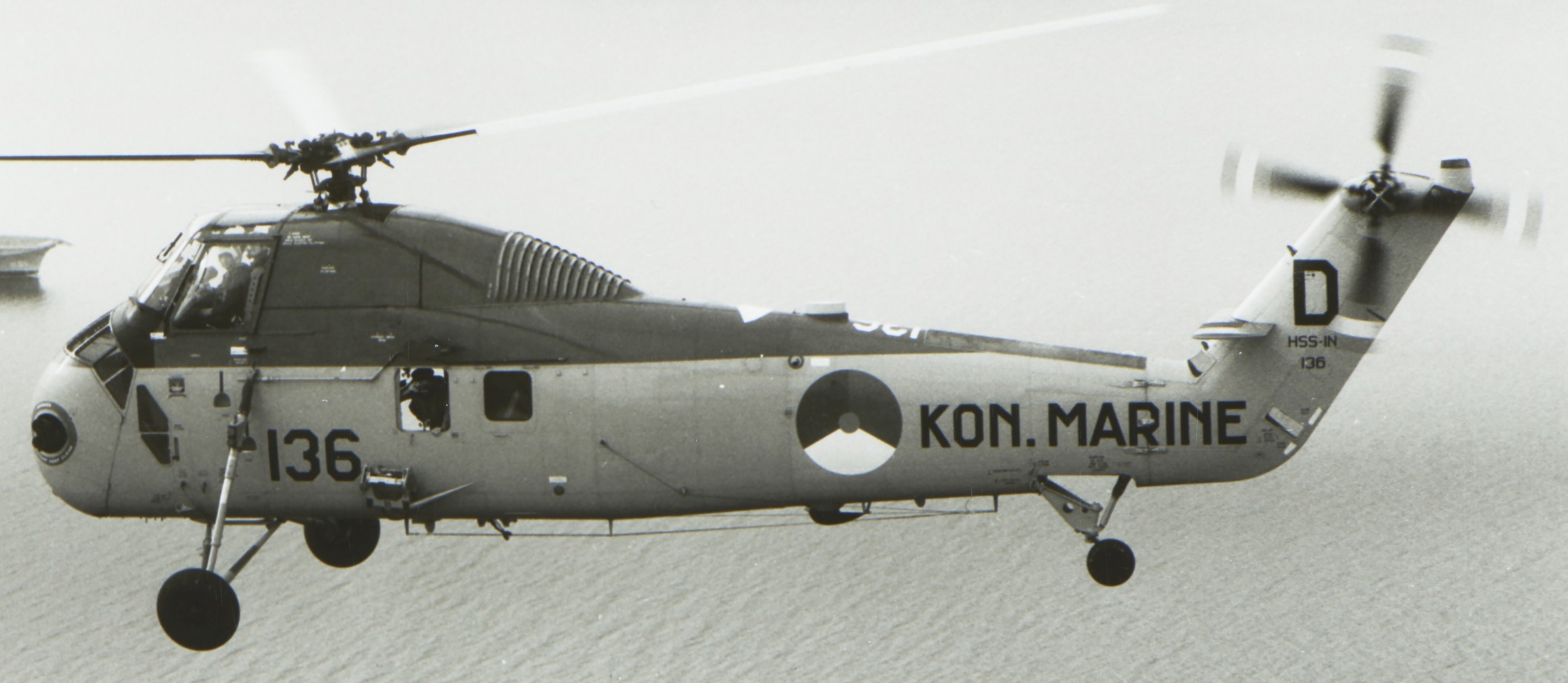

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 136 02
136

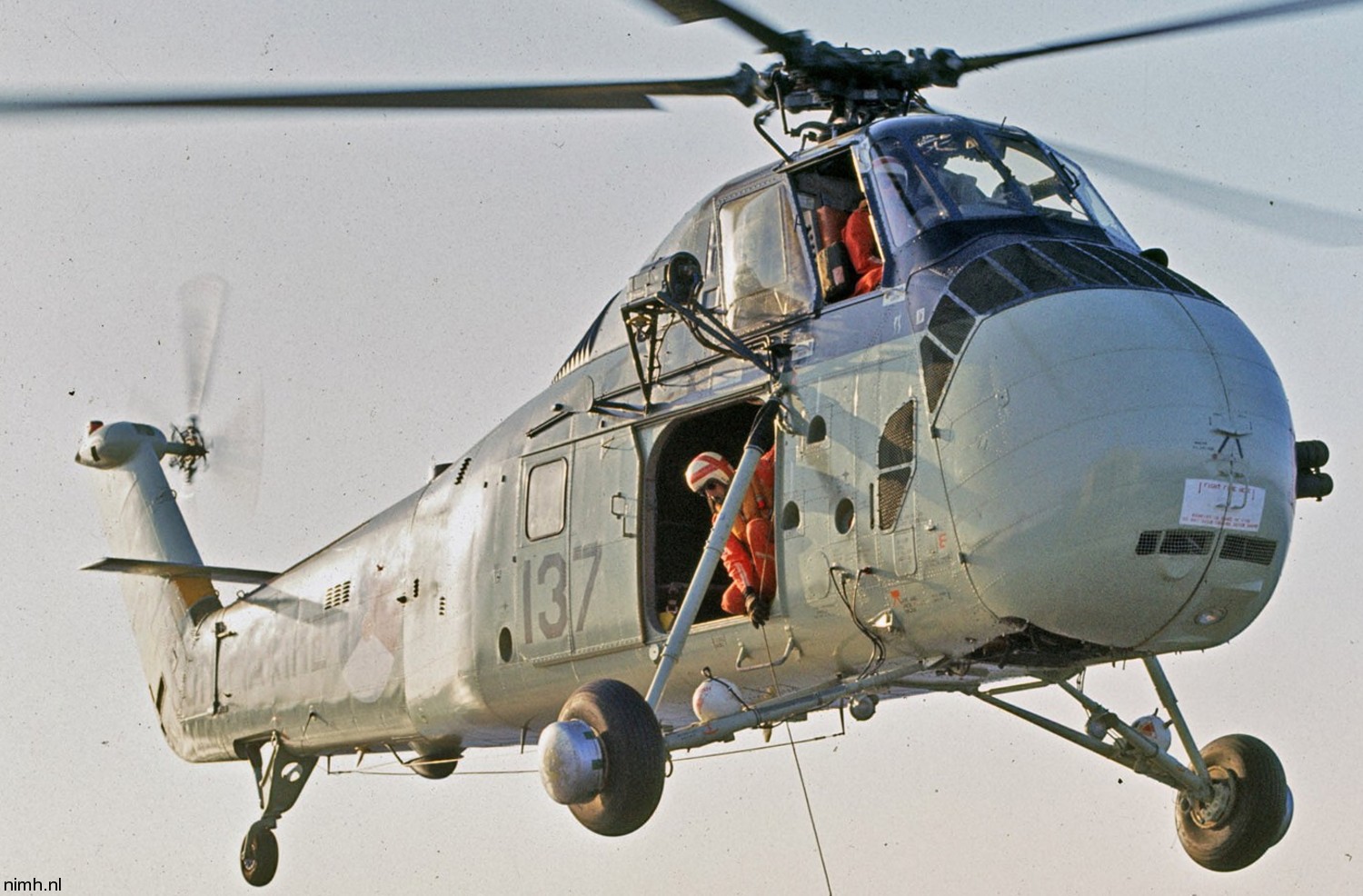

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 137 03
137

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 137 02
137

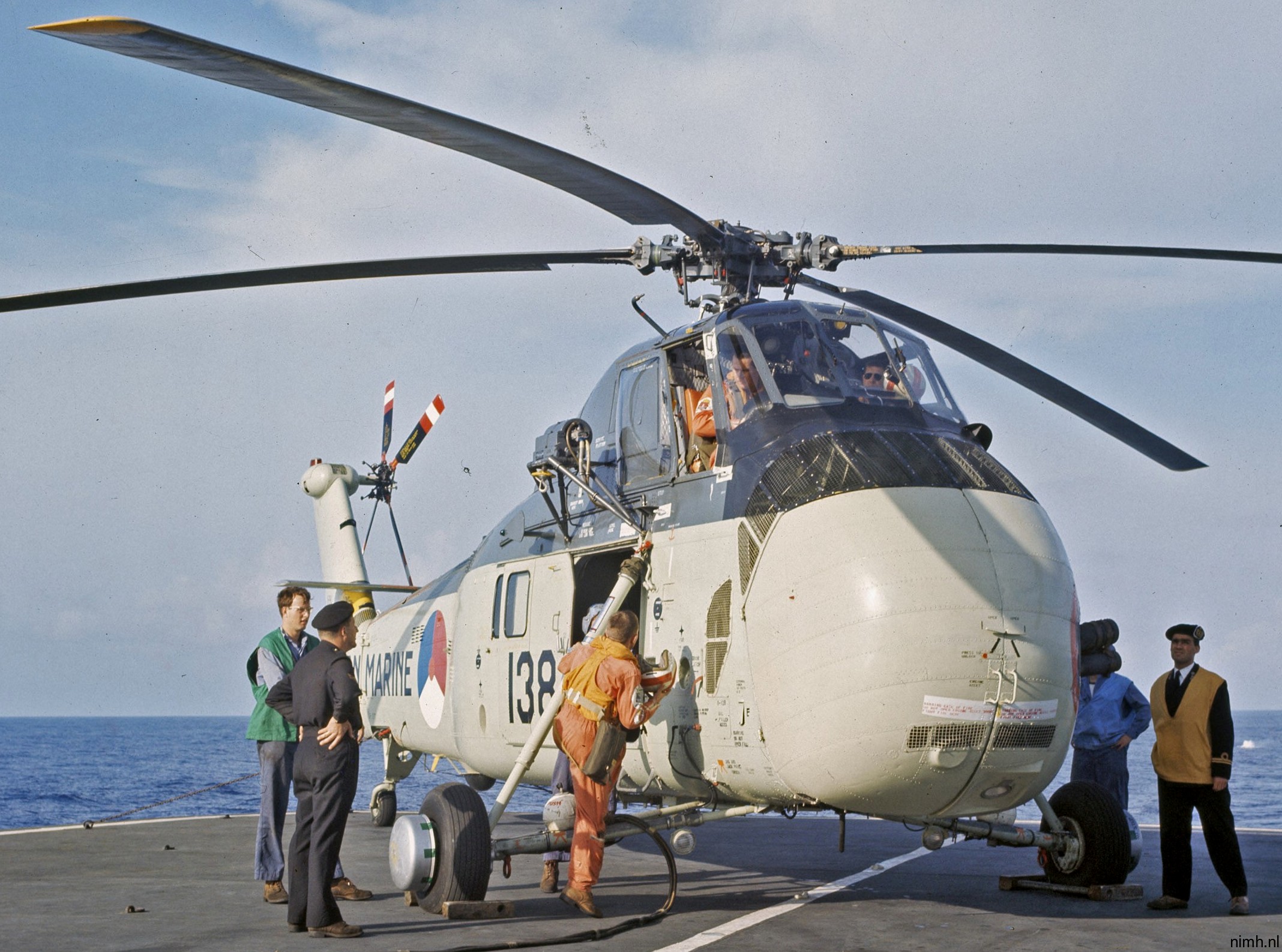

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 138 05
138

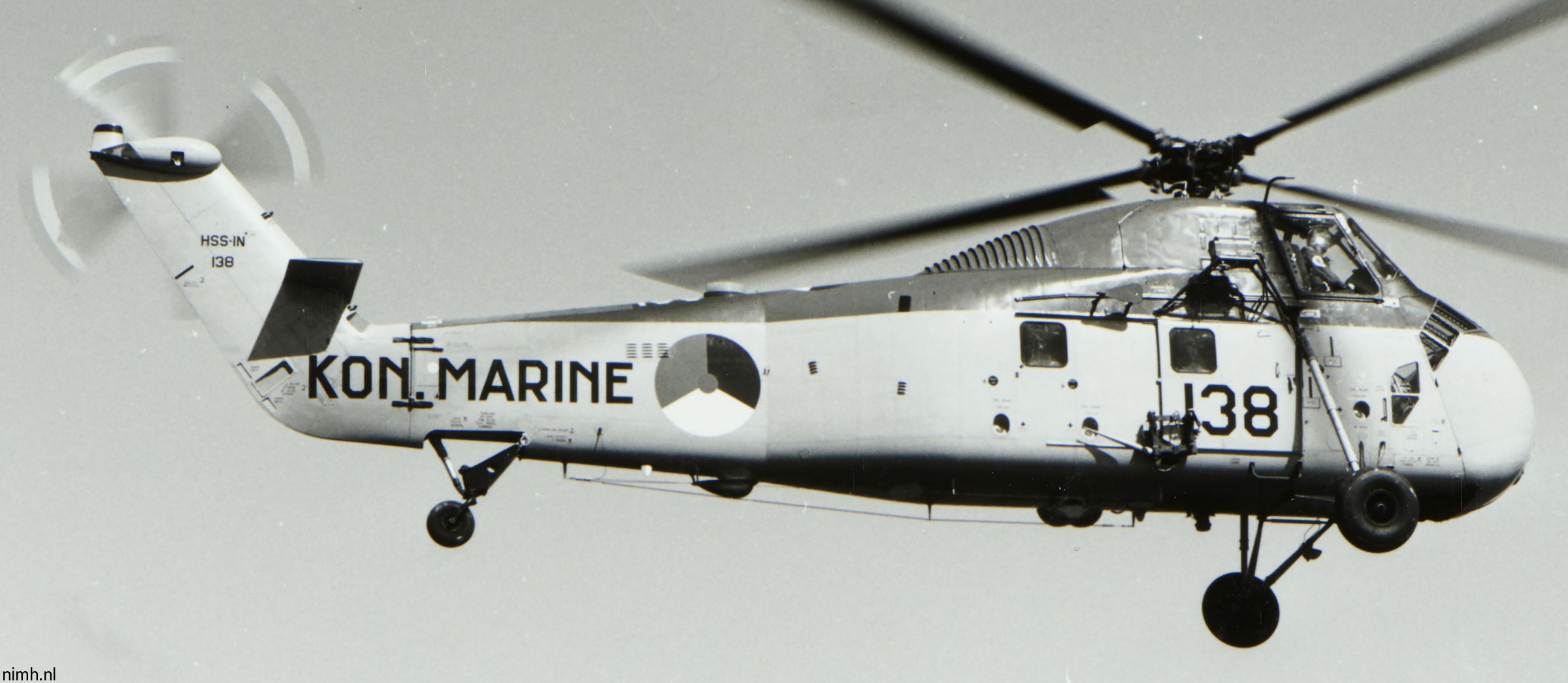

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 138 04
138

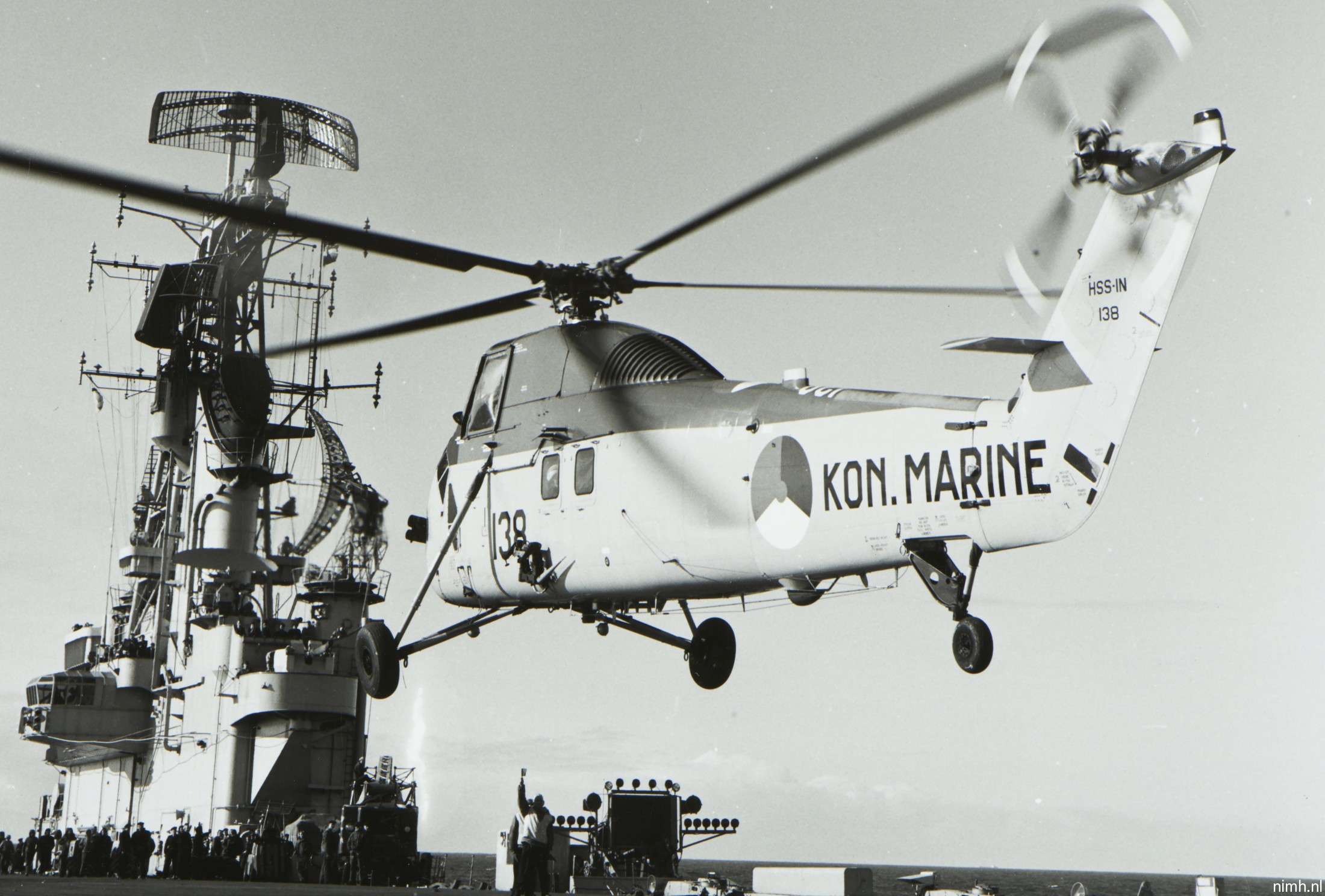

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 138 03
138

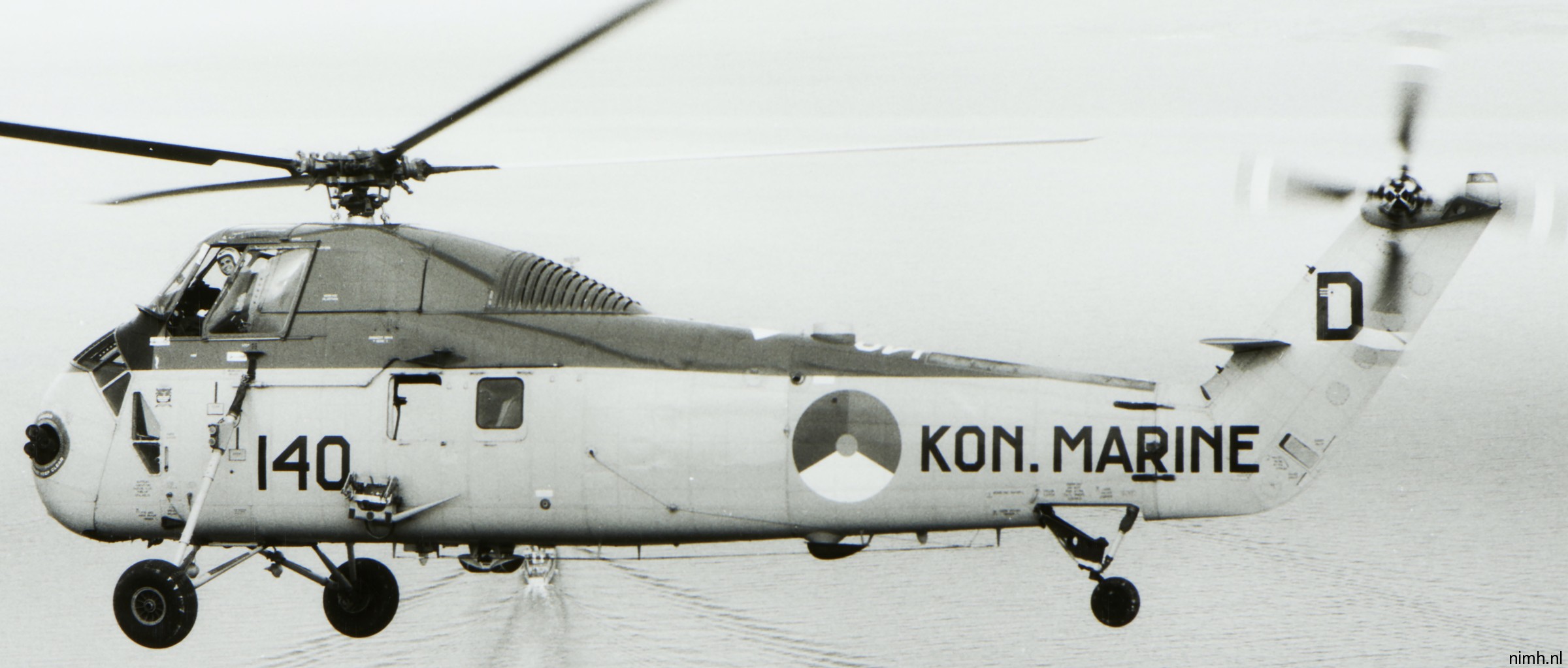

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 140 03
140

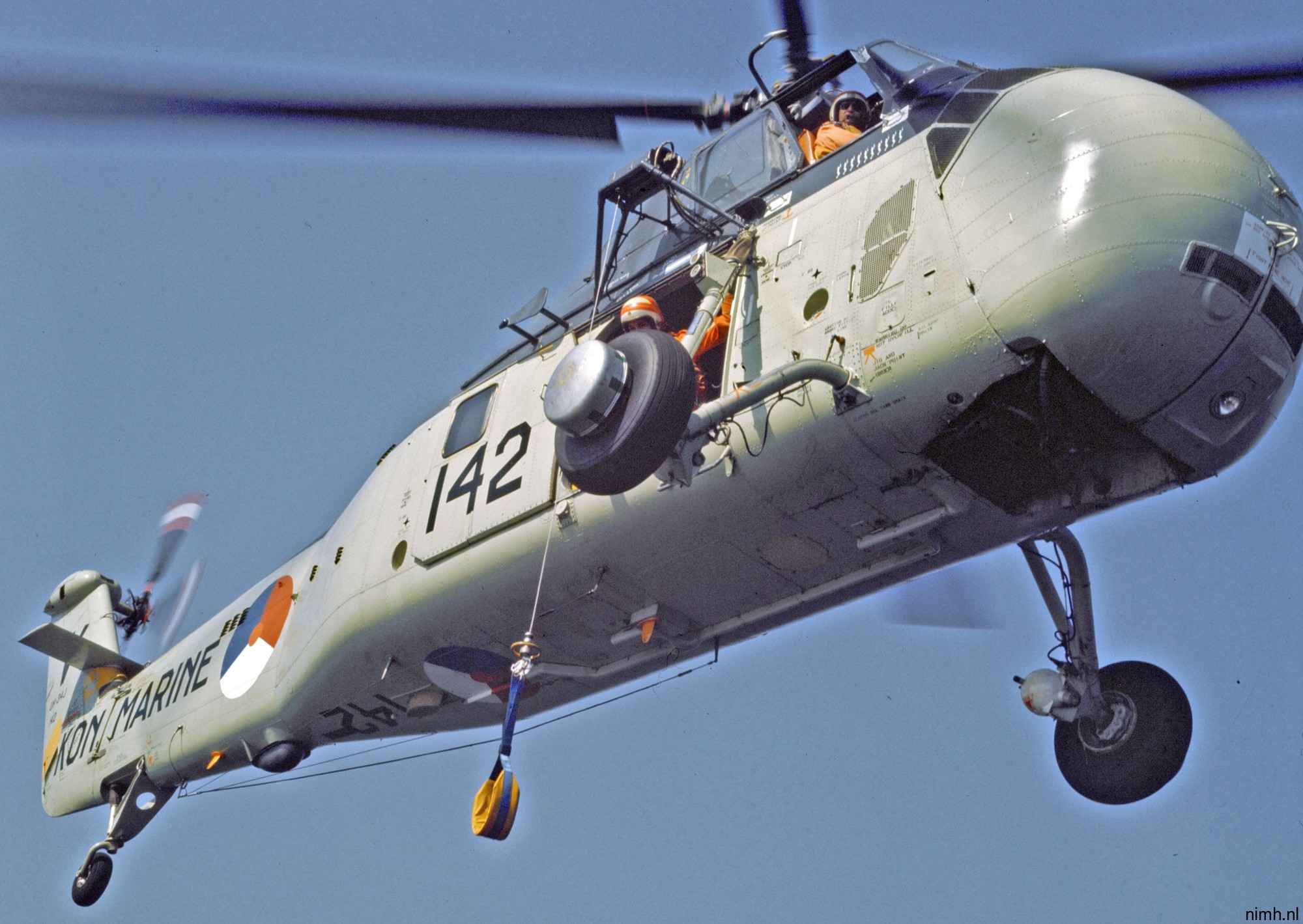

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 142 05
142

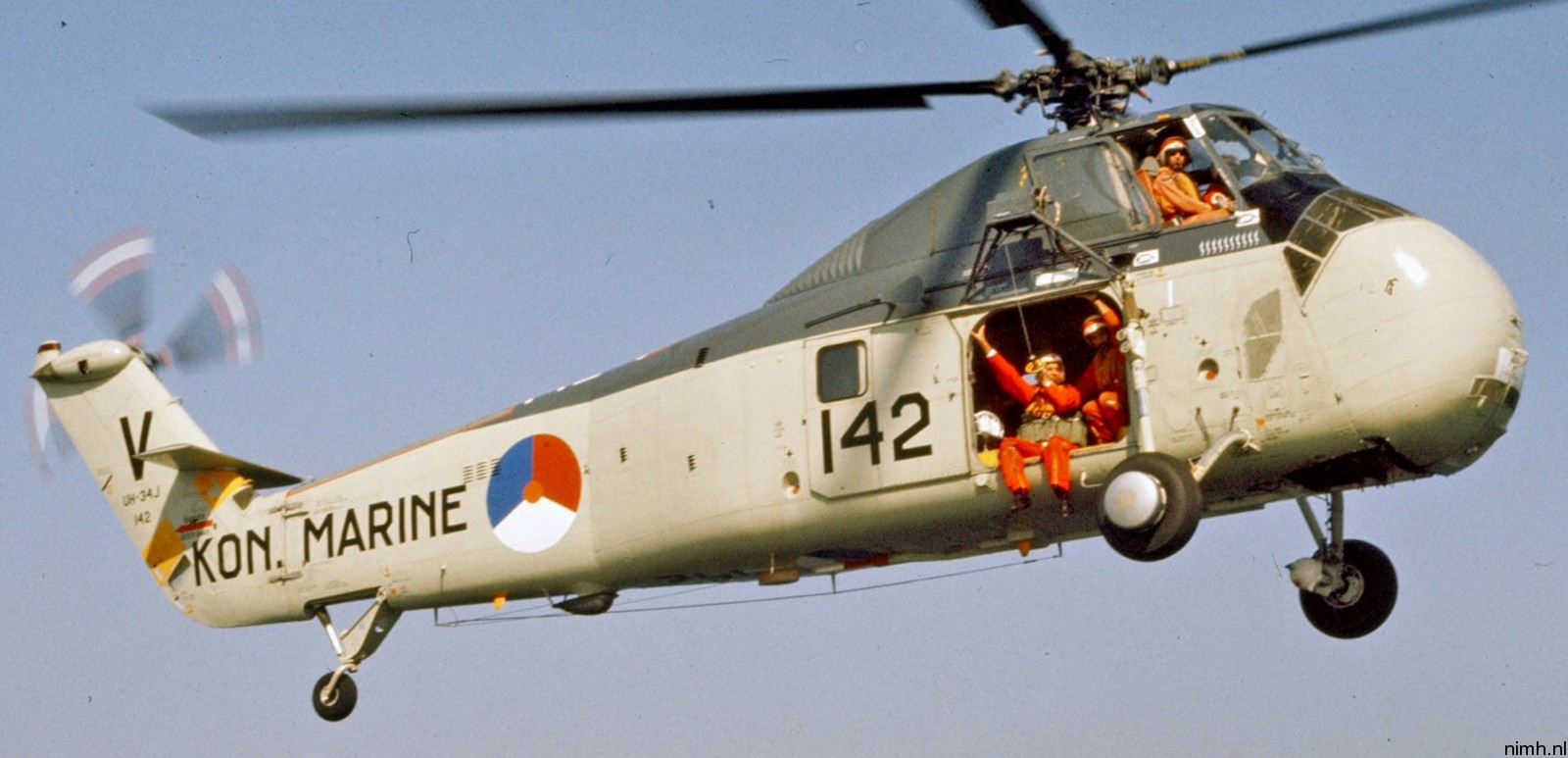

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 142 06
142

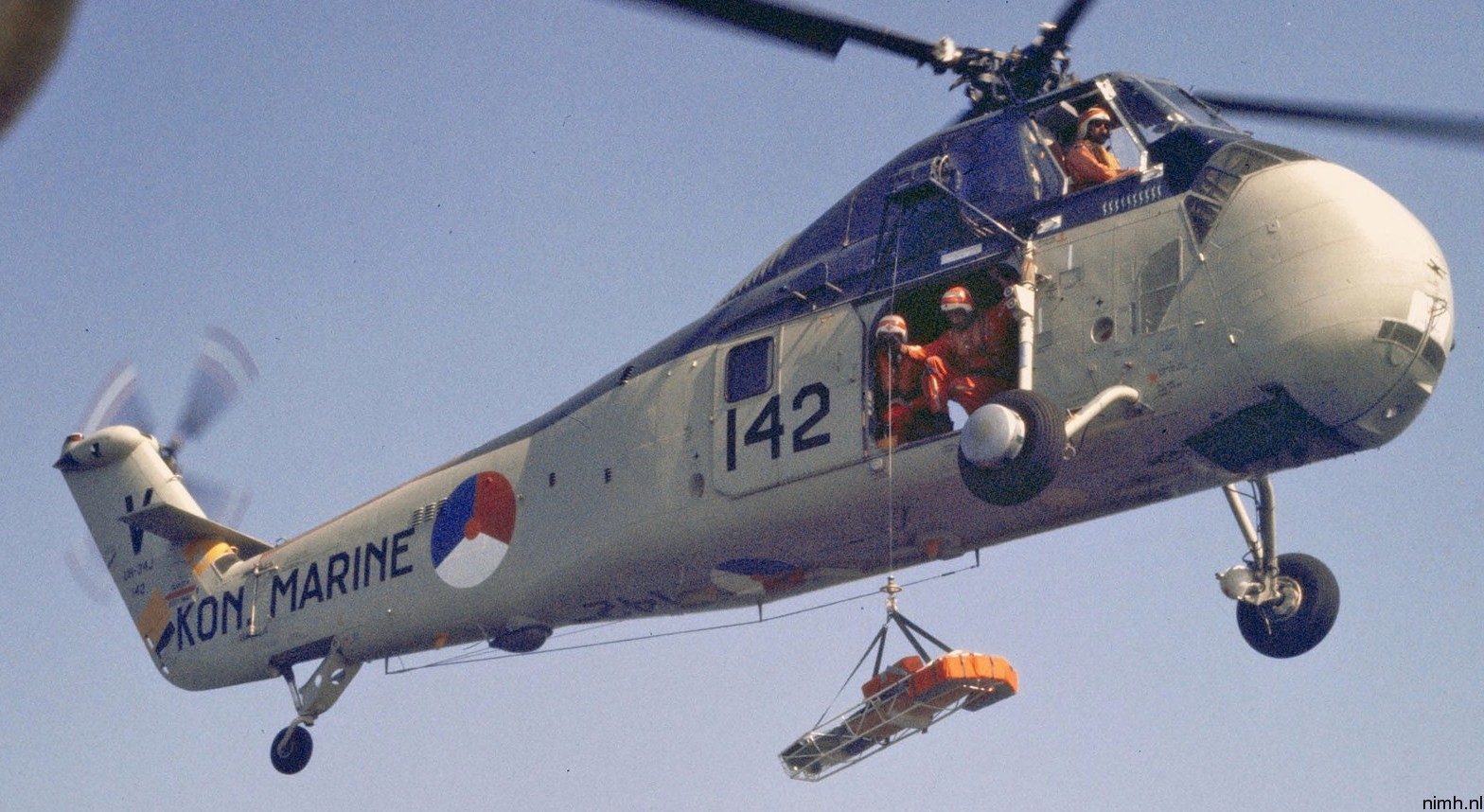

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 142 07
142

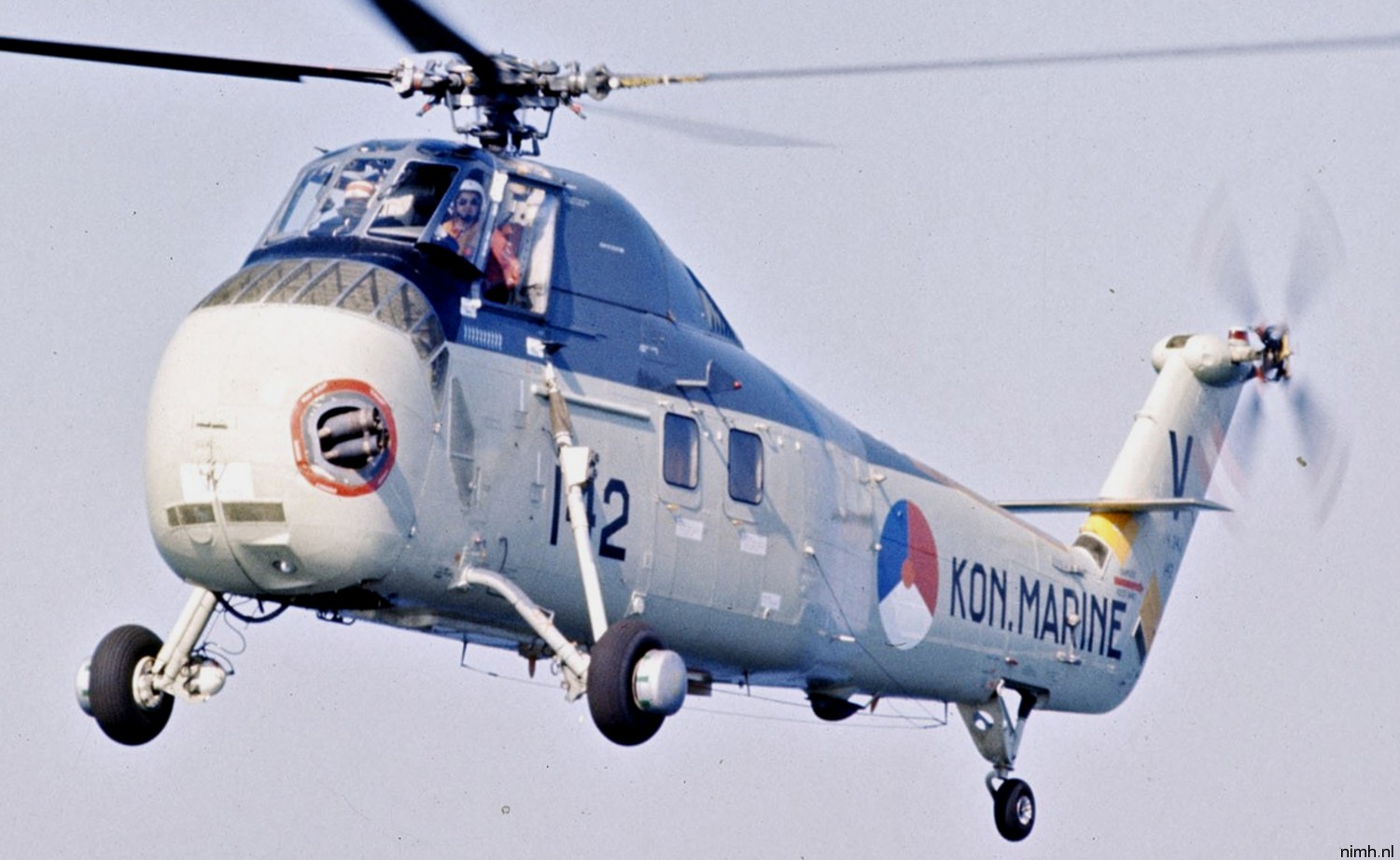

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 142 03
142

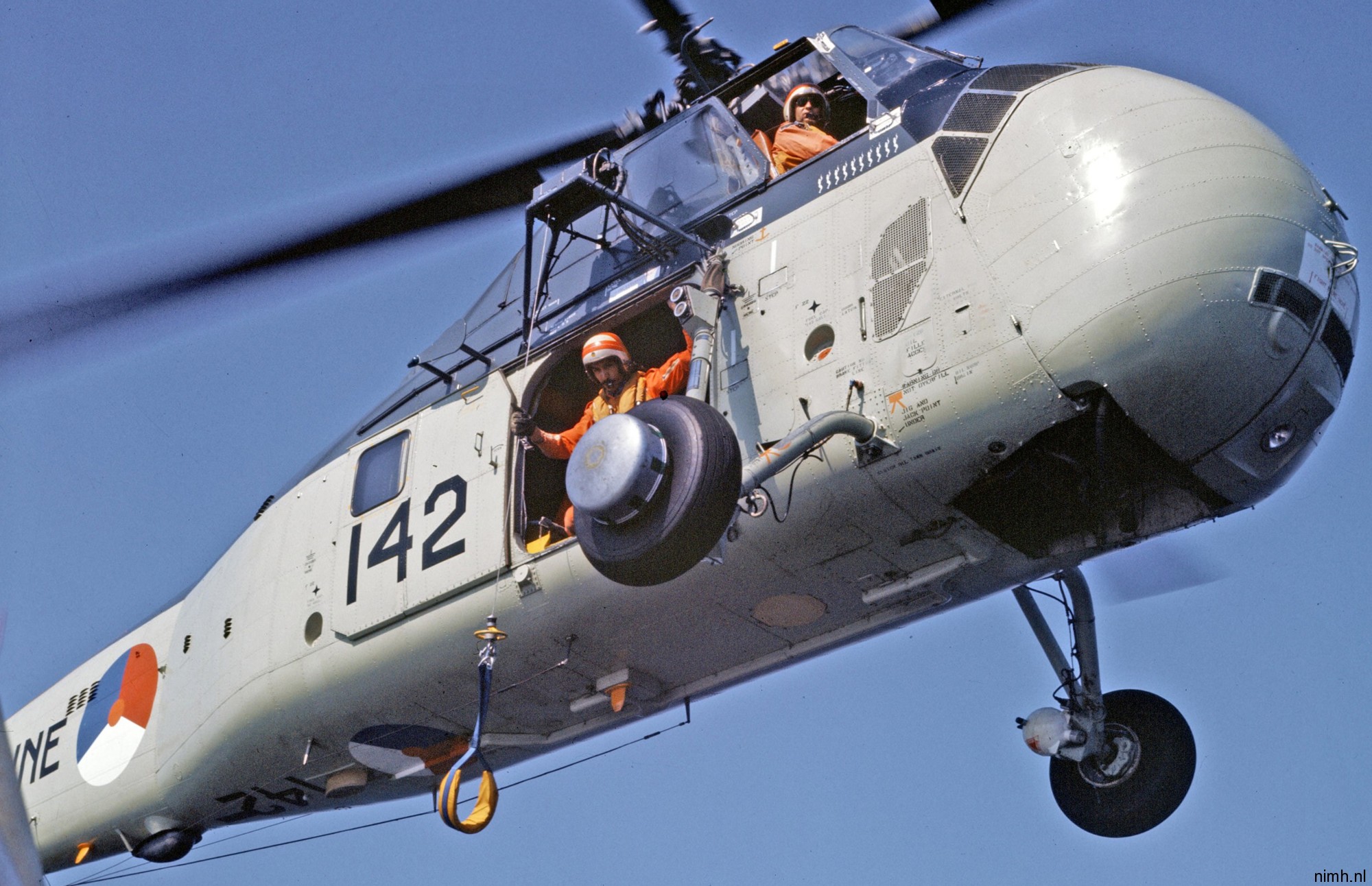

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 142 04
142

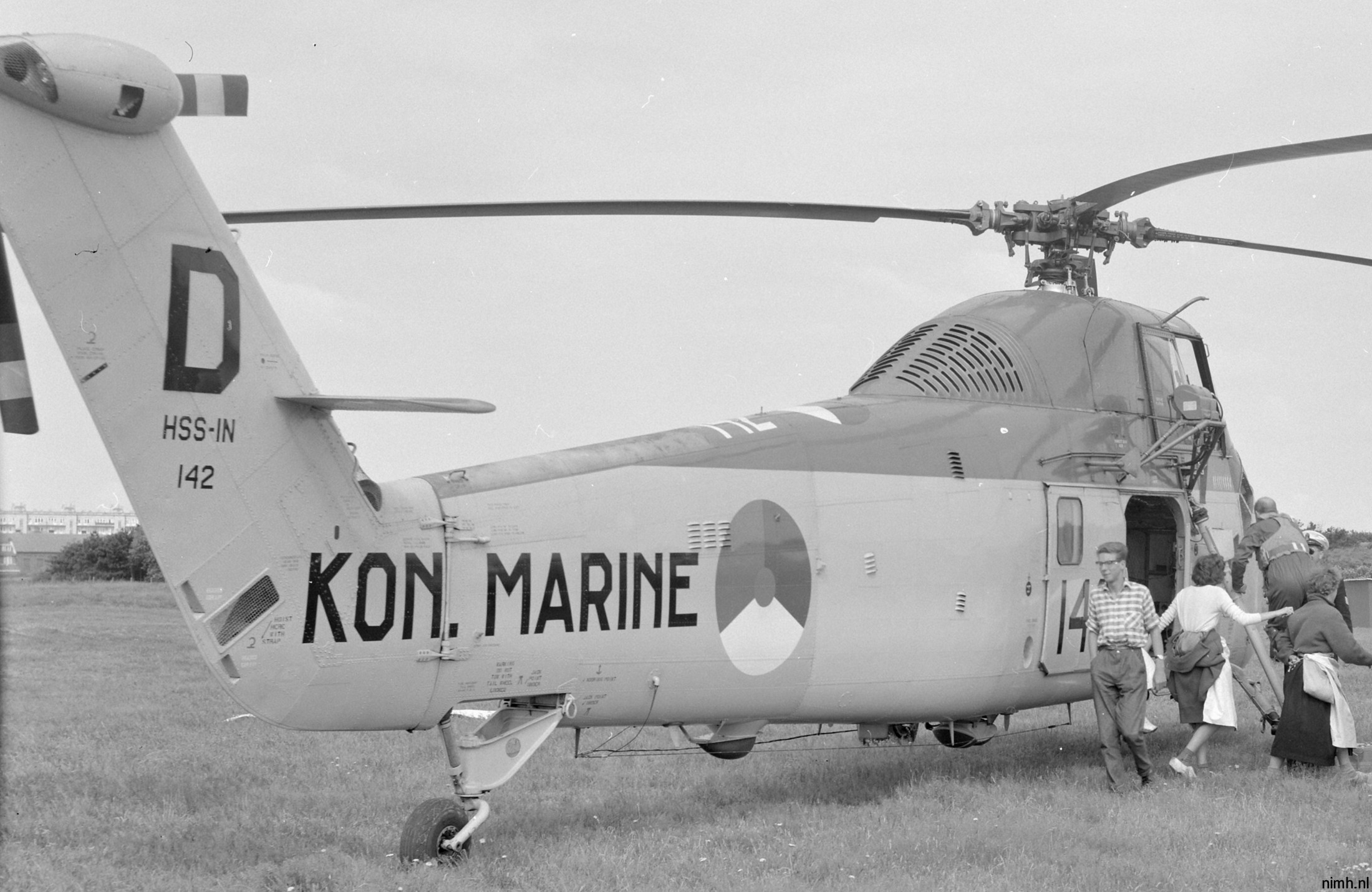

sikorsky sh-34j uh-34j hss-1n helicopter royal netherlands navy koninklijke marine 142 02
142
