Asahi class Destroyer DD Japan Maritime Self Defense Force

Japan Maritime Self Defense Force / JMSDF
Asahi class Destroyer - DD

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui rim-162 essm 02cx

07/22

Ships:

DD-119 JS Asahi (2018)
DD-120 JS Shiranui (2019)

Specifications:

Length: 151 meters (495 feet 5 inches)
Beam: 18.3 meters (60 ft)
Draft: 5.4 meters (17 ft 9 in) / Depth: 10.9 meters (35 ft 9 in)
Displacement: 5100 tons (standard) / 6800 tons (full load)
Speed: 30 knots, max. (56 km/h)
Range: -
Complement: 230

Propulsion:
COGLAG (combined gas turbine-electric and gas turbine)
2 x GE LM2500 gas turbines
2 shafts / 2 controllable pitch propellers

Aviation:
flight deck and hangar for 1 helicopter / Mitsubishi SH-60K Seahawk

Armament:

1 x Mk-41 Vertical Launching System / VLS (32 cells)
for a mix of
RIM-162 Evolved Sea Sparrow Missiles / ESSM (4 per cell)

RUM-139 Vertical Launched Anti-Ship Rockets / VL-ASROC (DD 115)
or Type 07 VL-ASROC (DD 116 to 118)

- - - - -

1 x Mk-45 (Mod.4) 5-inch/62-caliber (127mm) gun
2 x Mk-141 missile launcher for 8 Type 90 SSM-1B anti ship missiles
2 x Type 68/HOS-303 (Mk-32) 12,75-inch (324mm) triple torpedo tubes (enclosed) for Mk-46 or Type 73 torpedoes
2 x Mk-15 Phalanx Close-In-Weapon-System (CIWS)

Systems:
OYQ-11 Advanced Combat Direction System (ACDS)
FCS-3A AAW Combat System/Fire Control System
OPS-48 Surface Search Radar
OPY-1 AAW System
OQQ-24 ASW System
OQR-4 Towed Array Sonar

NOLQ-3D-2 ECM/ESM Intergrated Electronic Warfare System

Mk-36 SRBOC jaff & decoy launcher

The Asahi-class destroyer is a destroyer class of the JMSDF - two ships are planned. The Asahi class is optimized for undersea threats. This class used to be designated "25DD" - referring to a date on the Japanese calendar, specifically the 25th fiscal year of the Heisei period (2013). It is the third ship to hold the name after the Asahi-class destroyer escort lent from the US Navy in 1955, and the Imperial Japanese battleship. Shiranui is the third ship to hold the name after the Murakumo and Kagero-class destroyers.

Development:
The procurement of the destroyer began in 2013 in response to the reduction in the number of destroyers (namely the Hatsuyuki class) within the JMSDF. The two major characteristics of this destroyer is its bigger emphasis on anti-submarine warfare and the adoption of the COGLAG (combined gas turbine electric and gas turbine) propulsion system. A second destroyer was procured a year later.

Design:
The Asahi class is based on the existing Akizuki-class destroyer to reduce acquisition cost and allow future development and growth. Unlike the Akizuki class (which focuses on anti-aircraft warfare) the Asahi class focuses on anti-submarine warfare.

Features:
The Asahi class is the first Japanese warship to be equipped with a COGLAG propulsion system. This allows the destroyer to be more fuel efficient than previous warships. Another unique feature about this destroyer is the usage of a GaN-AESA (gallium nitride - active electronically scanned array) Multifunction Radar. The Asahi class is the second Japanese class of warship to be outfitted with this technology (the Akizuki class was the first). The destroyer's radar is based on the FCS-3A radar used for the Akizuki class and uses gallium nitride to improve performance. In radar technology, gallium nitride offers a number of advantages over the traditionally used gallium arsenide (GaA). These advantages include higher power density, efficiency, thermal spreading and frequency coverage. This in turn allows the GaN chip to be smaller than their GaA counterpart, thus reducing cost and increasing overall cost effectiveness.

source: wikipedia (02/20)

class + detail images
for more images go to the individual ship-site

asahi class destroyer japan maritime self defense force jmsdf dd-119 02c

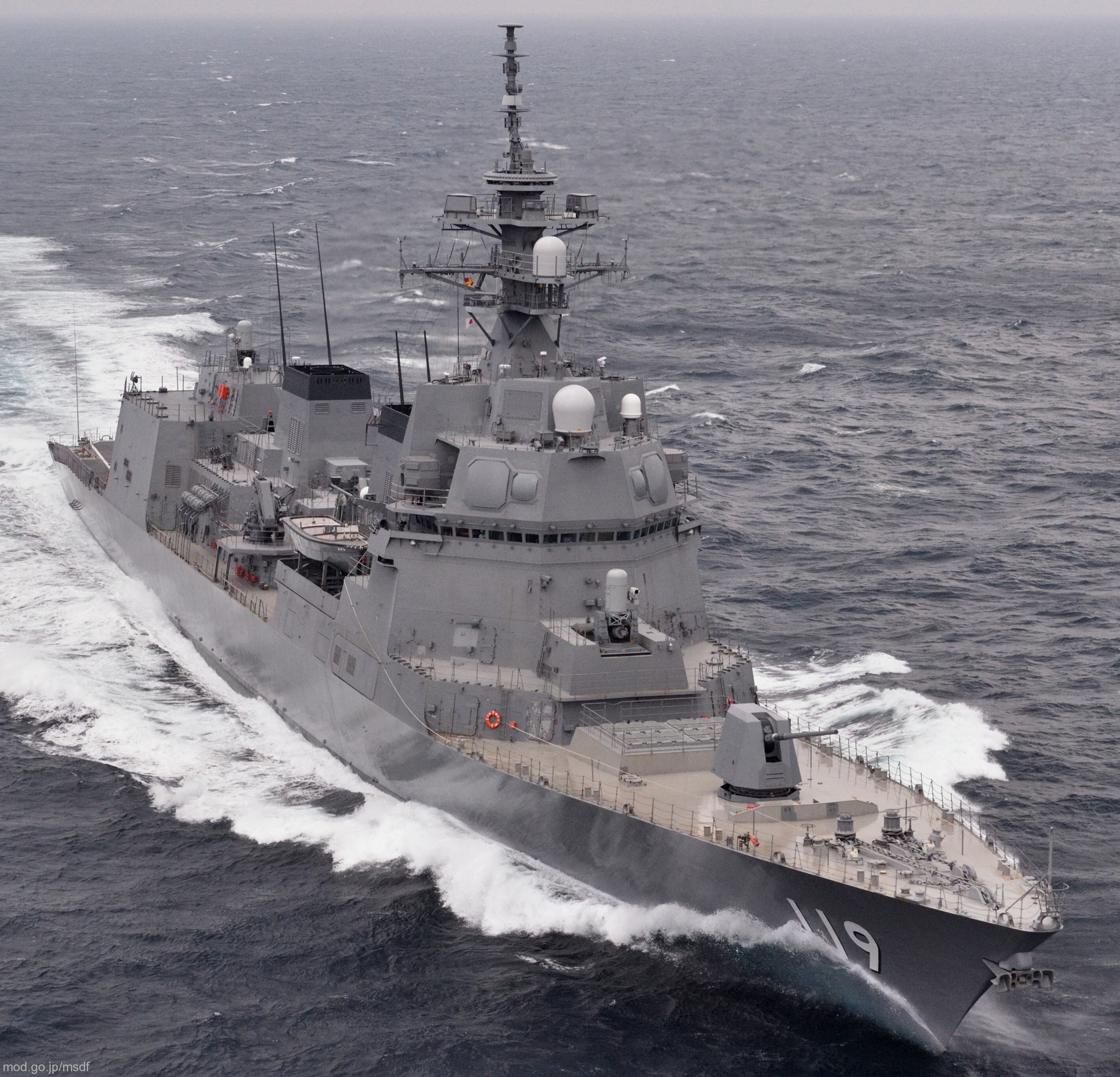

DD-119 JS Asahi

asahi class destroyer japan maritime self defense force jmsdf dd-120 shiranui 07c

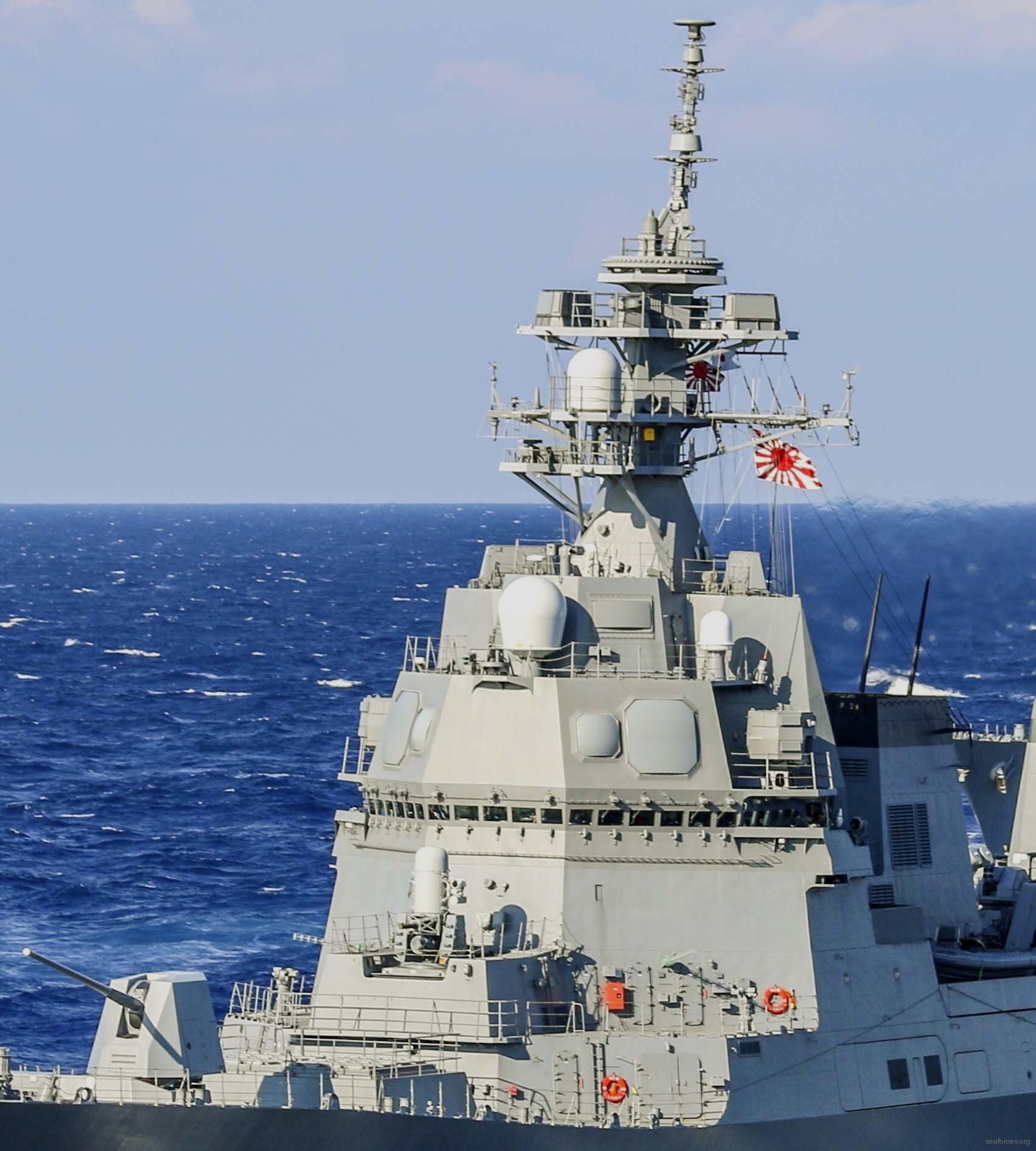

DD-120 JS Shiranui

DETAIL IMAGES

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui armament 06ar

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui armament fcs-3a aaw 02ar

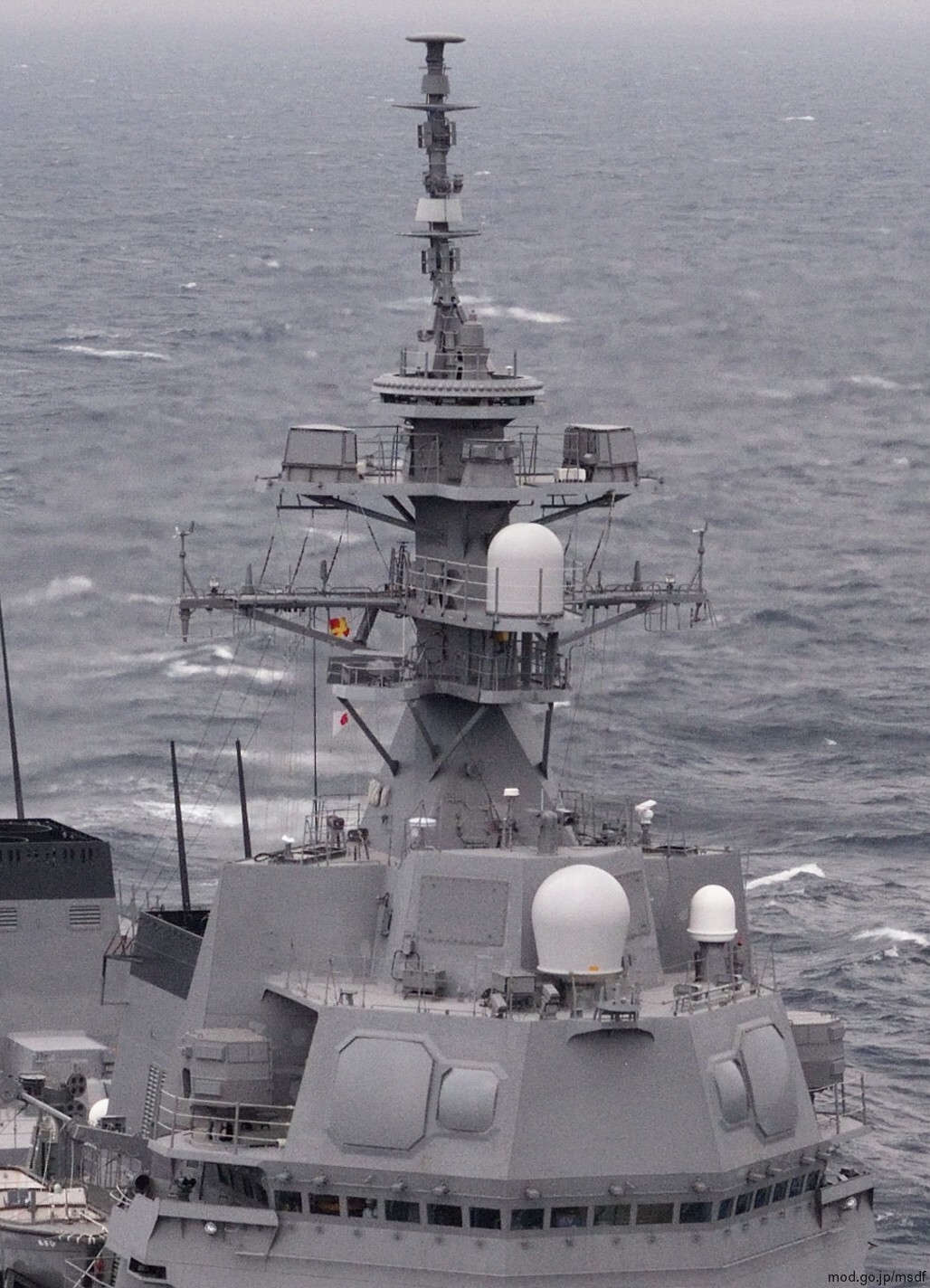

mast, radar & antenna details

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui armament 04ar mk-45 gun mk-41 vls rim-162 essm phalanx ciws

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui armament 04ar mk-45 gun mk-41 vls rim-162 essm phalanx ciws

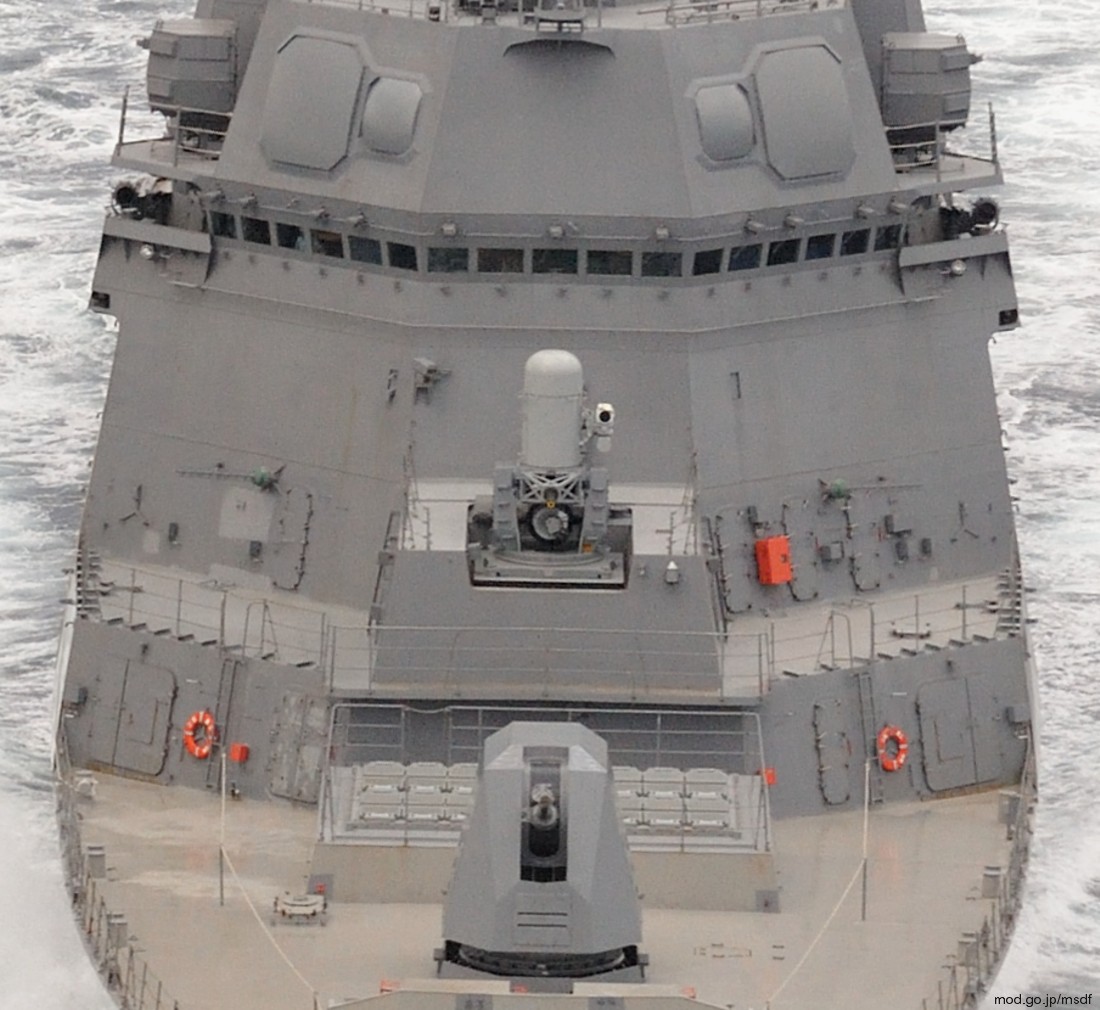

MK-45 Mod.4 5"/62 gun | 32-cell Mk-41 Vertical Launching System (VLS) | Mk-15 Phalanx CIWS

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui armament 02bar mk-45 mod.4 gun mk-41 vls rim-162 evolved sea sparrow missile essm

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui armament 02bar mk-45 mod.4 gun mk-41 vls rim-162 evolved sea sparrow missile essm

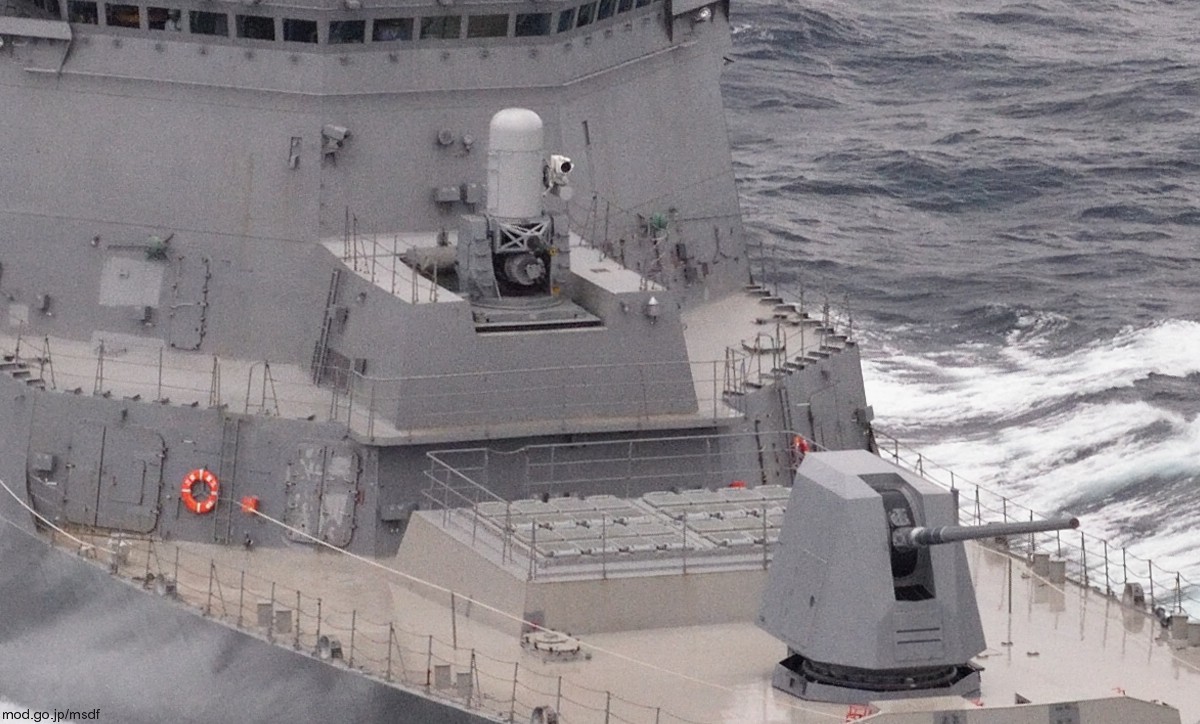

MK-45 Mod.4 5"/62 gun | 32-cell Mk-41 Vertical Launching System (VLS) | Mk-15 Phalanx CIWS

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui armament 03ar

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui armament 03ar

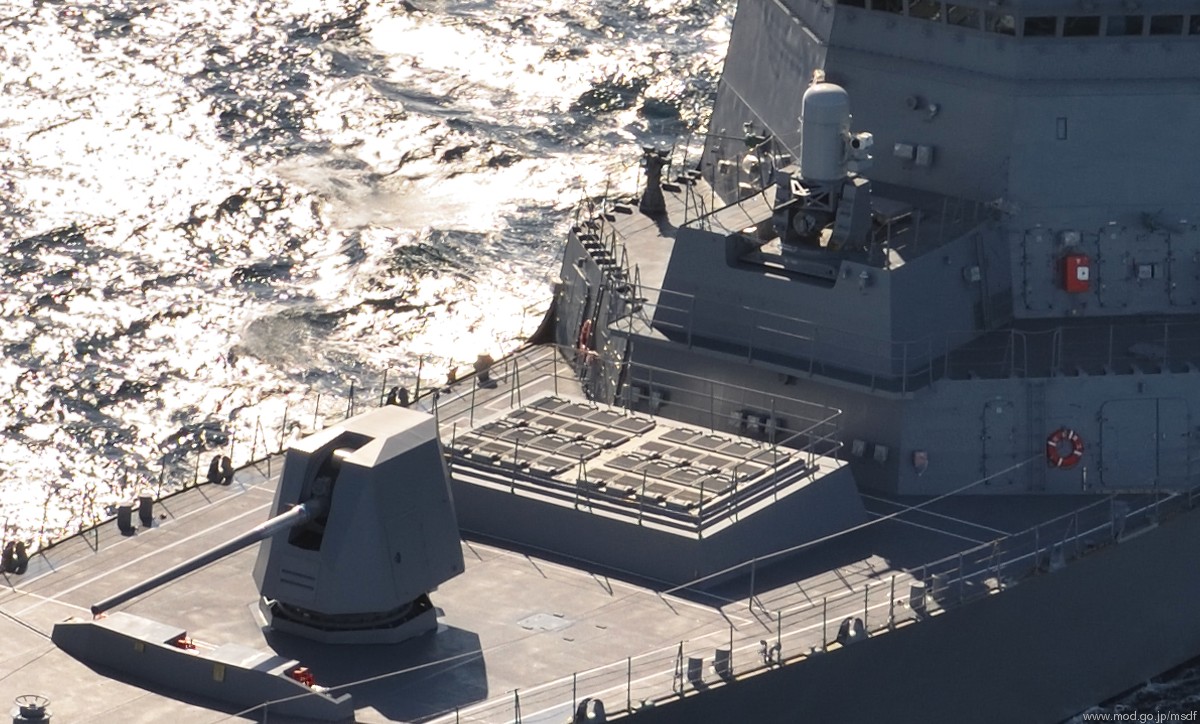

MK-45 Mod.4 5"/62 gun | 32-cell Mk-41 Vertical Launching System (VLS) | Mk-15 Phalanx CIWS

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui flight deck hangar

asahi class destroyer japan maritime self defense force jmsdf dd-119 120 shiranui flight deck hangar

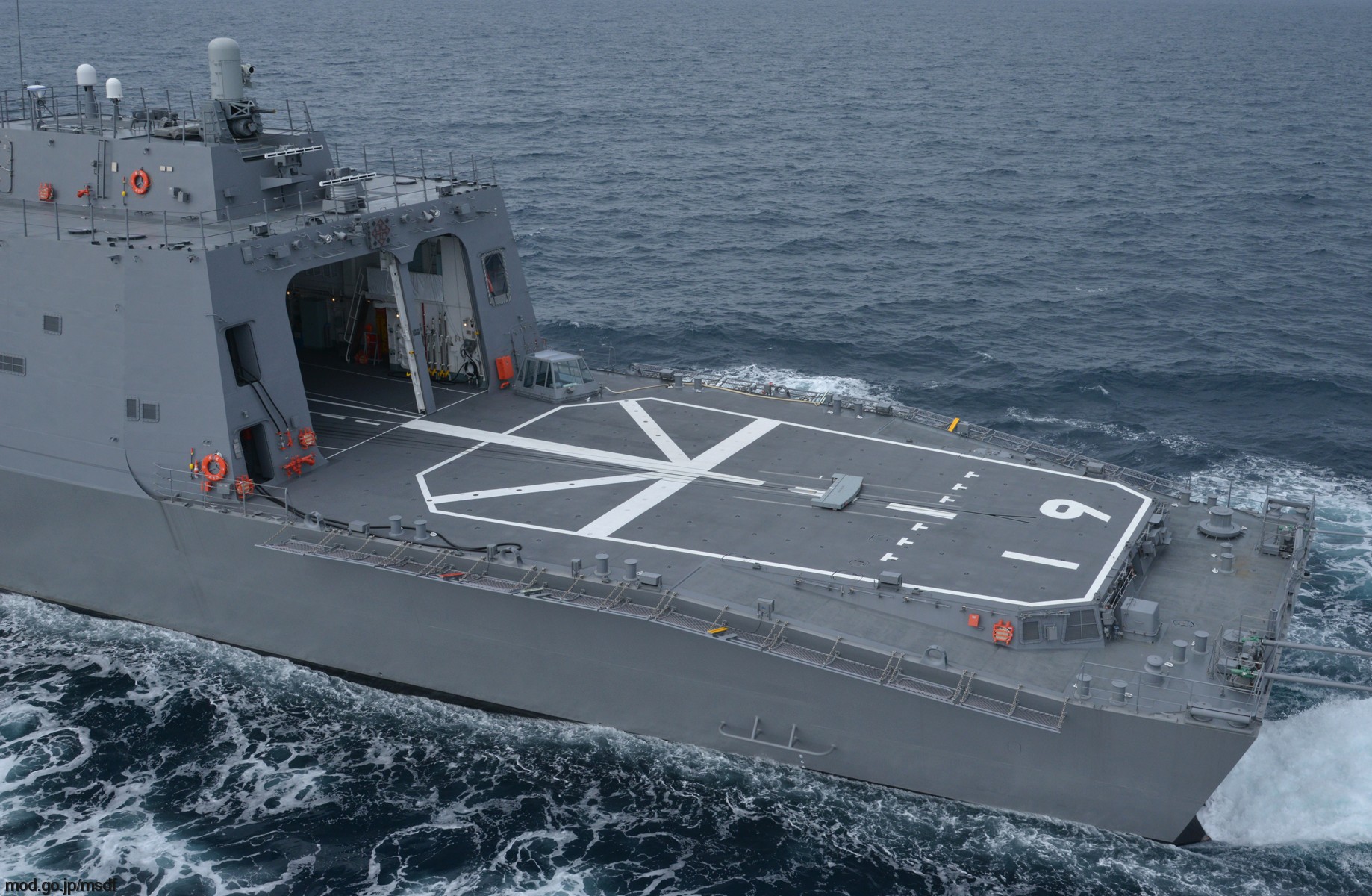

flight deck and hangar for 1 helicopter
