Akizuki class Destroyer - DD


akizuki class destroyer japan maritime self defense force jmsdf dd-115 116 teruzuki 117 suzutsuki 118 fuyuzuki 14x

07/22
Ships:

DD-115 JS Akizuki (2012)
DD-116 JS Teruzuki (2013)
DD-117
JS Suzutsuki (2014)
DD-118
JS Fuyuzuki (2014)


Specifications:

Length:
151 meters (495 feet)
Beam: 18.3 meters (60 ft)
Draft: 5.3 meters (17 ft 5 in) / Depth: 10.9 meters (35 ft 9 in)

Displacement: 5000 tons (standard) / 6800 tons (full load)
Speed: 30 knots, max. (56 km/h)
Range: -
Complement: 200

 Propulsion:
COGAG (Combined Gas and Gas)
4 x
Kawasaki/Rolls-Royce Spey SM-1C gas turbines
64000 shp

2 shafts / 2 controllable pitch propellers

 Aviation:
flight deck and hangar for 1 helicopter / Mitsubishi SH-60K Seahawk

Armament:


1 x
Mk-41 Vertical Launching System / VLS (32 cells)
for a mix of

RIM-162 Evolved Sea Sparrow Missiles / ESSM (4 per cell)

RUM-139 Vertical Launched Anti-Ship Rockets / VL-ASROC (DD 115)
or Type 07 VL-ASROC (DD 116 to 118)

- - - - -

1 x Mk-45 (Mod.4) 5-inch/62-caliber (127mm) gun
2 x Mk-141 missile launcher for 8 Type 90 SSM-1B anti ship missiles
2 x Type 68/HOS-303 (Mk-32) 12,75-inch (324mm) triple torpedo tubes (enclosed) for Mk-46 or Type 73 torpedoes
2 x Mk-15 Phalanx Close-In-Weapon-System (CIWS)

Systems:
ATECS (Advanced Technology Command System)
OYQ-11 Advanced Combat Direction System
FCS-3A AAW Combat System / Fire Control System
OPS-20C Radar

OQQ-22 ASW System
OQS-5 Hull Sonar
OQR-3 Towed Array Sonar Sytem (TASS)

NOLQ-3D ECM/ESM Intergrated Electronic Warfare System

Mk-36 SRBOC Jaff & Decoy Launcher
Mobile Torpedo Decoy System (MOD)
Floating Acoustic Jammer System (FAJ)




The Akizuki-class destroyer is a destroyer class of the JMSDF - four ships were built. The Akizuki Class is intended to escort the Hyuga class and Izumo class helicopter destroyers, and safeguard the other Aegis guided warships such as the Kongō class and Atago-class of the JMSDF. The destroyer provides defense against surface, airborne and undersea threats. This class used to be designated "19DD" - referring to a date on the Japanese calendar, specifically the 19th fiscal year of the Heisei period (2007).

The hull structure was based on the one of the Takanami class destroyer. There are many small improvements, such as cleaner lines to reduce the radar signature and decoys for torpedoes; but the principal changes can be summed up as more powerful engines, sensors, sonar and the indigenous ATECS battle management system that has been called the "Japanese AEGIS". The main gas turbine engines are standardized on a higher-powered version of the Rolls-Royce Spey SM1C, in contrast to the combination of Rolls-Royce SM1C and General Electric LM2500 turbines used in the Takanami class.

Equipment:
The purpose of this class is to shield the Kongo class from air, surface and subsurface threats. Main features of the class include enhanced C4ISR and Anti-Aircraft Warfare (AAW) capability, with an OYQ-11 advanced Combat Direction Sub-system (CDS) and FCS-3A AAW weapon sub-system.

OYQ-11
This is the first CDS adopting a fully distributed computing architecture to be implemented in general-purpose destroyers of the JMSDF. AN/UYQ-70 workstations form the basic computing platform, with Link 16 datalinks. In addition to the CDS, this class is equipped with SATCOM terminals linked to Superbird satellites, part of the Maritime Operation Force (MOF) system. The MOF system is the operational C4I system used in the fleet of the JMSDF, based on the ILOG architecture and interoperable with other JSDF forces. There are also USC-42 DAMA terminals for GCCS-M, the American counterpart of the MOF system.

FCS-3A
This is a domestically developed AAW combat system. It consists of two main components, one is an dual-band and multimode active electronically scanned array radar, and the other is the fire-control system. The FCS-3A is the derivative of the FCS-3 of the Hyuga-class helicopter destroyer, changing material of its transmitter-receiver modules from Gallium arsenide to Gallium nitride and introducing additional Local Area Defense (LAD) capability. An ESSM SAM VLS is integrated with the FCS-3A.


Anti-submarine and Electronic Warfare (EW) capabilities of the Akizuki class have been enhanced, with a new OQQ-22 integrated sonar suite sub-system (hull-sonar and OQR-3 towed array; - a Japanese equivalent of the American AN/SQQ-89), and the NOLQ-3D digitalized EW suite sub-system. These sub-systems communicate across a NOYQ-1B wide area network. In totality these systems are comparable to those of the Zumwalt-class destroyer.

source: wikipedia

class + detail images
for more images go to the individual ship-site

akizuki class destroyer japan maritime self defense force jmsdf dd-115

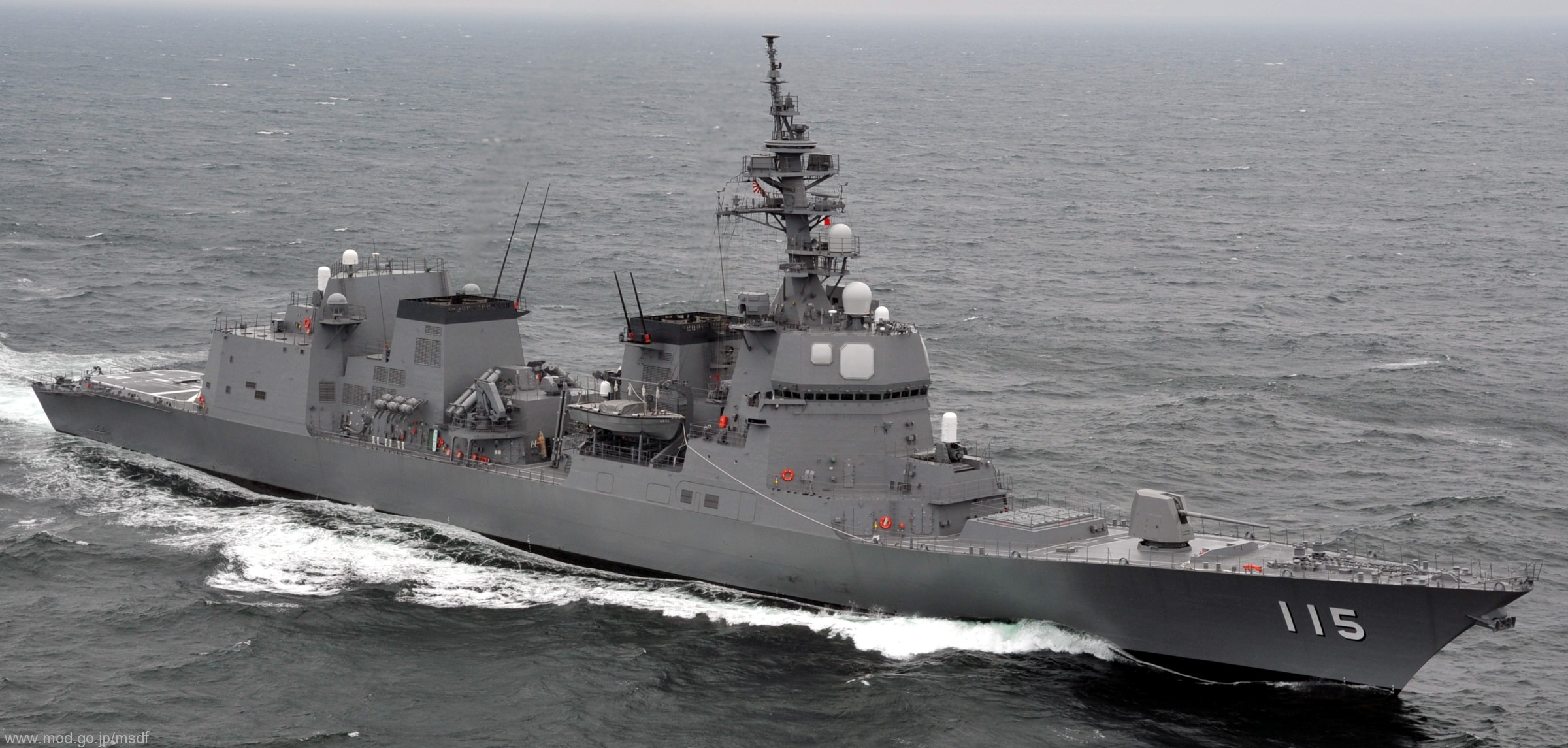

JS Akizuki (DD 115)

akizuki class destroyer japan maritime self defense force jmsdf dd-116 teruzuki

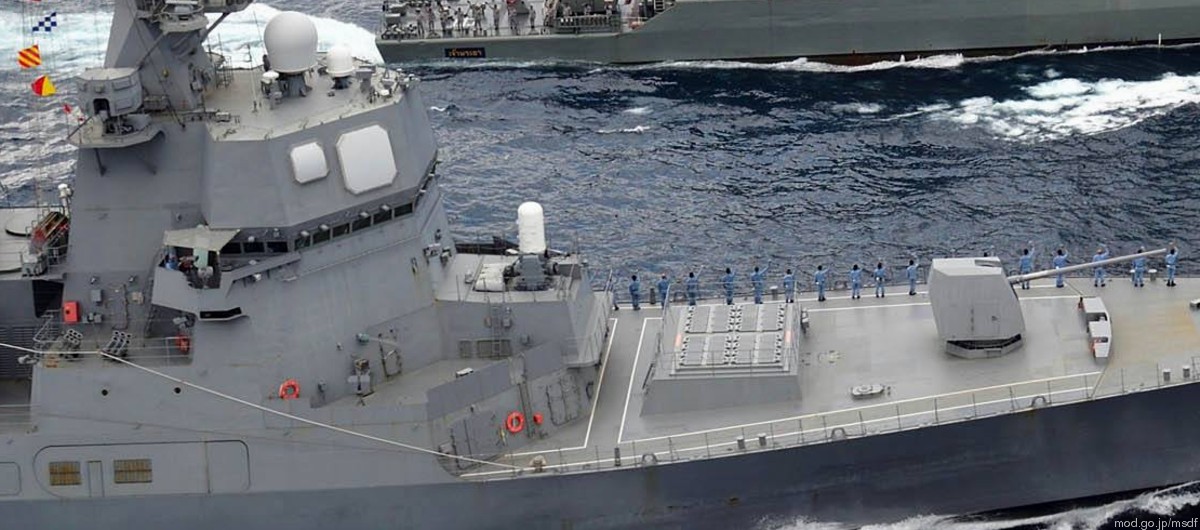

JS Teruzuki (DD 116)

akizuki class destroyer japan maritime self defense force jmsdf dd-117 suzutsuki
JS Suzutsuki (DD 117)

akizuki class destroyer japan maritime self defense force jmsdf dd-118 fuyuzuki
JS Fuyuzuki (DD 118)


detail images




akizuki class destroyer japan maritime self defense force jmsdf mk-45 mod.4 5 inches 62 caliber gun mk-41 vertical launching system vls mk-15 ciws 02

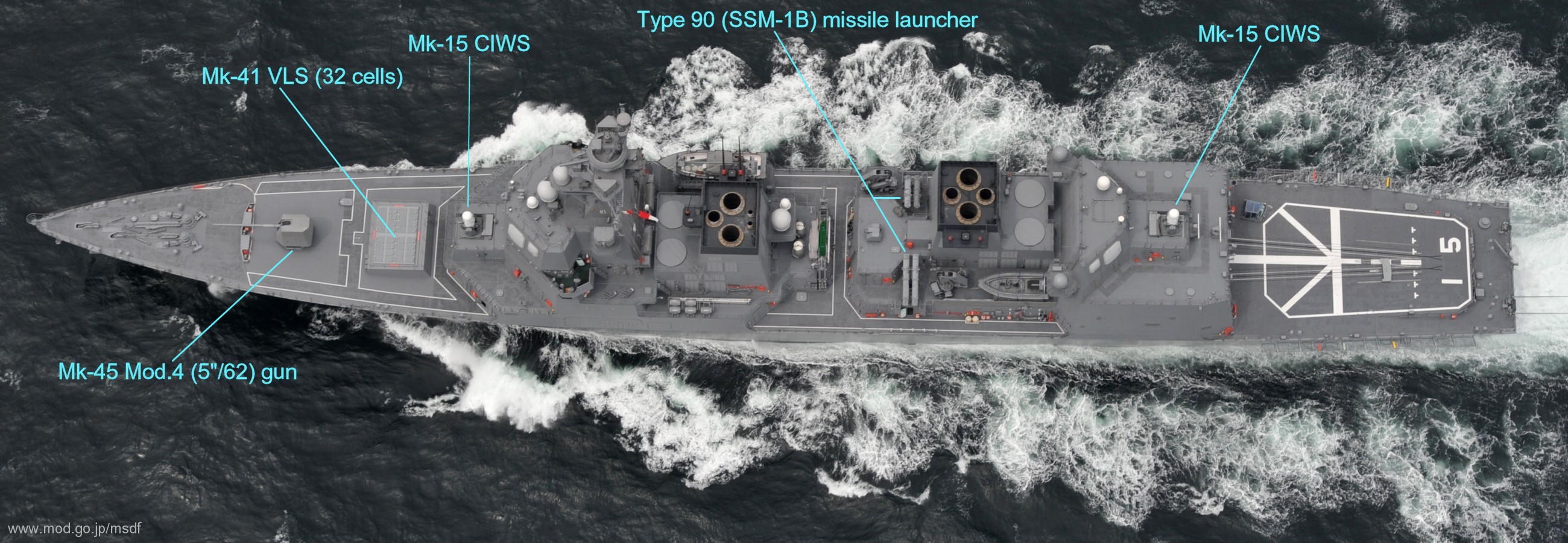

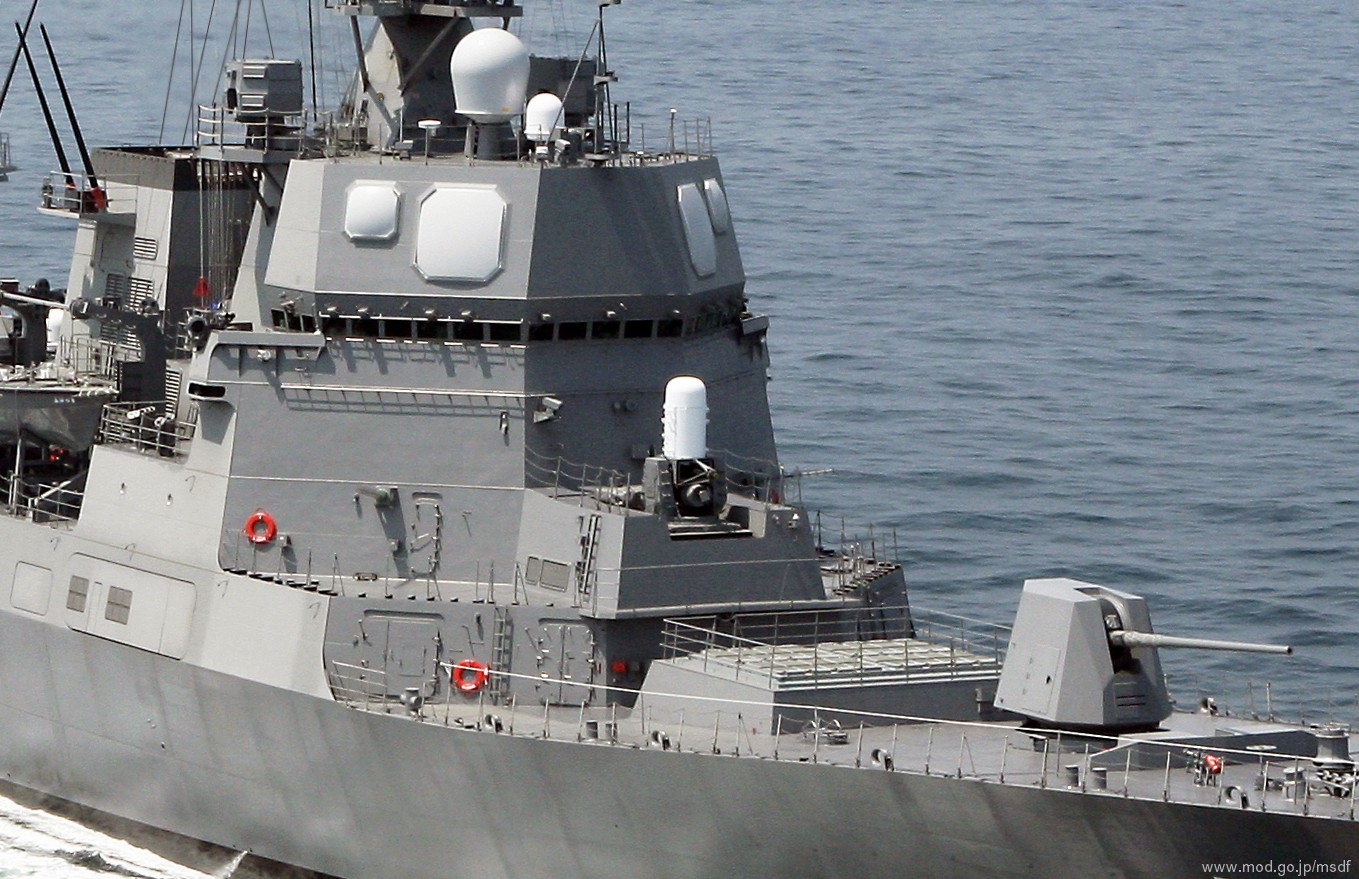

Mk-45 Mod.4 (5"/62) gun - Mk-41 VLS - Mk-15 CIWS

akizuki class destroyer japan maritime self defense force jmsdf mk-45 mod.4 5 inches 62 caliber gun mk-41 vertical launching system vls mk-15 ciws 07

akizuki class destroyer japan maritime self defense force jmsdf mk-45 mod.4 5 inches 62 caliber gun mk-41 vertical launching system vls mk-15 ciws 16xa

akizuki class destroyer japan maritime self defense force jmsdf mk-141 type-90 ssm-1b launcher 04

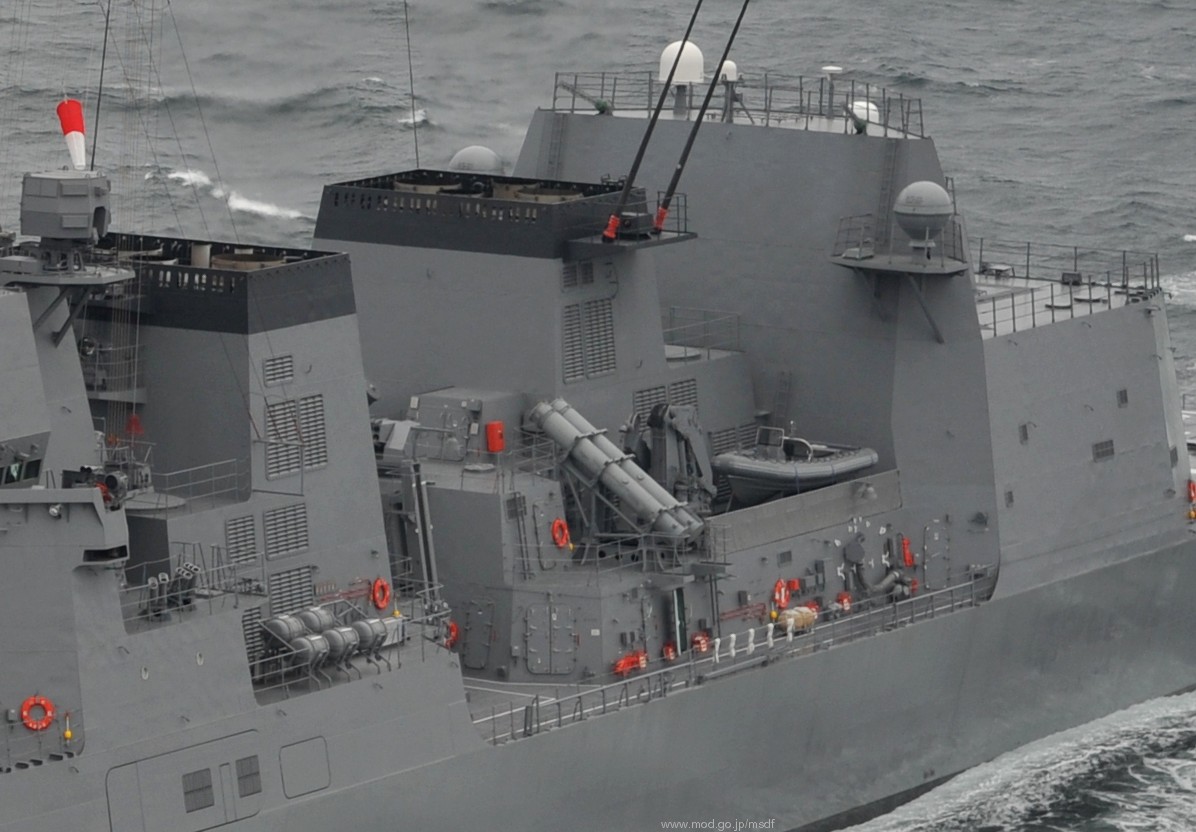

Mk-141 SSM launcher for Type-90 SSM-1B missiles

akizuki class destroyer japan maritime self defense force jmsdf mk-141 type-90 ssm-1b launcher superstructure details 08

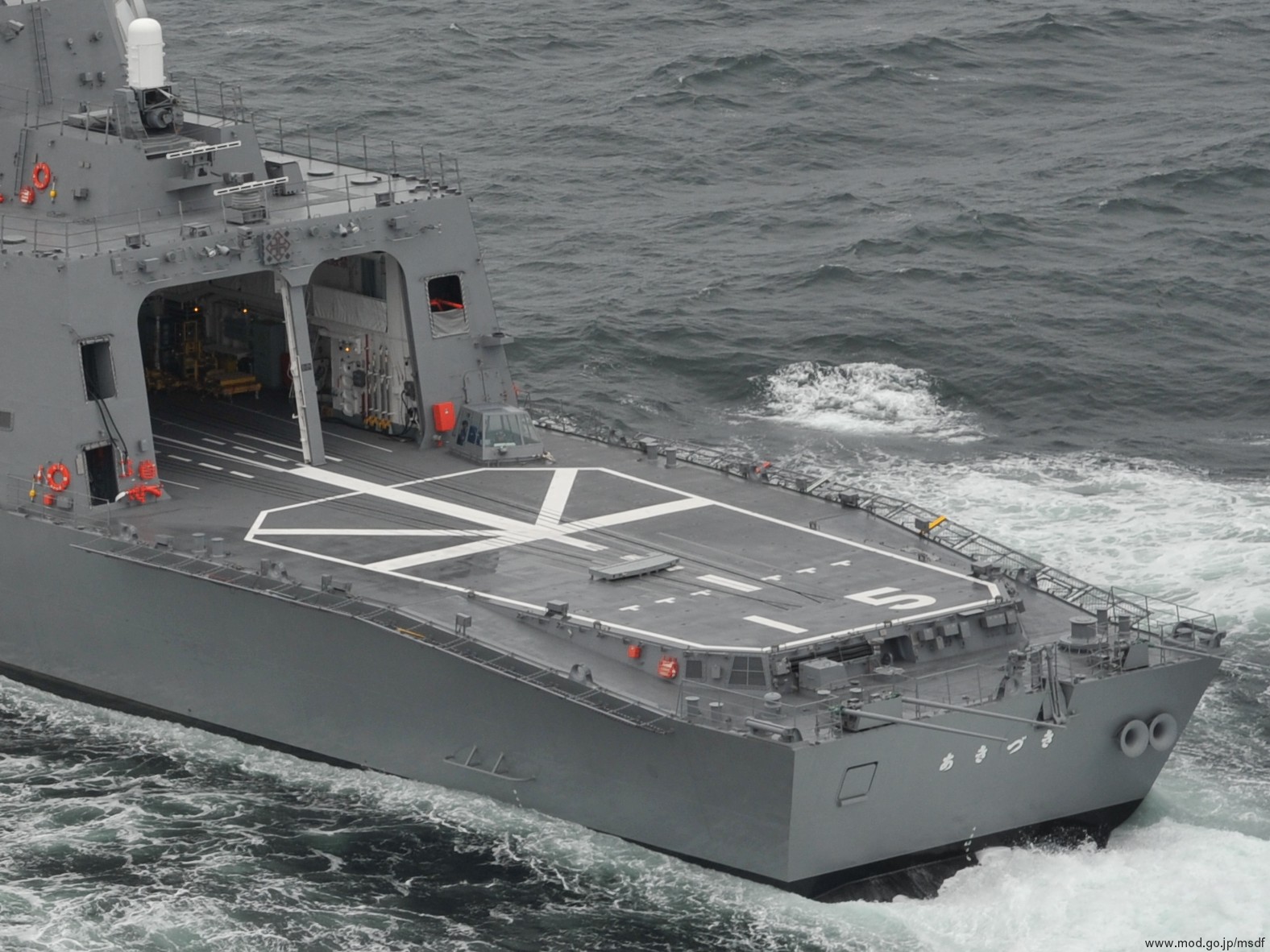

akizuki class destroyer japan maritime self defense force jmsdf flight deck hangar mk-15 ciws

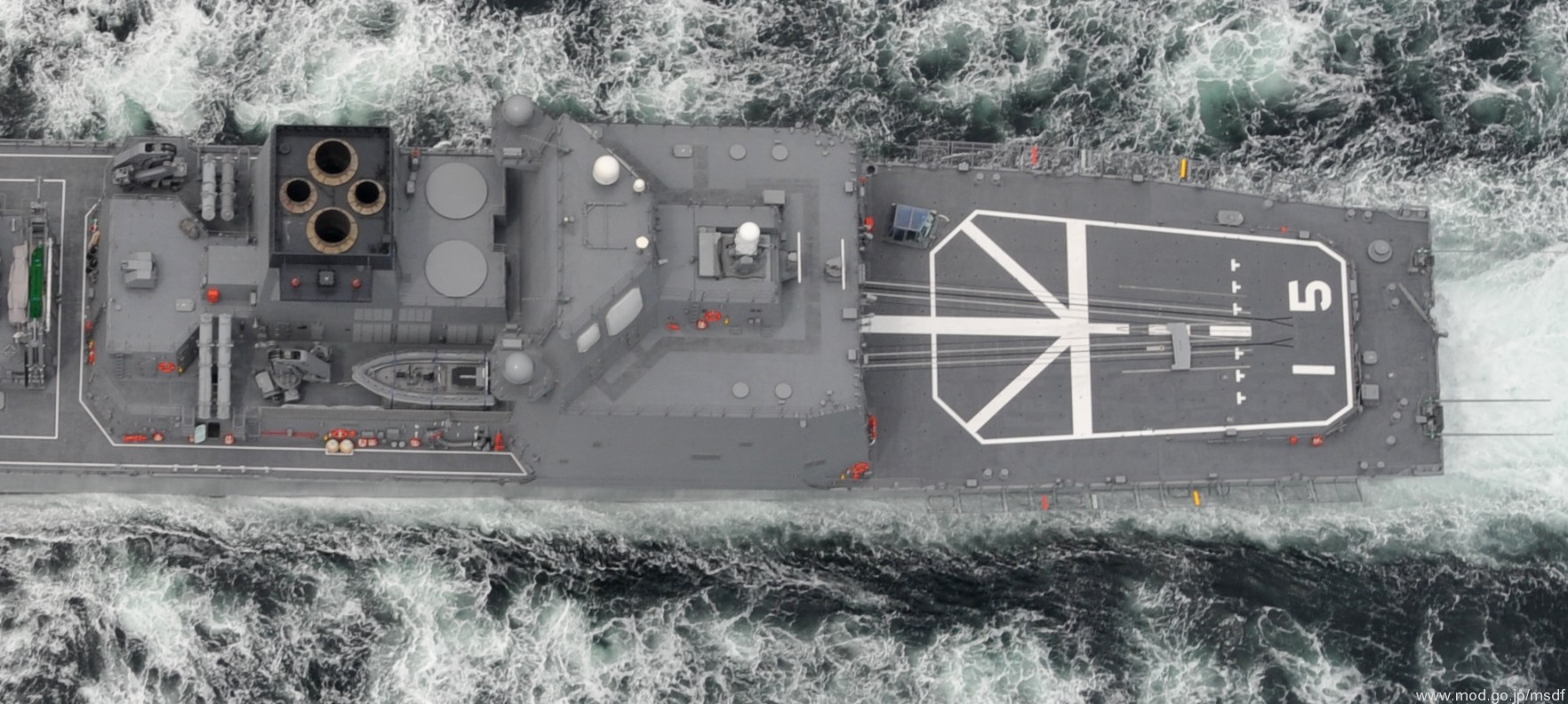

flight deck and hangar with aft Mk-15 CIWS

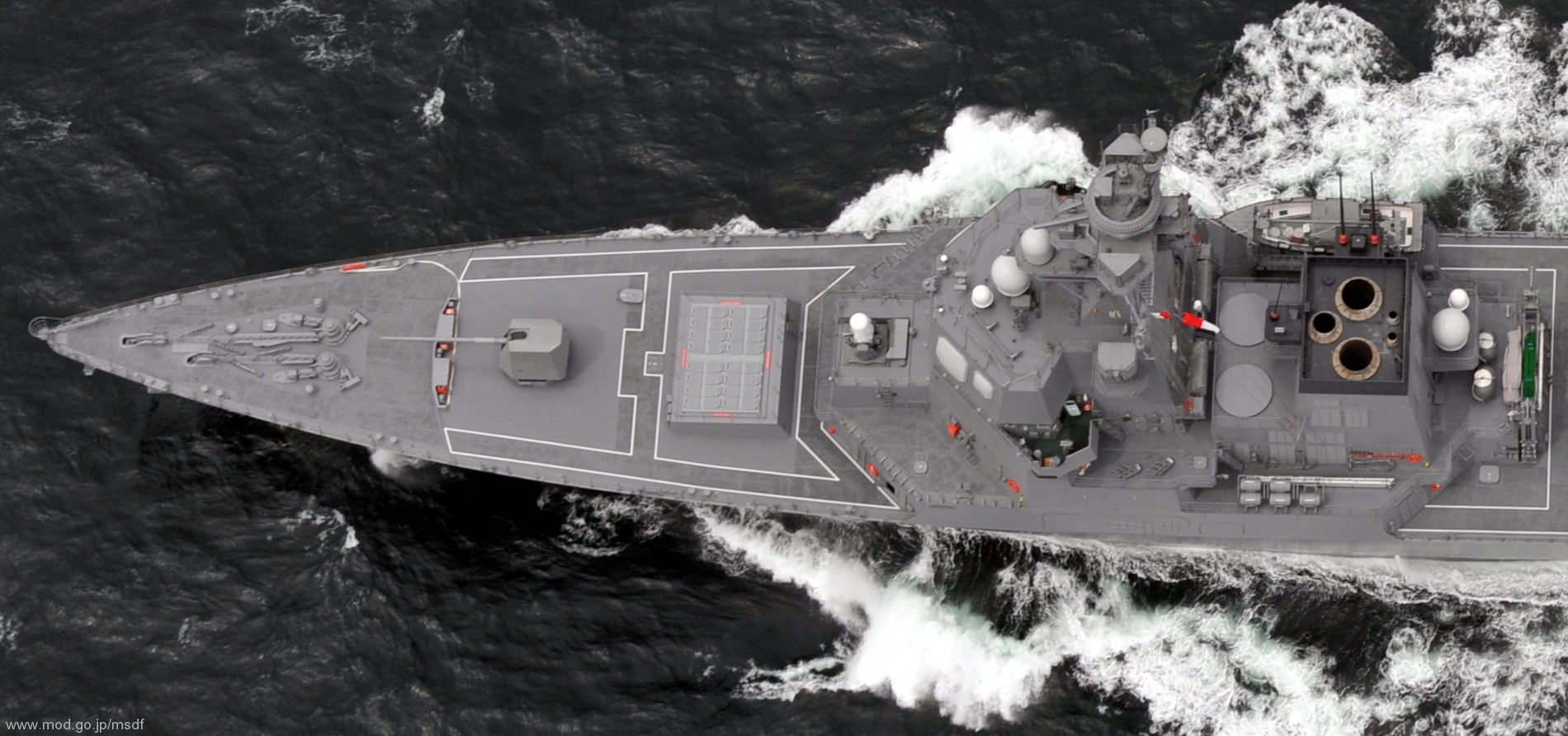

akizuki class destroyer japan maritime self defense force jmsdf details mk-41 vls mk-15 ciws mk-45 gun

akizuki class destroyer japan maritime self defense force jmsdf details  mk-15 ciws mk-141 type-90 ssm-1b flight deck

akizuki class destroyer japan maritime self defense force jmsdf ops-20c radar aesa

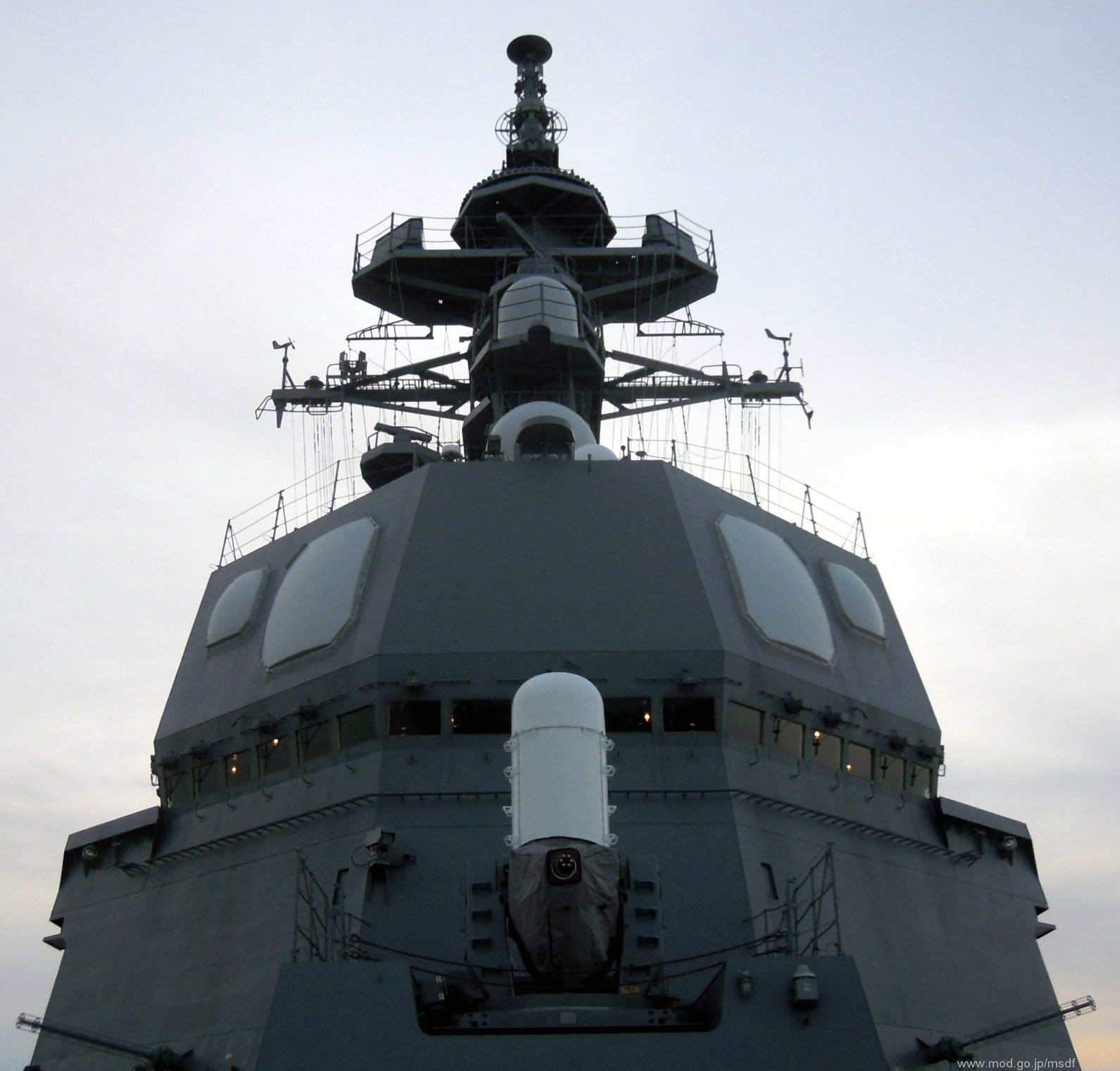

forward radars of the FCS-3A combat system
