Japan Maritime Self Defense Force / JMSDF - Fleet Air Force
ShinMaywa US-2
Flying Boat - Seaplane


shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron kokutai atsugi 02x

10/23
Aircraft and users:

Serials:

US-2
9901 / 9902 / 9903 / 9904 / 9905 / 9906 / 9907 / 9908


Squadron:
Air Rescue Squadron 71 (第71航空隊 - 71 Kokutai)
based at Atsugi Air Base



The ShinMaywa US-2 is a large Japanese short takeoff and landing amphibious aircraft that employs boundary layer control technology for enhanced STOL and stall suppression performance. Manufactured by seaplane specialist ShinMaywa (formerly Shin Meiwa), it was developed from the earlier Shin Meiwa US-1A seaplane, which was introduced during the 1970s.

The ShinMaywa US-2 was developed on behalf of the Japan Maritime Self-Defense Force (JMSDF) as a 'like-for-like' replacement for its aging US-1A fleet. In Japanese service, it is operated in the air-sea rescue (ASR) role. The US-2 can also be used in other capacities, such as an aerial fire fighter, carrying 15 tonnes of water for this mission.

Specifications:
Crew: 11 (2 pilots, 1 search-and-rescue coordinator, 2 on-board maintenance personnel, 3 divers, 2 paramedics, and 1 sensor operator)
Capacity: 20 passengers or 12 stretchers
Length: 33.46 m (109 ft 9 in)
Wingspan: 33.15 m (108 ft 9 in)
Height: 9.8 m (32 ft 2 in)
Wing area: 135.8 m2 (1,462 sq ft)
Empty weight: 25,630 kg (56,504 lb)
Max takeoff weight: 47,700 kg (105,160 lb) land take-off
Powerplant: 4 x Rolls-Royce AE 2100J turboprop, 3,424 kW (4,592 hp) each
Propellers: 6-bladed Dowty R414
Maximum speed: 560 km/h (350 mph, 300 kn)
Cruise speed: 480 km/h (300 mph, 260 kn) at 6,000 m (20,000 ft)
Stall speed: 90 km/h (56 mph, 49 kn)
Range: 4,700 km (2,900 mi, 2,300 nmi)
Service ceiling: 7,195 m (23,606 ft)
Takeoff distance on ground: 490 m (1,610 ft) at MTOW
Landing distance on ground: 1,500 m (4,900 ft) at MTOW
Takeoff distance on water: 280 m (920 ft) at loaded weight
Landing distance on water: 330 m (1,080 ft) at loaded weight

source: wikipedia+

images

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9901 03
9901

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9901 04
9901

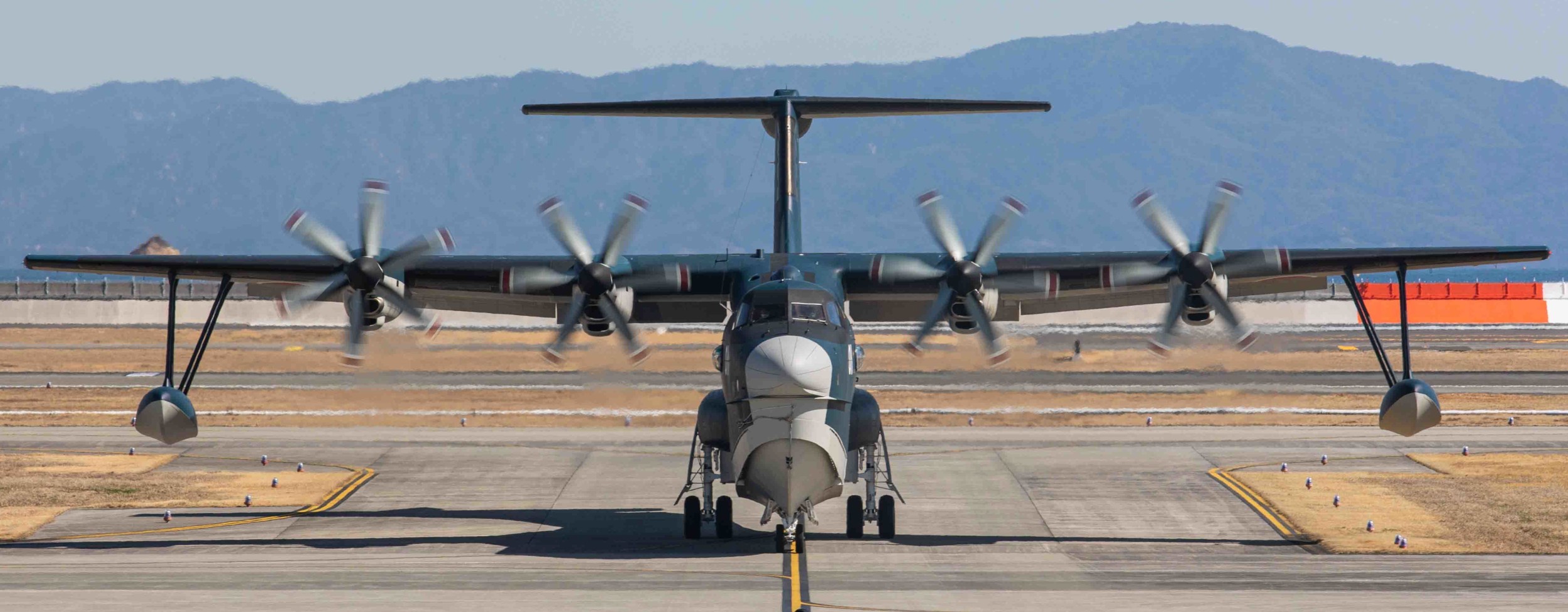

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9901 05
9901

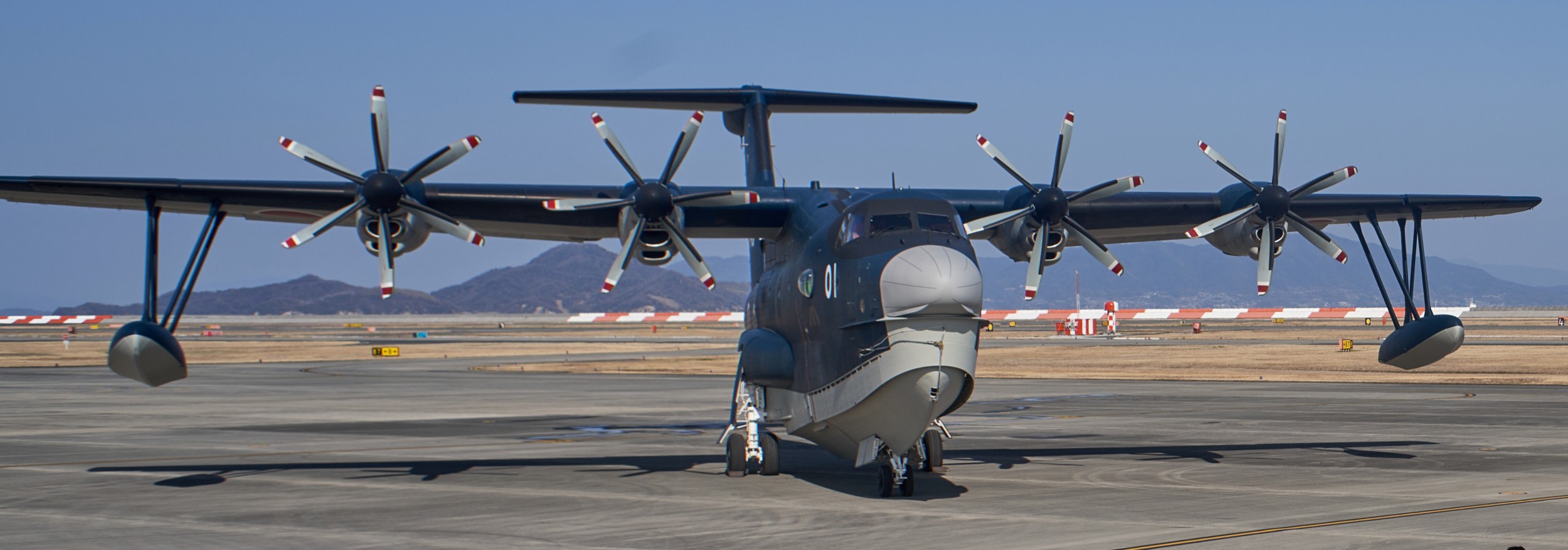

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9901 06
9901

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9901 02
US-2 / 9901 and US-1A / 9090


shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9902 02
9902

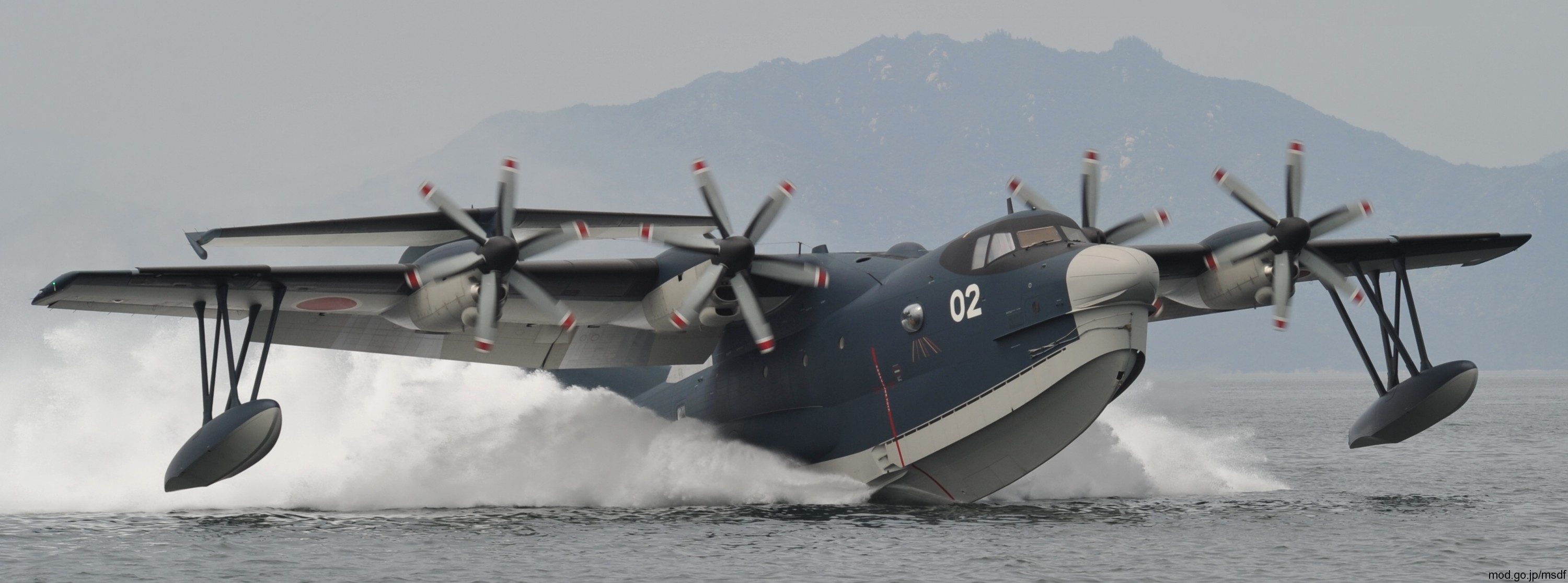

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9902 04
9902

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9902 05
9902

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9902 06
9902

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9902 07
9902

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9902 03
9902 + 9901


shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9903 05
9903

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9903 07
9903

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9903 04
9903

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9903 08
9903

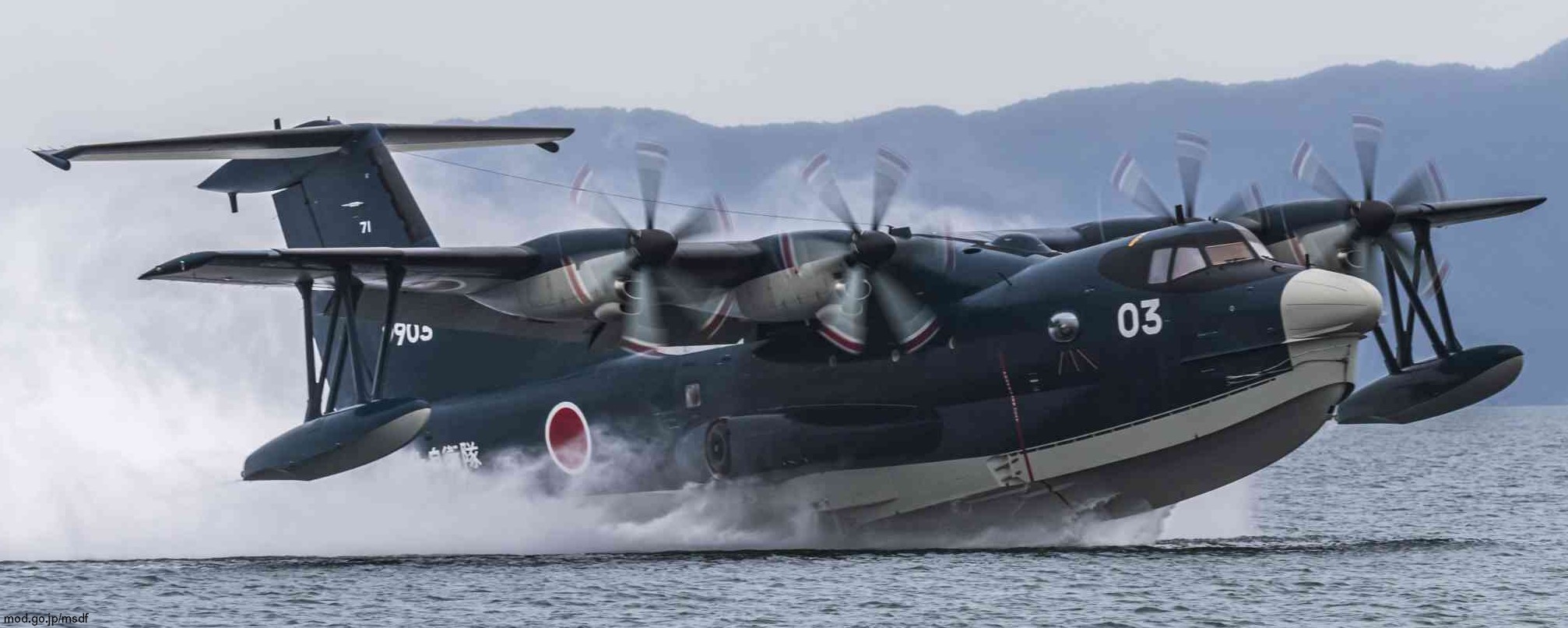

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9903 06
9903

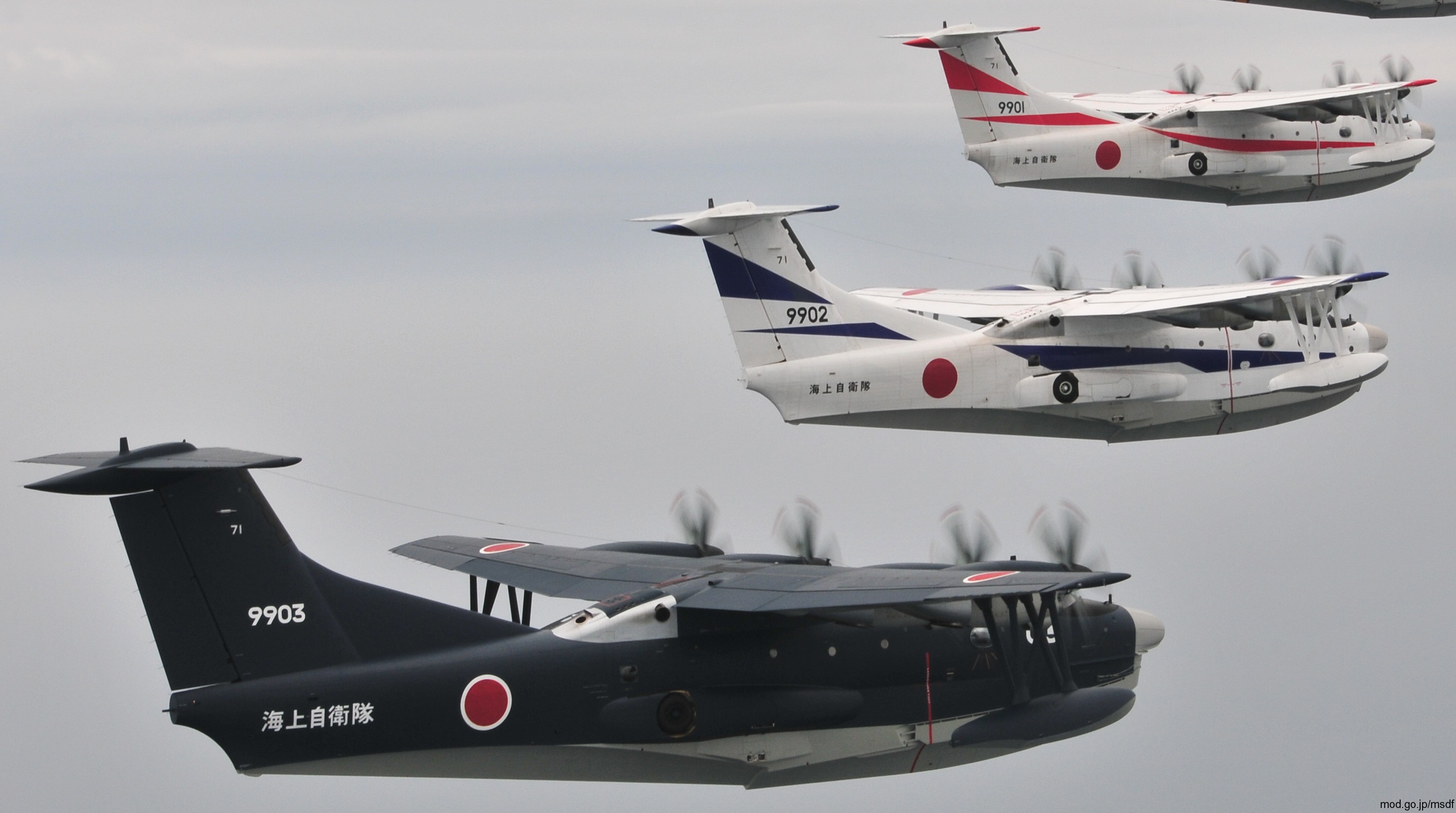

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9903 02
9903, 9902, 9901

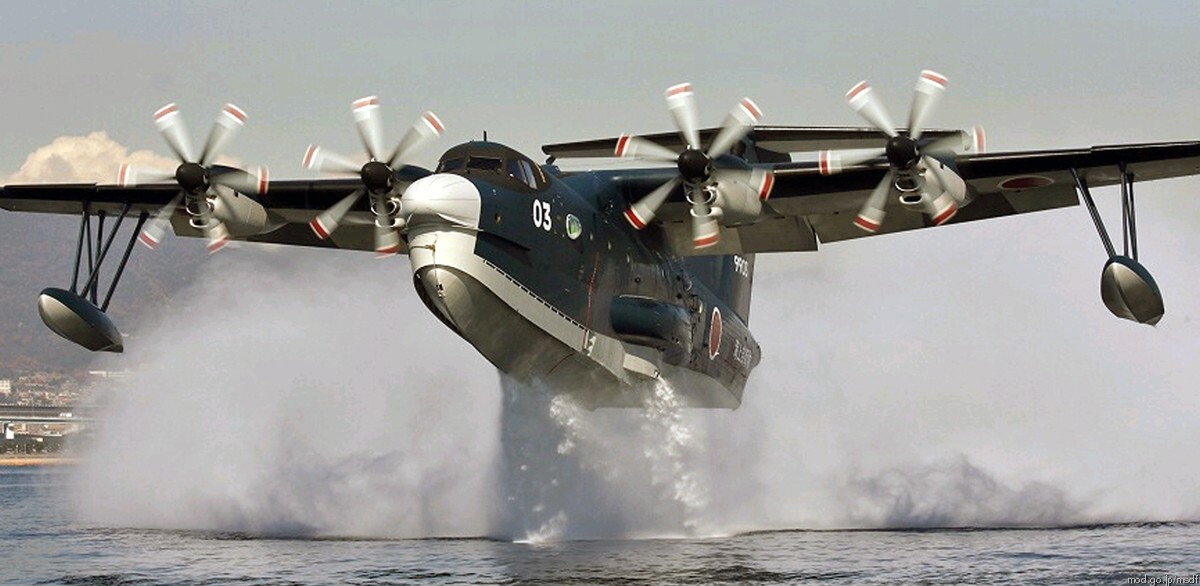

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9903 03
9903


shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9904 05
9904

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9904 03
9904

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9904 04
9904

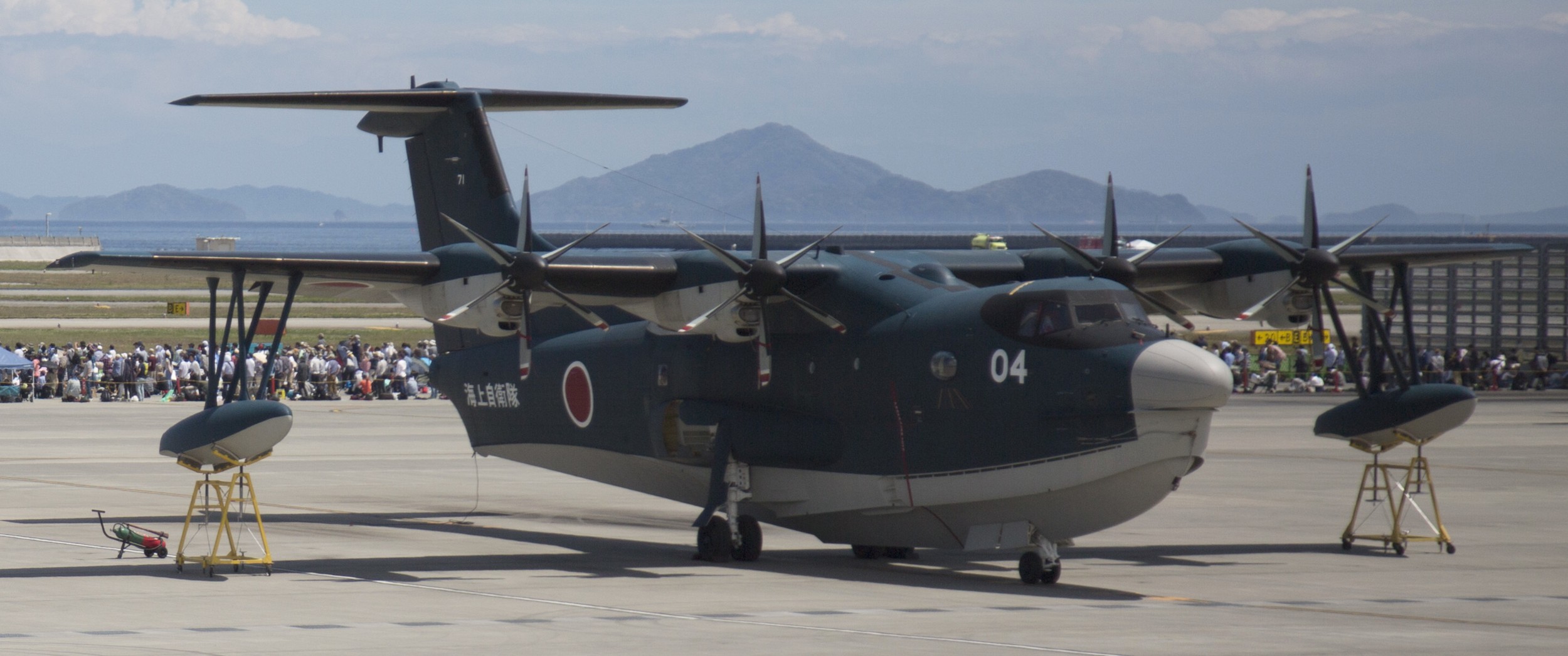

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9904 02
9904


shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9906 03
9906

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9906 06
9906

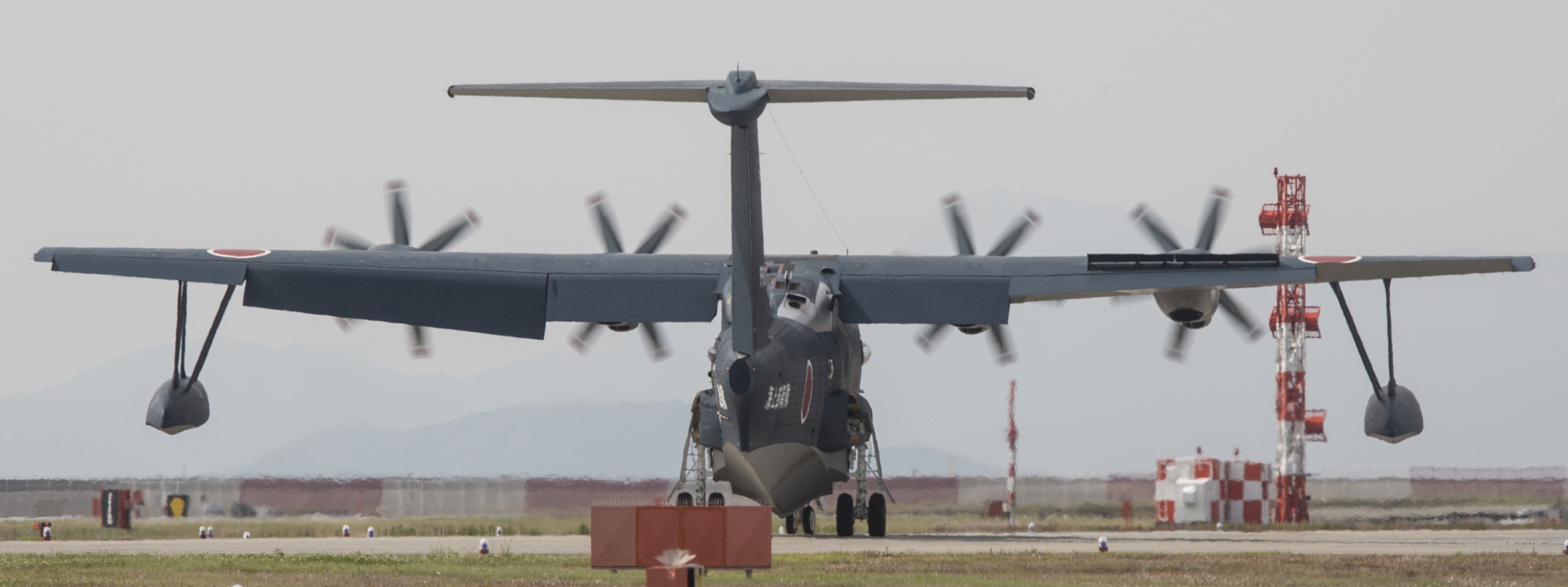

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9906 02
9906

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9906 04
9906

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9906 05
9906


shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9907 03
9907

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9907 04
9907

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9907 02
9907

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9907 05
9907


shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 9908 02
9908



shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi cockpit view 02

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi cockpit 05

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi cockpit 03

shin maywa us-2 flying boat japan maritime self defense force jmsdf sar 71 squadron atsugi 04 door
