Sa'ar 4 class Fast Attack Craft


sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam 09x

02/24
Ships:
Name Commissioned STATUS
INS Reshef February 1973 decommissioned / sold to Chile in 1997 > LM-34 Angamos
INS Keshet August 1973 decommissioned / sold to Chile in 1980 > LM-31 Chipana
INS Romach 1974 decommissioned / sold to Chile in 1979 > LM-30 Casma
INS Kidon 1974 decomm. / disassembled 1994 / partly reused in a Sa'ar 4.5 boat
INS Tarshish 1975 decommissioned / sold to Chile in 1997 > LM-35 Papudo
INS Yaffo 1975 decomm. / disassembled 1998 / partly reused in a Sa'ar 4.5 boat
INS Nitzachon September 1978 decommissioned in 2014
INS Atzmaut February 1979 decommissioned 2014 / sunk as a target in July 2016
INS Moledet 1979 decommissioned / sold to Sri Lanka in 2000 > P 702 SLNS Suranimala
INS Komemiyut 1980 decommissioned / sold to Sri Lanka in 2000 > P 701 SLNS Nandimitra

Specifications:

Builder:
Israel Shipyards Ltd., Kishon Port, Haifa, Israel


Displacement:
450 tons (full load)
Length:
58 meters (190 feet)
Beam: 7.62 m (25 ft)
Draft: 2.4 m (7 ft 9 in)

Speed: 34 knots (63 km/h), max.
Range: 4000 NMI (7400 km) at 17 knots / 1650 NMI (3000 km) at 30 knots
Complement: 45

Propulsion:
4 x
MTU 16V 956 TB91 diesel engines (3200 hp / 2375 kW, each)
4
shafts / 4 propellers


Armament:

in different arrangements

1-2 x
Mk.141 missile launcher
for up to 4 x
RGM-84 Harpoon SSM

4-6 x IAI Gabriel SSM missiles

1-2 x OtoMelara/Breda 76/62 Compact gun

1 x
Mk.15 Phalanx CIWS

2 x Oerlikon 20 mm guns


Aviation:
none

Systems:
Elta EL/M-2207/2208 air & surface search radar
Selenia Orion RTN-10X fire-control radar
1 x 45-tube / 4-6 x 24-tube and 4 single chaff/decoy launchers
Elisra NS-9003/9005 Radar Warning Receiver


The Sa'ar 4 or Reshef class were a series of fast attack craft built based on Israeli Navy designs grounded in accumulated experience derived in the operation of Sa'ar 1, Sa'ar 2, and Sa'ar 3 classes. Thirteen were built at the Israel Shipyards, ten for the Israeli Navy and three for the South African Navy.

images

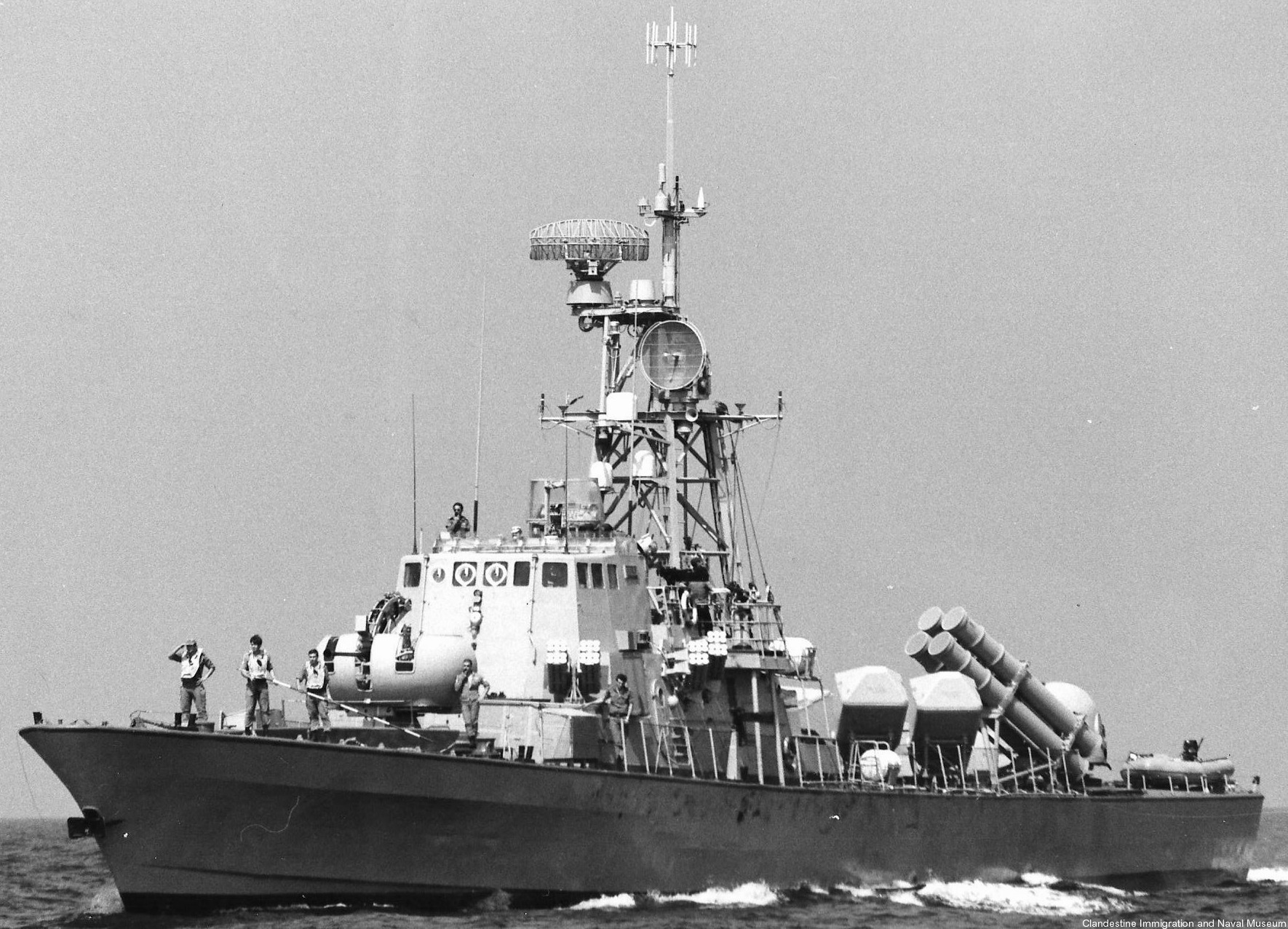

sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam 03

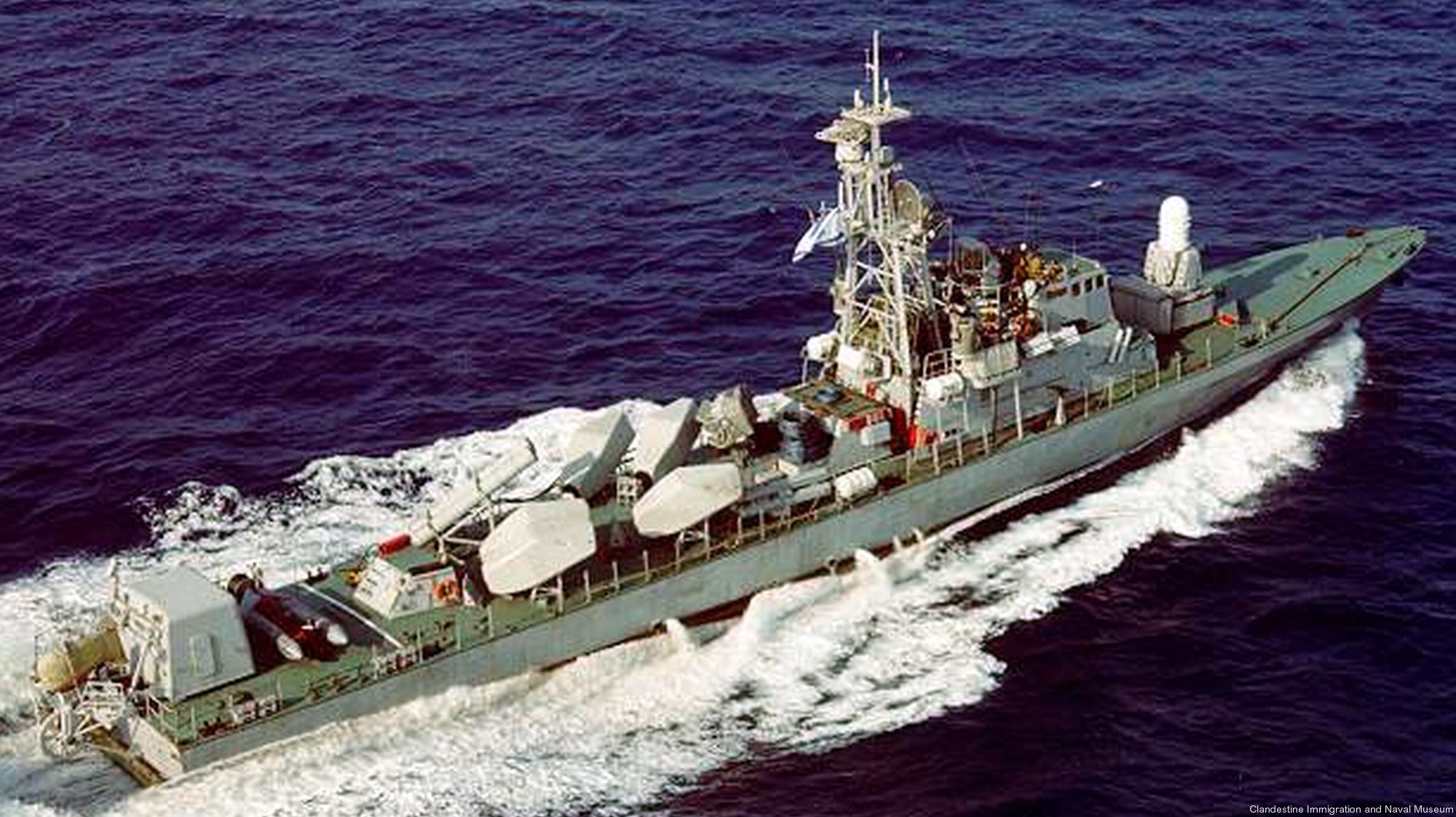

sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam harpoon gabriel ssm 04

sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam rgm-84 harpoon ssm 07

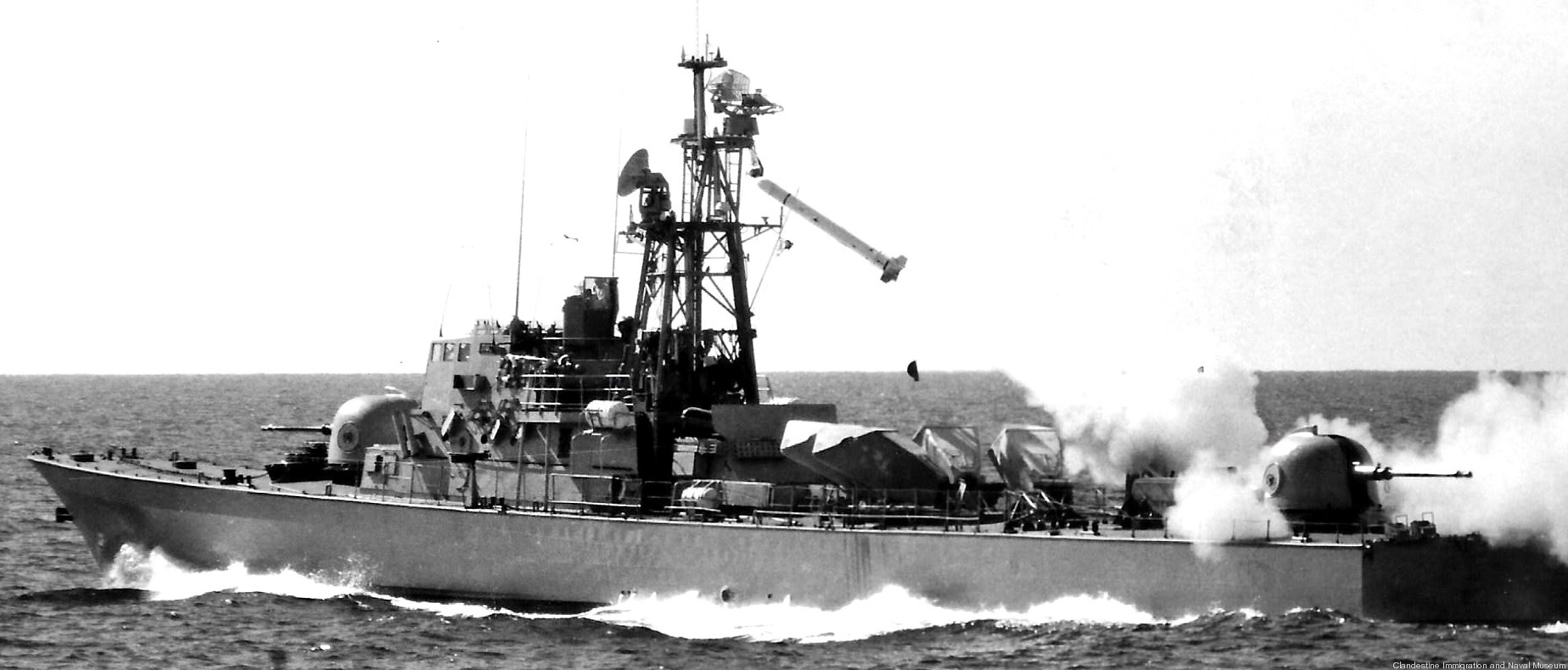

firing a Harpoon SSM

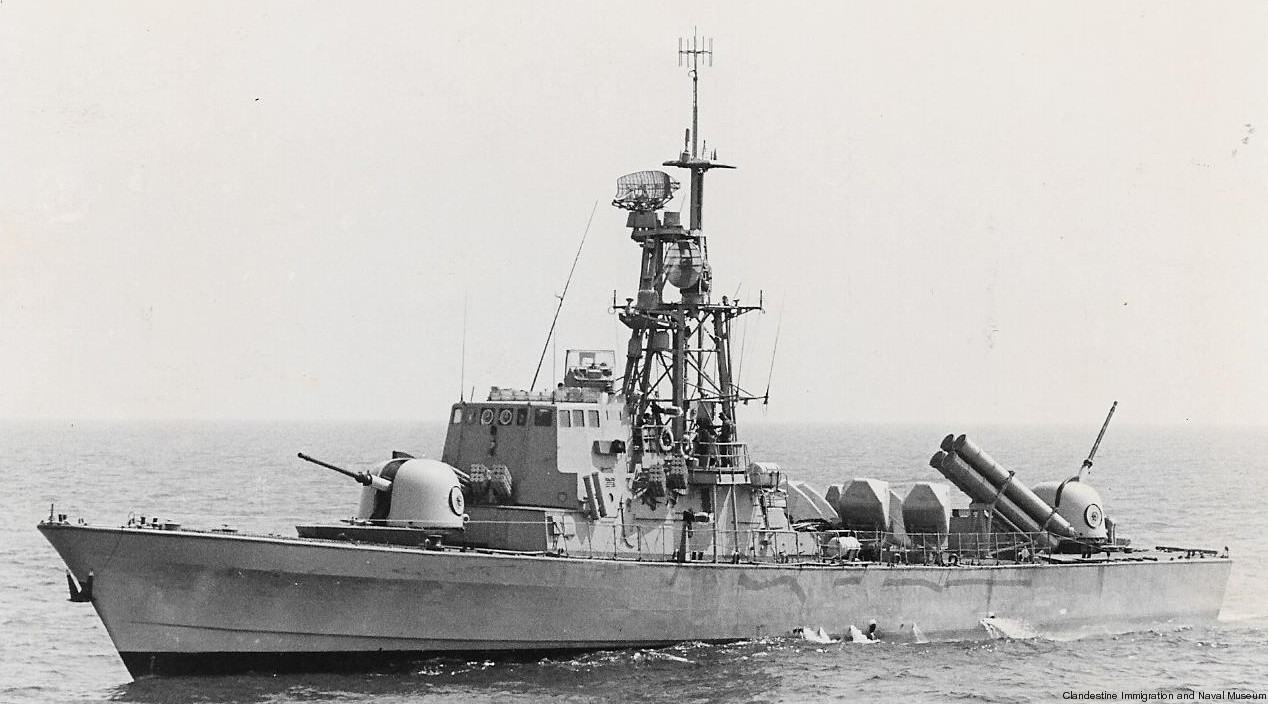

sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam 05

sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam gabriel ssm 10

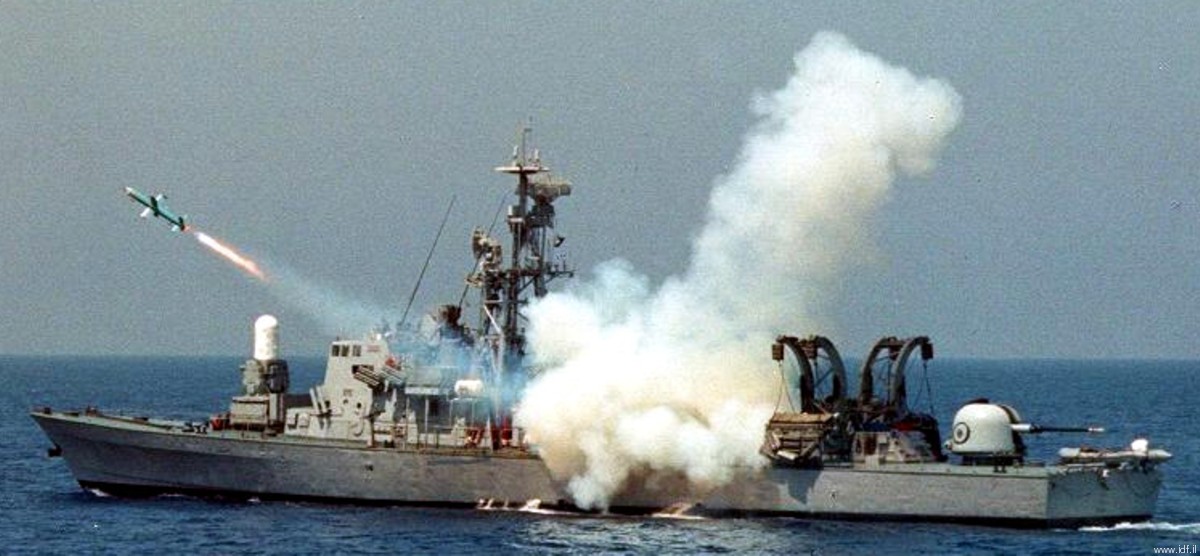

firing a Gabriel SSM

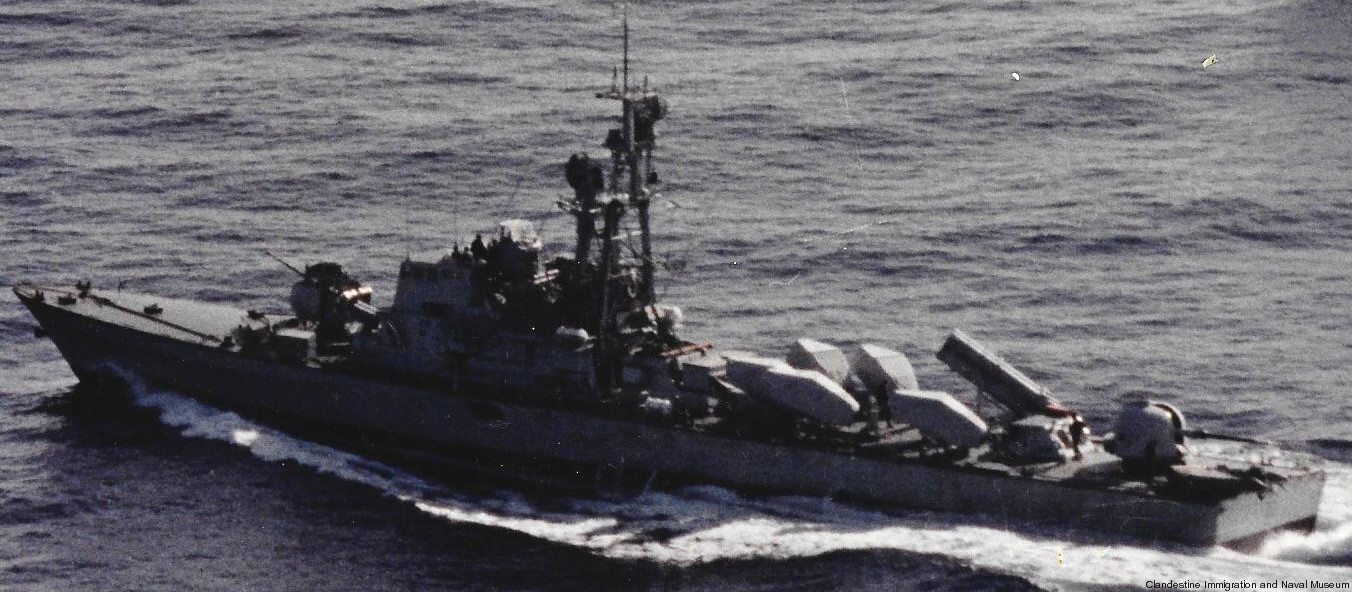

sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam 08

sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam 06

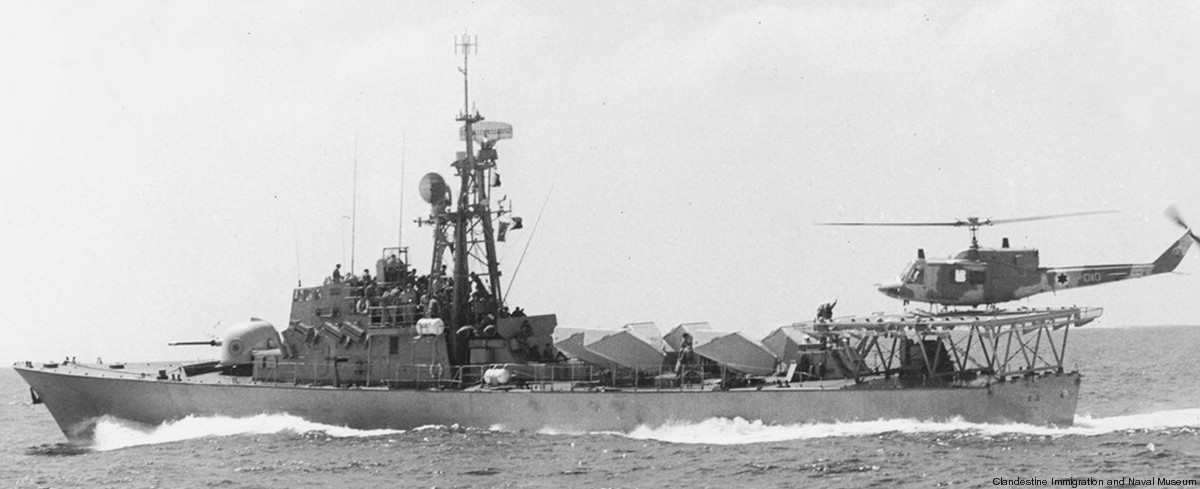

helipad testing

sa'ar 4 reshef class fast attack craft missile facm israeli navy heil hayam oerlikon 20 mm gun 02

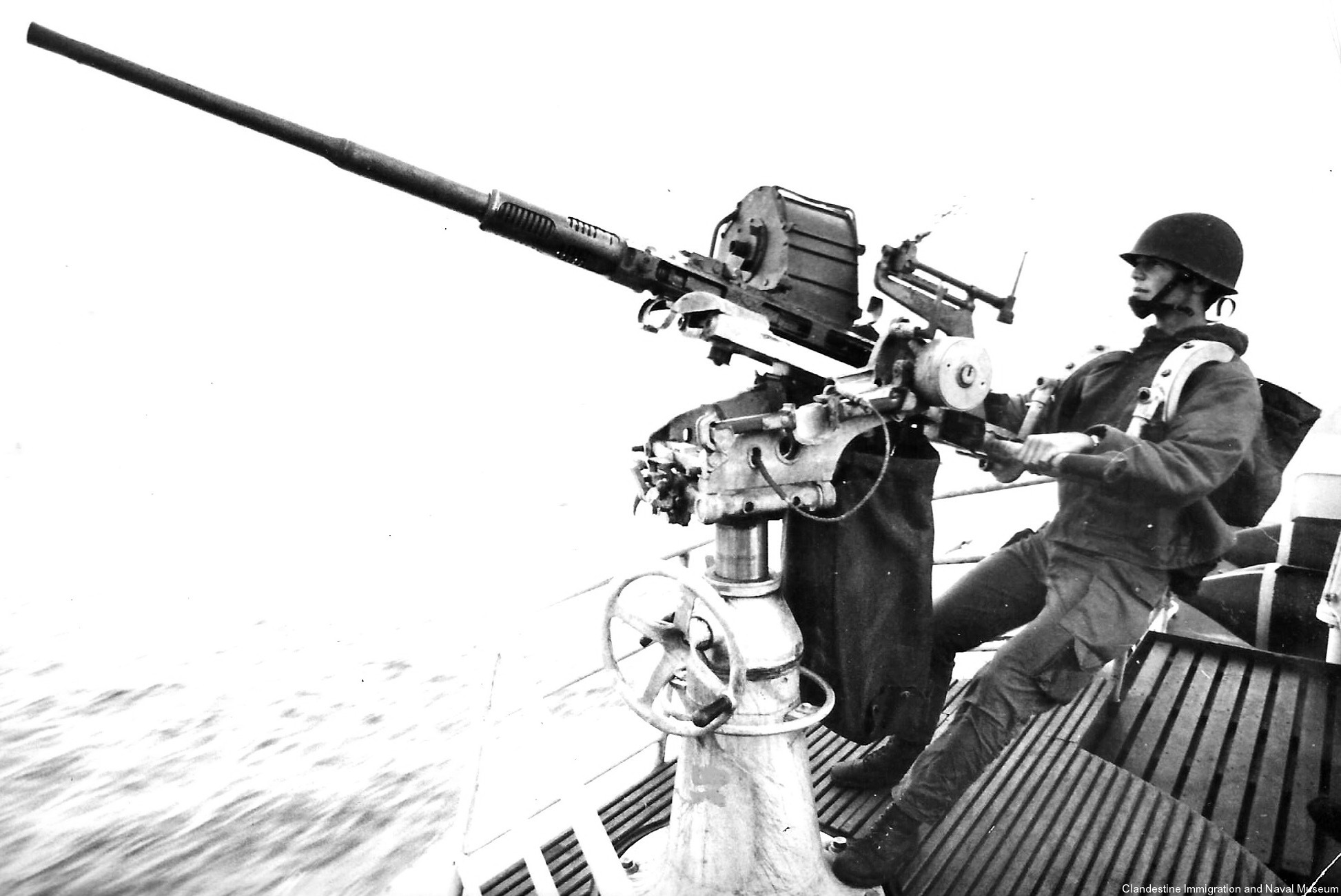

Oerlikon 20 mm gun
