French Navy - Marine Nationale
Daphne class Attack Submarine - SSK

(sous-marin d'attaque)


daphne class attack submarine ssk french navy marine nationale sous-marin d'attaque 02x



Units:
Unit: Builder Laid down launched commissioned decommissioned fate
S 641 Daphne Dubigeon March 1958 June 20, 1959 June 1, 1964 September 22, 1989 sunk as target November 23, 1994
S 642 Diane Dubigeon July 1958 October 4, 1960 June 20, 1964 December 31, 1987 sold for scrap October 1993
S 643 Doris DCAN-C September 1, 1958 May 14, 1960 August 26, 1964 August 20, 1996 sunk after accident June 1999
S 644 Eurydice DCAN-C July 1958 June 19, 1962 September 26, 1964 March 4, 1970 lost in an accident March 4, 1970
S 645 Flore DCAN-C September 1, 1958 December 21, 1960 May 21, 1964 March 29, 1989 museum at Lorient
S 646 Galatee DCAN-C September 1, 1958 September 22, 1961 July 25, 1964 October 22, 1993 sunk as target October 22, 1998
S 647 Minerve Dubigeon May 1958 May 31, 1961 June 1964 January 27, 1968 lost in an accident January 27, 1968
S 648 Junon DCAN-C July 1961 May 11, 1964 February 25, 1966 October 8, 1996 sunk as target November 2004
S 649 Venus DCAN-C August 1961 September 24, 1964 January 1, 1966 November 3, 1990 sunk as target June 20, 2002
S 650 Psyche DCAN-B June 1, 1965 June 28, 1967 June 7, 1969 September 29, 1998 sunk as target in April 2005
S 651 Sirene DCAN-B September 1965 June 28, 1967 March 1, 1970 May 30, 1997 sunk as target in 2005

06/22
Specifications:

Builders:

Chantiers Dubigeon, Nantes, Pays de la Loire, France
Direction des Constructions et Armes Navales (DCAN), Cherbourg, Normandy, France
Direction des Constructions et Armes Navales (DCAN), Brest, Brittany, France


Displacement:
860 tons (surfaced) / 1038tons (submerged)
Length:
57.75 meters (189 feet 6 inches)
Beam: 6.74 meters (22 ft 1 in)
Draught: 5.25 meters (17 ft 3 in)
Speed: 15 knots (28 km/h) submerged / 12 knots (22 km/h) surfaced / 8 knots (15 km/h) snorkeling
Range: 10000 NMI (18500 km) at 7 knots (13 km/h), surfaced / 4300 NMI (8000 km) snorkeling
Test depth: 300 meters (980 ft)

Complement: 50

Propulsion:
2 x
Diesel Generators SEMT-Pielstick 12PA1 or 12PA4 (450 kW, each)
2 x electric motor (735 kW / 1000 hp, each)
10000 Ah battery
2 shaft / 2 propeller


Armament:

12 x
550mm torpedo tubes
(8 bow for long torpedoes / 4 stern for short torpedoes - no reload at sea)

for
Type E12, E14, L3, L5 and F17 heavy torpedoes


Systems:
DRUA-31 radar
DUUA-2B sonar
DSUV-2 passive sonar
DUUX acoustic range finder
ARUR-10B radar detector


The Daphné-class submarine was a class of the diesel-electric powered submarines designed and constructed by the French defense contractor, DCNS, for the French Navy in 1964.

These submarines were enlarged versions of the Aréthuse class. Eleven were used by France. However, two (Eurydice 1970 and Minerve 1968) sank accidentally and brought sales to an end. The cause was eventually considered to have been a faulty snorkel design. The submarines were scrapped in the 1990s and Portugal sold one of its boats to Pakistan. PNS Hangor sank the Indian frigate INS Khukri during the 1971 Indo-Pakistani war. Pakistan has now retired the submarine and is replacing it.

Besides its eight torpedo tubes forward, this submarine class has four in the stern. All are for torpedoes of the French 550 mm (21.7 in) diameter; while the forward tubes hold full-length torpedoes (either against ship either against submarine), the stern tubes hold only shortened ones (only against submarine, in autodefense).
They were modernized from 1971 to receive the DUUA-2B sonar (hence a larger bow dome) and the DLTD-3A allowing the launch of F17 wire-guided torpedoes.


A significant number of damages occurred on board these submarines, accidents in particular, which caused the loss of the Minerve and Eurydice submarines:

On January 27, 1968, the Minerve was lost south-east of Cape Sicié (Var), causing the death of 52 submariners. The Minerve wreck was located in July 2019 at a depth of 2,350 meters

On March 4, 1970, the Eurydice was lost off Saint-Tropez (Var), causing the death of 57 submariners. The wreck of the Eurydice was located and explored in April 1970 at a depth of 750 meters.

The causes of these two accidents have never been clearly identified.

source: wikipedia



images

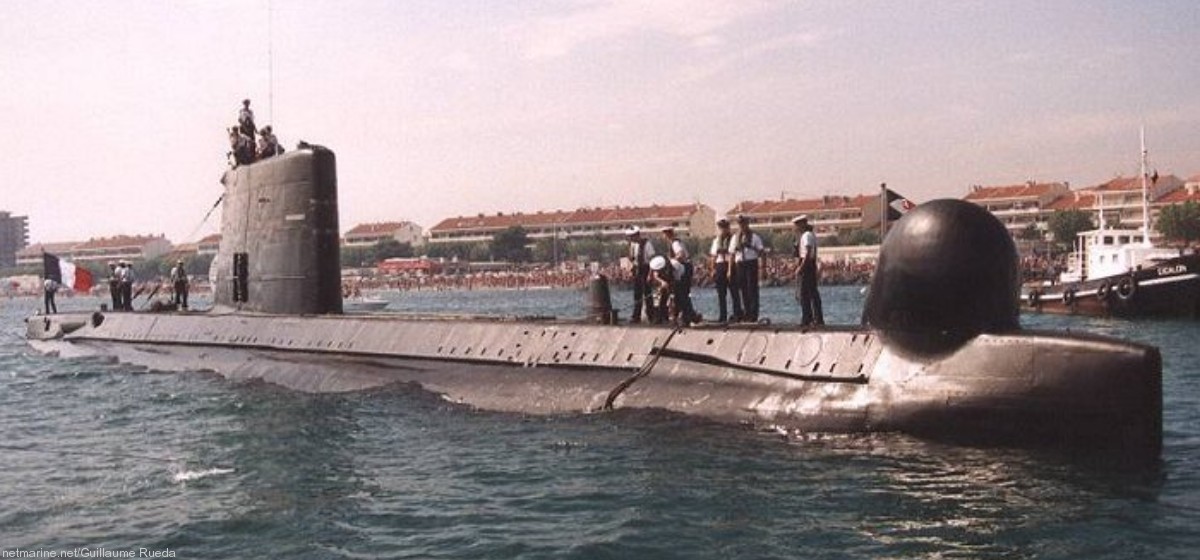

s-643 doris daphne class attack submarine ssk french navy marine nationale sous-marin d'attaque 02
S 643 Doris


s-644 eurydice daphne class attack submarine ssk french navy marine nationale sous-marin d'attaque 02
S 644 Eurydice

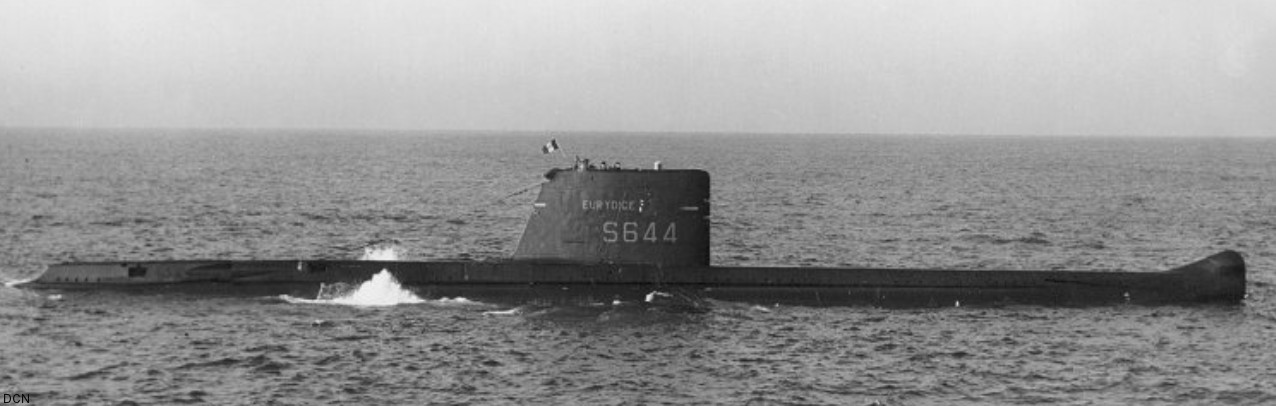

s-644 eurydice daphne class attack submarine ssk french navy marine nationale sous-marin d'attaque 03
S 644 Eurydice

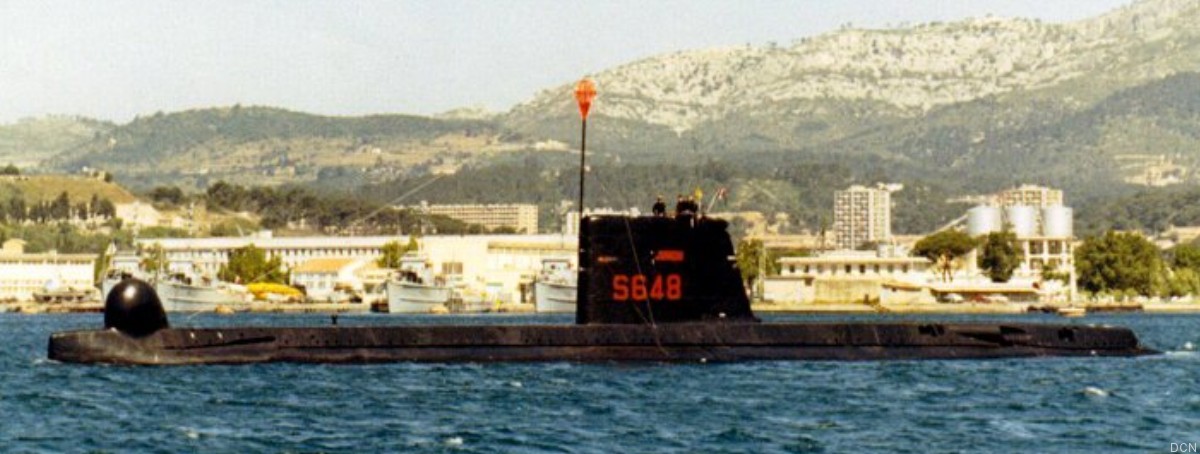

s-648 junon daphne class attack submarine ssk french navy marine nationale sous-marin d'attaque 02
S 648 Junon
