La Confiance class Offshore Patrol Vessel OPV French Navy

French Navy - Marine Nationale
La Confiance class Offshore Patrol Vessel - OPV
(Patrouilleurs Antilles Guyane - PAG)

la confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 08x

06/22

Units:

P 733 FS La Confiance (2017)
P 734 FS La Resolue (2017)
P 735 FS La Combattante (2020)

Specifications:

Builder:
Société Calaisienne de Réparation Navale et Mécanique (SOCARENAM)
Saint-Malo shipyard and Boulogne-sur-Mer shipyard

Displacement: 700 tons (full load)
Length: 60.8 m (200 feet)
Beam: 9.55 m (31 ft 4 in)
Draft: 3.2 m (10 ft 6 in)
Speed: 21 knots (39 km/h)
Range: 3500 NMI (6500 km) at 12 knots (22 km/h)
Complement: 24

Propulsion:
2 x ABC 12 DZC diesel engines
(6000 kW / 8050 hp)
2 shafts / 2 propellers

Armament:
1 x Nexter Narwhal 20 Naval Weapon Station (NWS)

Systems:

Aviation:
none

The La Confiance class or Patrouilleurs Antilles Guyane (PAG) patrol vessels is a class of OPV's developed and produced by Socarenam for the French Navy. The first of three ships of this class, commissioned in 2017, was named in memory of La Confiance, a small corvette commanded by Robert Surcouf.

The Direction générale de l'Armement (DGA - General Directorate of Armaments) ordered from Socarenam, in 2015, two Guyanese light patrol boats, as well as six years of initial support for each vessel, to replace the P400 La Gracieuse and La Capricieuse based in Guyana. The amount of the contract is €17 million per unit, €24 million including study costs and maintenance. Their main task will be to monitor the fishing areas and the Guyanese coasts during the launches of the Ariane rocket. Their versatility will also make them capable of carrying out counter-narcotics missions, thanks to their two fast boats and their ability to carry additional personnel (special forces). In September 2017, a third unit - optional in the contract initially notified, for an amount of €23.012 million - was ordered for delivery in 2019 following the consequences of hurricane Irma in the French West Indies and the observation of a lack of State maritime resources in this region.

The patrol boats were built by Socarenam in its Saint-Malo shipyards for the assembly of their hulls, then towed to the company's site in Boulogne-sur-Mer for their completion, installation of the navigation and their artillery.

In addition to its crew of twenty-four sailors, they can embark fourteen additional people. Their autonomy in operation is a dozen days at sea. They have two fast 7-meter boats (RHIB's) provided for interventions. One is launched from the rear ramp of the ship, the other from the davit.

The patrollers are armed with a NEXTER Narwhal 20 mm teleoperated cannon as well as two machine guns: a 12.7 mm and a 7.62 mm.

source: wikipedia (machine translated)

Ship data:

P 733 FS La Confiance

Laid down: 2015
Launched: December 18, 2015
Commissioned: April 27, 2017
IN SERVICE
Homeport: Dégrad des Cannes, Remire-Montjoly, French Guiana

P 734 FS La Resolue

Laid down: 2016
Launched: ?
Commissioned: September 28, 2017
IN SERVICE
Homeport: Dégrad des Cannes, Remire-Montjoly, French Guiana

P 735 FS La Combattante

Laid down: 2018
Launched: November 22, 2018
Commissioned: January 23, 2020
IN SERVICE
Homeport: Fort Saint Louis, Fort-de-France, Martinique

images

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 06

P 733 FS La Confiance

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 02

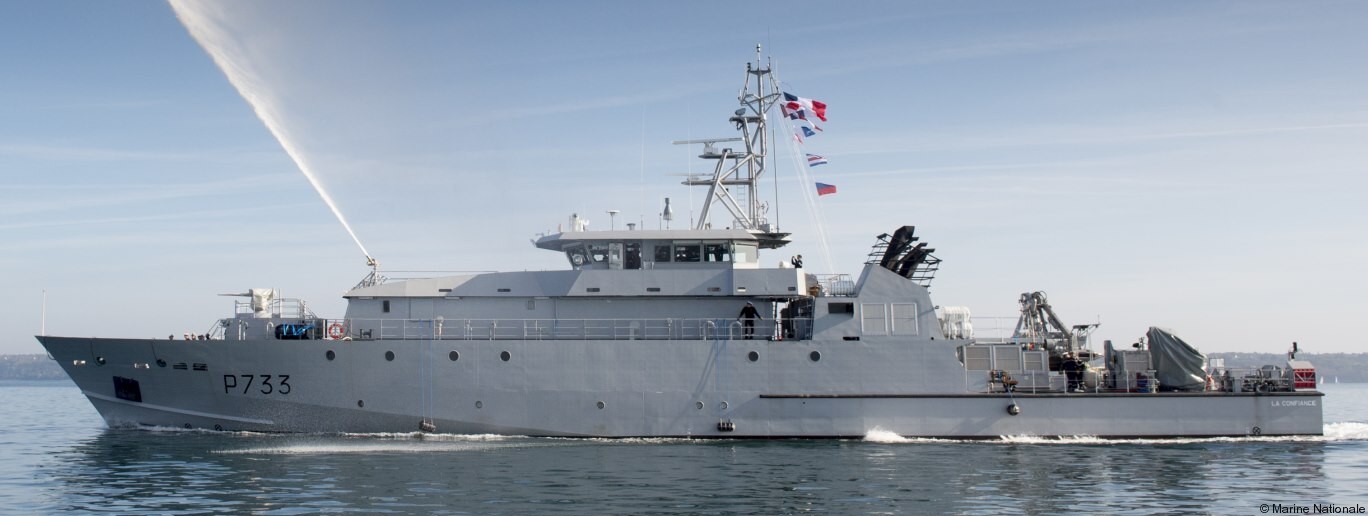

P 733 FS La Confiance

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 04

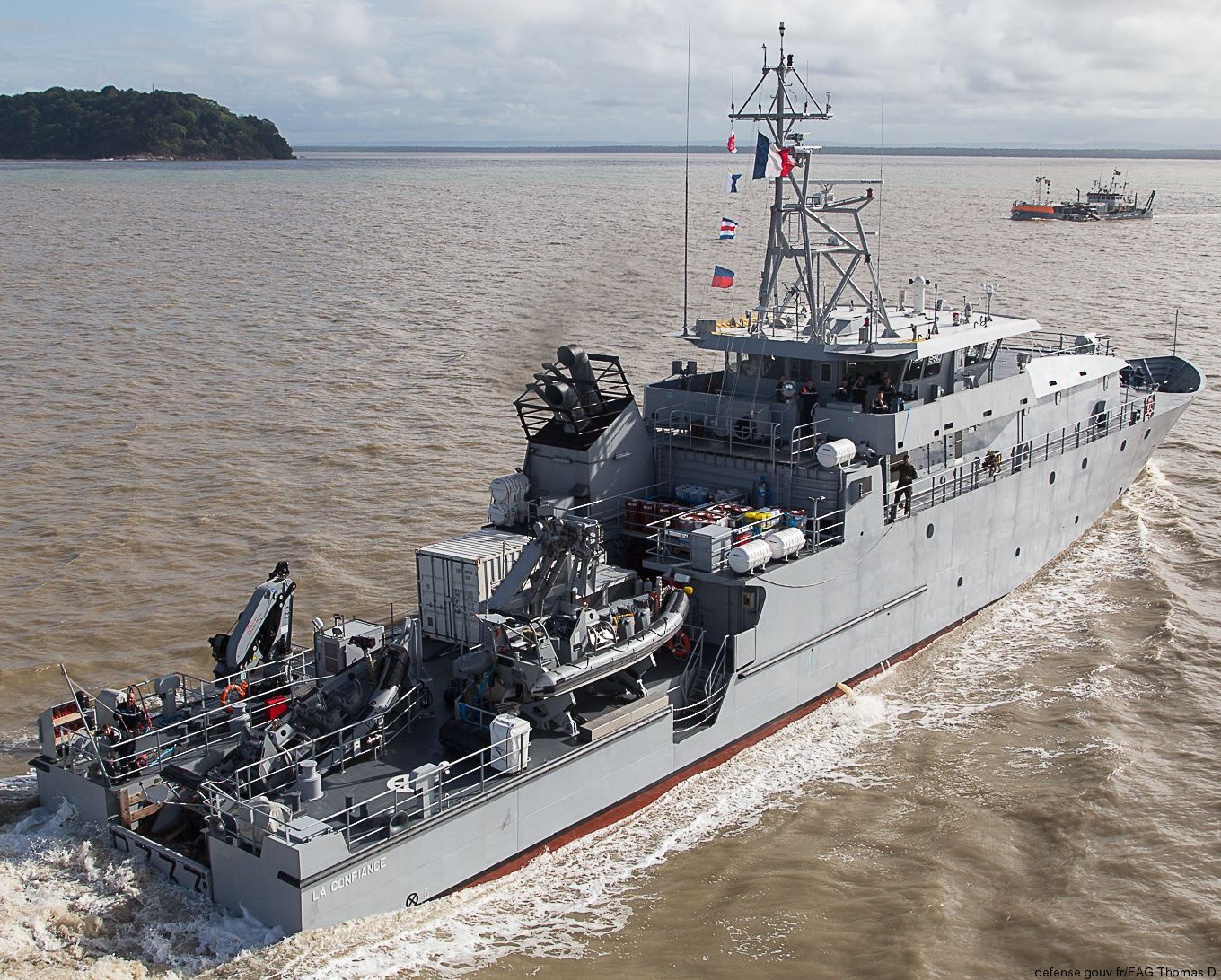

P 733 FS La Confiance

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 10

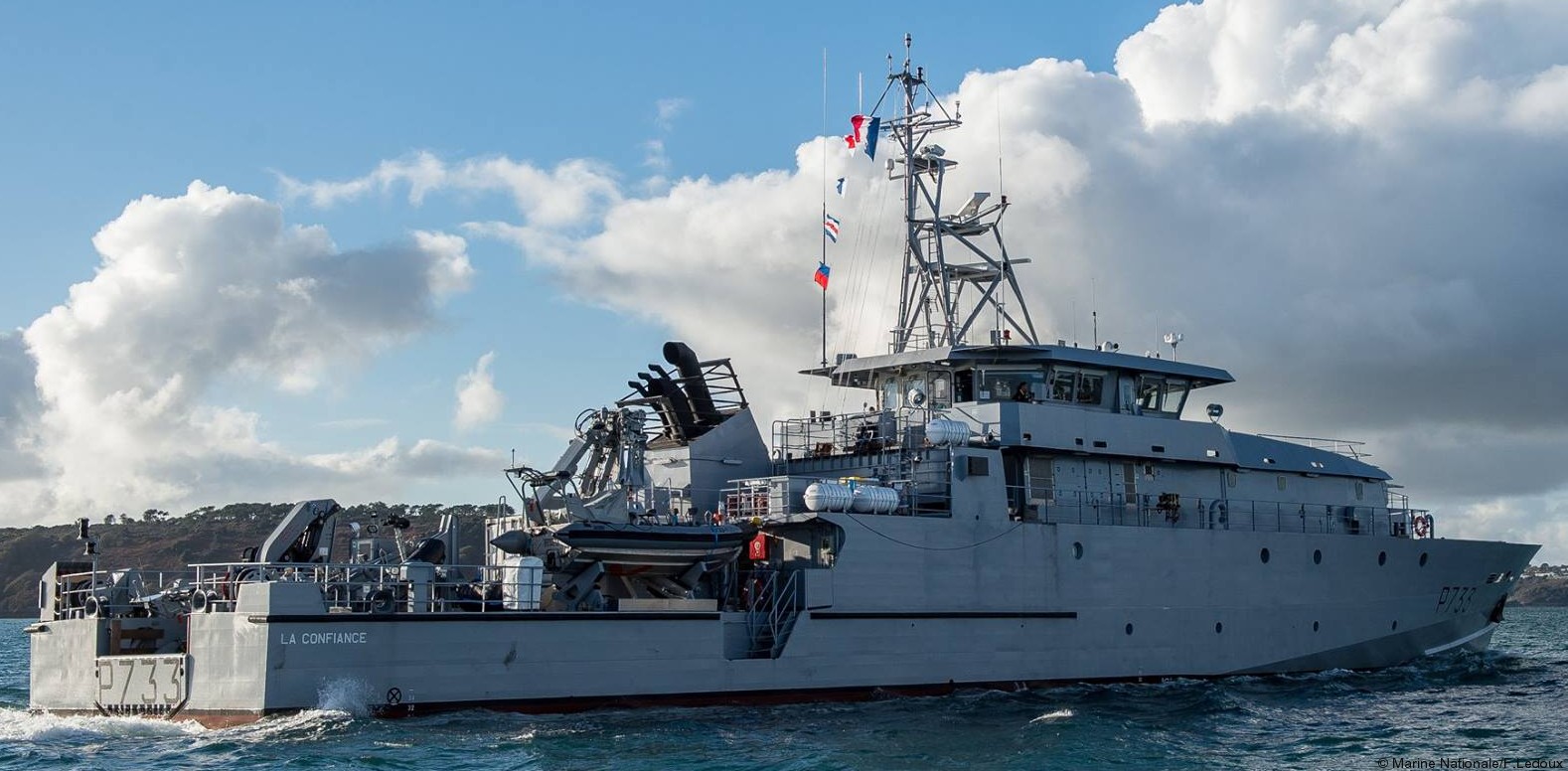

P 733 FS La Confiance

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 08

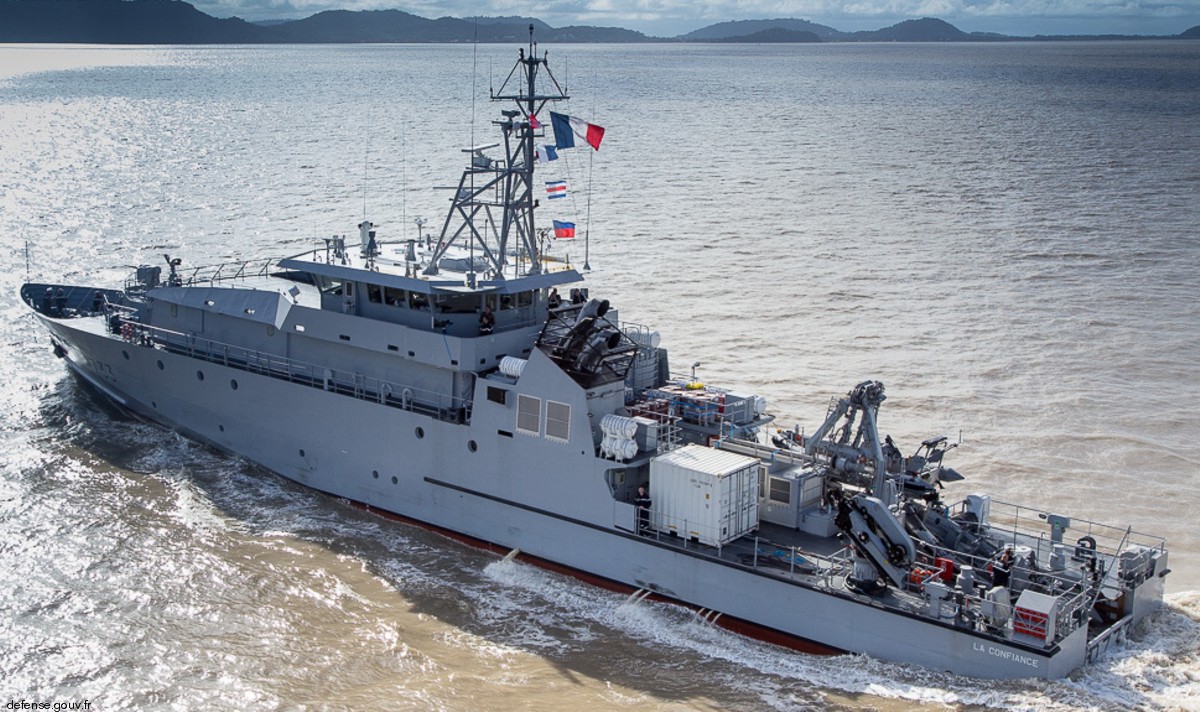

P 733 FS La Confiance

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 11

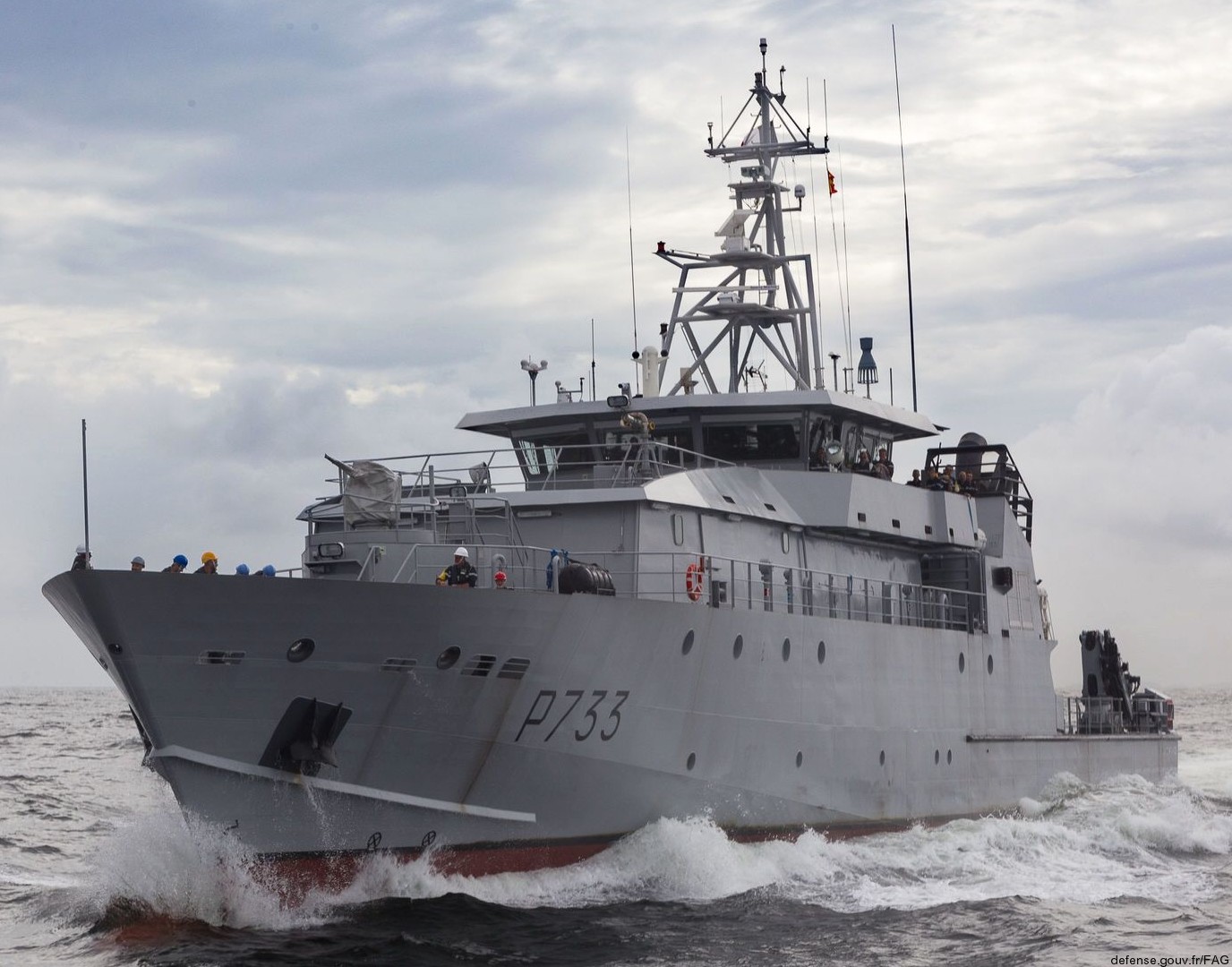

P 733 FS La Confiance

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 07

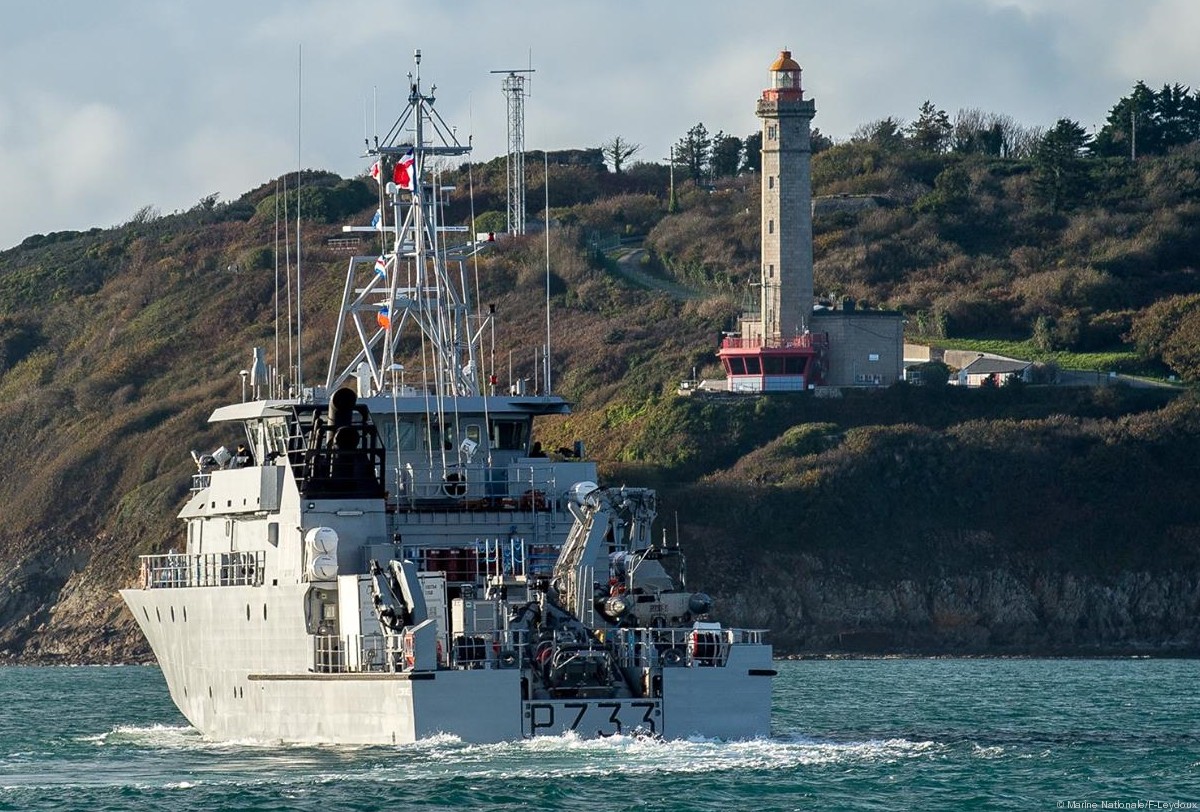

P 733 FS La Confiance

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 03

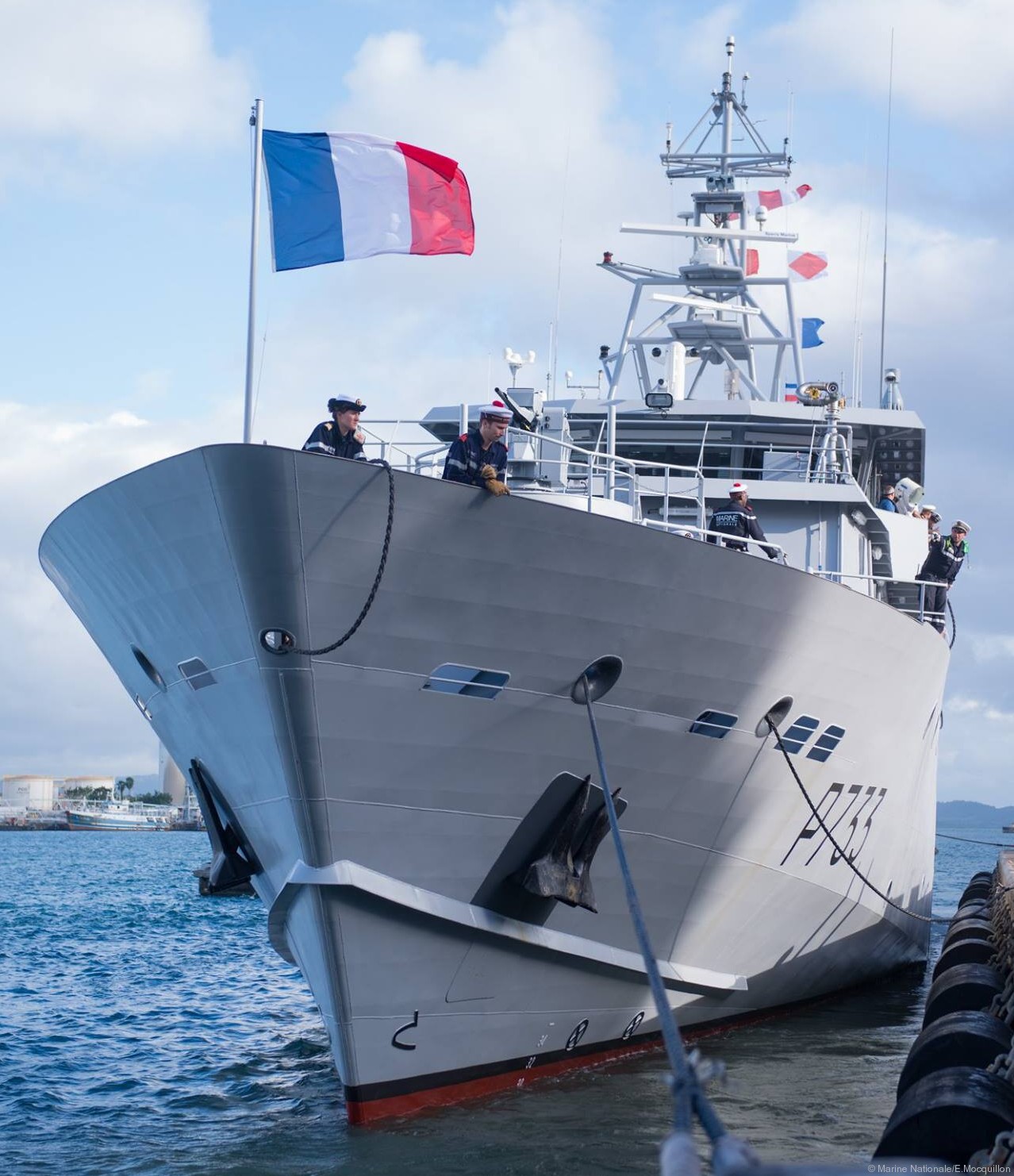

P 733 FS La Confiance

p-733 la confiance offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 09

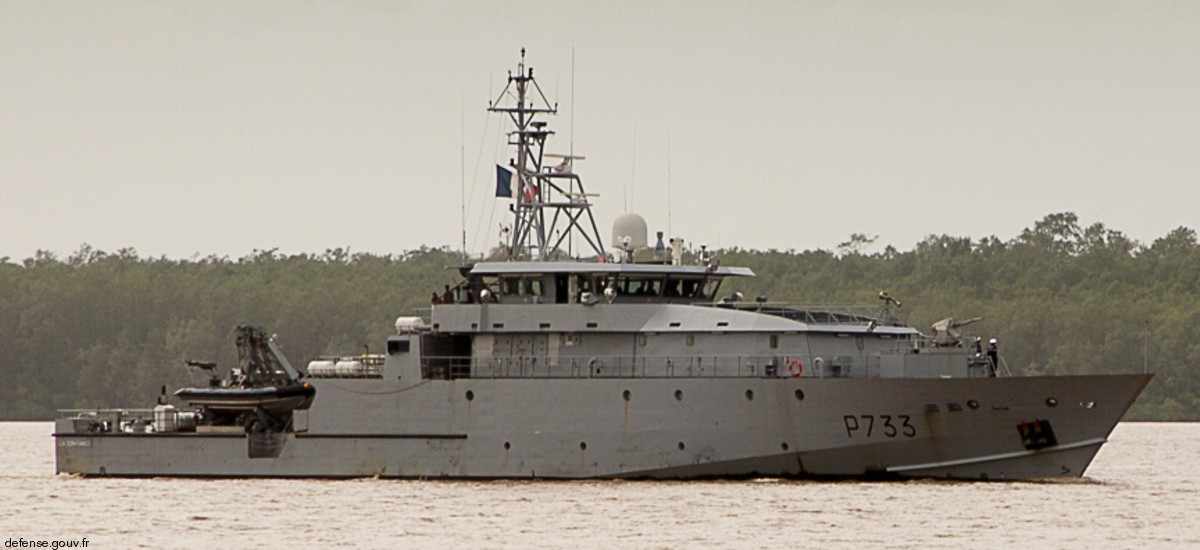

P 733 FS La Confiance

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 03

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 03

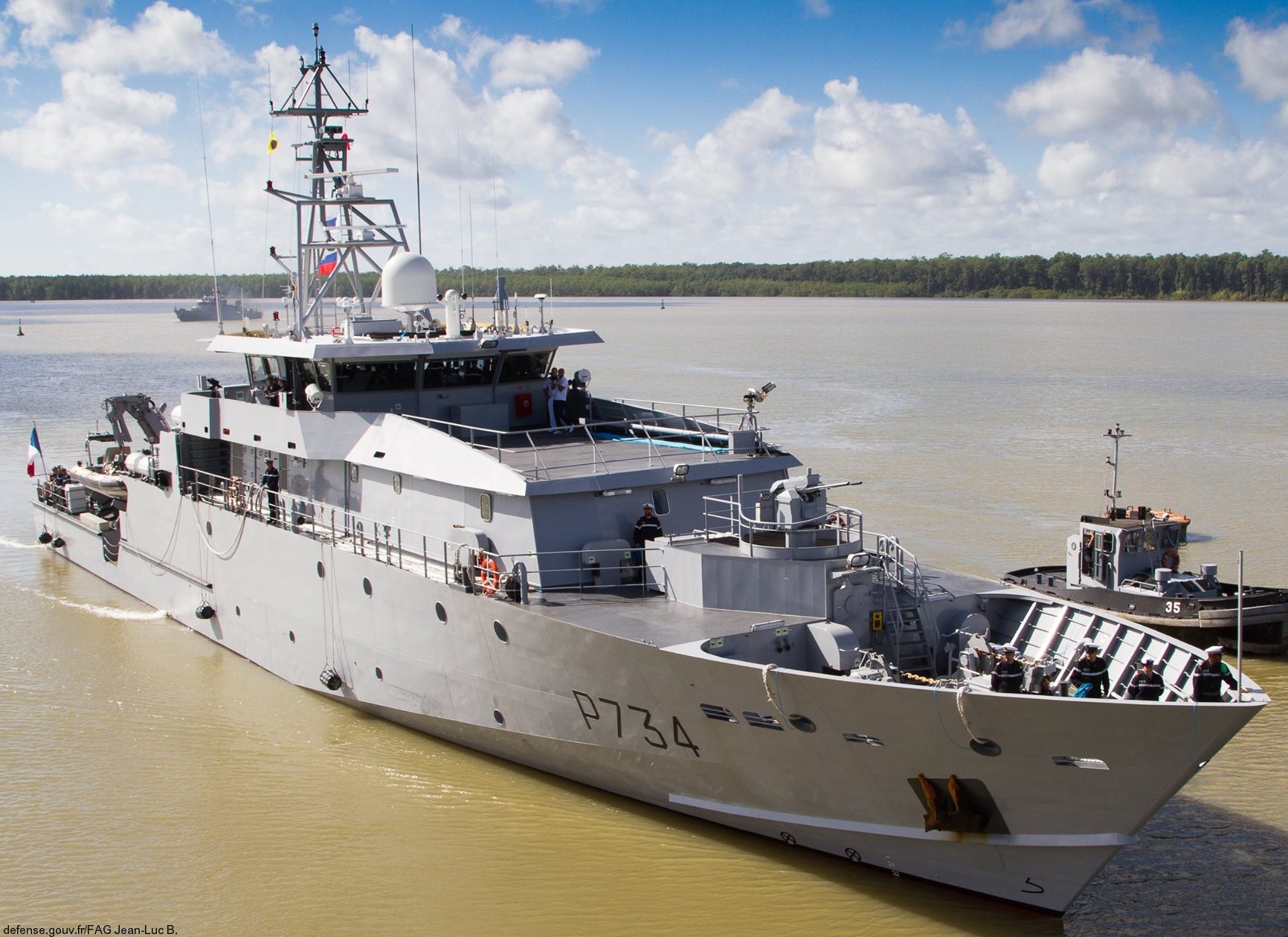

P 734 FS La Resolue

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 05

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 05

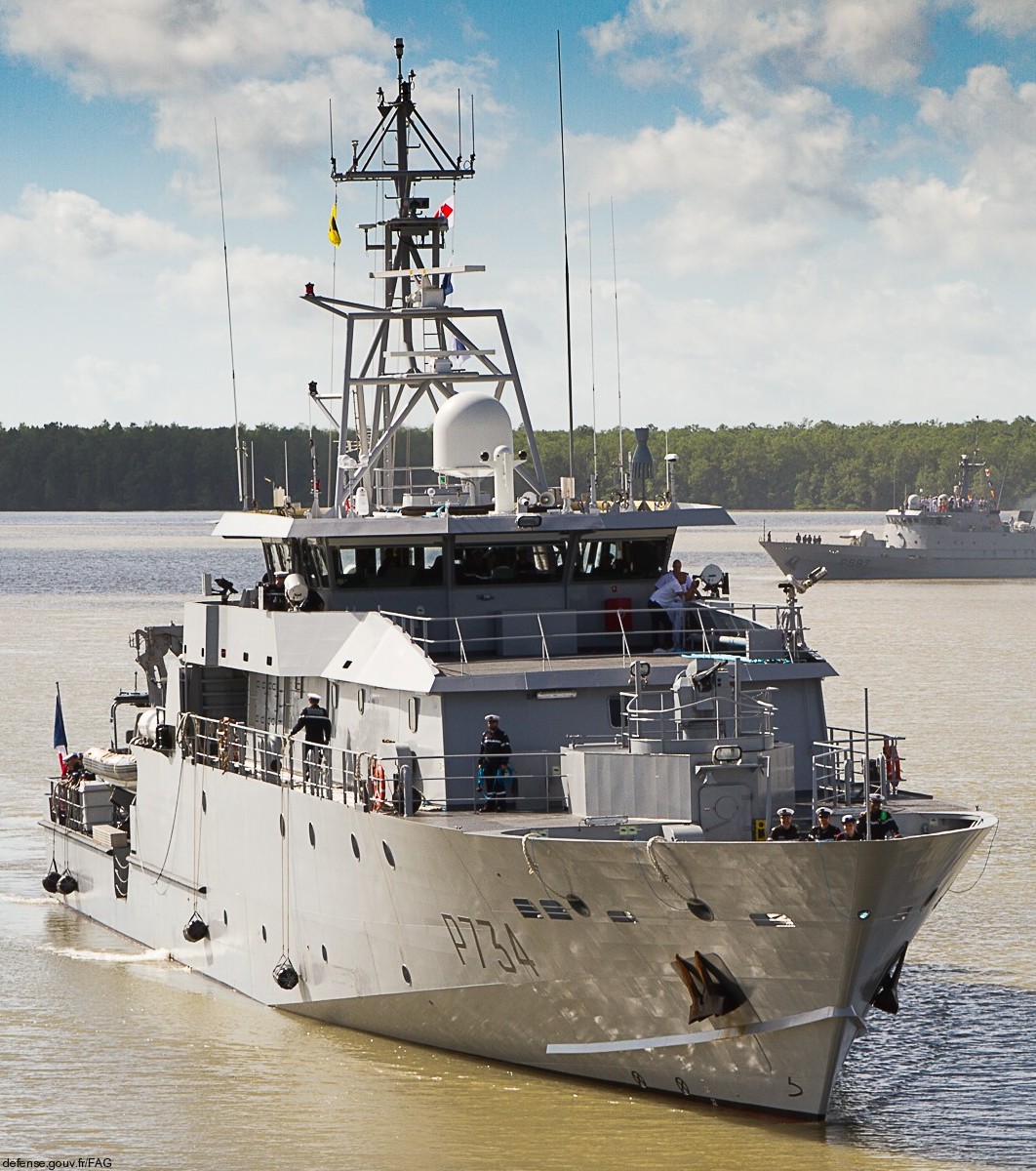

P 734 FS La Resolue

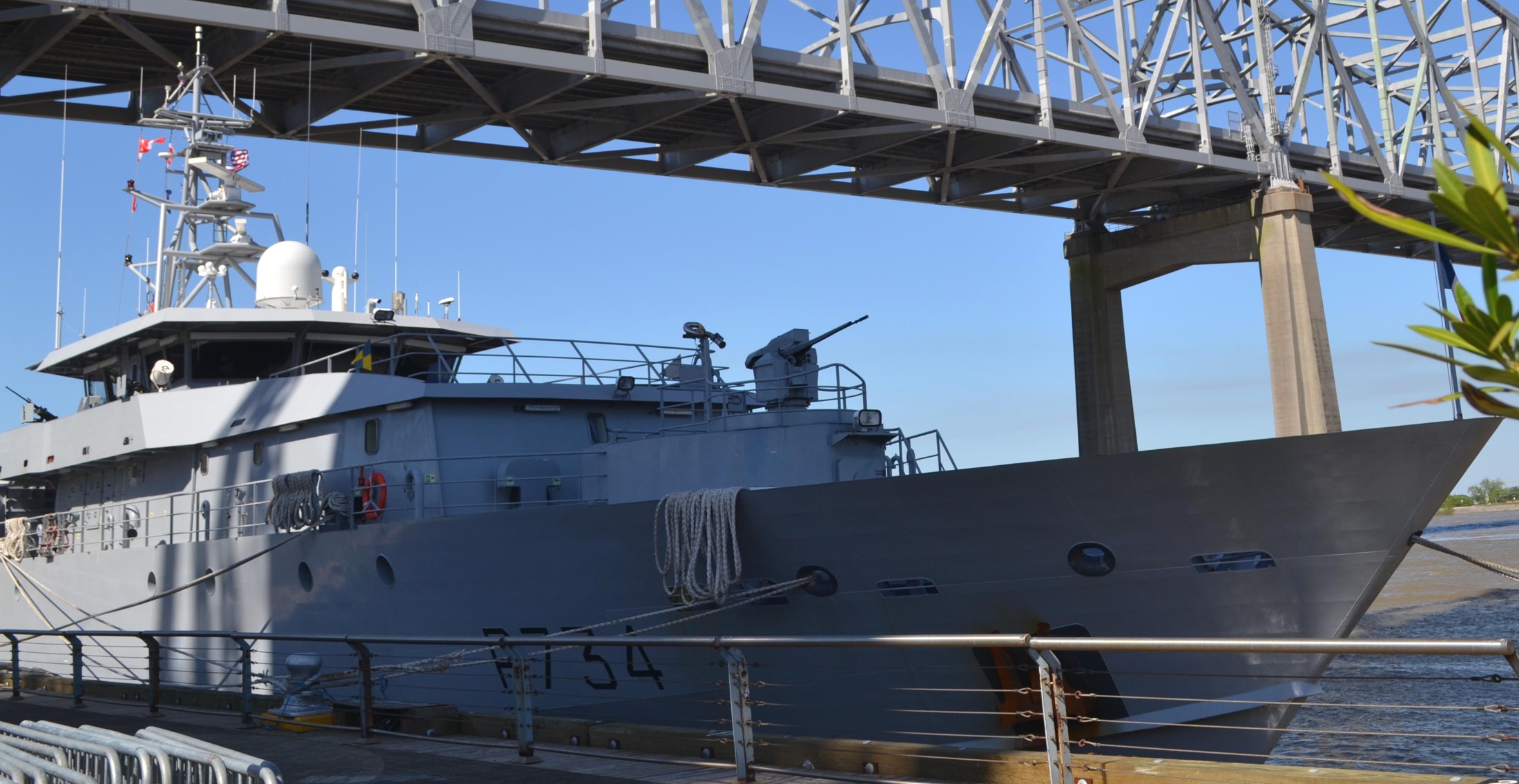

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 02

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 02

P 734 FS La Resolue

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 04

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 04

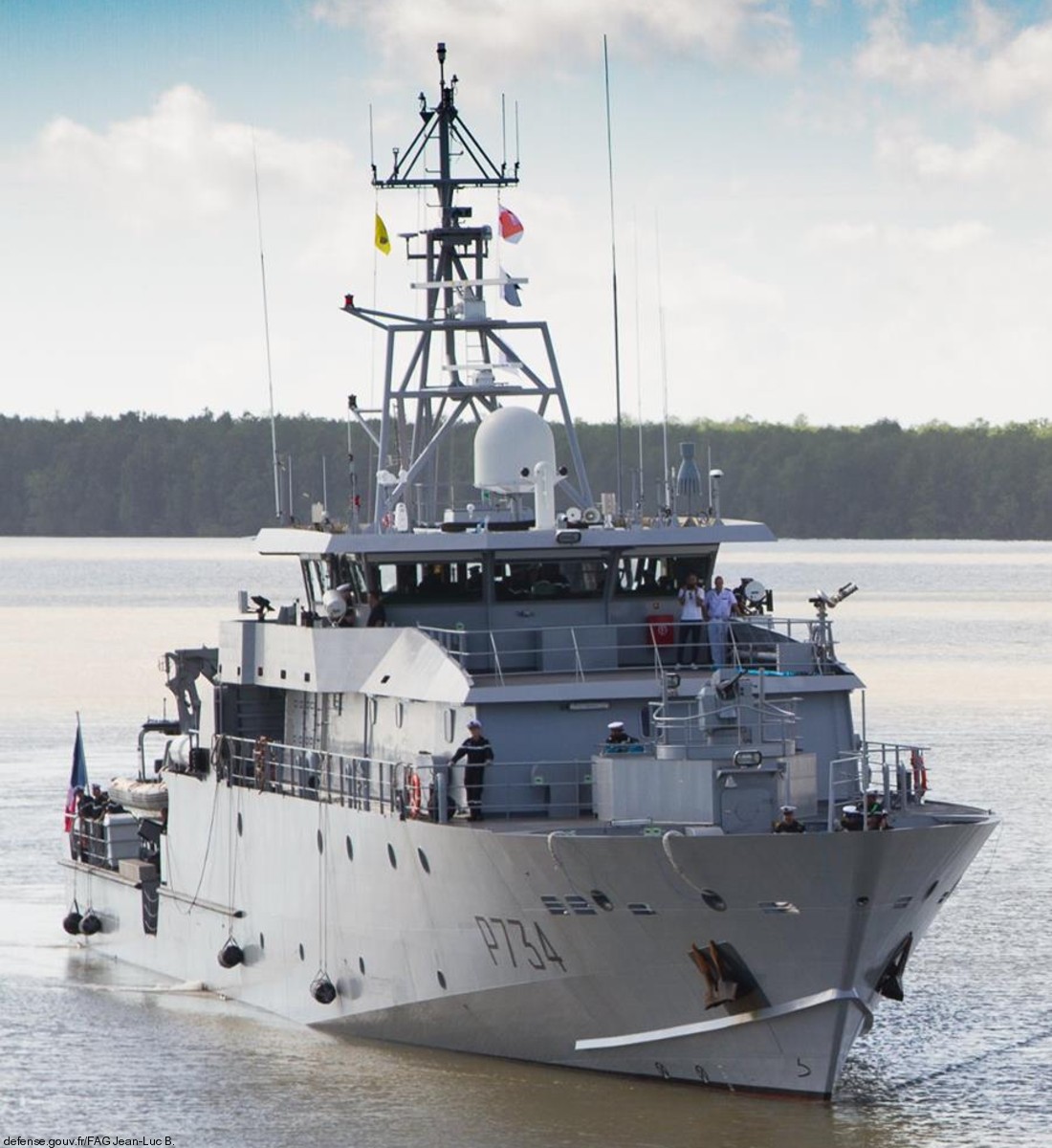

P 734 FS La Resolue

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 06

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 06

P 734 FS La Resolue

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 07

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 07

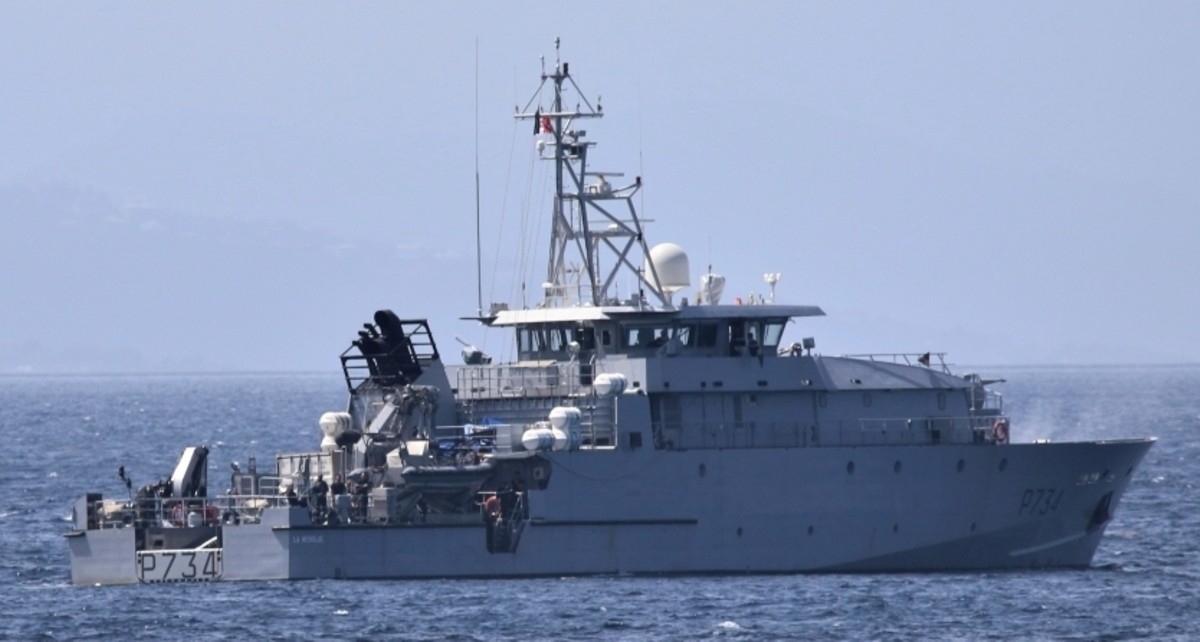

P 734 FS La Resolue

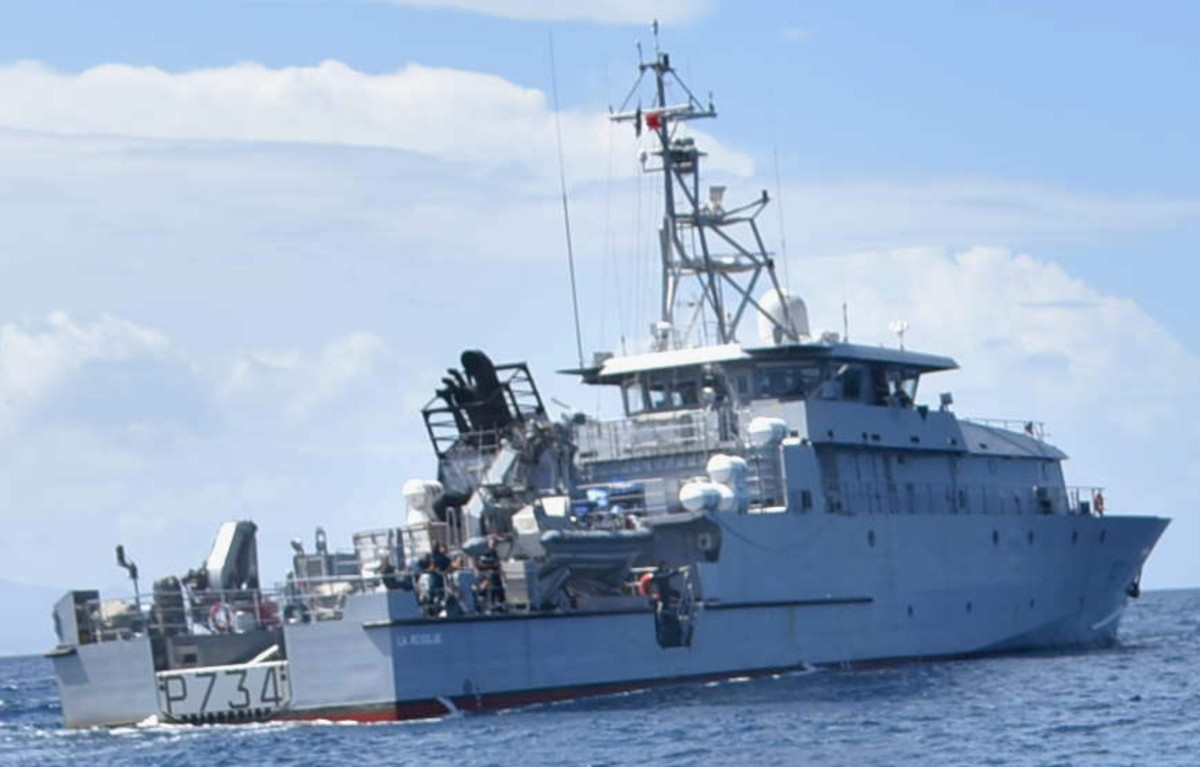

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 08

p-734 la resolue confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 08

P 734 FS La Resolue

p-735 la combattante confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 03

p-735 la combattante confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 03

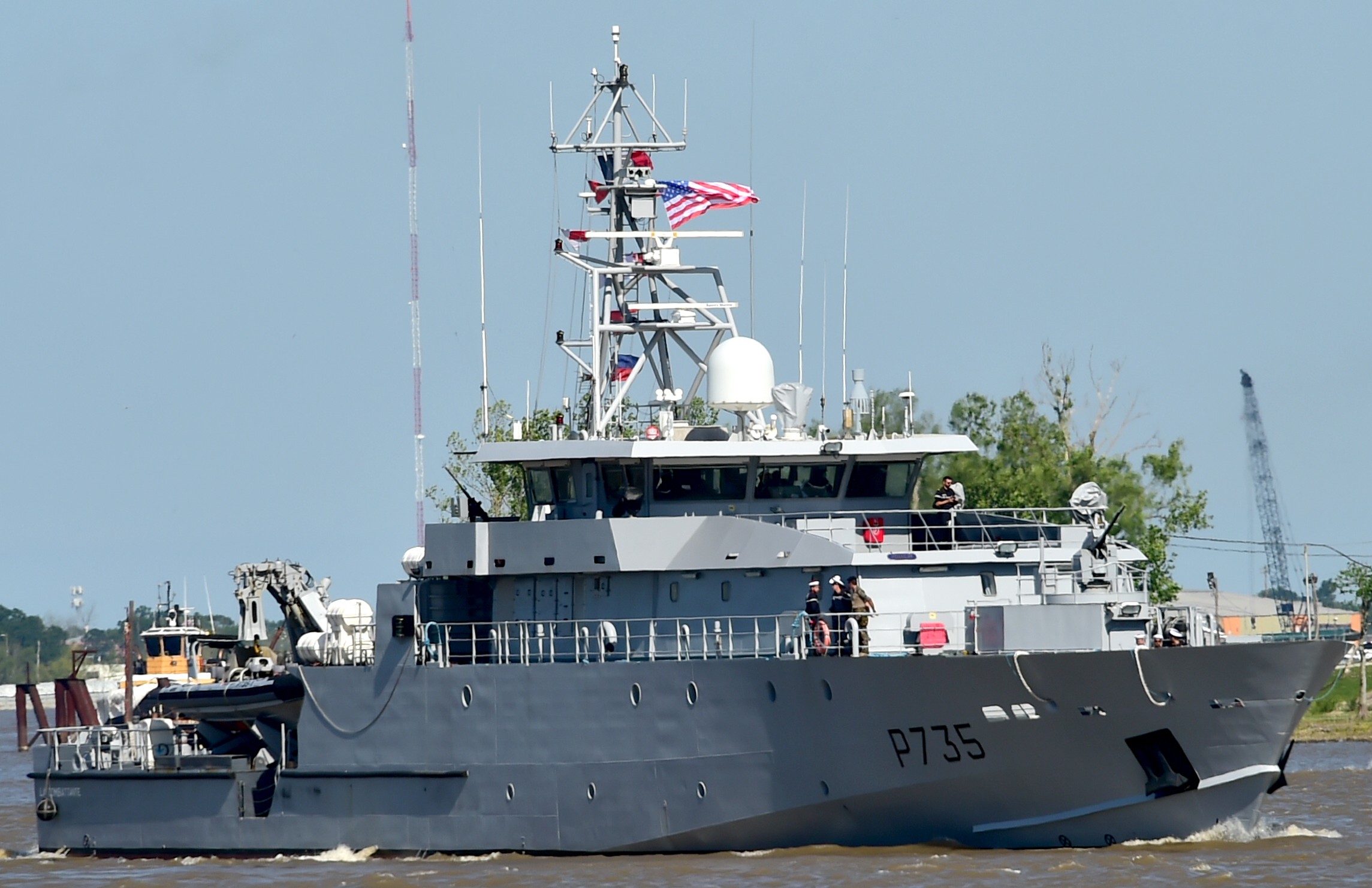

P 735 FS La Combattante

p-735 la combattante confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 04

p-735 la combattante confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 04

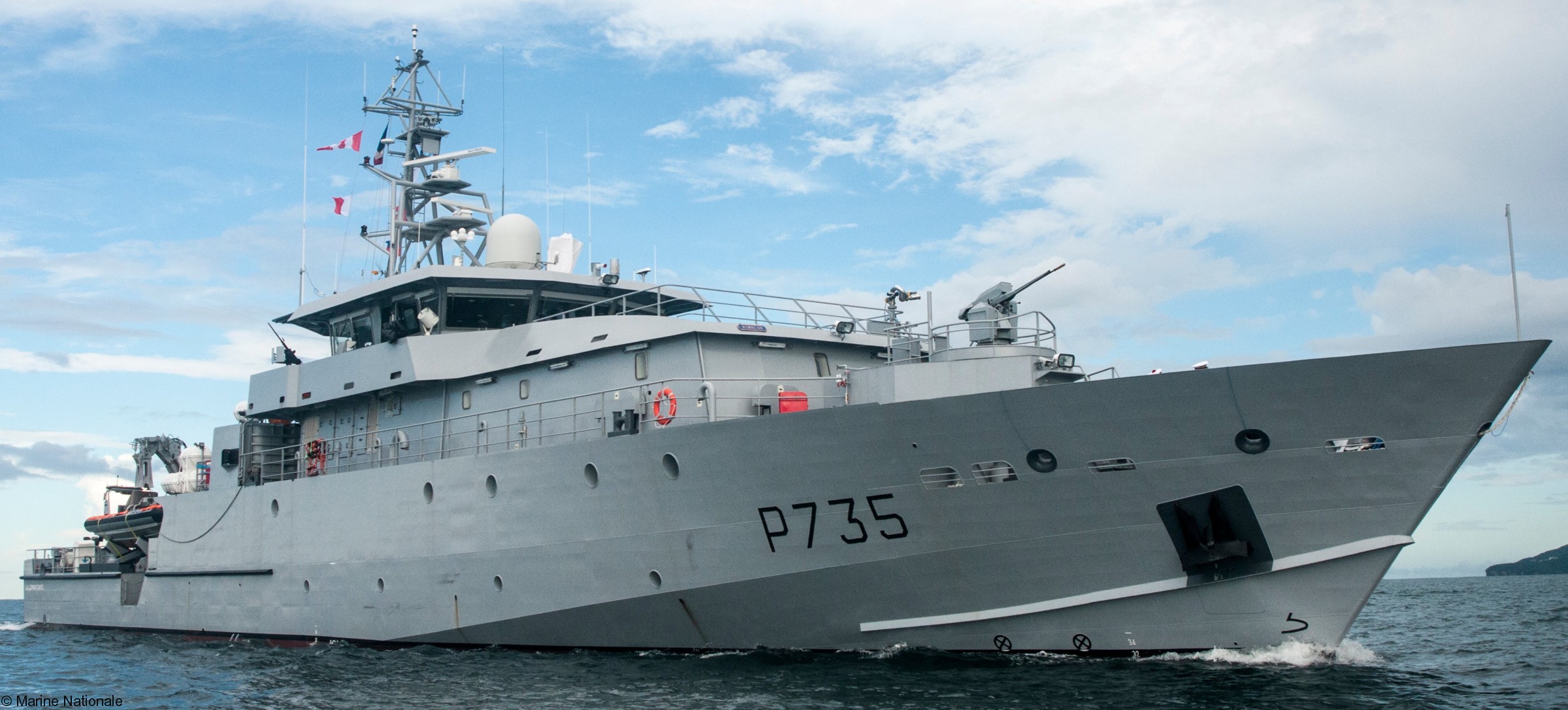

P 735 FS La Combattante

p-735 la combattante confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 05

p-735 la combattante confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 05

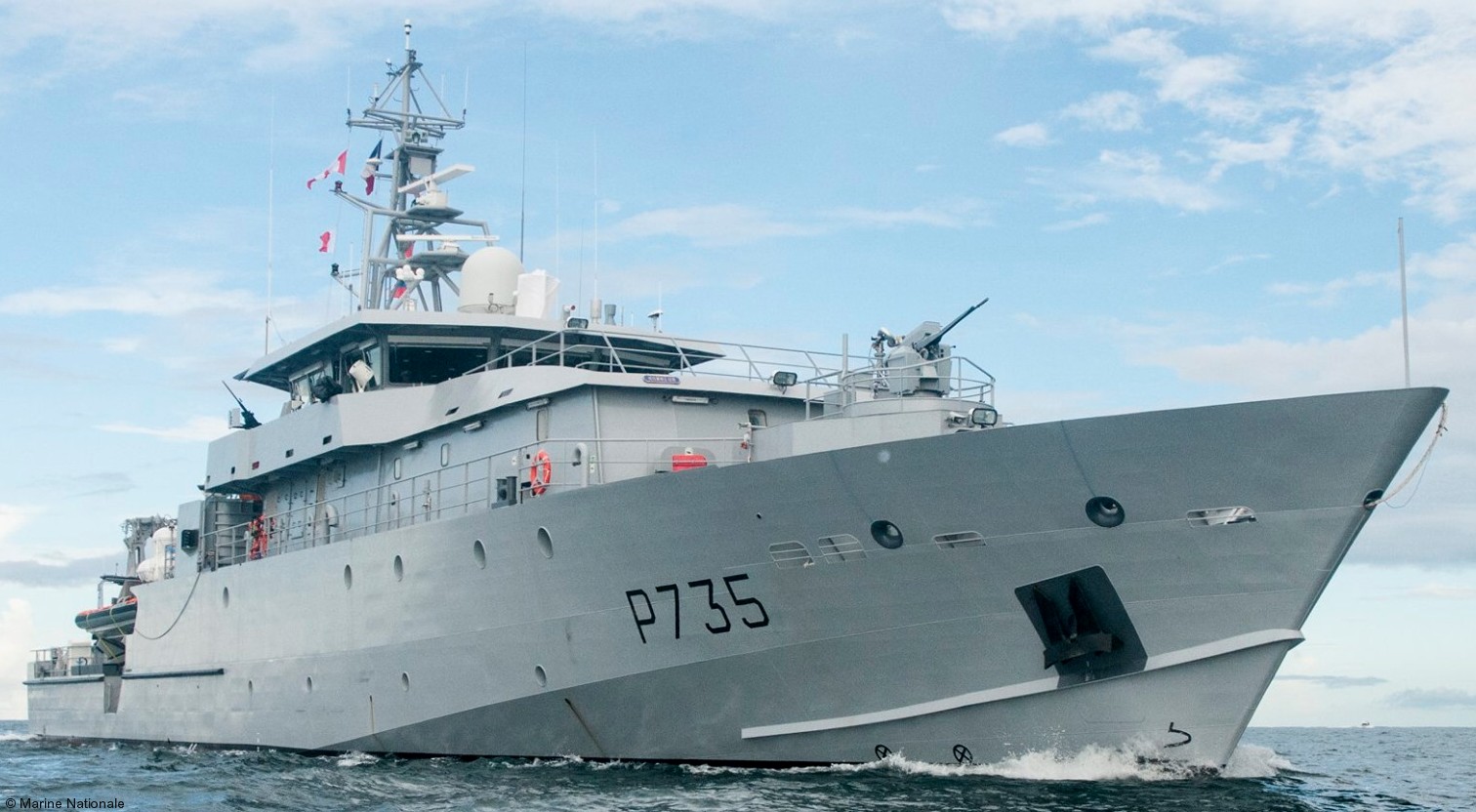

P 735 FS La Combattante

p-735 la combattante confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 02

p-735 la combattante confiance class offshore patrol vessel opv patrouilleur antilles guyane pag french navy marine nationale 02

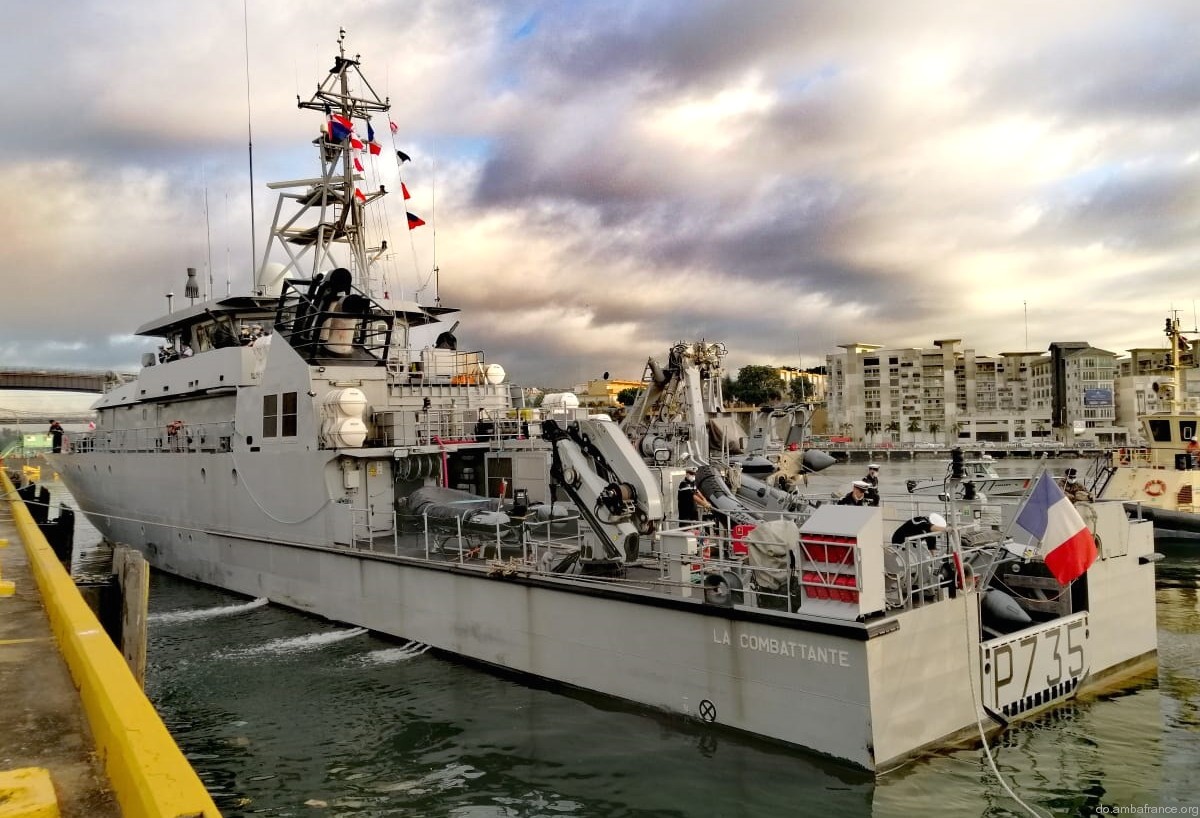

P 735 FS La Combattante
