French Navy - Marine Nationale
Flamant / OPV-54 class Offshore Patrol Vessel - OPV
(Patrouilleur)

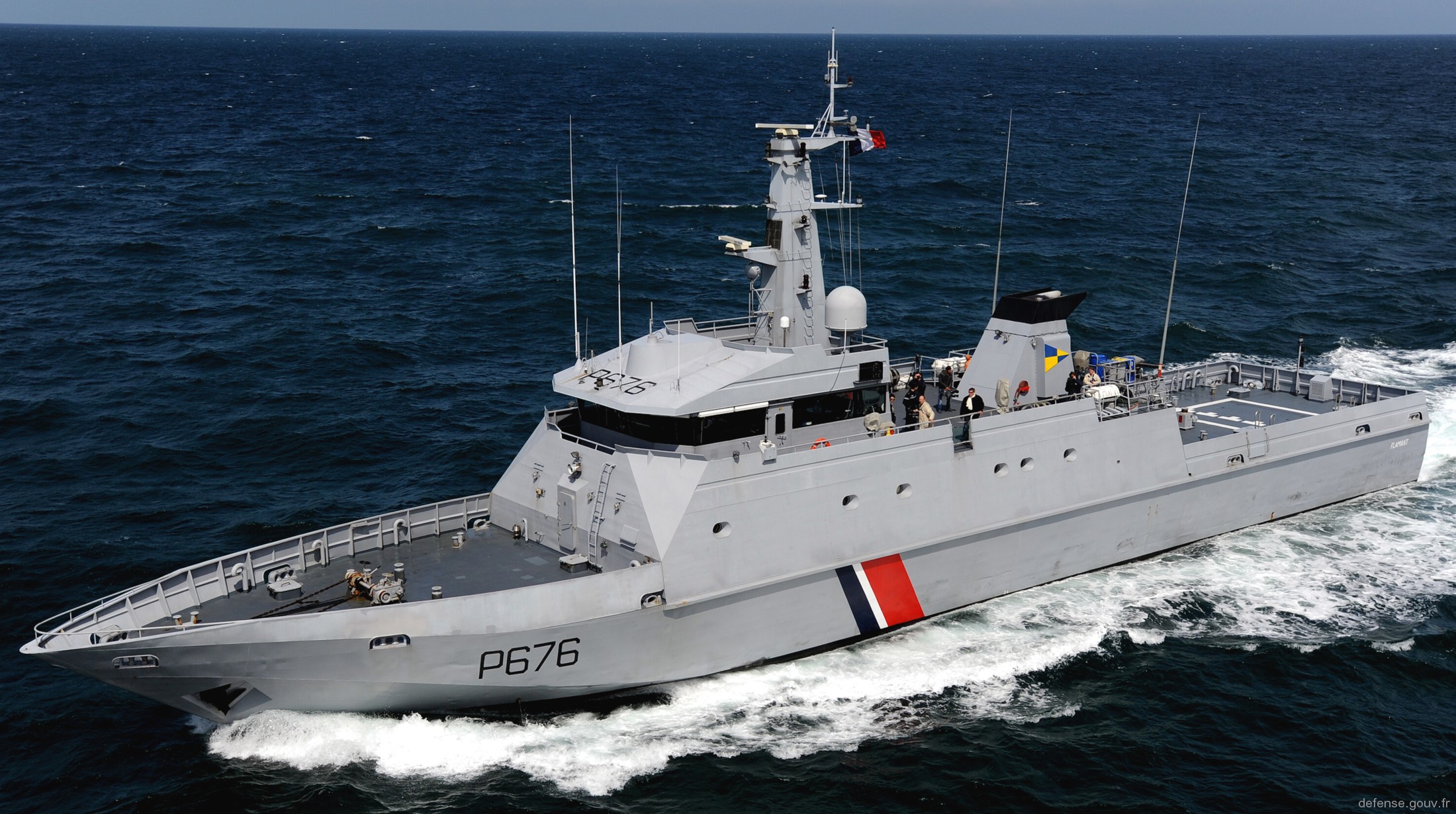

flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 13x
06/22
Units:

P 676
FS
Flamant (1997)
P 677
FS
Cormoran (1997)
P 678
FS
Pluvier (1997)


Specifications:

Builder: Constructions Mécaniques de Normandie (CMN), Cherbourg, Normandy, France

Displacement:
477 tons (full load)
Length: 54 m (177 feet 2 inches)
Beam: 10 m (32 ft 10 in)
Draft: 2.2 m (7 ft 3 in)
Speed: 23 knots (43 km/h)
Range: 4500 NMI (8300 km) at 14 knots (26 km/h)
Complement: 21

Propulsion:
2 x Deutz-MWM TBD 620 V16 diesel engines ( 2 x 3050 hp /2274 kW)
2 x
Deutz-MWM TBD234 V12 diesel engines 2 x 930 hp / 694 kW)
2 shafts / 2 propellers

Armament:
2 x 12.7 mm machine guns

Systems:
Racal-Decca 250 navigation radar
Racal-Decca 20V90 navigation radar
Inmarsat-M

Aviation:
none

Boats:
1 x 6.7 m (22 ft) Zodiac "Hurricane" RHIB


The Flamant-class patrol vessel are a series of three Type OPV54 patrol boats of the French Navy used for fishery monitoring, search and rescue, and patrolling France's exclusive economic zone out to 200 nautical miles (370 km; 230 mi).

The three boats were ordered in August 1993 and entered service in October and December 1997. They are based at Cherbourg.

In addition to their usual facilities the boats are also equipped with two 8 m3 (280 cu ft) tanks for anti-pollutants, and a water cannon for fire fighting. They have a plant capable of producing 15 tonnes of fresh water per day by reverse osmosis. The boats have an area for vertical replenishment.

Each boat carries a 6.7 m (22 ft) Zodiac "Hurricane" rigid-hulled inflatable boat, powered by a 200 hp (149 kW) water jet engine that gives a top speed of 30 knots (56 km/h; 35 mph).

Ship data:

P 676 FS Flamant
 (Flamant = Flamingo)

Laid down: March 16, 1994
Launched: April 24, 1995
Commissioned: December 18, 1997
IN SERVICE
Homeport: Cherbourg


P 677 FS Cormoran
(Cormoran = Cormorant)

Laid down: May 25, 1994
Launched: May 15, 1995
Commissioned: October 29, 1997
IN SERVICE
Homeport: Cherbourg


P 678 FS Pluvier
(Pluvier = Plover)

Laid down: March 7, 1995
Launched: December 2, 1996
Commissioned: December 18, 1997
IN SERVICE
Homeport: Cherbourg


images

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 05
P 676 FS Flamant

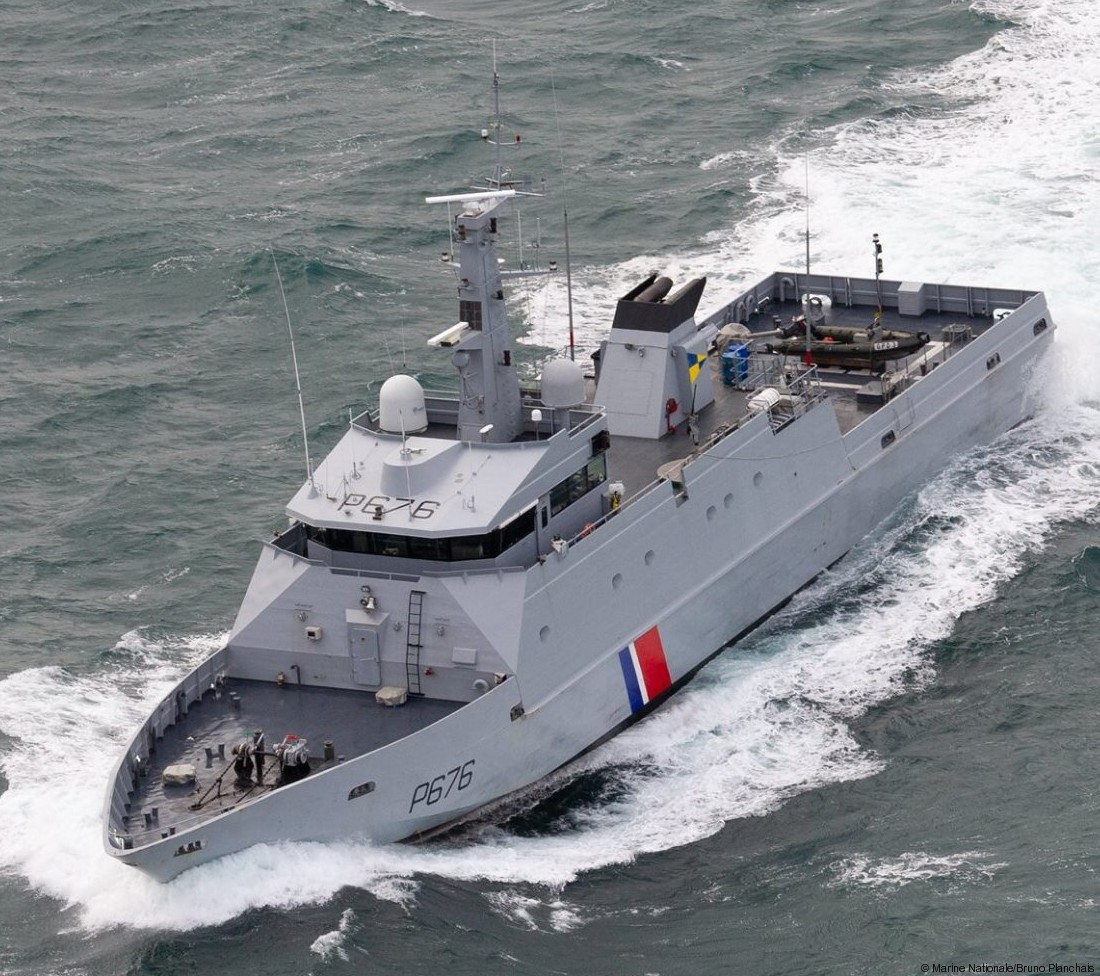

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 06
P 676 FS Flamant

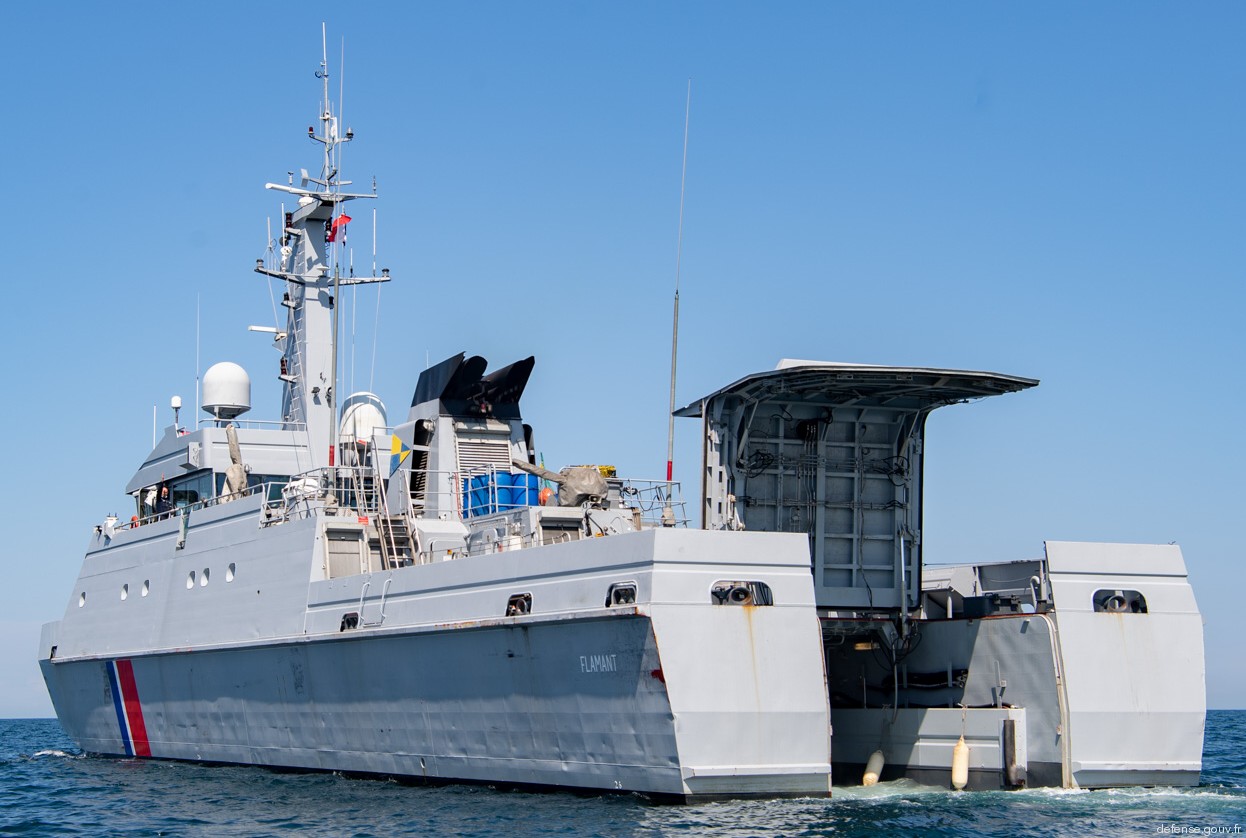

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 11
P 676 FS Flamant

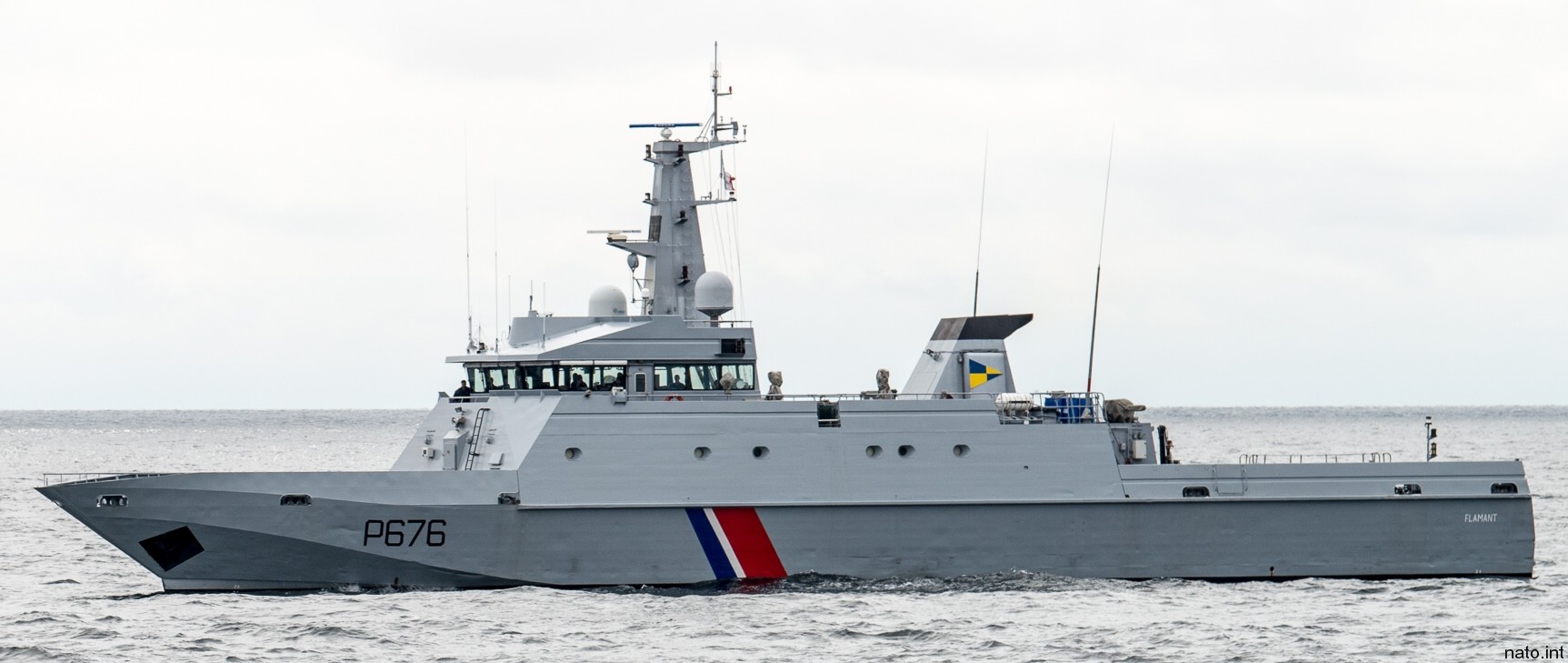

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 14
P 676 FS Flamant

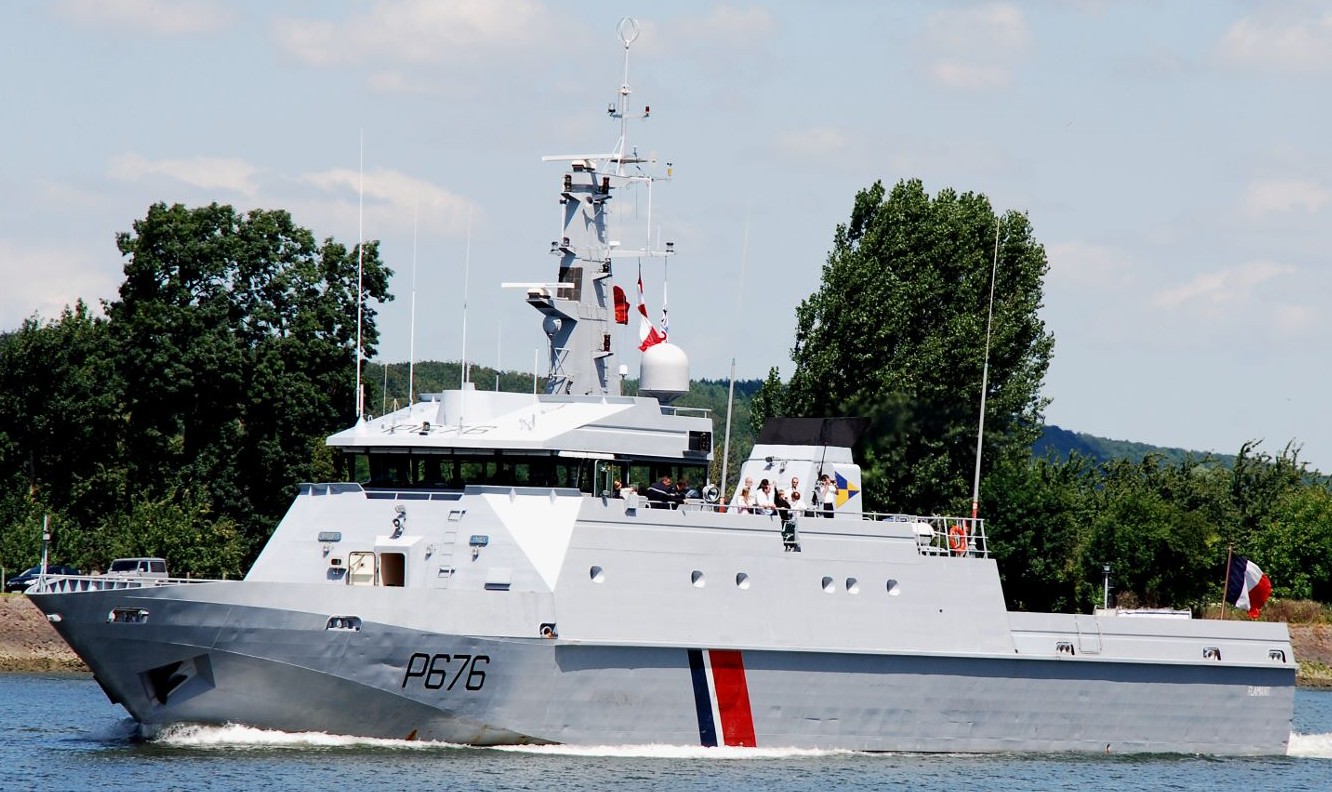

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 02
P 676 FS Flamant

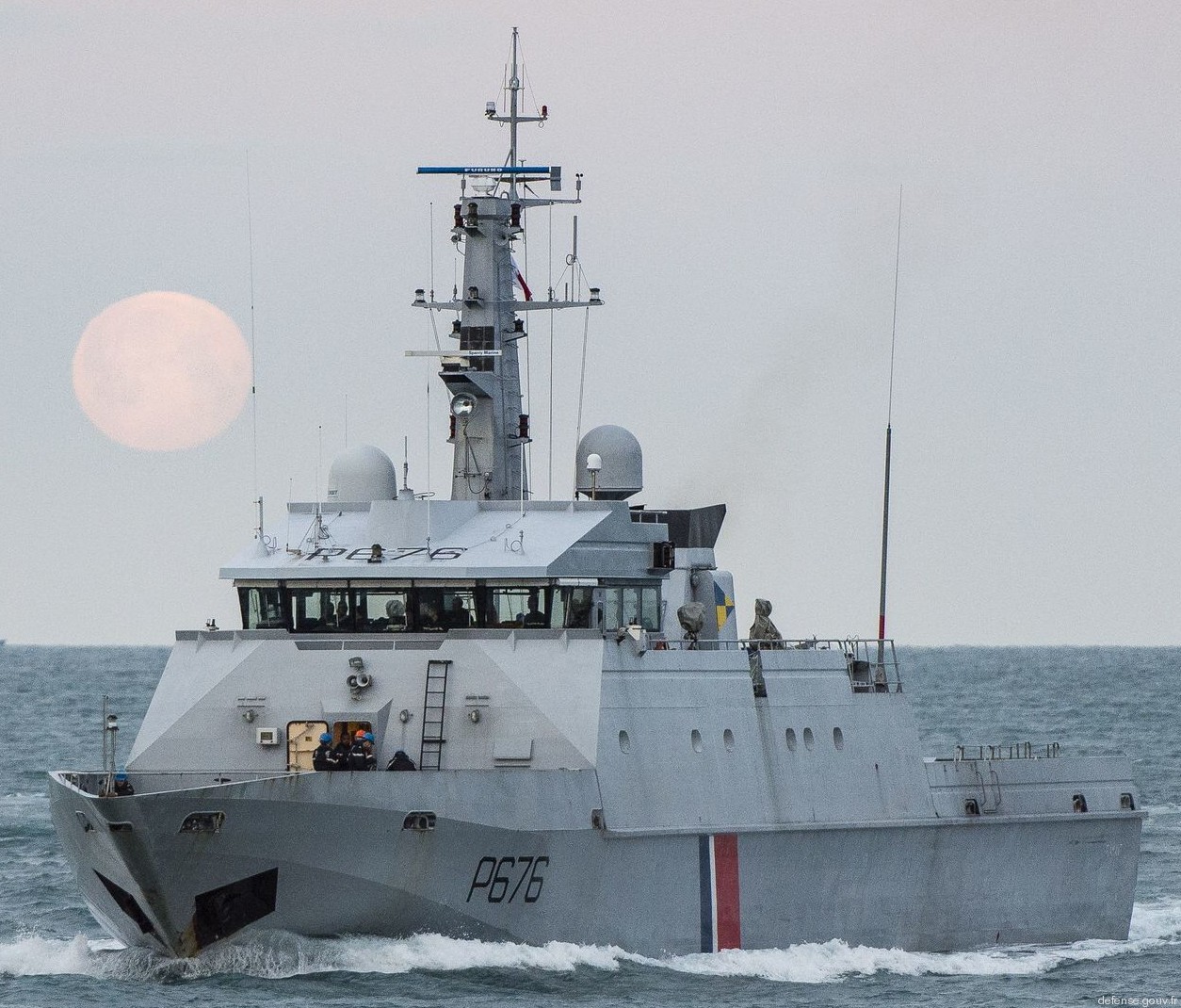

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 12
P 676 FS Flamant

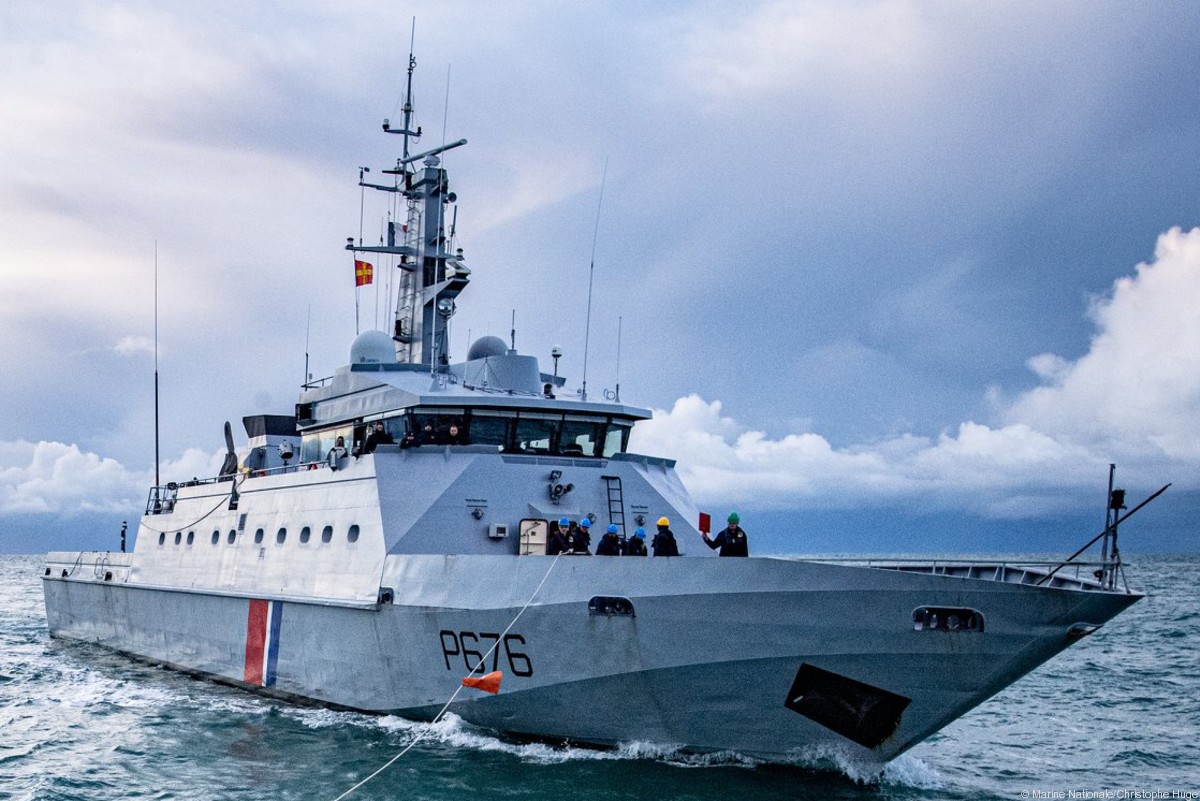

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 07
P 676 FS Flamant

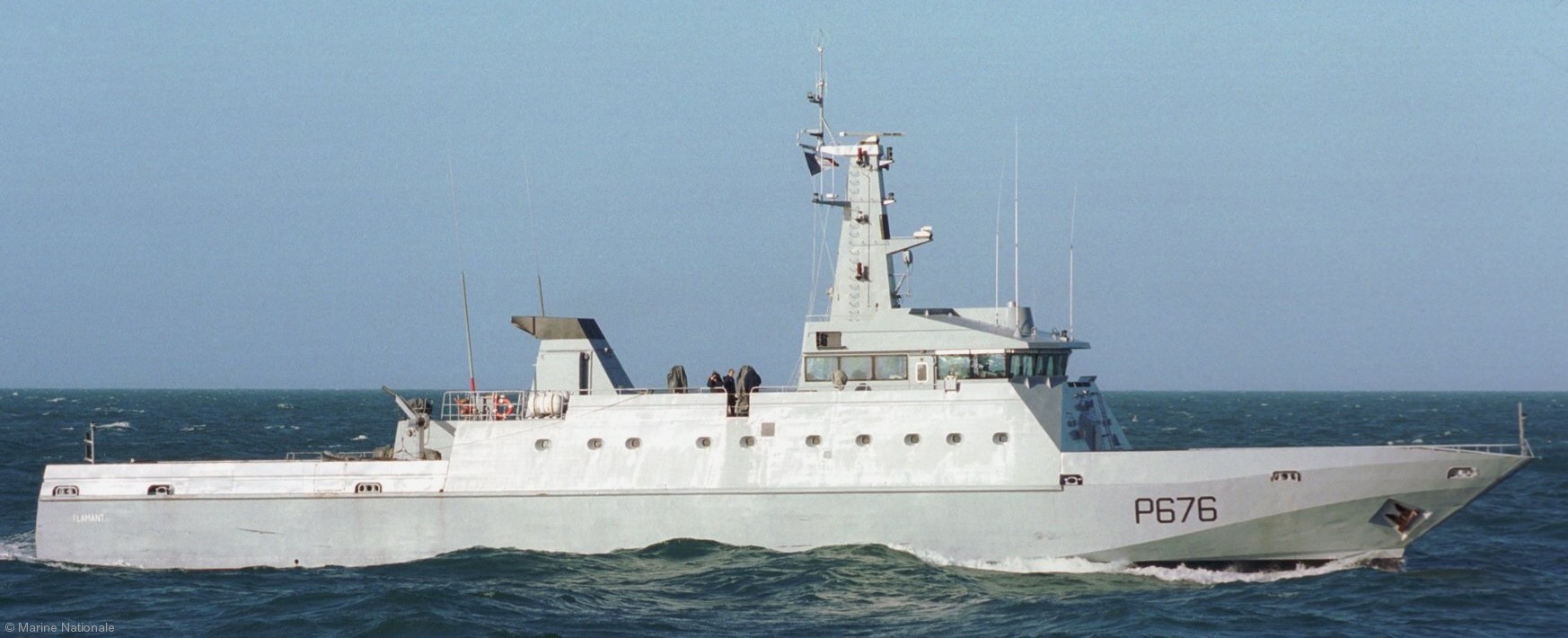

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 04
P 676 FS Flamant

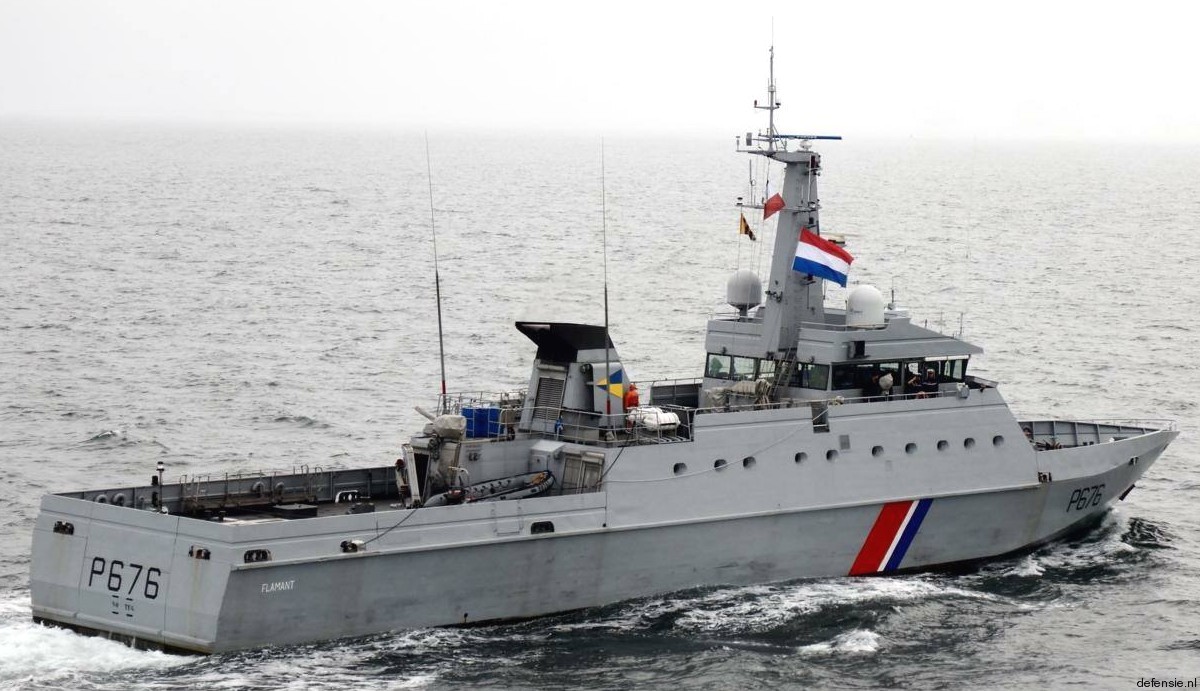

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 09
P 676 FS Flamant

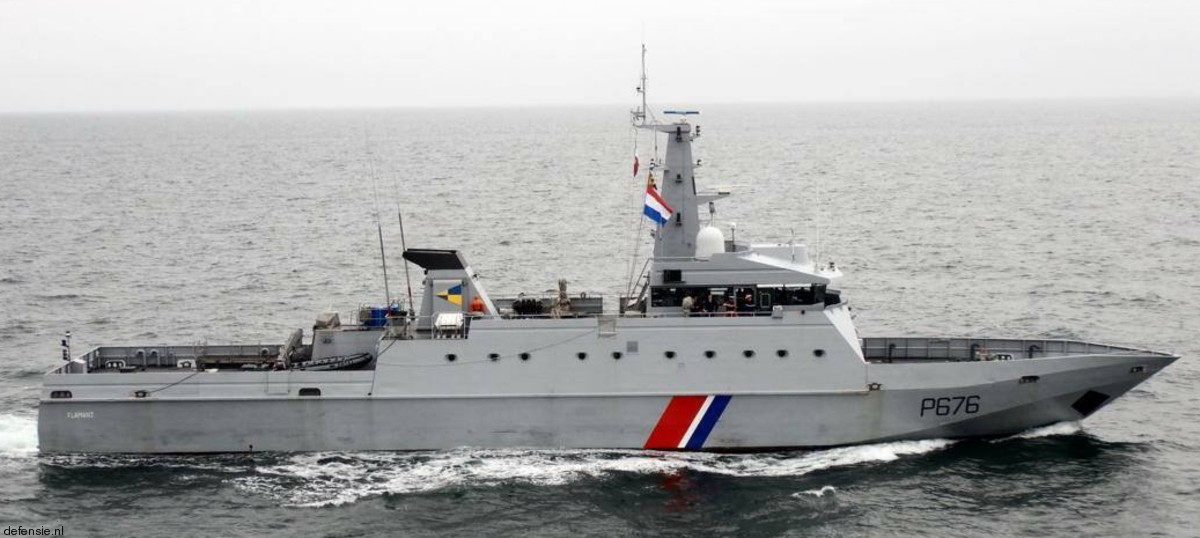

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 08
P 676 FS Flamant

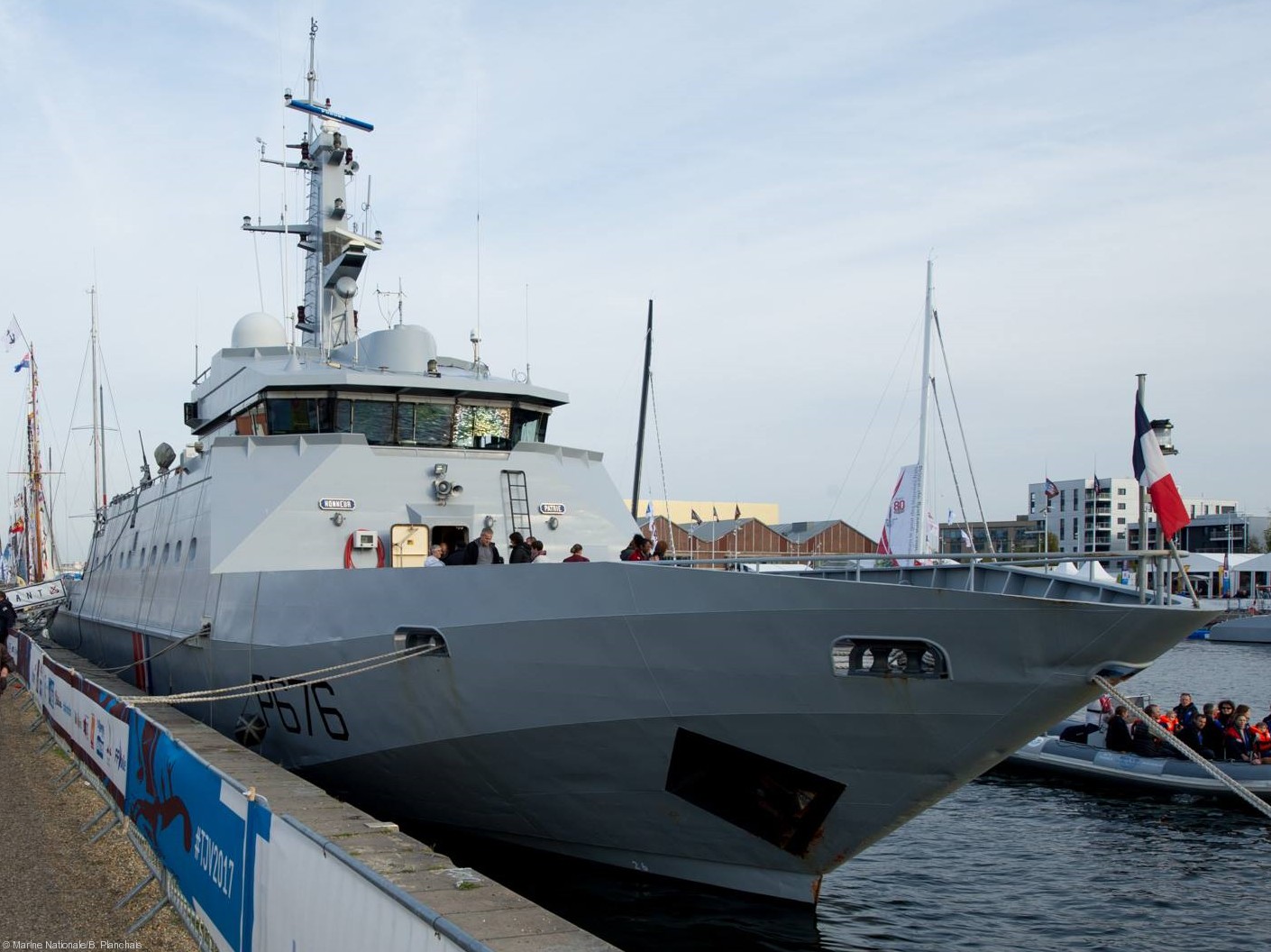

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 03
P 676 FS Flamant

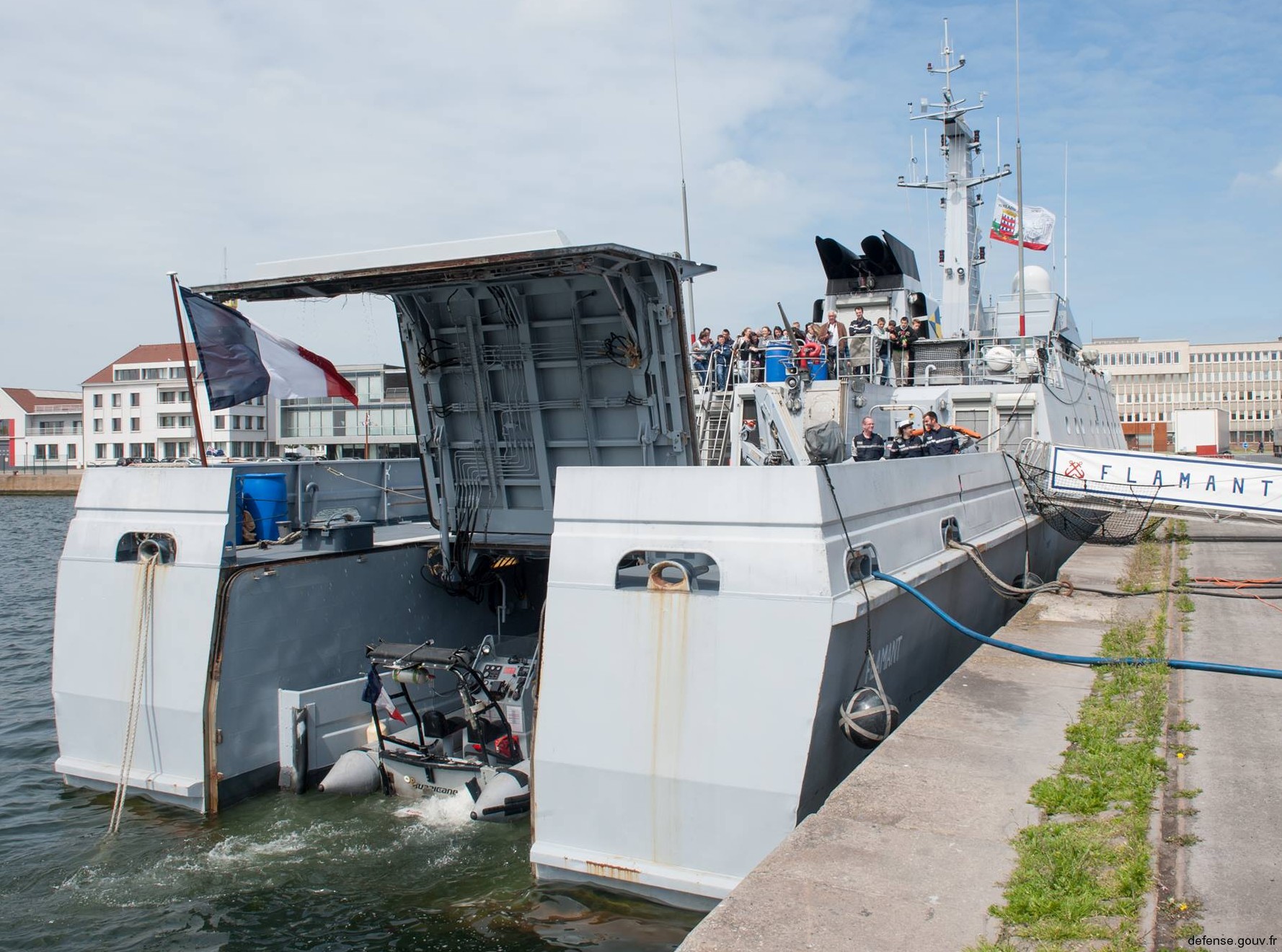

p-676 flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 10
P 676 FS Flamant

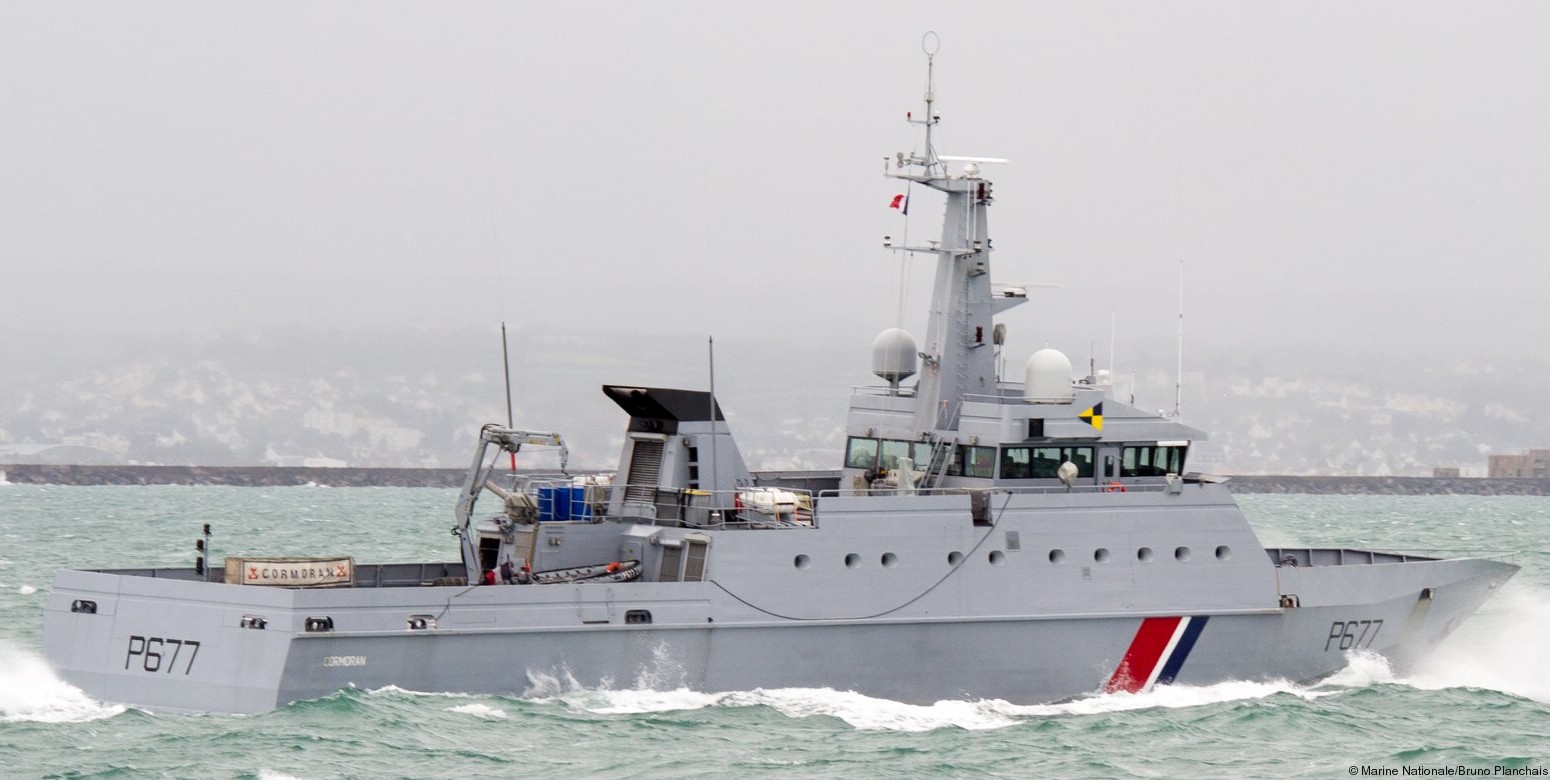

p-677 cormoran flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 03
P 677 FS Cormoran

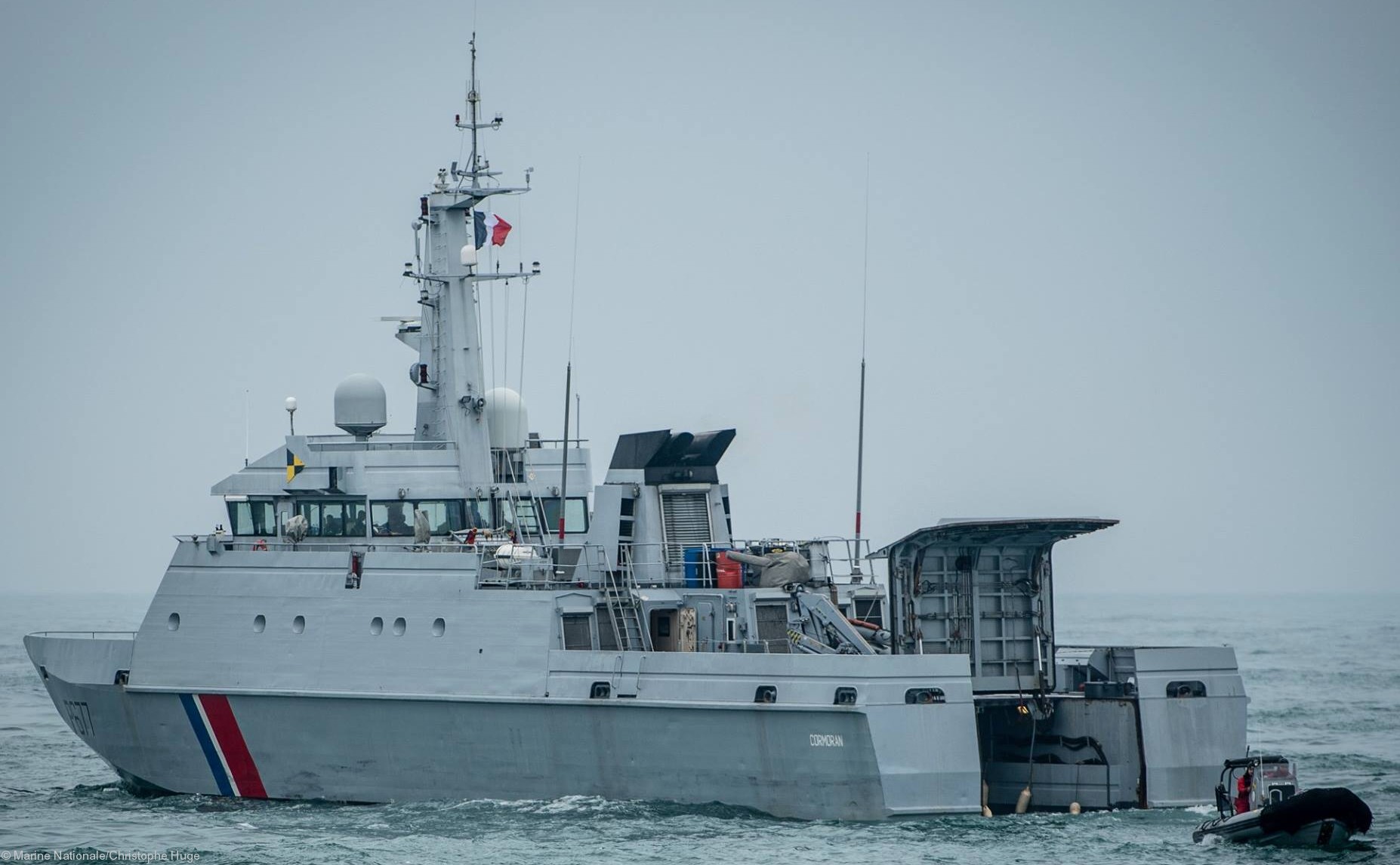

p-677 cormoran flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 02
P 677 FS Cormoran

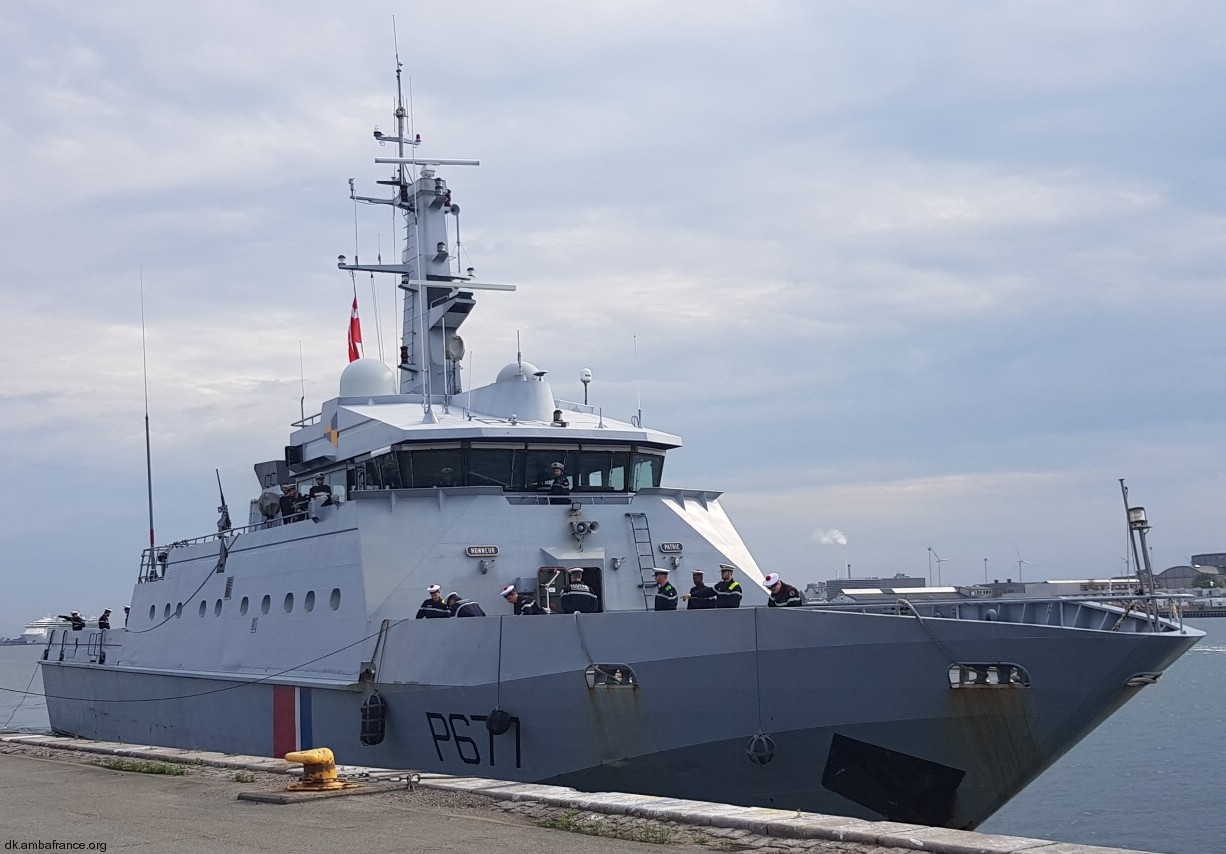

p-677 cormoran flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 08
P 677 FS Cormoran

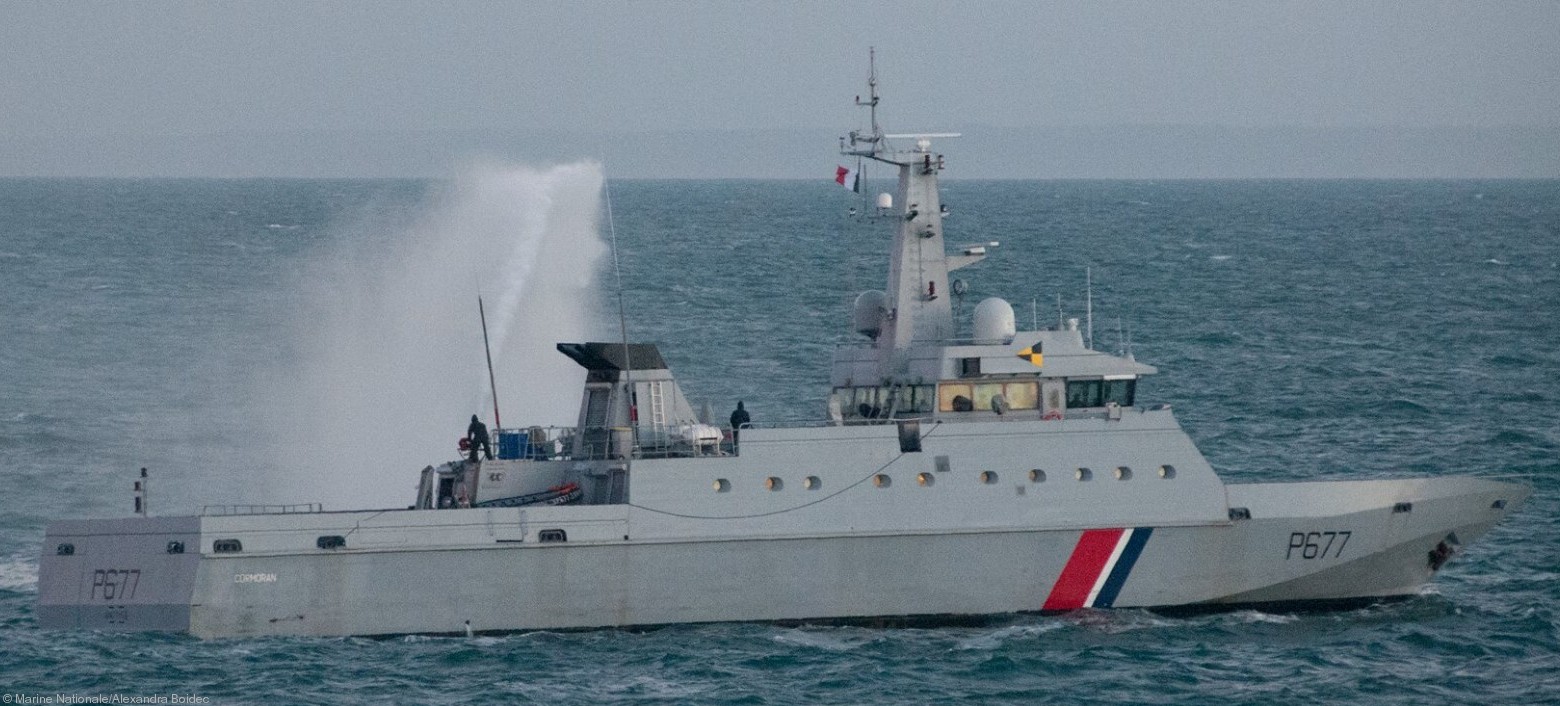

p-677 cormoran flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 07
P 677 FS Cormoran

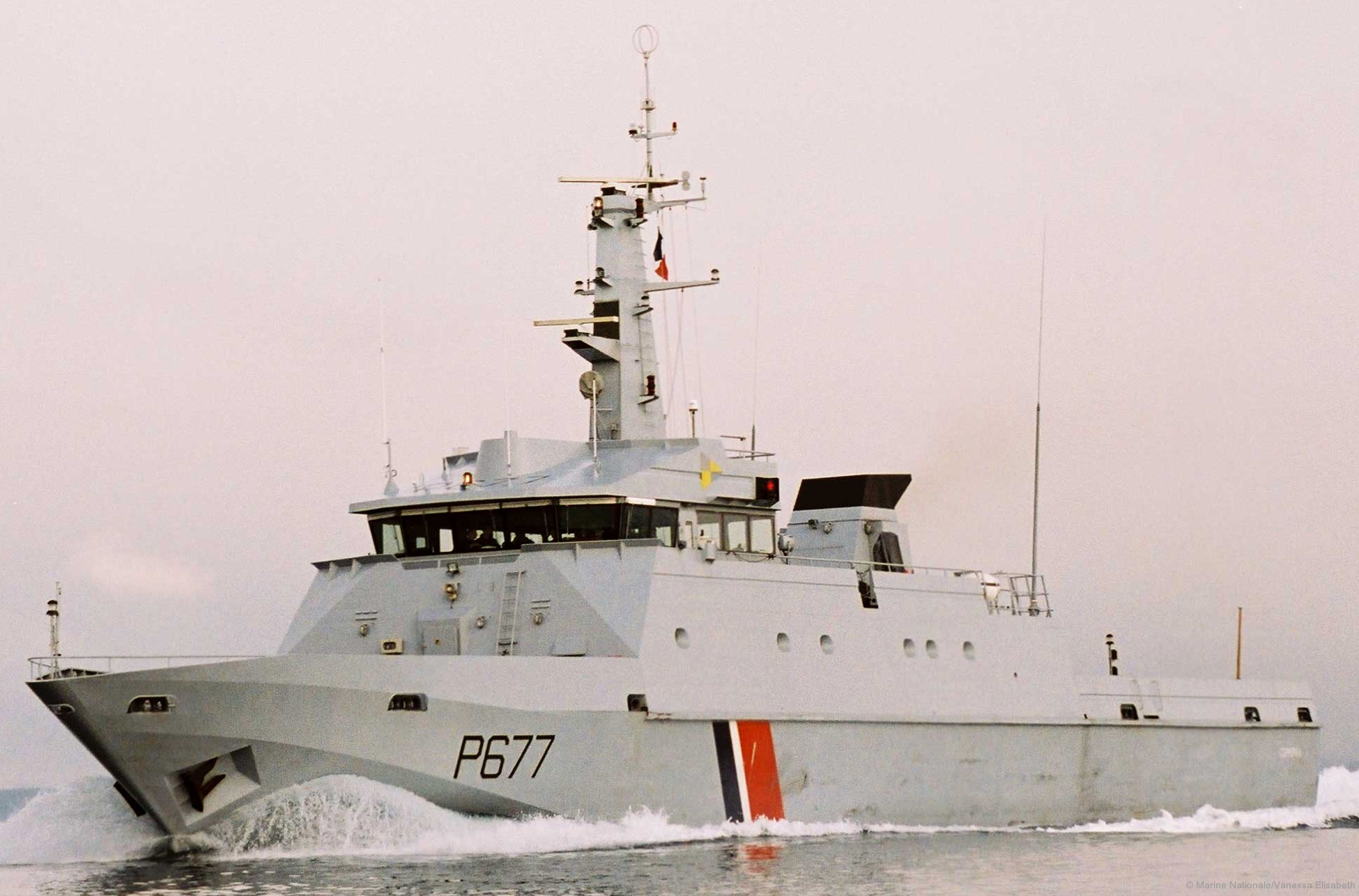

p-677 cormoran flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 06
P 677 FS Cormoran

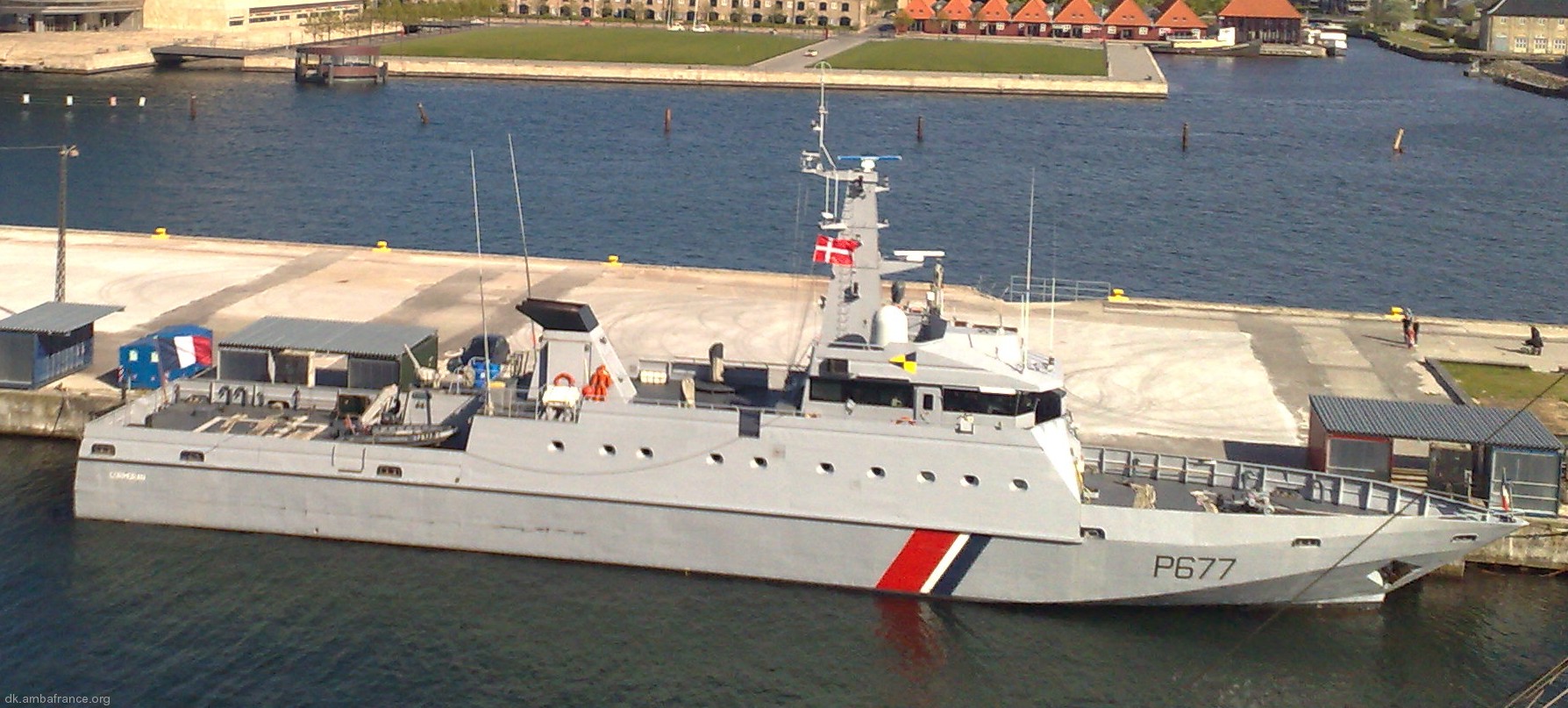

p-677 cormoran flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 04
P 677 FS Cormoran

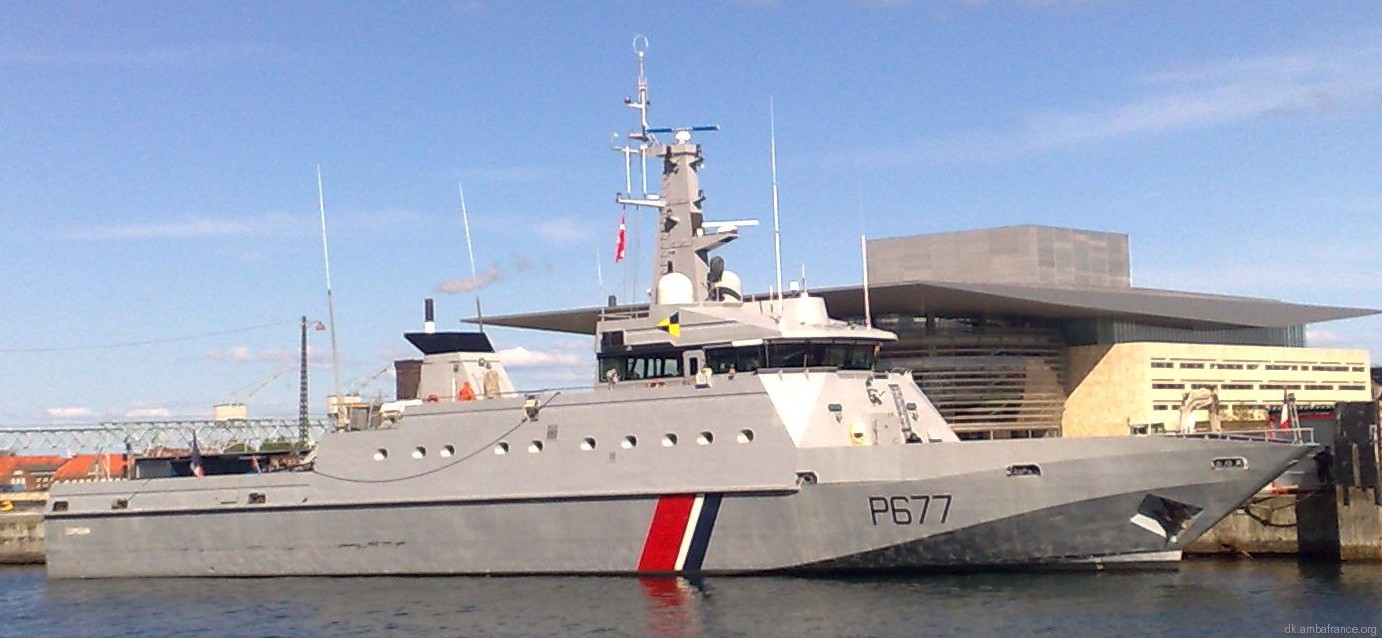

p-677 cormoran flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 05
P 677 FS Cormoran

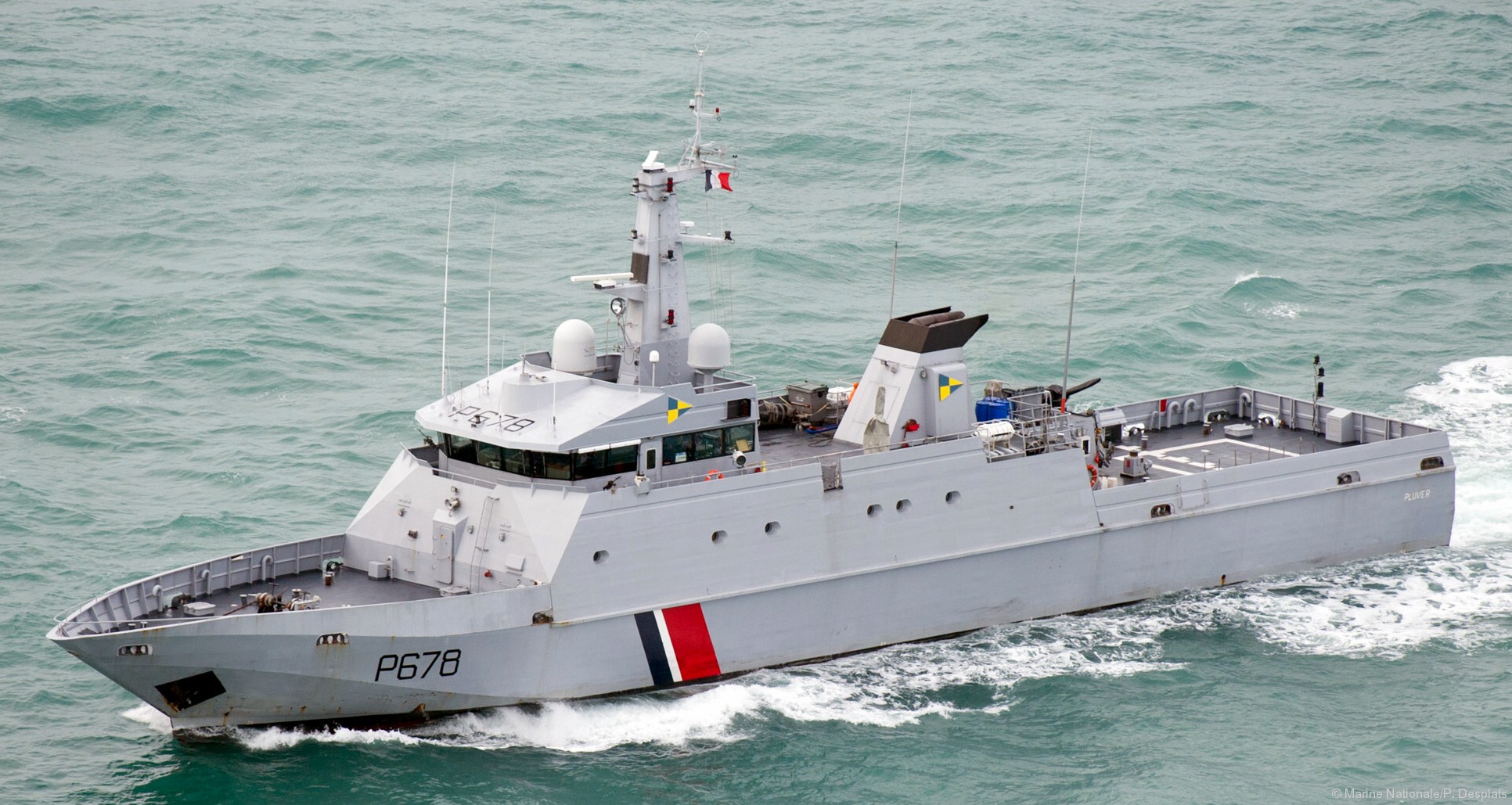

p-678 pluvier flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 02
P 678 FS Pluvier

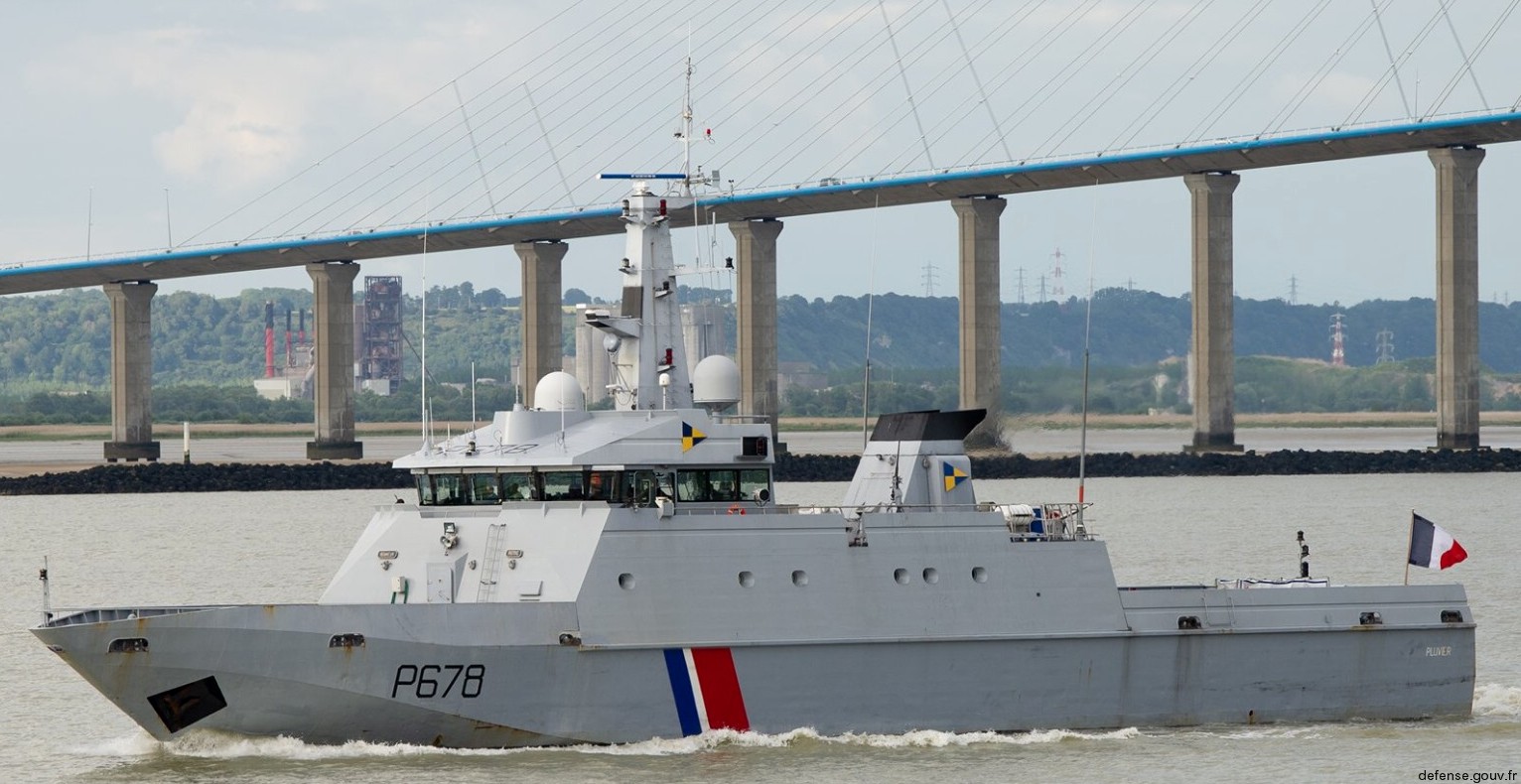

p-678 pluvier flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 08
P 678 FS Pluvier

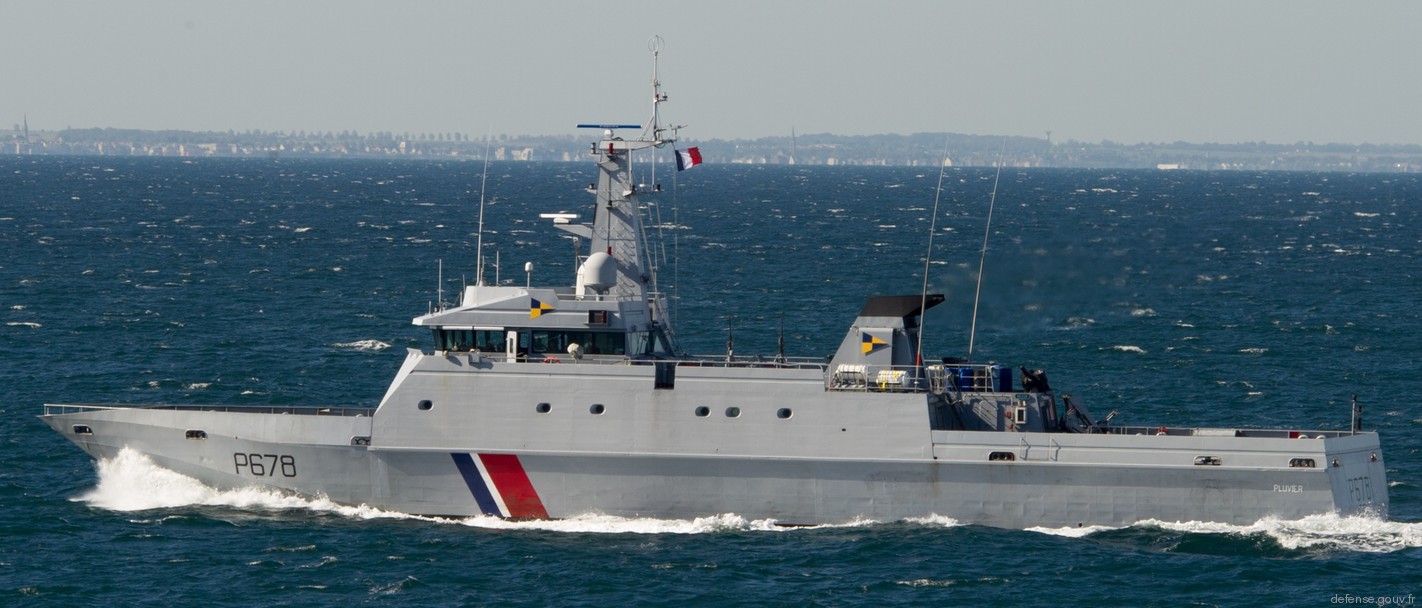

p-678 pluvier flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 05
P 678 FS Pluvier

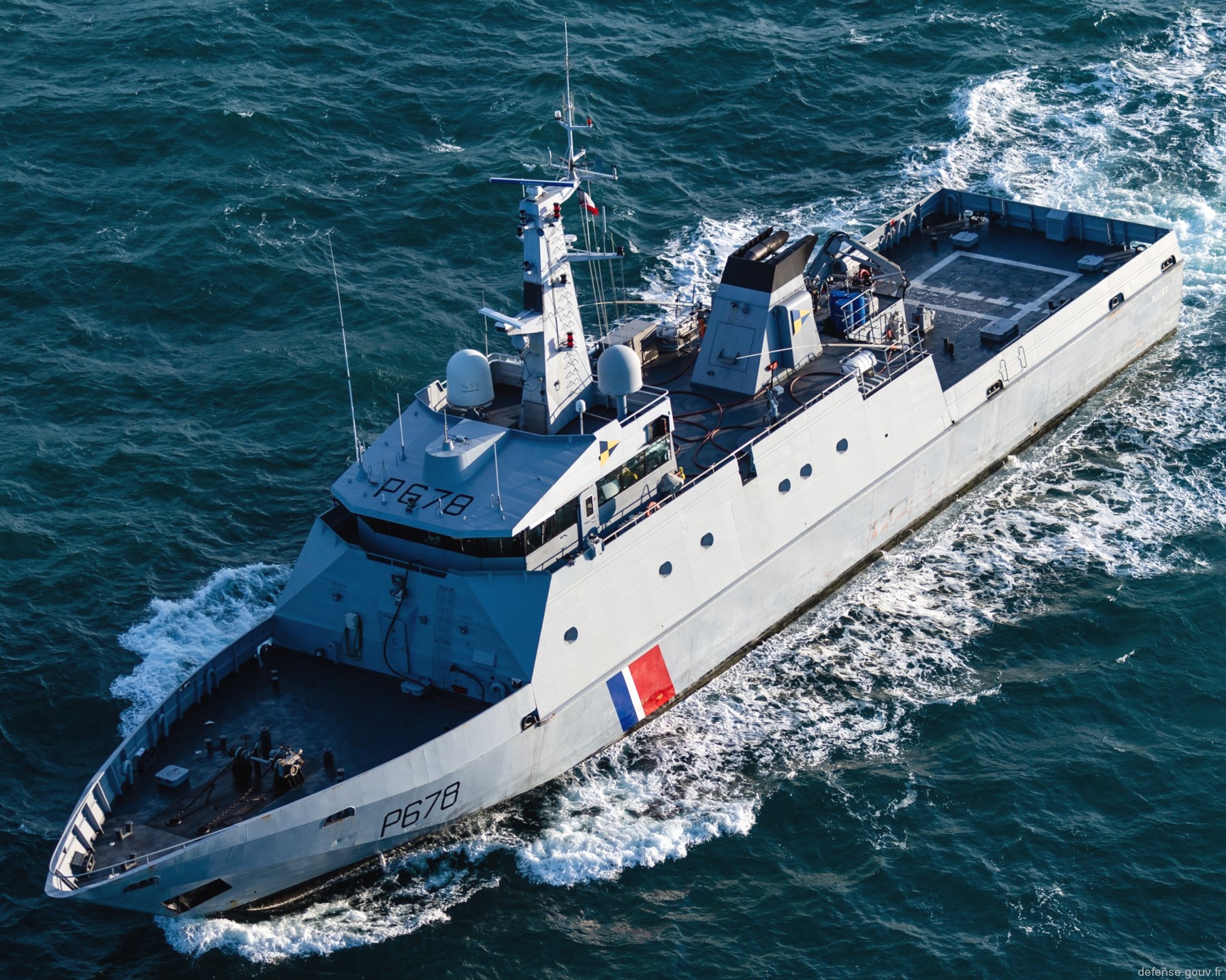

p-678 pluvier flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 07
P 678 FS Pluvier

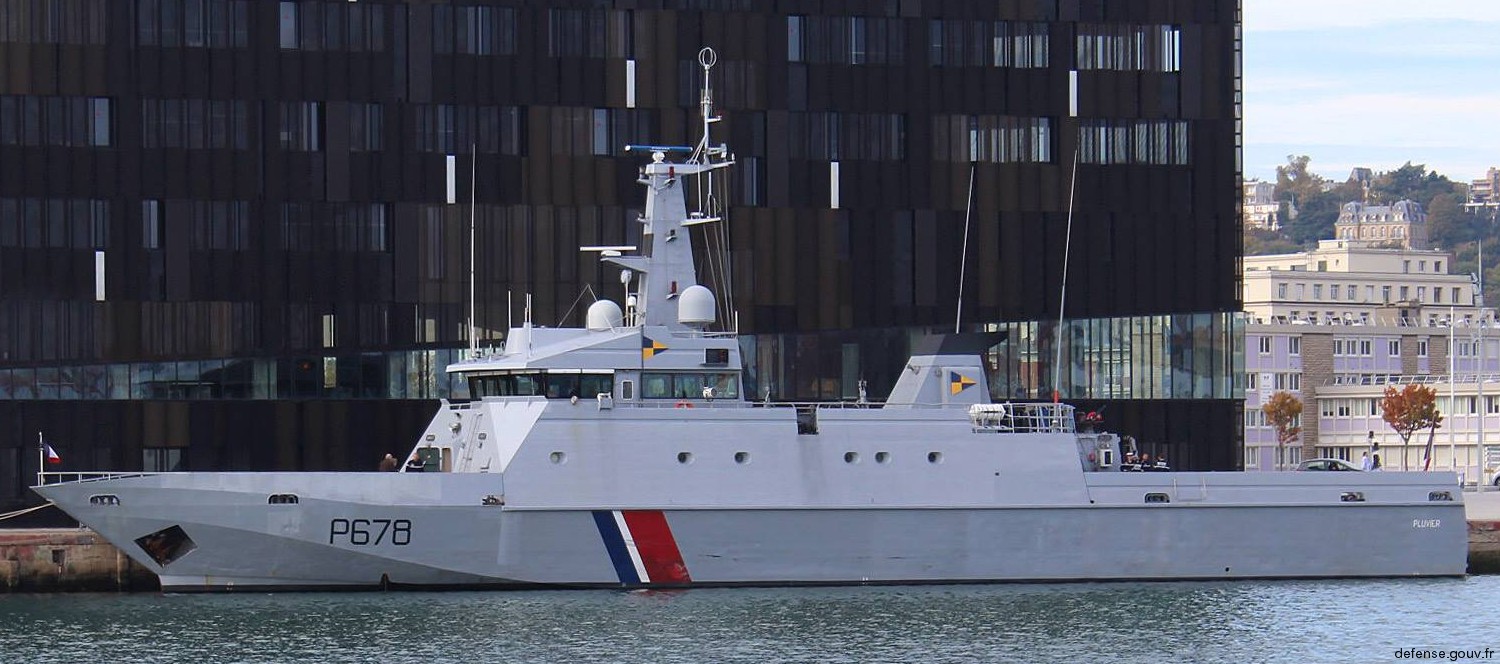

p-678 pluvier flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 06
P 678 FS Pluvier

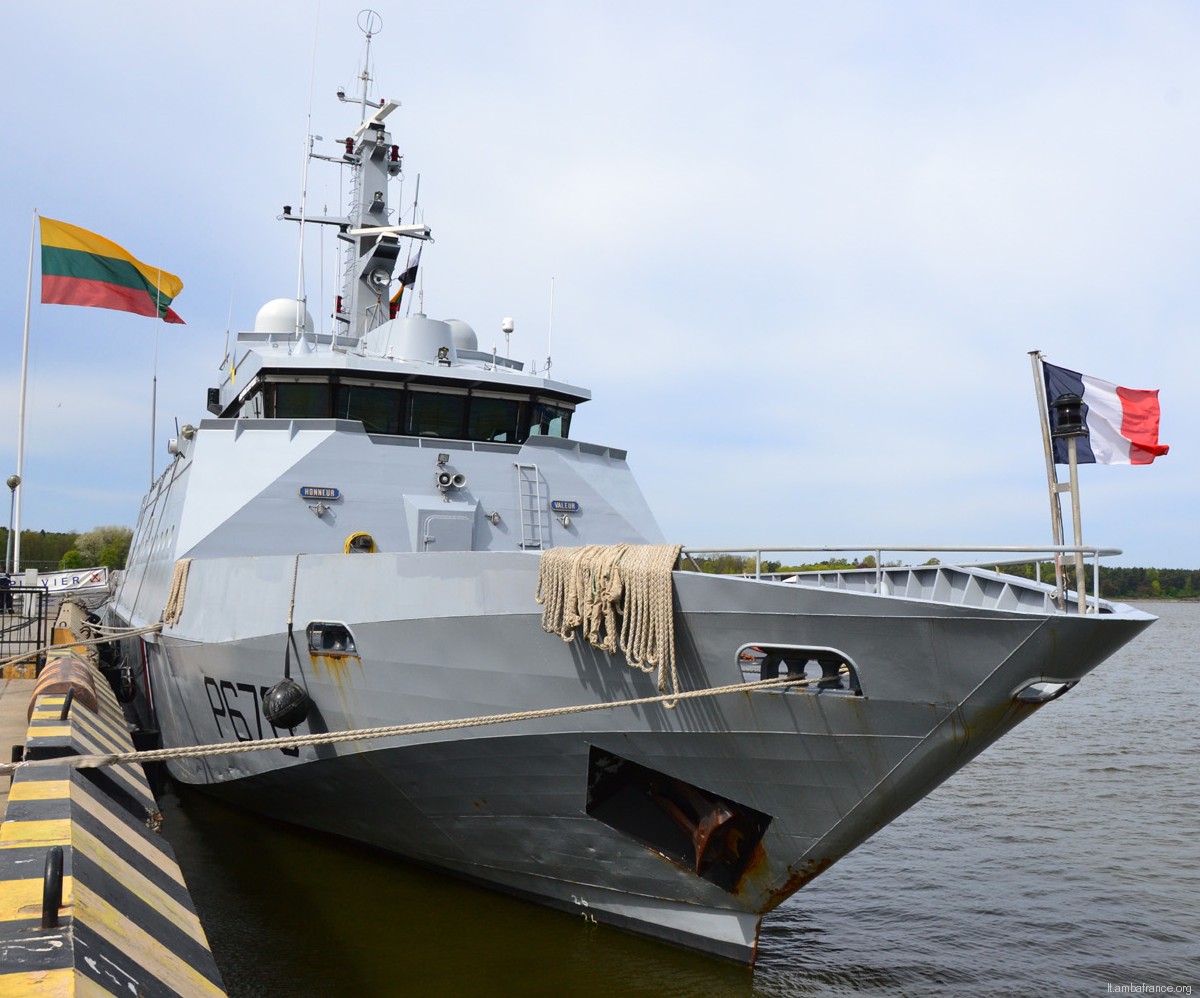

p-678 pluvier flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 04
P 678 FS Pluvier

p-678 pluvier flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 09
P 678 FS Pluvier

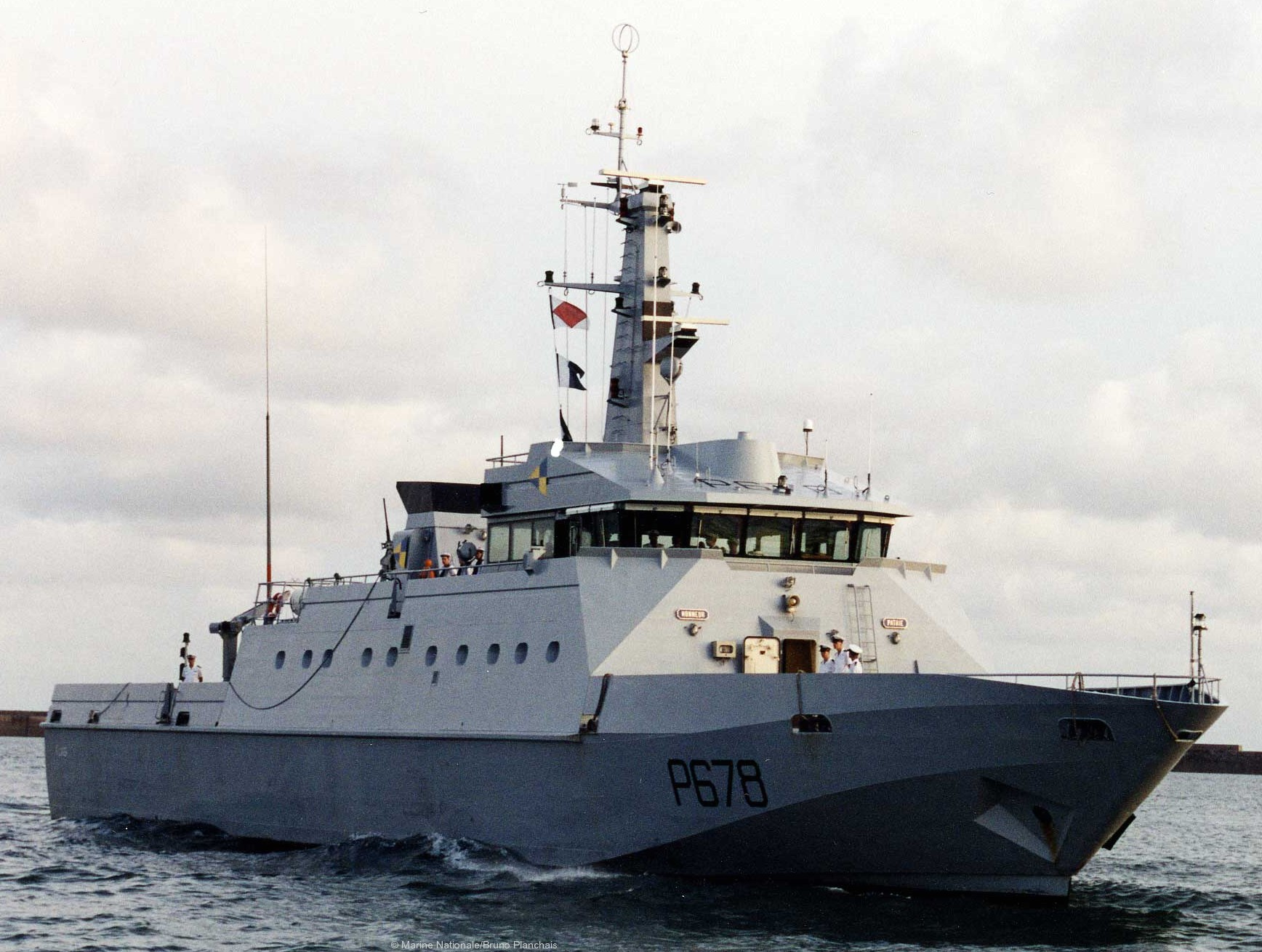

p-678 pluvier flamant class offshore patrol vessel opv french navy patrouilleur marine nationale 03
P 678 FS Pluvier
