EDA-R Landing Catamaran (L-CAT)
Engin de débarquement amphibie rapide (EDA-R)

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 26 socarenam

06/22

Units:

4 units in service:

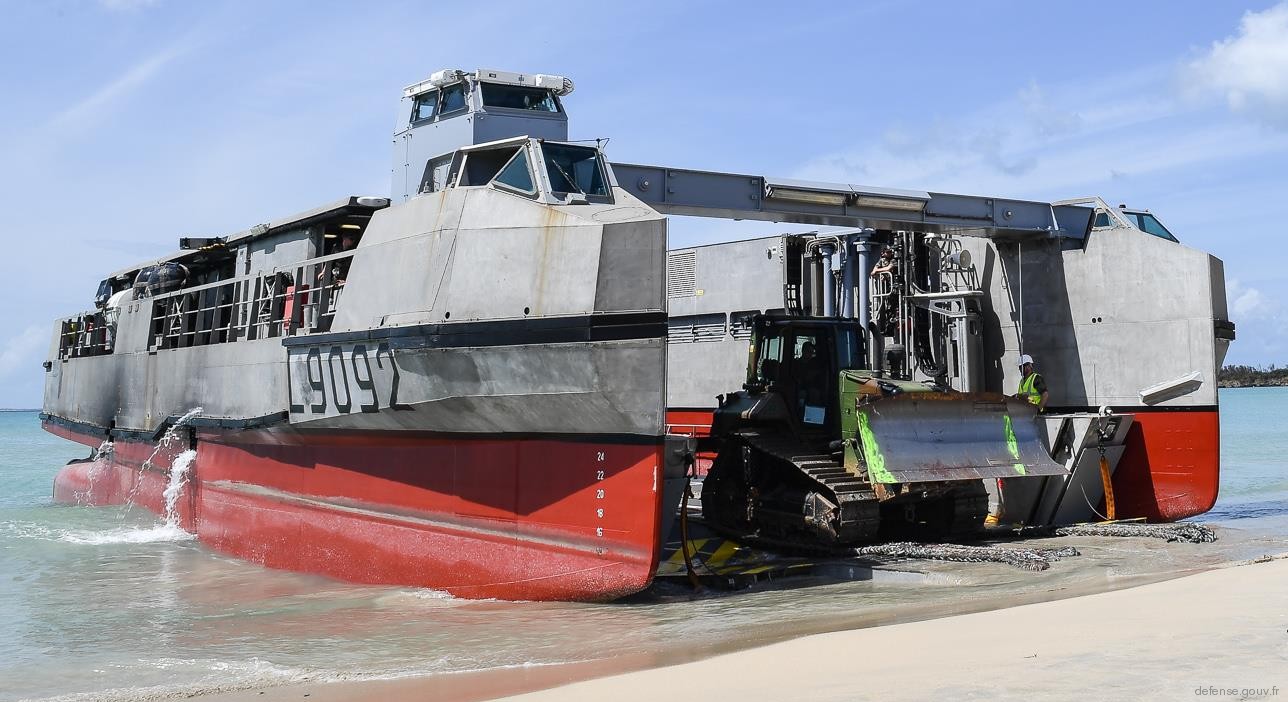

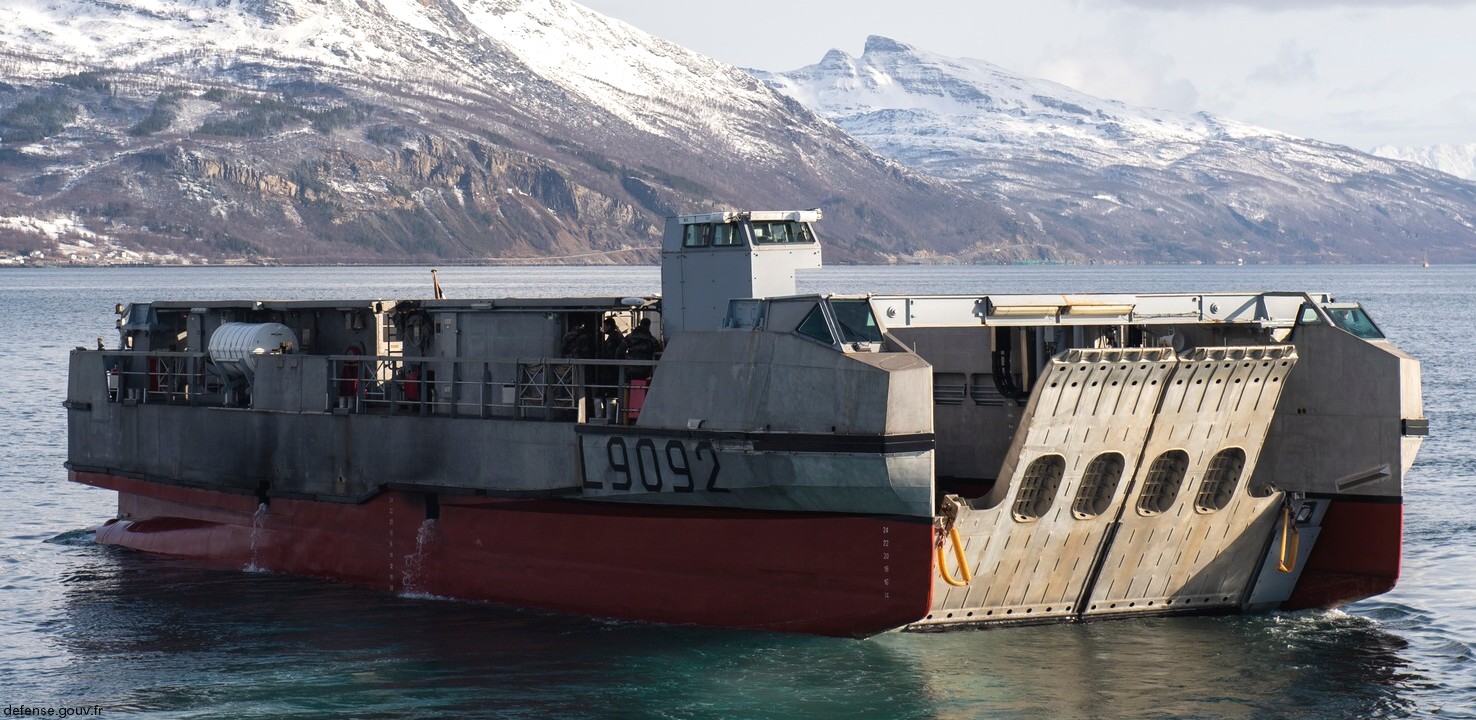

L 9092
L 9093
L 9094
L 9095

Specifications:

Builder:
Société Calaisienne de Réparation Navale et Mécanique (SOCARENAM), Saint-Malo shipyard, Britanny, France

Displacement: 285 metric tons
Length: 30 metres (98 feet 43 inches)
Beam: 12.8 metres (42 feet)
Draft: 2.5 m (8 ft 2 in) (fully catamaran mode) / 0.6 m (2 ft 0 in) (fully load lighter mode)

Propulsion:
4 x MTU Friedrichshafen 12V2000 M92 Diesel engines (1220 kW, each)
4 x Wärtsilä Pump-jets

Speed: 20 knots (37 km/h) with full load / 30 knots (56 km/h) maximum speed
Range: 1,000 nmi (1,900 km; 1,200 mi) at 15 knots (28 km/h; 17 mph)
Crew: 8

Load: 80 tons (110 tons overload in lighter mode)
Military lift: cargo platform 126m2 and 80 tons

Cargo capacity:
1 Cavalry Platoon including 3 Véhicule Blindé Léger and 3 AMX-10 RC or
1 Reinforced Infantry Platoon including 6 Véhicule de l'Avant Blindé or
1 Field Engineering Platoon or
1 First-Aid Post

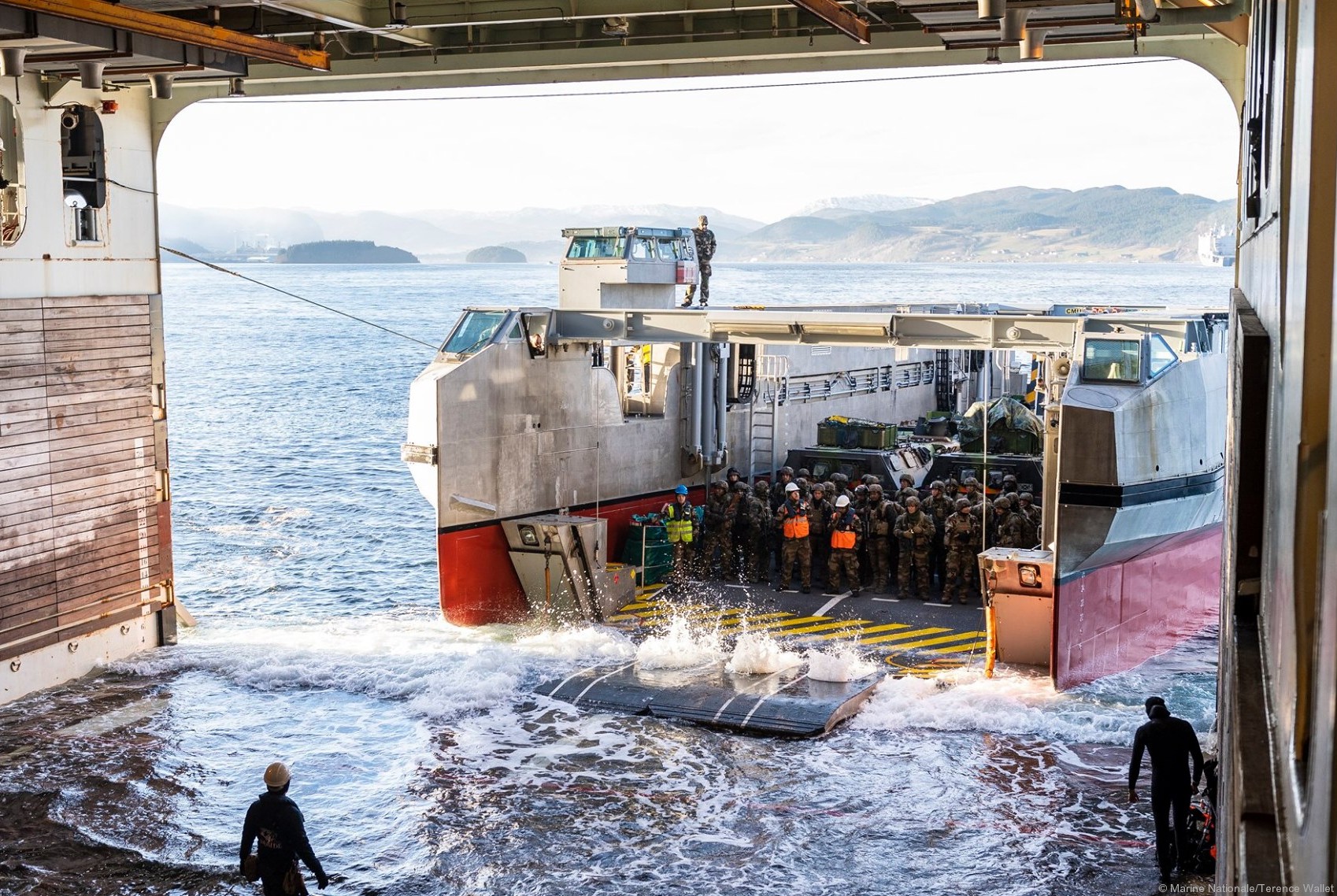

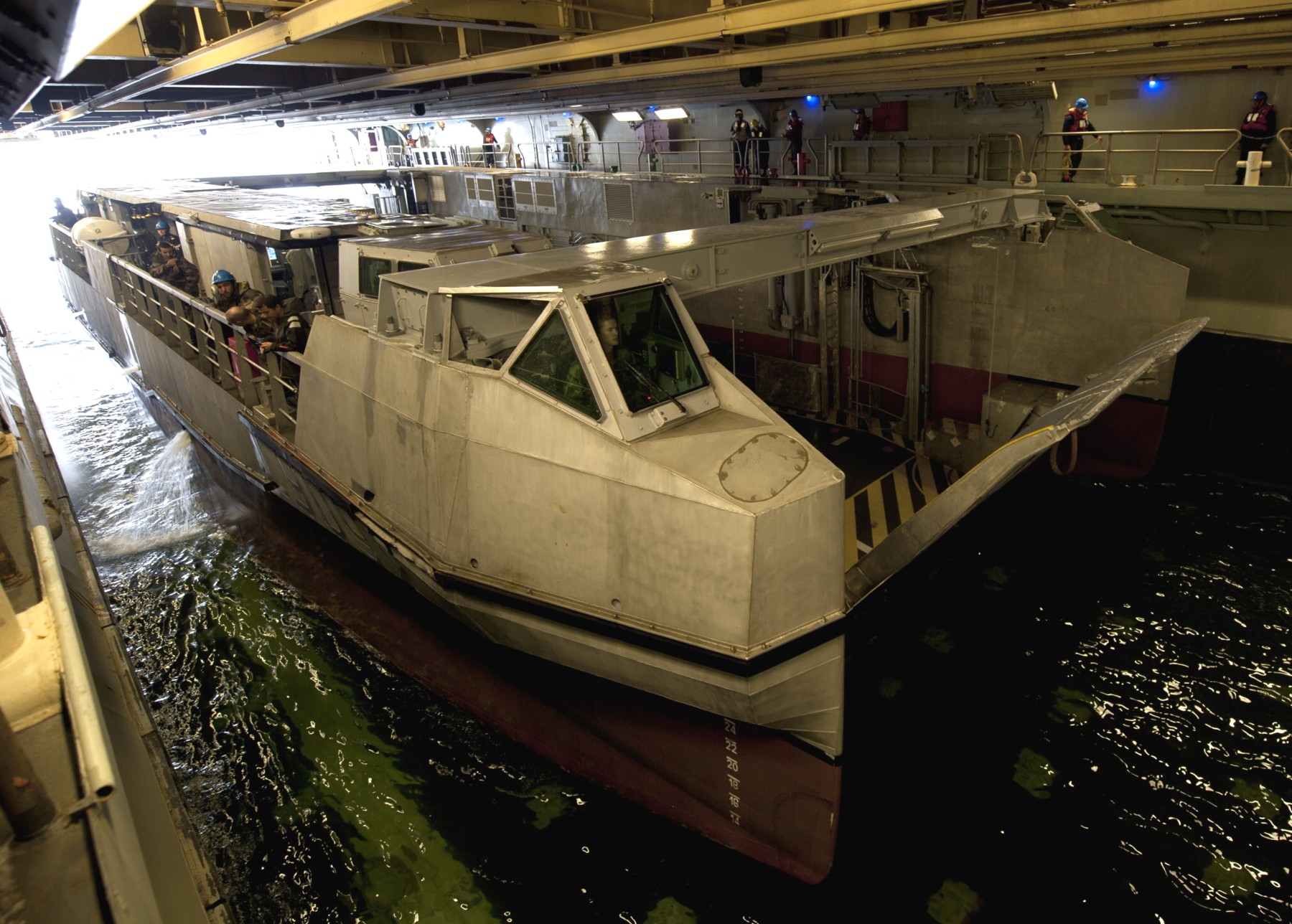

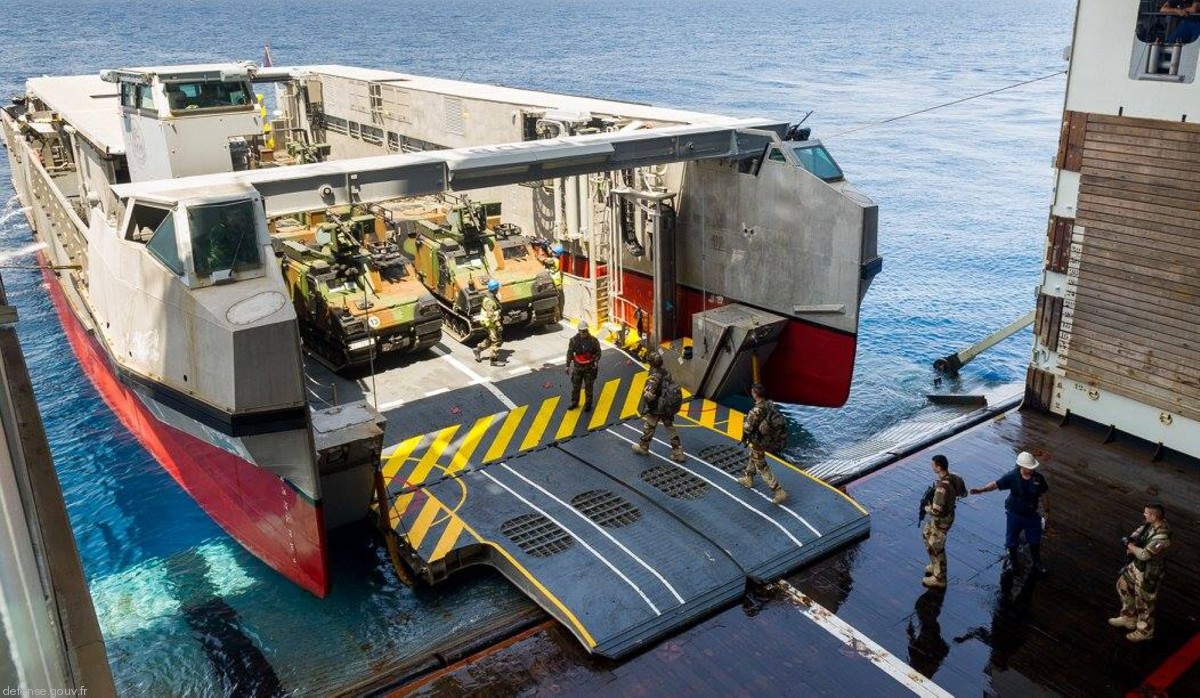

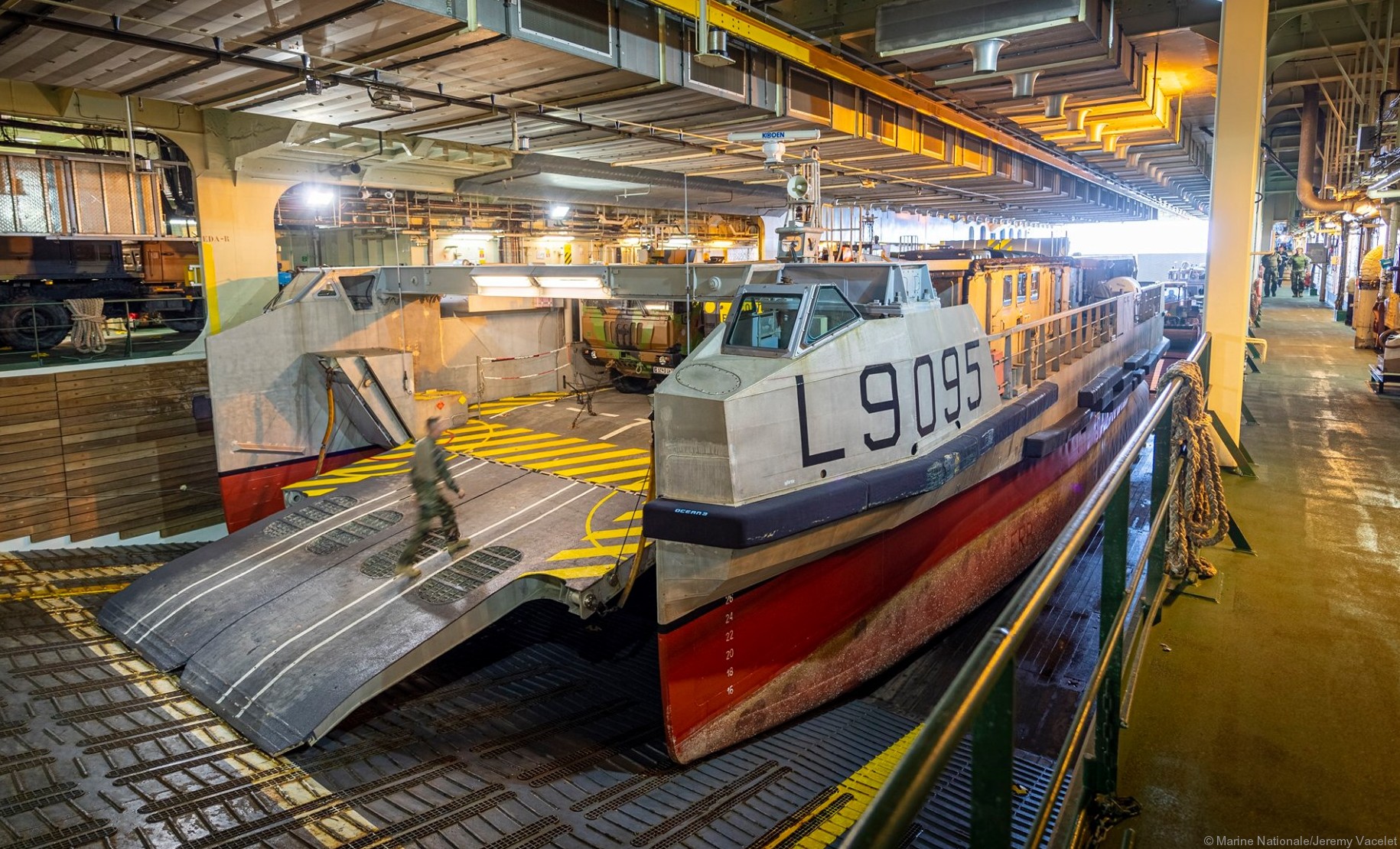

The Engin de débarquement amphibie rapide (EDA-R) is a class of roll-on/roll-off catamaran landing craft (L-CAT) ordered by the French Navy. They transport weapons systems, equipment, cargo and personnel of the assault elements from Mistral-class amphibious assault ships to shore and across the beach.

Concept design of the EDA-R began in 2000 at Constructions industrielles de la Méditerranée (CNIM) then was abandoned in 2003 and relaunched in 2008 with the full-scale Landing Catamaran (L-CAT). During the development stage, one prototype was built by Gamelin Shipyard and tested during an autonomous transfer from Saint-Malo to the Military port of Toulon. On 14 October 2008, the prototype of the L-CAT beached on the shores of Toulon. In March 2010, it offloaded a 54-ton Leclerc main battle tank at Toulon.

According to CNIM the craft delivers the performance of an aircushion landing craft but at the cost of a conventional landing craft. Four units have been purchased and were presented to the French Navy in January 2011.

In October 2016, CNIM revealed a new variant called L-CAT shore-to-shore, designed for smaller navies that do not have larger amphibious ships to deploy landing craft from. It has a bigger hull to accommodate more personnel and provide improved seakeeping, with an expanded length of 32.6 metres (106 ft 11 in) and beam of 13.2 metres (43 ft 4 in), with seating increased from 40 to 54. The L-CAT shore-to-shore can carry enough fuel to travel 1,000 nautical miles (1,900 km; 1,200 mi) without payload, or 800 nmi (1,500 km; 920 mi) with a 100-ton payload, and be able to move at 22 knots (41 km/h; 25 mph) empty and 15 knots (28 km/h; 17 mph) with a full load. Because of its potential to operate independently, it is fitted with the LYNCEA naval mission management system, and can be mounted with various features such as two unmanned 20 mm guns or a towed array system providing submarine detection capabilities.

images

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 31

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 20

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 15

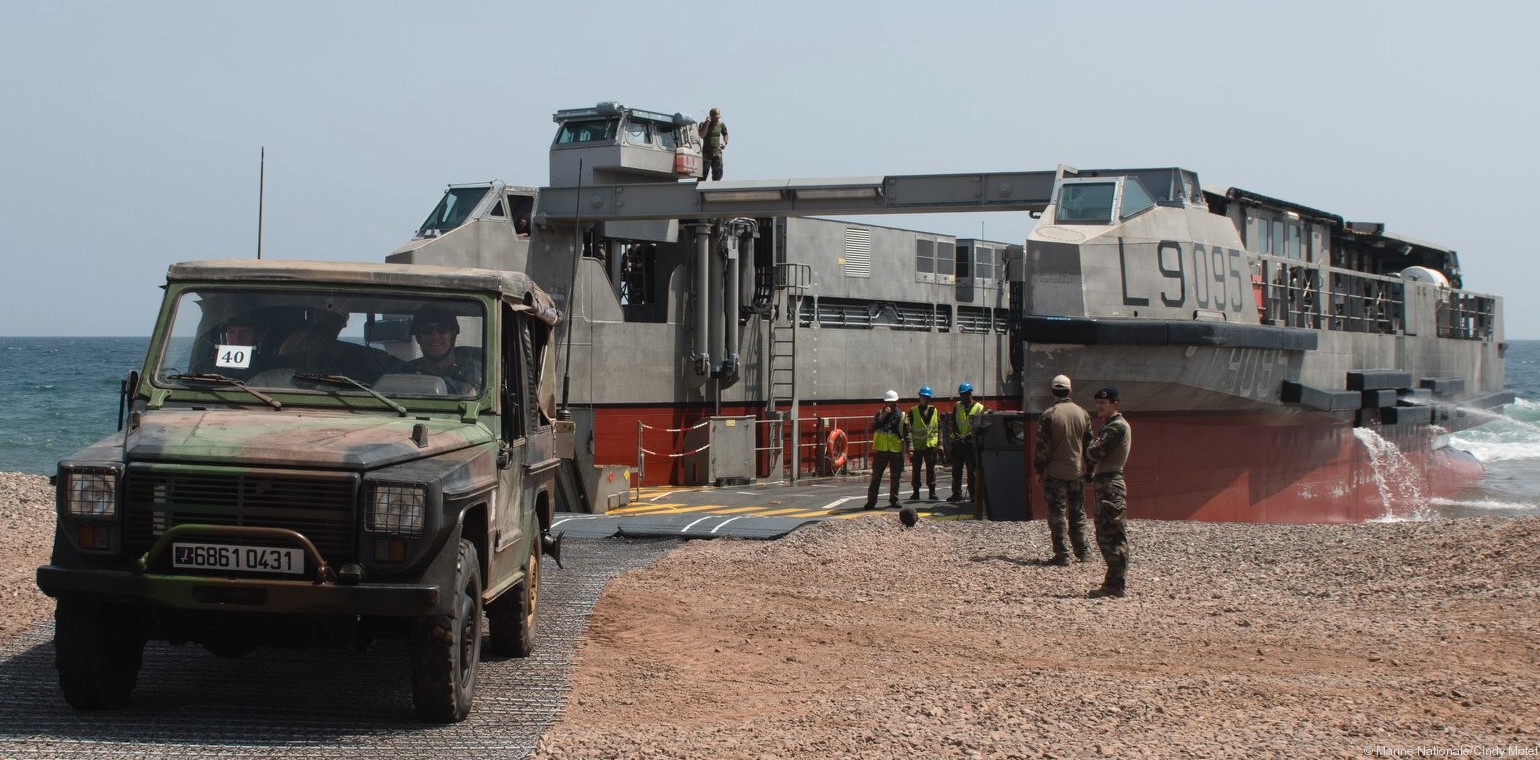

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 14

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 06

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 27

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 23

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 22

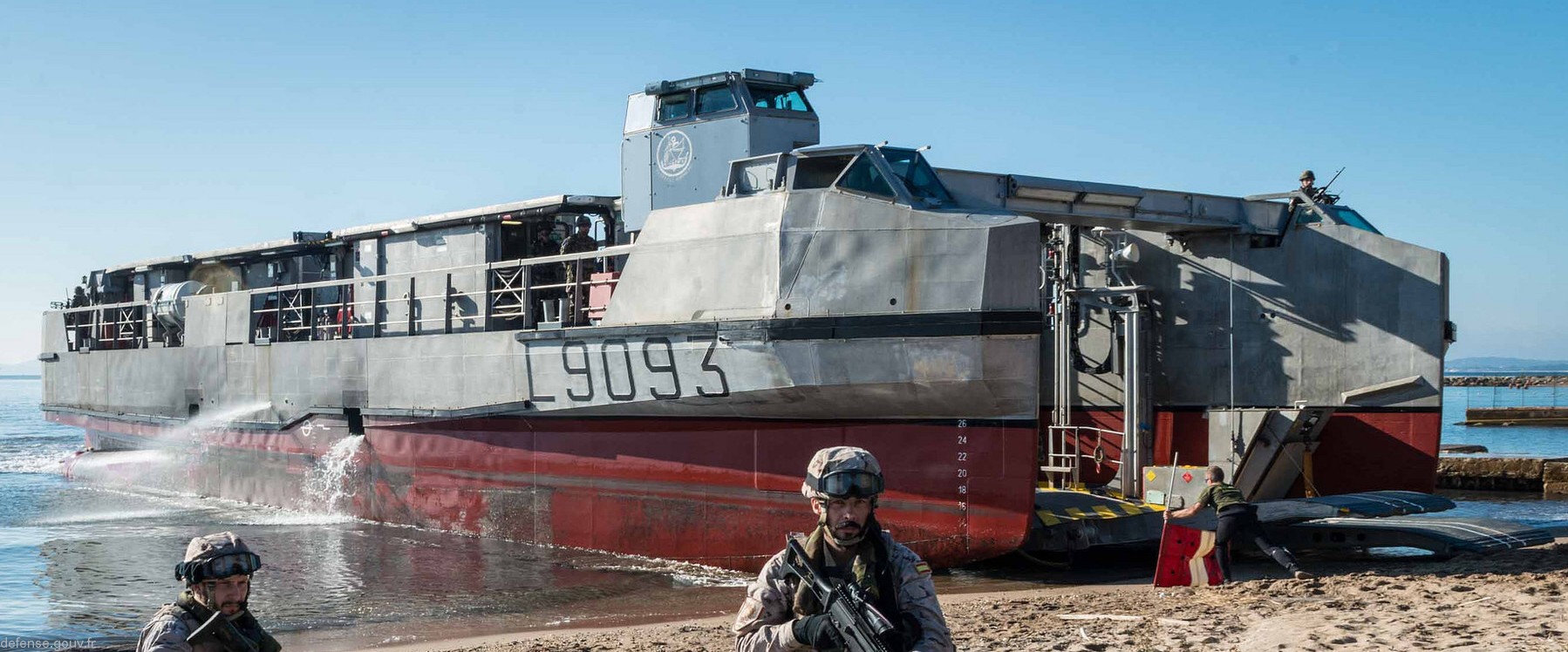

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 17

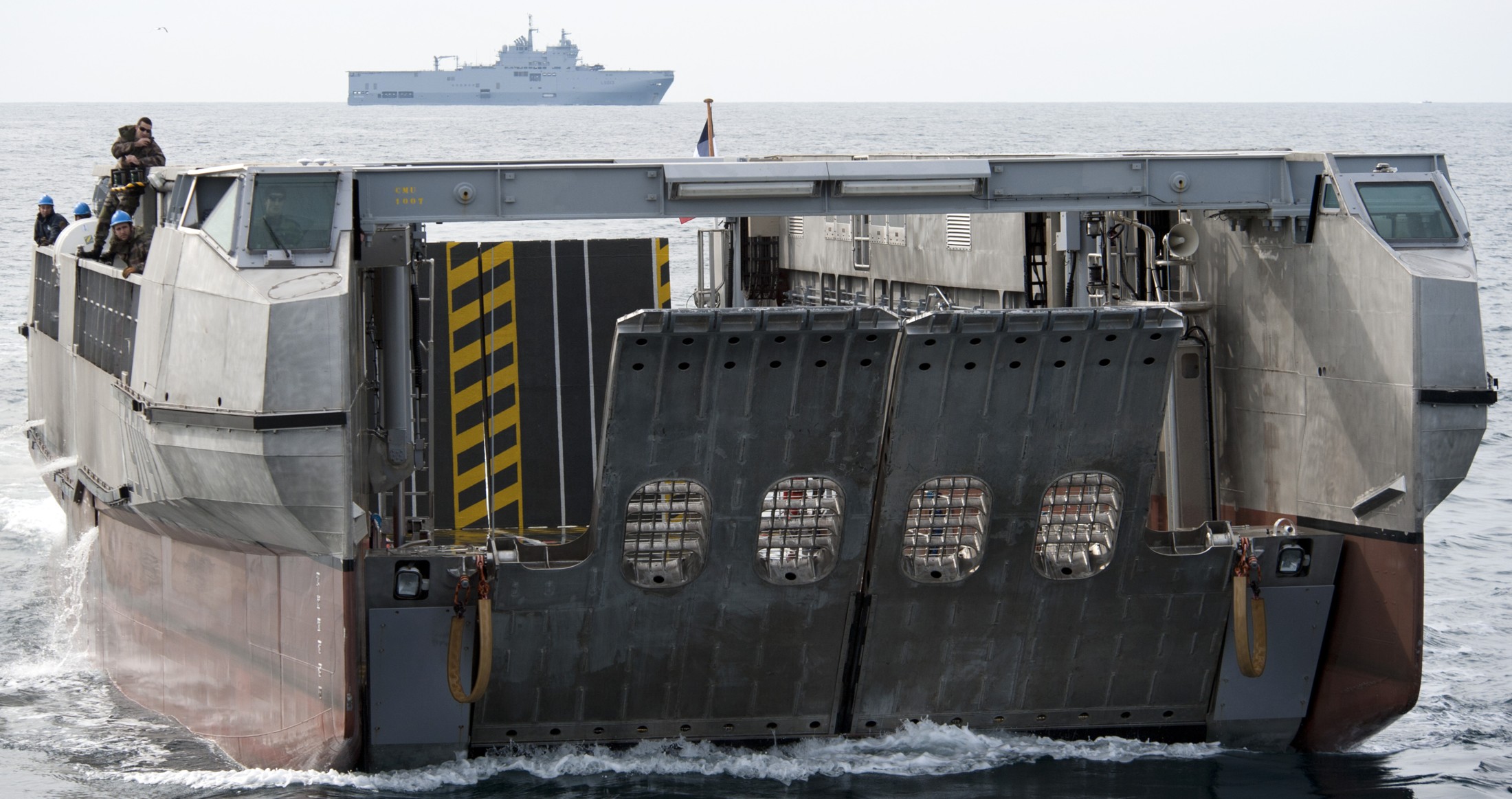

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 07

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 29

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 12

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 13

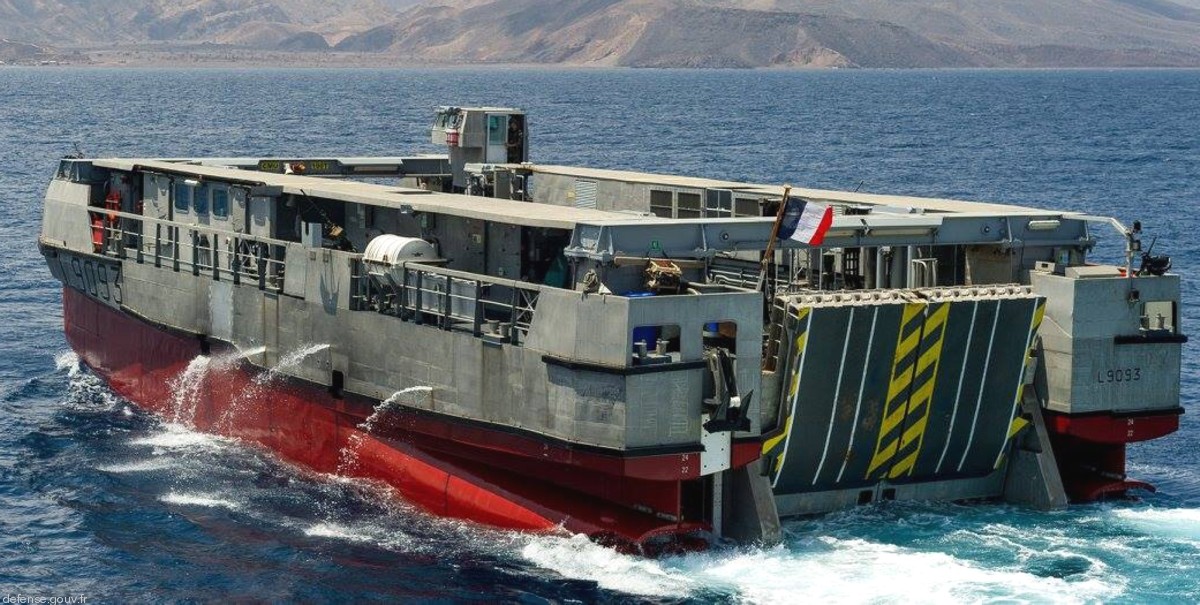

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 11

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 30

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 28

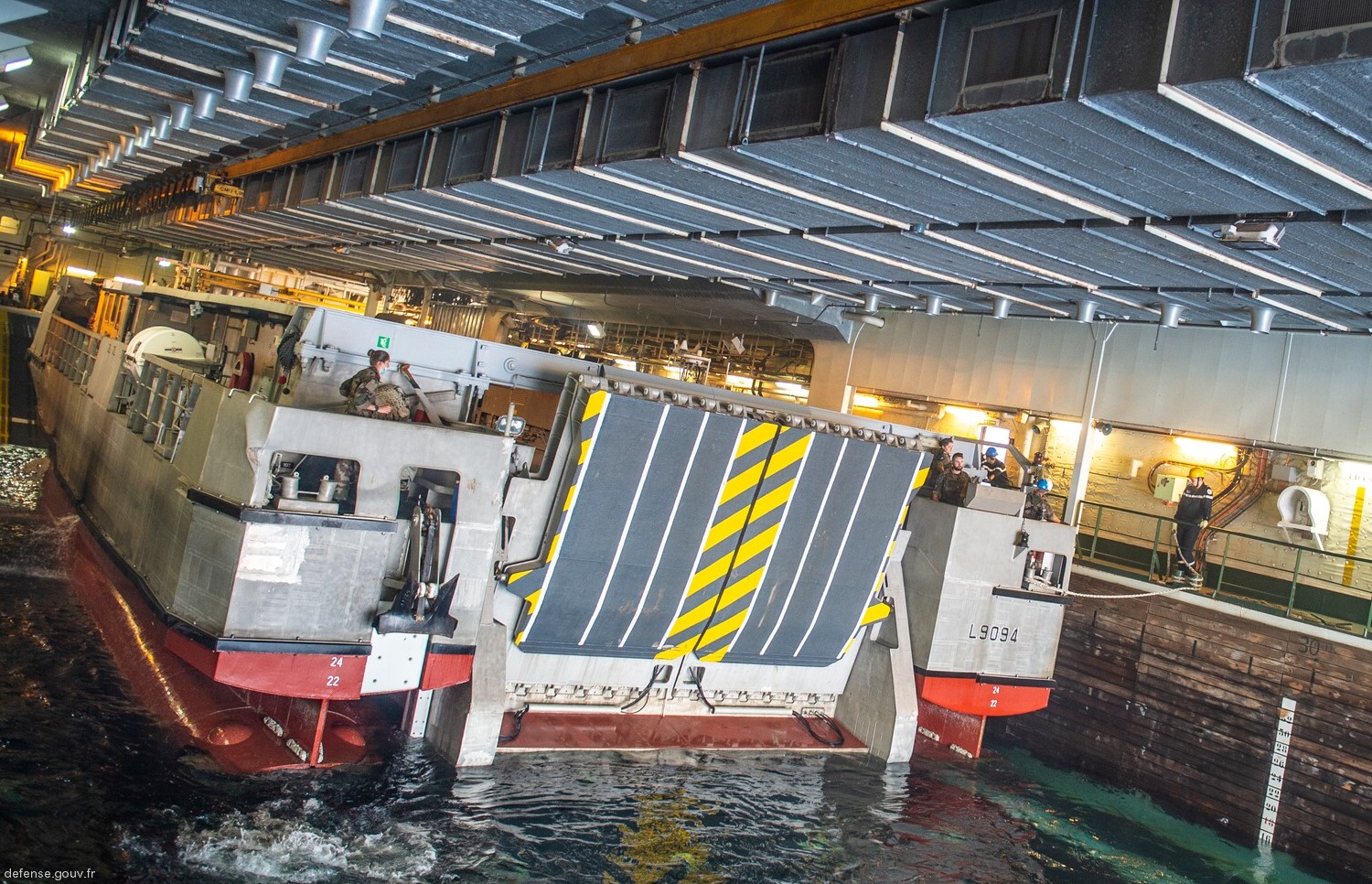

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 02

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 08

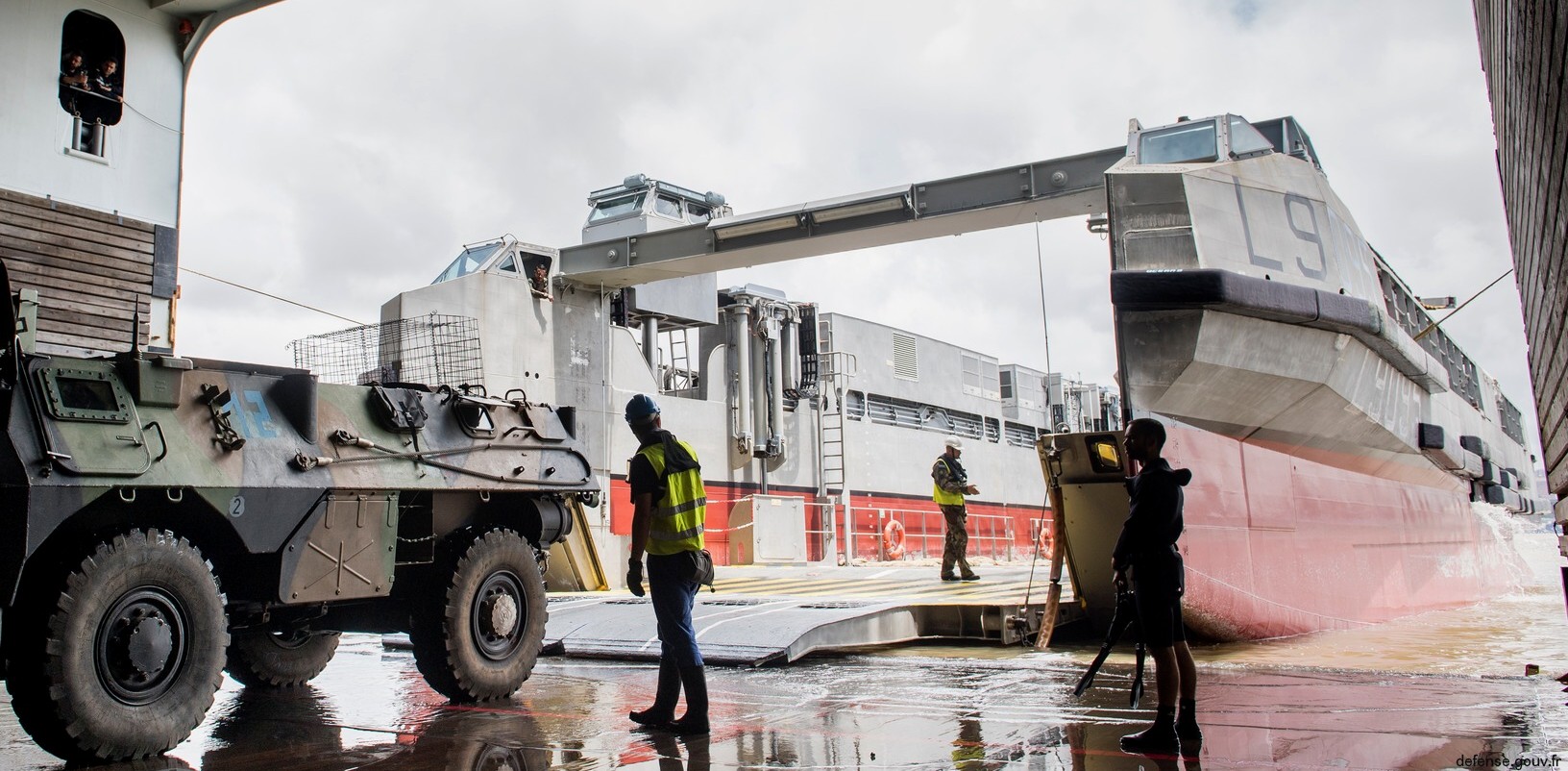

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 24

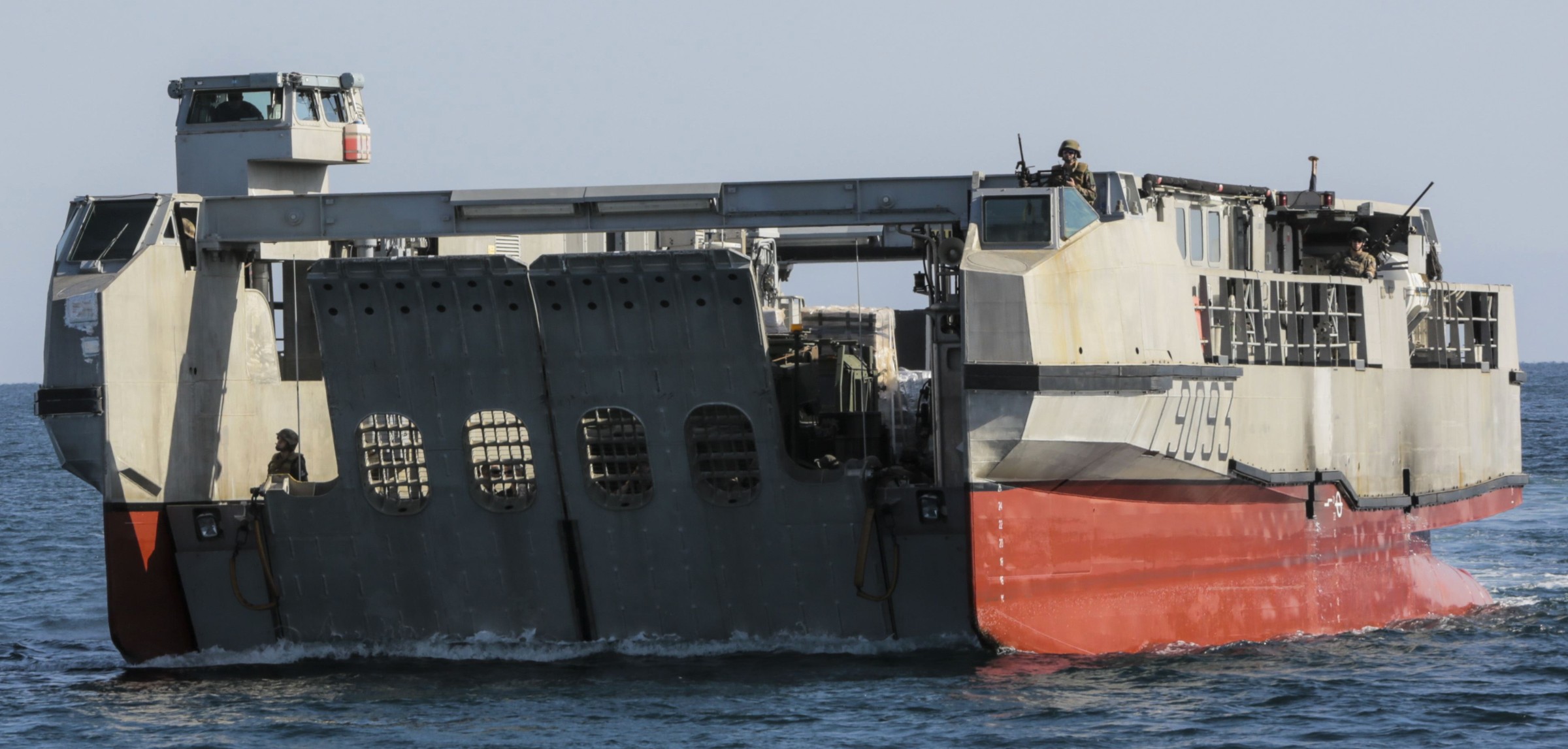

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 09

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 10

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 04

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 03

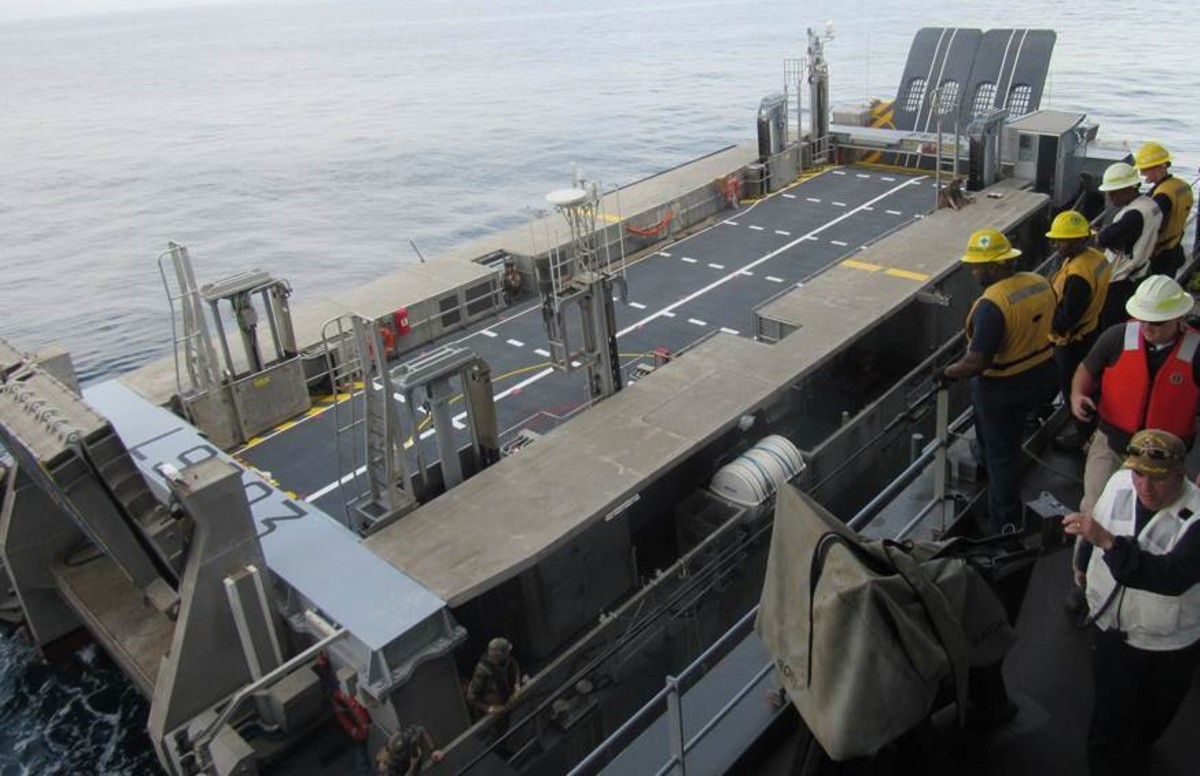

eda-r landing catamaran l-cat amphibious engin de débarquement amphibie rapide french navy marine nationale 05
