 Type 052D Luyang III class Guided Missile Destroyer


type 052d luyang class guided missile destroyer ddg china people's liberation army navy plan 154x
03/24
Ships:
Unit / Name
Batch 1 (157 m variant)		 Name (Han) Builder Launched Commissioned STATUS
DDG 172 PLANS Kunming 昆明 Jiangnan August 29, 2012 March 21, 2014 ACTIVE
DDG 173 PLANS Changsha 长沙 Jiangnan December 19, 2012 August 12, 2015 ACTIVE
DDG 174 PLANS Hefei 合肥 Jiangnan July 1, 2013 December 12, 2015 ACTIVE
DDG 175 PLANS Yinchuan 银川 Jiangnan March 28, 2014 July 12, 2016 ACTIVE
DDG 117 PLANS Xining

西宁

 Jiangnan August 26, 2014 January 22, 2017 ACTIVE
DDG 154 PLANS Xiamen 厦门 Jiangnan December 30, 2014 June 10, 2017 ACTIVE
DDG 118 PLANS Urumqi 乌鲁木齐 Jiangnan July 7, 2015 January 2018 ACTIVE
DDG 119 PLANS Guiyang 贵阳  Dalian November 28, 2015 February 22, 2019 ACTIVE
Unit / Name
Batch 2 (157 m variant)		 Name (Han) Builder Launched Commissioned STATUS
DDG 155 PLANS Nanjing 南京 Jiangnan December 28, 2015 April 2, 2018  ACTIVE
DDG 131 PLANS Taiyuan 太原 Jiangnan July 28, 2016 November 29, 2018 ACTIVE
DDG 161 PLANS Hohhot 呼和浩特 Jiangnan December 26, 2016 January 12, 2019 ACTIVE
DDG 120 PLANS Chengdu 成都 Dalian August 3, 2016 August 1, 2019 ACTIVE
DDG 121 PLANS Qiqihar

齐齐哈尔

 Dalian June 26, 2017 August 14, 2020 ACTIVE
Unit / Name
Batch 3 (161 m variant - Type 052DL)		 Name (Han) Builder Launched Commissioned STATUS
DDG 156 PLANS Zibo 淄博 Jiangnan June 29, 2018 January 12, 2020 ACTIVE
DDG 122 PLANS Tangshan 唐山 Jiangnan July 7, 2018 August 14, 2020 ACTIVE
DDG 132 PLANS Suzhou 苏州 Jiangnan December 19, 2018 January 15, 2021 ACTIVE
DDG 123 PLANS  Huainan 淮南 Jiangnan April 15, 2019 February 2021 ACTIVE
DDG 162 PLANS Nanning 南宁 Jiangnan February 23, 2019 April 12, 2021 ACTIVE
DDG 124 PLANS Kaifeng 开封 Dalian May 10, 2019 April 16, 2021 ACTIVE
DDG 164 PLANS Guilin 桂林 Jiangnan September 26, 2019 September 2021 ACTIVE
DDG 165 PLANS Zhanjiang 湛江 Dalian May 10, 2019 December 25, 2021 ACTIVE
DDG 133 PLANS Baotou 包头 Jiangnan August 28, 2019 December 28, 2021 ACTIVE
DDG 163 PLANS Jiaozuo 焦作 Jiangnan December 28, 2019 January 17, 2022 ACTIVE
DDG 134 PLANS Shaoxing 绍兴 Dalian December 26, 2019 February 2022 ACTIVE
DDG 157 PLANS Yeosu 丽水 Dalian August 30, 2020 June 2022 ACTIVE
Unit / Name
Batch 4		 Name (Han) Builder Launched Commissioned STATUS
DDG 135 PLANS Dazhou 达州 Jiangnan December 28, 2022 2024 ? outfitting
DDG 125 PLANS ?   Dalian March 10, 2023 2025 ? outfitting
DDG 126 PLANS ?   Dalian March 10, 2023 2025 ? outfitting
DDG 158 PLANS ?   Dalian August 28, 2023 2025 ? outfitting
DDG 176 PLANS ?   Jiangnan December 25, 2023 2025 ? outfitting
DDG 166 PLANS ?   Dalian January 28, 2024 2026 ? outfitting
DDG 177 PLANS ?   Dalian 2024 ? 2026 ? building
    Jiangnan 2024 ? 2026 ? building
    Jiangnan 2024 ? 2026 ? building

Specifications:

Builders:
 Jiangnan Shipyard (Group) Co. Ltd., Shanghai, China
Dalian Shipbuilding Industry Company (DSIC), Dalian, Liaoning Province, China

Displacement: 7500 tons (full load)
Length: 157 meters (515 feet) or 161 m (528 ft) - extended flight deck variant
Beam: 17 meters (56 ft)
Draft: 6 meters (20 ft)
Speed: 30 knots (56 km/h)
Range: ?
Complement: 280

Propulsion:
Combined Diesel or Gas (CODOG)
2 x QC-280 gas turbines (28 MW / 38000 hp, each)
2 x MTU-20 V956 TB92 diesel engines (3.82 MW / 10250 hp, each)
2 shafts / 2 controllable pitch propellers

Armament:

Vertical Launching System (VLS)
64 cells for:
HHQ-9B long-range surface-to-air missiles (SAM)
HHQ-16 / DK-10 medium-range surface-to-air missiles (SAM)
YJ-18 / YJ-83 anti-ship and land attack missiles (SSM)
CY-5 missile-launched anti-submarine torpedoes

1 x H/PJ-45A 130 mm naval gun
1 x HHQ-10 close-in air defense missile system (24 missiles)
1 x Type 730 H/PJ-12 close-in weapon system (CIWS) - early units
 1 x Type 1130H/PJ-11 close-in weapon system (CIWS) - later units
 2 x Type 7424B triple torpedo tubes for Yu-8 torpedoes
 4 x decoy launchers

Aviation:
 flight deck and hangar for 1 helicopter
Systems:
H/LJG-346A Dragon Eye (C/S-band) active electronically scanned array (AESA) radar
SAPARS (Shipborne Active Phased Array Radar System)

H/LJQ-366 long range air/surface search radar
H/LJQ-364 surface search radar
H/LJQ-517B air surveillance radar
H/LJP-349 fire control radar (CIWS)
H/LJP-344A phased array fire control radar (gun)
H/SJD-9 hull-mounted sonar
H/SJG-311 active/passive towed array sonar (TASS)
? variable depth sonar (VDS)
H/RJZ-726 electronic countermeasure system


images

type 052d luyang class guided missile destroyer armament 64-cell vls 130mm gun type 730 hhq-10 ciws cecoy torpedo china plan

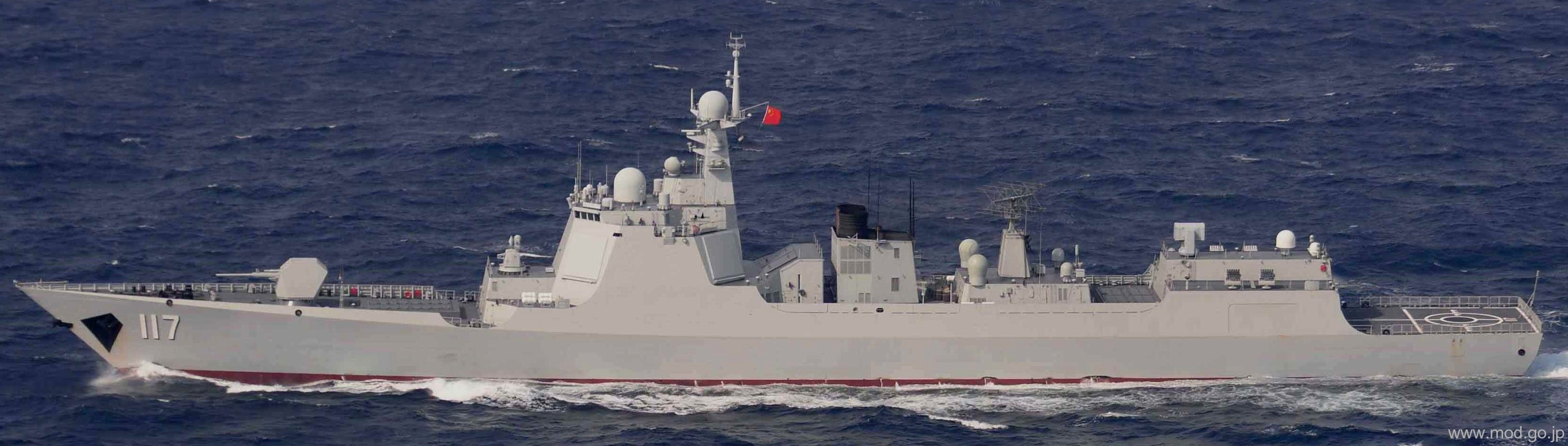

ddg-117 plans xining type 052d luyang class guided missile destroyer ddg china people's liberation army navy 02
117 PLANS Xining

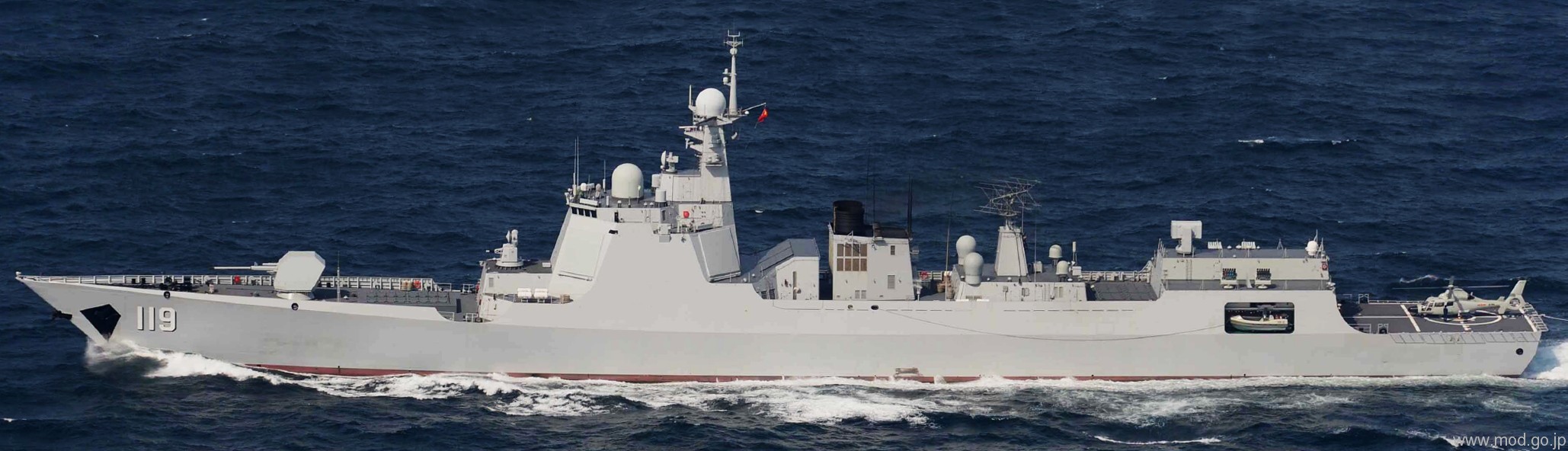

ddg-119 plans guiyang type 052d luyang class guided missile destroyer ddg china people's liberation army navy 02
119 PLANS Guiyang

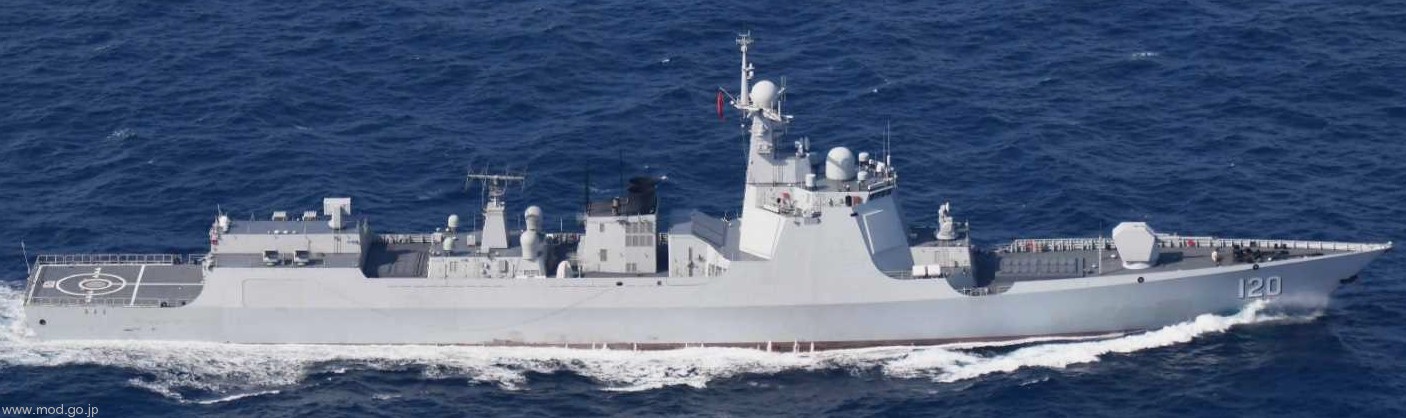

ddg-120 plans chengdu type 052d luyang class guided missile destroyer ddg china people's liberation army navy 02
DDG 120 PLANS Chengdu

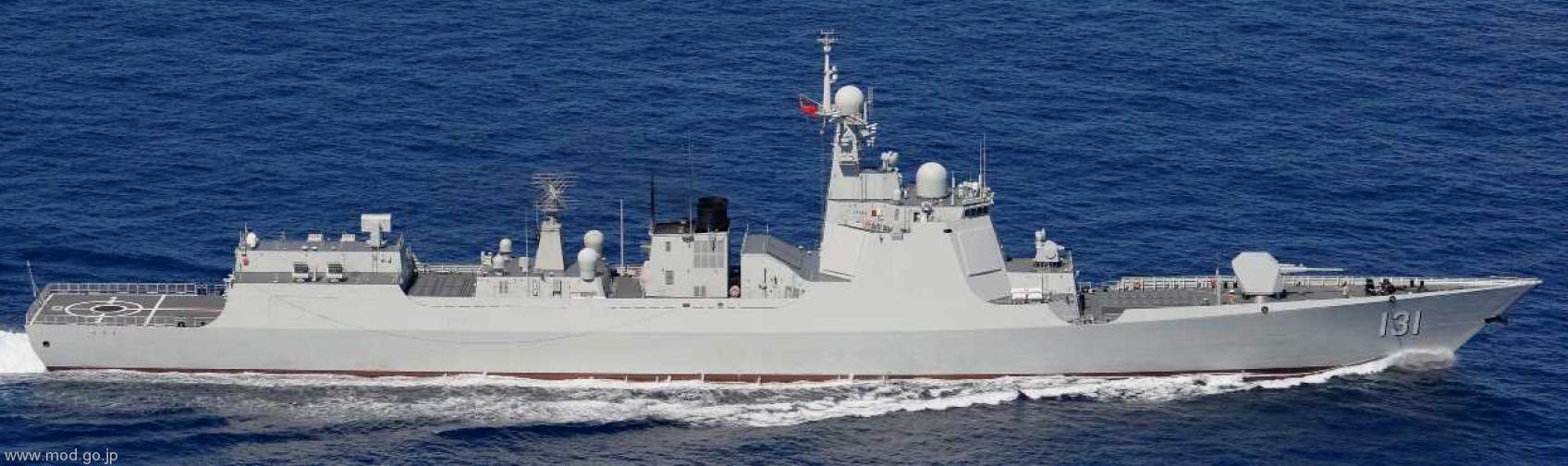

ddg-131 plans taiyuan type 052d luyang class guided missile destroyer ddg china people's liberation army navy 02
131 PLANS Taiyuan

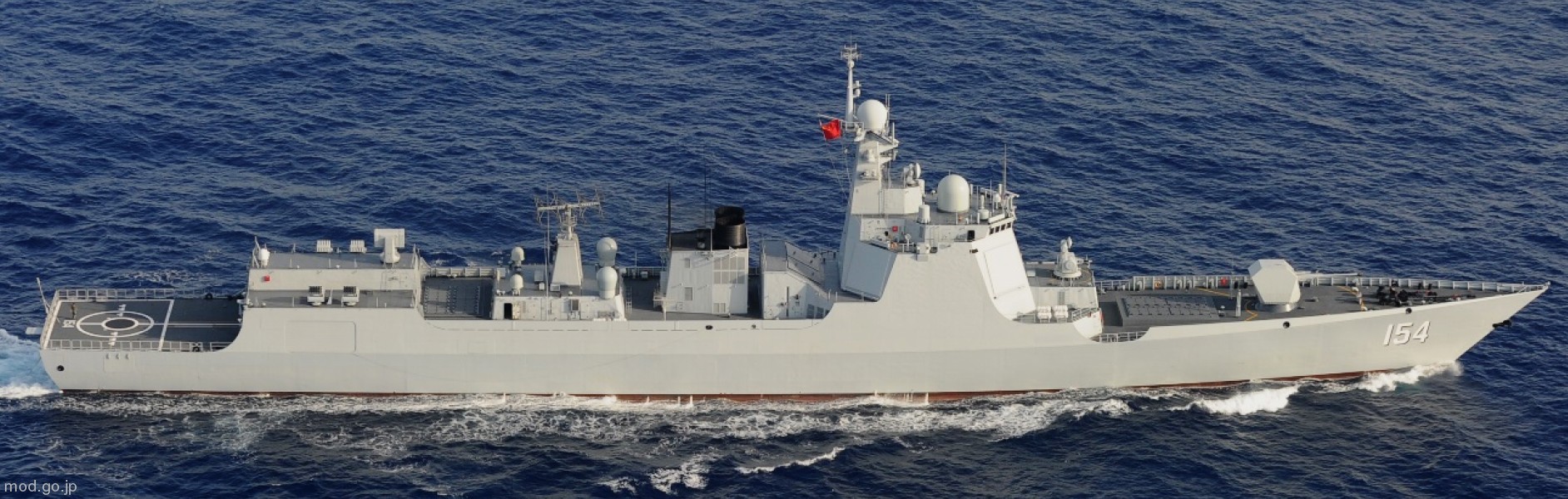

ddg-154 plans xiamen type 052d luyang class guided missile destroyer ddg china people's liberation army navy 02
154 PLANS Xiamen

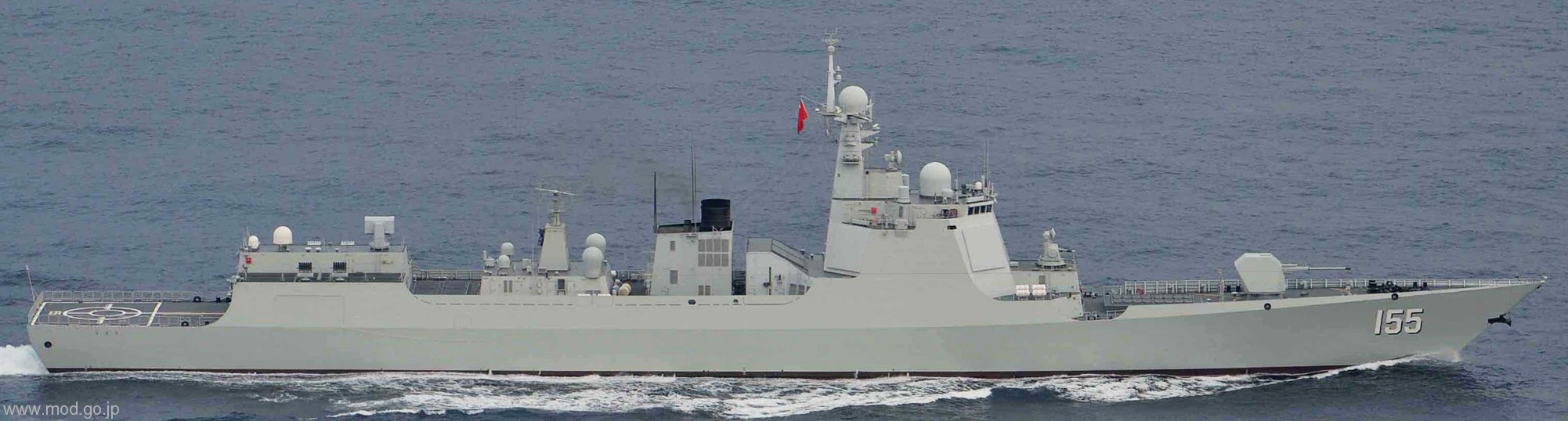

ddg-155 plans nanjing type 052d luyang class guided missile destroyer ddg china people's liberation army navy 02
155 PLANS Nanjing

ddg-155 plans nanjing type 052d luyang class guided missile destroyer ddg china people's liberation army navy 03
155 PLANS Nanjing

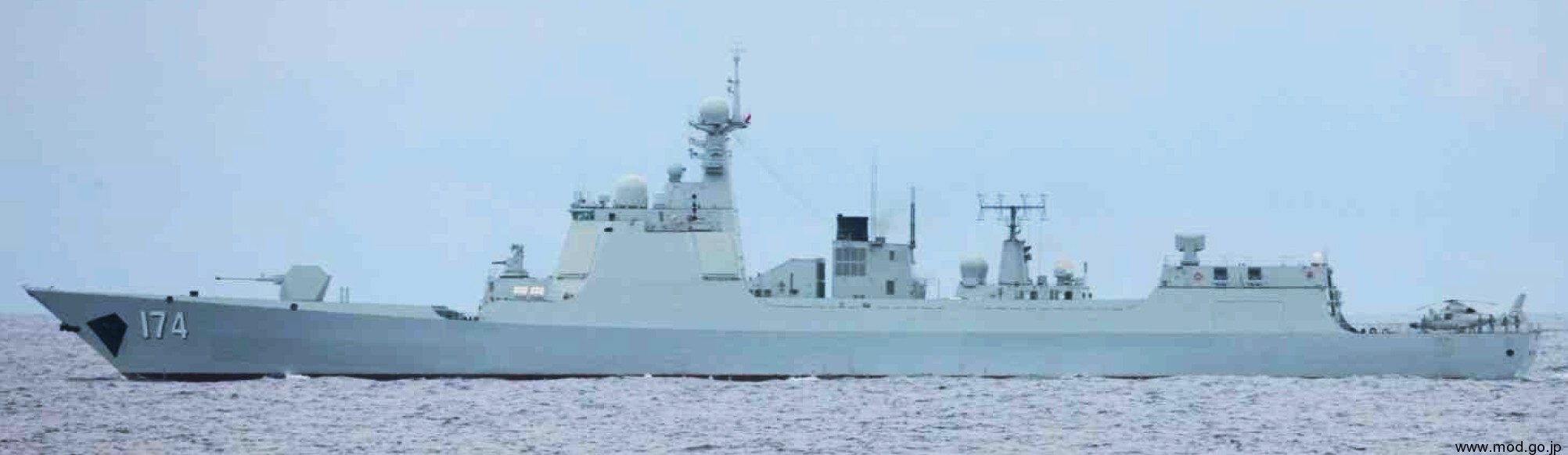

ddg-174 plans hefei type 052d luyang class guided missile destroyer ddg china people's liberation army navy 02
