Type 051C Luzhou class Guided Missile Destroyer DDG China

China - People's Liberation Army Navy
Type 051C Luzhou class Guided Missile Destroyer

type 051c luzhou class guided missile destroyer ddg china people's liberation army navy plans shenyang shijiazhuang 115 116

02/22

Ships:

Unit / Name	Name (Han)	Builder	Launched	Commissioned	STATUS
DDG 115 PLANS Shenyang	沈阳	Dalian	December 28, 2004	November 28, 2006	ACTIVE
DDG 116 PLANS Shijiazhuang	石家庄	Dalian	July 26, 2005	March 2007	ACTIVE

Specifications:

Builder:
Dalian Shipbuilding Industry Company (DSIC), Dalian, Liaoning Province, China

Displacement: 6600 tons (standard) / 7300 tons (full load)
Length: 155 meters (508 feet 6 inches)
Beam: 17.2 meters (56 ft)
Draft: 6 meters (19 ft 8 in)
Speed: 30 knots (56 km/h)
Range: 6500 NMI (12000 km) at 15 knots (28 km/h)
Complement: 280

Propulsion:
2 x steam turbines (94000 hp, total)
4 boilers
2 shafts / 2 propellers

Armament:

Vertical Launching System (VLS)
6 VLS-canisters x 8 missiles = 48
S-300FM (SA-N-20) surface-to-air missiles (SAM)

1 x H/PJ-87 100mm naval gun
2x4 YJ-83 (C-803) anti-ship missiles (SSM)
2 x Type 730 H/PJ-12 close-in weapon system (CIWS)
2x3 324mm torpedo tubes for Yu-7 torpedoes
2 x Type 946 decoy launchers (15 cells)
2 x Type 726 decoy launchers (18 cells)

Aviation:
flight deck for 1 helicopter - no hangar

Systems:
Fregat MAE-5 (NATO = Top Plate) 3D air search phased array radar
Type 364 (SR-64 Seagull-C) air and surface search radar
Type 362 (MR-36) air and surface search radar
Mineral-ME (NATO = Band Stand) over-the-horizon targeting radar
30N6 Tombstone 3D phased-array target tracking radar
2 x Type 347G I-band fire-control radar (CIWS)
SJD-9 active/passive bow sonar

images

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-115 shenyang 03

DDG 115 PLANS Shenyang

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-115 shenyang 04

DDG 115 PLANS Shenyang

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-115 shenyang 05

DDG 115 PLANS Shenyang

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-115 shenyang 06

DDG 115 PLANS Shenyang

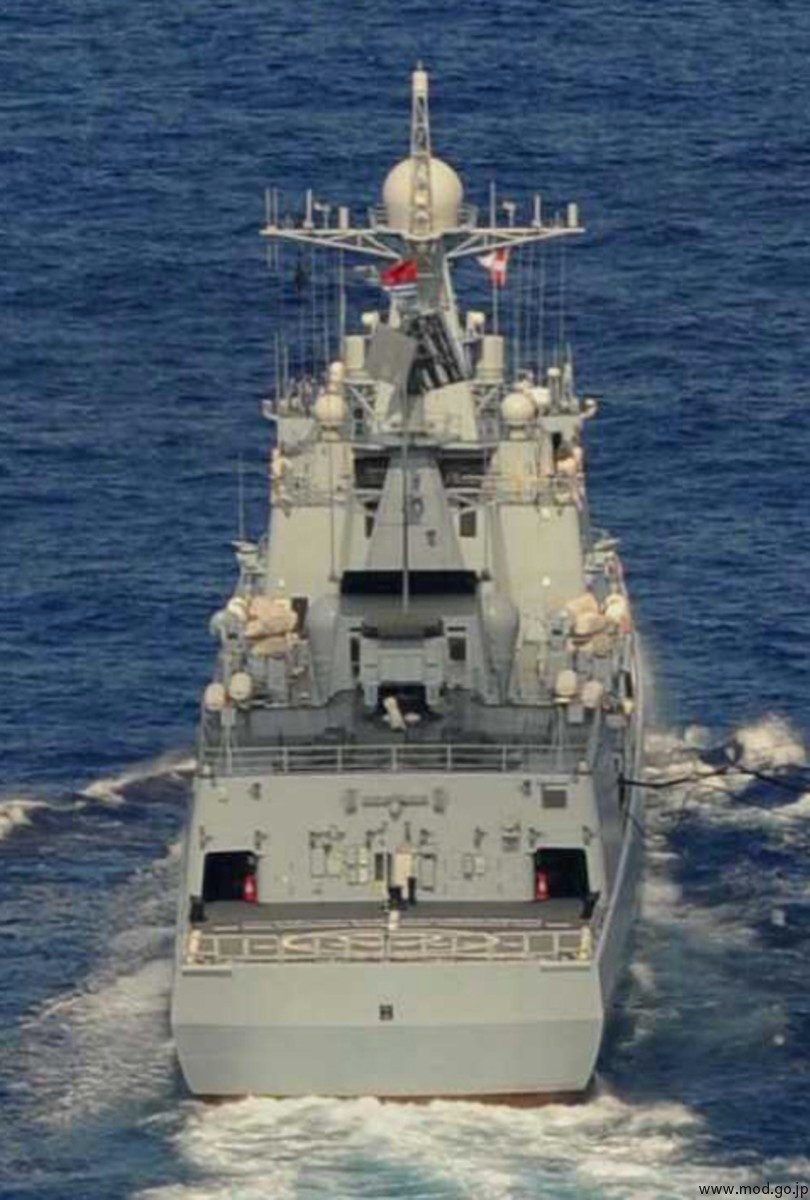

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-115 shenyang 02

DDG 115 PLANS Shenyang

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-116 shijiazhuang 02

DDG 116 PLANS Shijiazhuang

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-116 shijiazhuang 03

DDG 116 PLANS Shijiazhuang

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-116 shijiazhuang 04

DDG 116 PLANS Shijiazhuang

type 051c luzhou class guided missile destroyer people's liberation army navy china plans ddg-116 shijiazhuang 05

DDG 116 PLANS Shijiazhuang

type 051c luzhou class guided missile destroyer people's liberation army navy china s-300fm sa-n-20 sam yj-83 c-803 ssm type-730 ciws vls armament 02

type 051c luzhou class guided missile destroyer people's liberation army navy china s-300fm sa-n-20 sam yj-83 c-803 ssm type-730 ciws vls armament 02
