Royal Canadian Navy - Marine Royale
Canadienne Lockheed CP-140 Aurora (operated by Royal Canadian Air Force) |
||||
 |
||||
| 01/22 | ||||
| Units: | ||||
|
||||
| Description + Specifications: | ||||
|

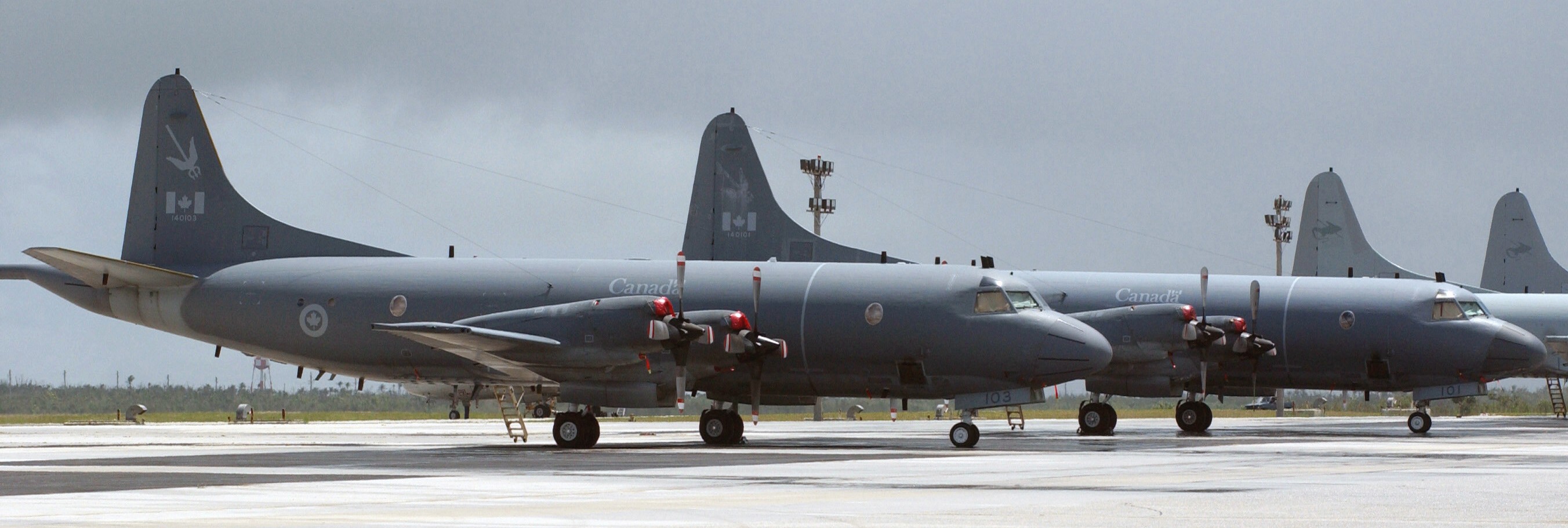

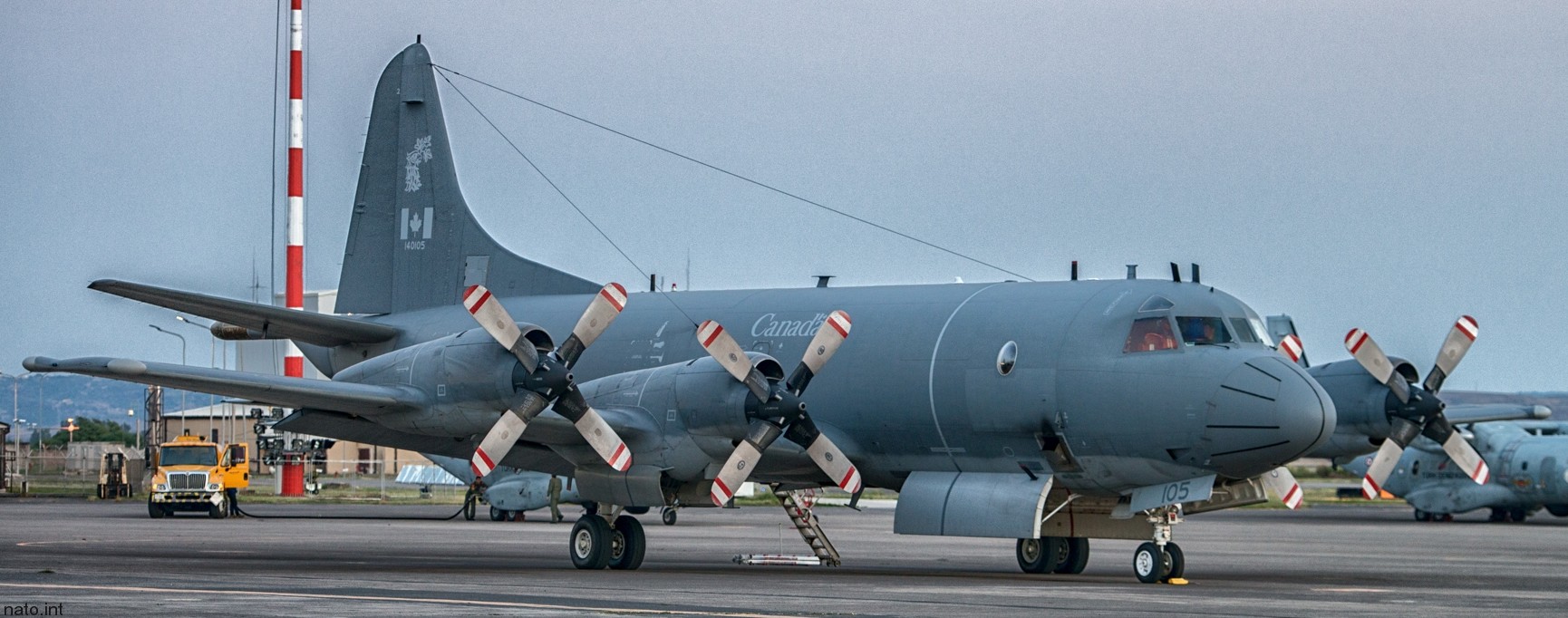

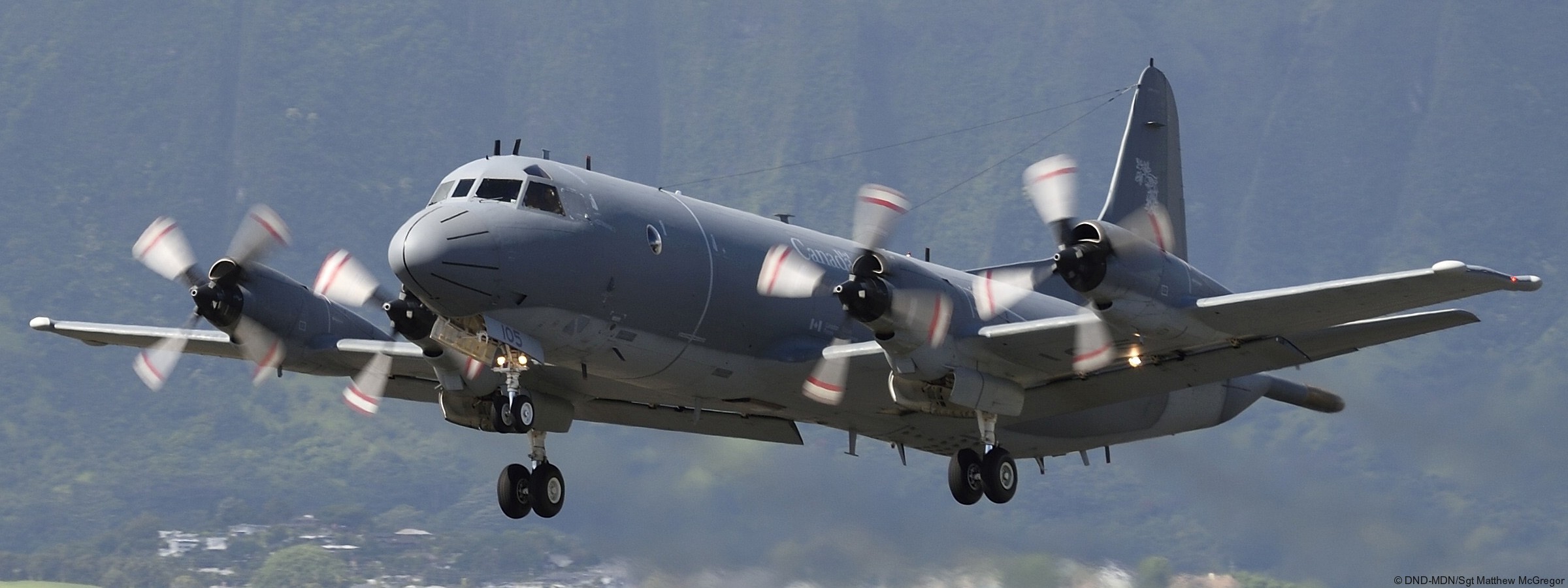

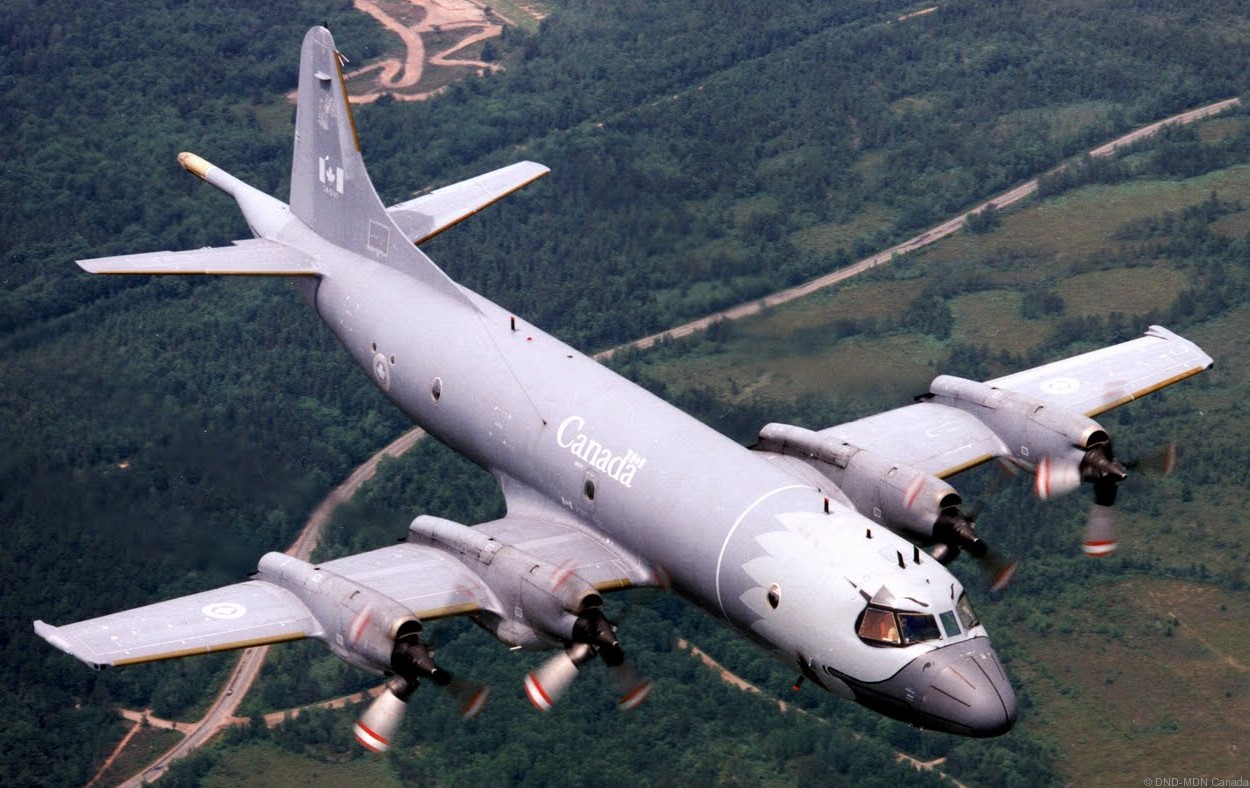

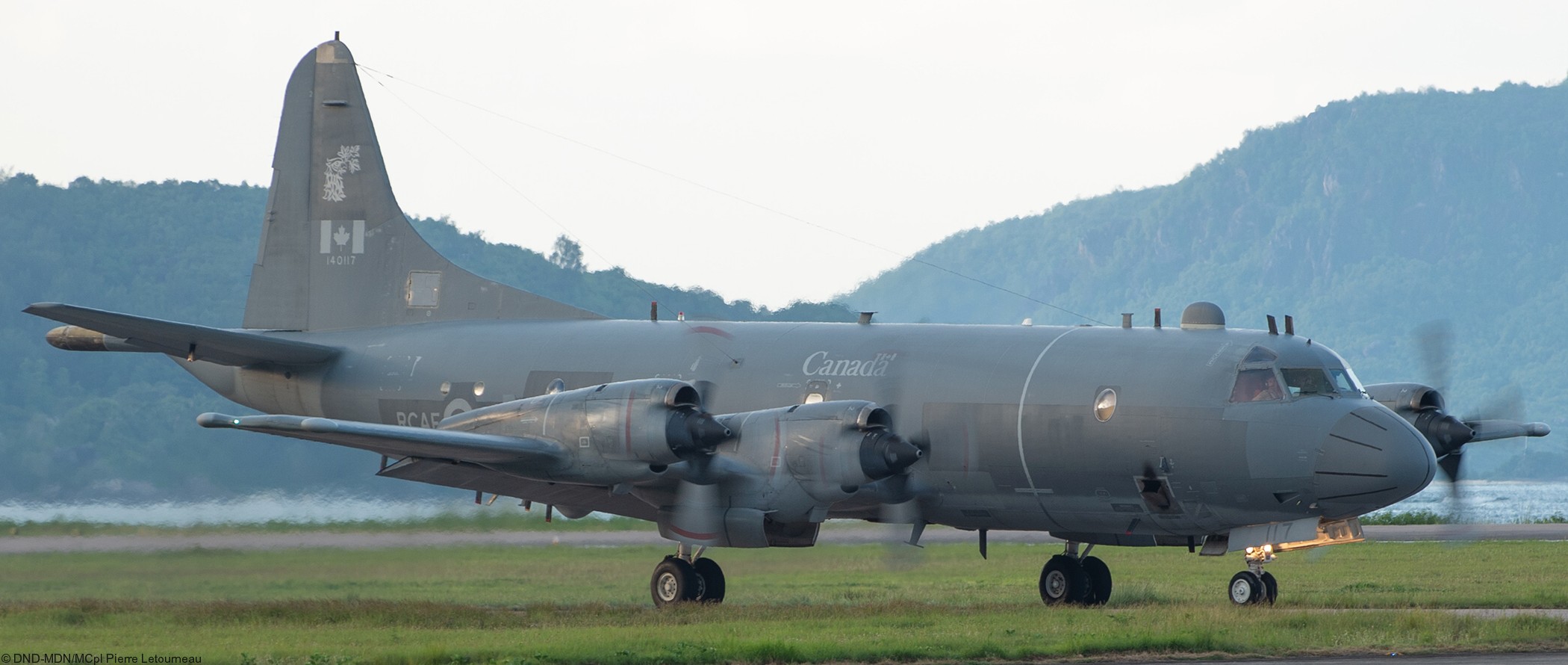

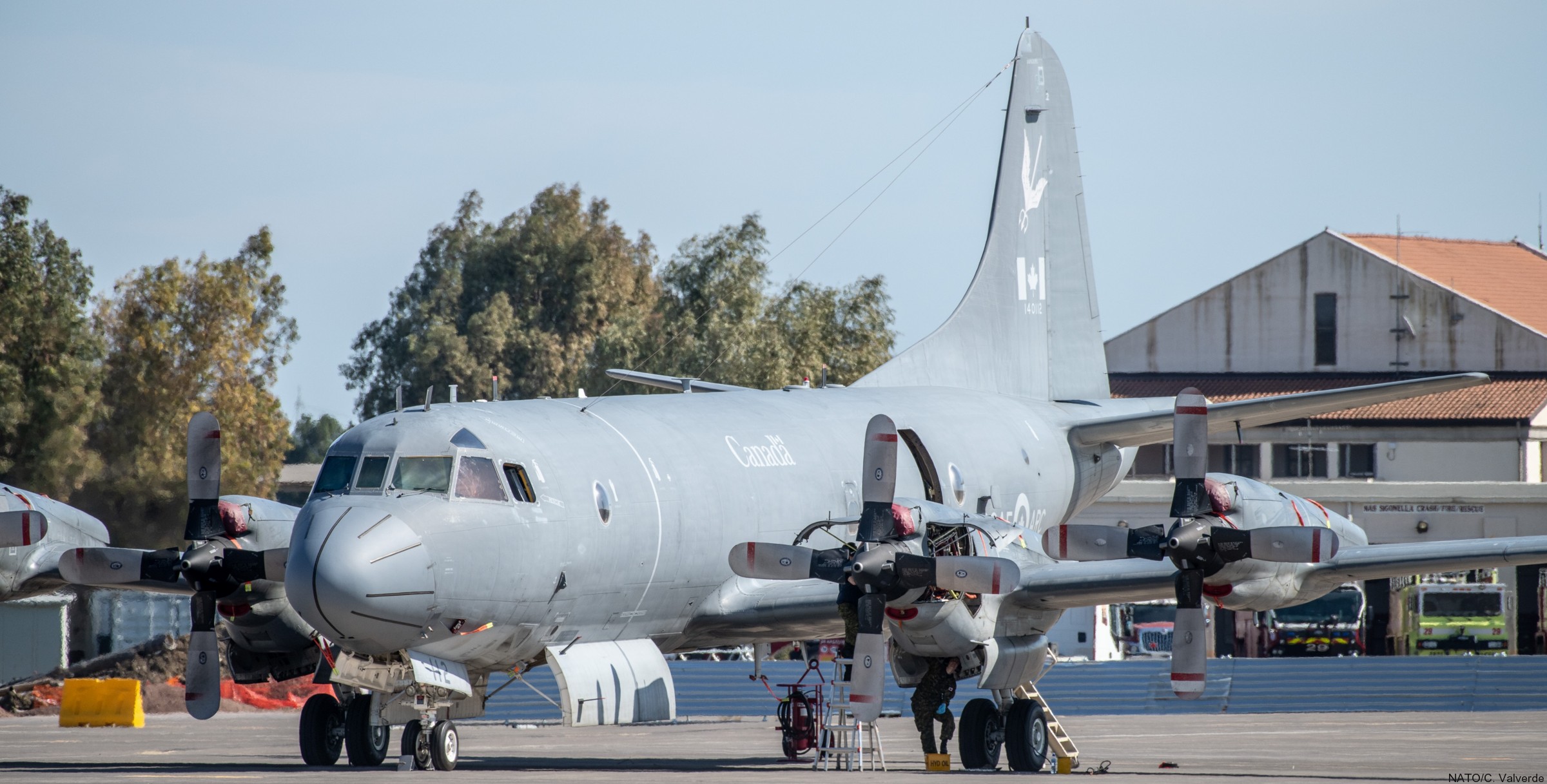

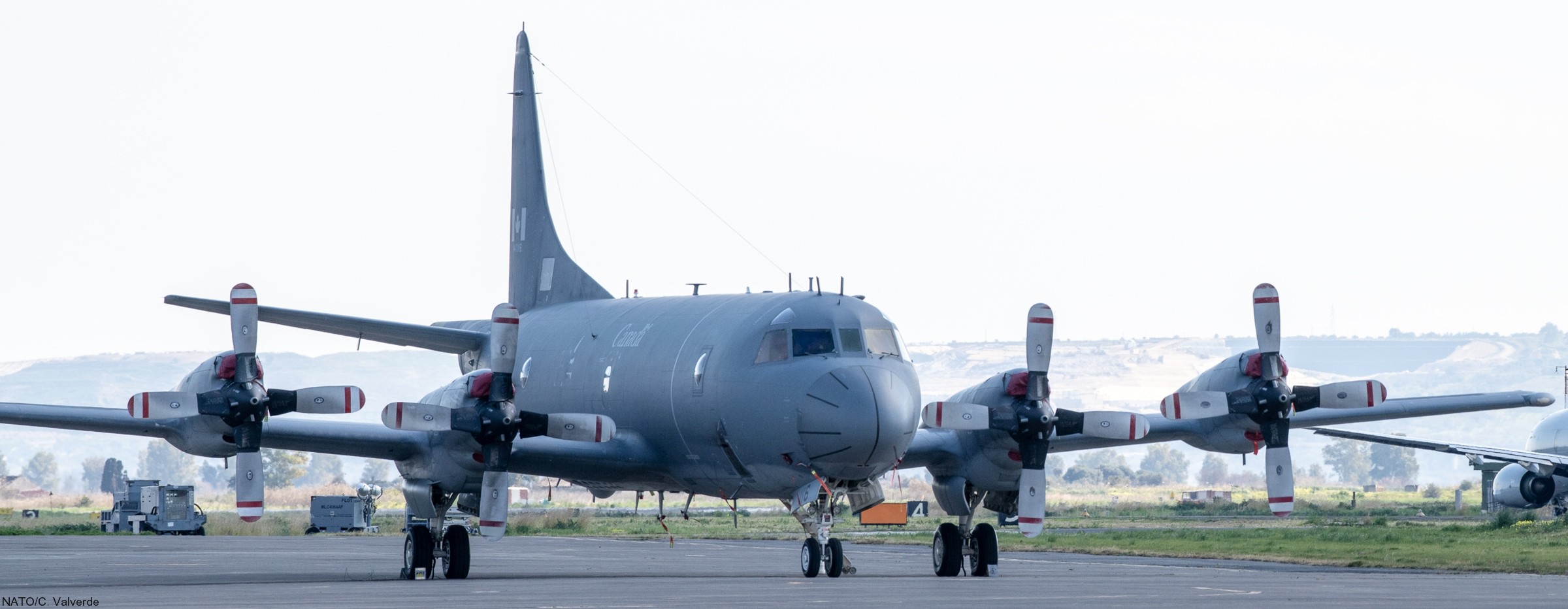

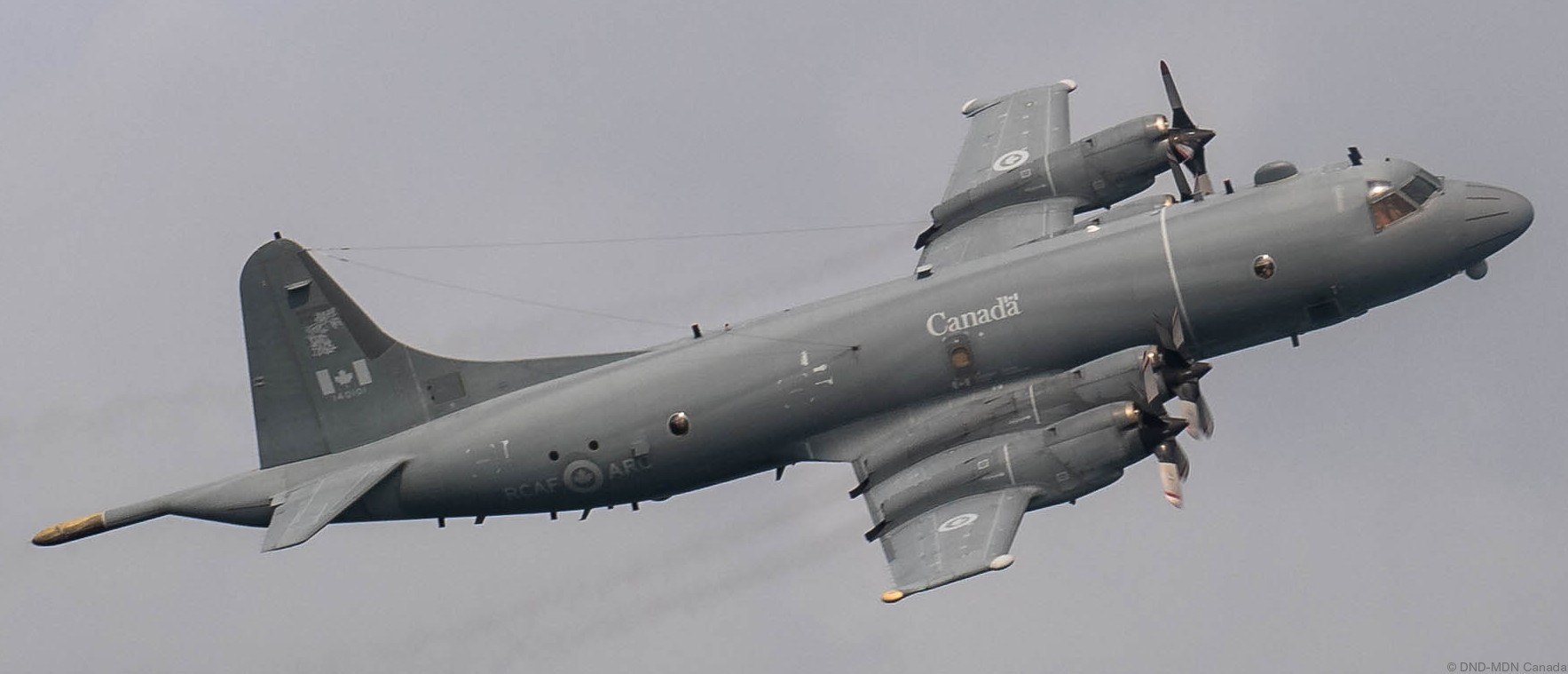

The Lockheed CP-140 Aurora is a
maritime patrol aircraft operated by the Royal Canadian Air
Force. The aircraft is based on the Lockheed P-3 Orion airframe,
but mounts the electronics suite of the Lockheed S-3 Viking.
"Aurora" refers to the Roman goddess of dawn who flies across
the sky each morning ahead of the sun. Aurora also refers to the
Aurora Borealis, the "northern lights", that are prominent over
northern Canada and the Arctic Ocean. The CP-140A Arcturus was a related variant used primarily for pilot training and coastal surface patrol missions. Design and development: The CP-140 Aurora is very similar externally to the Lockheed P-3C Orion (Canadian ESM wingtip pods instead of the American ESM wing pod), but is different internally, using two sets of mission systems that were first installed in yet another Lockheed anti-submarine warfare aircraft, the carrier-based S-3A Viking. The aircraft's sensors are primarily intended for anti-submarine warfare (ASW) work but are also capable of maritime surveillance, counter-drug and search-and-rescue missions. The CP-140 is Canada's only strategic Intelligence Surveillance and Reconnaissance (ISR) aircraft, conducting long range missions over land, water and littoral areas. These missions are flown in support of Canadian Joint Operations Command, the RCMP, and several other federal government departments. In 1991, Lockheed shut down its production lines in Burbank, California, for the P-3 Orion, which shares the same airframe with the CP-140. Three surplus airframes on hand were purchased by the Air Command, but delivered without the anti-submarine fit. These three aircraft were designated the CP-140A Arcturus and were used primarily for pilot training and coastal surface patrol missions. Aurora Incremental Modernization Project: The Aurora Incremental Modernization Project (AIMP), initiated in 1998 to upgrade electronics of the Aurora fleet was halted by the government on 20 September 2007 to evaluate whether the aging fleet should continue to be upgraded or replaced by more modern aircraft. On 18 December 2007 the Department of National Defence rescinded this work suspension so that the project could continue. Work includes upgrading computer, navigation, communication and radar systems as well as making structural improvements to ten of eighteen aircraft. The intent of the modernization project is to "keep the aircraft safe and operationally viable until 2020.". AIMP is currently divided into four "blocks". Block I is complete and concentrated on the replacement of unsupportable systems. Block II brought a glass cockpit with the Navigation and Flight Instruments (NFI) component provided by CMC Electronics, and a complete replacement of the communications suite. Block III is currently in progress, and is a wholesale replacement of the aircraft's sensors and mission computer. Block IV will consist of further upgrades to the tactical compartment and mission systems. Once AIMP was completed the CP-140 was designated as CP-140M. Aurora Structural Life Extension Program: The Aurora Structural Life Extension Project (ASLEP) is proceeding with 14 of the 18 Auroras scheduled to receive new wings and the replacement of key structural components. The complete ASLEP solution replaces the aircraft's outer wings, centre wing lower section and horizontal stabilizers with new production components. All fatigue-life limiting structures on the aircraft are replaced with enhanced-design components and improved corrosion-resistant materials that will greatly reduce maintenance costs over the aircraft's service life. This program is expected to extend the CP140s' service life by 15,000 flight hours per airframe. Operational history: CP-140 Aurora: The Aurora was acquired in the early 1980s to replace the CP-107 Argus and to further support Canada's anti-submarine warfare mission obligations under NATO for the northwest Atlantic sector. Short deployments to Alaska (Adak), Hawaii (Kaneohe Bay), Iceland (Keflavik), the UK (St Mawgan and Kinloss), and Norway (Andoya) were the norm. However, since the end of the Cold War, they have been used primarily in coastal surveillance and sovereignty patrols by providing an all-weather mission surveillance platform. Increasingly, as the CP-140 moves into the 21st century, it is employed for domestic and international surveillance by CANCOM for security, counter-terrorism and smuggling, as well as to monitor foreign fishing fleets off Canada's coasts. CP-140s have also been deployed on operations such as Operation Assistance and Operation Apollo. Deployments have included OP SHARPGUARD (Yugoslavia blockade), OP SIRIUS (Mediterranean Patrols), OP APOLLO (Persian Gulf region), and counter-narcotics patrols in the Gulf of Mexico and Pacific. Through all this, patrols of the Canadian Arctic continue to take advantage of the airframe's unique abilities. In 2011-2012, CP-140 aircraft performed maritime patrol missions in the Libyan waters in order to help in the enforcement of the no-fly zone over Libya under Operation Odyssey Dawn and Operation Unified Protector. As of January 2017, two CP-140s were conducting overland surveillance missions against ISIL as part of Operation Impact. However one aircraft was withdrawn in May 2017. From October 2018, due to support the implementation of United Nations Security Council sanctions imposed against North Korea, Canadian Armed Forces deploy periodically a Canadian frigate and/or a CP-140 Aurora on Operation Neon. CP-140A Arcturus: Lacking the expensive, heavy and sensitive anti-submarine warfare as well as the anti-surface warfare fittings of the CP-140 Aurora, the Arcturus was more fuel efficient and was used for crew training duties (such as touch-and-go landing practice), general maritime surface reconnaissance (detecting drug operations, smuggling of illegal immigrants, fisheries protection patrols, pollution monitoring, etc.), search-and-rescue assistance and Arctic sovereignty patrols. The Arcturus did possess a superior AN/APS-507 surface search radar, incorporating modern functions such as track-while-scan that the Aurora's AN/APS-506 radar lacks but the Arcturus did not have an integrated mission computer, or mission systems. It did, however, maintain the same military communications suite as the CP-140 Aurora. All three aircraft were based at 14 Wing. Upon retirement from flying operations, one was used for technician training with 404 Long Range Patrol and Training Squadron on base CFB Greenwood, Nova Scotia before being moved to the Greenwood Military Aviation Museum on base. The last two of the CP-140As were retired in 2011 when they were delivered to the Aerospace Maintenance and Regeneration Group (AMARG) in Tucson, Arizona. Replacement: Several options have been suggested for a CP-140M replacement. These include the Boeing P-8 Poseidon and the Raytheon Sentinel, based on the Bombardier Global Express. Plans are to downsize the fleet from 18 to 14 aircraft, with three already being withdrawn and a fourth as a test aircraft to be retired in the near future. Specifications (CP-140): Crew: Mission minimum 8, typically 12 to 15 Length: 116 ft 10 in (35.61 m) Wingspan: 99 ft 8 in (30.38 m) Height: 33 ft 8.5 in (10.274 m) Wing area: 1,300 sq ft (120 m2) Gross weight: 61,362 lb (27,833 kg) Powerplant: 4 x Allison T56-A-14-LFE turboprop engines, 4,909 hp (3,661 kW) each Propellers: 4-bladed Hamilton Standard 54H60, 13 ft 6 in (4.11 m) diameter constant-speed fully-feathering reversible-pitch propellers Maximum speed: 375 kn (432 mph, 694 km/h) below cruise ceiling Maximum transit speed: 395 kn (455 mph; 732 km/h) at optimum altitude Range: 5,000 nmi (5,800 mi, 9,300 km) Endurance: 8 hours 12 minutes on station at 1,000 nmi (1,151 mi; 1,852 km) radius Service ceiling: 35,100 ft (10,700 m) Take-off distance to 50 ft (15 m): 6,000 ft (1,829 m) Armament: 8 x in weapons bay 10 x under-wing from 611 to 2,450 lb (277 to 1,111 kg) capacity with a capacity of 4,800 lb (2,177 kg) total in weapons bay Mk.46 Mod V torpedoes signal chargers, smoke markers, illumination flares source: wikipedia + DND-MDN Canada |
||||
| images | ||||
|
in service: 18 Lockheed CP-140 Aurora (serials: 140101-140118) 3 Lockheed CP-140A Arcturus (serials: 140119-140121) |
||||

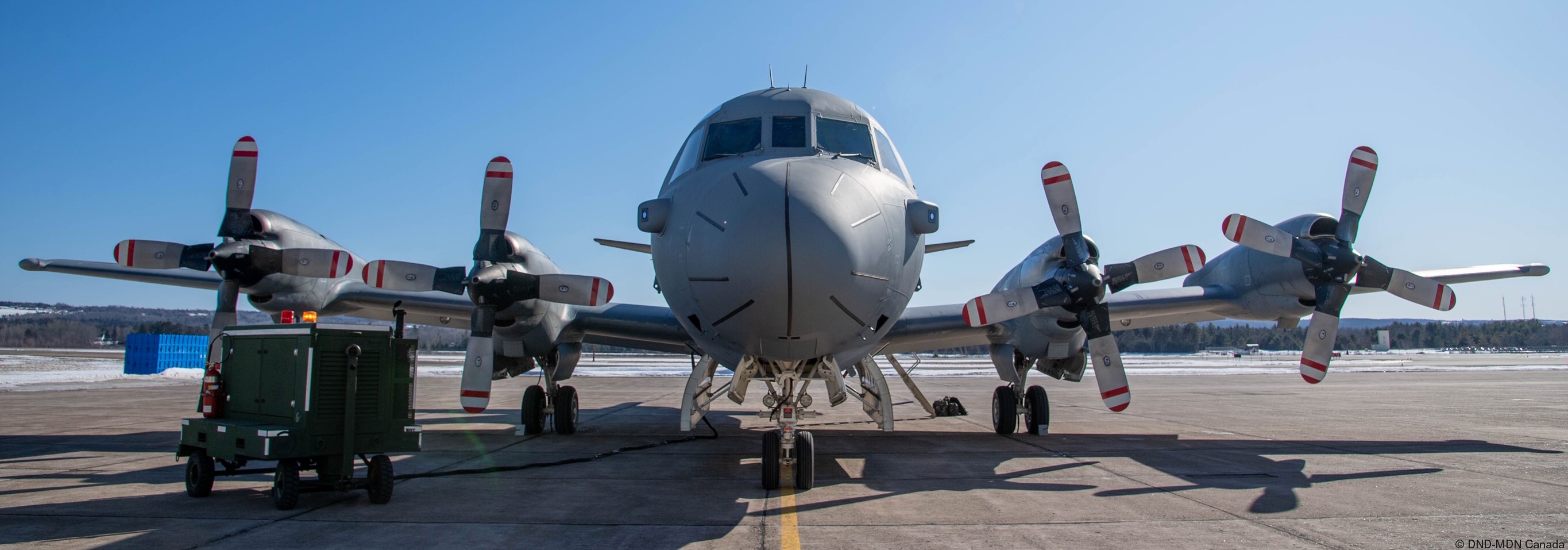

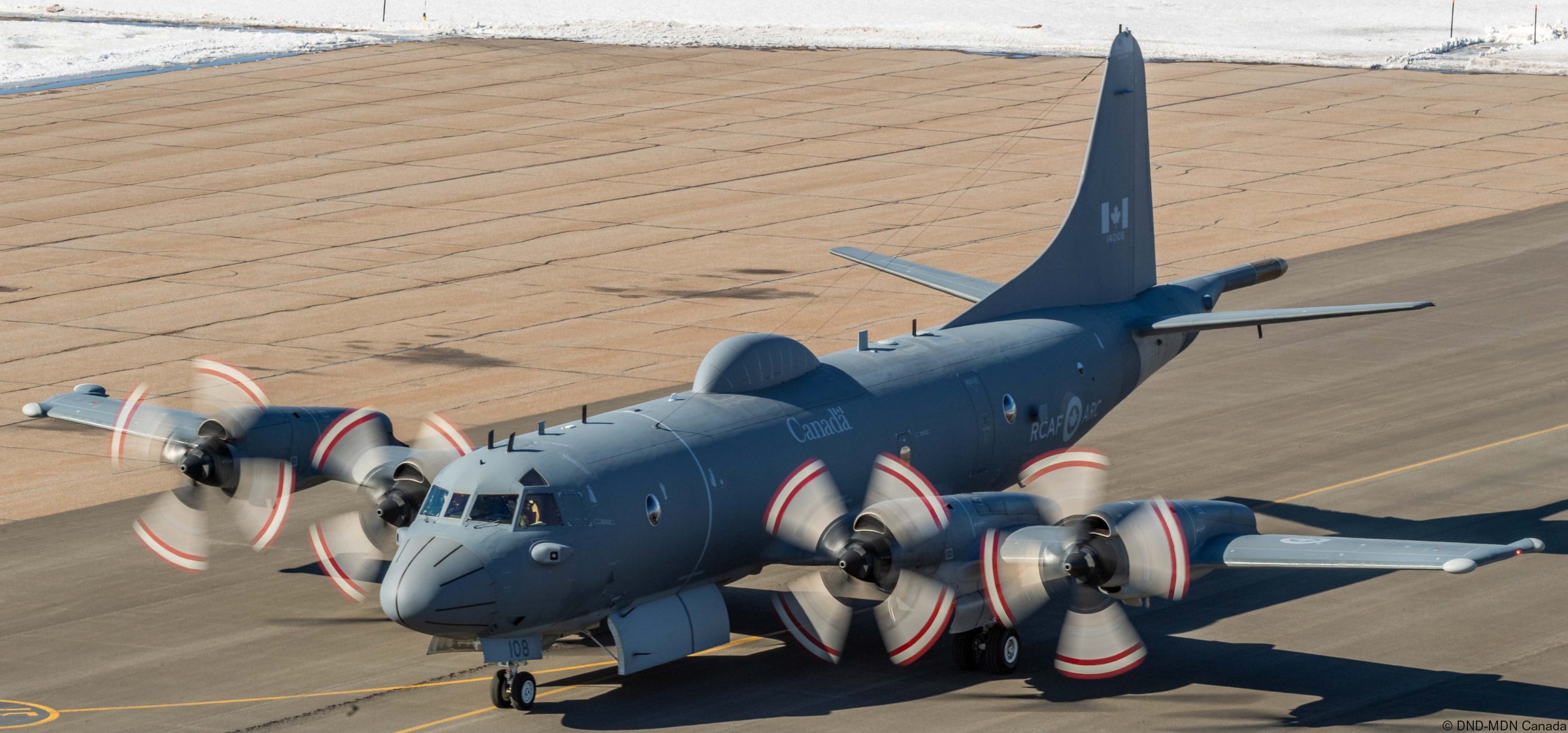

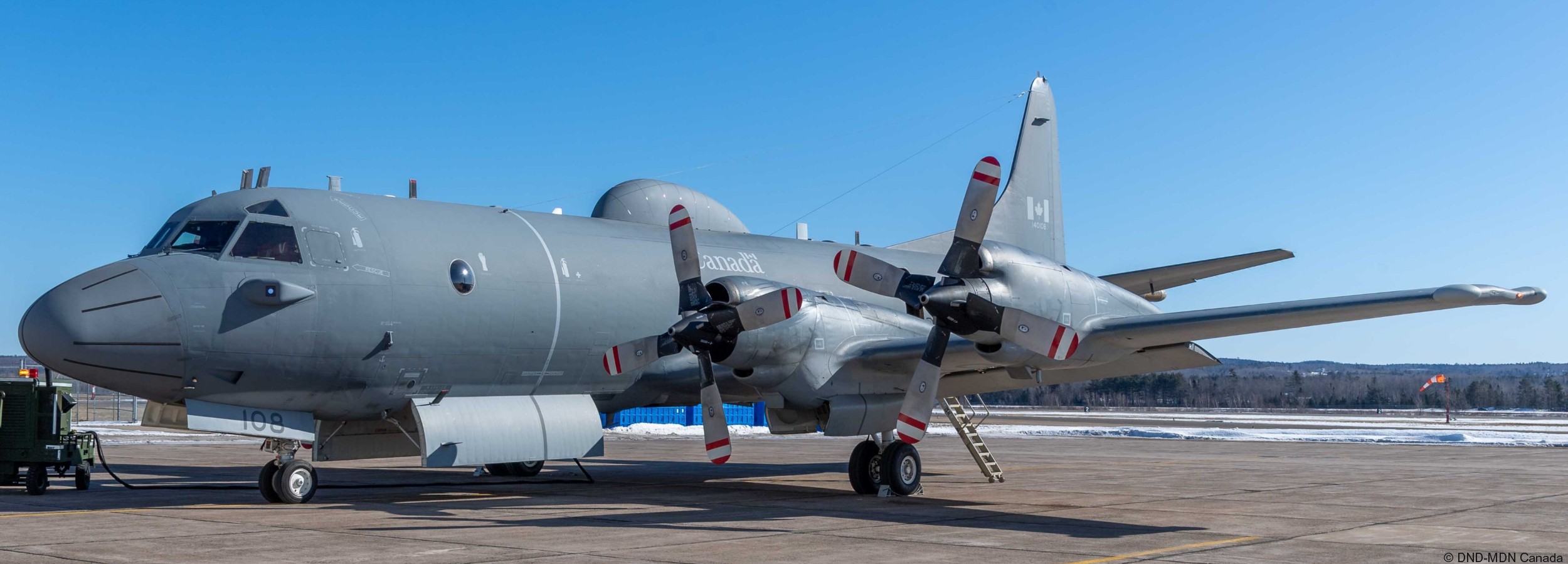

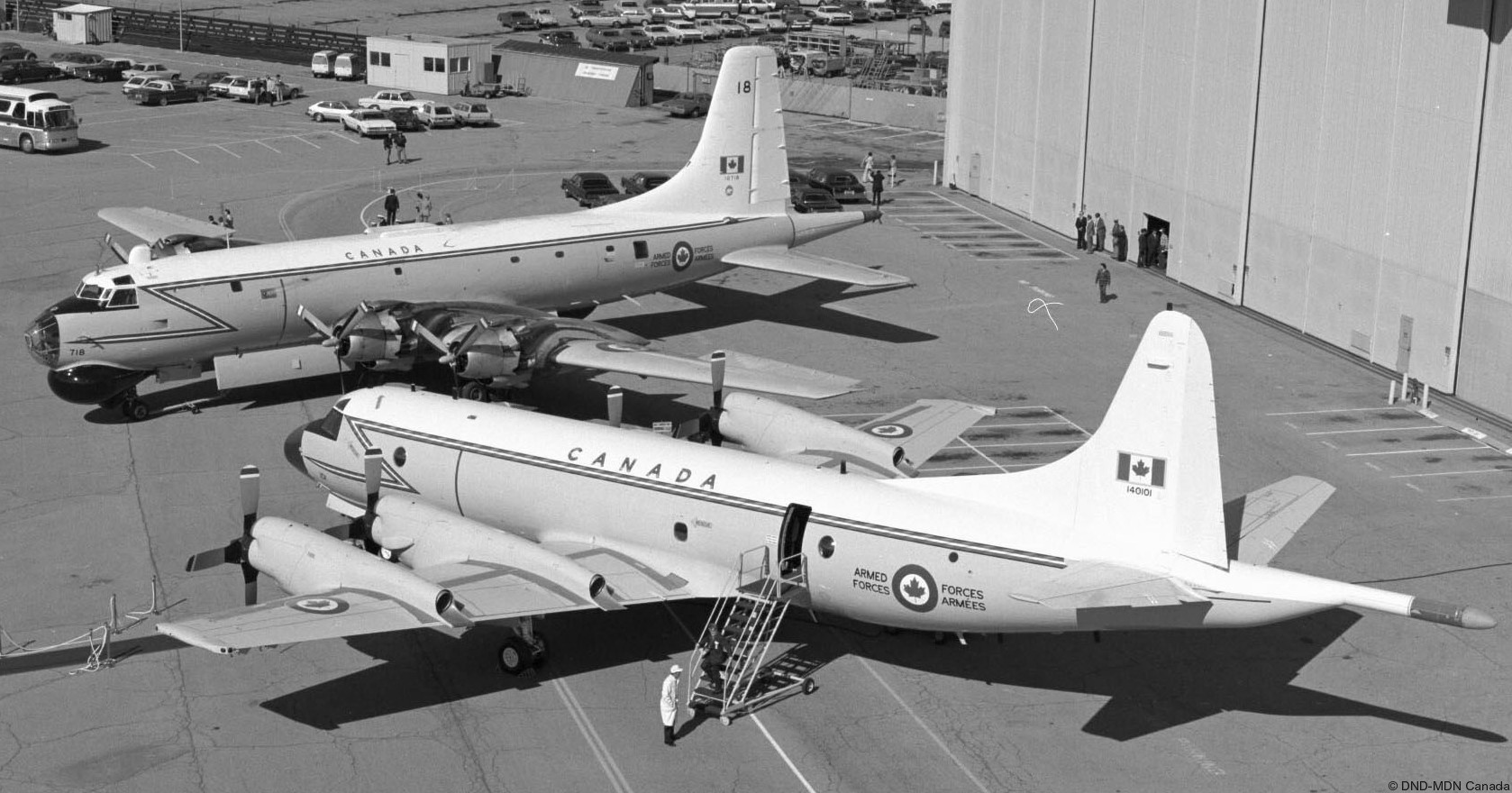

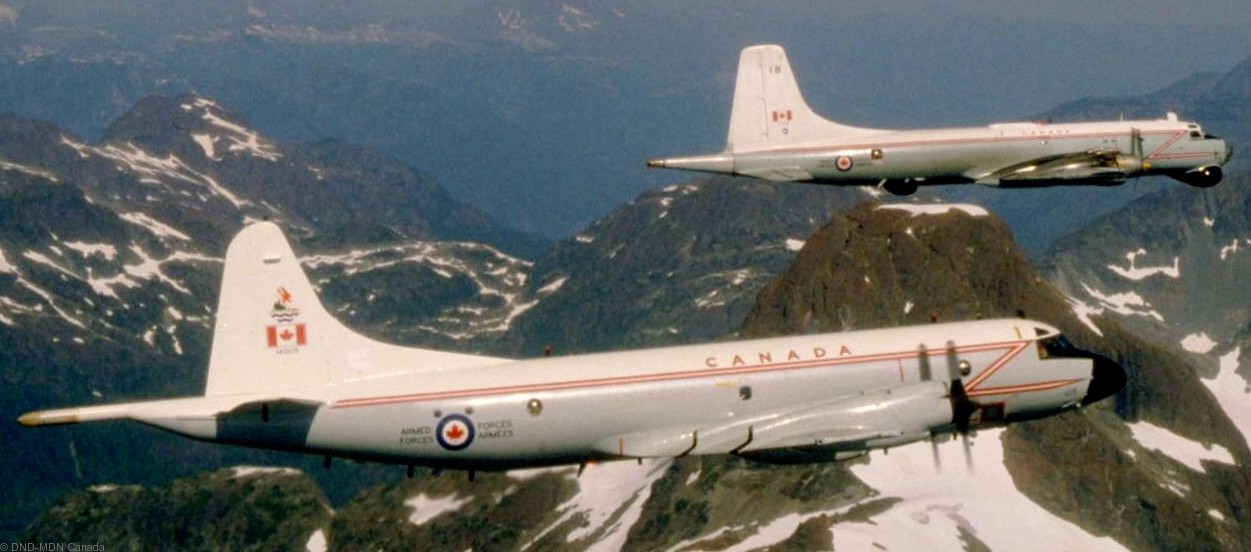

 CP-140M Aurora (Block IV)  CP-140M Aurora (Block IV)  CP-140M Aurora (Block IV)  CP-140M Aurora (Block IV) CP-140M Aurora (Block IV)                 Lockheed CP-140 Aurora with a Canadair CP-107 Argus  Lockheed CP-140 Aurora with a Canadair CP-107 Argus   Lockheed CP-140 Aurora with a Canadair CP-107 Argus  |
||||
