Royal Brunei Navy - Tentera Laut Diraja
Brunei As-Siddiq (ex Singapore Fearless) class Patrol Vessel |
||
 |
||
| 04/23 | ||
| Ships: | ||
|
||
| Specifications: | ||
|
Builder: Singapore Technologies Engineering (Marine) Ltd., Singapore Displacement: 500 tons Length: 55 meters (180 feet 5 inches) Beam: 8.6 meters (28 ft 3 in) Draft: 2.7 meters (8 ft 10 in) Speed: 20+ knots (37 km/h) Range: 1800 NM (3300 km) Complement: 30 Propulsion: 2 x MTU 12V 595 TE90 diesel engines coupled to ZF gear boxes 2 x Kamewa waterjets Armament (Rebublic of Singapore Navy service): 1 x Simbad twin launcher for MBDA Mistral SAM missiles 1 x Oto-Melara/OtoBreda 76/62 Super Rapid DP gun (3"/76mm) 4 x CIS50MG 12,7mm/caliber .50 heavy machine guns 1 x Rafael Typhoon 25 mm Remote Weapon System (added later) 2 x B515 12.75" (324mm) triple torpedo tubes for EuroTorp A244/S torpedoes Aviation: none Sytems: Search Radar: IAI/ELTA EL/M-2228(X) Weapon Control: Elbit MSIS optronic director Navigation Radar: Kelvin Hughes 1007 Sonar: Thales Underwater Systems TSM 2362 Gudgeon hull-mounted active sonar ESM: Elisra NS 9010C intercept / Rafael C-Pearl M Decoys: 2 x GEC Marine Shield III 102mm sextuple chaff launchers |
||
|

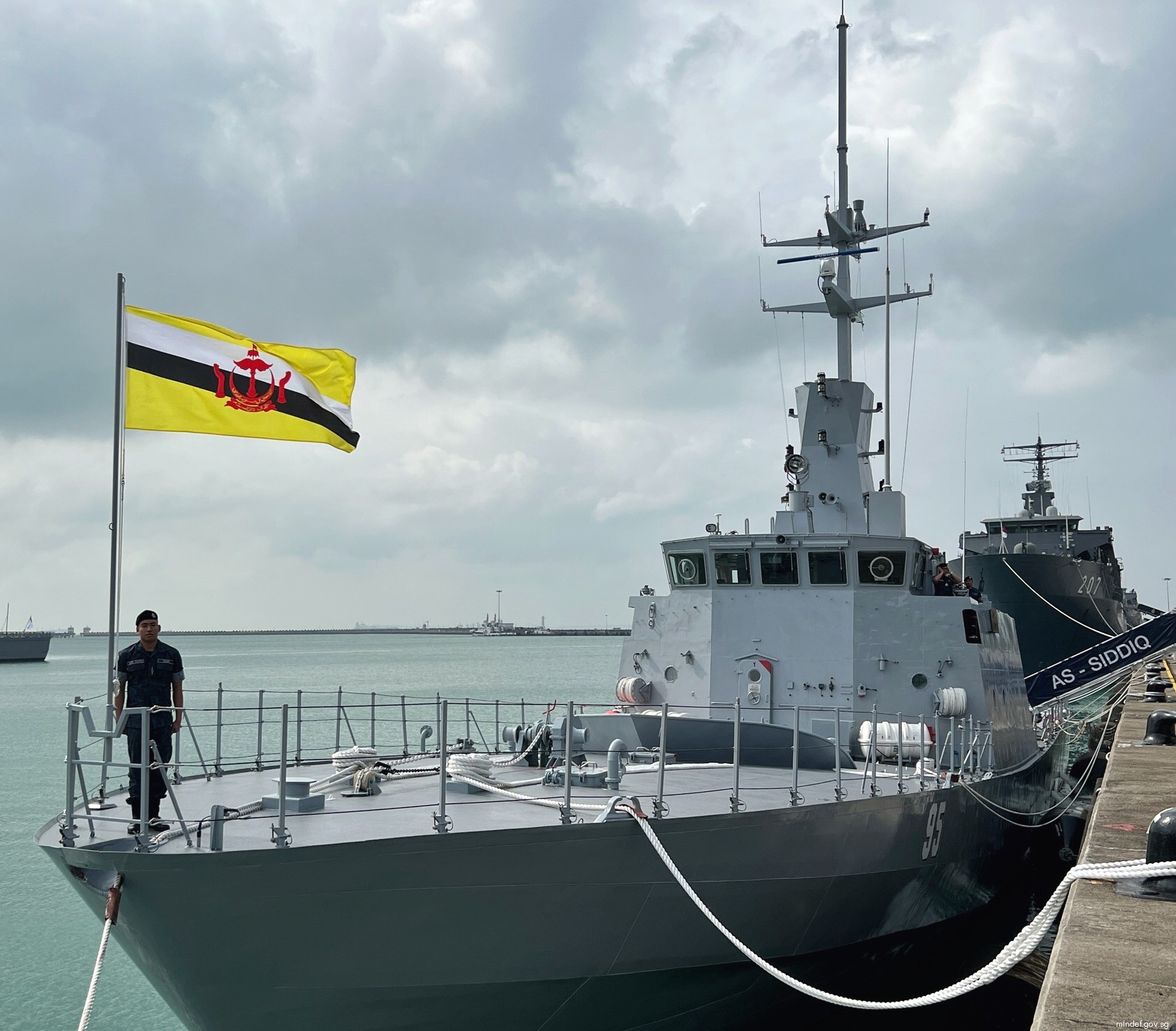

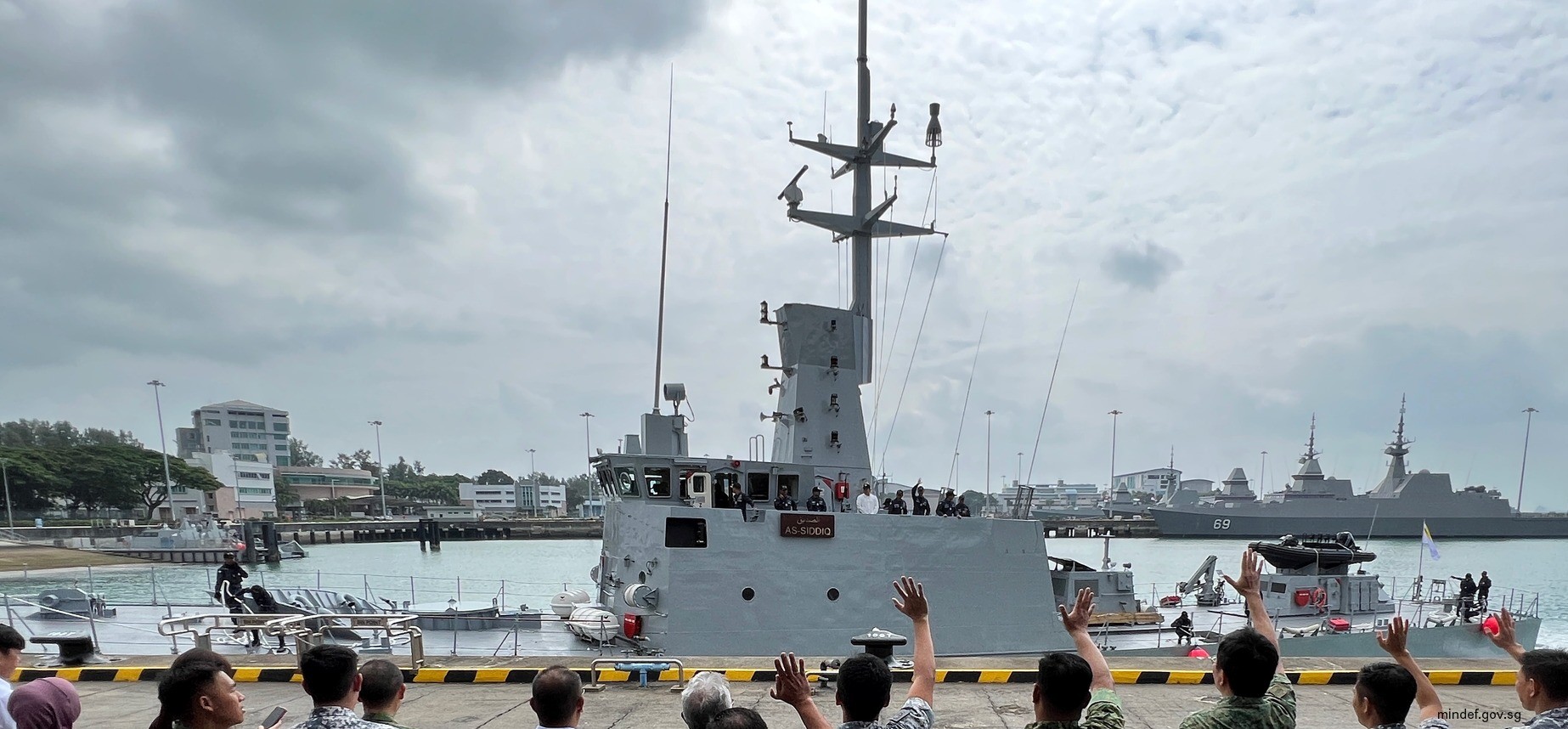

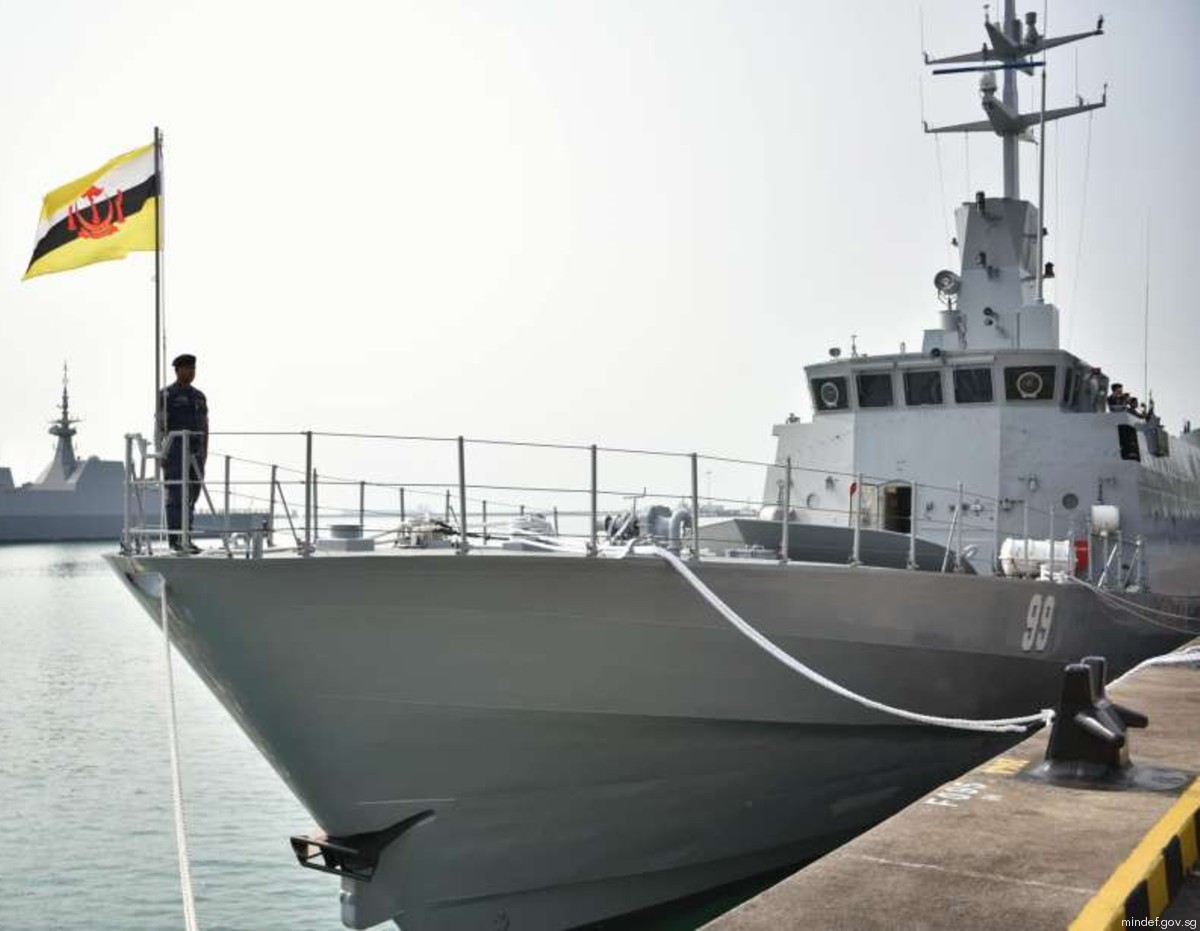

The Republic of Singapore gifted two ex Republic of Singapore Navy
Fearless class patrol vessels
to the Royal Brunei Navy. They were handed over at Changi Naval Base, Singapore March 15, 2023. NOTE: As can be seen from the images, the boats were handed over without main armament. |
||
| images | ||

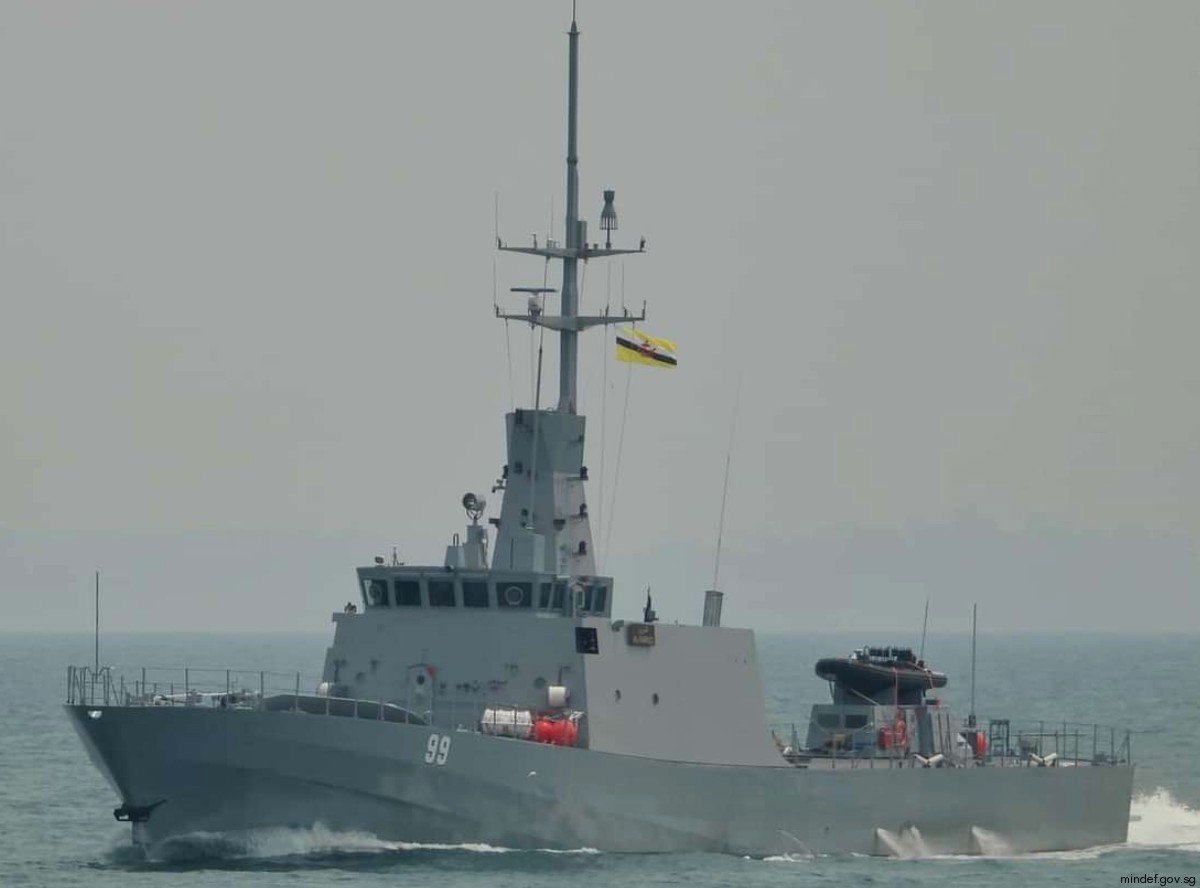

  NOTE: 96 KDB Al-Faruq was handed over with hull number 99   |
||
|
|
