Belgian Armed Forces - Naval Component / Defensie - Marinecomponent / La Defense - Composante Marine
Castor class Patrol Vessel


castor class patrol vessel belgian navy defensie marinecomponent 02x

11/24
Units:
Ship: Launched: Commissioned: STATUS:
P901 BNS Castor April 14, 2014 July 10, 2014 IN SERVICE
P902 BNS Pollux December 22, 2014 May 6, 2015 IN SERVICE

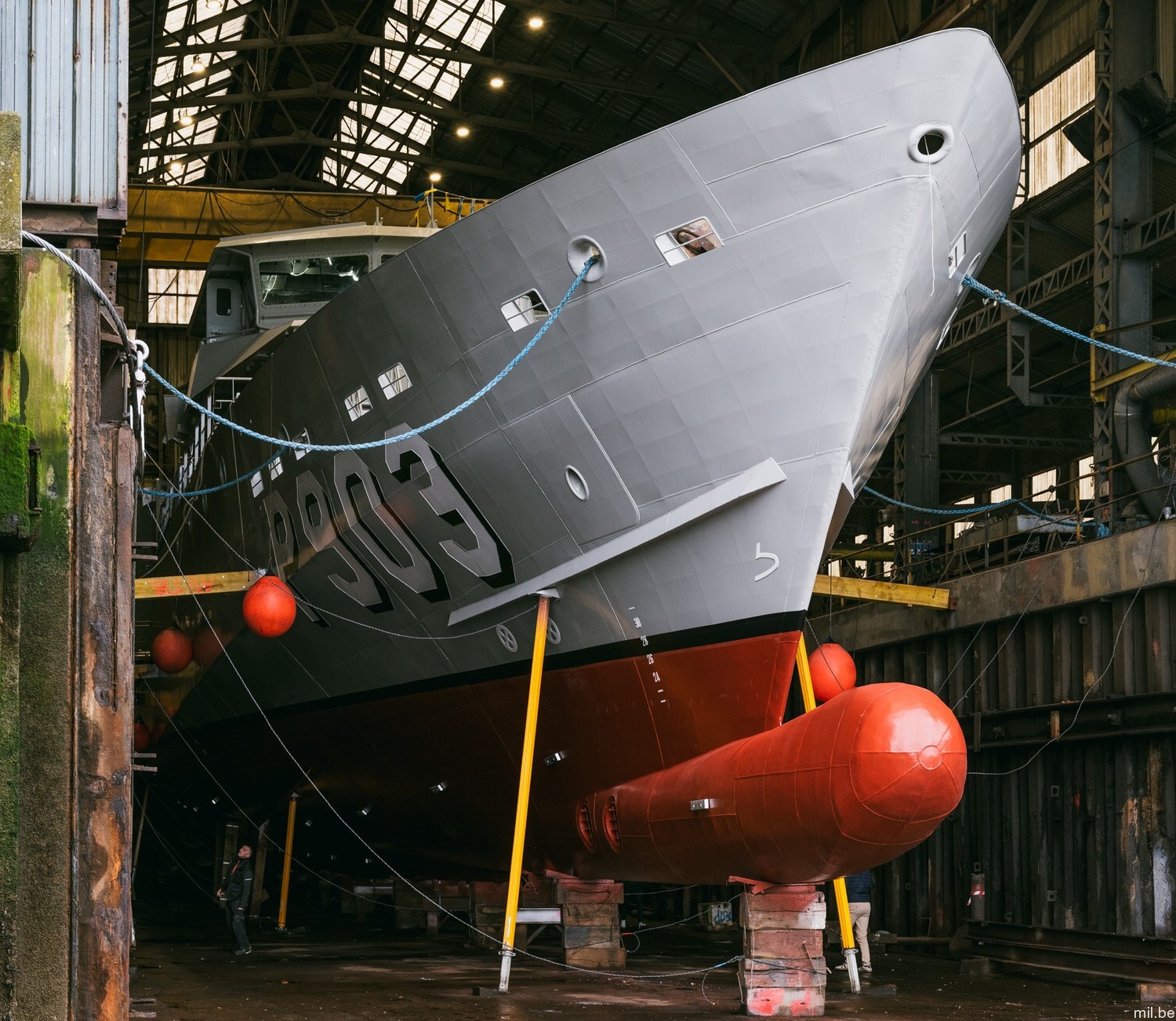

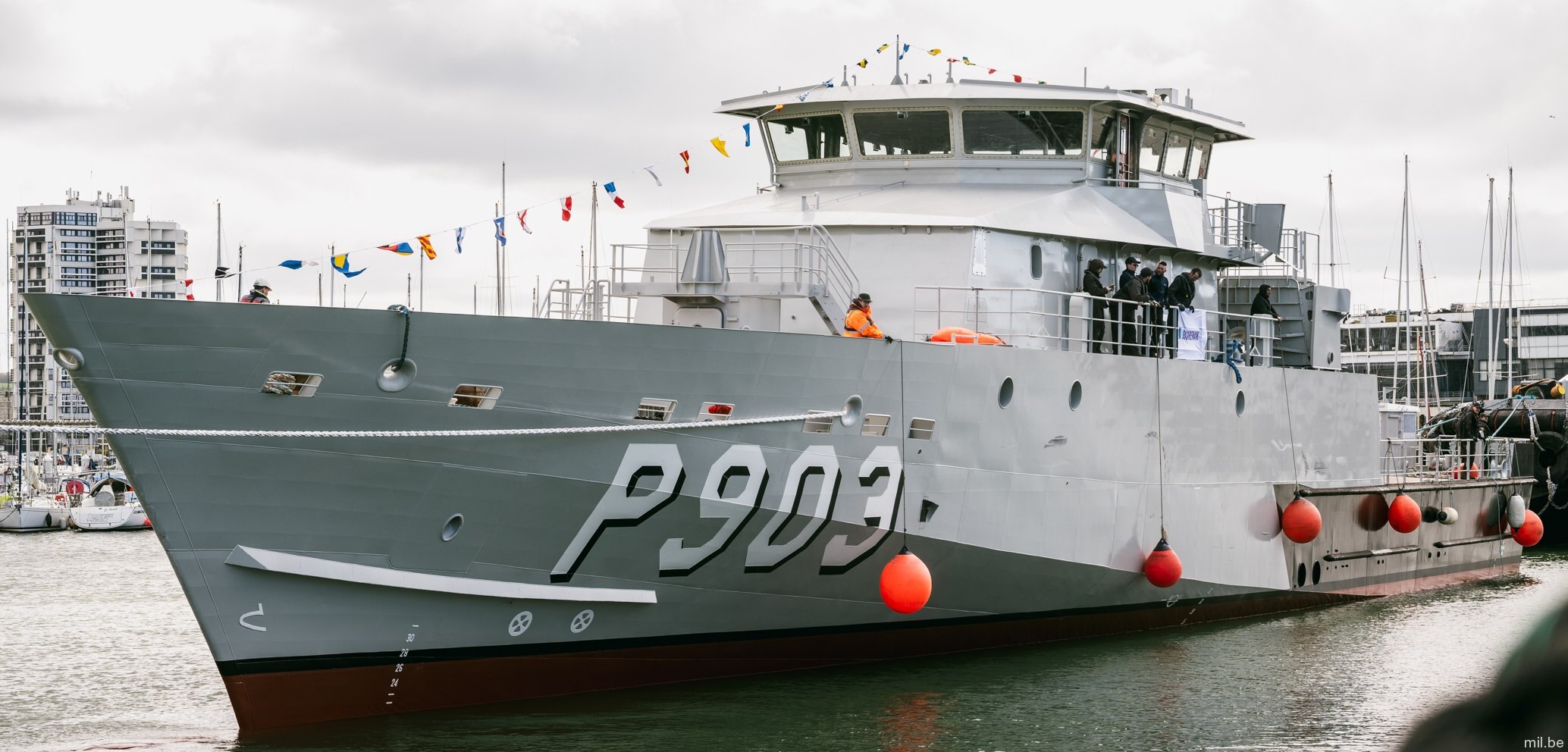

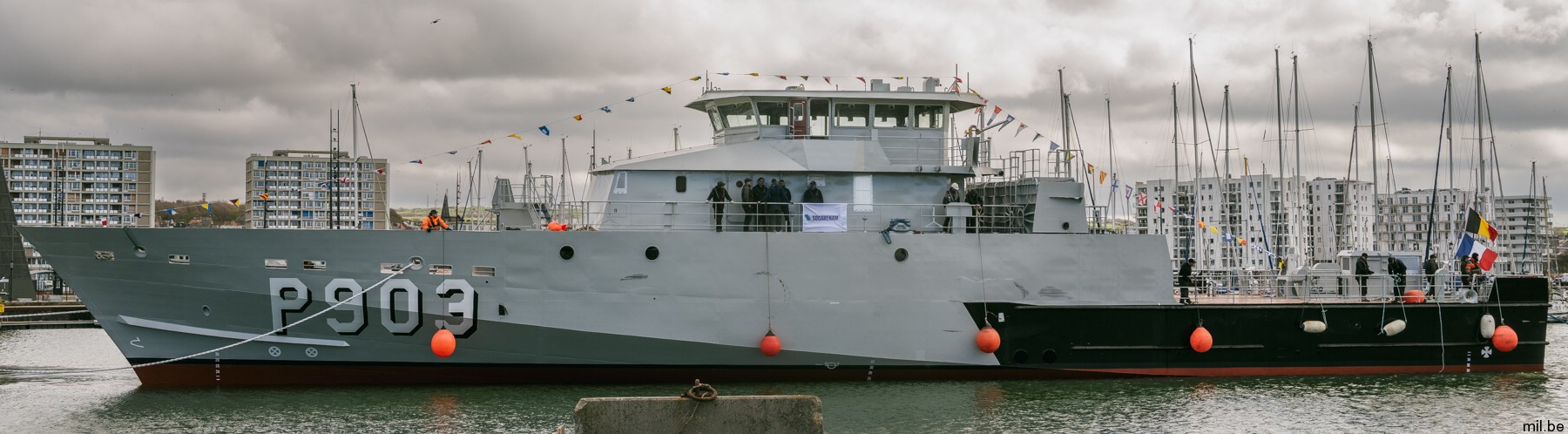

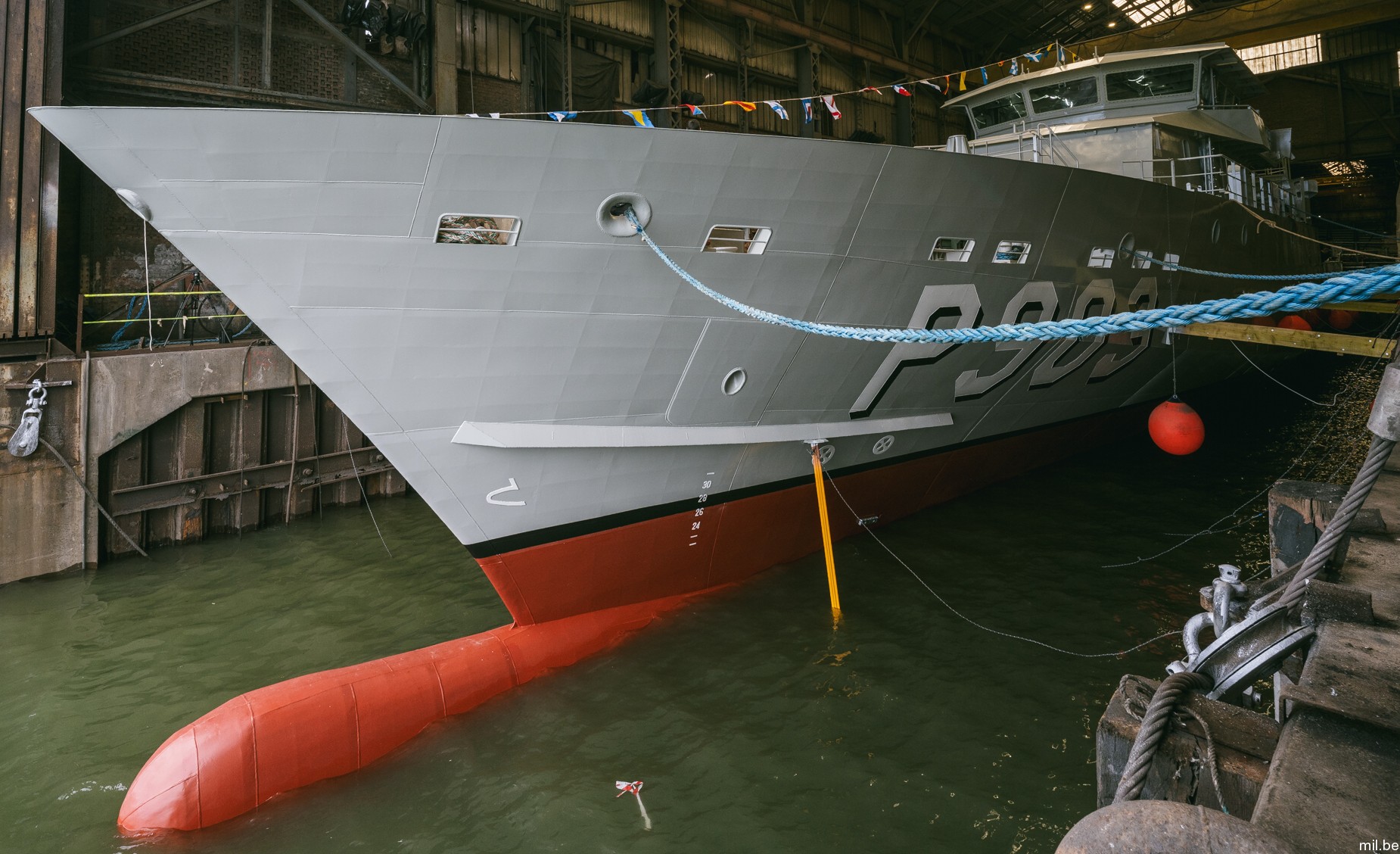

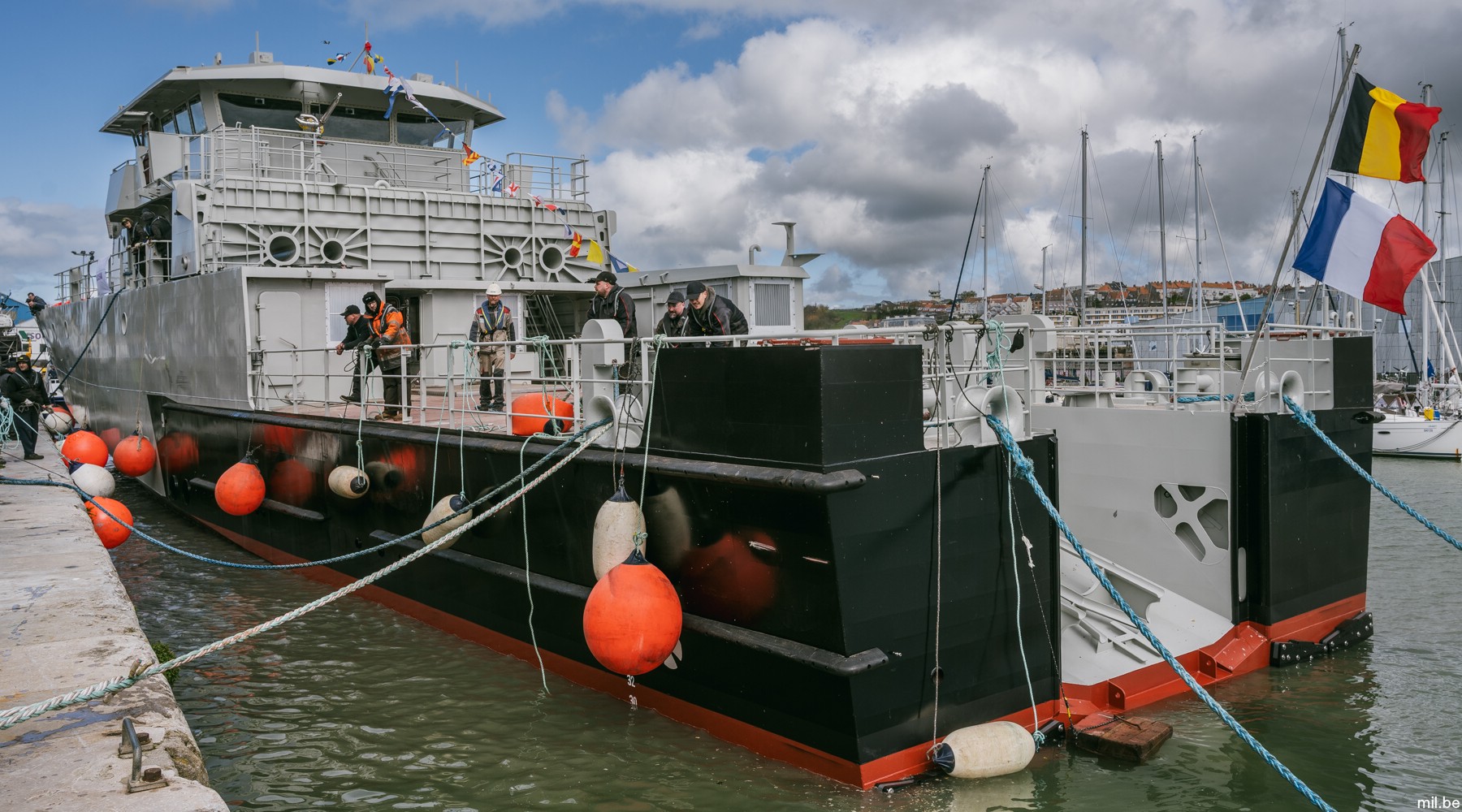

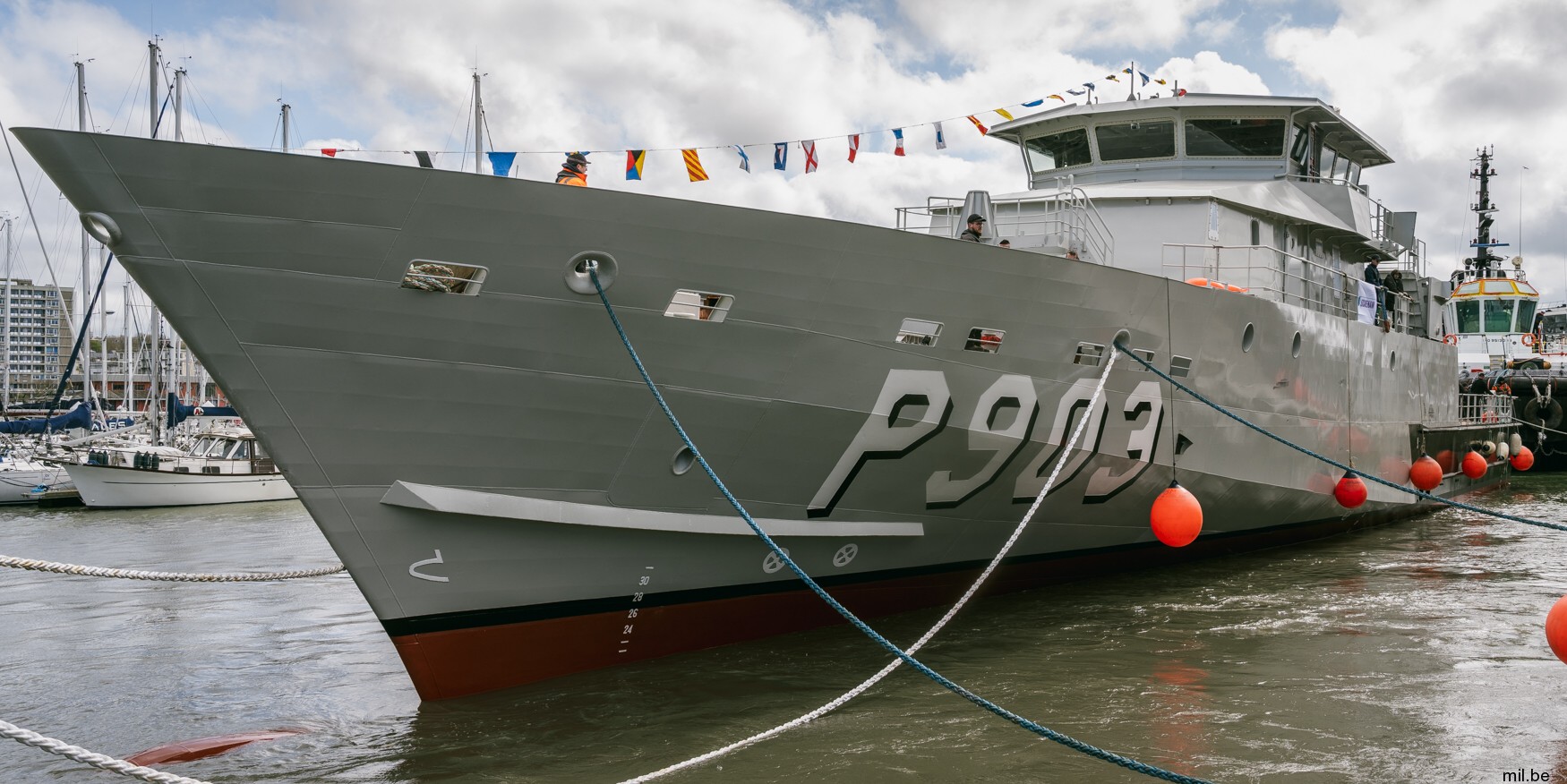

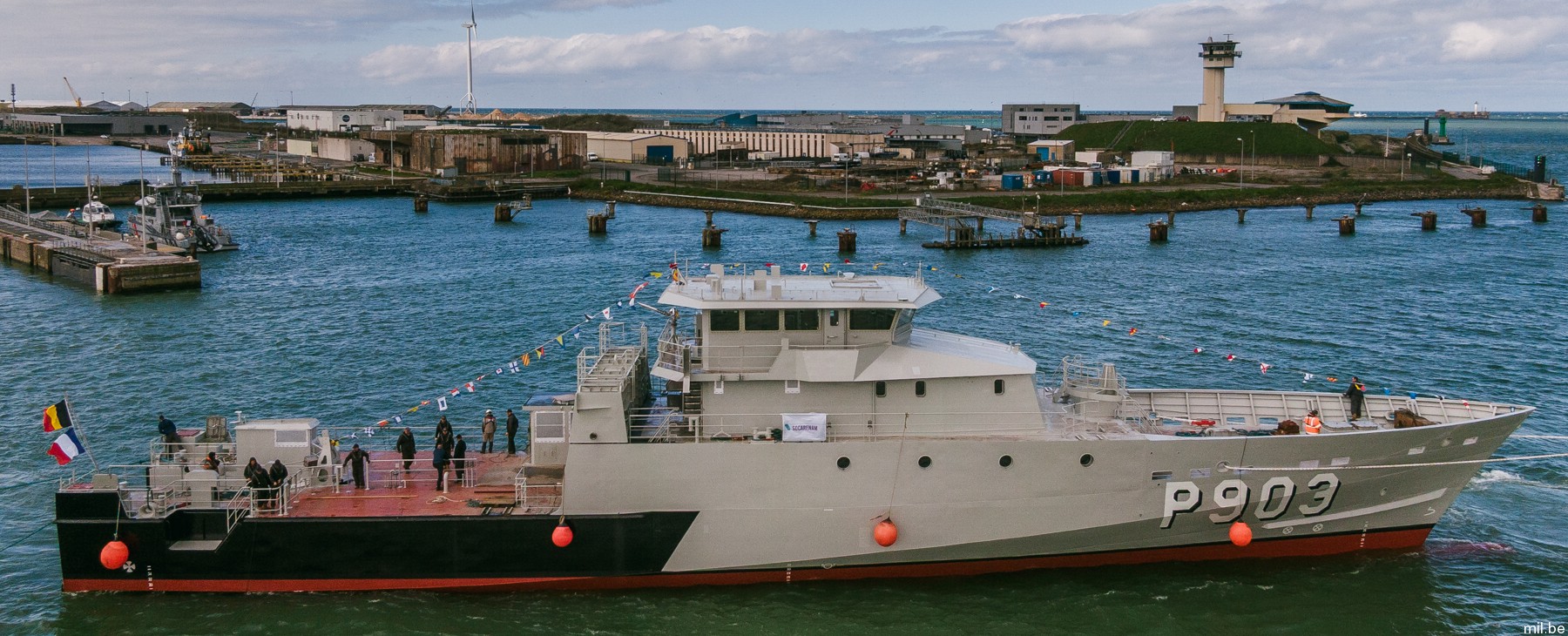

3rd unit on order

Specifications:

 Builder: SOCARENAM (Société Calaisienne de Réparation Navale et Mécanique), Boulogne-sur-Mer, France

Displacement: 455 tons
Length: 53.5 meters (175 feet 6 inches)
Beam: 9.5 m (31 ft 2 in)
Draft: 3.2 m (10 ft 6 in)
Speed: 21 knots (39 km/h), max.
Range: 2800 NMI (5000 km) at 16 knots (30 km/h) / 4500 NMI (8300 km) at 12 kn (22 km/h)
Complement: 16 (+ space for 20 additional)

Propulsion:
2 x MTU 16V4000M73L diesel engines / 2,880 kW (3,860 hp), each
2 shafts, 2 propellers

Armament:
 FN Herstal Sea deFNder 12.7 mm Remote Weapon System (RWS)
Systems:
 Hensoldt UK SharpEye Χ/S-band surveillance and navigation radar
OIP Micro Orbis electro-optical sensor system
Satcom

Aviation:
none

Boats:

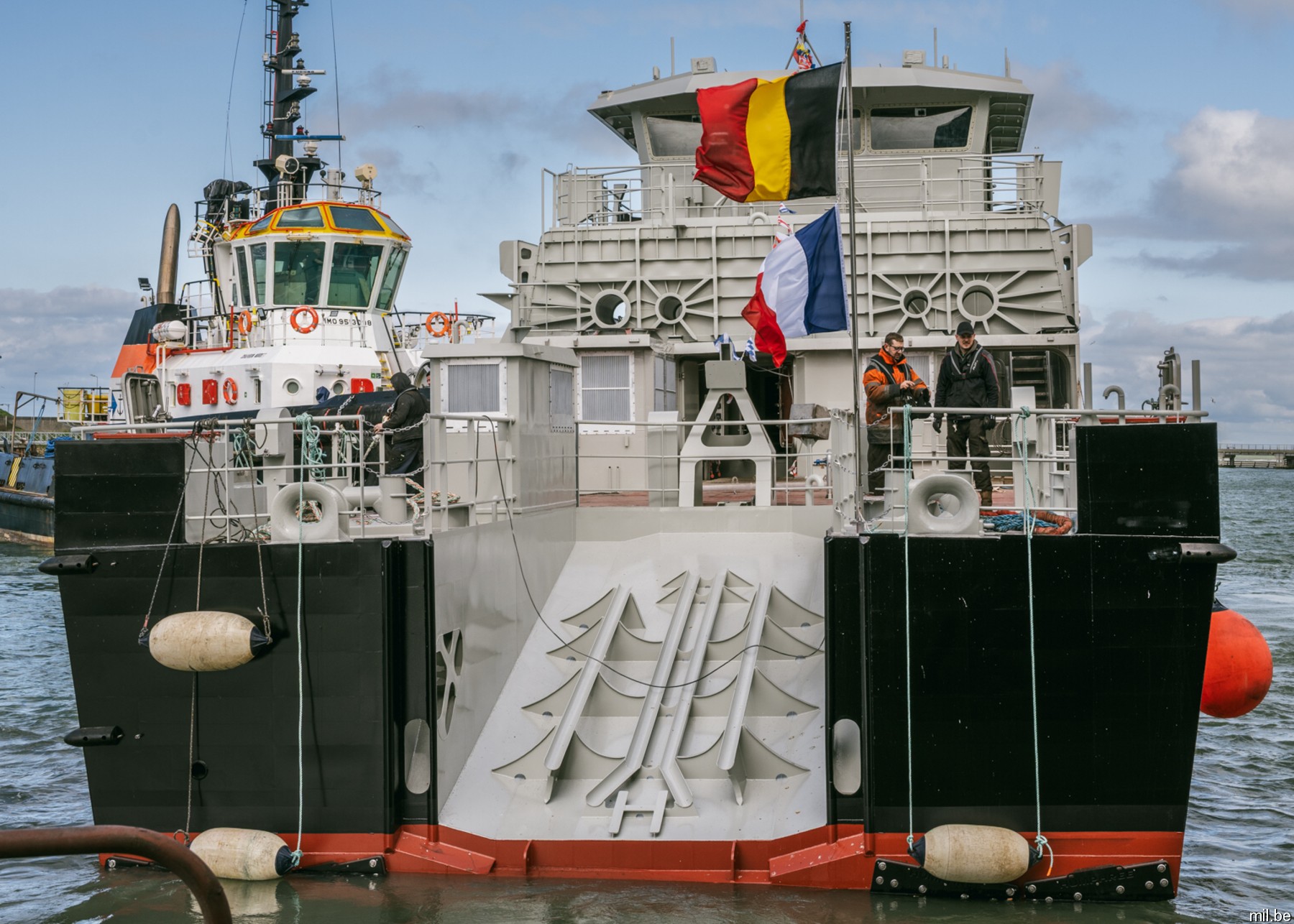

2 x Rigid-Hull Inflatable Boats (RHIB) / 1 on stern ramp, 1 on davit

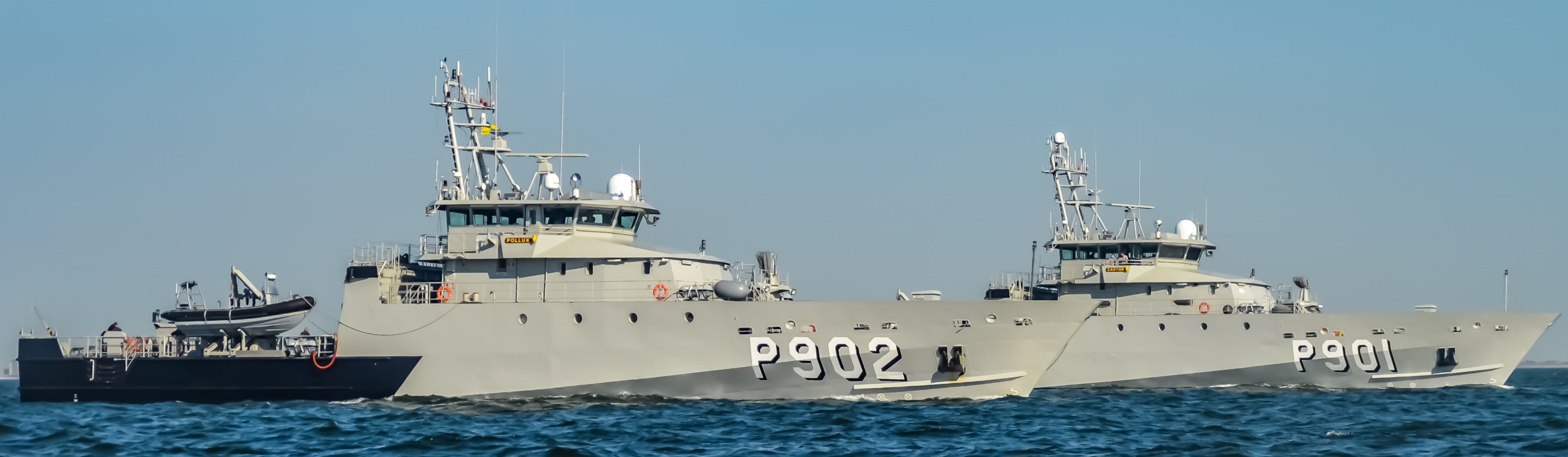

The Castor class is a pair of coastal patrol vessels in service with the Belgian Navy, used primarily for patrol of the Belgian exclusive economic zone of the North Sea. A third unit is in procurement as of 2024.

images

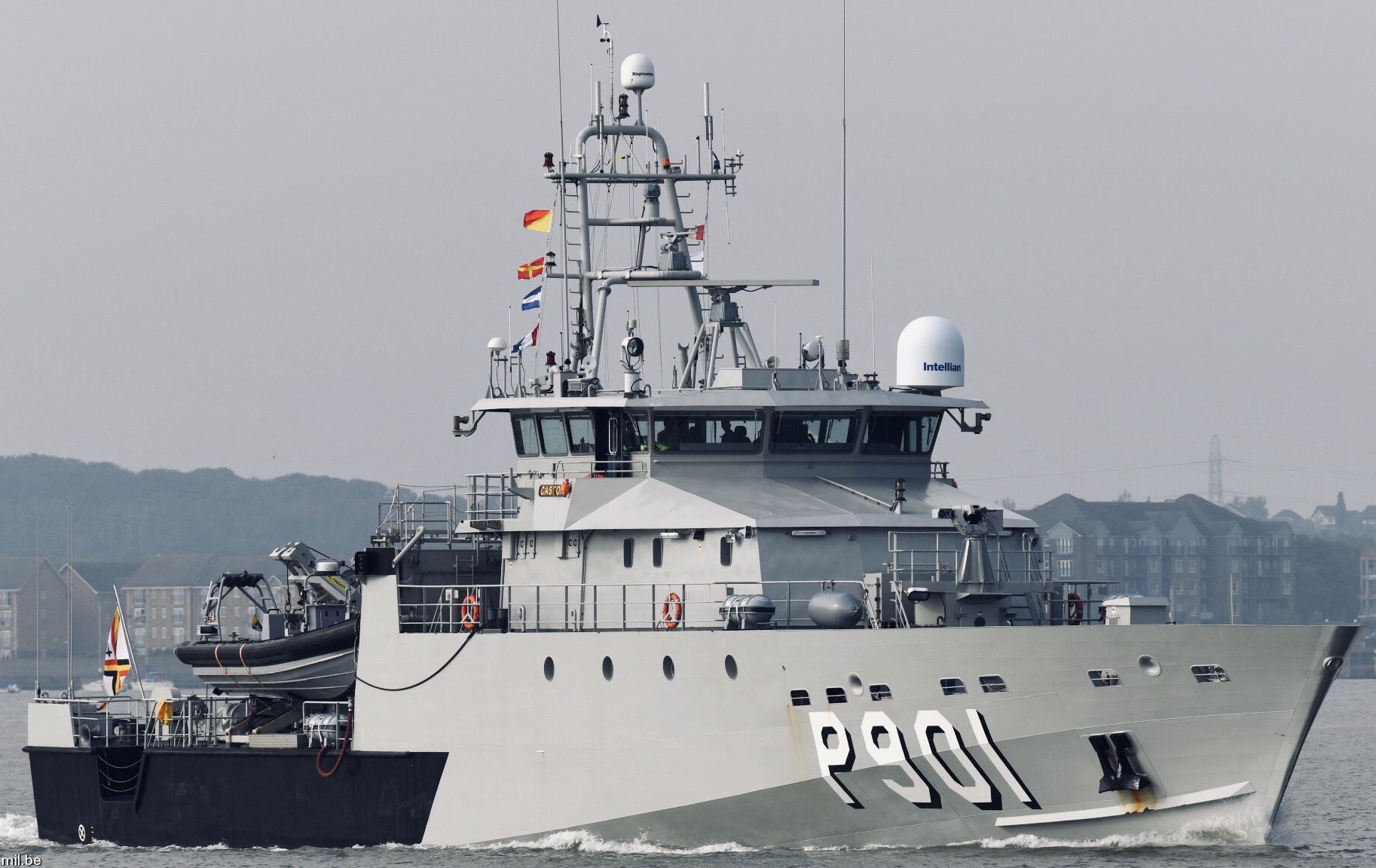

p901 bns castor class patrol vessel belgian navy armed forces naval component marinecomponent 04
P901 BNS Castor

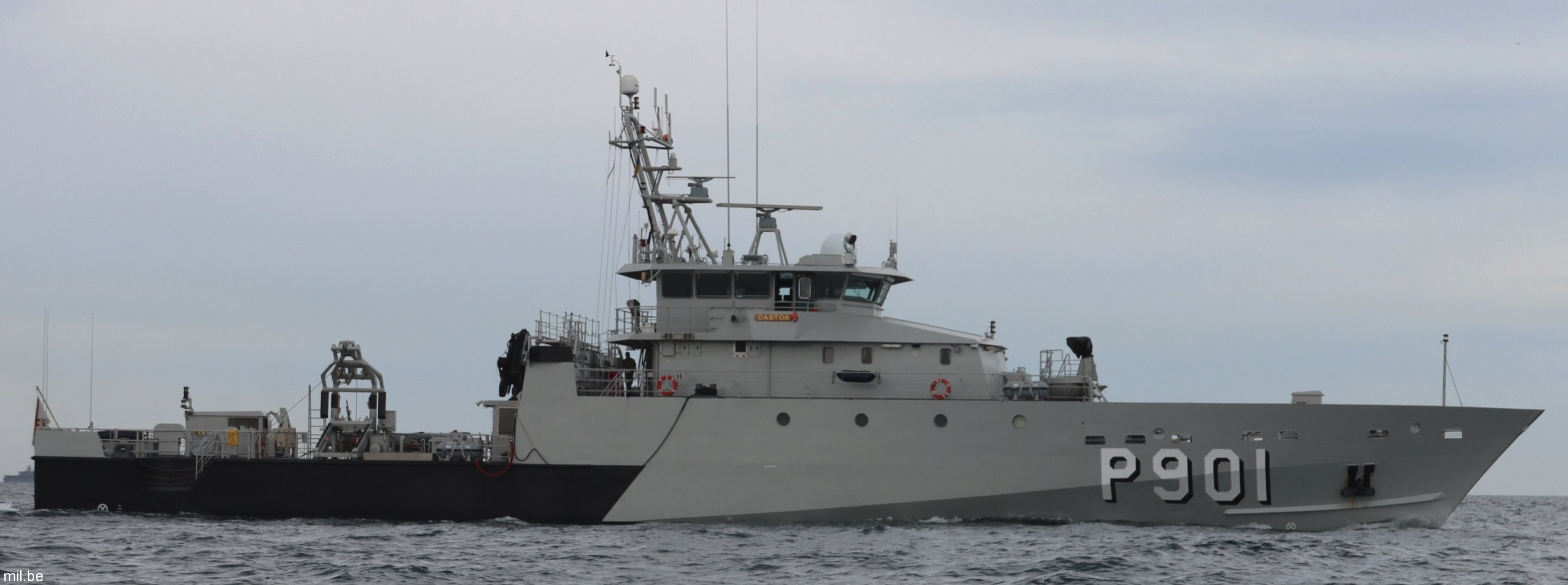

p901 bns castor class patrol vessel belgian navy armed forces naval component marinecomponent 05
P901 BNS Castor

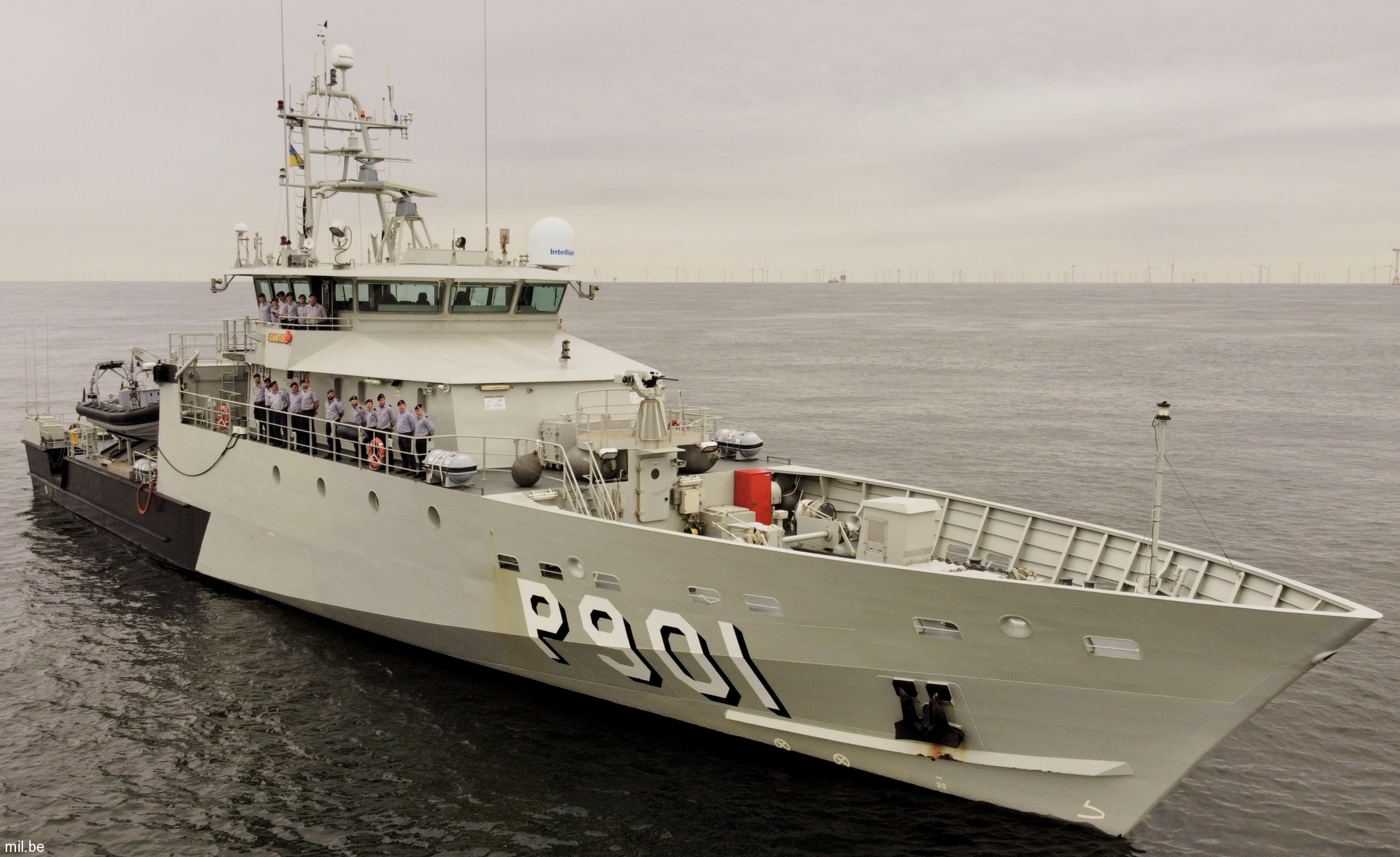

p901 bns castor class patrol vessel belgian navy armed forces naval component marinecomponent 06
P901 BNS Castor

p901 bns castor class patrol vessel belgian navy armed forces naval component marinecomponent 06
P901 BNS Castor

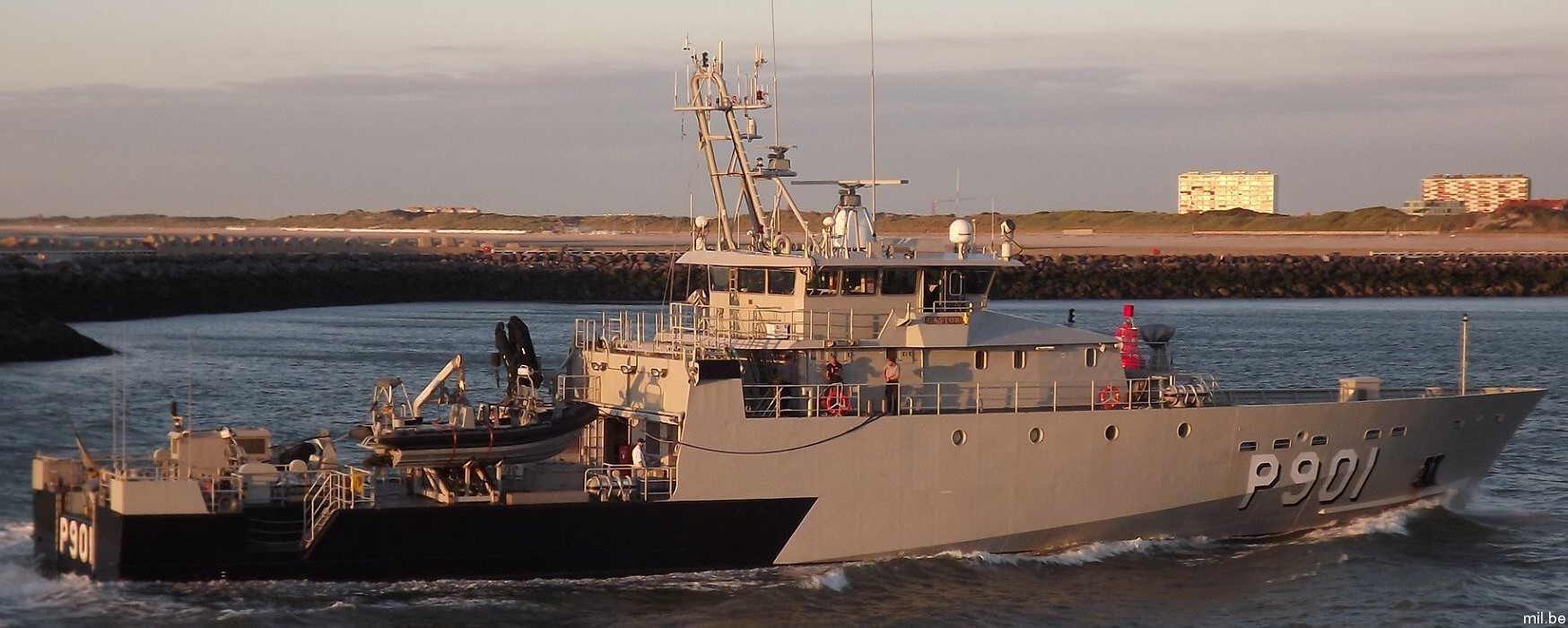

p901 bns castor class patrol vessel belgian navy armed forces naval component marinecomponent 08
P901 BNS Castor

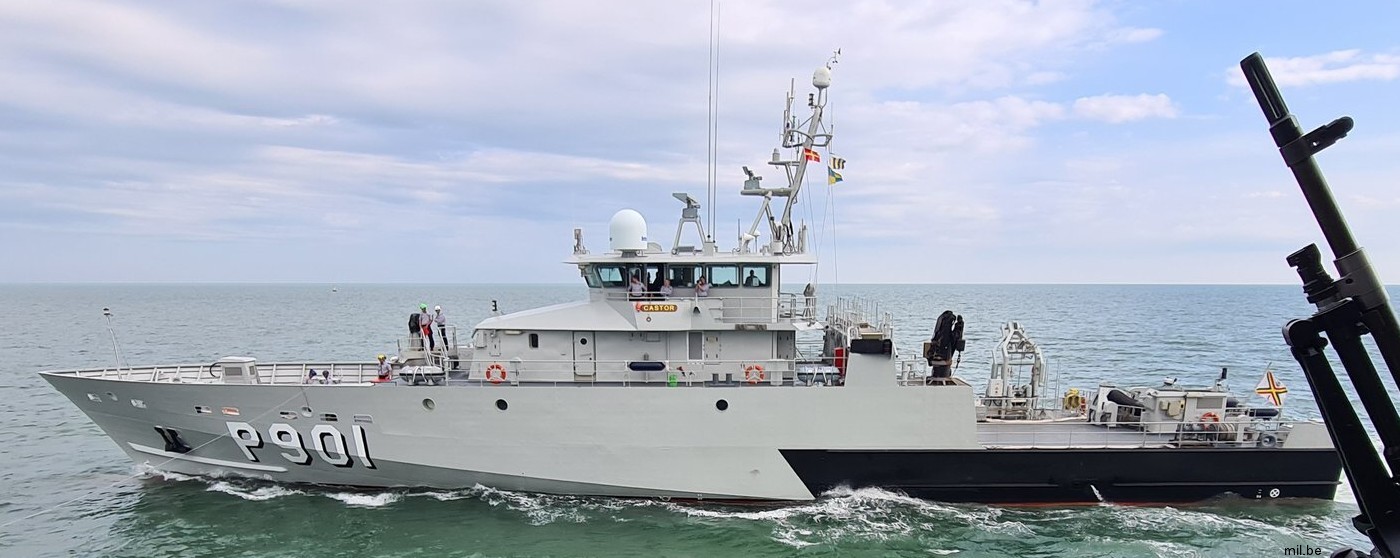

p901 bns castor class patrol vessel belgian navy armed forces naval component marinecomponent 02
P901 BNS Castor

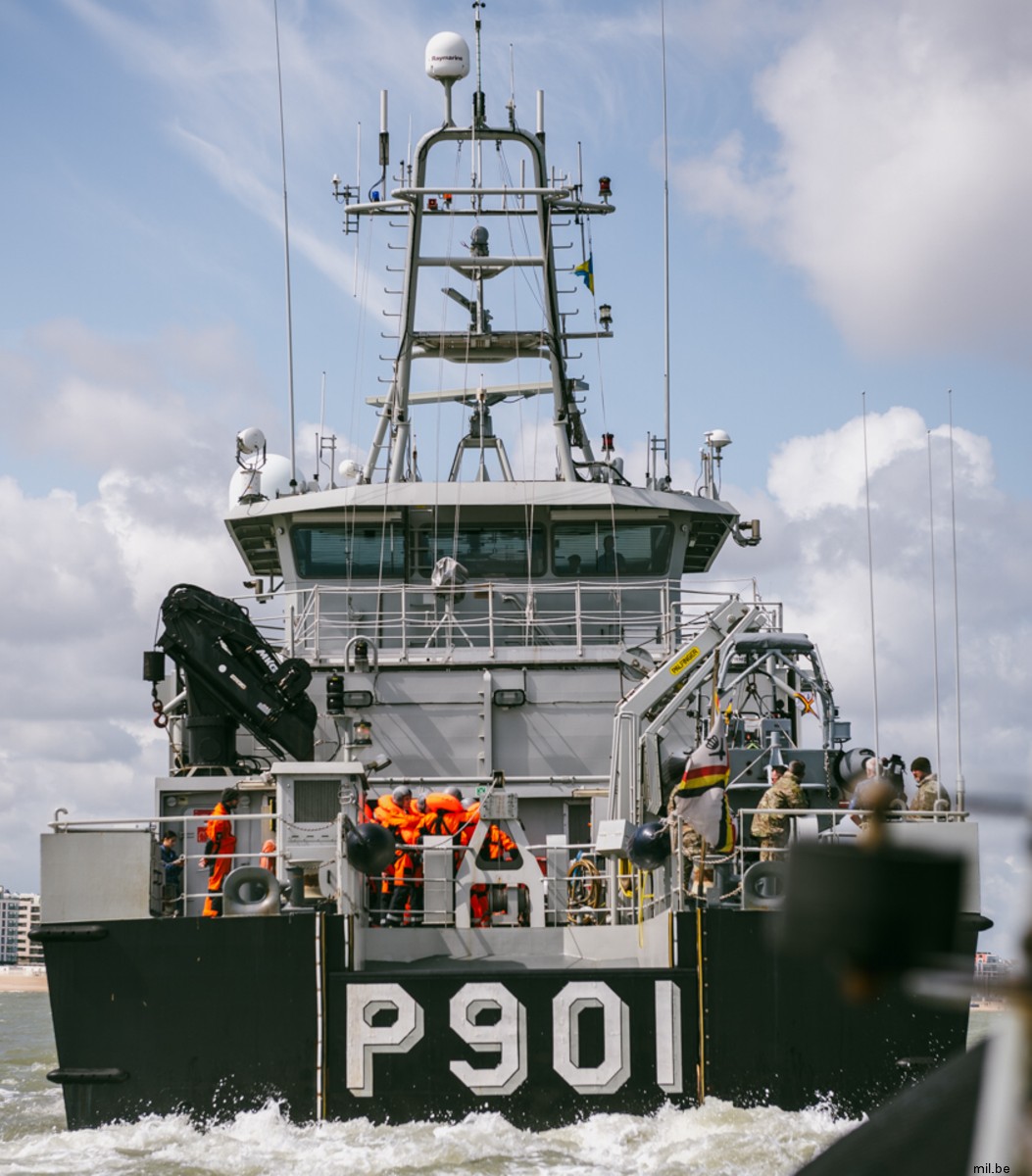

p901 bns castor class patrol vessel belgian navy armed forces naval component marinecomponent 09
P901 BNS Castor

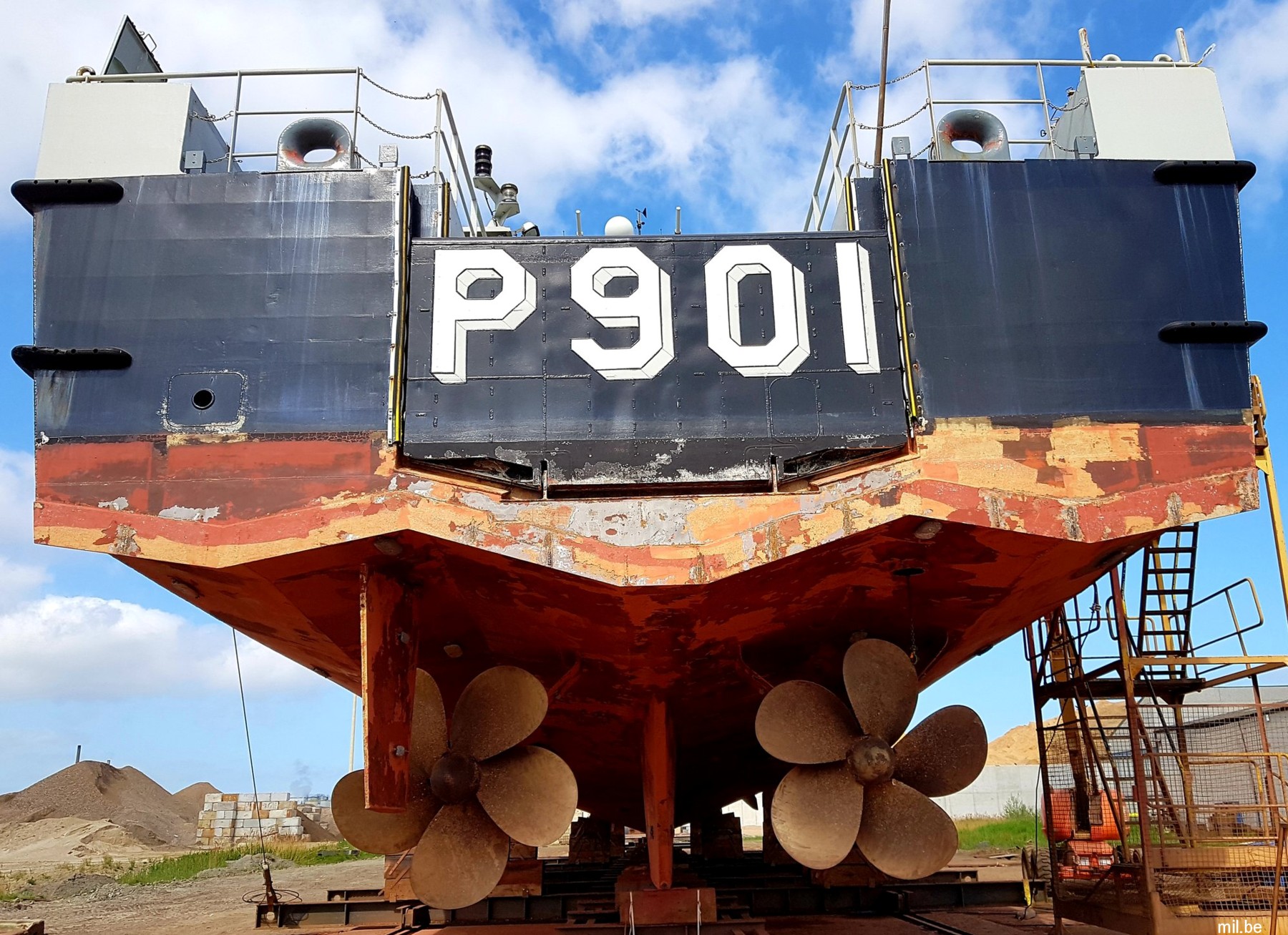

p901 bns castor class patrol vessel belgian navy armed forces naval component marinecomponent 07
P901 BNS Castor

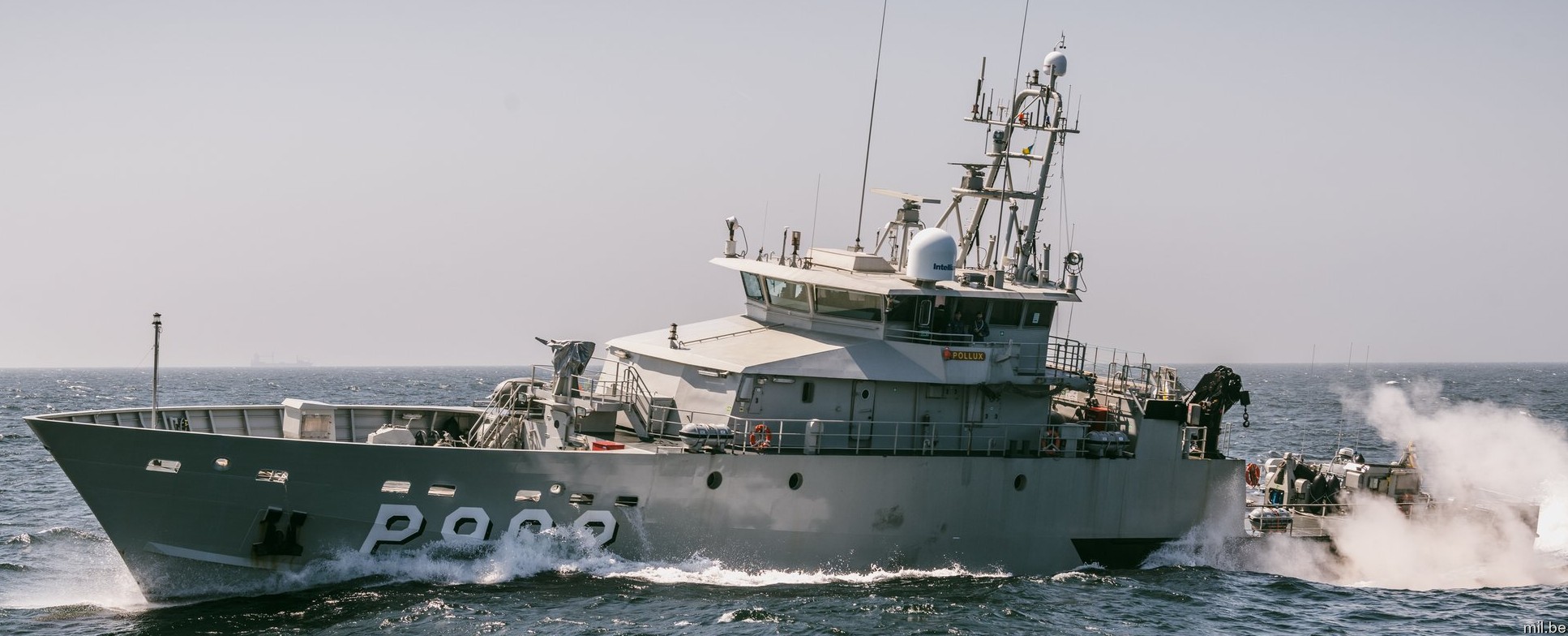

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 02
P902 BNS Pollux

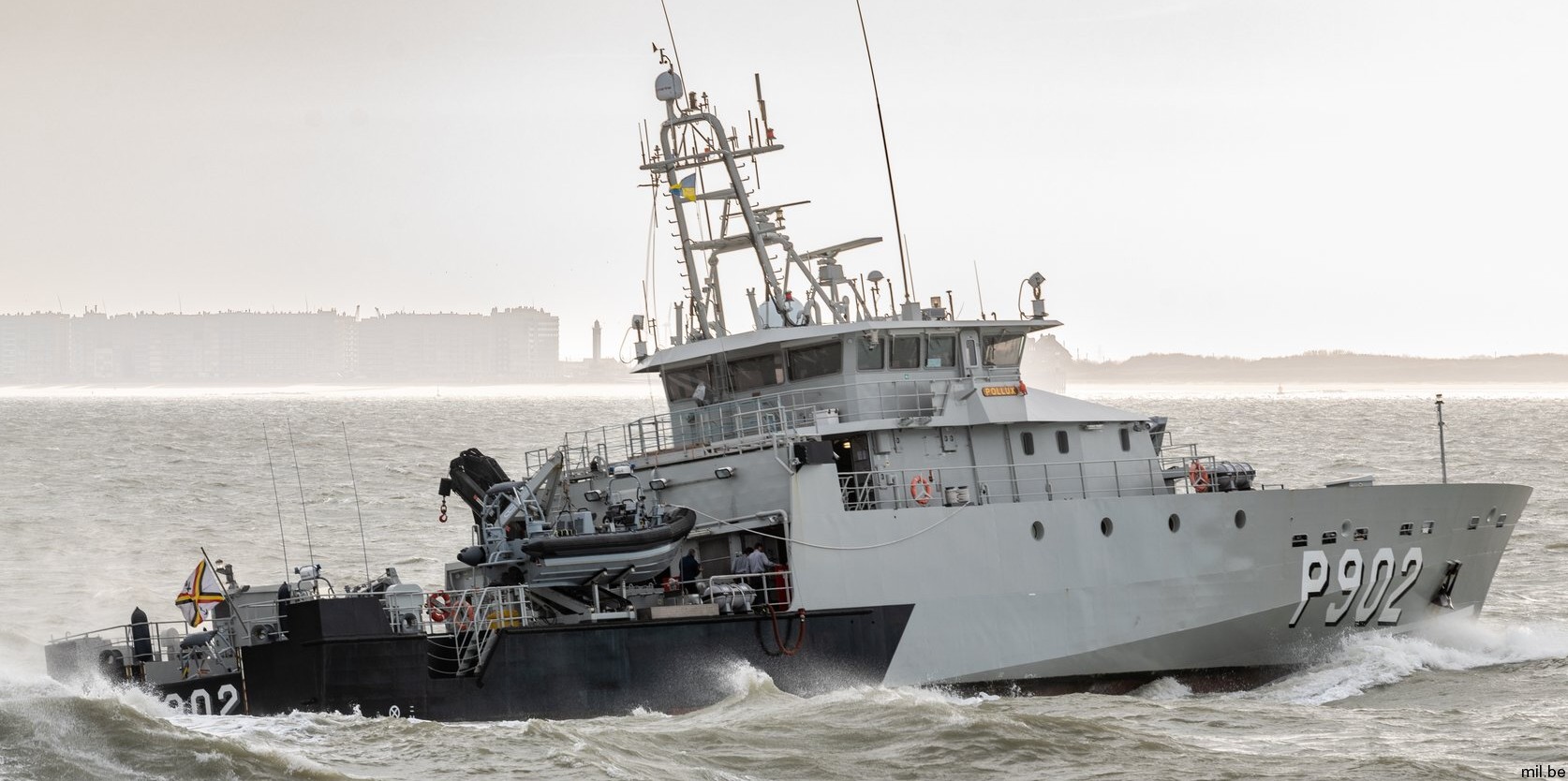

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 03
P902 BNS Pollux

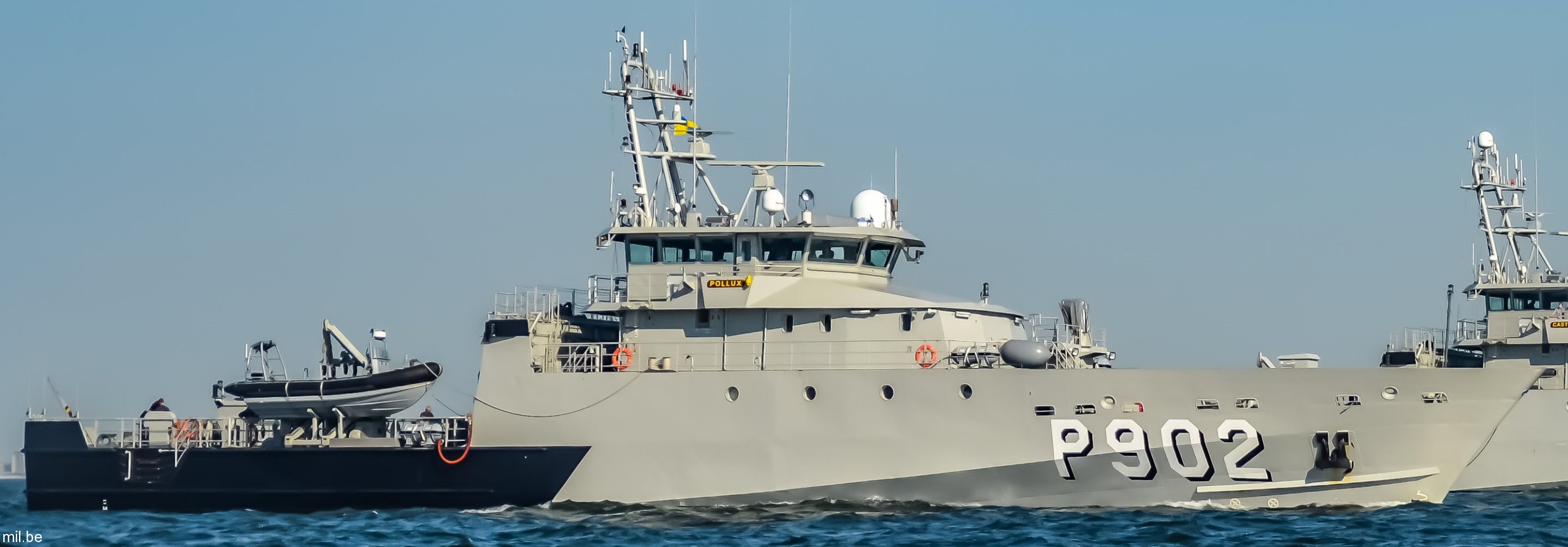

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 06
P902 BNS Pollux

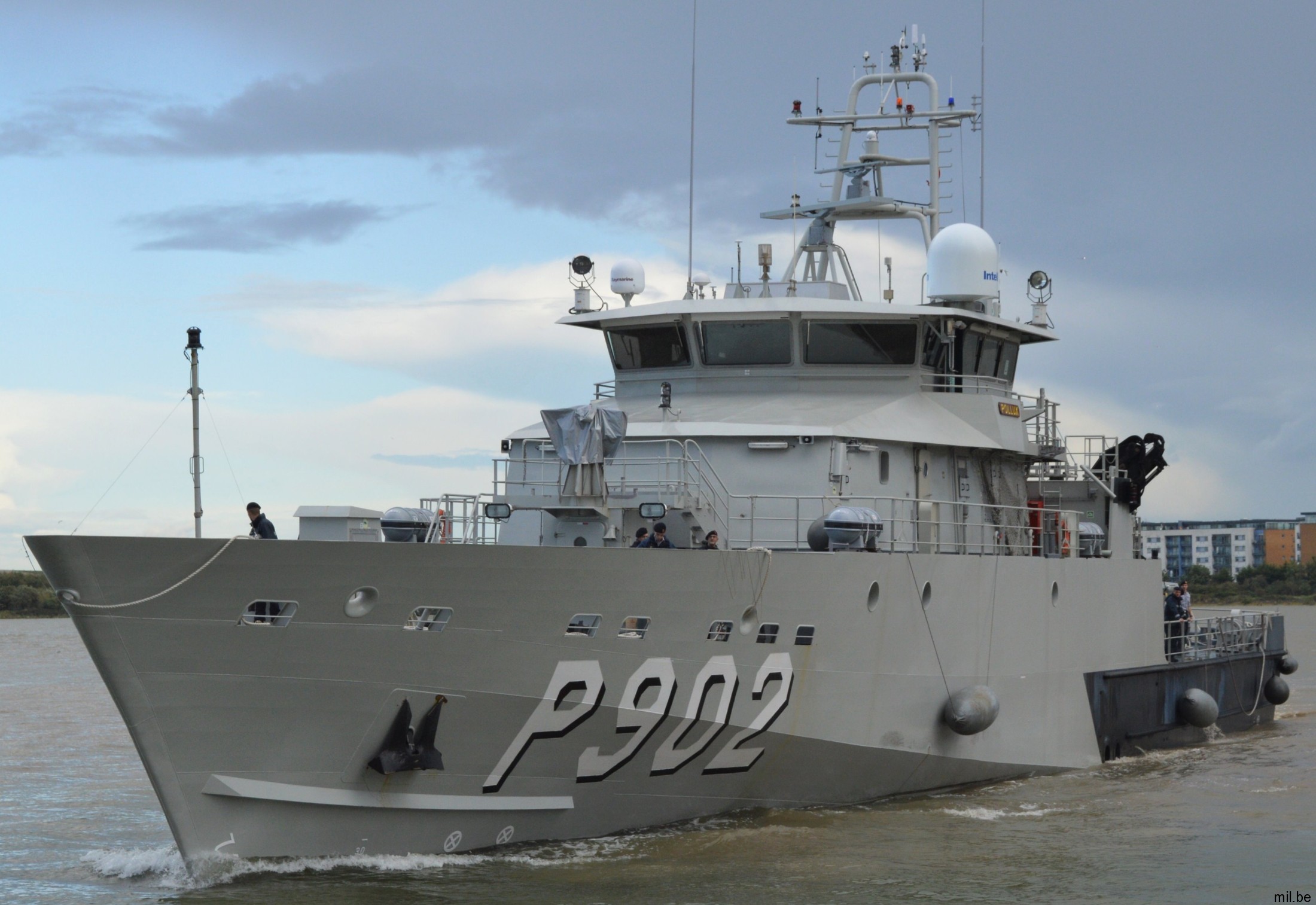

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 10
P902 BNS Pollux

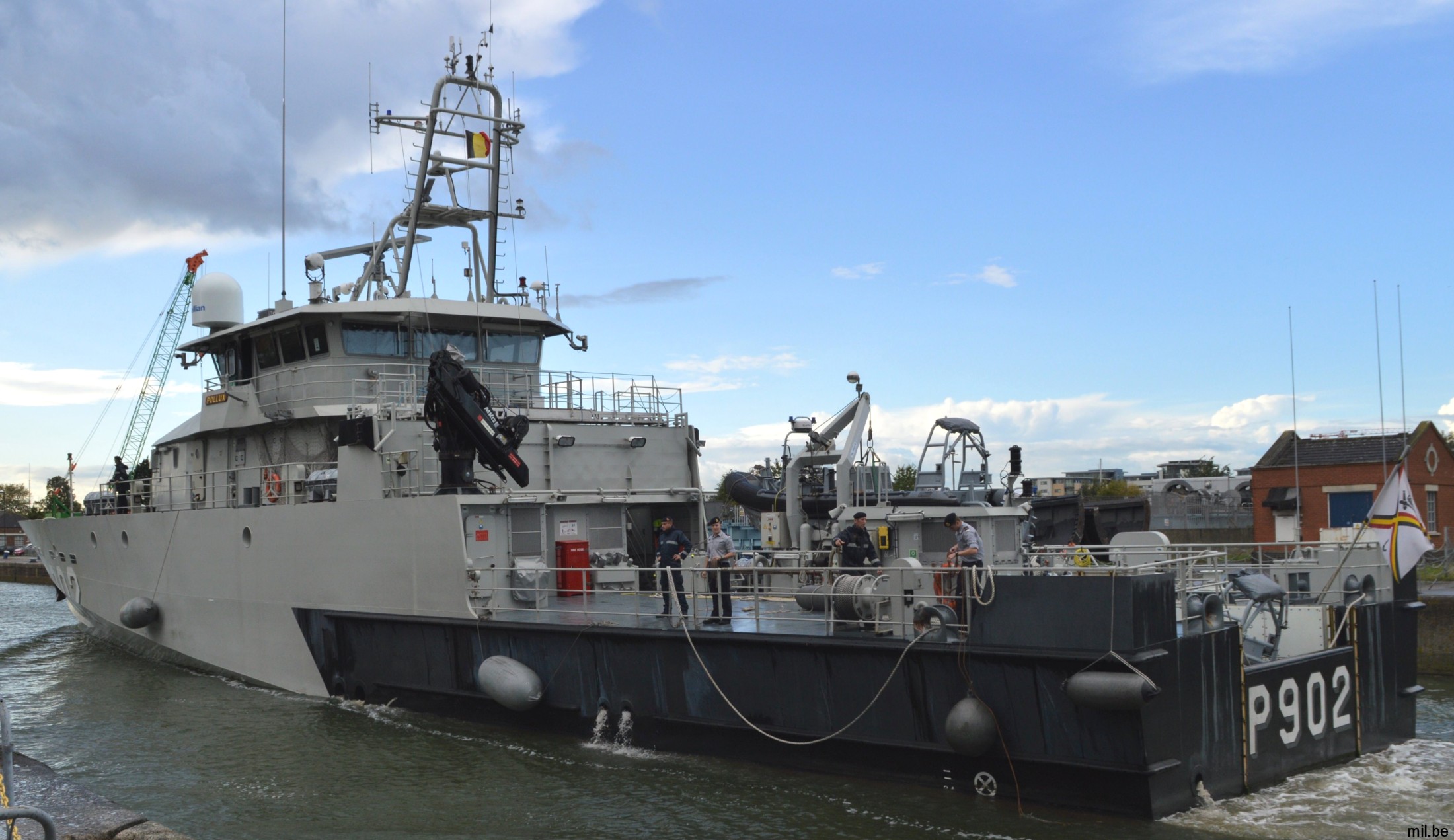

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 11
P902 BNS Pollux

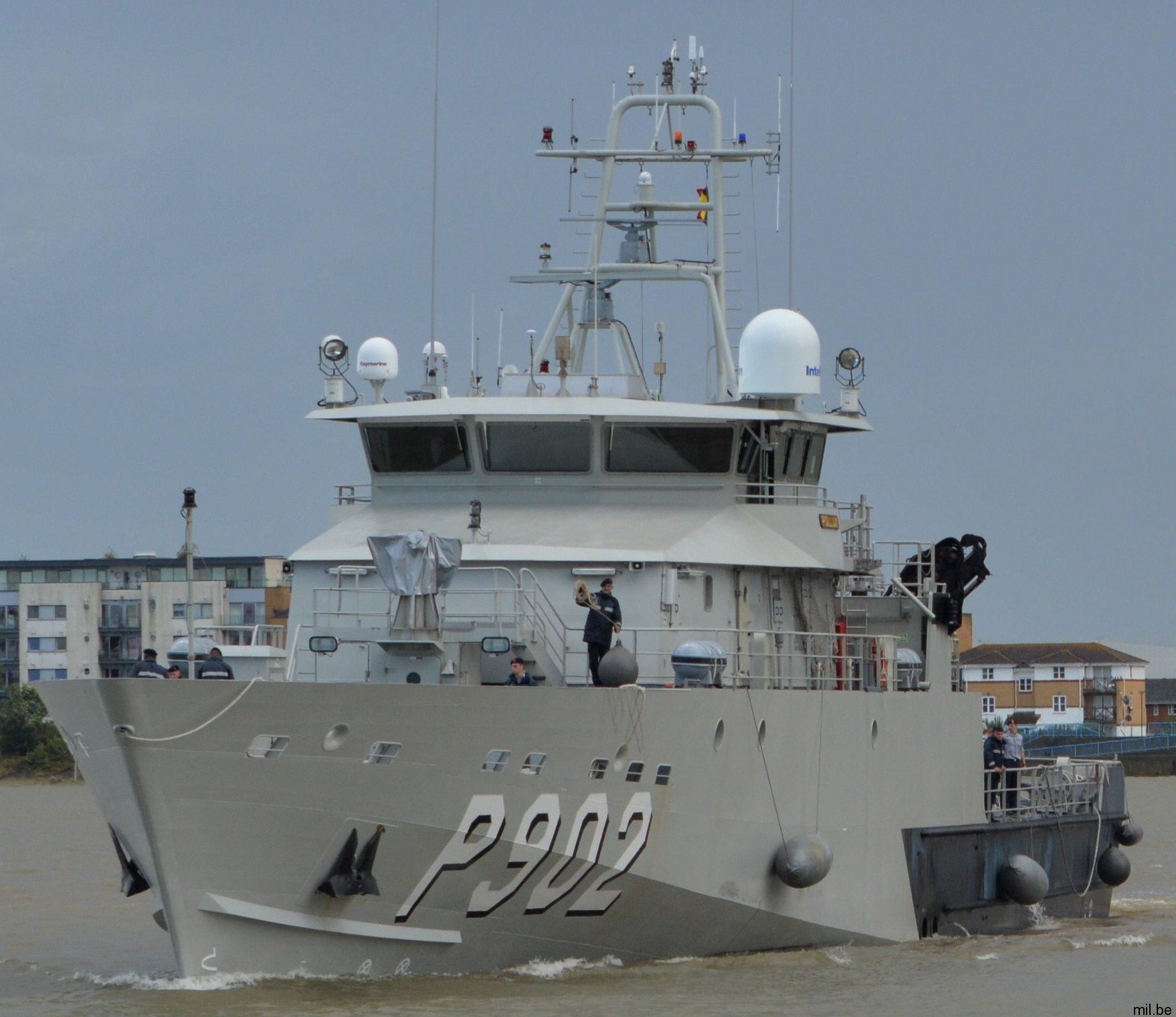

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 12
P902 BNS Pollux

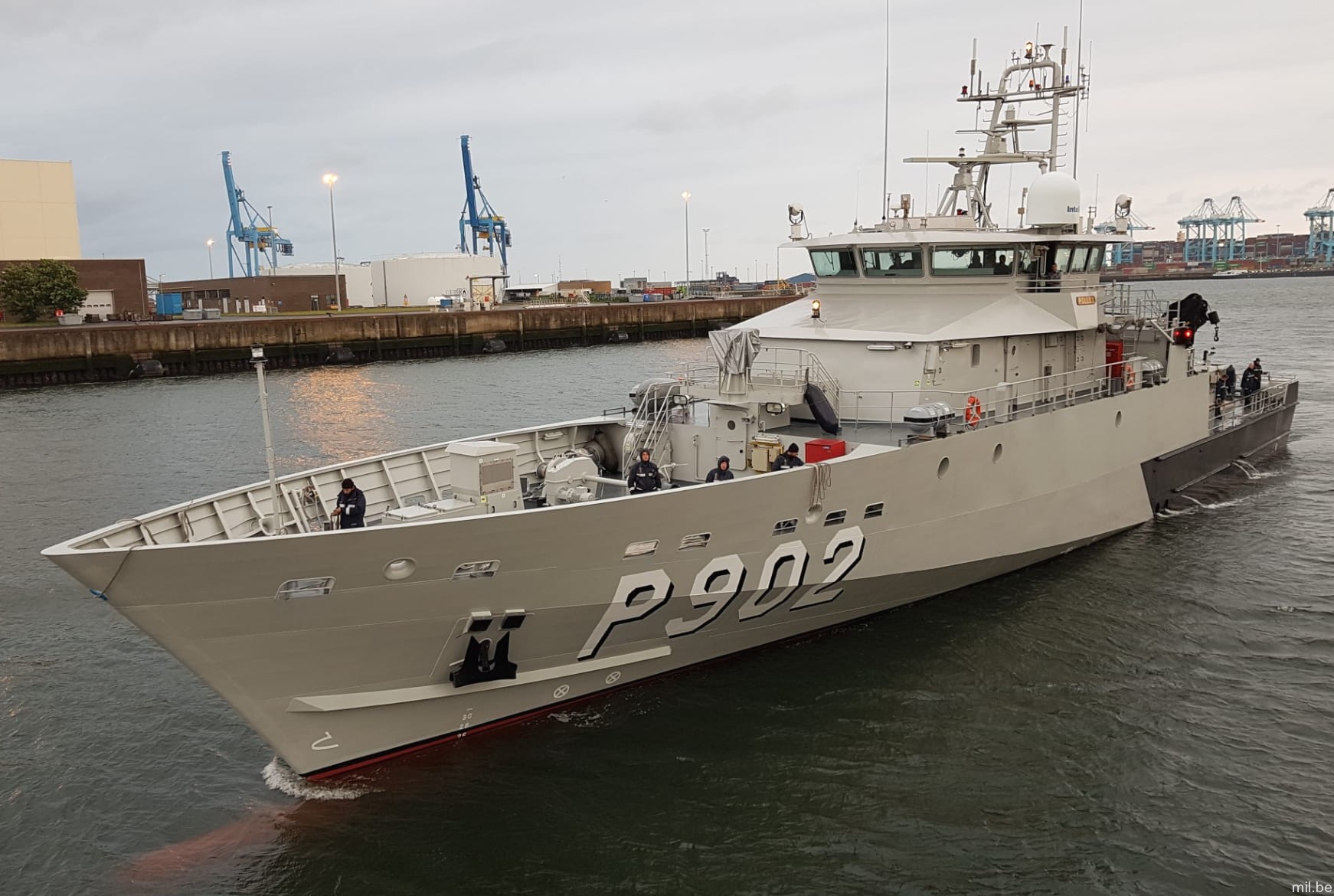

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 04
P902 BNS Pollux

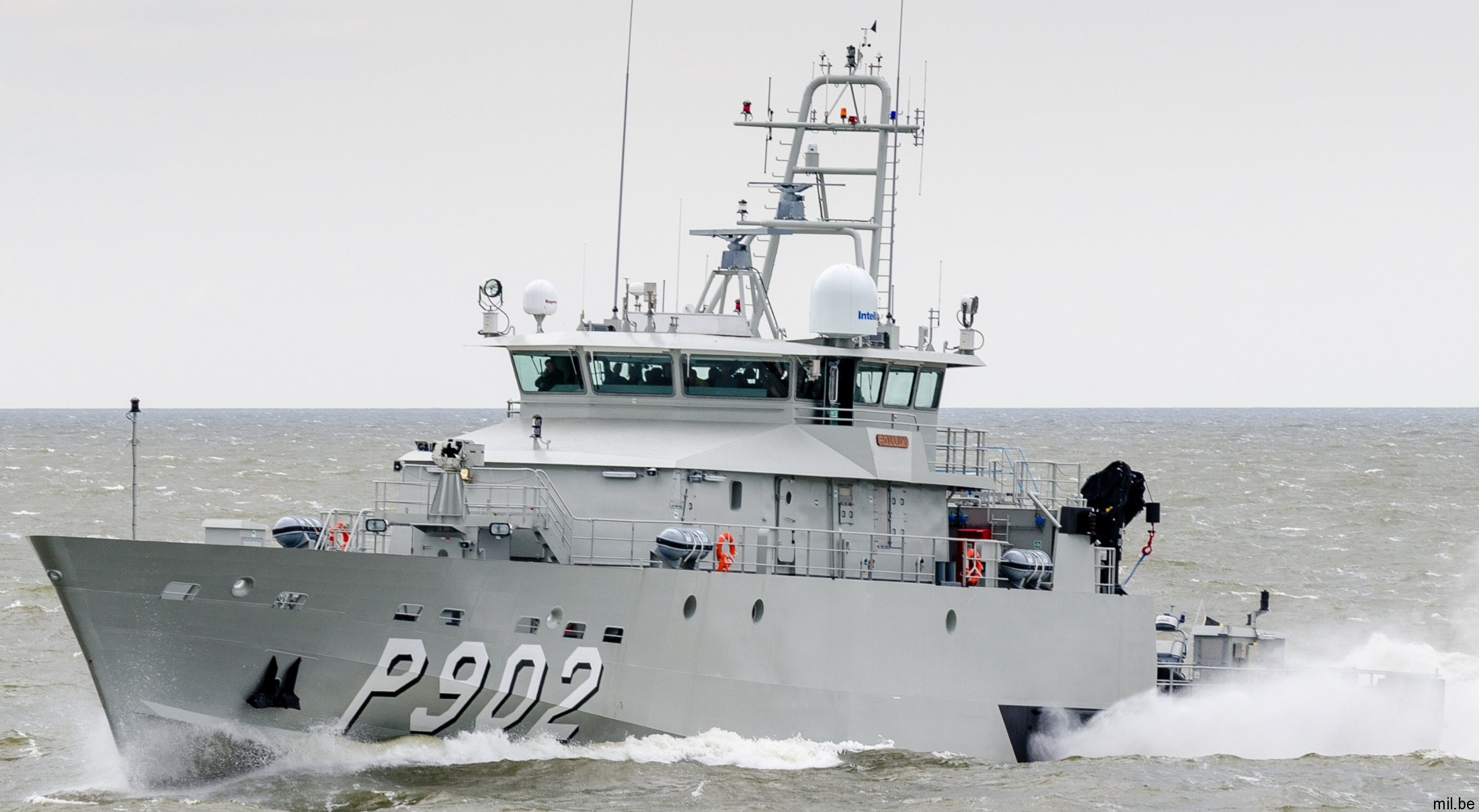

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 09
P902 BNS Pollux

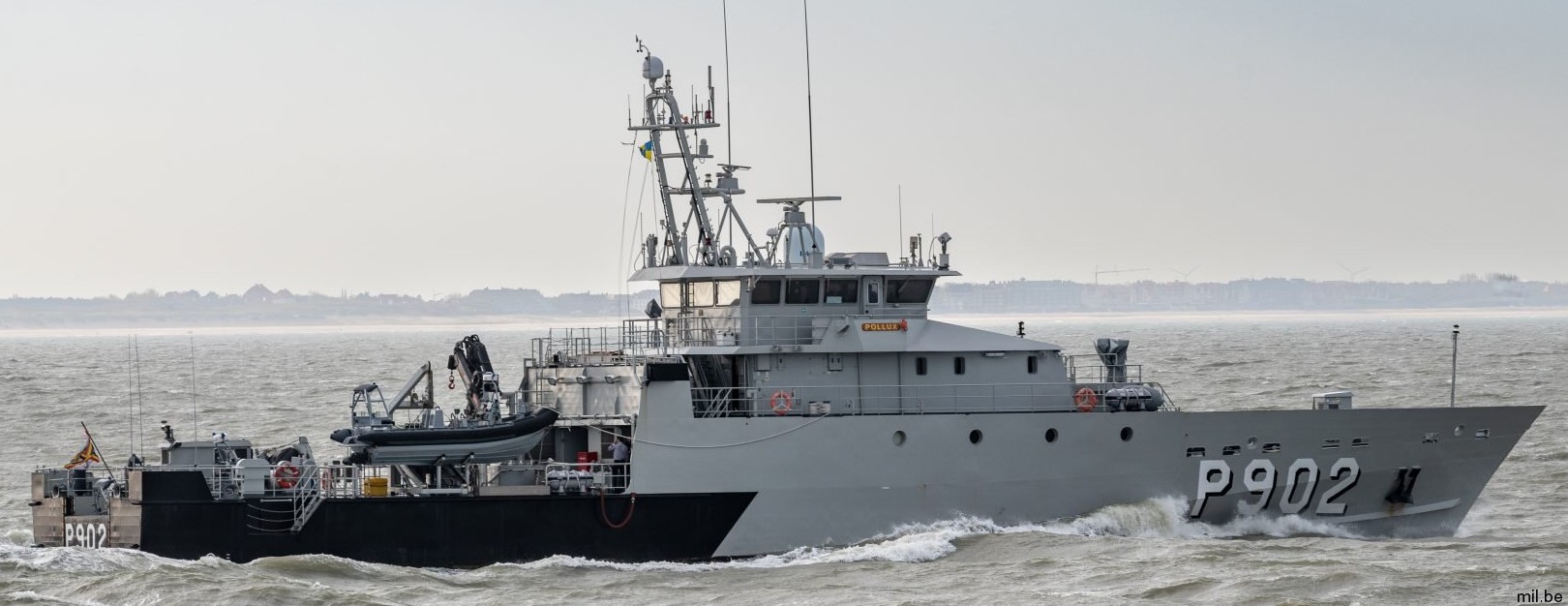

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 08
P902 BNS Pollux

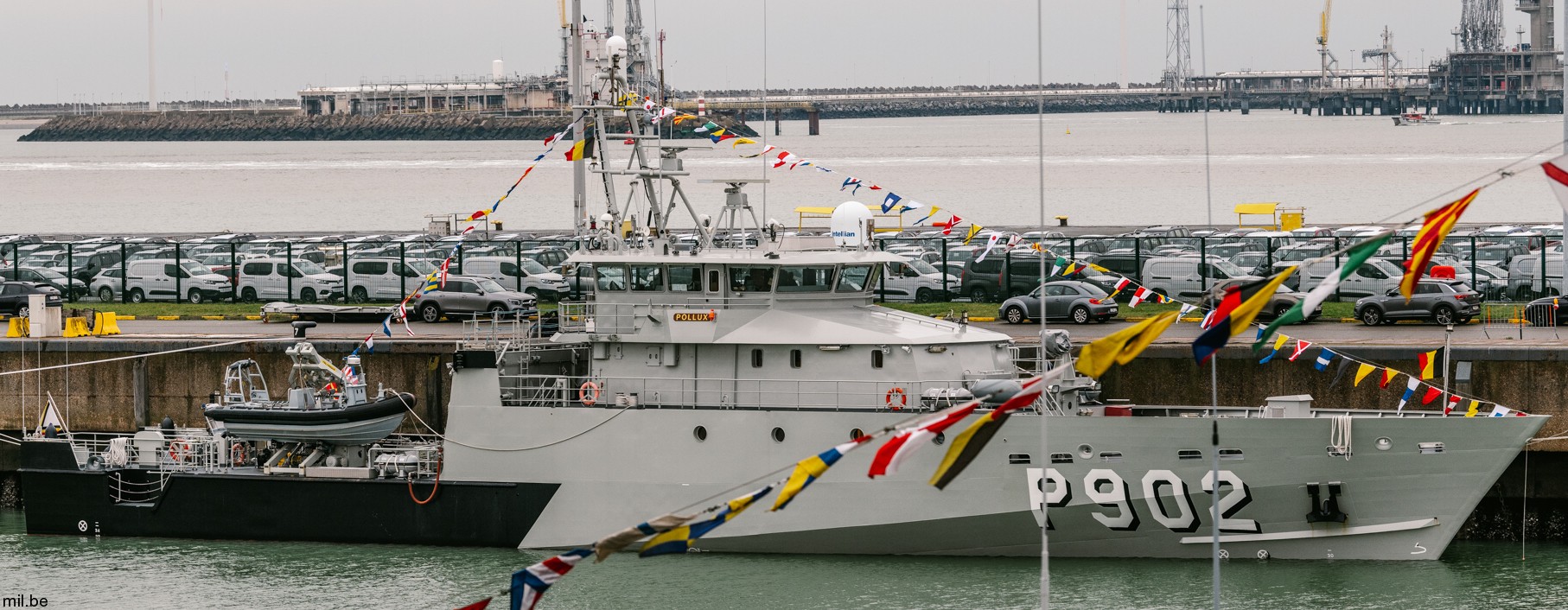

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 07
P902 BNS Pollux

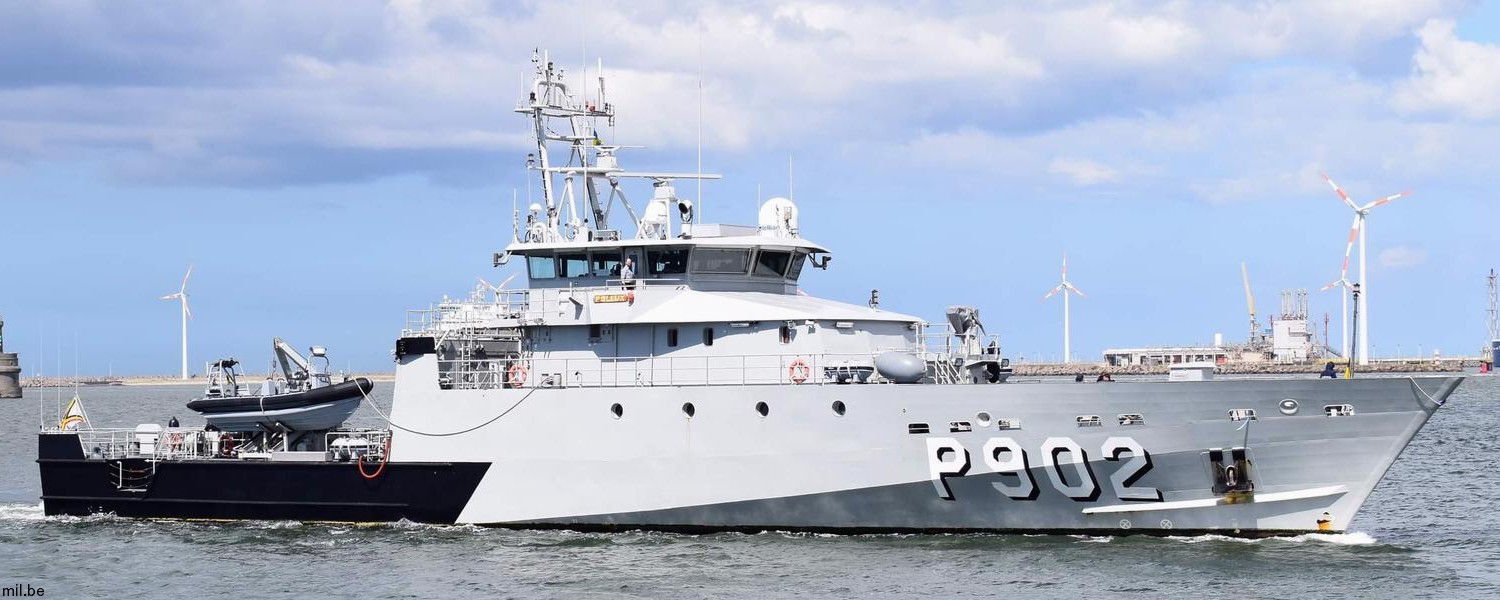

p902 bns pollux castor class patrol vessel belgian navy armed forces naval component marinecomponent 05
P902 BNS Pollux

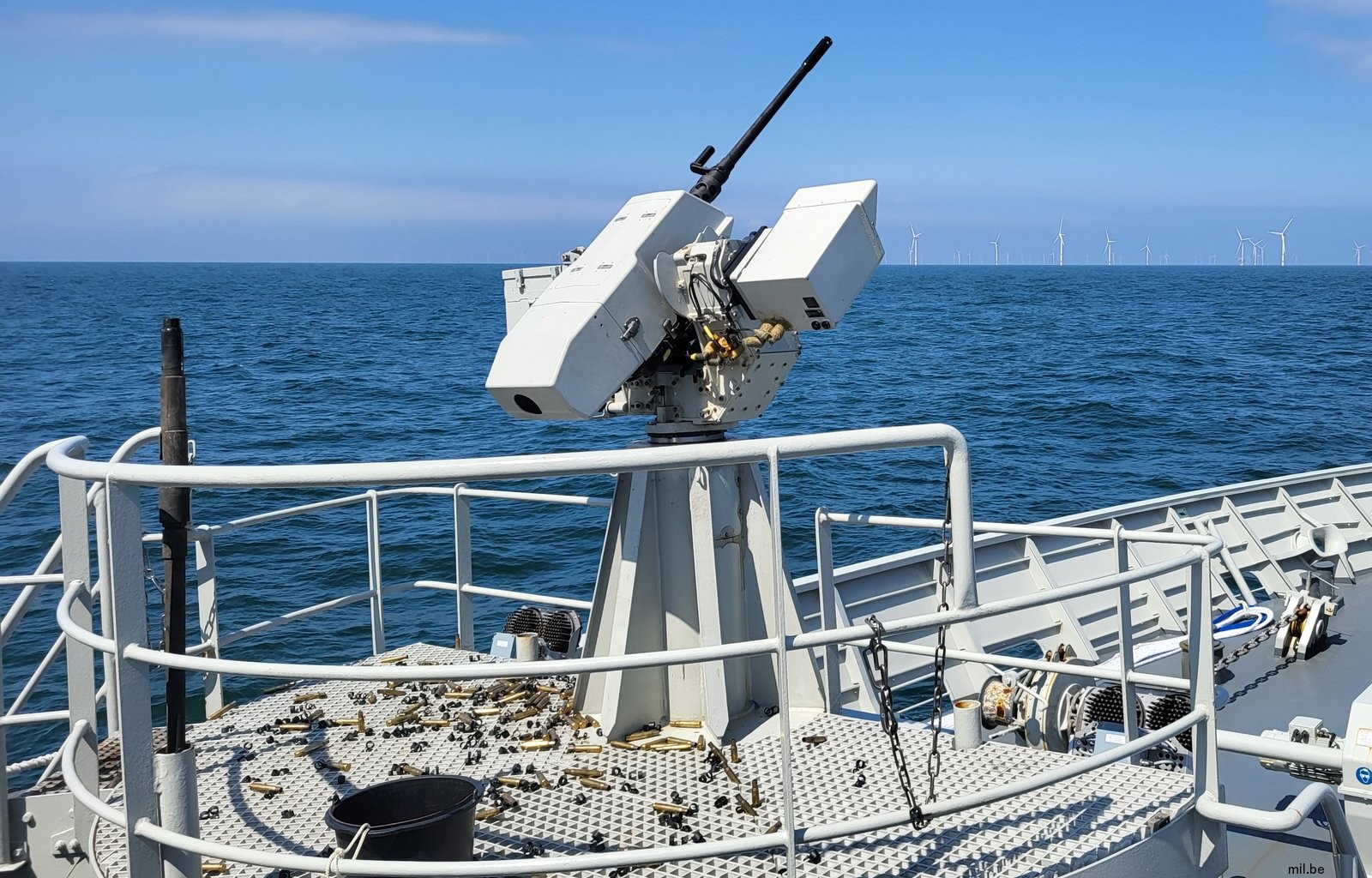

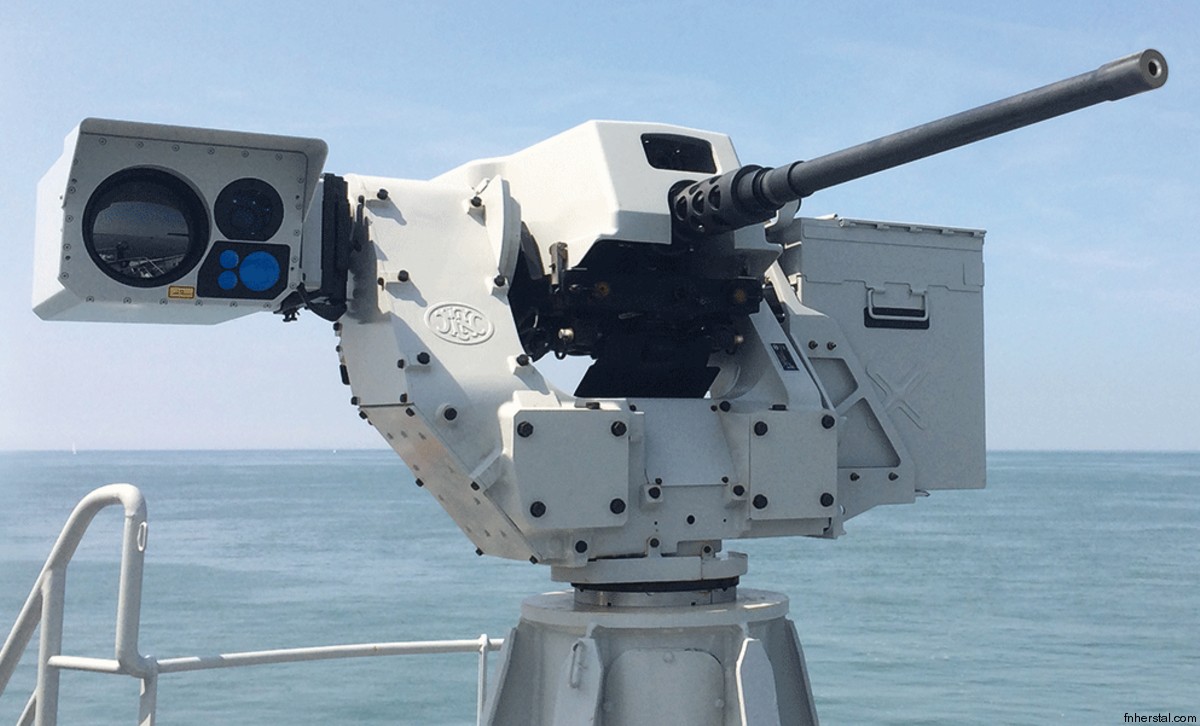

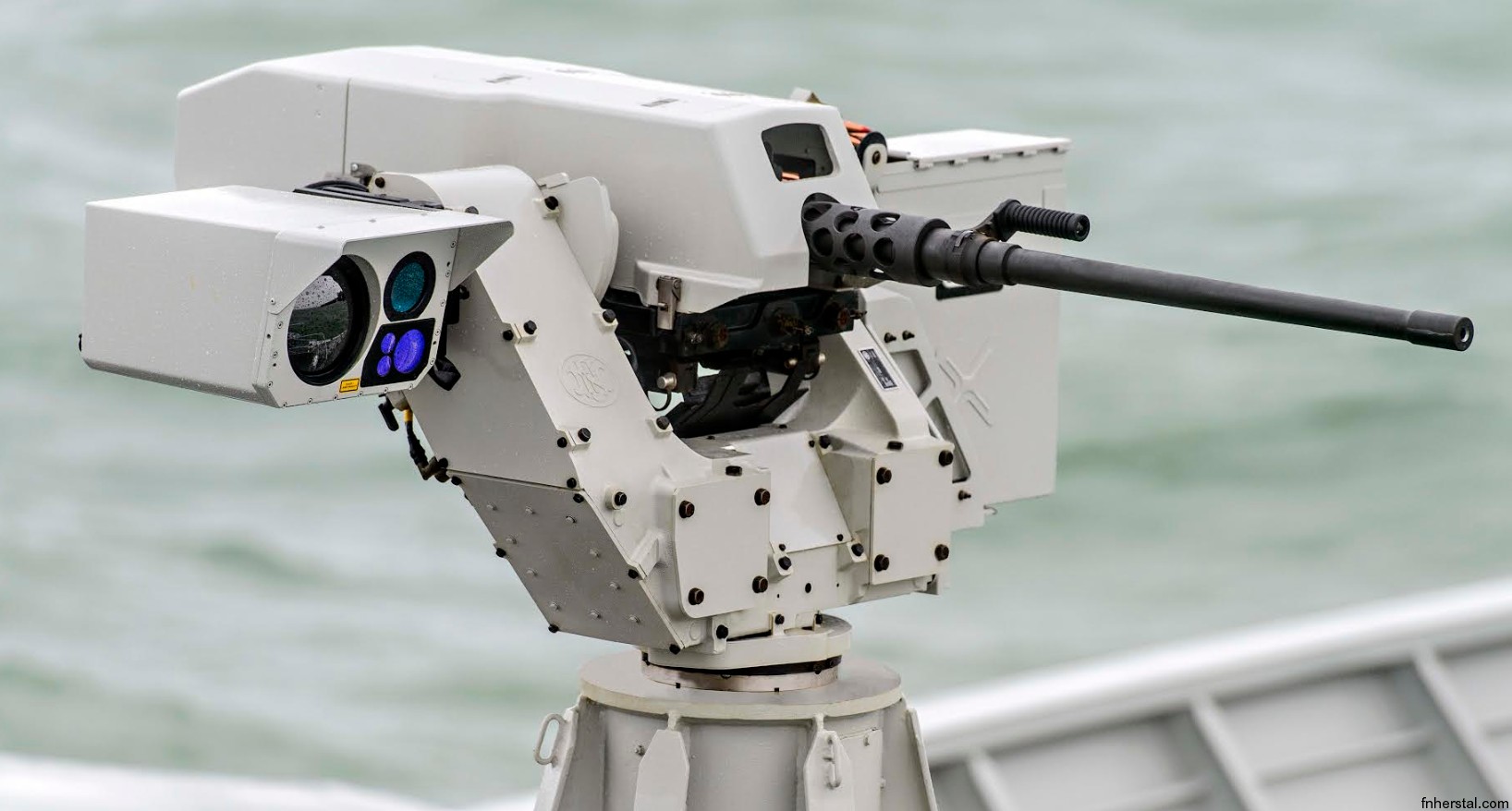

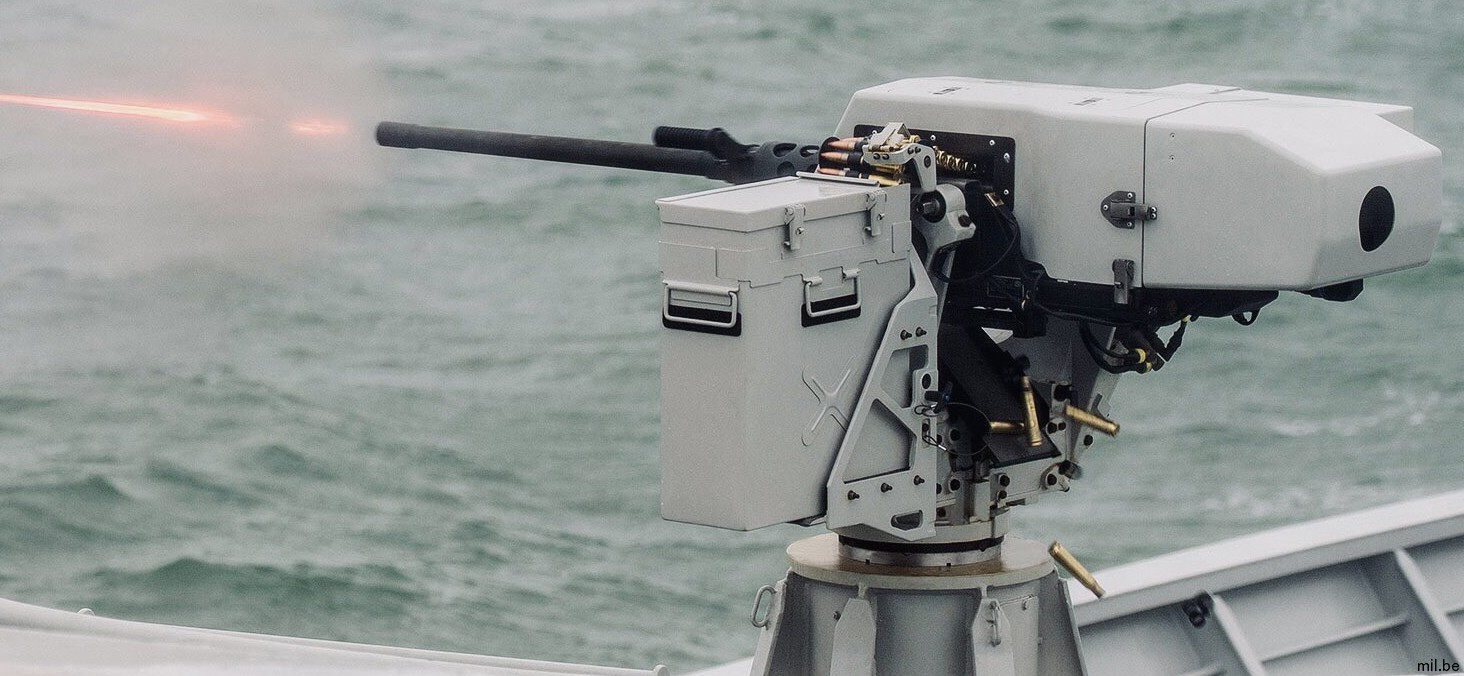

FN Herstal Sea deFNder 12.7 mm Remote Weapon System (RWS)

fn herstal sea defnder 12.7mm remote weapon system castor class patrol vessel belgian navy armed forces naval component 06

fn herstal sea defnder 12.7mm remote weapon system castor class patrol vessel belgian navy armed forces naval component 04

fn herstal sea defnder 12.7mm remote weapon system castor class patrol vessel belgian navy armed forces naval component 03

fn herstal sea defnder 12.7mm remote weapon system castor class patrol vessel belgian navy armed forces naval component 05



p901 bns castor insignia crest patch badge patrol vessel belgian navy armed forces naval component 02   p902 bns pollux insignia crest patch badge patrol vessel belgian navy armed forces naval component 02
