Anti-Submarine Warfare Frigate (ASWF) Belgian Navy FSC

Belgian Armed Forces - Naval Component / Defensie - Marinecomponent / La Defense - Composante Marine
Anti-Submarine Warfare Frigate (ASWF)
(Future Surface Combatant)

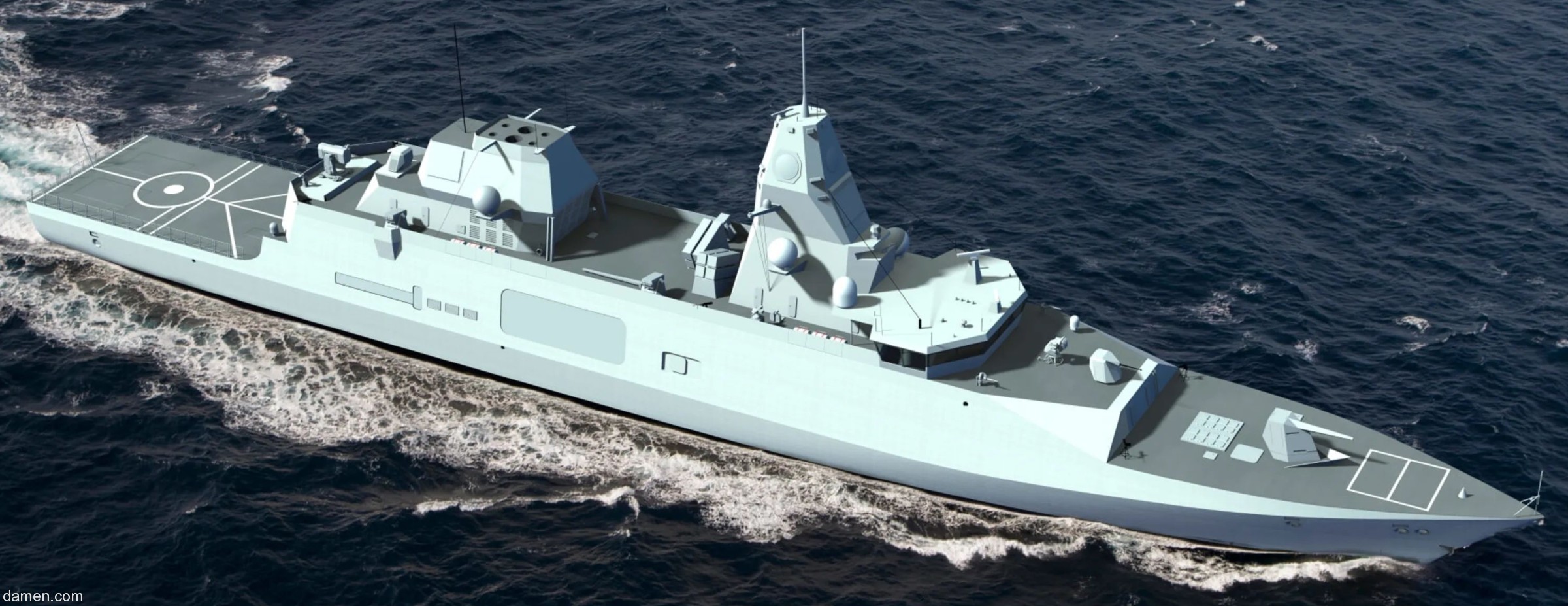

anti submarine warfare frigate aswf future surface combatant fsc belgian navy damen thales 04x

11/24

Units:

2 units on order
keel date planned for 2025 / commissioning planned in 2030

Specifications:

Builder:
Damen Shipyards Galati, Romania (hull)
Damen Schelde Naval Shipbuilding, Netherlands (fitting out)

Displacement: 6400 tonnes
Length: 145 meters (475 feet 9 inches)
Beam: 18 m (59 ft 1 in)
Draft: 5.5 m (18 ft 1 in)
Speed: ?
Range: ?
Complement: 117 (ship) + 34 additional spaces

Propulsion:
Combined Diesel-Electric and Diesel (CODLAD)
2 x MAN Energy Solutions 20V28/33D STC engines
4 x MAN Energy Solutions 16V175D-MEV variable-speed naval Generator Sets
2 x RENK gearbox system
32 MW (43,000 hp)
2 shafts, 2 controllable pitch propellers

Armament:

Mk.41 Vertical Launching System / VLS (2 x 8 cells)
for RIM-162 Evolved Sea Sparrow Missile / ESSM Block 2 (4 per cell)

2 x 4 Naval Strike Missiles / NSM

1 x RIM-116 Rolling Airframe Missile / RAM launcher (21 cells)

1 x OTO-Melara / Leonardo 76/62 gun with/for DART Munition
2 x BAE/Bofors 40/L70 Mk.4 guns

Mk.54 Lightweight Torpedoes

Systems:
TNO Under Water Warfare System (UWWS)
Thales Above Water Warfare System (AWWS) fire control cluster
Thales APAR Block 2 (Active Phased Array Radar) X-band multifunctional radar
Thales SM400 Block 2, 4-faced S-band (NATO E/F band) multifunctional radar
Thales PHAROS Multi Target Tracking Radar (missile control)
Thales Scout Mk3 Medium range covert surveillance radar
Terma SCANTER 6002 naval surveillance radar
Thales Mirador Mk2 Electro-Optical tracking
Thales Gatekeeper Mk2 Electro-Optic Security System
Sonar systems (not yet selected)
Integrated Communications System (ICS)

Aviation:
flight deck + hangar for
1 NHIndustries NH90 helicopter and 1 Unmanned Aerial Vehicle (UAV)

The Anti-Submarine Warfare Frigate (ASWF) is a project of the Royal Netherlands Navy and Belgian Navy to replace the existing Karel Doorman class / Multipurpose Frigates (M-Fregat).

images

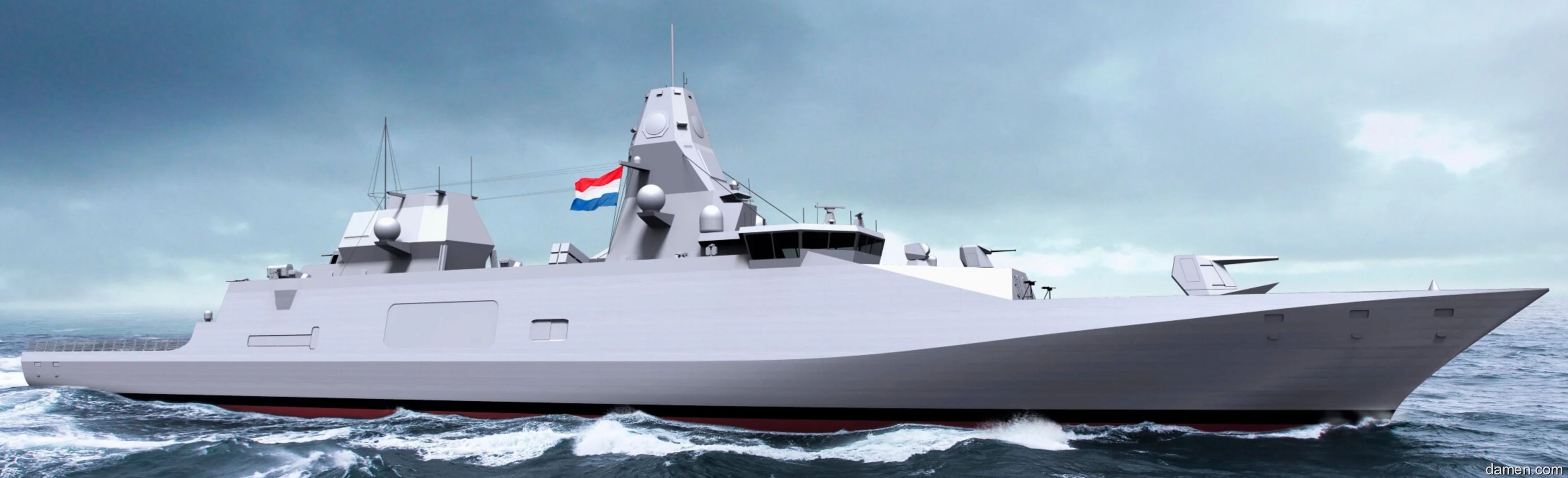

anti submarine warfare frigate aswf future surface combatant fsc belgian navy damen thales 02

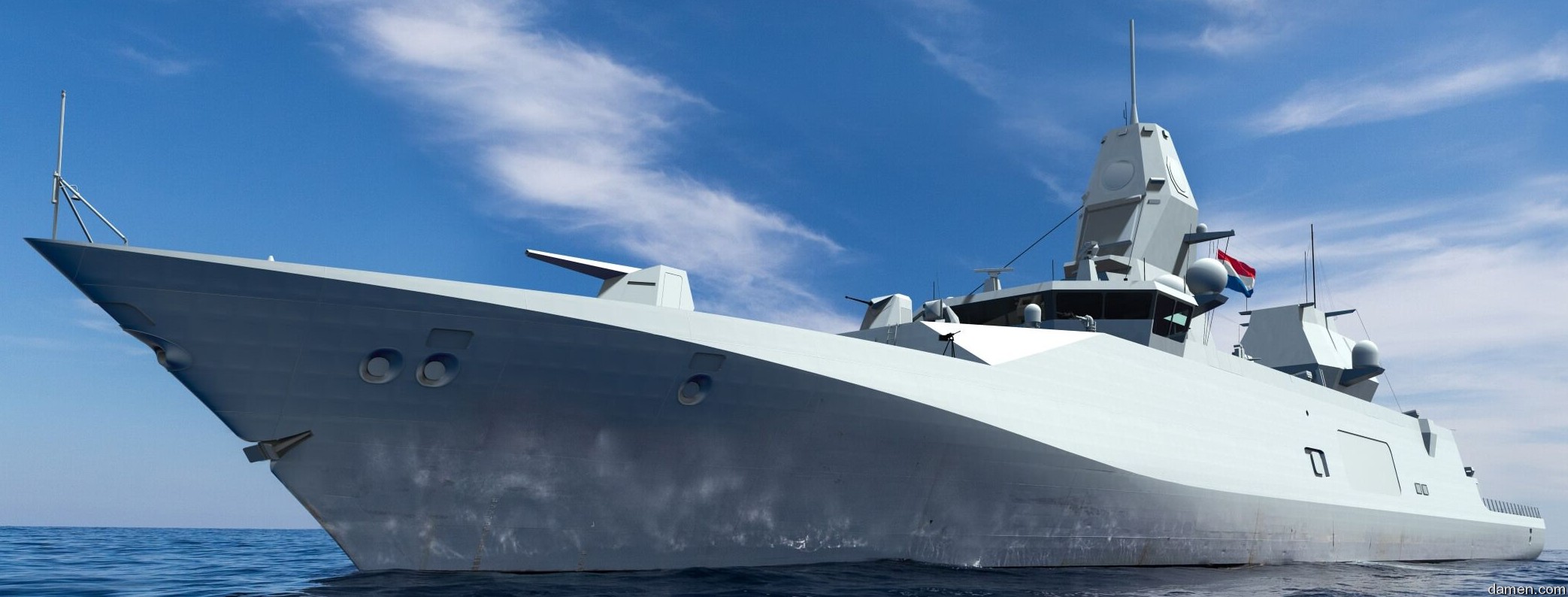

anti submarine warfare frigate aswf future surface combatant fsc belgian navy damen thales 05

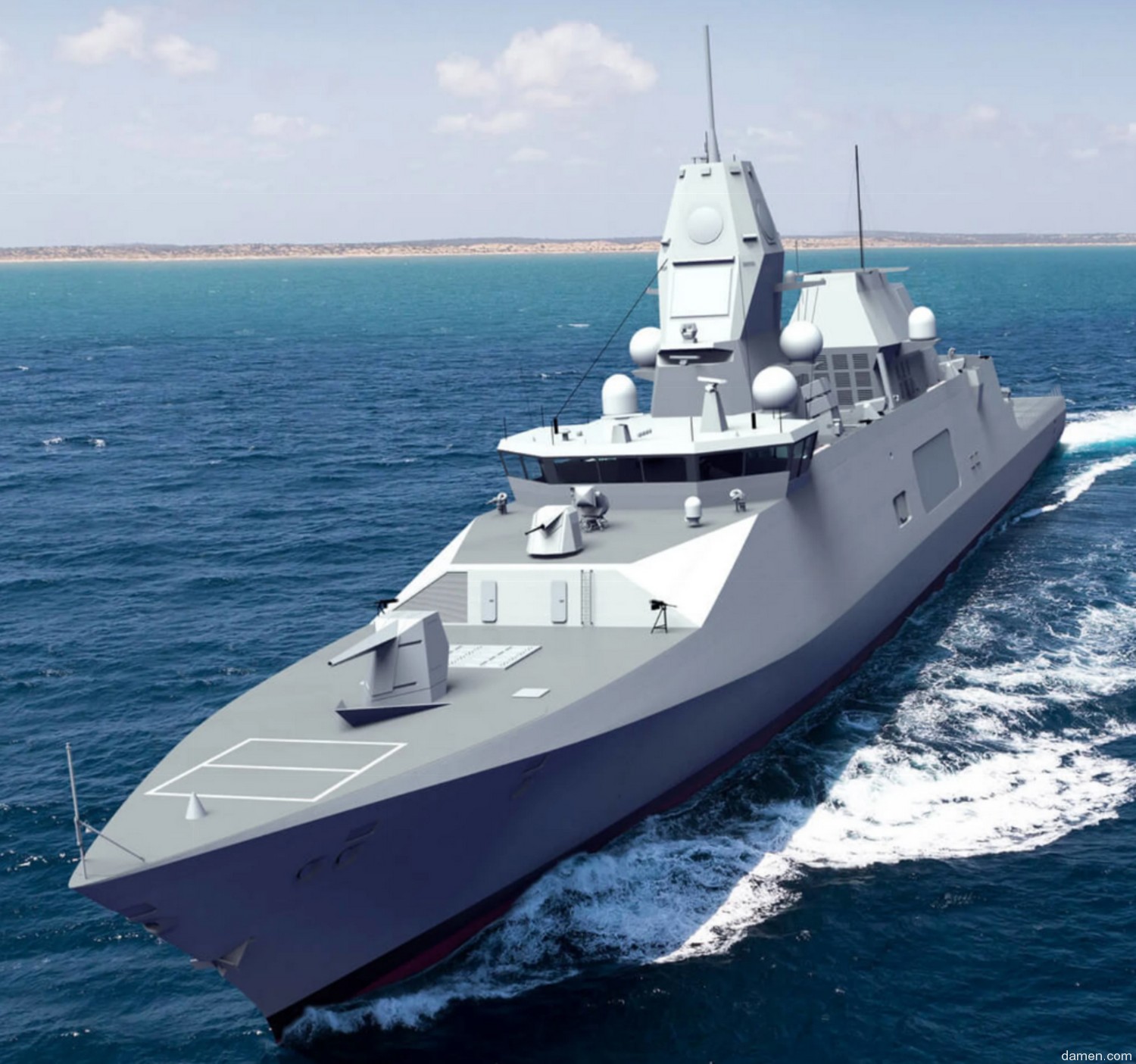

anti submarine warfare frigate aswf future surface combatant fsc belgian navy damen thales 03

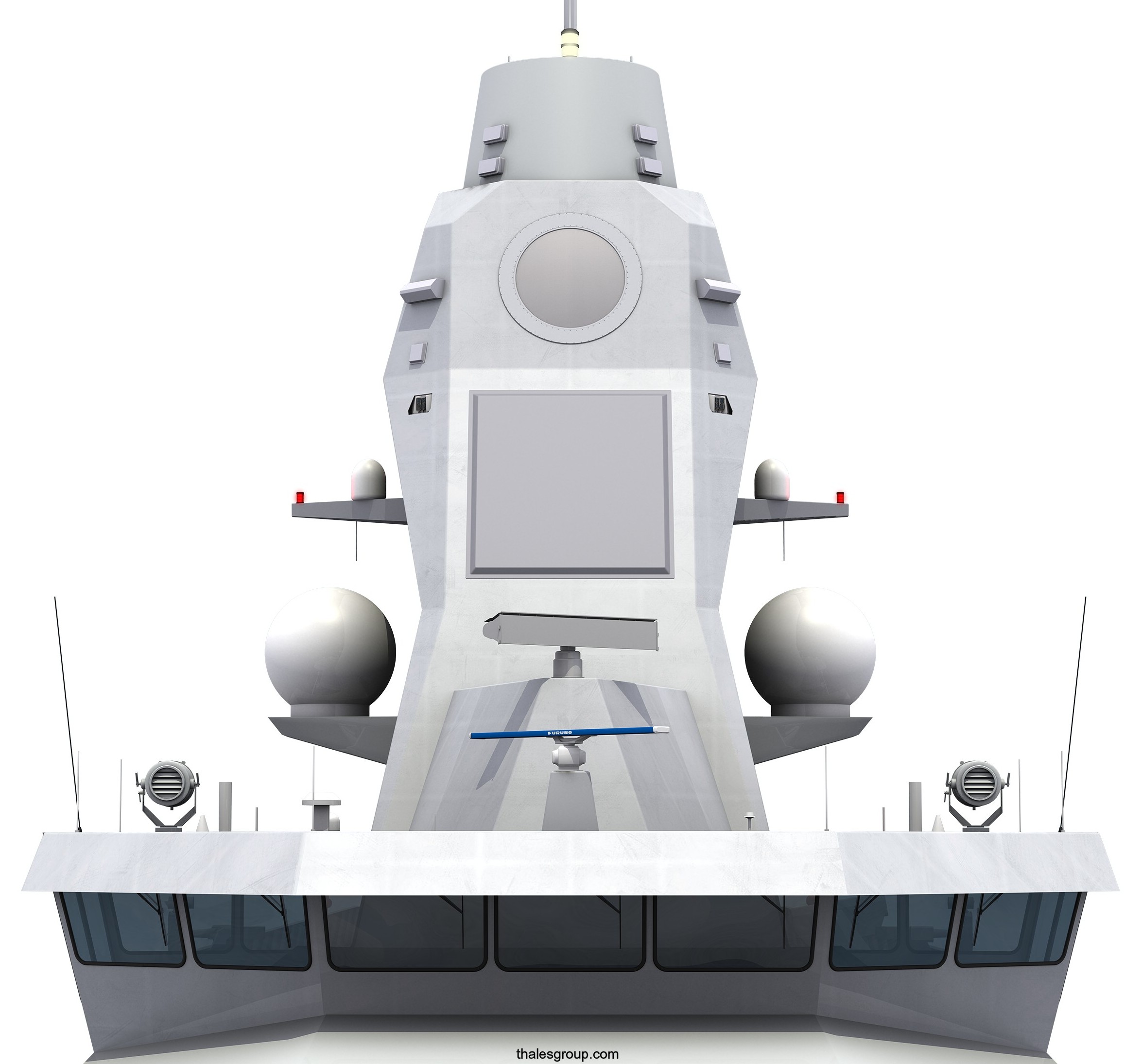

anti submarine warfare frigate aswf future surface combatant fsc belgian navy thales apar sm400 radar 06

integrated mast with
Thales APAR Block 2 (Active Phased Array Radar) X-band multifunctional radar
Thales SM400 Block 2, 4-faced S-band (NATO E/F band) multifunctional radar
