Forrestal class Aircraft Carrier US Navy

US Navy
Forrestal class Aircraft Carrier - CVA / CV

01/24

Ships:

CV 59 USS Forrestal (1955-93)
CV 60 USS Saratoga (1956-94)
CV 61 USS Ranger (1957-93)

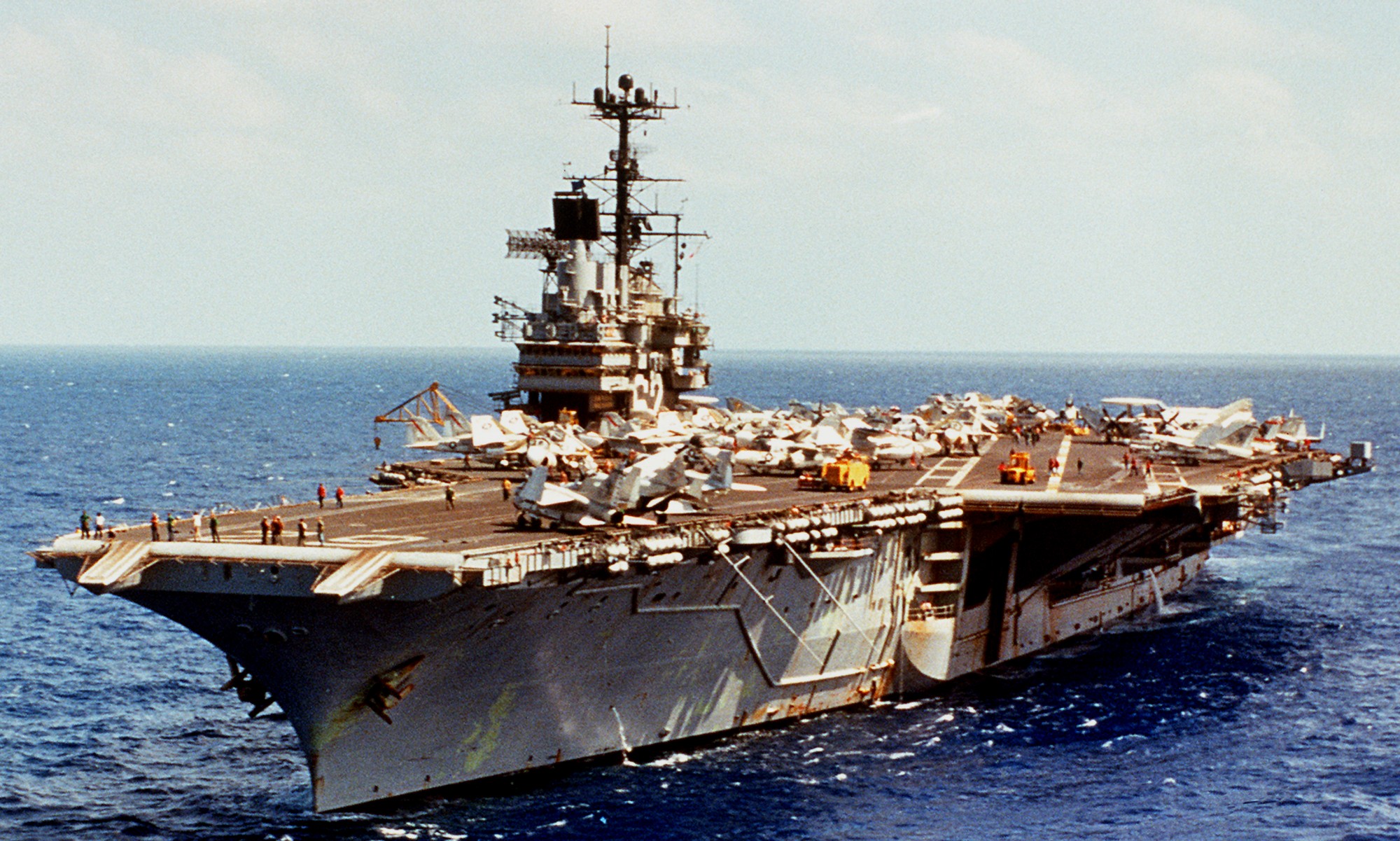

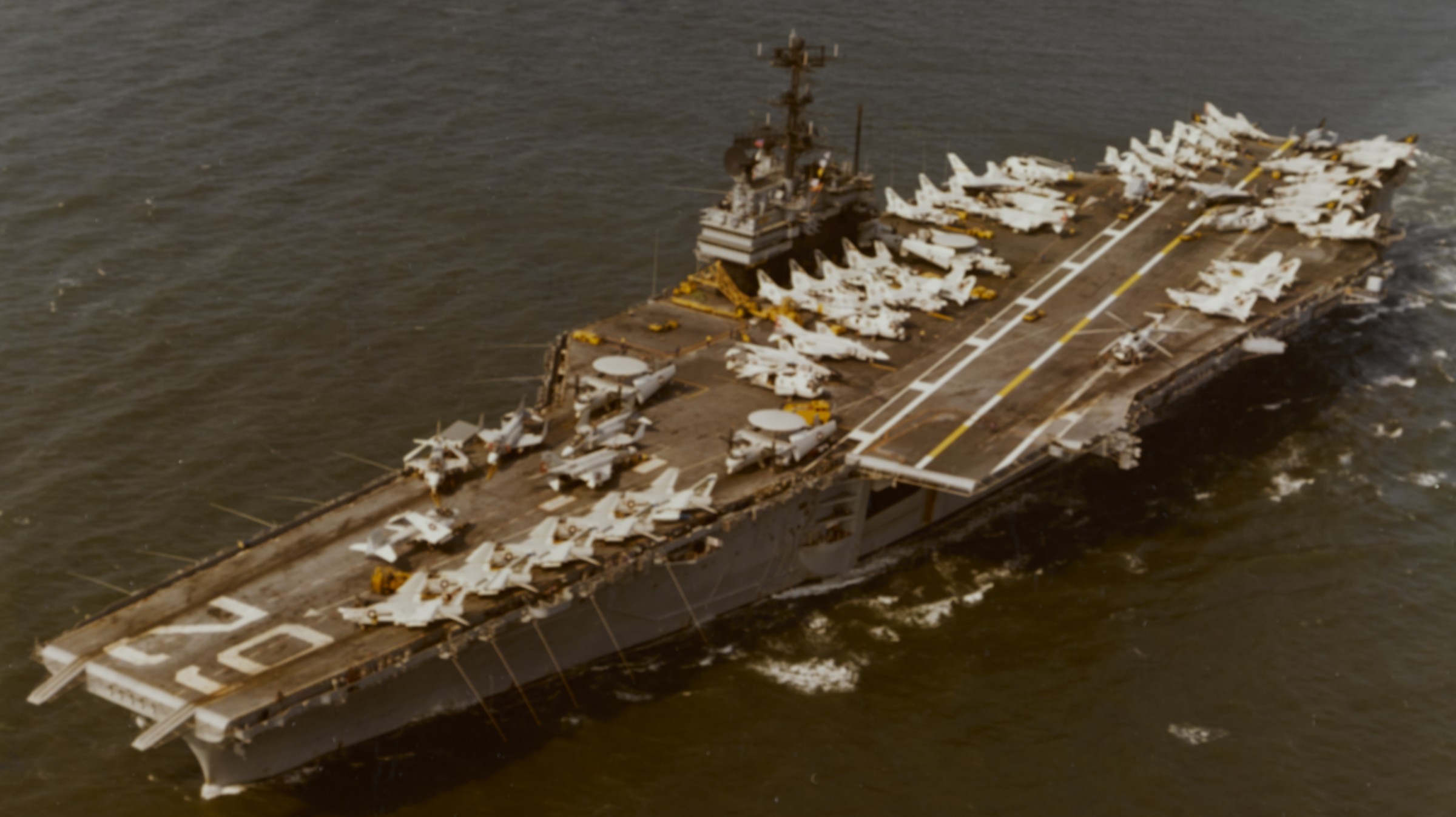

CV 62 USS Independence (1959-98)

Specifications:

Displacement: 81,000 tons (full load) / 60,000 tons (light)
Length: 326.1 meters (1070 ft) overall / 301.7 m (990 ft) waterline
Beam: 73 meters (238 ft) - extreme / 39.4 meters (129 ft 4 in) - waterline
Draft: 10.9 meters (35 ft 9 in)
Speed: 34 knots (63 km/h), max.
Range: 8,000 NMI (15,000 km) at 20 knots (37 km/h) / 4,000 NMI (7,400 km) at 30 knots (56 km/h)
Complement: up to 5,200 / ship + airwing (depending on time and CVW compilation)

Propulsion:
8 x 600 psi boilers
4 x geared steam turbines (280,000 shp / 210 MW)
4 shafts / 4 propellers

Armament:

as built:
8 x Mk.42 5"(127mm) 54-caliber guns

after refit:
3 x Mk.29 launchers for RIM-7 Sea Sparrow Missiles (2 x 8 missiles + reload)
3 x Mk.15 Phalanx Close-In-Weapon System (CIWS)

Aviation:
full flight deck (1070 ft x 253 ft / 326 x 77 meters) with island and hangar deck
for 80-100 aircraft

The Forrestal class was the first completed class of "supercarriers" of the Navy, so called because of their then-extraordinarily high tonnage (75,000 tons, 25% larger than the post-World War II-era Midway class), full integration of the angled deck, very large island, and most importantly their extremely strong air wing (80-100 jet aircraft, compared to 65-75 for the Midway class and fewer than 50 for the Essex class).

Compared to the Midway class, the Forrestals were 100 feet (30 m) longer and nearly 20 feet (6 m) wider abeam, resulting in a far more stable and comfortable aircraft platform even in very rough weather. When commissioned, the Forrestal-class ships had the roomiest hangar decks and largest flight decks of any carrier ever built. Because of their immense size they were built to a new, deep-hulled design that incorporated the armored flight deck into the hull (previous American design practice was to design the flight deck as superstructure). This was a very similar structural design as used on British "armored" carriers, and grew out of the requirement for such a very large carrier, because carrying the strength deck at the flight deck level produced a stronger and lighter hull. The Midway-class ships sat very low in the water and were poor sea boats through their long careers; they were very wet forward and their aviation characteristics were poor. The deeper Forrestal hull allowed the ships more freeboard and better seakeeping. The Forrestal-class carriers, like the Midway class that preceded it, were designed with armored flight decks.

Forrestal-class ships were the first examples of supercarriers and thus not quite a perfected design; their elevators in particular were badly arranged for aircraft handling. The portside elevator, a relic of the original axial-deck design, was especially poorly sited, as it was located at the fore end of the angled deck, in the landing path as well as the launch path of aircraft from the No. 3 and No. 4 catapults. The subsequent Kitty Hawk class moved the portside elevator to the aft end of the angle and reversed the position of the island and the second starboard elevator, vastly improving aircraft handling. The sponson-mounted guns suffered from poor range and complicated firing arcs, and were located in very wet and thus nearly useless positions in the bow and stern. They were removed after only a few years and were later replaced by missiles and much later by close-in weapon systems (CIWS). The aft guns in Forrestal lasted until the fire in 1967, then were removed and eventually replaced by missiles in the mid-70s.

The original design of the Forrestal-class ships would have had a very small, retractable island; this design had numerous problems (the mechanism to raise and lower the island was never perfected before the angled deck was added to the design) and smoke fouling of the deck was expected to be a severe problem due to lack of adequate venting. The redesign to an angled deck allowed a very large island, much larger than on previous carriers, giving unprecedented flexibility and control in air operations.

Forrestal and Saratoga were designed under project SCB 80 and laid down as axial deck carriers and converted to angled deck ships while under construction; Ranger and Independence were laid down as angled deck ships and had various minor improvements compared to the first two. The most visible differences were between the first pair and second pair: Forrestal and Saratoga were completed with two island masts, an open fantail, and a larger flight deck segment forward of the port aircraft elevator; Ranger and Independence had a single island mast, a more closed fantail (as seen in all carriers since), and a smaller flight deck segment forward of the port aircraft elevator.

source: wikipedia
