Italian Navy / Marina Militare Italiana Albatros class Corvette |
||||||||
|
|
||||||||
|
|
||||||||
|
Ships: |
||||||||
|
unit |
in service |
builder |
status |
|||||
|
F 543 ITS
Albatros |
1955 |
Navalmeccanica, Castellammare die Stabia,
Italy |
decommissioned 1991 |
|||||
|
F 544 ITS
Alcione |
1955 |
Navalmeccanica, Castellammare die Stabia,
Italy |
decommissioned 1991 |
|||||
|
F 545 ITS
Airone |
1955 |
Navalmeccanica, Castellammare die Stabia,
Italy |
decommissioned 1991 |
|||||
|
F 542 ITS
Aquila |
1956/61 |
Cantieri Navale Breda di Marghera,
Venice, Italy |
decommissioned 1985 |
|||||
|
|
||||||||
|
Specifications: |
|||||||
|
Length: |
76,3 meters |
||||||
|
Beam: |
9,6 meters |
||||||
|
Draft: |
2,8 meters |
||||||
|
Displacement: |
800 tons (standard) / 950 tons (full load) |
||||||
|
Speed: |
20
knots (37 km/h) maximal |
||||||
|
Range: |
8400
NM (15500 km) |
||||||
|
Crew: |
117 |
||||||
|
Aviation: |
none |
||||||
|
Propulsion: |
4 x
FIAT M409 diesel engines |
||||||
|
Armament: |
2 x Oto-Melara
SMP3 Sovrapposto 76mm/62-caliber guns (replaced in 1962/63 by 2x 40mm/L70 guns) 2 x Bofors
40mm/L70 twin AA guns 2 x
12,75” (324mm) triple torpedo tubes (added later) 4 x ASW
mortars (removed later) 2 x
“Hedgehog” anti-submarine projectors 1 x
depth charge rack |
||||||
|
Systems: |
MLN-1A air/surface search radar QCU-2 hight-frequency sonar |
||||||
|
|
||||||||
|

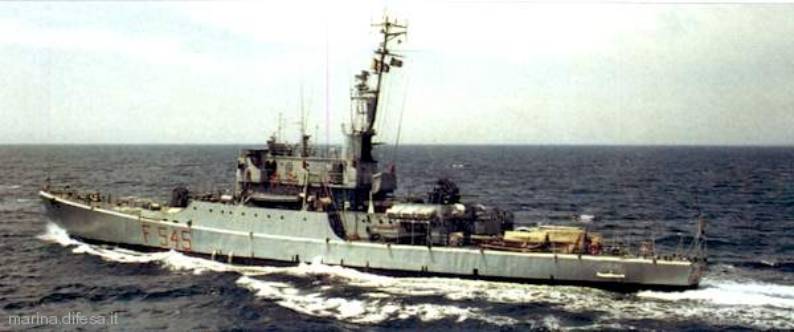

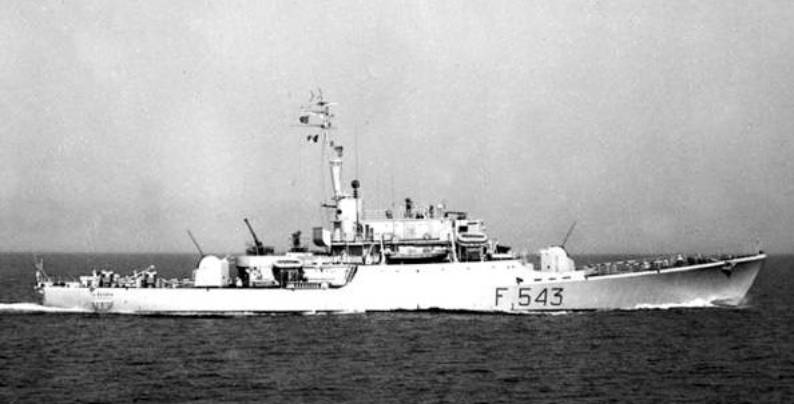

class images |
||||||||
|
|
||||||||
|
|
||||||||
