German Navy - Deutsche Marine
Type 143A Gepard class Fast Attack Missile Craft


type 143a gepard class fast attack missile craft facm german navy deutsche marine lürssen kröger werft shipbuilding


Units:
UNIT name  builder commissioned decommissioned fate
P6121 S71 Gepard  Cheetah Lürssen  December 7, 1982 December 12, 2014 Museum
P6122 S72 Puma  Puma Lürssen   February 24, 1983 December 14, 2015
P6123 S73 Hermelin  Stoat Kröger  April 28, 1983 November 16, 2016
P6124 S74 Nerz  Mink Lürssen   July 14, 1983 March 31, 2012 sold to Ghana
P6125 S75 Zobel  Sable Kröger  September 29, 1983 November 16, 2016
P6126 S76 Frettchen  Ferret Lürssen   December 16, 1983 November 16, 2016
P6127 S77 Dachs  Badger Kröger  March 22, 1984 March 31, 2012 sold to Ghana
P 6128 S78 Ozelot  Ocelot Lürssen   May 23, 1984 December 18, 2014
P6129 S79 Wiesel  Weasel Lürssen   July 12, 1984 December 14, 2015
P6130 S80 Hyäne  Hyena Lürssen   November 13, 1984 November 16, 2016

Specifications:

  Builder:
Lürssen Shipbuilding, Bremen-Vegesack, Germany
Kröger Shipbuilding, Rendsburg, Germany

 Displacement: 390 tonnes
Length: 57,6 meters (189 feet)
Beam: 7,8 m (25 ft 7 in)
Draft: 2,6 m (8 ft 6 in)
Crew: 35
Speed: 40 knots (74 km/h)

Range:
 2600 nautical miles (4800 km) at 16 knots (30 km/h)

 Propulsion:
4 x MTU 16V 956 TB91 diesel-engines (13235 kW / 17740 hp)
4 shafts / 4 propellers

 Armament:
 1 x Oto-Melara 76/62 Compact gun
 4 x missile launcher for 4 x MM38 Exocet SSM
1 x Mk-49 missile launching system for RIM-116 Rolling Airframe Missiles (RAM)
2 x caliber .50 machine guns
mine laying capacity

 Systems:
MSSR 2000I Radar
WM27 Radar
MSP500 electro-optical sensor
HOT DOG decoy launcher
DAG2200 WOLKE chaff launcher
FL1800 ESM suite






images

p6121 s71 fgs gepard type 143a class fast attack missile craft german navy 03
P6121 S71 FGS Gepard

p6121 s71 fgs gepard type 143a class fast attack missile craft german navy 04
P6121 S71 FGS Gepard

p6121 s71 fgs gepard type 143a class fast attack missile craft german navy 05
P6121 S71 FGS Gepard

p6121 s71 fgs gepard type 143a class fast attack missile craft german navy 02
P6121 S71 FGS Gepard

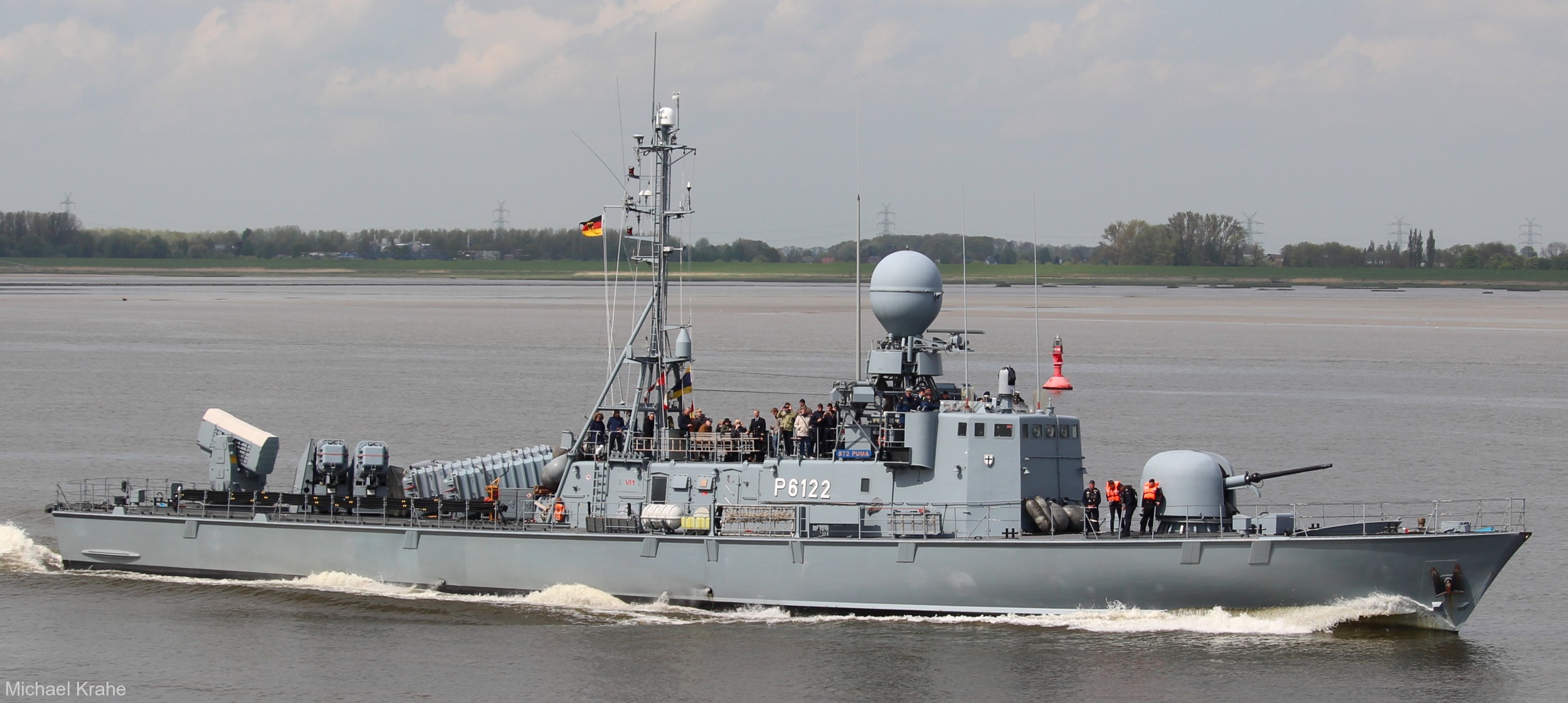

p6122 s72 fgs puma type 143a gepard class fast attack missile craft german navy 02
P6122 S72 FGS Puma

p6122 s72 fgs puma type 143a gepard class fast attack missile craft german navy 04
P6122 S72 FGS Puma

p6122 s72 fgs puma type 143a gepard class fast attack missile craft german navy 03
P6122 S72 FGS Puma


p6123 s73 fgs hermelin type 143a gepard class fast attack missile craft german navy 02

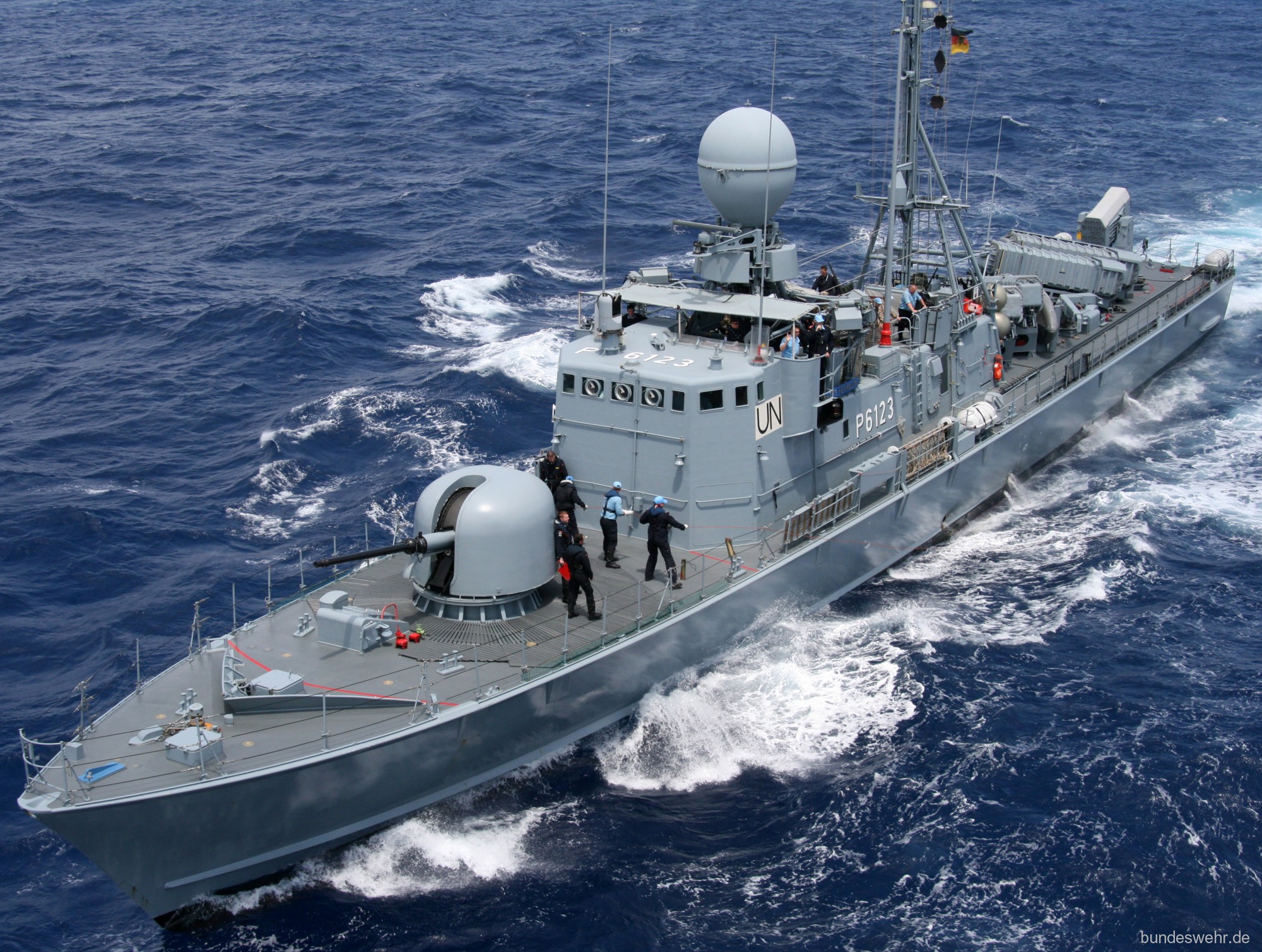

P6123 S73 FGS Hermelin

p6123 s73 fgs hermelin type 143a gepard class fast attack missile craft german navy 06
P6123 S73 FGS Hermelin

p6123 s73 fgs hermelin type 143a gepard class fast attack missile craft german navy 05

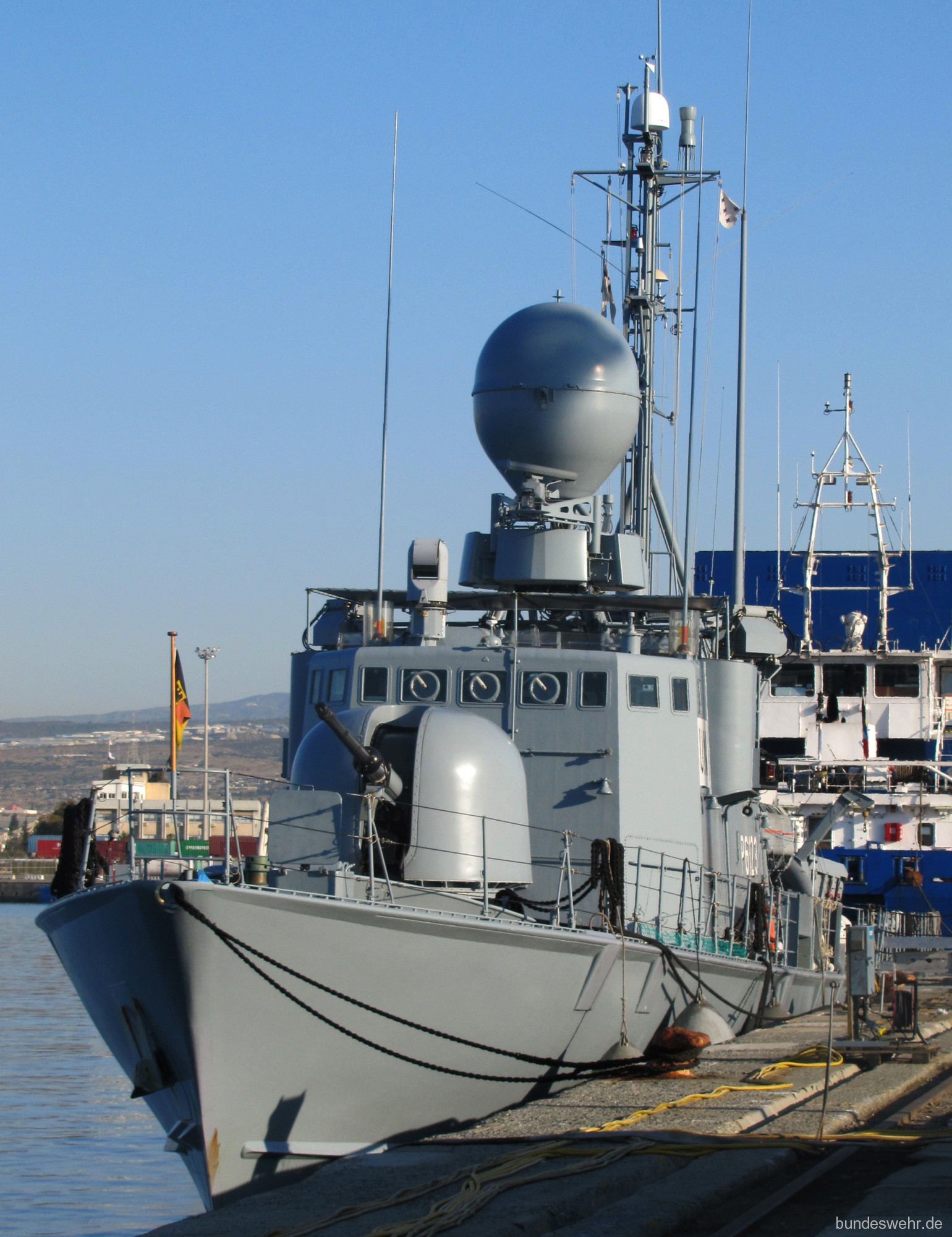

P6123 S73 FGS Hermelin

p6123 s73 fgs hermelin type 143a gepard class fast attack missile craft german navy 03 oto melara 76mm 62 caliber gun
P6123 S73 FGS Hermelin - Oto-Melara 76/62 compact gun

p6123 s73 fgs hermelin type 143a gepard class fast attack missile craft german navy 04 mm38 exocet ssm
P6123 S73 FGS Hermelin - MM38 Exocet SSM launcher and RIM-116 RAM launcher


p6124 s74 fgs nerz type 143a gepard class fast attack missile craft german navy 02

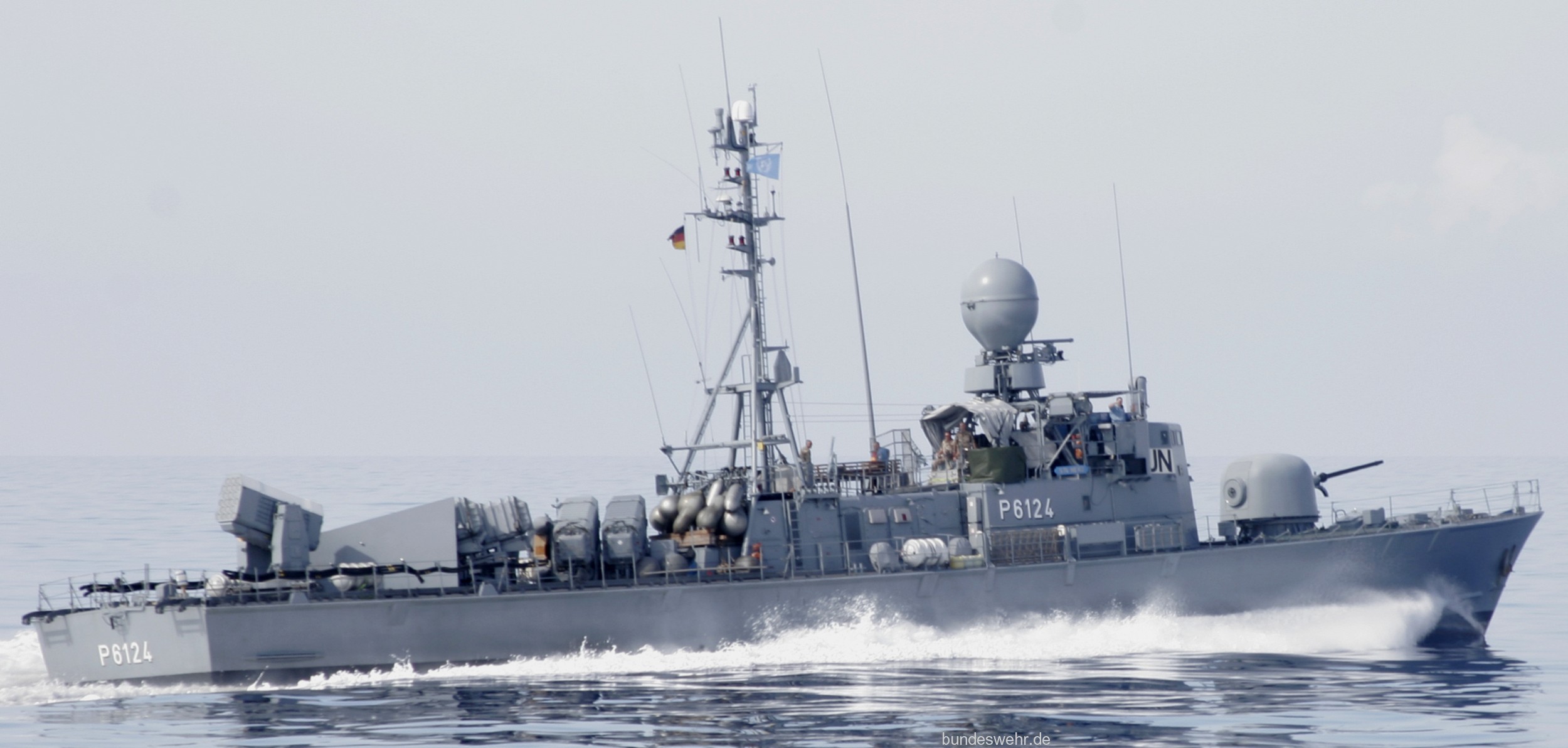

P6124 S74 FGS Nerz

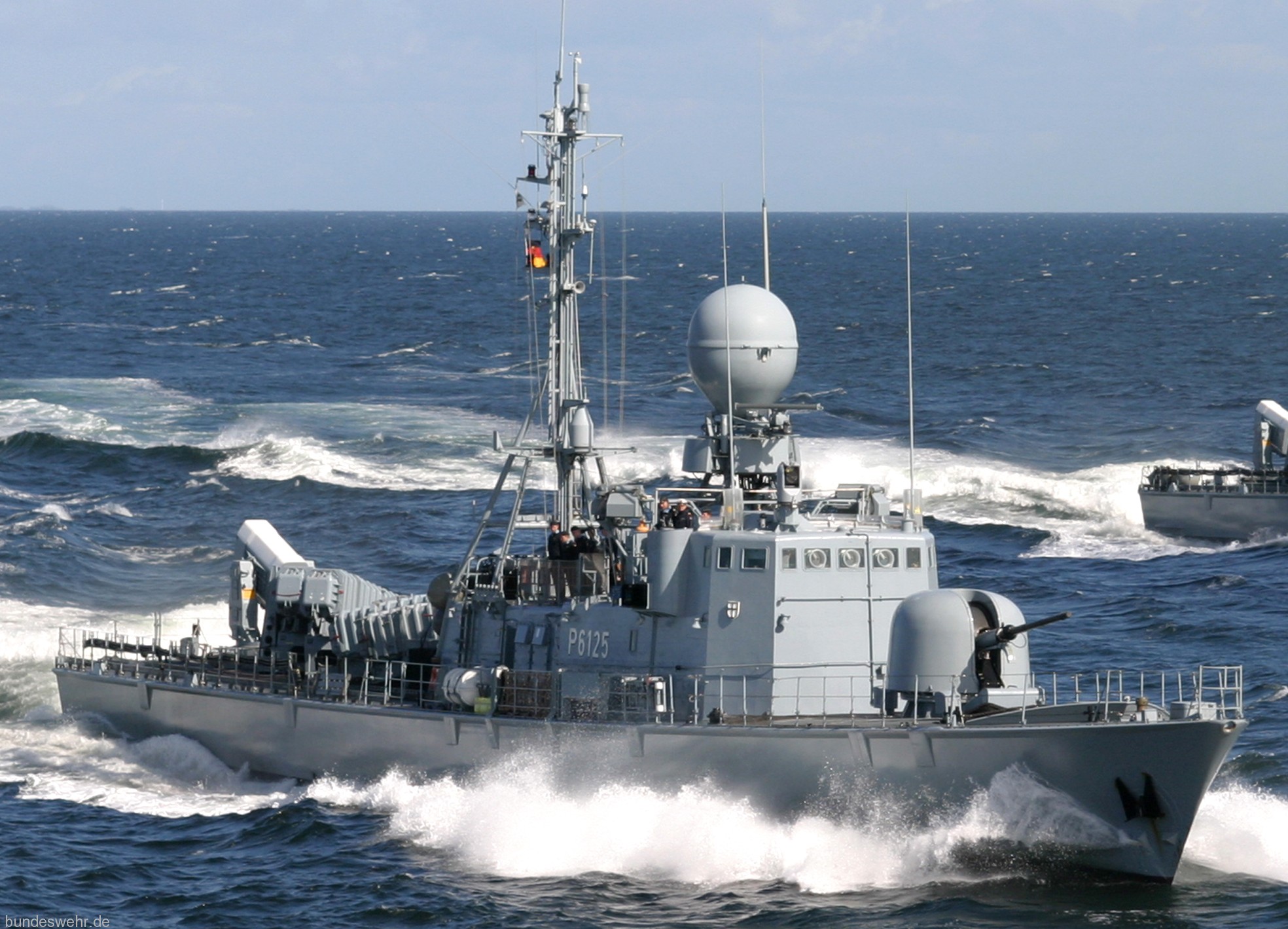

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 04
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 03
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 02
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 08
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 11
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 06
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 07
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 05
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 09 rim-116 ram
P6125 S75 FGS Zobel

p6125 s75 fgs zobel type 143a gepard class fast attack missile craft german navy 10
P6125 S75 FGS Zobel


p6126 s76 fgs frettchen type 143a gepard class fast attack missile craft german navy 03

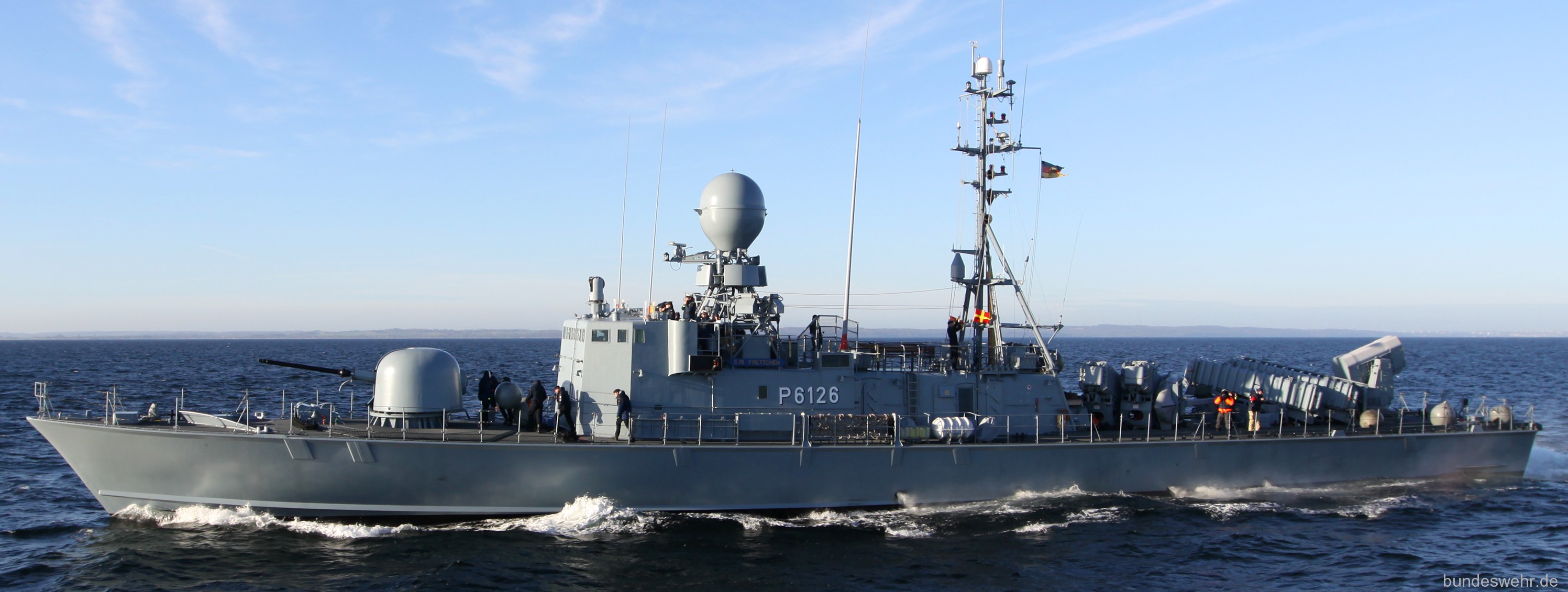

P6126 S76 FGS Frettchen

p6126 s76 fgs frettchen type 143a gepard class fast attack missile craft german navy 08
P6126 S76 FGS Frettchen

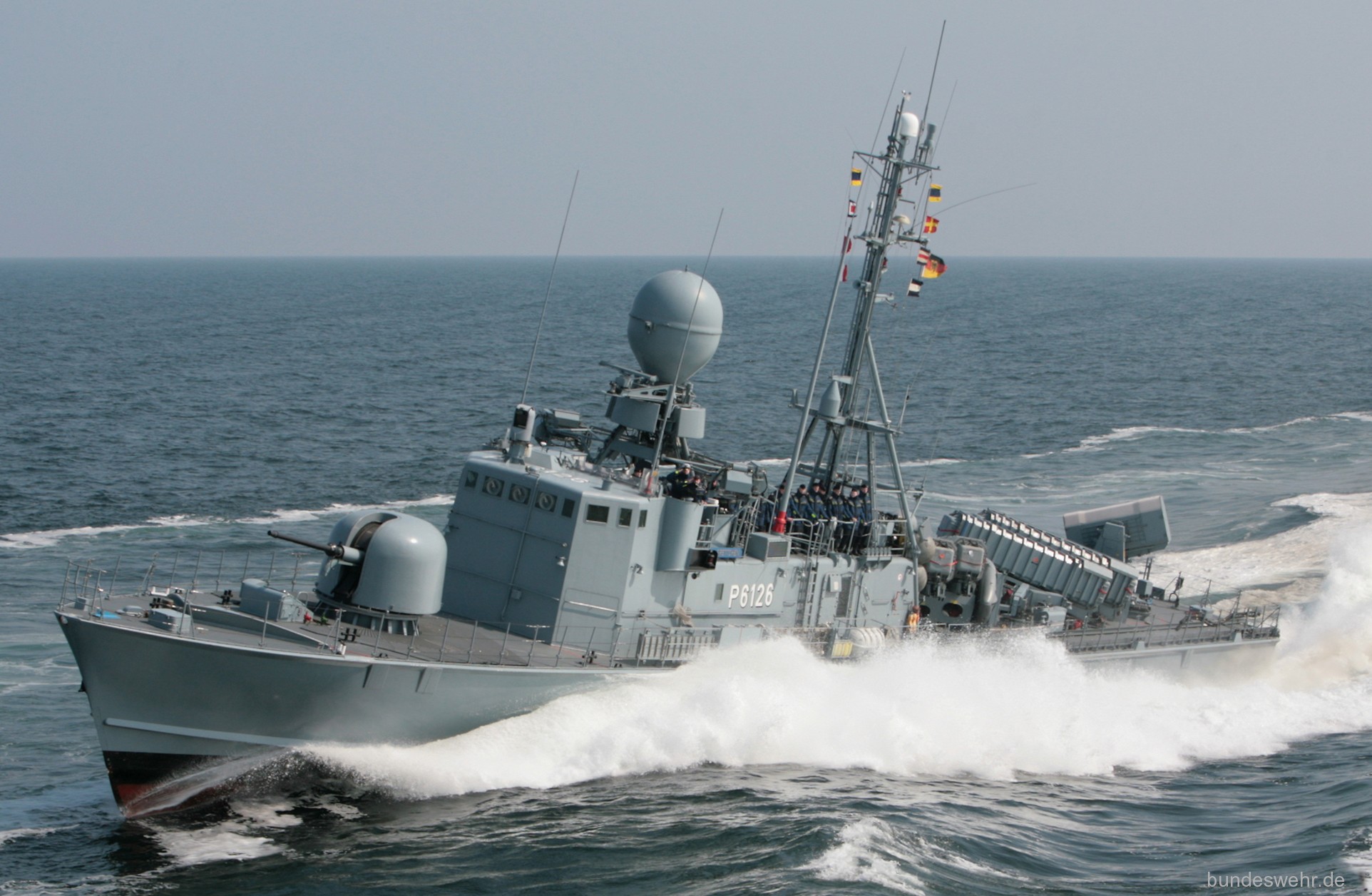

p6126 s76 fgs frettchen type 143a gepard class fast attack missile craft german navy 09
P6126 S76 FGS Frettchen

p6126 s76 fgs frettchen type 143a gepard class fast attack missile craft german navy 06

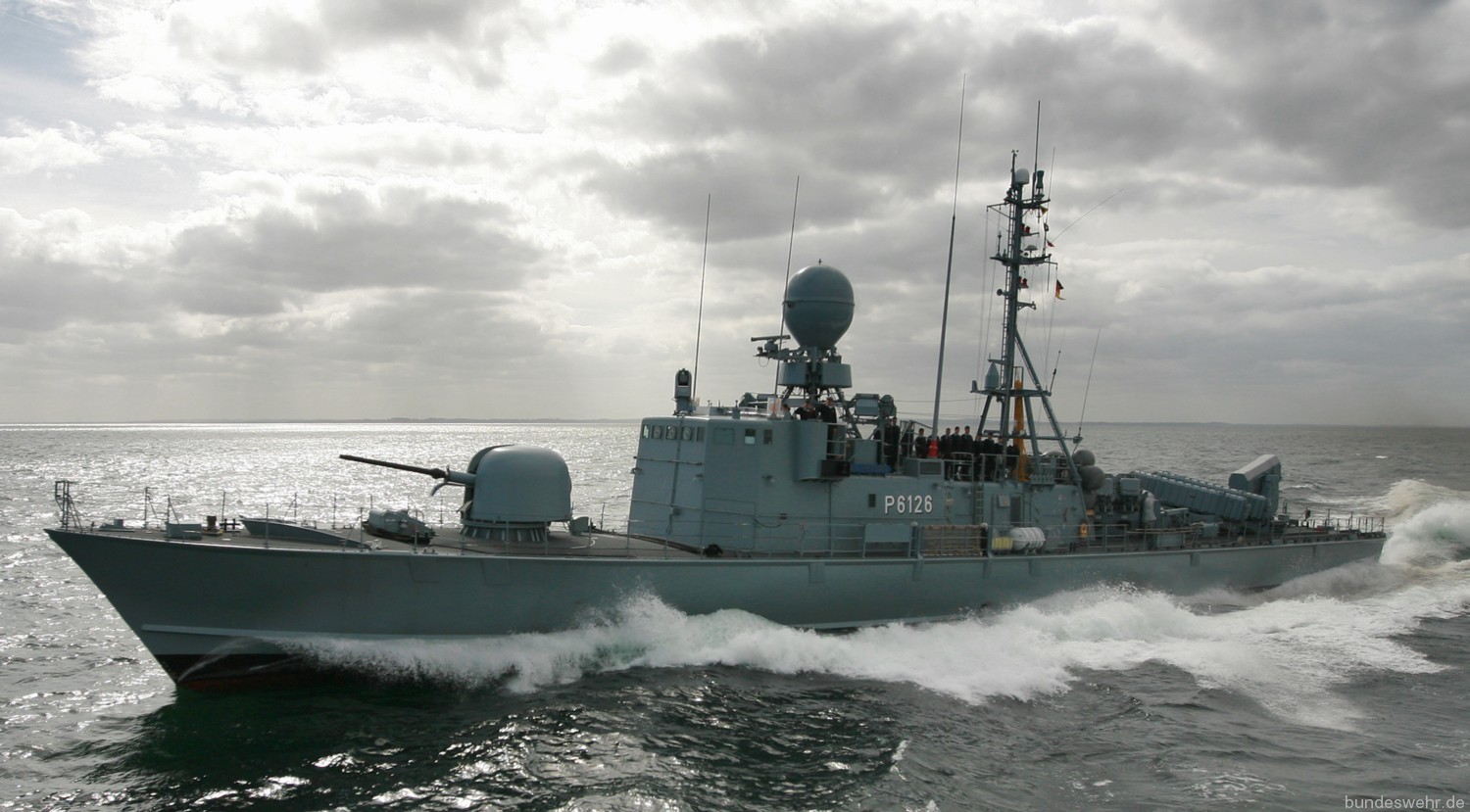

P6126 S76 FGS Frettchen

p6126 s76 fgs frettchen type 143a gepard class fast attack missile craft german navy 04
P6126 S76 FGS Frettchen

p6126 s76 fgs frettchen type 143a gepard class fast attack missile craft german navy 05

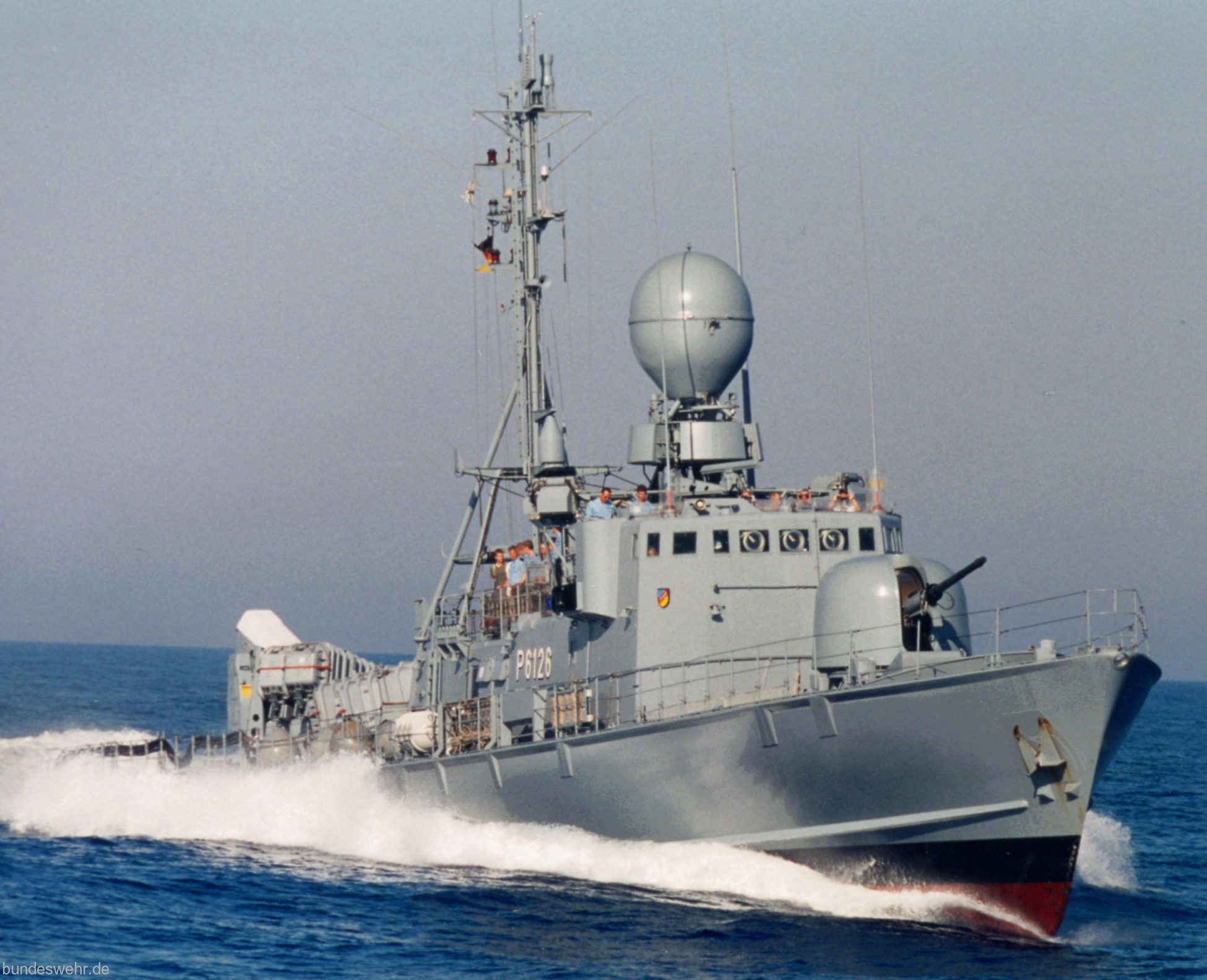

P6126 S76 FGS Frettchen

p6126 s76 fgs frettchen type 143a gepard class fast attack missile craft german navy 02
P6126 S76 FGS Frettchen

p6126 s76 fgs frettchen type 143a gepard class fast attack missile craft german navy 07
P6126 S76 FGS Frettchen


p6127 s77 fgs dachs type 143a gepard class fast attack missile craft german navy 02
P6127 S77 FGS Dachs

p6127 s77 fgs dachs type 143a gepard class fast attack missile craft german navy 03
P6127 S77 FGS Dachs

p6127 s77 fgs dachs type 143a gepard class fast attack missile craft german navy 04
P6127 S77 FGS Dachs


p6128 s78 fgs ozelot type 143a gepard class fast attack missile craft german navy 04
P6128 S78 FGS Ozelot

p6128 s78 fgs ozelot type 143a gepard class fast attack missile craft german navy 02
P6128 S78 FGS Ozelot

p6128 s78 fgs ozelot type 143a gepard class fast attack missile craft german navy 03
P6128 S78 FGS Ozelot

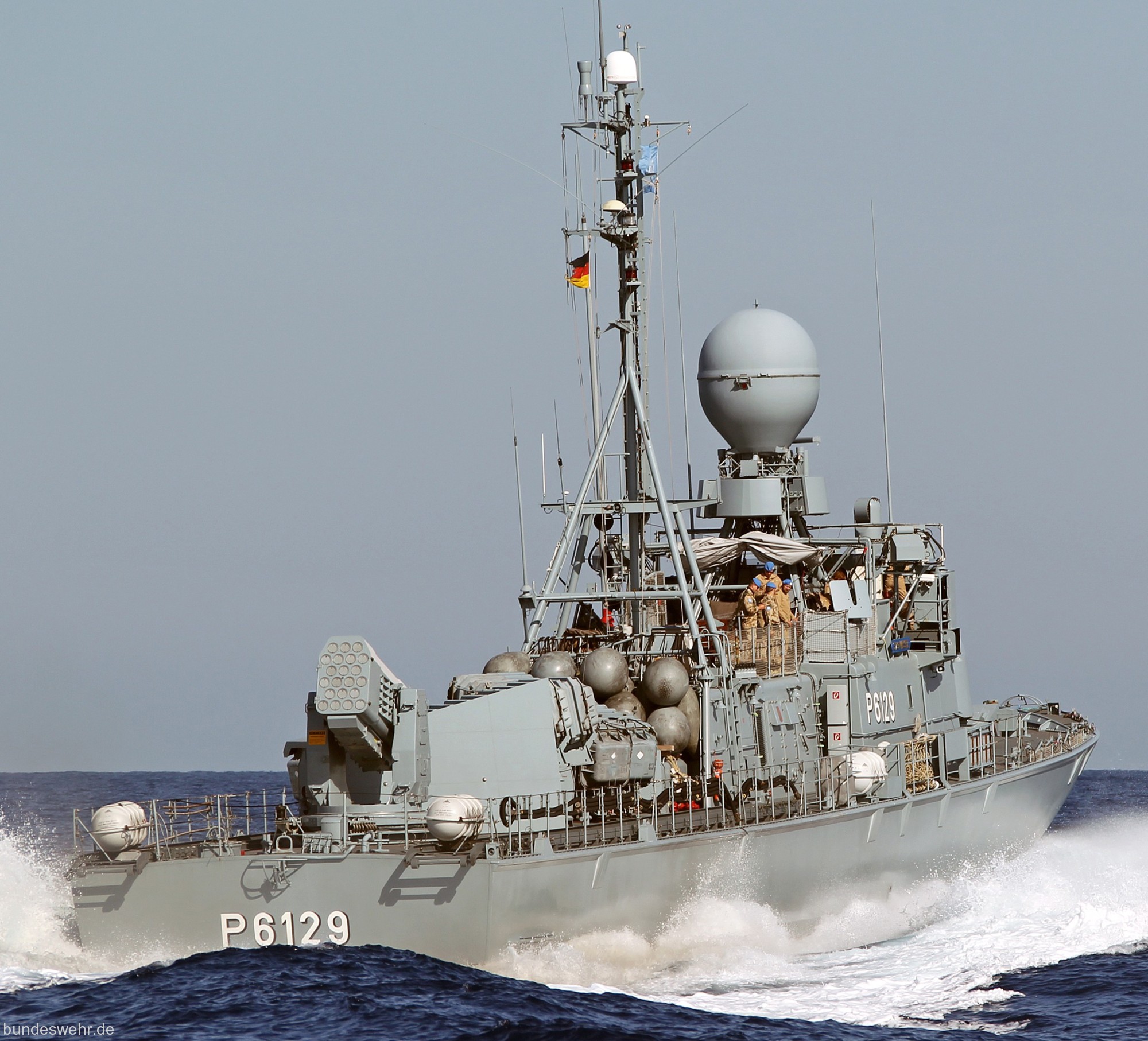

p6129 s79 fgs wiesel type 143a gepard class fast attack missile craft german navy 02
P6129 S79 FGS Wiesel

p6129 s79 fgs wiesel type 143a gepard class fast attack missile craft german navy 07
P6129 S79 FGS Wiesel

p6129 s79 fgs wiesel type 143a gepard class fast attack missile craft german navy 05 london
P6129 S79 FGS Wiesel

p6129 s79 fgs wiesel type 143a gepard class fast attack missile craft german navy 04
P6129 S79 FGS Wiesel

p6129 s79 fgs wiesel type 143a gepard class fast attack missile craft german navy 06
P6129 S79 FGS Wiesel

p6129 s79 fgs wiesel type 143a gepard class fast attack missile craft german navy 03 mk-49 rim-116 ram rolling airframe
P6129 S79 FGS Wiesel

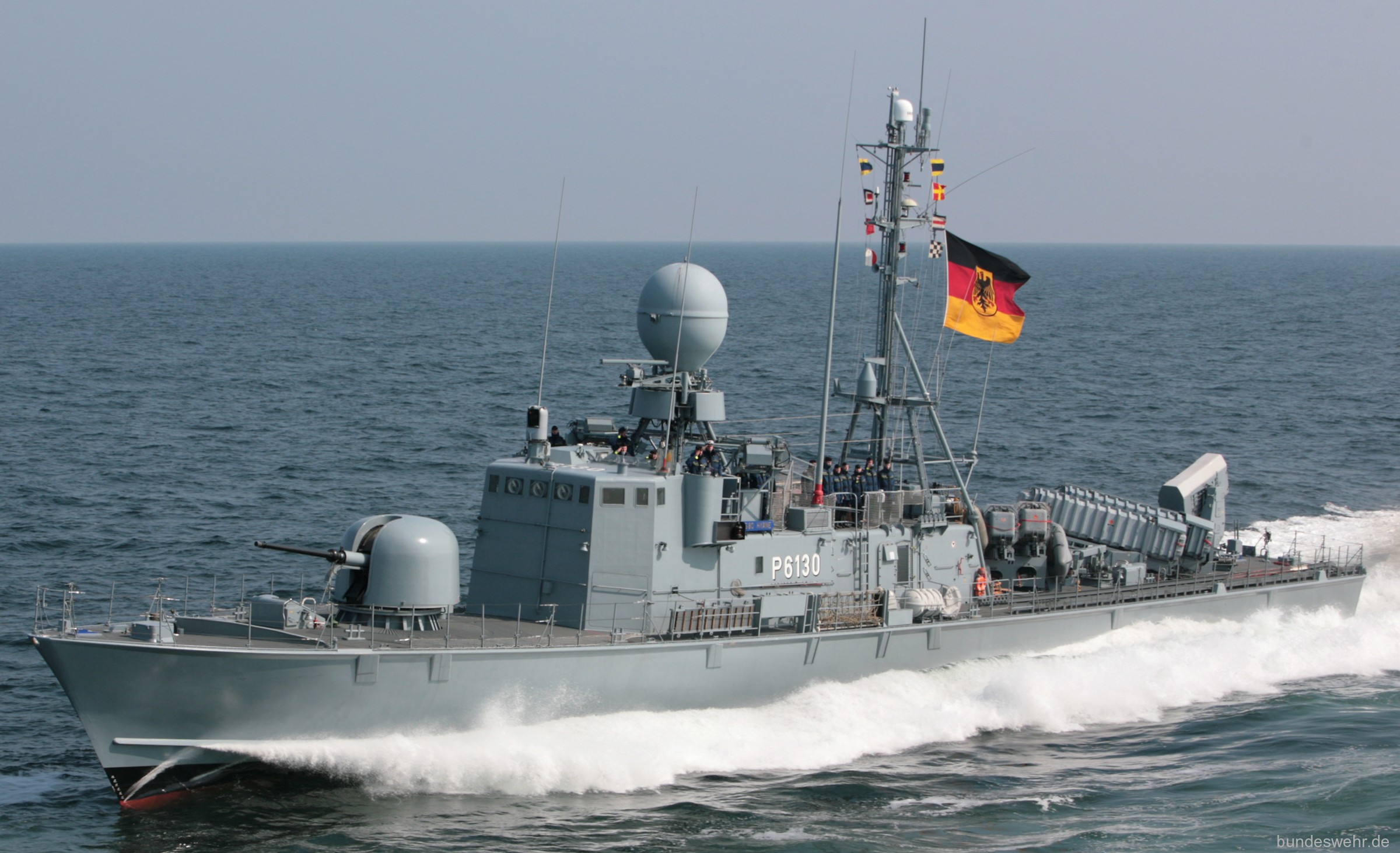

p6130 s80 fgs hyäne type 143a gepard class fast attack missile craft german navy 07
P6130 S80 FGS Hyäne

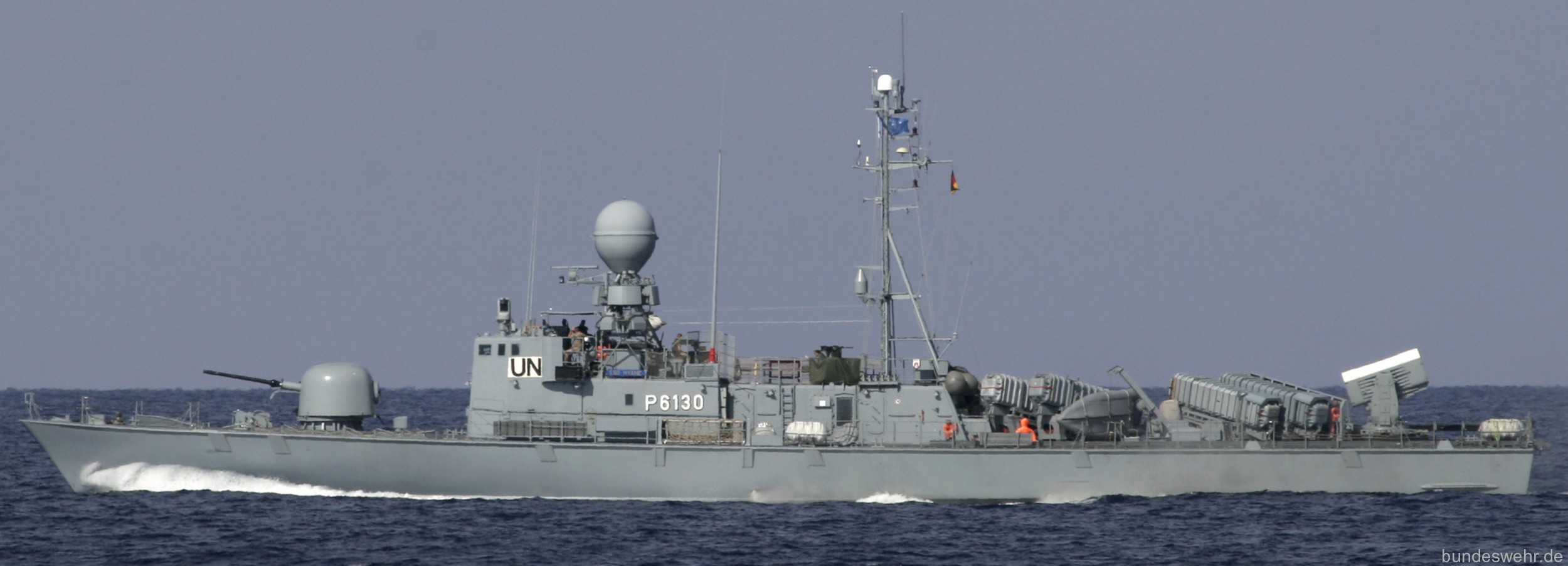

p6130 s80 fgs hyäne type 143a gepard class fast attack missile craft german navy 10
P6130 S80 FGS Hyäne

p6130 s80 fgs hyane type 143a gepard class fast attack missile craft german navy 09
P6130 S80 FGS Hyäne

p6130 s80 fgs hyane type 143a gepard class fast attack missile craft german navy 04
P6130 S80 FGS Hyäne

p6130 s80 fgs hyane type 143a gepard class fast attack missile craft german navy 02
P6130 S80 FGS Hyäne

p6130 s80 fgs hyane type 143a gepard class fast attack missile craft german navy 03
P6130 S80 FGS Hyäne

p6130 s80 fgs hyane type 143a gepard class fast attack missile craft german navy 05
P6130 S80 FGS Hyäne

p6130 s80 fgs hyane type 143a gepard class fast attack missile craft german navy 06

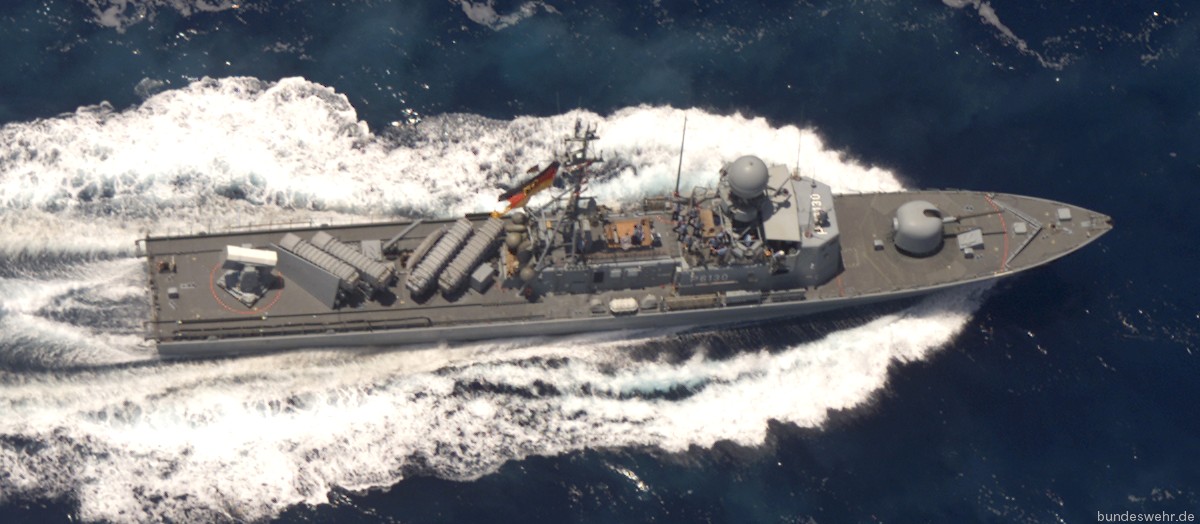

P6130 S80 FGS Hyäne


type 143a gepard class fast attack missile craft facm german navy 03

type 143a gepard class fast attack missile craft facm german navy 02


type 143a gepard class fast attack missile craft facm german navy 04 mm38 exocet ssm
MM38 Exocet SSM missile live firing exercise

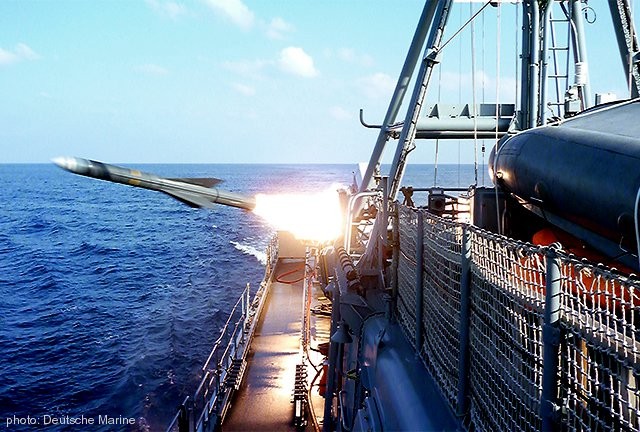

type 143a gepard class fast attack missile craft facm german navy 05 mm38 exocet ssm
MM38 Exocet SSM missile live firing exercise



p6122 s72 fgs puma type 143a gepard class fast attack missile craft german navy patch insignia crest  p6122 s72 fgs puma type 143a gepard class fast attack missile craft german navy patch insignia crest badge 03

p6124 s74 fgs nerz type 143a gepard class fast attack missile craft german navy patch insignia crest  p6127 s77 fgs dachs type 143a gepard class fast attack missile craft german navy patch insignia crestp6129 s79 fgs wiesel type 143a gepard class fast attack missile craft german navy patch insignia crest
