Type 053H1G Jianghu V class Frigate

type 053h1g jianghu v class frigate people's liberation army navy china plan 02x

02/22

Ships:

Unit / Name	Name (Han)	Builder	Launched	Commissioned	STATUS
FF 558 PLANS Beihai	北海	Huangpu	January 20, 1993	May 1993	ACTIVE
FF 560 PLANS Dongguan	东莞	Huangpu	March 1993	October 1993	decommissioned February 2020
FF 561 PLANS Shantou	汕头	Huangpu	?	October 1993	decommissioned February 2020
FF 559 PLANS Foshan	佛山	Huangpu	December 29, 1993	June 1994	ACTIVE
FF 562 PLANS Jiangmen	江门	Huangpu	?	1995	now training ship
FF 563 PLANS Zhaoqing	肇庆	Huangpu	?	1995	now training ship

Specifications:

Builders:
China State Shipbuilding Corporation (CSSC), Huangpu Shipyard, Guangzhou, Guangdong Province, China

Displacement: 1674 tons (standard) / 1960 tons (full load)
Length: 103 meters (337 feet 11 inches)
Beam: 10.8 meters (35 ft 5 in)
Draft: 3.2 meters (10 ft 6 in)
Speed: 26 knots (48 km/h)
Range: 2700 NMI (5000 km)
Complement: 200

Propulsion:
(Diesel)
2 x 12E390VA diesel engines (16000 hp)
2 shafts / 2 propellers

Armament:

2x4 box launchers for YJ-8 / YJ-82 anti-ship missiles (SSM)

2 x Type 79A 100mm twin guns

4 x Type 76 37mm twin AA guns

2 x Type 87 6-tube ASW rocket launchers

4 x Type 64 (BMB-24) depth-charge projectors

2 x depth-charge racks

Aviation:
none

Systems:
Type 360 air/surface search radar
Type 517H-1 (Knife Rest) 2D long-range air search, A-band
Type 352 (Square Tie) fire-control radar (SSM)
Type 343 (Wasp Head) fire control radar (gun)
2 x Type 347G fire control radar for dual 37 mm AA gun
2 x Racal RM-1290 navigation radars, I-band
SJD-5 medium-frequency sonar
SJC-1B reconnaissance sonar
SJX-4 communications sonar
CTC-1629 combat data system (or Chinese copy ZKJ-3A)
Data link: HN-900 (Chinese equivalent of Link 11A/B, to be upgraded)
Communication: SNTI-240 SATCOM
RWD-8 (Jug Pair) intercept EW suite
Type 651A IFF

Type 053H1G (NATO reporting name: Jianghu-V)

Originally an economy class based on the Type 053H1. Six built by the Guangzhou-based Huangpu Shipyard in the 1990s to meet an urgent need for ships by the South Sea Fleet. Incorporated improvements from the Type 053H2, including air-tight cabins, central air conditioning, NBC protection, and integrated combat system. The sonar for Jianghu-V is EH-5A, the latest variant of SJD-5/EH-5/Echo Type 5 family, and it's a highly digitized version. Initially armed with six obsolescent SY-1A in two tripled-box launchers, later upgraded to eight YJ-83 SSM in two four-box launchers.

images

ff-558 plans beihai type 053h1g jianghu v class frigate china people's liberation army navy 02

FF 558 PLANS Beihai

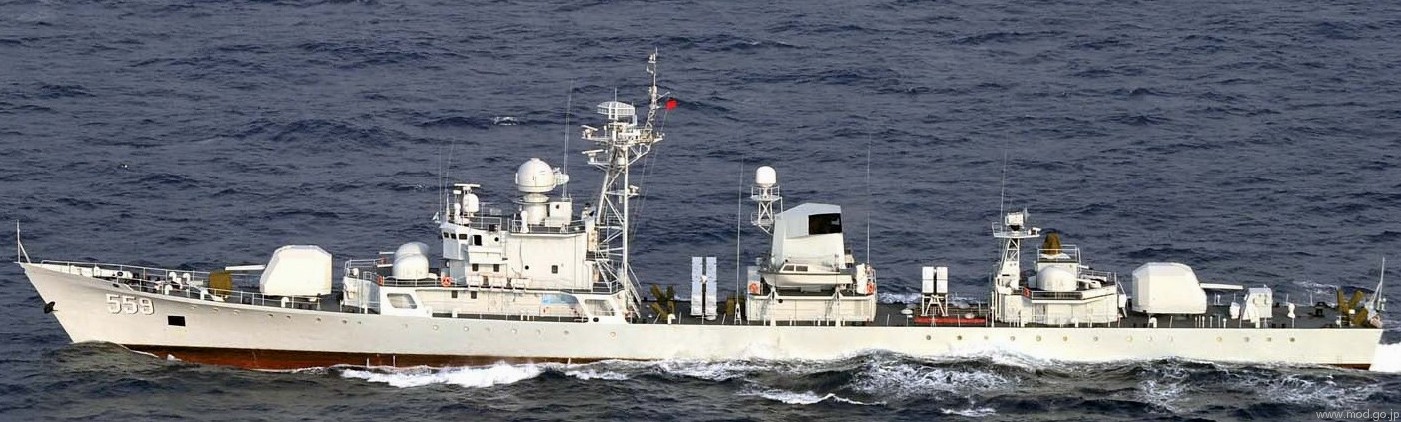

ff-559 plans foshan type 053h1g jianghu v class frigate china people's liberation army navy 02

FF 559 PLANS Foshan
