Royal Canadian
Navy / Marine Royale Canadienne
|
||||||||
|
|
||||||||
|
|
||||||||
Crescent class Destroyer Escort - DD /
DDE
(ex UK C-class DD’s) |
||||||||
|
|
||||||||
|
|
||||||||
|
Ships: |
||||||||
|
unit |
builder |
commissioned |
status |
|||||
|
R 16 / DDE 226 HMCS
Crescent (ex HMS
Crescent) |
John Brown & Co., Clydebank, UK |
1945 |
scrapped in 1971 |
|||||
|
R 20 / DDE 228 HMCS
Crusader (ex HMS
Crusader) |
John Brown & Co., Clydebank, UK |
1945 |
scrapped in 1964 |
|||||
|
|
||||||||
|
NOTES: |
||||||||
|
|
||||||||
|
Specifications: |
|||||||
|
Displacement: |
2575 tons (full load) |
||||||
|
Length: |
110,6 meters |
||||||
|
Beam: |
10,9 meters |
||||||
|
Draft: |
3,2 meters |
||||||
|
Speed: |
36 knots, max. (67 km/h) |
||||||
|
Range: |
4675 NM (8660 km) at 20 knots (37 km/h) |
||||||
|
Crew: |
approx. 220 (later 185) |
||||||
|
Aviation: |
none |
||||||
|
Propulsion: |
2 Parsons geared
steam turbines, 2 Admiralty 3-drum boilers / 2 shafts, 2
propellers / 40000 shp |
||||||
|
Armament: |
as built: 4 x
4.5” (114,3mm) single guns (2 forward, 2 aft) 4 x 40mm/L60 AA guns (2x2) 4 x 20mm AA 2 x 4
21” (533mm) Torpedo Tubes after modification: HMCS Crescent (DD/DDE 226): 1 x 4” twin mounts, forward 1 x 3” twin mount, aft 2 x Bofors 40mm single guns 1 x Mk.10 NC Limbo ASW mortar Mk.43
ASW homing Torpedoes HMCS Crusader (DD/DDE 228): 3 x 4.5” twin mounts (2 forward, 1
aft) 4 x 40mm single guns 1 x 40mm dual gun 4 x 21” Torpedo Tubes |
||||||
|
|
||||||||
|

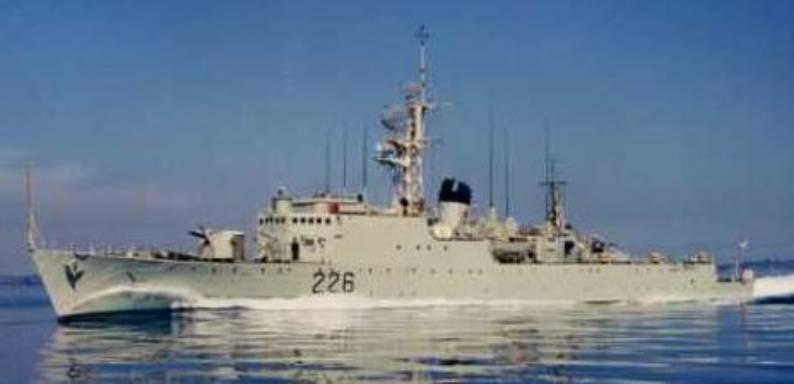

class images: |
||||||||
|
|
||||||||
|
|
||||||||
