Royal
Canadian Navy / Marine Royale Canadienne
|
||||||||
|
|
||||||||
|
|
||||||||
Algonquin class Destroyer - DD
(ex UK V-class DD’s) |
||||||||
|
|
||||||||
|
|
||||||||
|
Ships: |
||||||||
|
unit |
builder |
commissioned |
status |
|||||
|
R 17 / DD 224 HMCS
Algonquin (ex HMS
Valentine) |
John Brown & Co., Clydebank, UK |
1944 |
scrapped in 1971 |
|||||
|
R 64 / DD 225 HMCS
Sioux (ex HMS
Vixen) |
J. Samuel White, Cowes, UK |
1944 |
scrapped in 1965 |
|||||
|
|
||||||||
|
NOTES: |
||||||||
|
|
||||||||
|
Specifications: |
|||||||
|
Displacement: |
1710 tons (full load) |
||||||
|
Length: |
110,6 meters |
||||||
|
Beam: |
10,9 meters |
||||||
|
Draft: |
3,5 meters |
||||||
|
Speed: |
31 knots, max. (57 km/h) |
||||||
|
Range: |
4860 NM (9000 km) at 20 knots (37 km/h) |
||||||
|
Crew: |
250 |
||||||
|
Aviation: |
none |
||||||
|
Propulsion: |
2 Parsons geared
steam turbines, 2 Admiralty 3-drum boilers / 2 shafts, 2
propellers / 40000 shp |
||||||
|
Armament: |
as
built: 4 x 4,7 inch (120mm) QF Mk.IX guns (2x2) 4 x 40mm AA guns 4 x 20mm AA guns 8 x 21 inch (533mm) torpedo tubes after modification: HMCS Algonquin (DD 224): 1 x Mk-33 FMC 3”/50 twin gun, forward 1 x 4” (101mm) twin gun, aft 2 x 40mm Mk.IV AA guns 1 x Mk-10 NC Limbo ASW Mortar ? x torpedo tubes for Mk-43 Torpedoes HMCS Sioux (DD 225): 4 x 4,7 inch (120mm) QF Mk.IX guns (2x2) 6 x 40mm AA guns 4 x 21 inch (533mm) torpedo tubes 2 x Squid triple ASW mortars |
||||||
|
|
||||||||
|

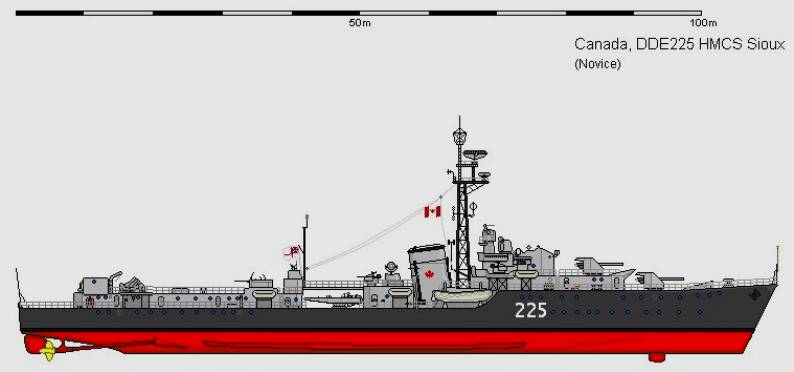

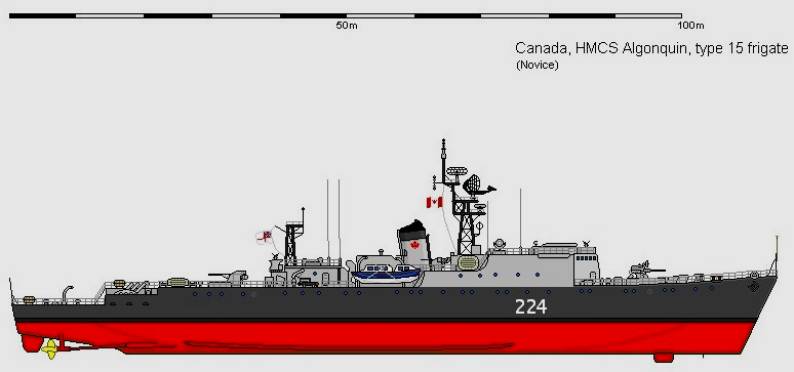

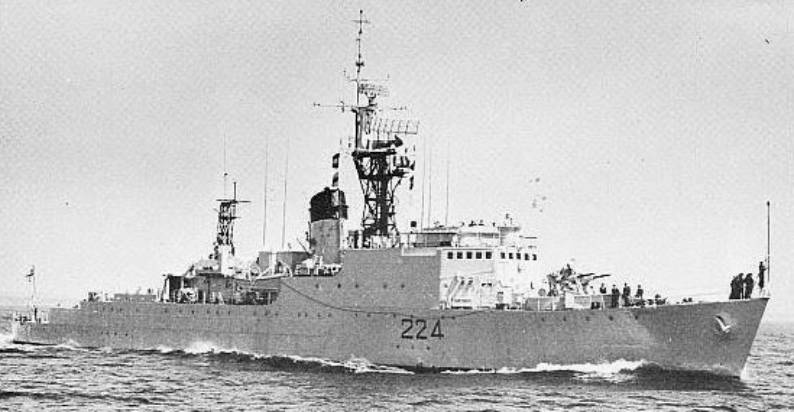

class images: |
||||||||
|
|
||||||||
|
|
||||||||
